Brass 90° BSP Female Elbow Barbed Hose Tail Fittings — Reliable Right-Angle Connections for Fluid & Air Lines

Routing a hose around a tight corner without kinking, leaking, or losing pressure is one of the most frustrating challenges in plumbing, pneumatic, and irrigation work. Whether you're a professional plumber, a workshop technician, or a hands-on DIYer, these brass 90° BSP female elbow barbed hose tail fittings give you a clean, leak-resistant right-angle transition between threaded ports and flexible hose — no special tools required.

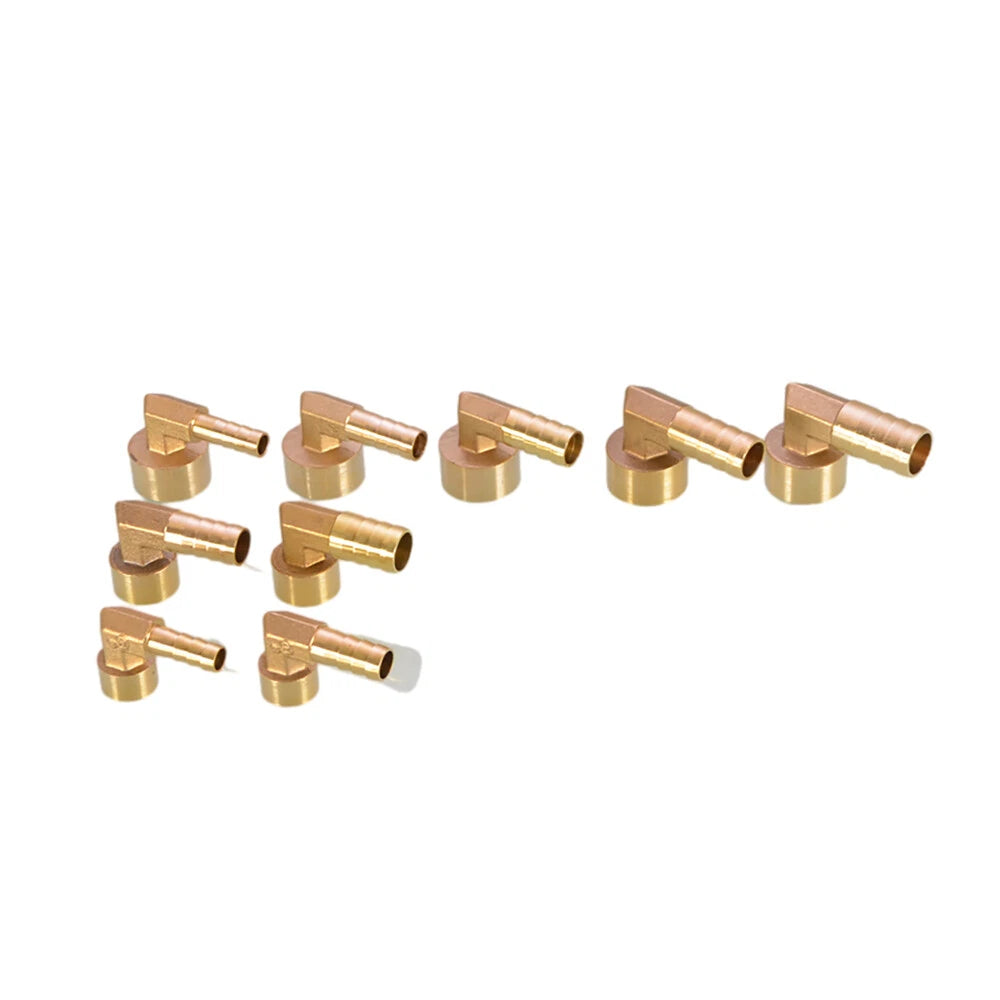

Each fitting is machined from solid brass and features a BSP (BSPP / G-thread) parallel female thread on one end and a ribbed barbed hose tail on the other. Available in three thread sizes — 1/4", 3/8", and 1/2" BSP — with barb lengths ranging from 8 mm (≈5/16") to 16 mm (≈5/8"). Order as a single piece or in multi-packs of 2, 3, 5, or 10 to cover your whole project.

Typical applications include compressed air line connections in workshops, garden irrigation and water supply fittings where space is limited, fuel and oil line routing in small engines, and pneumatic tool hookups requiring a 90° hose exit. The 90° elbow profile is especially useful when a straight fitting would cause hose stress or obstruct adjacent components.

🔗 Thread Compatibility: BSP Parallel Female (BSPP / G-thread) — 1/4", 3/8", 1/2". Not directly compatible with NPT taper threads without an adapter. Confirm your port standard before ordering.

✅ Key Features of These Brass 90° BSP Barbed Hose Tail Elbow Fittings

  • 🔩90° Elbow Design — The right-angle body routes hose away from threaded ports in confined spaces, reducing hose kinking and mechanical stress on connections in tight plumbing or pneumatic layouts.
  • 🪛BSP Parallel Female Thread — Machined to BSPP (G-thread) standards for consistent engagement with BSP male ports on valves, manifolds, compressors, and pumps commonly found in US and international equipment.
  • 🌊Ribbed Barbed Hose Tail — The stepped barb profile grips the inside of flexible hose securely, resisting pull-out under pressure. Use with a hose clamp on pressurized lines for a fully leak-free barbed hose connection.
  • 🟡Solid Brass Construction — Machined from brass for natural corrosion resistance, durability in wet environments, and compatibility with air, water, oils, and many fuels — a dependable material for long-service fluid fittings.
  • 📐Multiple Size Options — Choose from 1/4", 3/8", or 1/2" BSP thread with barb lengths from 8 mm to 16 mm, so you can match the fitting precisely to your hose ID and port size without adapters or reducers.
  • 📦Flexible Quantity Packs — Available in 1, 2, 3, 5, or 10-piece packs, making it easy to stock up for multi-point installations or keep spares on hand for maintenance without overpaying for bulk quantities you don't need.

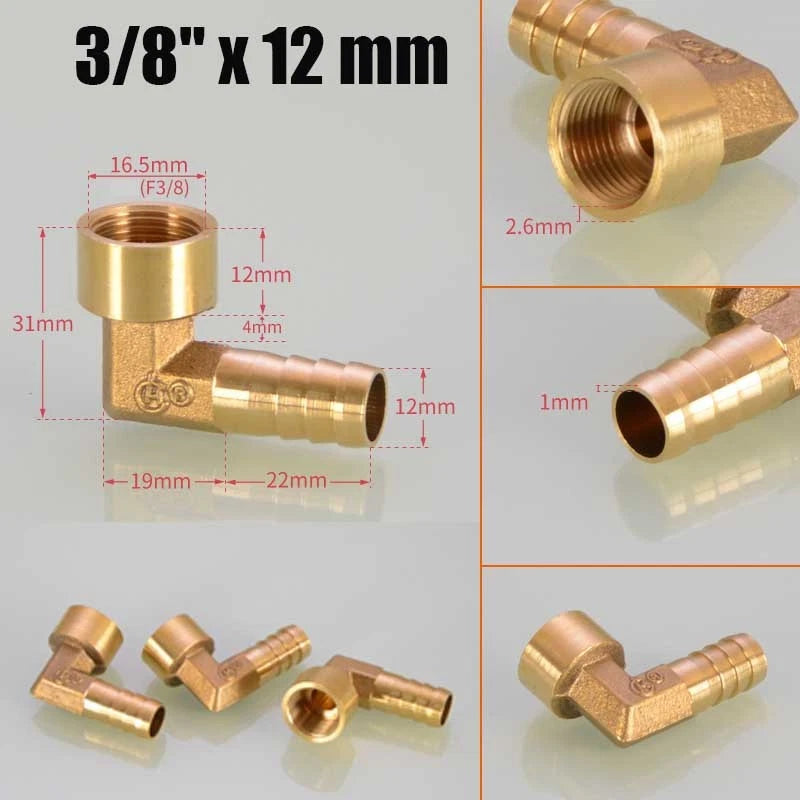

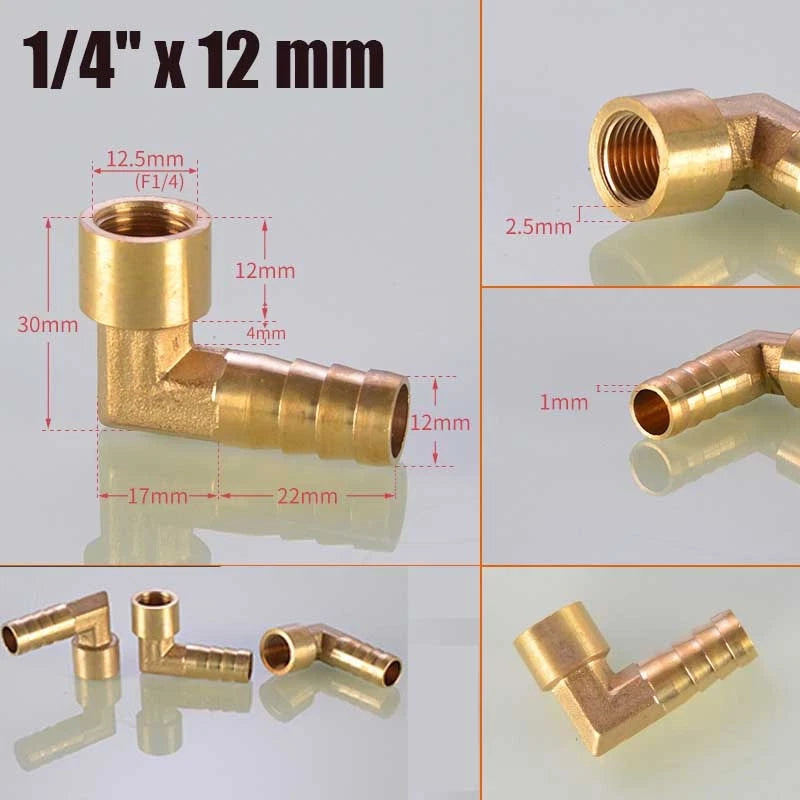

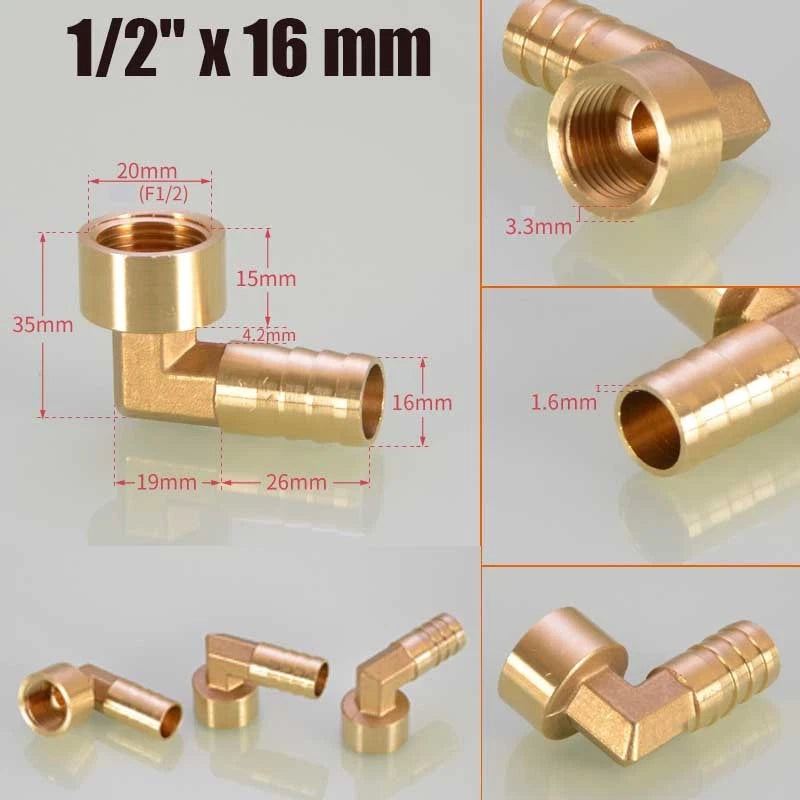

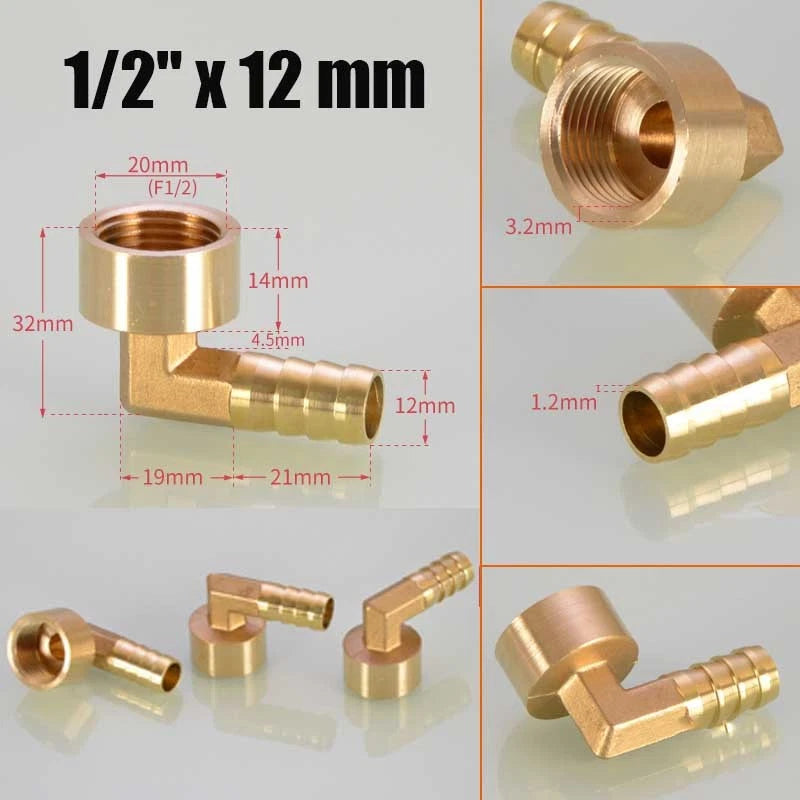

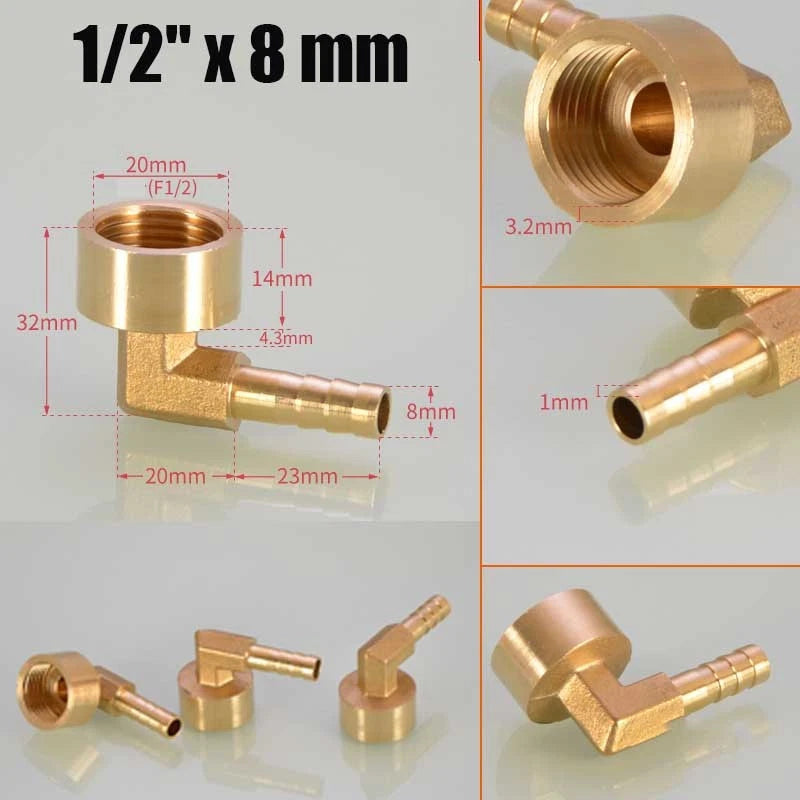

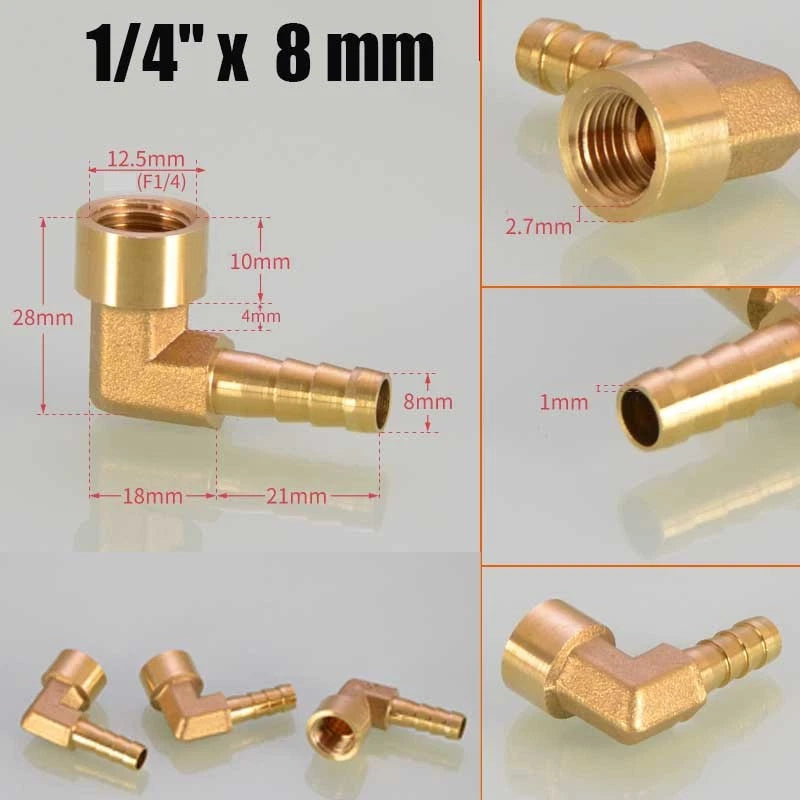

📐 Technical Specifications — Brass 90° BSP Female Elbow Barbed Hose Tail

Product Type 90° Elbow Hose Tail Fitting
Thread Type BSP Parallel Female (BSPP / G-thread)

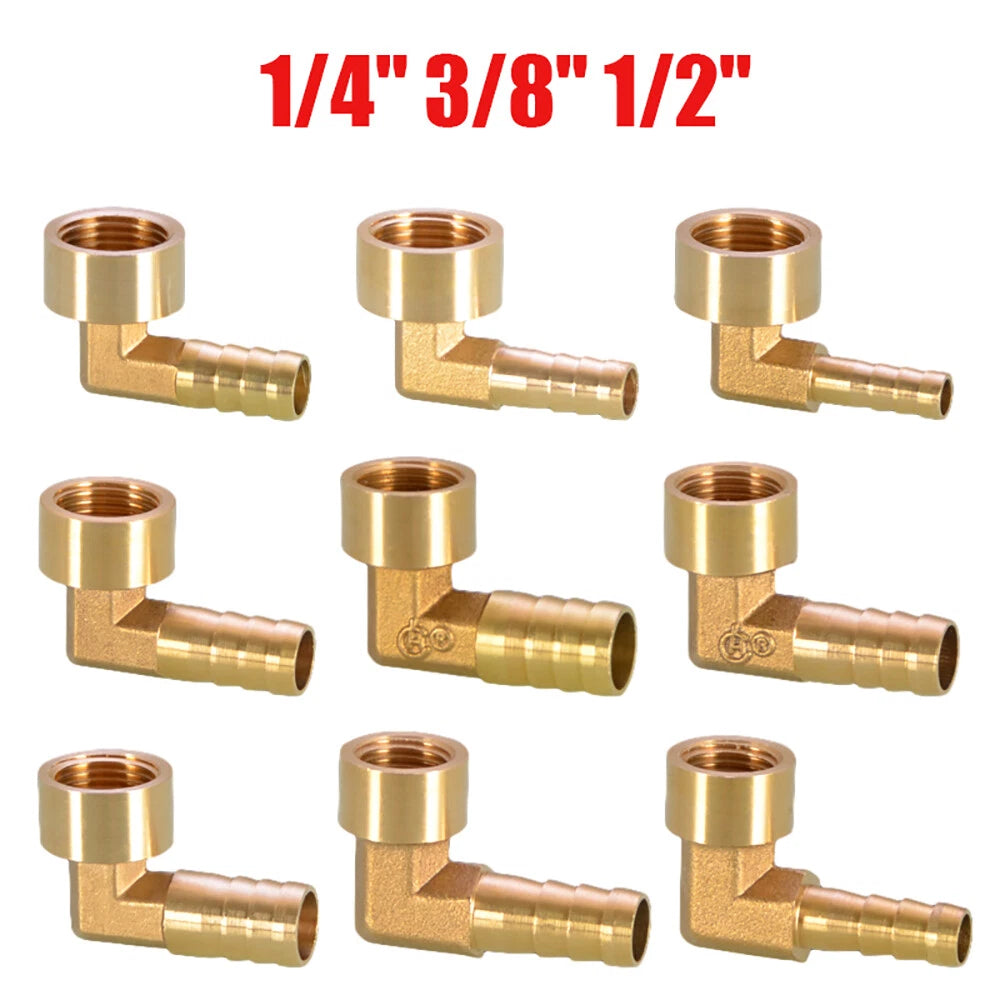

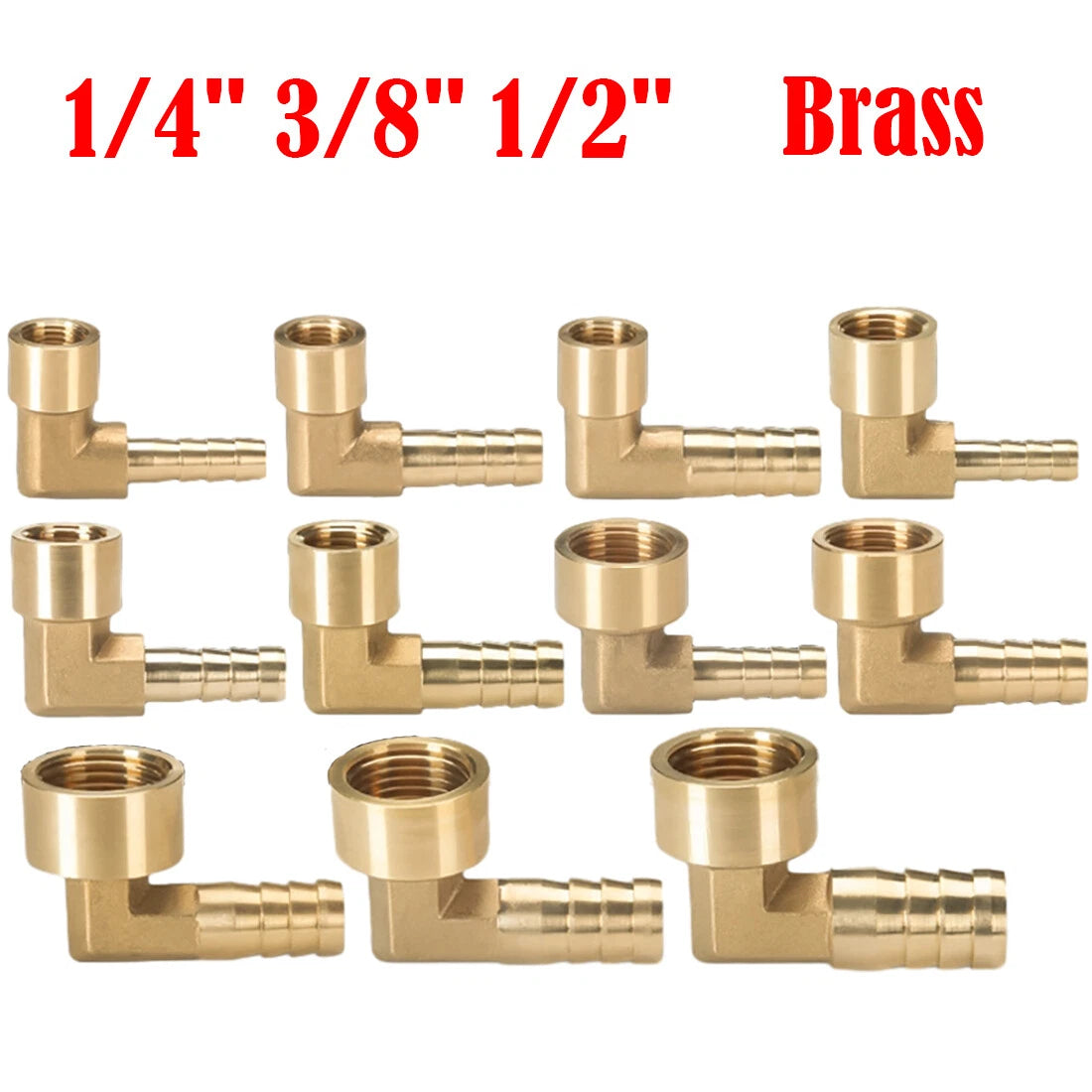

Available Thread Sizes 1/4" BSP, 3/8" BSP, 1/2" BSP

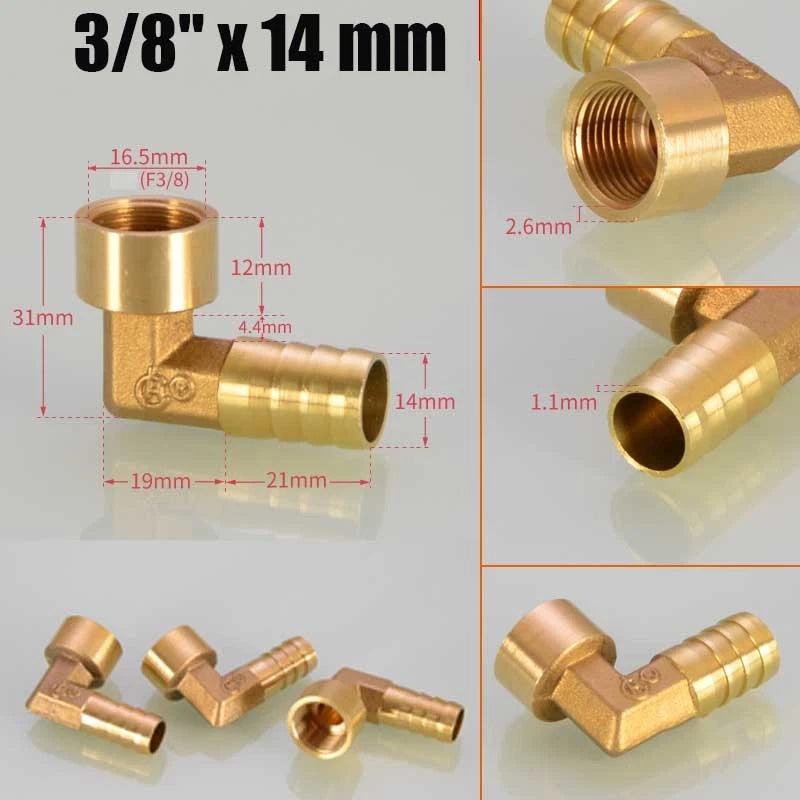

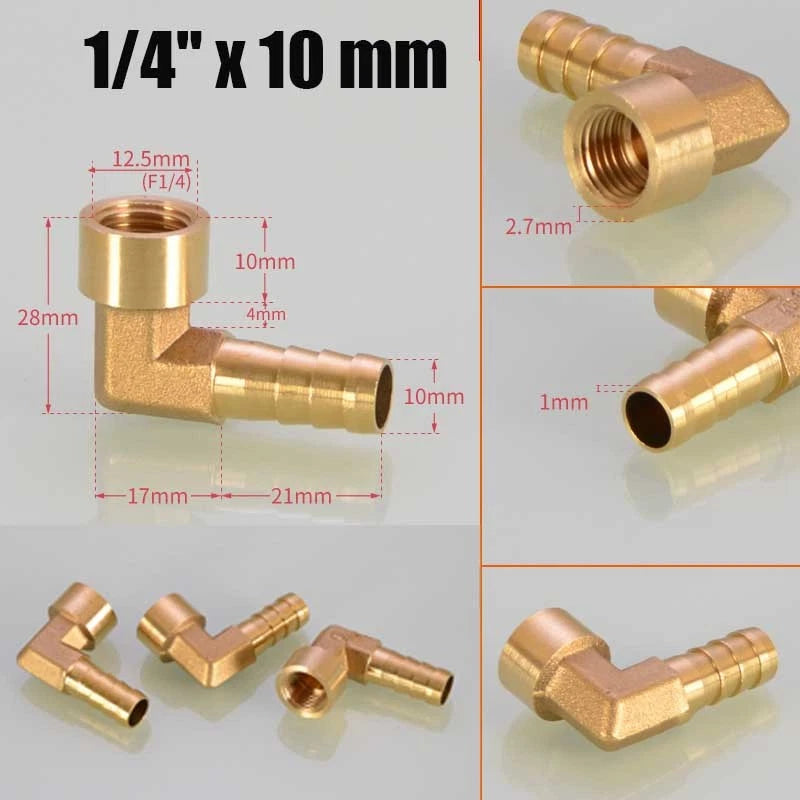

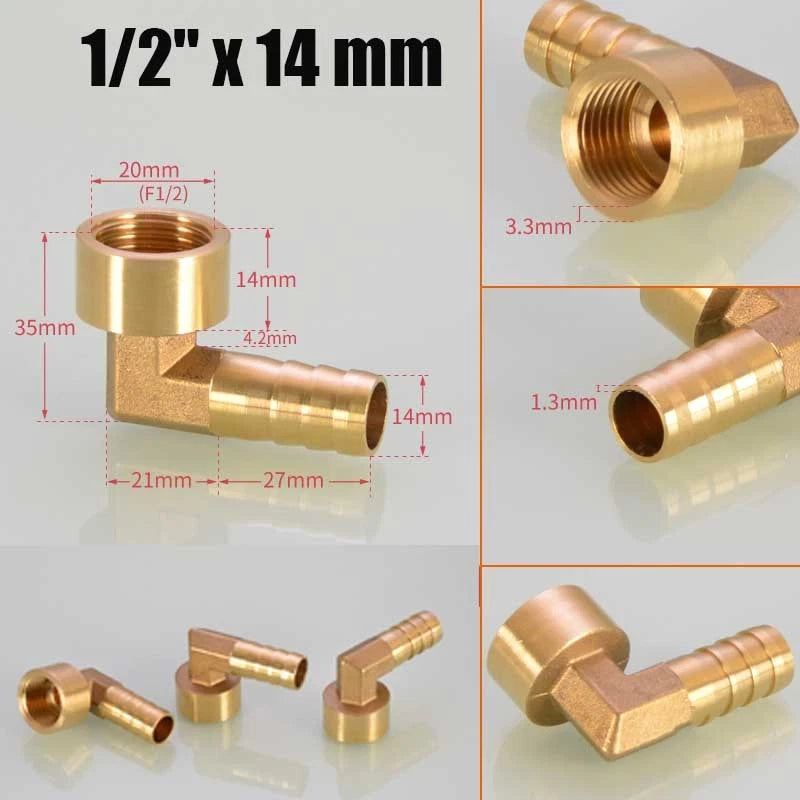

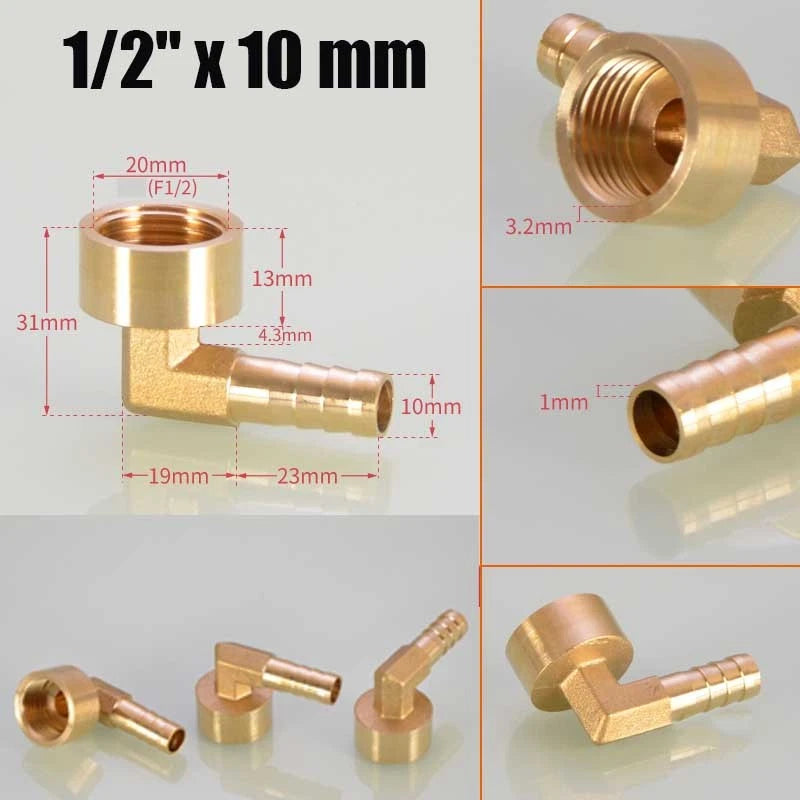

Barb Length Options 8 mm (≈5/16"), 10 mm (≈3/8"), 12 mm (≈1/2"), 14 mm (≈9/16"), 16 mm (≈5/8")
Elbow Angle 90°
Material Brass
Finish Natural brass (uncoated)
Compatible Media Air, water, oil, fuel (confirm for specific chemicals)
Typical Working Pressure See variant options — generally up to 150–200 PSI for standard brass fittings; confirm for your system
Sealing Method Face seal / bonded washer (BSPP); hose clamp recommended for barb side under pressure
Pack Quantities 1, 2, 3, 5, or 10 pieces per order
Country of Origin Contact us to confirm
⚠️ Note: BSP parallel (BSPP) threads require a bonded seal washer or face seal for a leak-free joint — thread tape alone on the thread flanks is not sufficient. Always verify thread standard compatibility with your equipment before installation.

❓ Frequently Asked Questions

How do I choose the right hose barb length for my application?

Match the barb length to your hose's inner diameter and wall thickness. Generally, a longer barb — 12–16 mm (≈1/2"–5/8") — provides a more secure grip on thicker-walled hoses, while shorter barbs — 8–10 mm (≈5/16"–3/8") — suit lighter tubing. When in doubt, size up for a tighter seal, and always use a hose clamp on pressurized lines.

What thread standard does this fitting use — BSP or NPT?

These fittings use BSP Parallel Female threads (also called BSPP or G-threads). BSP and NPT are not interchangeable — NPT threads are tapered while BSPP threads are parallel. If your equipment has NPT ports, you will need a BSP-to-NPT adapter. Check your equipment's port markings or manual to confirm the thread standard before ordering.

Can these fittings be used outdoors or in high-humidity environments?

Yes. Brass is naturally corrosion-resistant and generally performs well in outdoor, humid, and mildly corrosive environments. It is widely used in garden irrigation, outdoor pneumatic systems, and marine-adjacent applications. For highly aggressive media or prolonged saltwater immersion, additional protective measures or a different alloy may be advisable.

What is the maximum pressure these fittings can handle?

Brass BSP fittings of this type typically handle working pressures up to 150–200 PSI depending on size, hose type, and whether a hose clamp is used. Always verify the pressure rating against your specific system requirements. For high-pressure pneumatic or hydraulic applications, consult a qualified engineer.

Are these fittings compatible with air, water, fuel, and oil lines?

Brass is compatible with compressed air, water, oils, and many fuels including diesel and gasoline. It is generally not recommended for acetylene gas or certain aggressive chemicals such as strong acids or ammonia-based fluids. Always confirm media compatibility with your hose material and system specifications before installation.

Do I need thread sealant or PTFE tape with BSP parallel fittings?

BSP parallel (BSPP) threads seal on the face of the fitting, not on the thread flanks. This means you need a bonded seal washer (also called a dowty washer) or an O-ring face seal to achieve a leak-free joint. PTFE tape on the threads alone is generally not sufficient for BSPP connections. For the barb side, use a hose clamp on any pressurized line.

What hose inner diameter does each barb size fit?

For a secure push-fit connection, the hose inner diameter (ID) should typically be 1–2 mm smaller than the barb's outer diameter so the hose stretches slightly over the barb for a tight grip. The exact barb OD varies by variant. Contact us to confirm the barb OD for your chosen size and length combination before purchasing.

🛒 Select your thread size, barb length, and quantity above, then add to cart — ships from our US warehouse.
