Brass Hose Barb Elbow Fittings — Reliable 90° Male BSP to Metric Barb Connections

Routing a hose around a tight corner in a plumbing, pneumatic, or gas line often means fighting with kinks, leaks, and mismatched thread standards. Whether you're a DIYer retrofitting a workshop air system or a tradesperson connecting irrigation lines, these brass hose barb elbow fittings give you a clean 90° turn without the headache — in a wide range of BSP thread and barb sizes to match your exact setup.

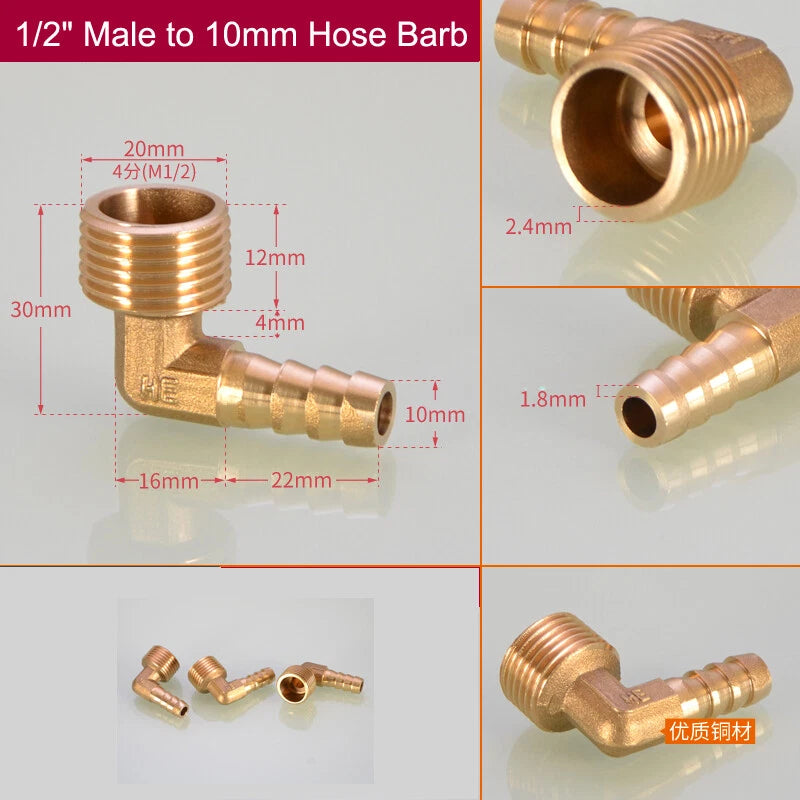

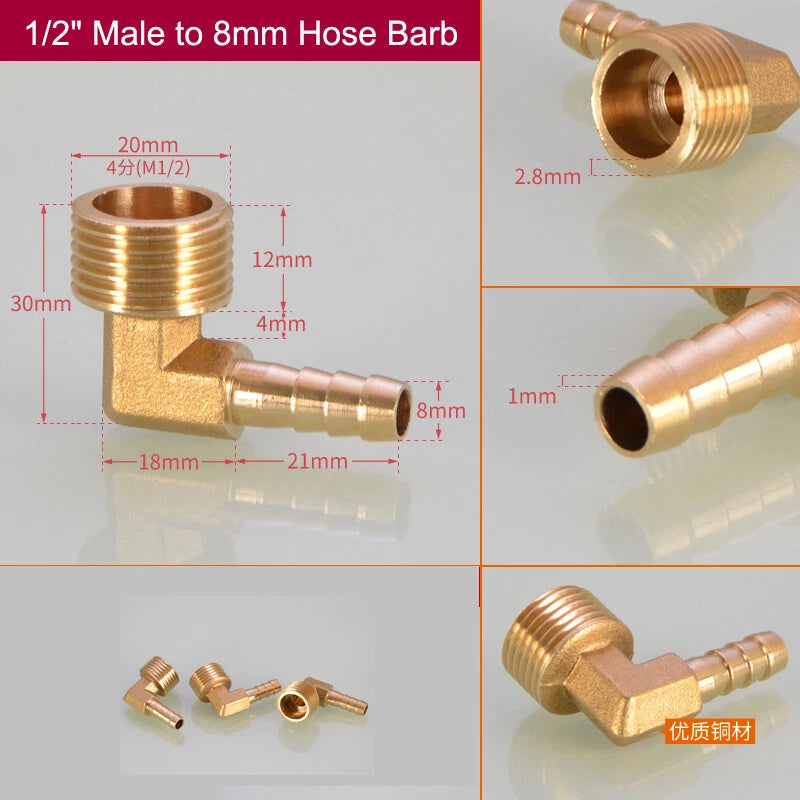

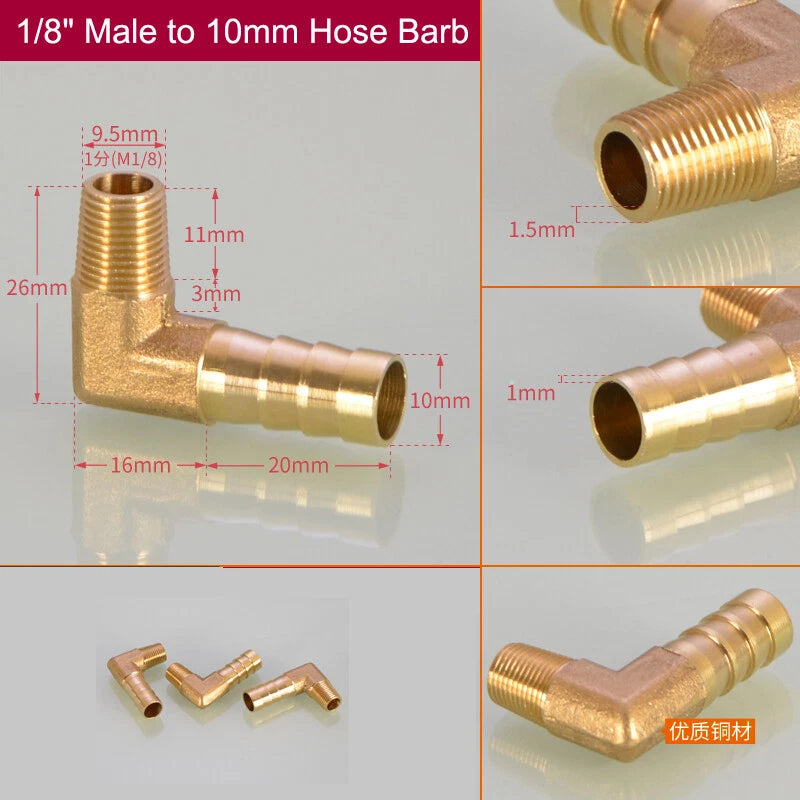

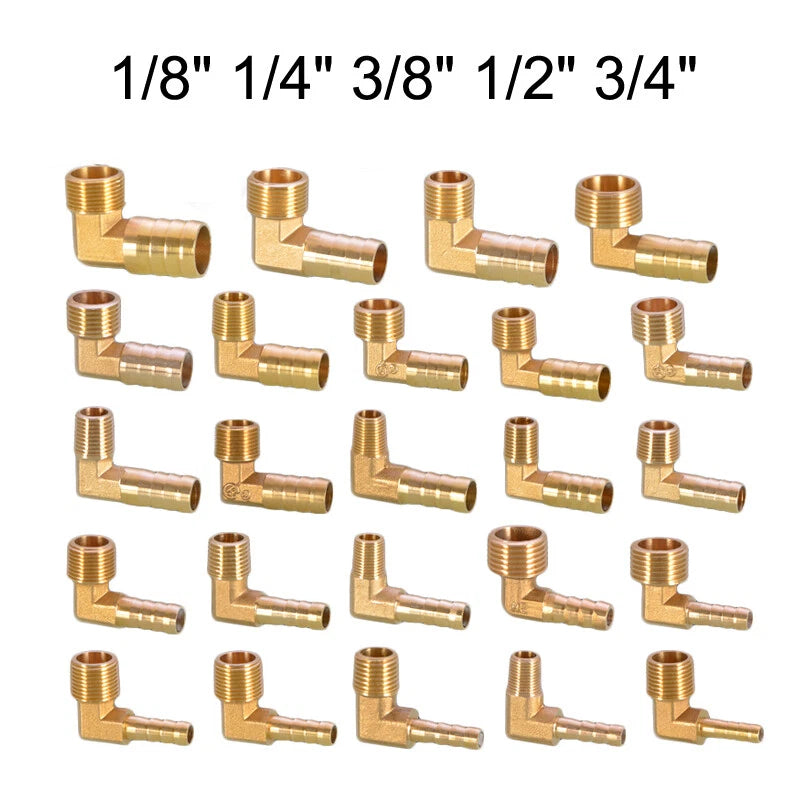

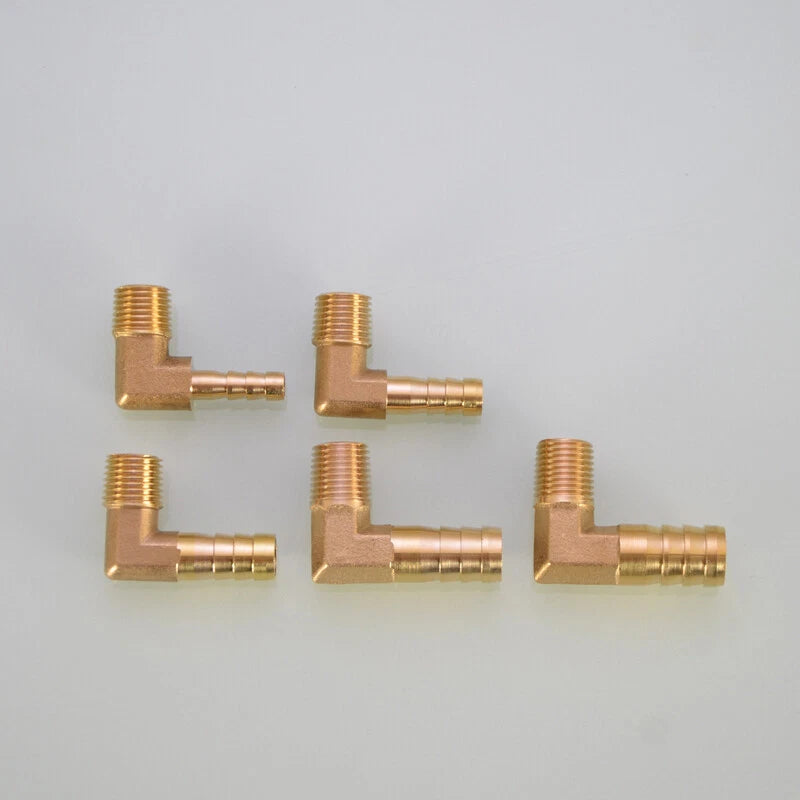

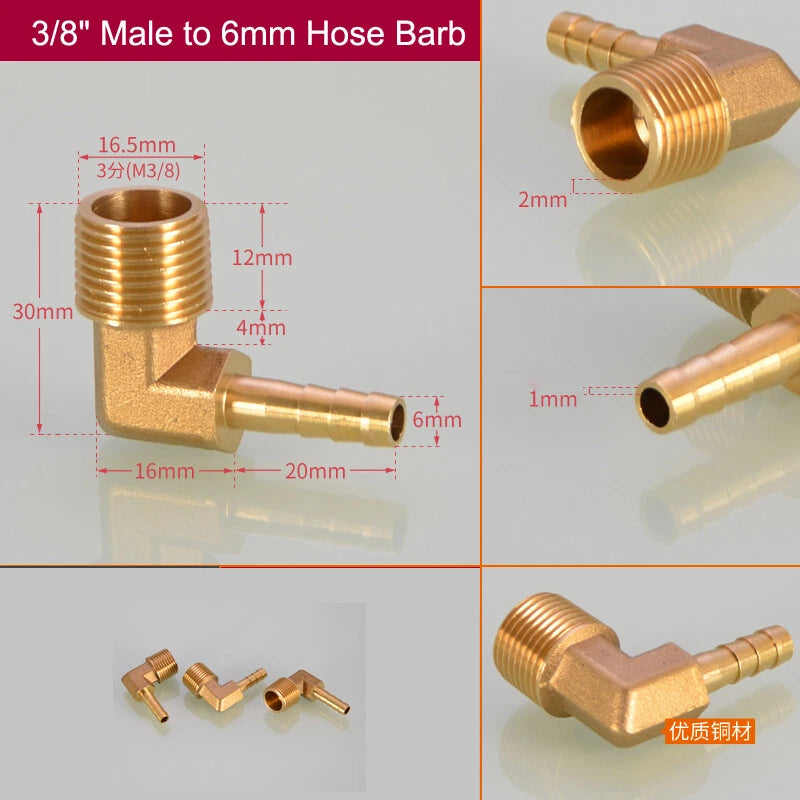

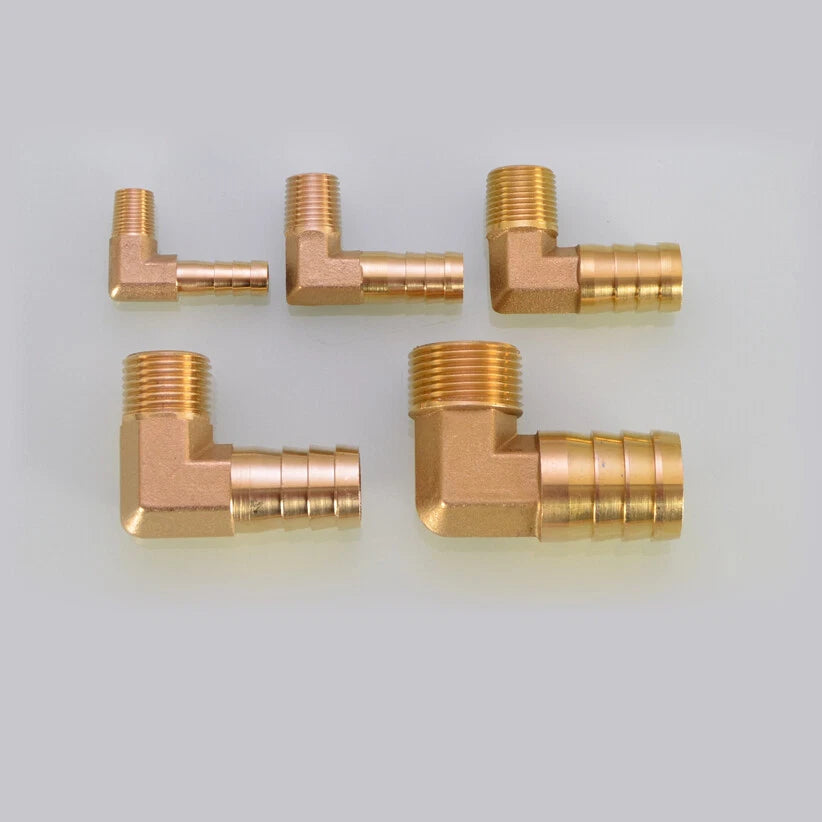

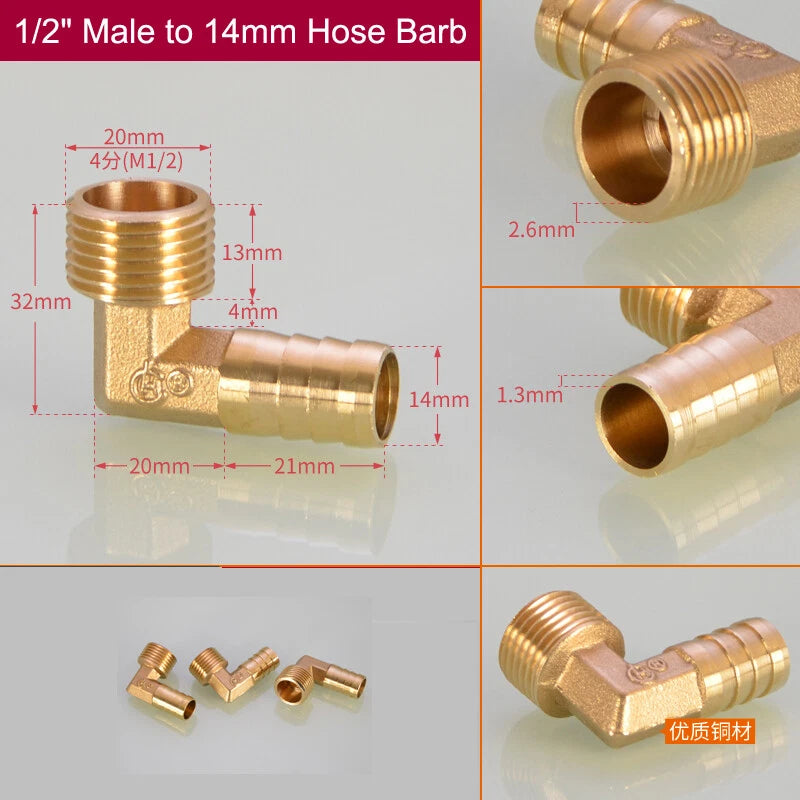

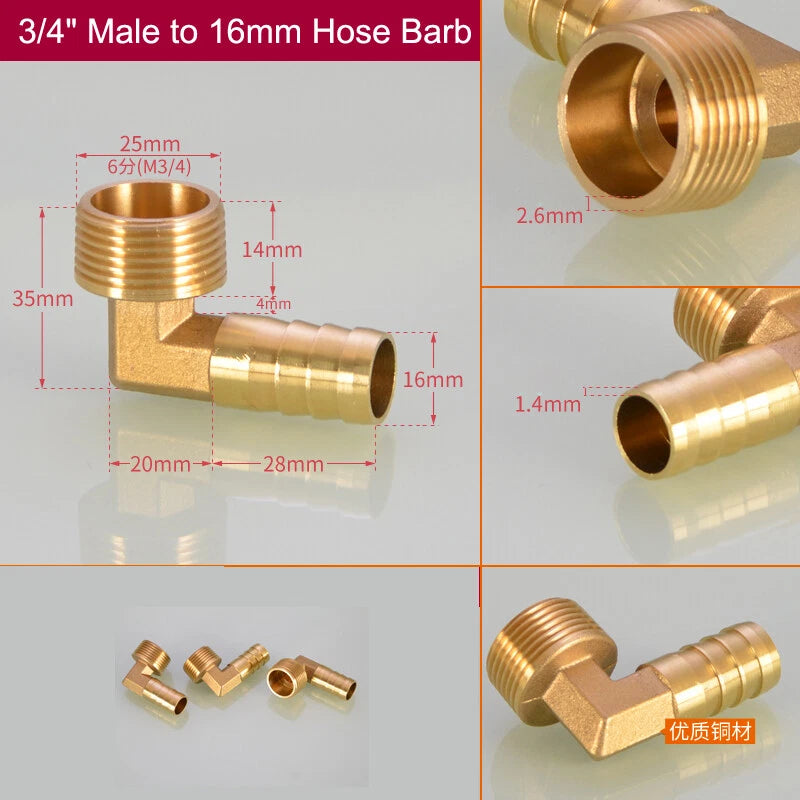

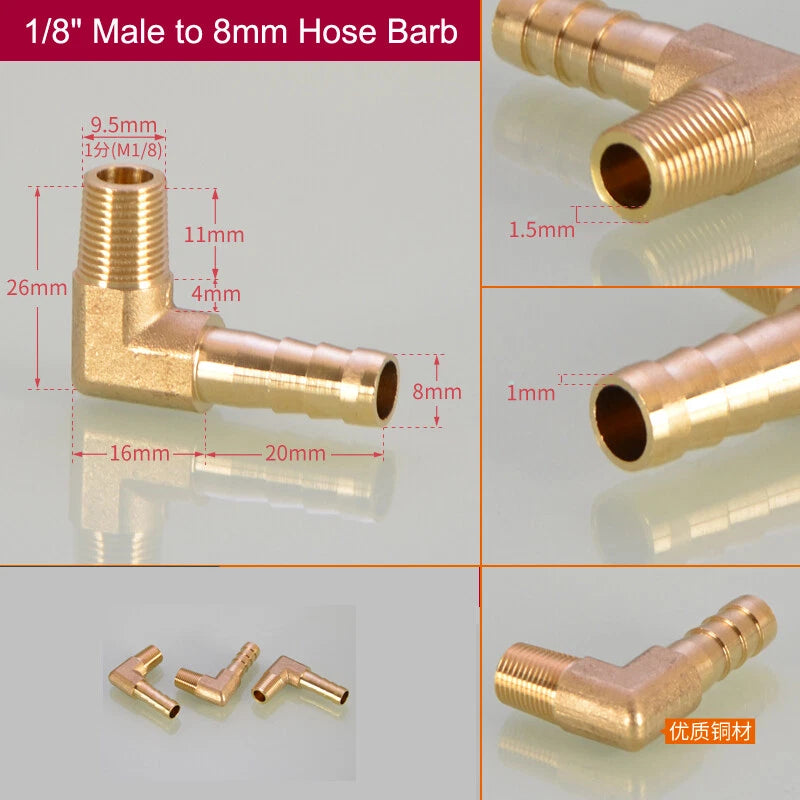

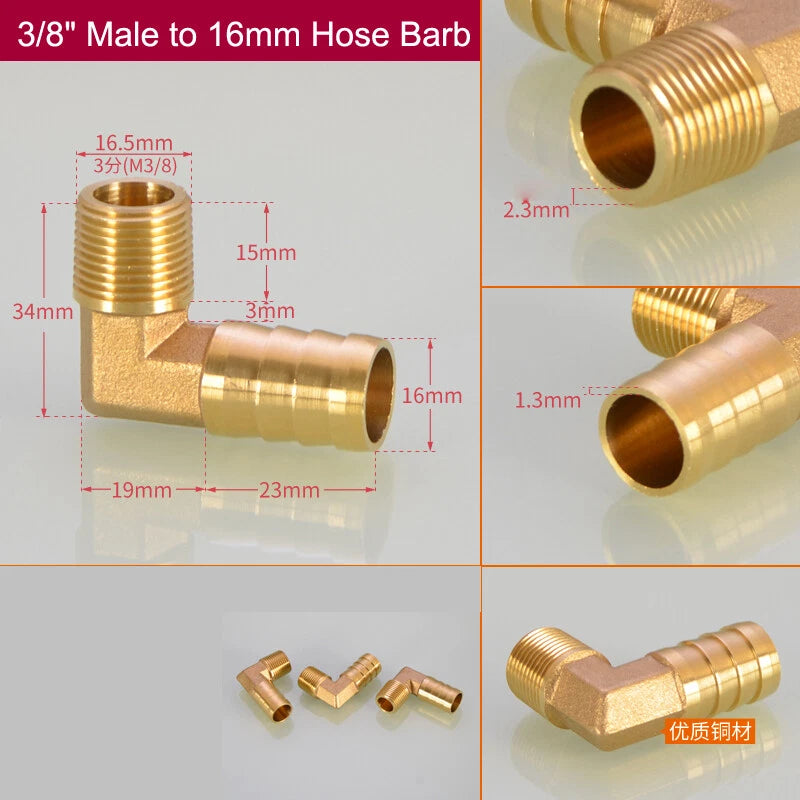

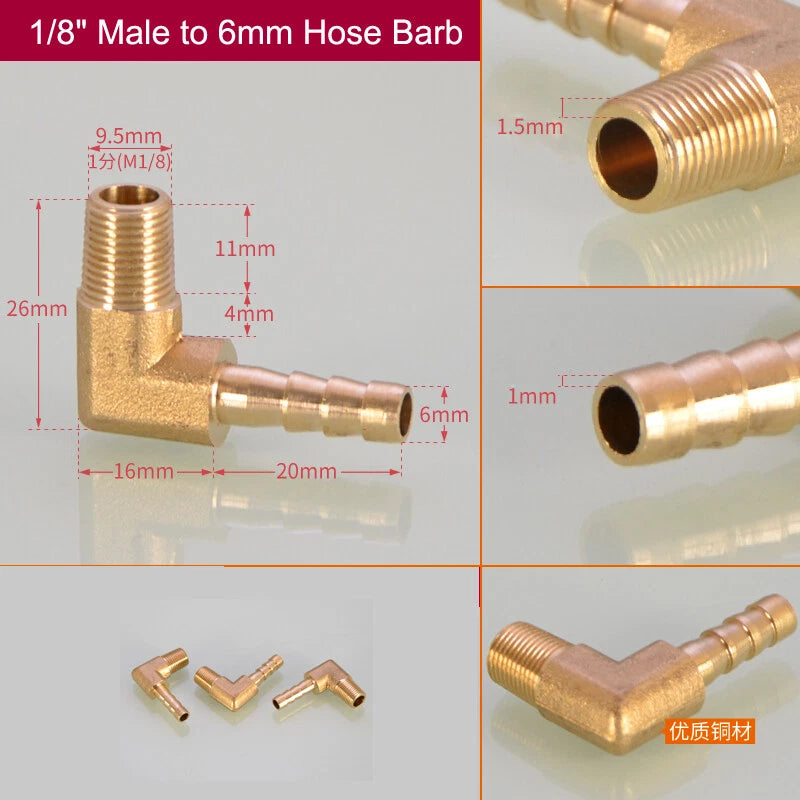

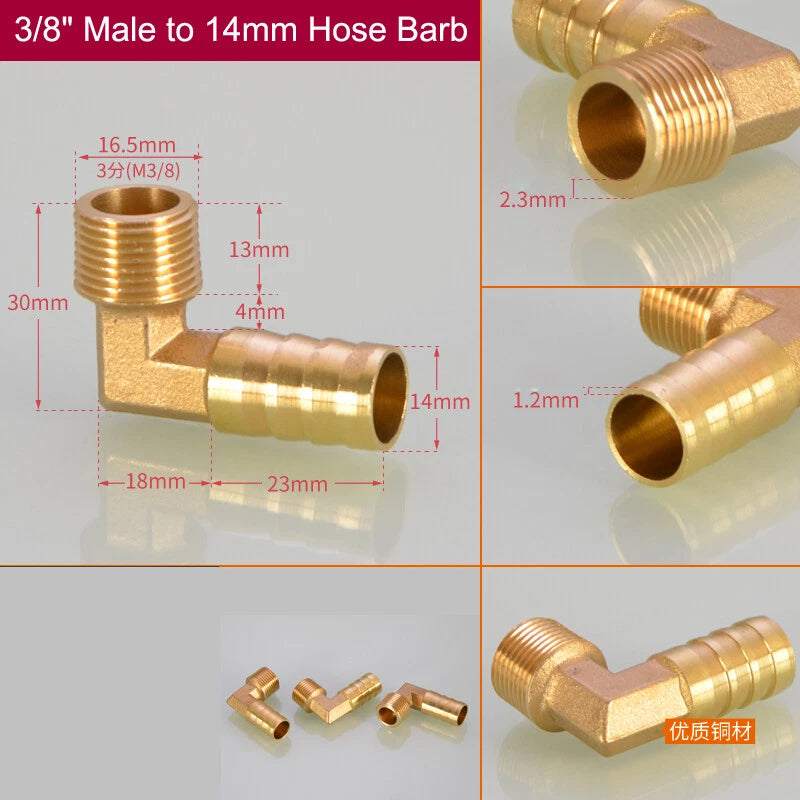

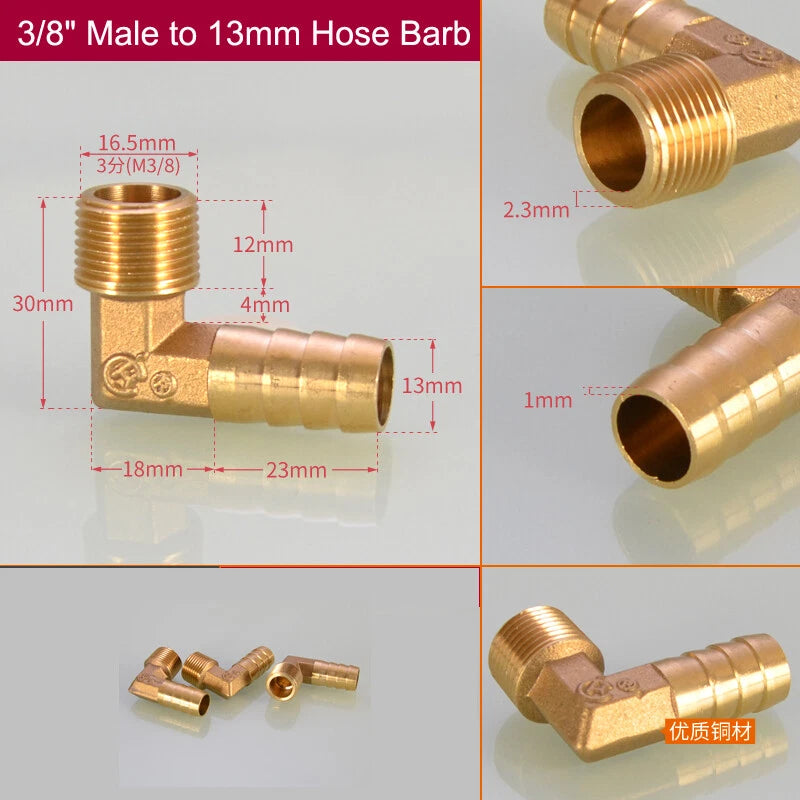

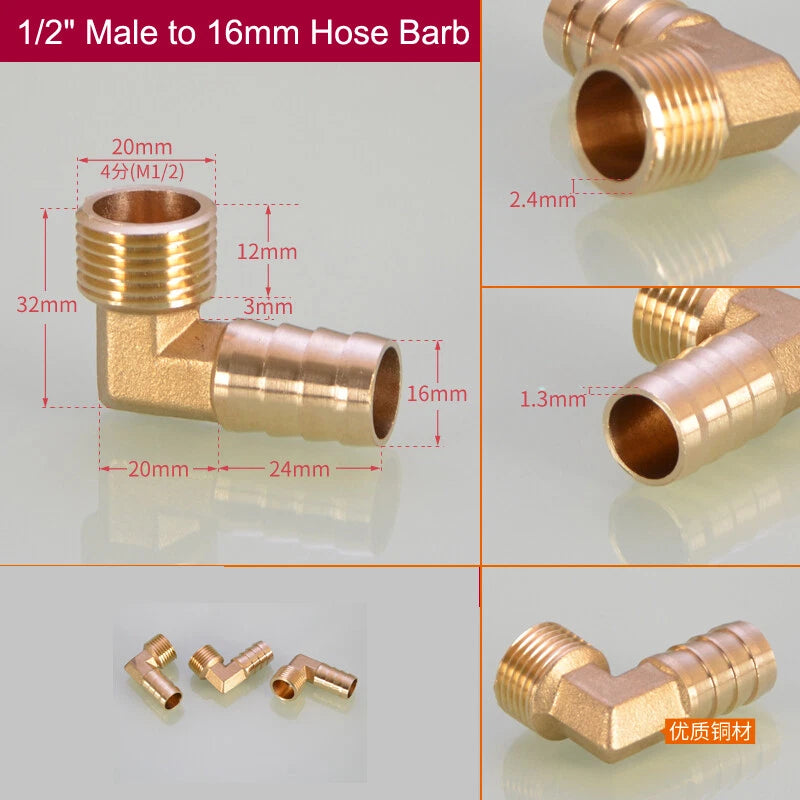

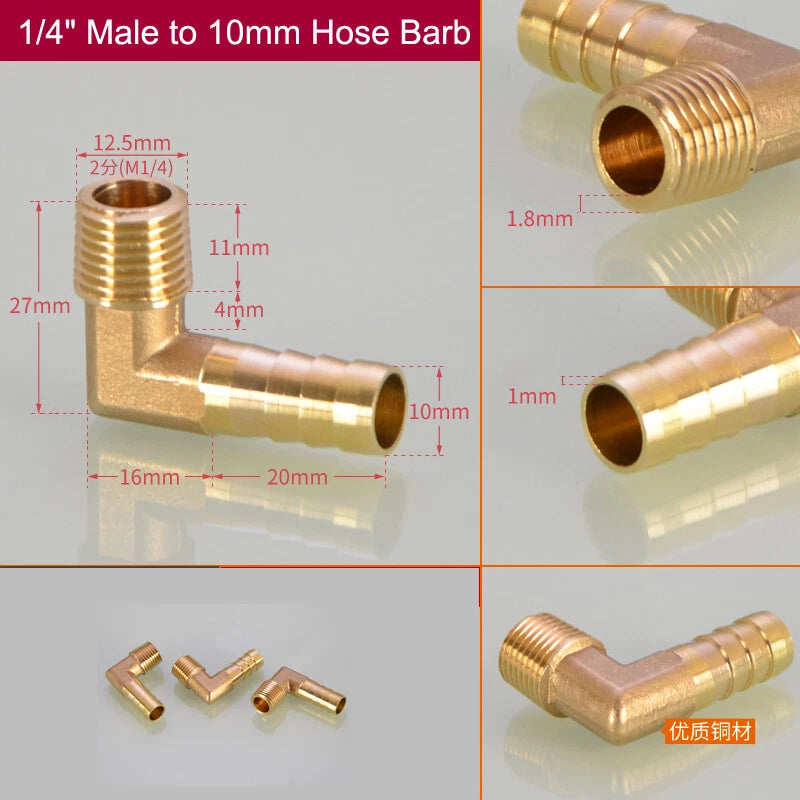

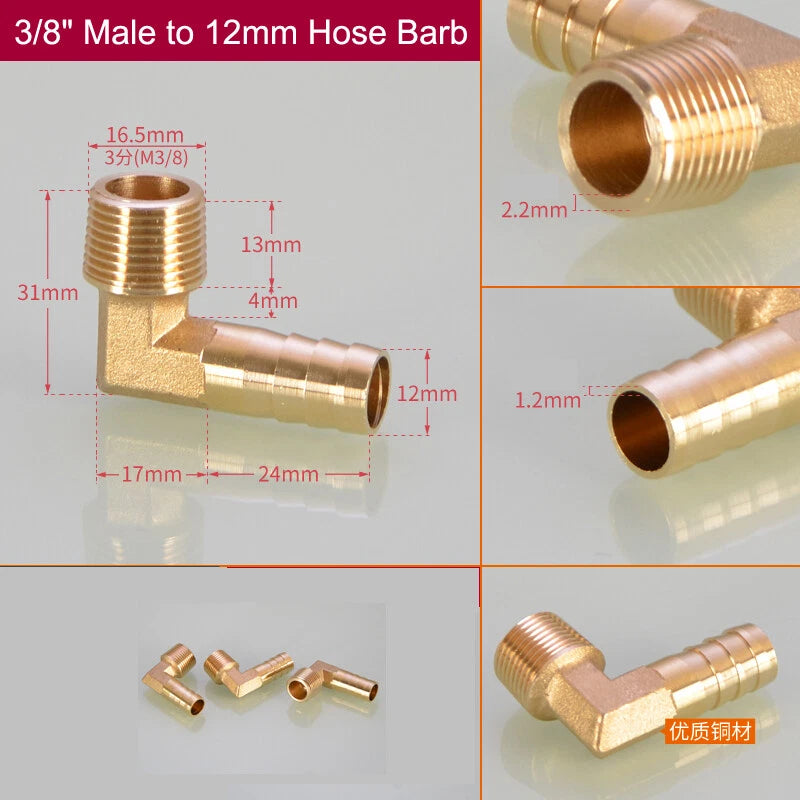

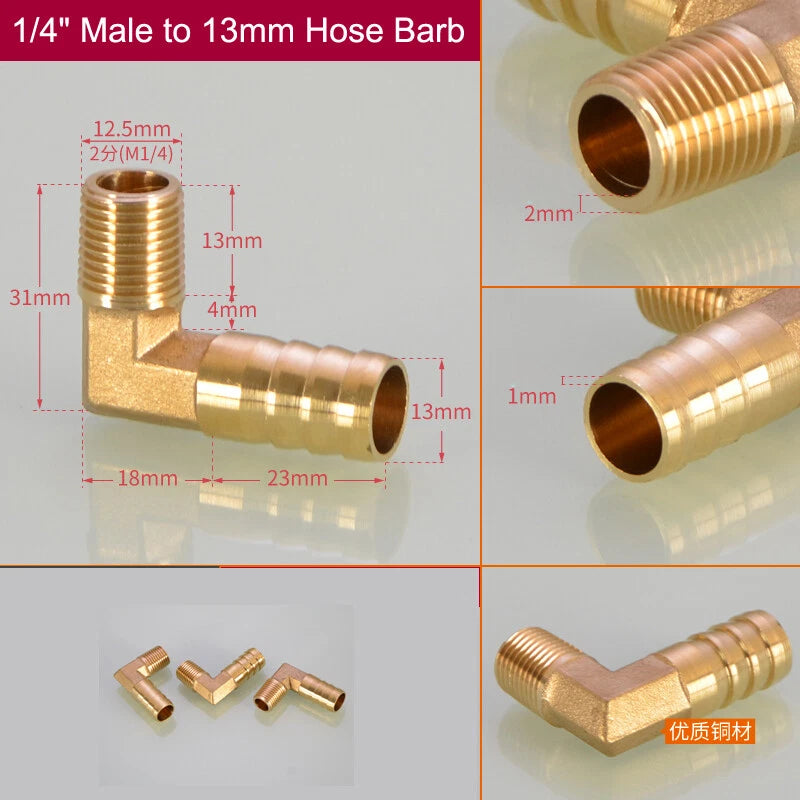

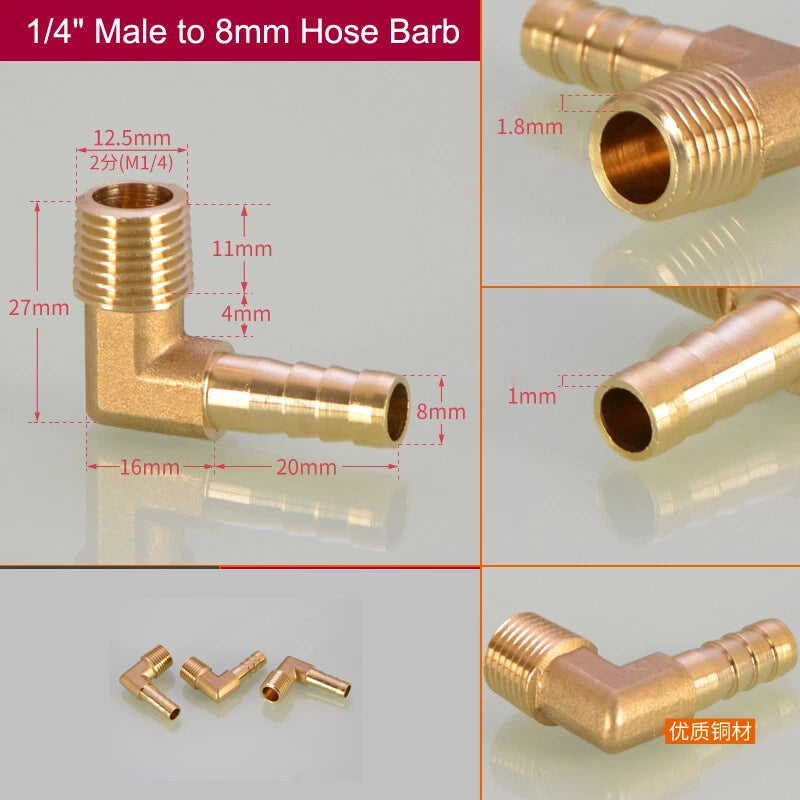

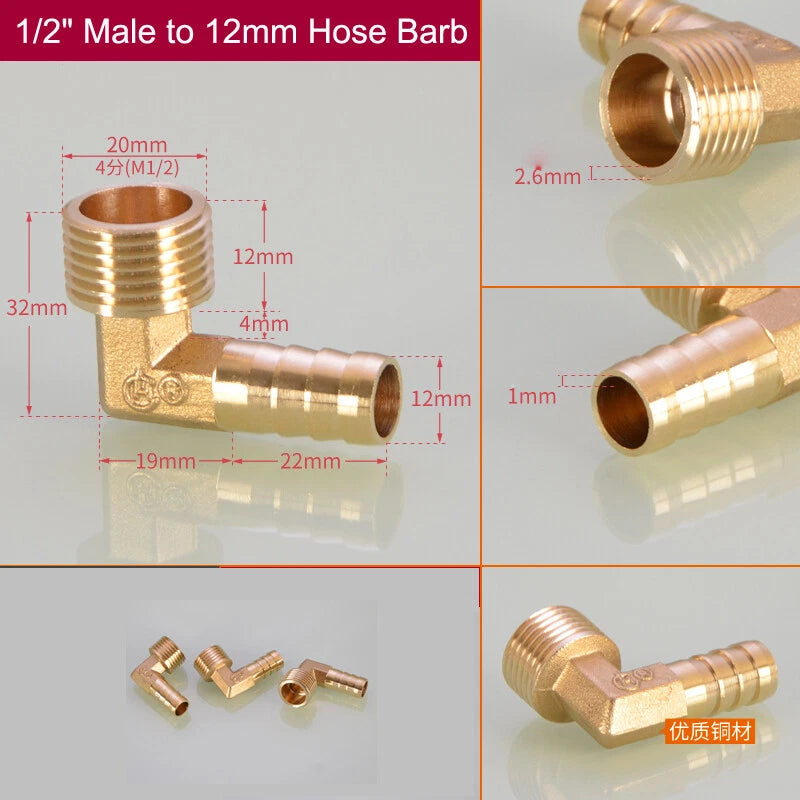

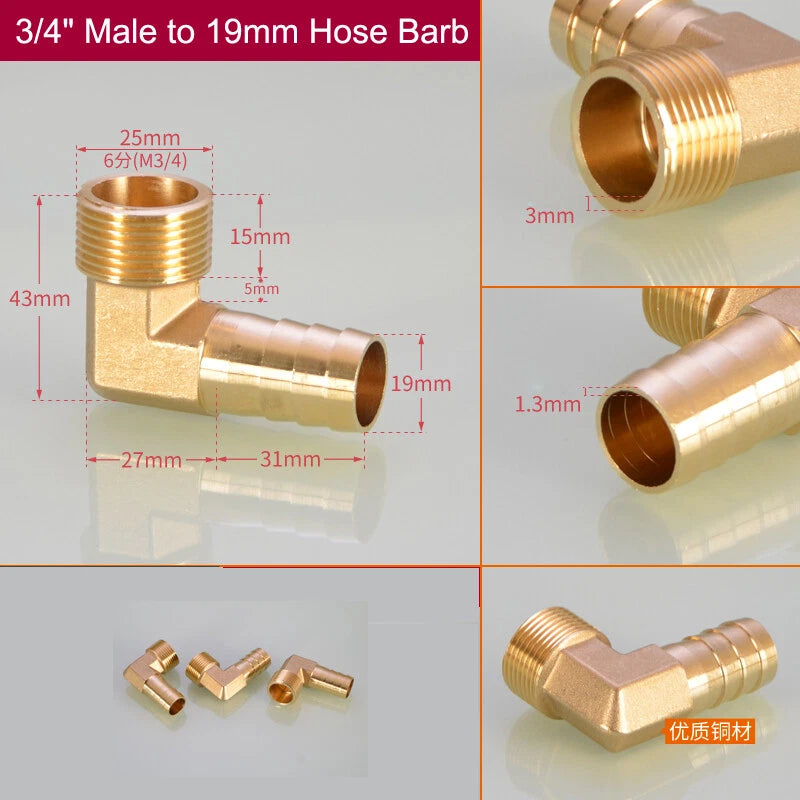

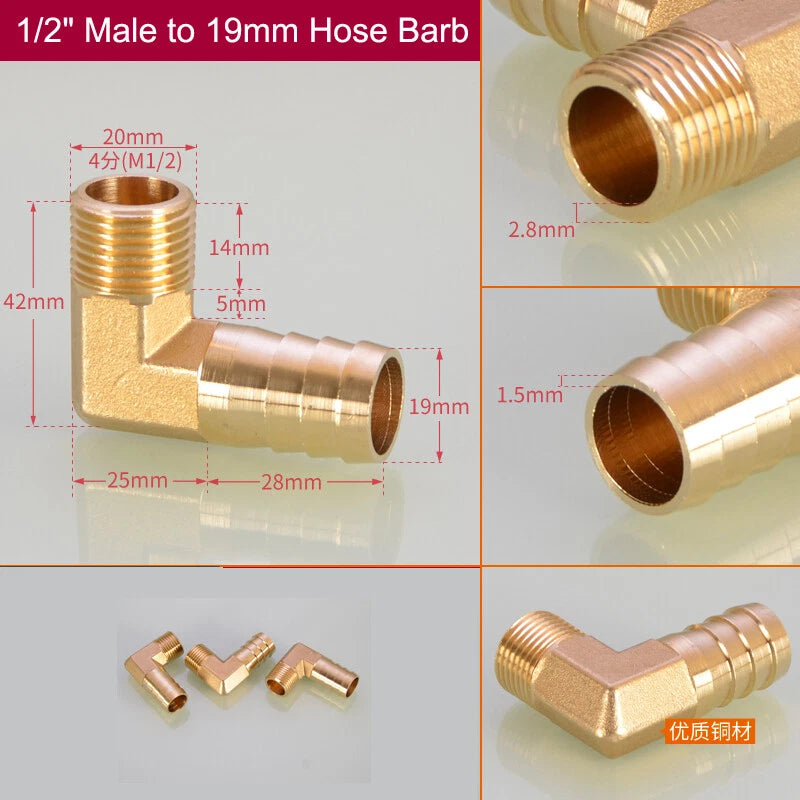

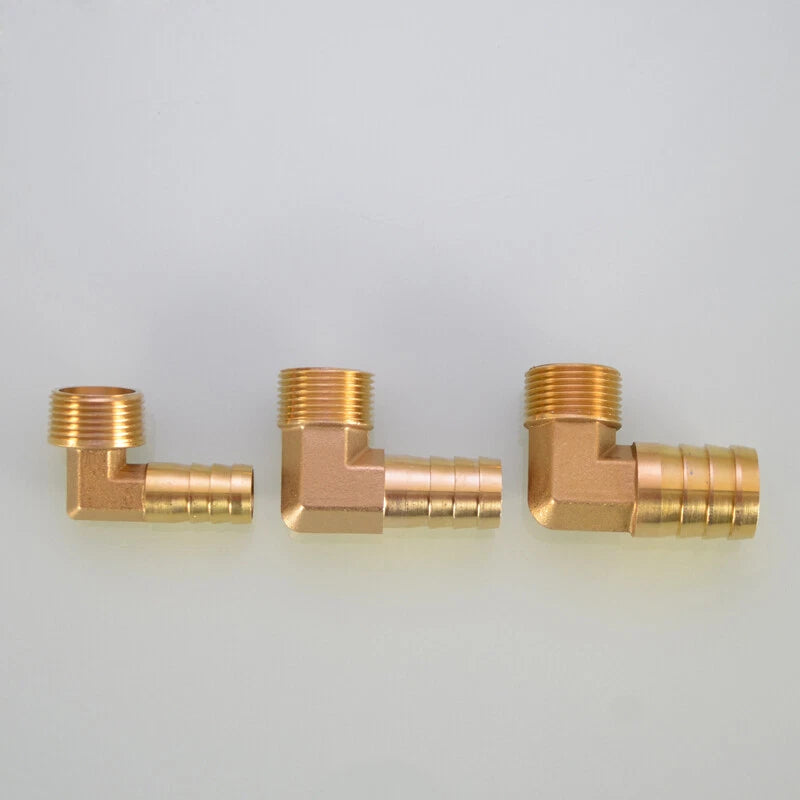

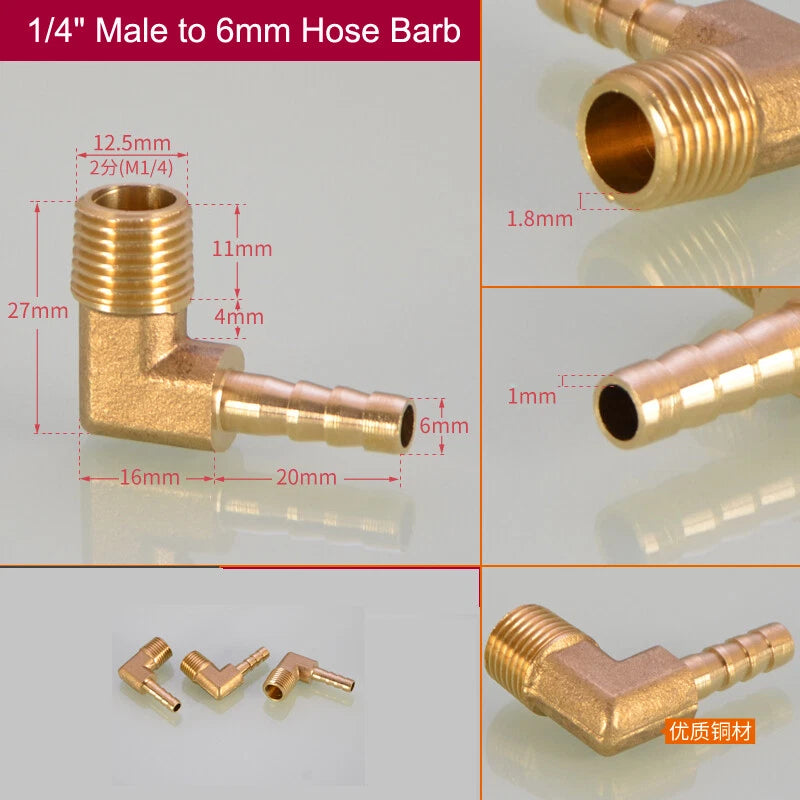

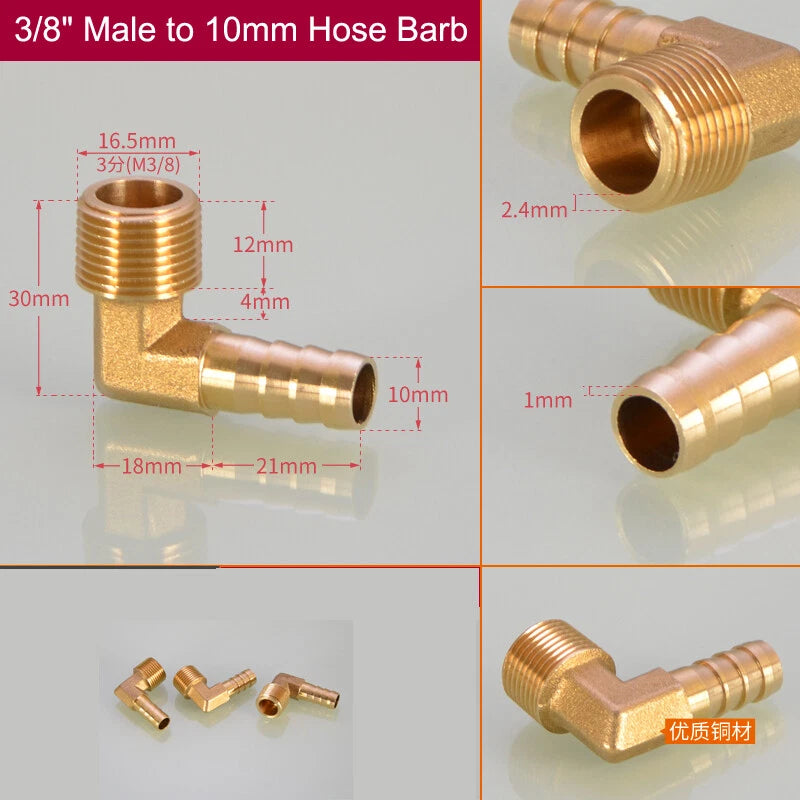

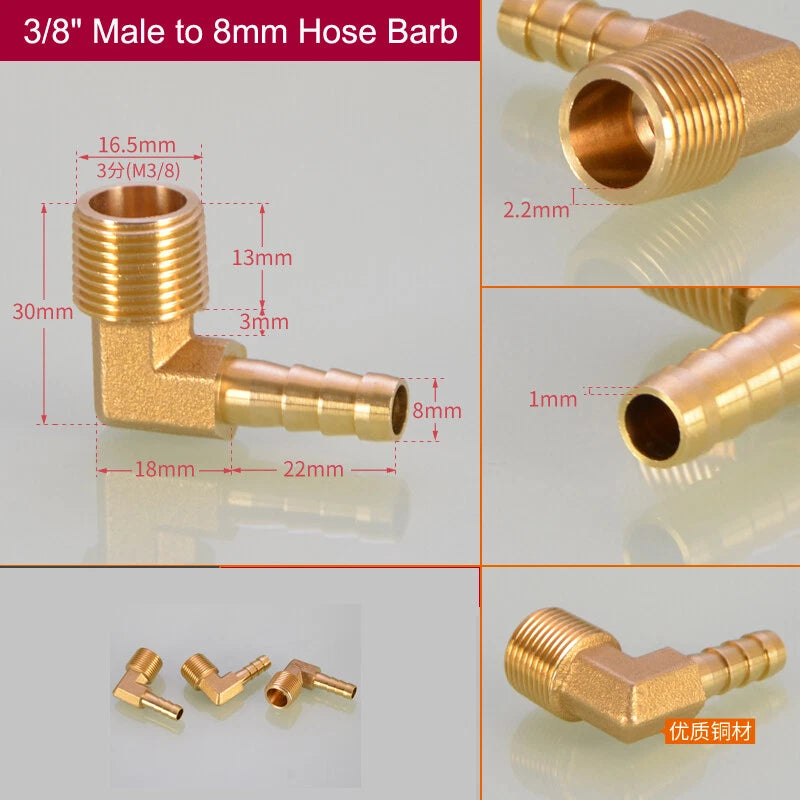

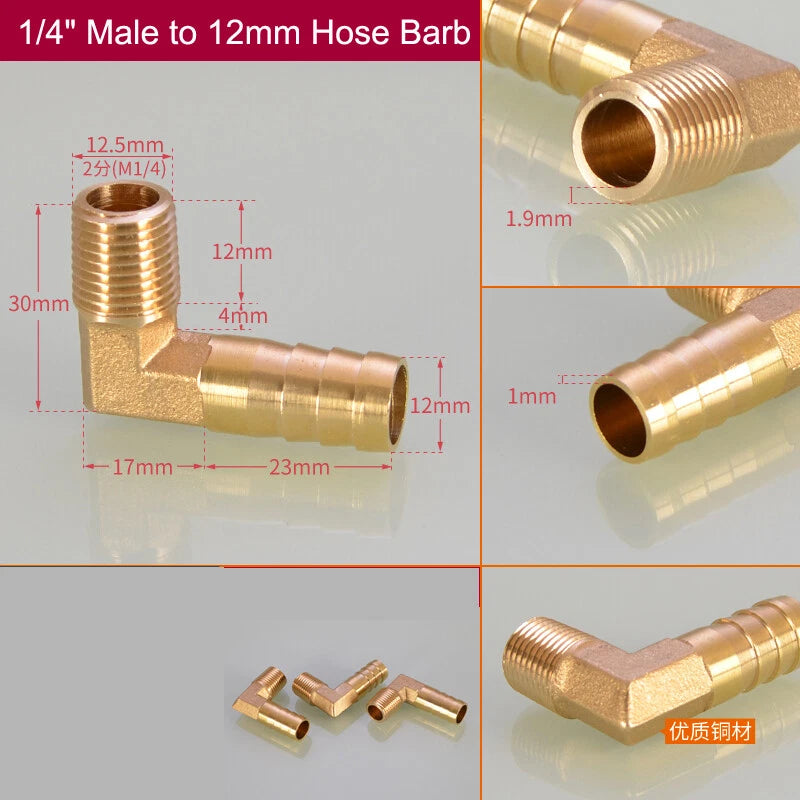

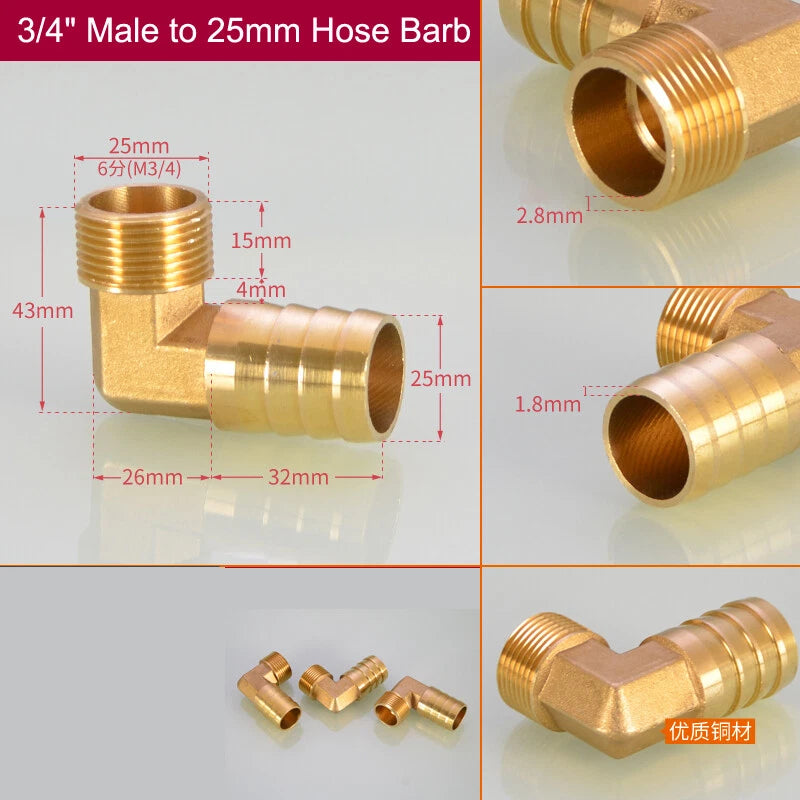

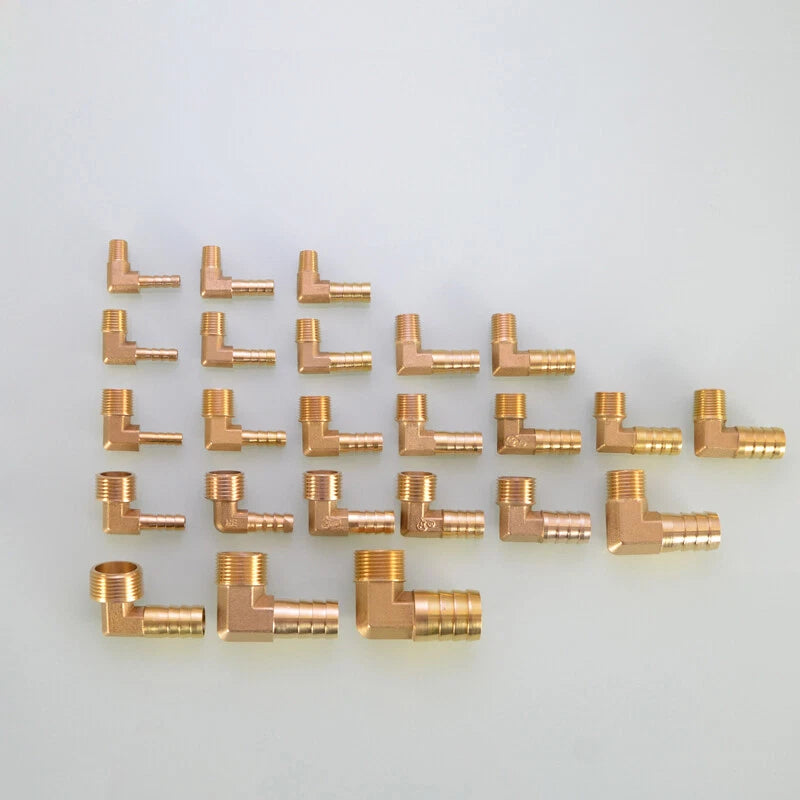

Each fitting is machined from brass and features a male BSP threaded end (available in 1/8", 1/4", 3/8", 1/2", and 3/4" BSP) paired with a metric hose barb end (6mm to 25mm OD). The 90° elbow body redirects flow at a right angle, making it ideal for tight spaces. Available individually or in value packs of 2 or 3 pieces.

Typical use cases include connecting flexible hoses to air compressors, garden irrigation manifolds, and low-pressure gas appliance lines — anywhere you need a compact, leak-resistant 90° male BSP to hose barb adapter for water, air, or gas service.

🔵 Compatibility Note: These fittings use BSP (British Standard Pipe) parallel threads. They are not directly compatible with NPT (National Pipe Taper) threads. Verify your port thread standard before ordering. See FAQ below for details.

✅ Key Features of These Brass Hose Barb Elbow Fittings

🔩Male BSP Thread End — Standard BSPP male thread (1/8" to 3/4") screws directly into female BSP ports on pumps, valves, manifolds, and compressor outlets without adapters.
📐90° Elbow Body — The right-angle design routes hoses around corners and through tight enclosures, reducing hose stress and eliminating sharp bends that restrict flow.
🪛Metric Hose Barb End — Barb OD options from 6mm to 25mm cover a wide range of flexible hose inner diameters, including common PVC, rubber, and silicone tubing used in DIY water and air systems.
⚙️Brass Construction — Machined brass resists corrosion from water and mild chemicals, maintains dimensional stability under moderate pressure, and is easy to install with standard wrenches.
💧Water, Air & Gas Rated — Suitable for water supply lines, compressed air distribution, and low-pressure gas connections — a versatile male BSP to hose barb adapter for multiple fluid media.
📦Flexible Pack Sizes — Order 1, 2, or 3 pieces per SKU so you can grab exactly what a single repair needs or stock up for a larger installation without overpaying.

📐 Technical Specifications — Brass Hose Barb Elbow Fittings

Product Type	90° Elbow Hose Barb Fitting
Material	Brass
Thread Standard	BSP (British Standard Pipe) — Parallel (BSPP/G)
Male Thread Sizes	1/8", 1/4", 3/8", 1/2", 3/4" BSP
Hose Barb OD Options	6mm (≈1/4"), 8mm (≈5/16"), 10mm (≈3/8"), 12mm (≈15/32"), 13mm (≈1/2"), 14mm (≈9/16"), 16mm (≈5/8"), 19mm (≈3/4"), 25mm (≈1")
Elbow Angle	90°
Compatible Media	Water, Air, Gas (low-pressure)
Working Pressure	See variant options — contact us to confirm for your size
Finish	Natural brass (uncoated)
Pack Quantities	1 Pc, 2 Pcs, 3 Pcs
Thread Sealant	PTFE tape or face seal washer recommended (not included)
Country of Origin	Contact us to confirm

⚠️ Before You Order: Confirm your hose inner diameter matches the barb OD, and verify your port uses BSP (not NPT) threads. When in doubt, use a thread gauge or contact us.

❓ Frequently Asked Questions

How do I choose the right hose barb size?

Match the barb OD to your hose's inner diameter (ID). For example, a 6mm barb generally fits a hose with a 6mm ID. If you're working in imperial, 6mm ≈ 1/4" and 10mm ≈ 3/8". When in doubt, measure your hose ID with calipers before ordering.

How do I choose the correct BSP thread size?

BSP (British Standard Pipe) thread size refers to the nominal pipe size, not the actual thread OD. A 1/4" BSP male fitting typically has a thread OD of about 13.16mm (0.518"). Check your port or female fitting with a thread gauge or compare to a known fitting to confirm compatibility.

Can these fittings handle outdoor or high-humidity environments?

Brass generally offers good corrosion resistance for most indoor and sheltered outdoor applications involving water, air, and gas. For prolonged direct exposure to saltwater or highly acidic environments, additional sealing or a different alloy may be advisable.

What pressure rating do these fittings typically support?

Brass hose barb elbow fittings of this type generally support working pressures in the range of 150–300 PSI depending on size, hose type, and clamp method. Contact us to confirm the rating for your specific size and application.

Are these fittings compatible with NPT threads?

These fittings use BSP (BSPP/G) parallel threads, which are not directly interchangeable with NPT (tapered) threads. BSP and NPT threads have different thread angles and pitches. An adapter is required if your port uses NPT threading.

Do I need thread sealant or PTFE tape?

Yes. BSPP (parallel) threads rely on a sealing washer or O-ring at the face, but wrapping 2–3 layers of PTFE tape on the male thread is a common practice for added leak prevention, especially in air and gas lines.

What hose types are compatible with these barb fittings?

These barb fittings are generally compatible with flexible hoses including PVC, rubber, silicone, and polyurethane tubing. A hose clamp is recommended to secure the hose onto the barb for pressurized applications.
