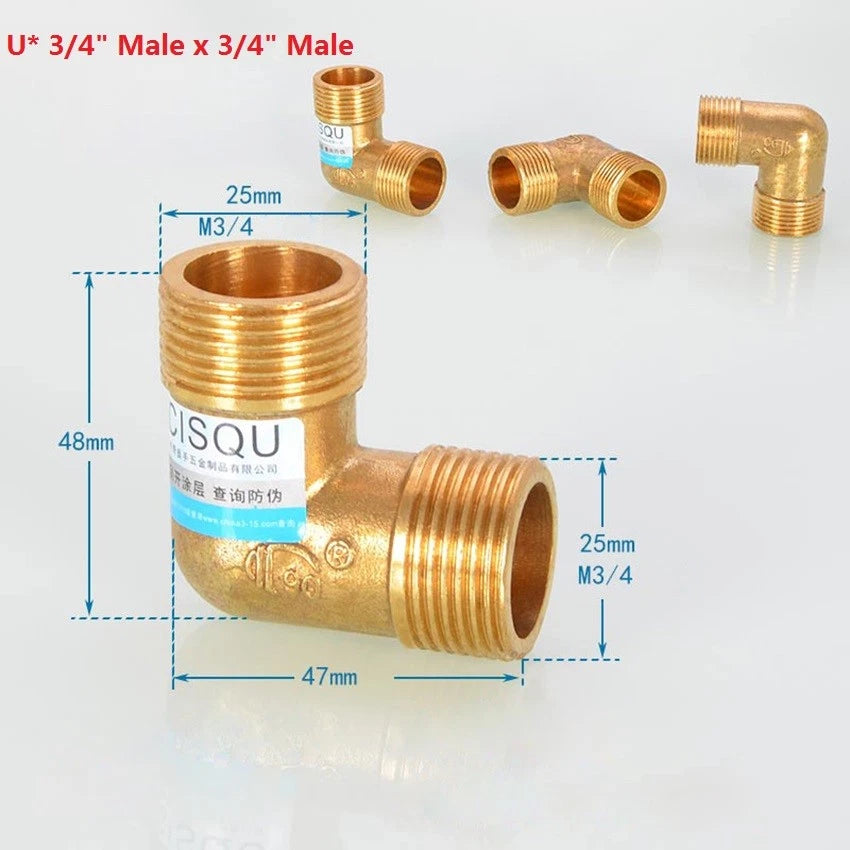

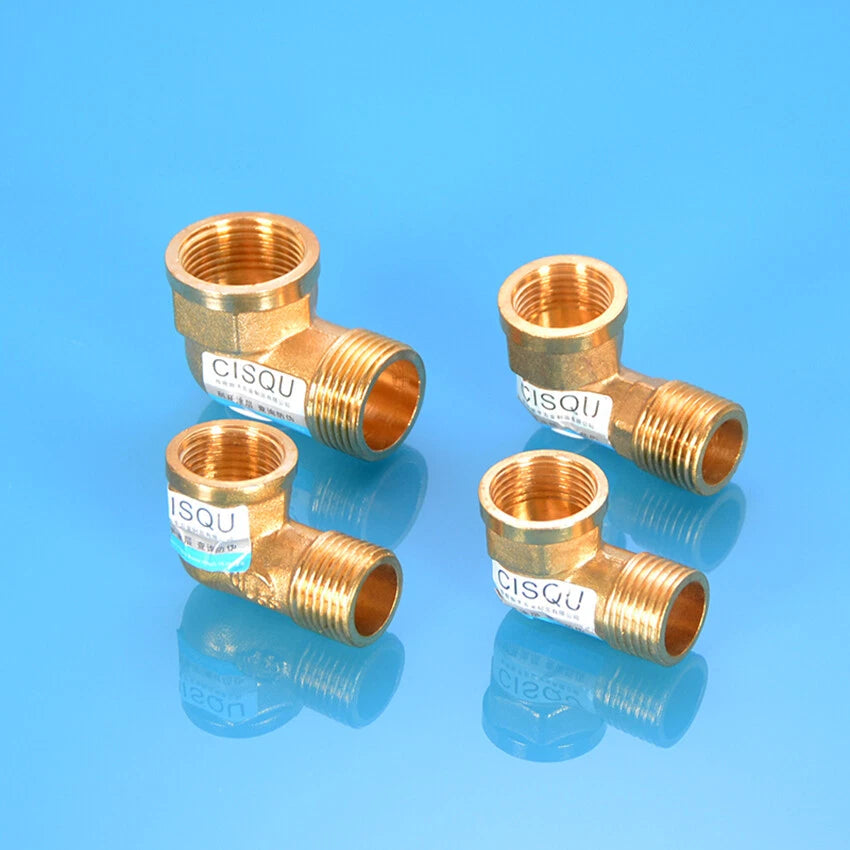

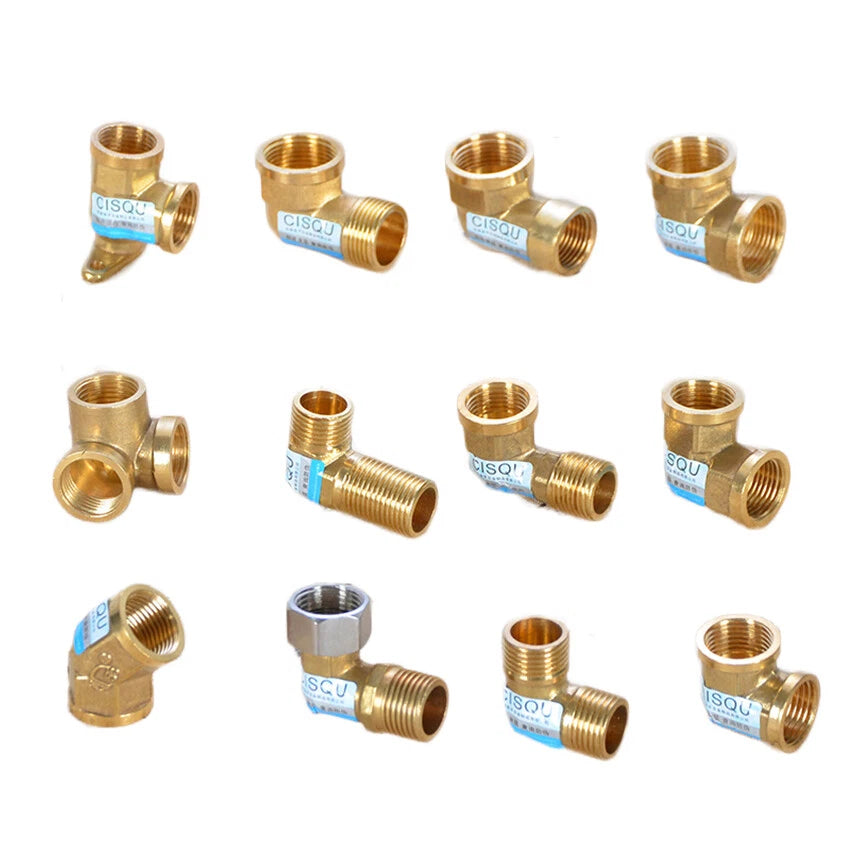

Brass NPT Pipe Fittings – 1/2" & 3/4" Male Female Thread Adapter Connector

Measure the outer diameter of your pipe's threads. A 1/2" NPT pipe typically has an outer thread diameter of about 0.840" (≈21.3 mm), while 3/4" NPT measures approximately 1.050" (≈26.7 mm). These numbers are larger than the nominal pipe size — that's normal for NPT. Match the fitting size to your existing pipe thread size. When in doubt, check the markings on your current fittings or use a thread pitch gauge.

Brass NPT fittings generally handle working pressures up to 200 PSI for water applications at ambient temperature. Actual ratings depend on the specific configuration, installation quality, and operating temperature. Always verify the pressure rating meets your system requirements — particularly for gas or high-pressure compressed air applications.

Brass is naturally corrosion-resistant and performs well in most outdoor and wet environments, including irrigation systems and exterior hose bibs. It is generally not recommended for highly acidic water or environments with aggressive chlorination without additional protection. For fully submerged or marine applications, verify compatibility with your specific water chemistry before installation.

Yes. These fittings use NPT (National Pipe Taper) threading, which is the standard for US residential and commercial plumbing and gas lines. They are compatible with standard copper pipe (via threaded adapters), galvanized steel pipe, black iron pipe, and PEX-to-NPT adapter fittings.

Yes — NPT threads are tapered and require a thread sealant to create a leak-free seal. Apply 2–3 wraps of PTFE (Teflon) tape clockwise around the male threads before assembly, or use a compatible pipe thread compound (pipe dope). For gas lines, use a gas-rated thread sealant rather than standard plumber's tape.

Brass NPT fittings are commonly used for natural gas and propane lines in residential applications. Always use a gas-rated thread sealant and verify compliance with your local building codes before installing on any gas system. In most cases, a licensed plumber or gas fitter is required for gas line work — check your local regulations.

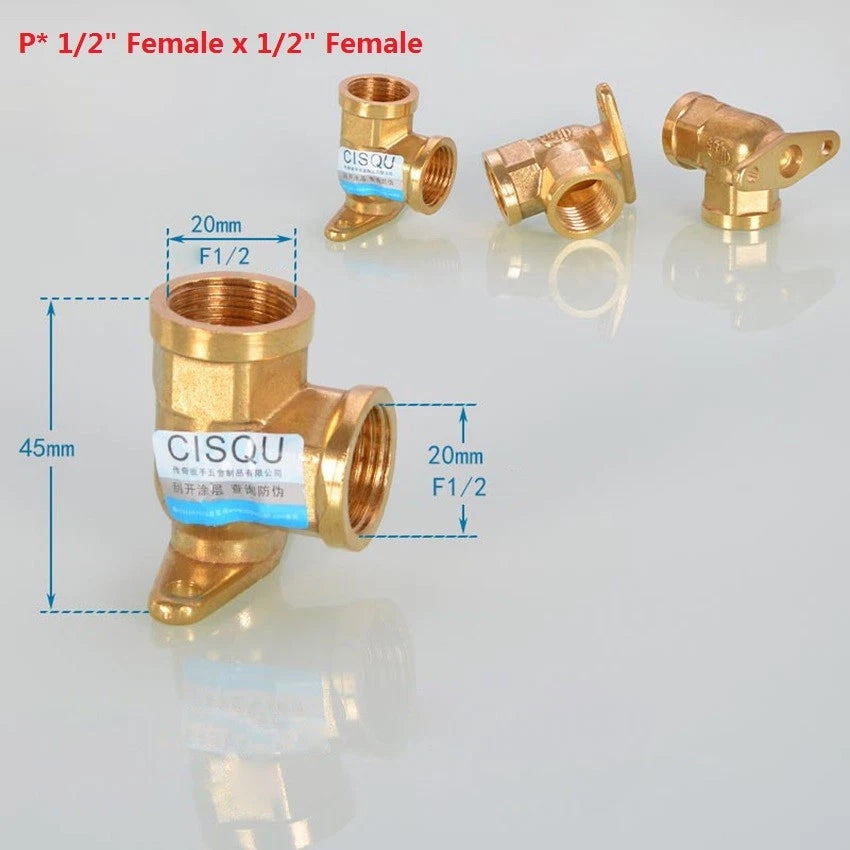

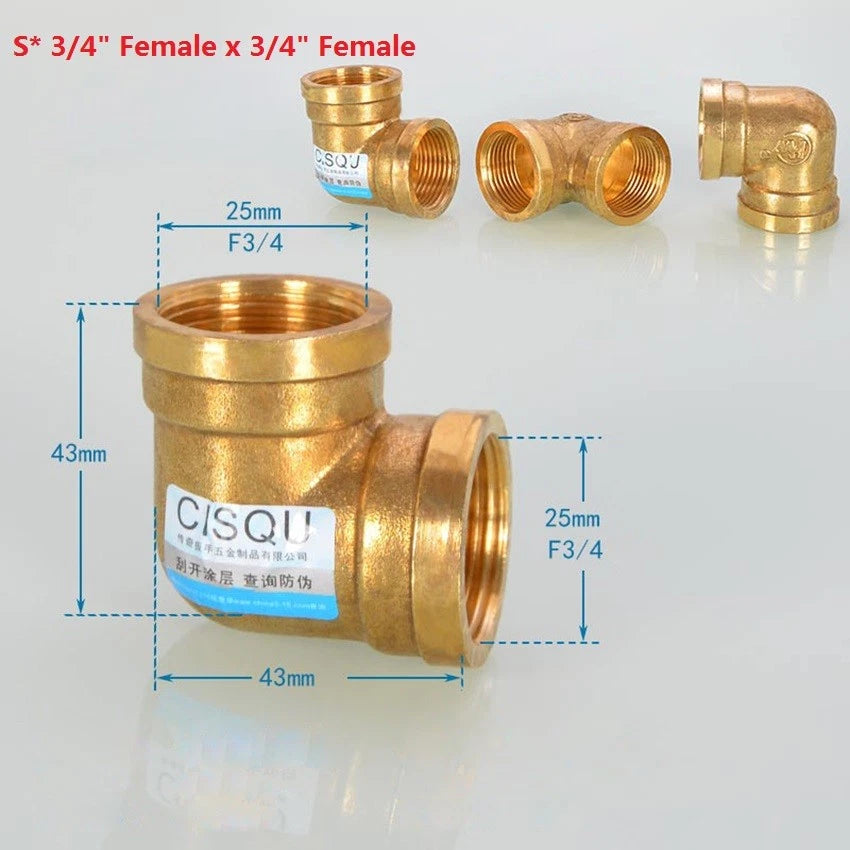

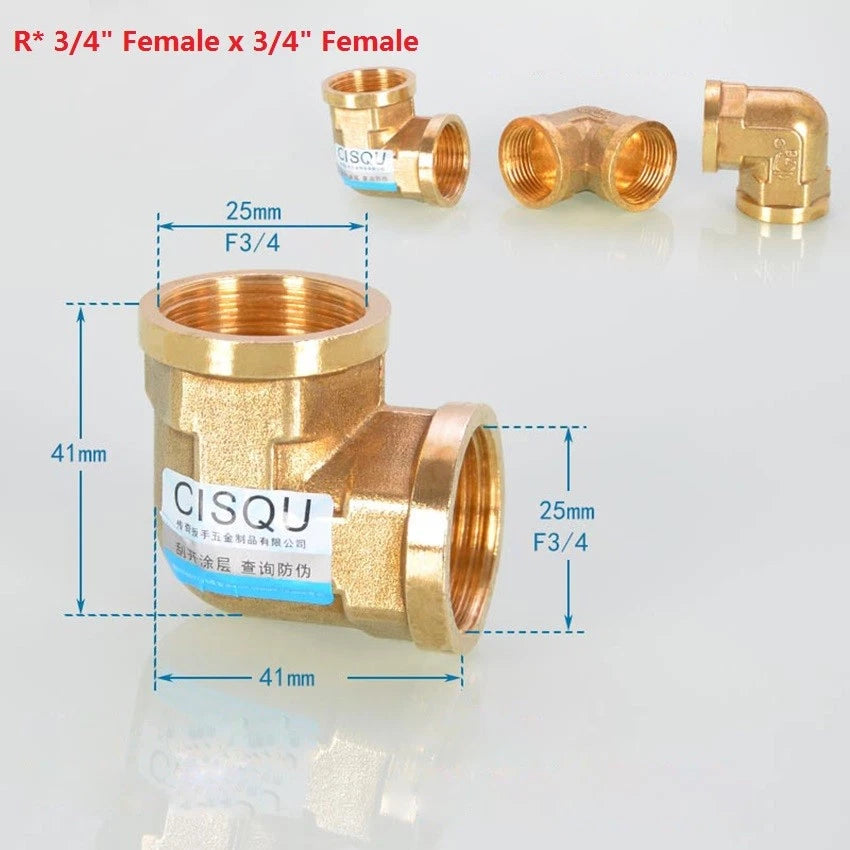

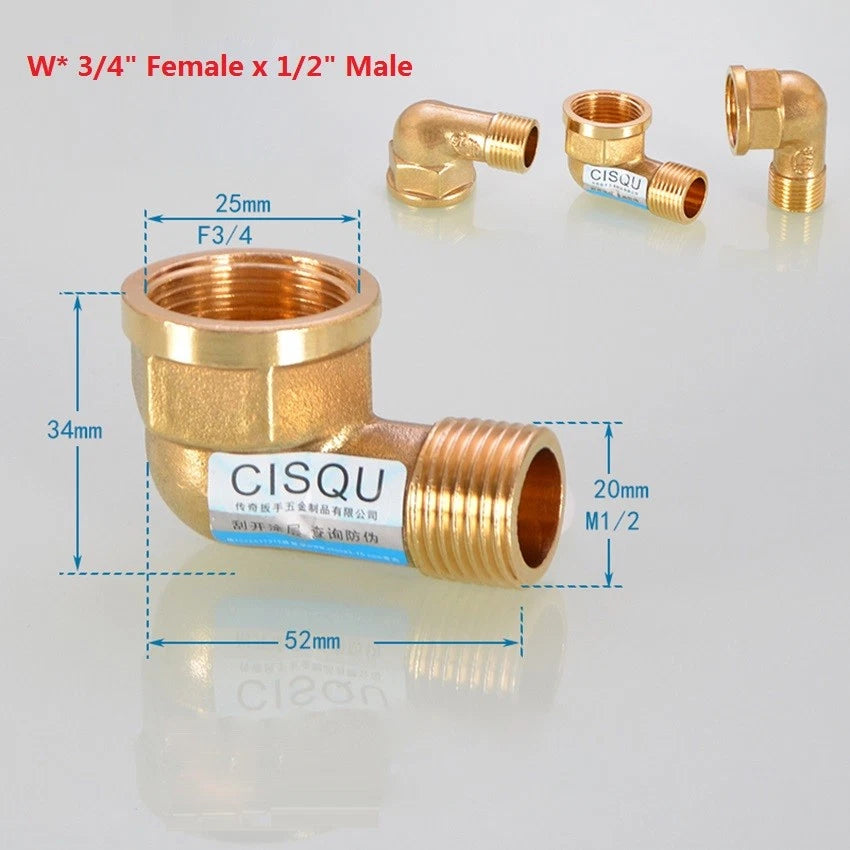

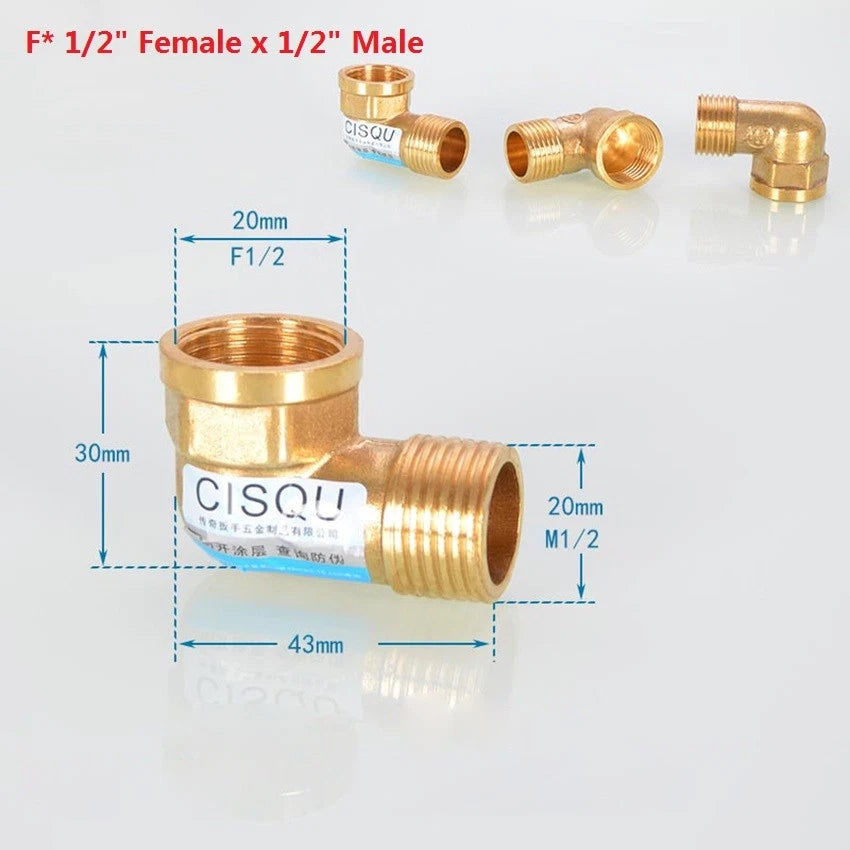

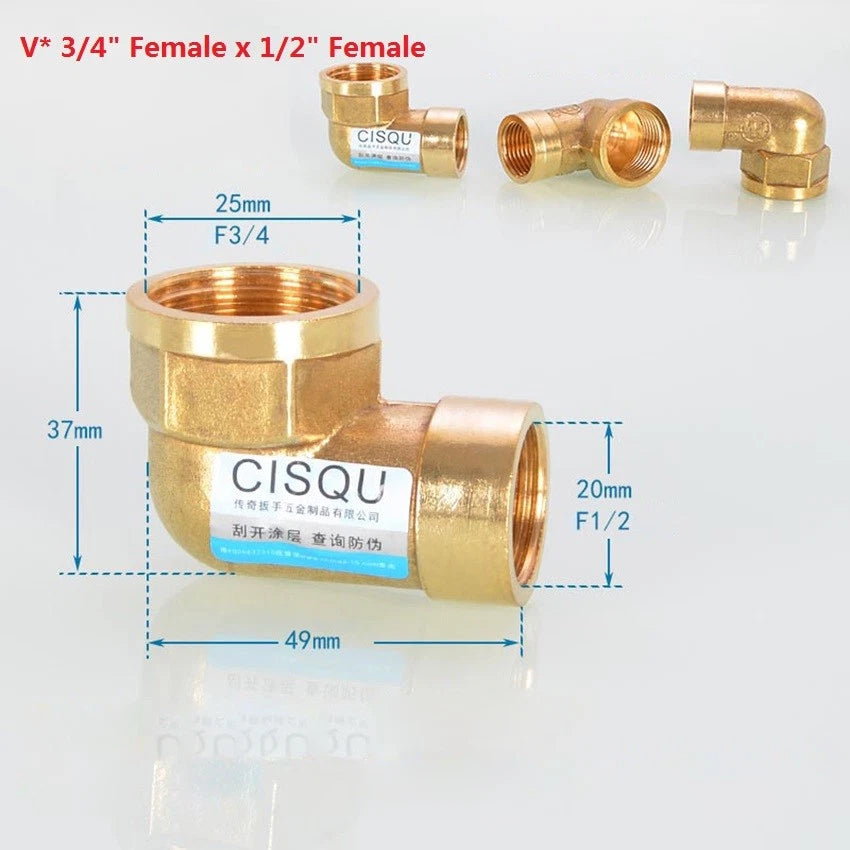

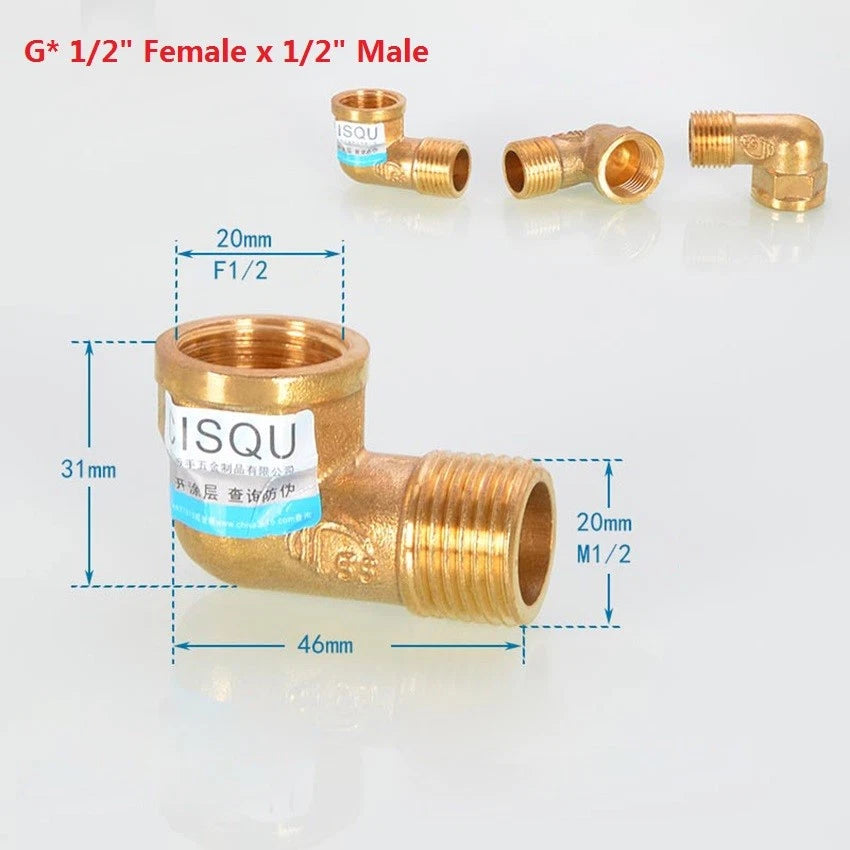

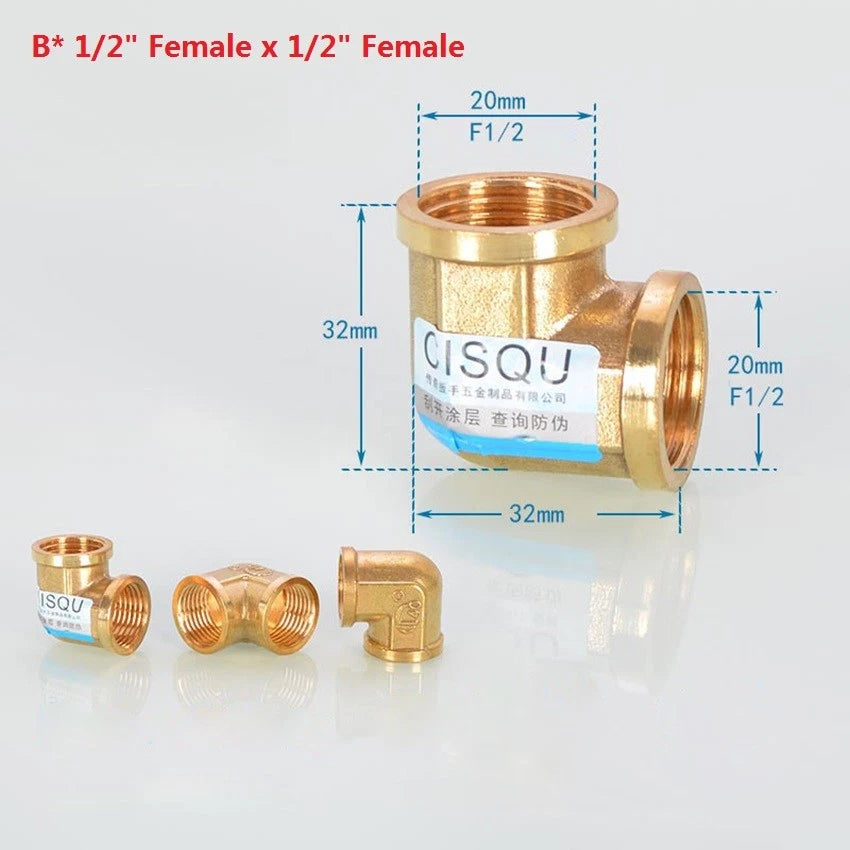

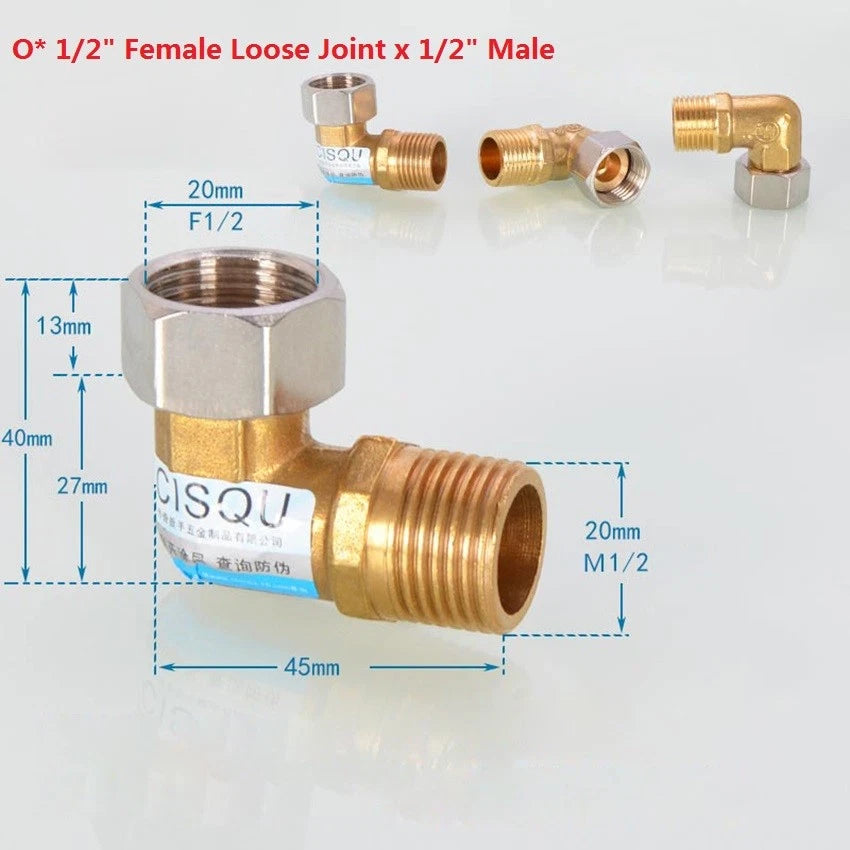

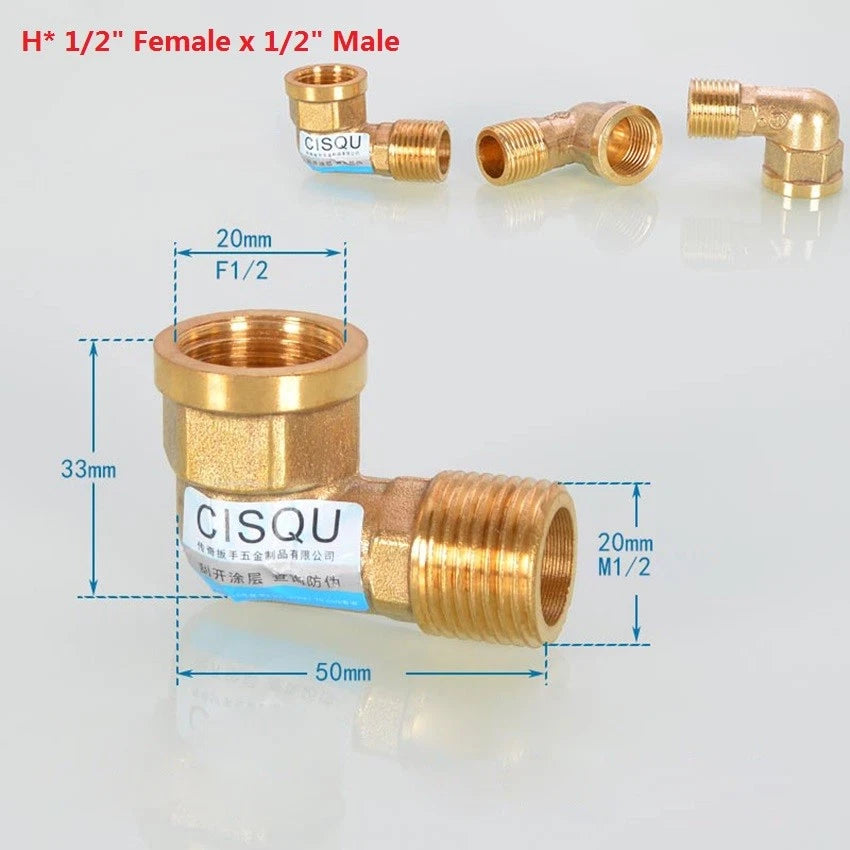

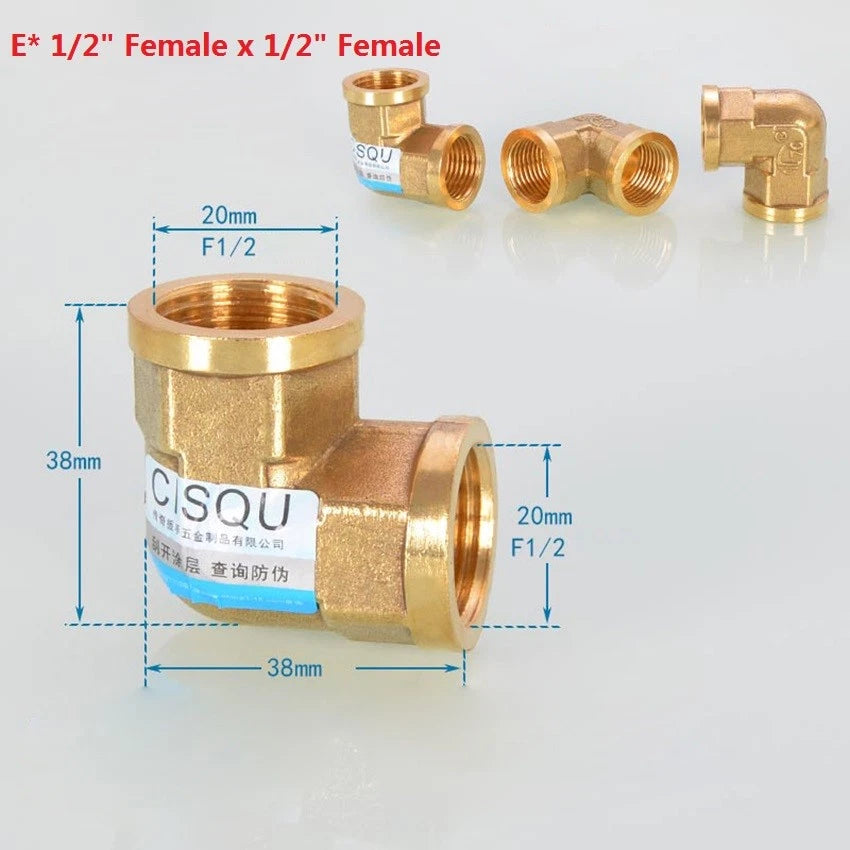

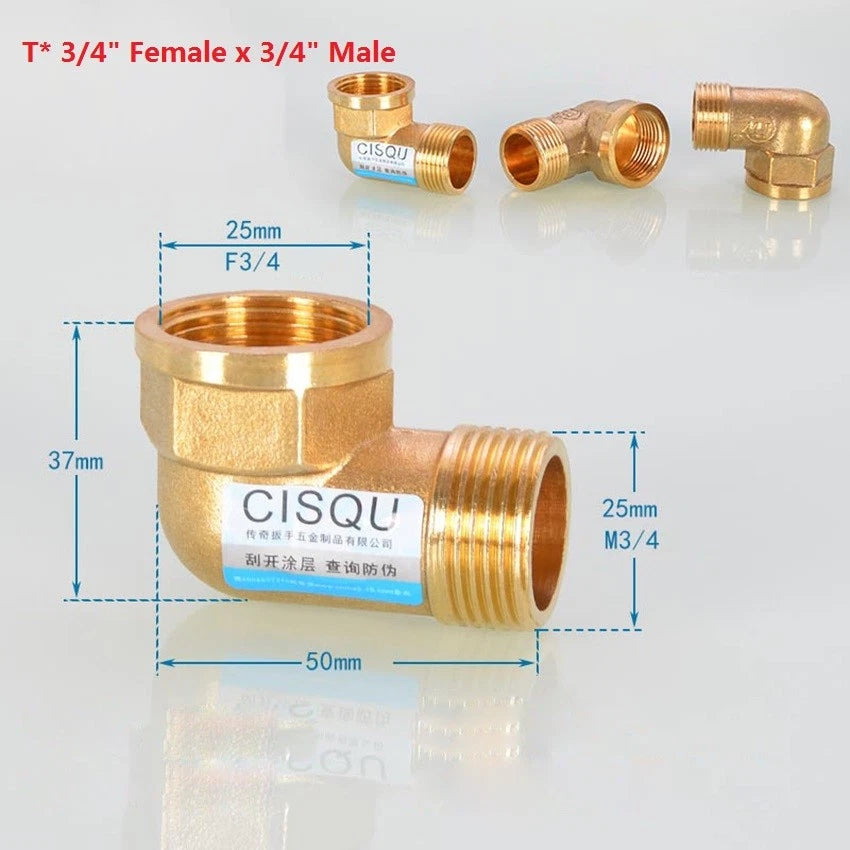

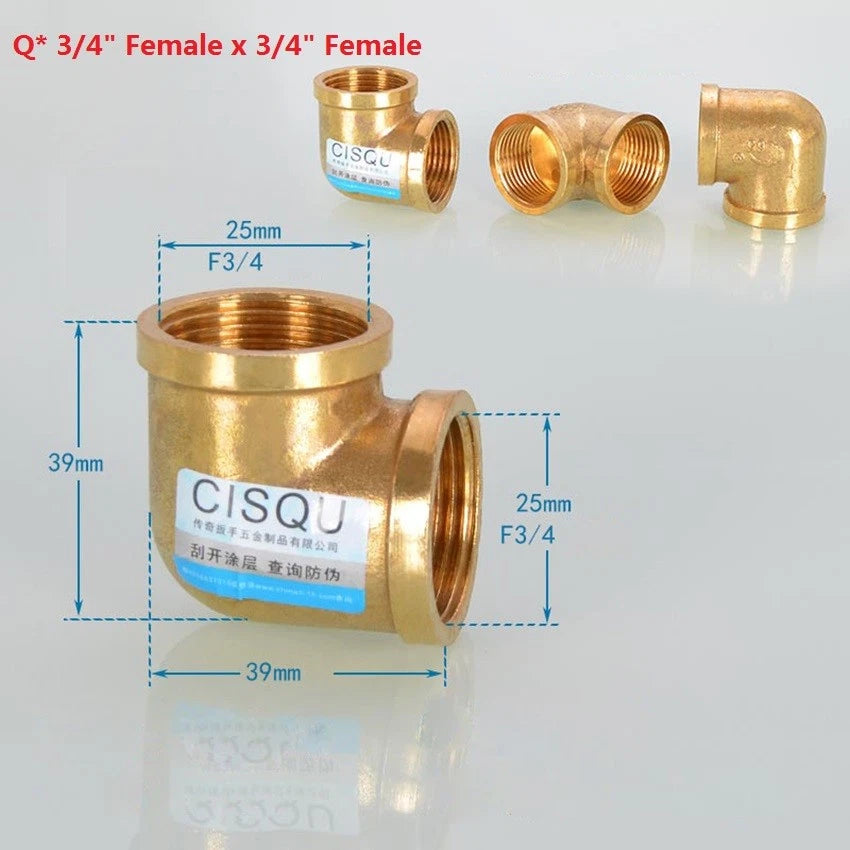

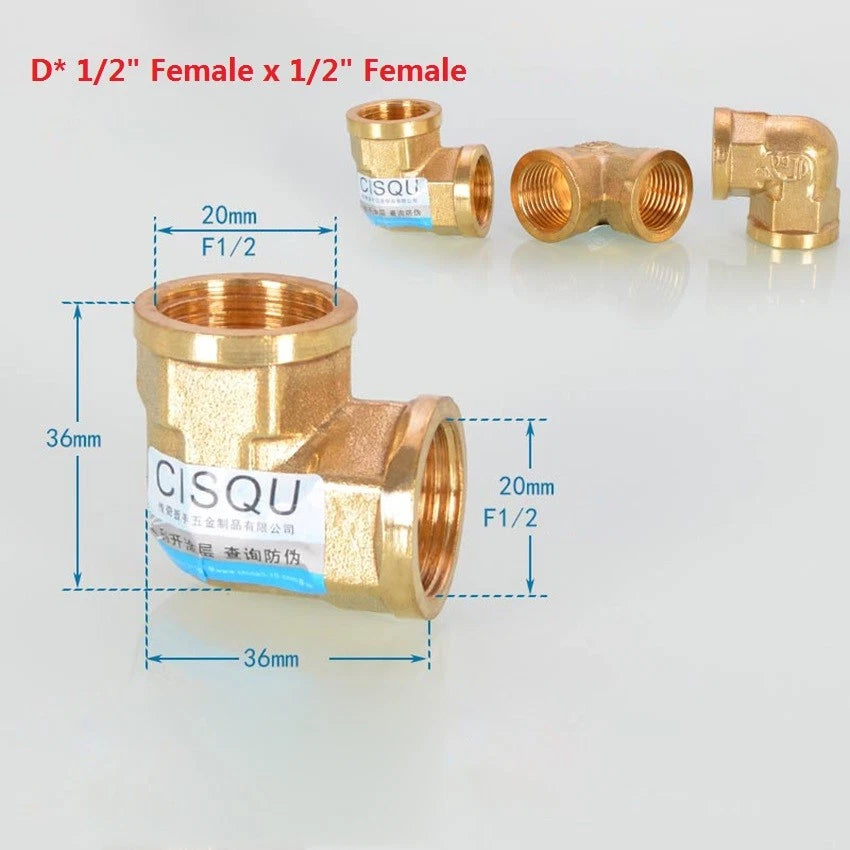

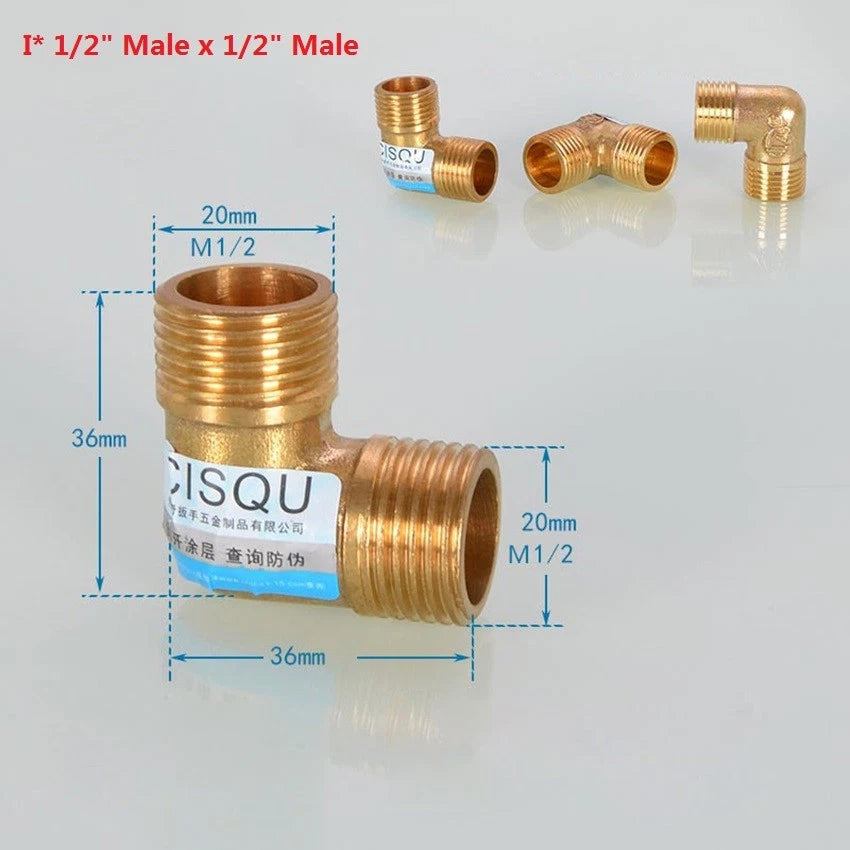

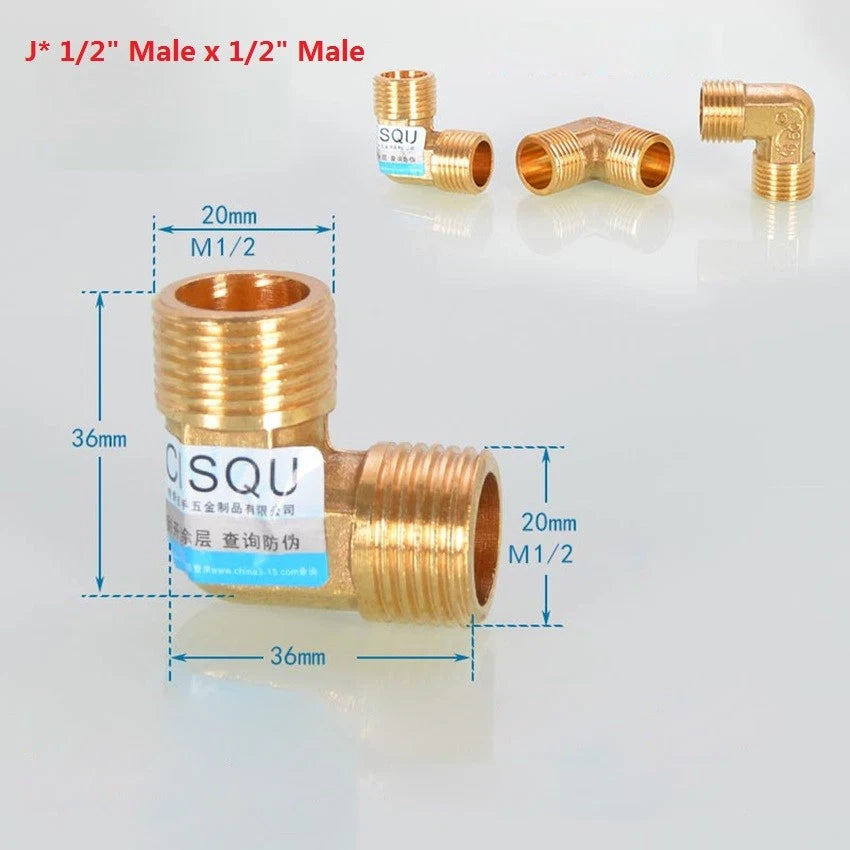

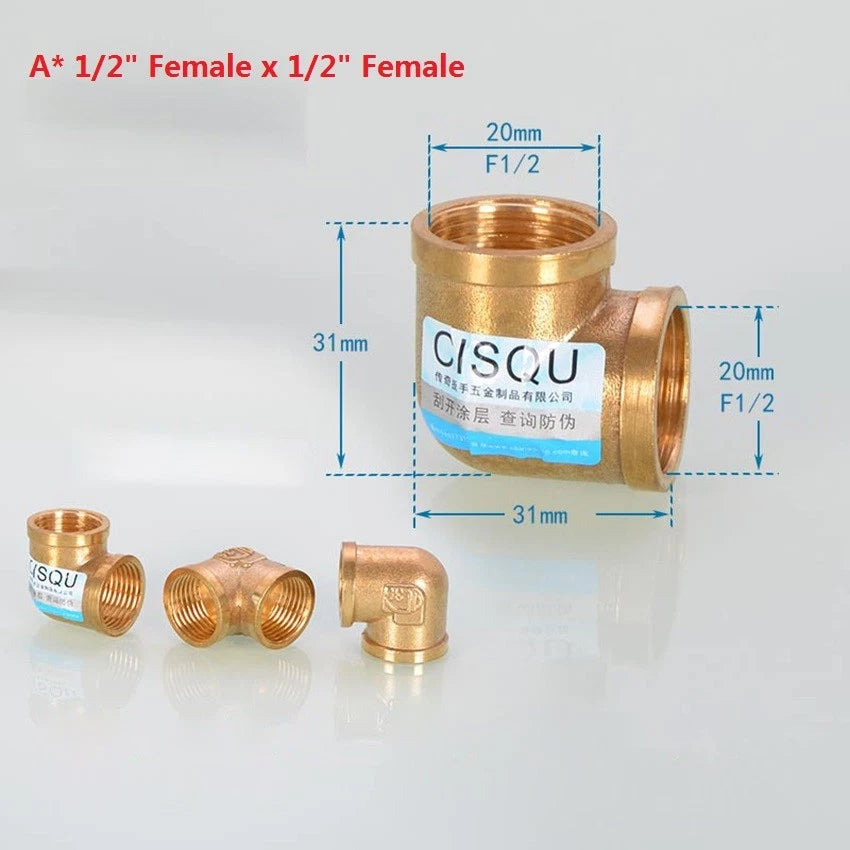

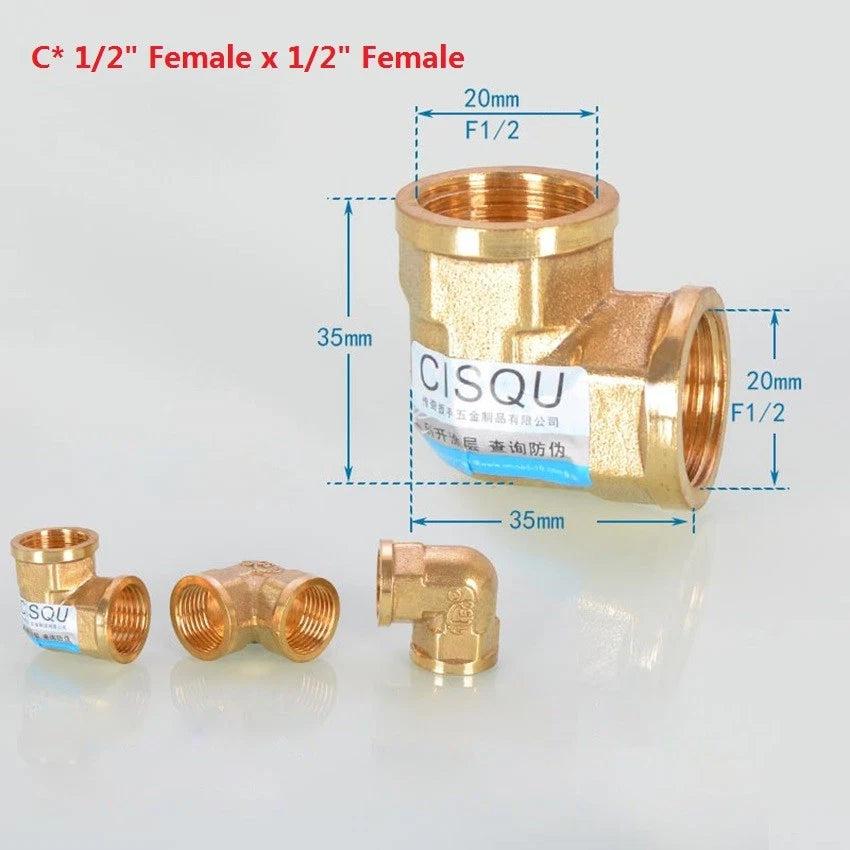

A Female×Female (FF) coupling has internal threads on both ends and connects two male-threaded pipes or nipples. A Female×Male (FM) street fitting has internal threads on one end and external threads on the other, allowing it to thread directly into another female fitting without needing a separate nipple — saving space and reducing potential leak points in tight installations.

For a single joint repair, the 1-piece option is sufficient. If you're working on a multi-point installation — such as a manifold, irrigation zone, or gas appliance hookup with several connections — the 5-piece pack typically offers better value per fitting. Many DIYers keep a few spares on hand to avoid a second trip to the hardware store mid-project.
