Heat Shrink Tubing 2:1 — Clean, Durable Wire Insulation for Every Project
Exposed wire splices, frayed insulation, and unlabeled cable bundles are a recurring frustration for automotive technicians, electronics hobbyists, marine riggers, and home DIYers alike. Electrical tape unravels over time, liquid insulation is messy, and zip ties do nothing for bare conductors. What you need is a fast, permanent solution that conforms tightly to the wire and stays put — even under heat, vibration, and moisture.

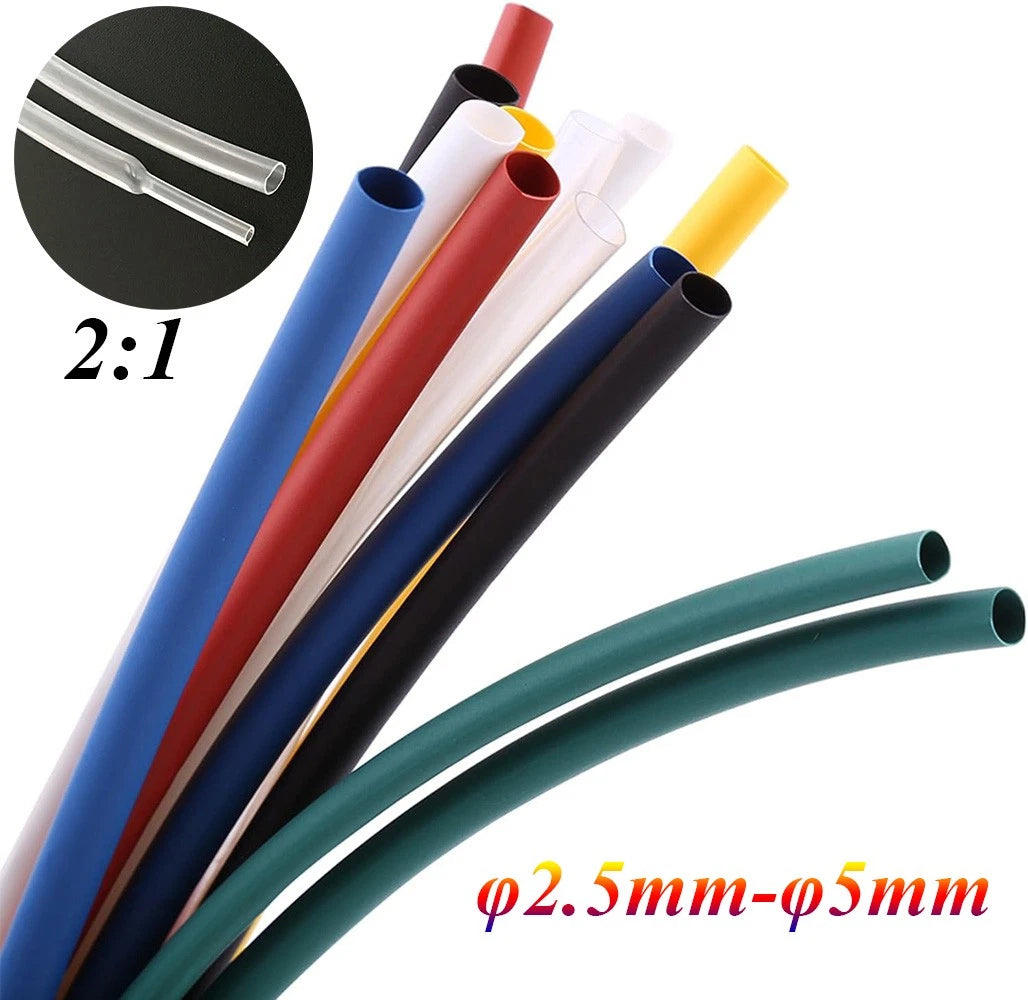

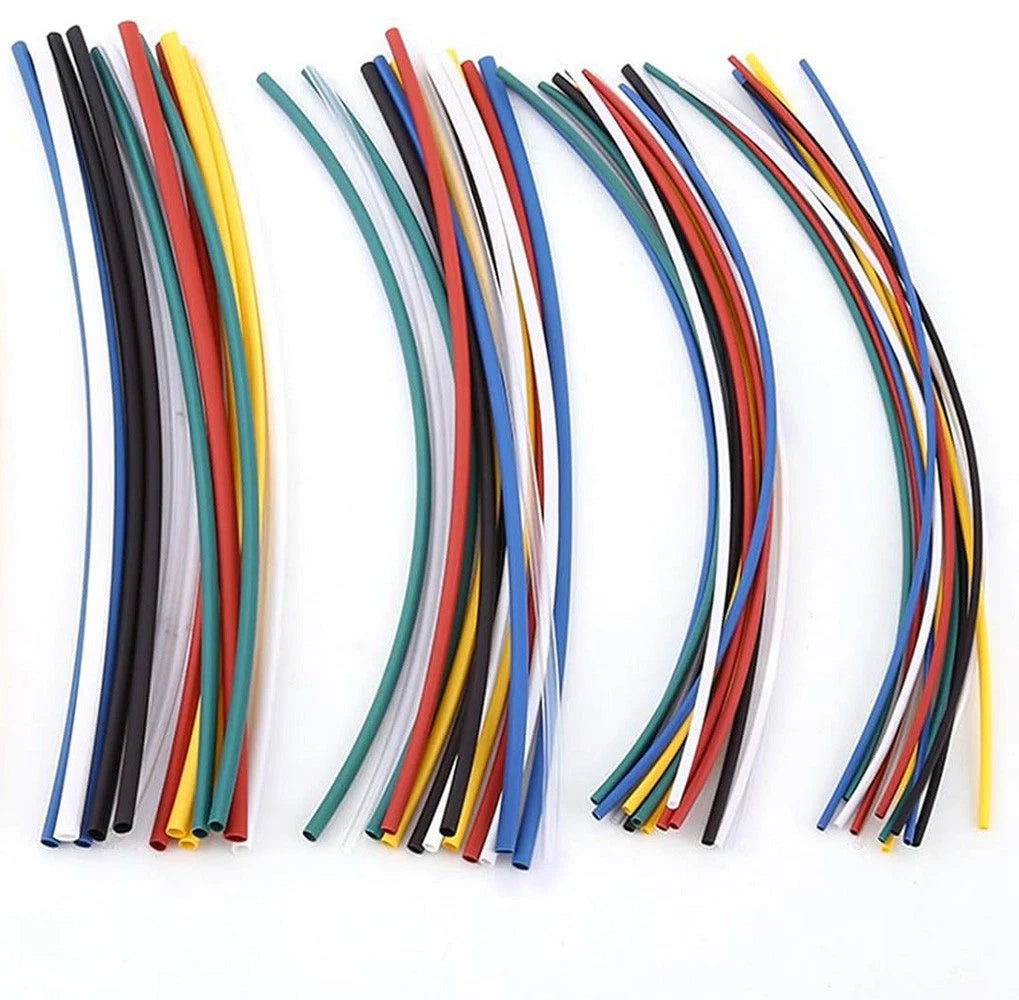

This heat shrink tubing is made from flexible polyolefin with a 2:1 shrink ratio, available in six diameters — φ2.5mm (≈3/32"), φ3mm (≈1/8"), φ3.5mm (≈9/64"), φ4mm (≈5/32"), φ4.5mm (≈11/64"), and φ5mm (≈3/16") — paired with seven color options (Black, White, Red, Green, Yellow, Blue, Transparent) and five roll lengths from 1m (≈3.3 ft) to 50m (≈164 ft). Each piece shrinks evenly to roughly half its original inner diameter when heat is applied, creating a snug, gap-free sleeve around wires, terminals, and connectors.
Common applications include automotive wiring harness repair and trailer connector insulation, DIY electronics and PCB lead protection, color-coded cable labeling in home electrical panels, and outdoor or marine connector sealing where moisture resistance is needed.
🔌
Compatibility: Works with standard copper, stranded, and solid-core wire typically ranging from AWG 10 to AWG 26, depending on the diameter selected. Compatible with any heat gun, embossing heat tool, or carefully applied open flame. Suitable for 12V automotive, low-voltage DC, and general-purpose electrical wiring up to typically 600V — contact us to confirm for higher-voltage applications.
⚠️
Sizing tip: Always measure the outer diameter of your wire or connector before selecting a size. The tubing's inner diameter before shrinking must be larger than your wire OD. After recovery, it will be approximately half that. If you are between sizes, size up. Contact us if you need help confirming the right fit.
✅ Key Features of These Heat Shrink Tubing Sleeves
-
🔥2:1 Shrink Ratio — Recovers to approximately half its original inner diameter, creating a snug, uniform fit around wires, terminals, and connectors without gaps or cold spots along the sleeve.
-

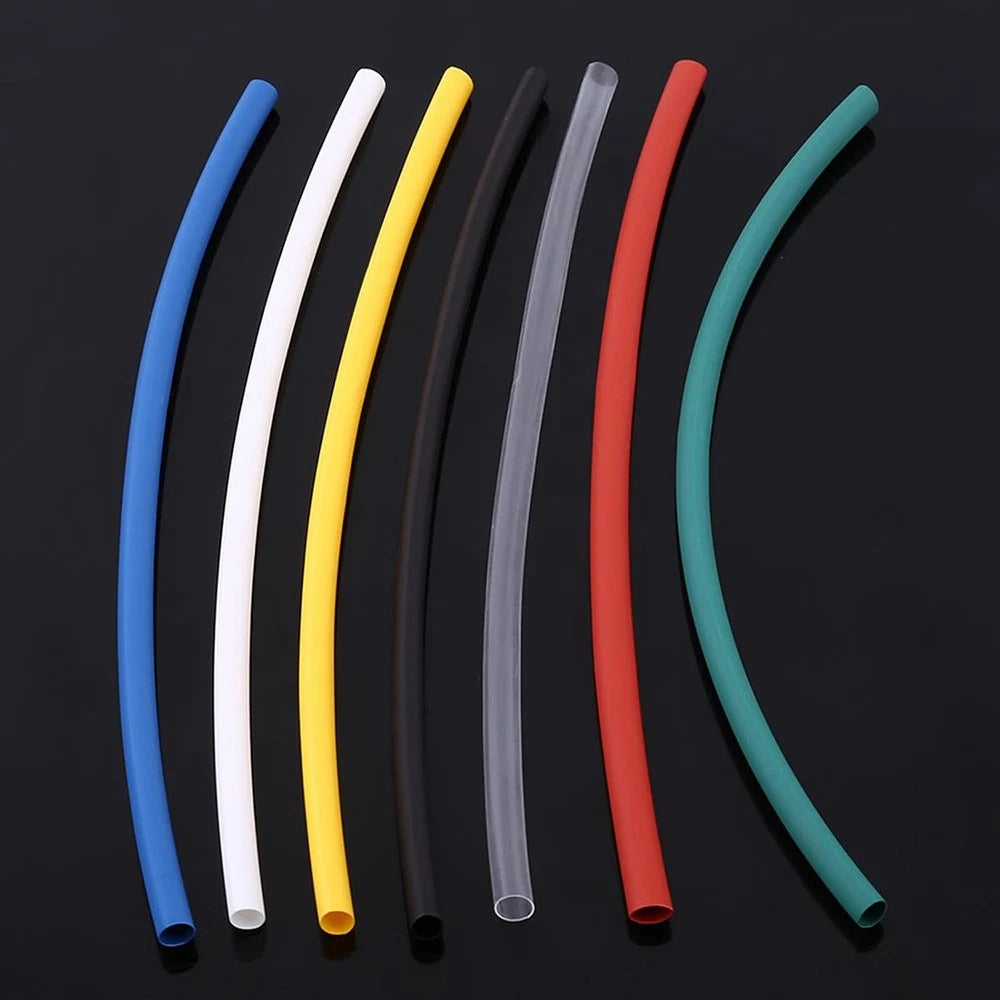

🎨7 Color Options for Easy Identification — Black, White, Red, Green, Yellow, Blue, and Transparent allow color-coded wire labeling in automotive, marine, and home electrical wiring projects, reducing tracing errors.
-
📏6 Diameter Sizes in One Listing — φ2.5mm through φ5mm covers thin signal wires up to heavier-gauge power cables typically found in 12V automotive and low-voltage DC systems, so you can order exactly what fits.
-
🌊Moisture-Resistant Polyolefin Material — Resists water ingress and mild chemical exposure, making it suitable for outdoor cable sleeving, trailer connector insulation, and underhood automotive wire repair where conditions vary.
-
✂️Cut-to-Length Roll Options — Available in 1m, 5m, 10m, 20m, and 50m lengths so you can buy exactly what your project requires, from a single splice repair to a full wiring harness job without leftover waste.
-
⚡Even, Consistent Heat Recovery — Shrinks uniformly along the full length of each cut piece, preventing uneven coverage or exposed sections that can leave conductors vulnerable to abrasion or short circuits.
📐 Technical Specifications — Heat Shrink Tubing 2:1 Polyolefin
| Product Type |
Polyolefin Heat Shrink Tubing |
| Shrink Ratio |
2:1 |
| Available Diameters (before shrink) |
φ2.5mm (≈3/32"), φ3mm (≈1/8"), φ3.5mm (≈9/64"), φ4mm (≈5/32"), φ4.5mm (≈11/64"), φ5mm (≈3/16") |
| Recovered Diameter (approx.) |
φ1.25mm / φ1.5mm / φ1.75mm / φ2mm / φ2.25mm / φ2.5mm respectively |
| Available Colors |
Black, White, Red, Green, Yellow, Blue, Transparent |
| Available Lengths |
1m (≈3.3 ft), 5m (≈16.4 ft), 10m (≈32.8 ft), 20m (≈65.6 ft), 50m (≈164 ft) |
| Material |
Polyolefin |
| Shrink Temperature |
Typically begins at 70–90°C (158–194°F); full recovery at approx. 120°C (248°F) |
| Voltage Rating |
Typically up to 600V — contact us to confirm for high-voltage applications |
| Wall Thickness (recovered) |
See variant options |
| Flexibility After Recovery |
Remains flexible; suitable for moving cable assemblies and vibration-prone environments |
| Application Method |
Heat gun, embossing heat tool, or carefully applied open flame |
| Typical Applications |
Automotive wiring, electronics, marine connectors, outdoor cable management, DIY wire repair |
❓ Frequently Asked Questions
How do I choose the right diameter of heat shrink tubing?
Measure the outer diameter of the wire or connector before selecting a size. The tubing's inner diameter before shrinking should be larger than your wire OD. After applying heat, a 2:1 tube recovers to roughly half its original diameter. For example, φ4mm tubing typically covers wires up to about 2mm OD. When in doubt, size up — you can always shrink tighter, but you cannot stretch tubing that is too small.
What does a 2:1 shrink ratio mean?
A 2:1 ratio means the tubing shrinks to approximately half its original inner diameter when heat is applied. So a φ4mm tube will recover to roughly φ2mm, conforming tightly around the wire or component inside. The tubing also shrinks slightly in length, so always cut pieces 20–30% longer than the area you need to cover.
What temperature is needed to shrink this tubing?
This polyolefin tubing generally begins to shrink at around 70–90°C (158–194°F) and fully recovers at approximately 120°C (248°F). A heat gun set to low or medium is the most reliable tool. A lighter can work in a pinch but risks scorching — keep the flame moving and maintain distance from the tubing surface.
Can this heat shrink tubing be used outdoors or in automotive applications?
Yes. Polyolefin heat shrink tubing is generally resistant to moisture, oils, fuels, and the temperature swings found in engine bays and outdoor environments. It is widely used in automotive wiring harnesses, trailer connectors, and underhood repairs. For prolonged submersion or harsh marine environments, an adhesive-lined dual-wall variant is typically recommended for a fully waterproof seal.
What is the voltage rating of this heat shrink tubing?
Standard polyolefin 2:1 heat shrink tubing is typically rated for low-voltage applications up to 600V. It is well-suited for 12V automotive, 24V DC, and general household wiring repairs. For high-voltage or industrial electrical work, please contact us to confirm the specific rating before ordering.
How much tubing do I need for a project?
Cut pieces about 20–30% longer than the area you need to cover, as the tubing also shrinks slightly in length during recovery. For a single wire splice, a 50mm (≈2") piece is typically sufficient. For wiring harnesses or longer cable runs, the 10m, 20m, or 50m rolls offer the best value per meter and reduce the number of cuts needed.
What wire gauges does each diameter fit?
As a general guide: φ2.5mm typically fits AWG 22–26 signal wires; φ3mm fits AWG 18–22; φ3.5mm fits AWG 16–20; φ4mm fits AWG 14–18; φ4.5mm fits AWG 12–16; φ5mm fits AWG 10–14. These are approximate ranges — always measure your wire's outer diameter to confirm the right fit before ordering.
🛒 Select your size, color, and length above, then add to cart — ships from our US warehouse.
