What is the maximum working pressure for this hose?

Working pressure varies by diameter. Smaller sizes (ID 10–16mm) typically handle up to 8–10 bar (116–145 psi), while larger sizes (ID 50mm+) are generally rated lower. Contact us to confirm the pressure rating for your specific size.

Can this hose be used outdoors or in UV-exposed environments?

This hose is made from clear PVC, which is generally not UV-stabilized. For prolonged outdoor or direct sunlight exposure, we recommend shielding the hose or using a UV-resistant sleeve. It performs well in sheltered outdoor applications.

Is this hose compatible with standard BSP or NPT fittings?

Yes, the hose ID is sized to slip over standard barb fittings. It is compatible with BSP and NPT barbed connectors of the corresponding nominal size. Always use a hose clamp to secure the connection.

What fluids is this hose suitable for?

This hose is generally suitable for water, light oils, compressed air, and fuel lines in low-pressure applications. It is not recommended for strong solvents, concentrated acids, or steam. Confirm chemical compatibility for your specific application.

How do I cut the hose to a custom length?

Use a sharp utility knife or pipe cutter for a clean, square cut. Avoid sawing motions that can fray the braid. The hose can be cut to any length from the 1M, 2M, or 3M options available.

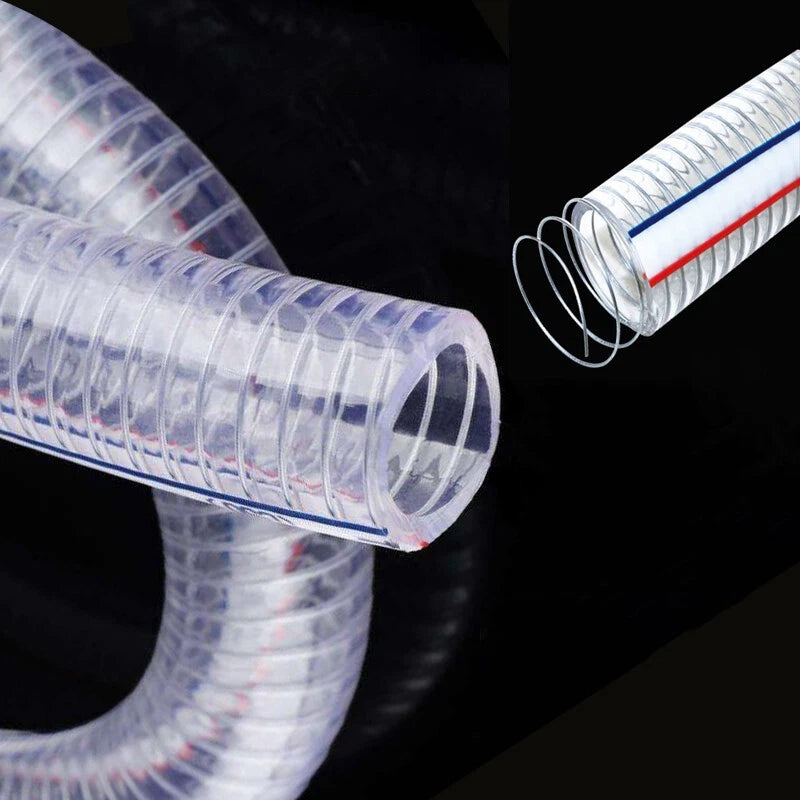

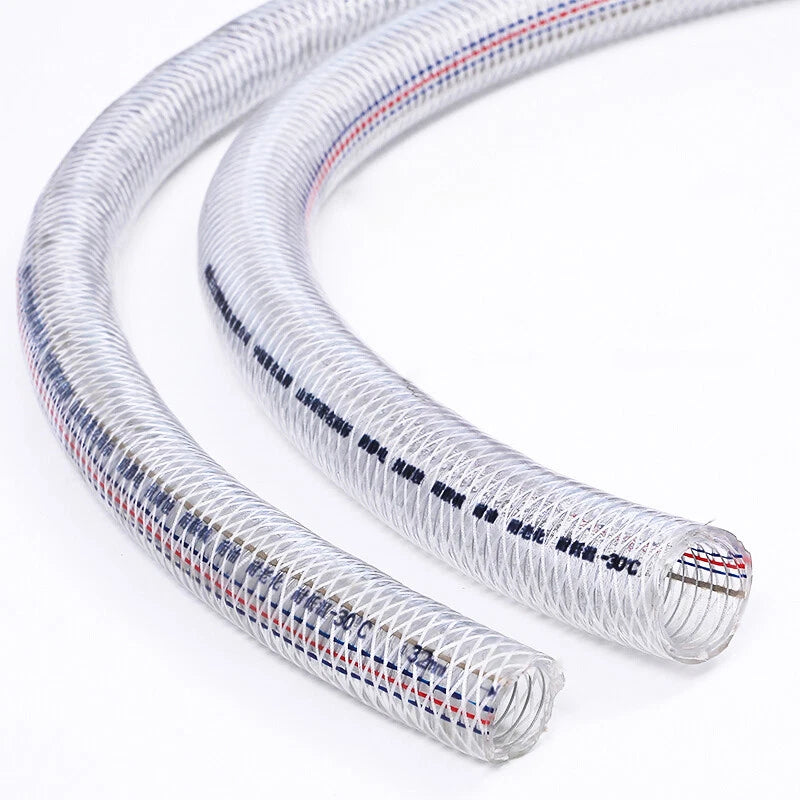

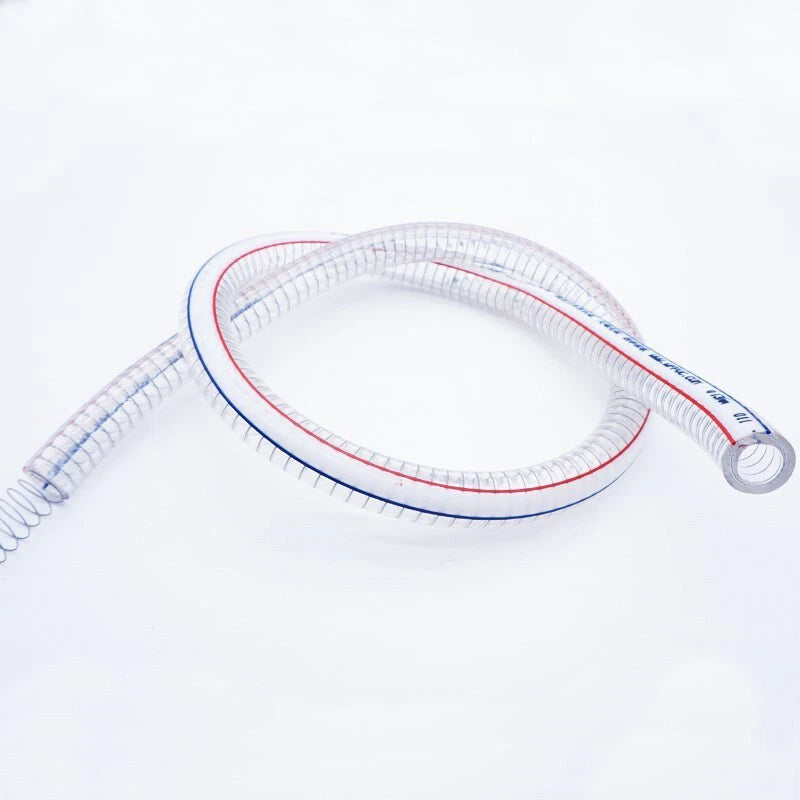

PVC Clear Flexible Reinforced Braided Hose — ID 10–102mm, 1M/2M/3M

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

PVC Clear Flexible Reinforced Braided Hose — ID 10–102mm, 1M/2M/3M

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Size(ID * OD): 10mm x 16mm

Length: 1M

Preis:

$9.51 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Clear PVC Reinforced Braided Hose — Flexible Tubing for Water, Oil & Air Lines

Whether you're routing coolant through a workshop machine, plumbing a garden irrigation system, or running a fuel line on a small engine, finding a hose that stays flexible without kinking under pressure is a constant challenge. This clear PVC reinforced braided hose is built for DIYers, tradespeople, and light industrial users who need a reliable, see-through tube that holds its shape under load.

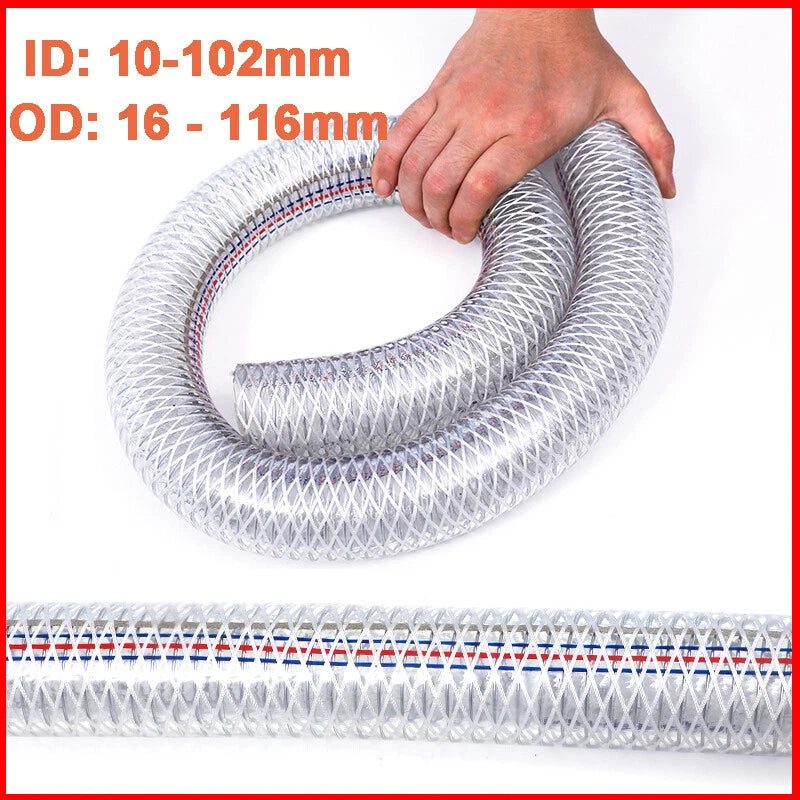

Each length is a single continuous piece of clear PVC flexible reinforced braided hose, available in Inner Diameter (ID) × Outer Diameter (OD) sizes ranging from 10mm × 16mm (≈3/8" × 5/8") up to 102mm × 116mm (≈4" × 4-9/16"), with a wall thickness of approximately 3mm across most sizes. Choose from 1M (≈3.3 ft), 2M (≈6.6 ft), or 3M (≈9.8 ft) lengths to suit your project. The polyester braid reinforcement is embedded within the PVC wall, visible through the clear tube body.

Typical use cases include clear water supply lines for aquariums and pumps, flexible air hose connections on compressors, light oil transfer tubing in automotive workshops, and general-purpose fluid transfer where visual flow confirmation is needed. The transparent body makes it easy to spot blockages, air locks, or contamination without disconnecting the line.

🔗 Compatibility: Fits standard barb fittings (BSP & NPT nominal sizes). Match the hose ID to your fitting's barb OD. Use hose clamps for a secure, leak-free connection.

✅ Key Features of These Clear PVC Reinforced Braided Hoses

👁️Transparent PVC Wall — The crystal-clear body lets you monitor fluid flow, detect air locks, and spot contamination at a glance — no need to disconnect the line.

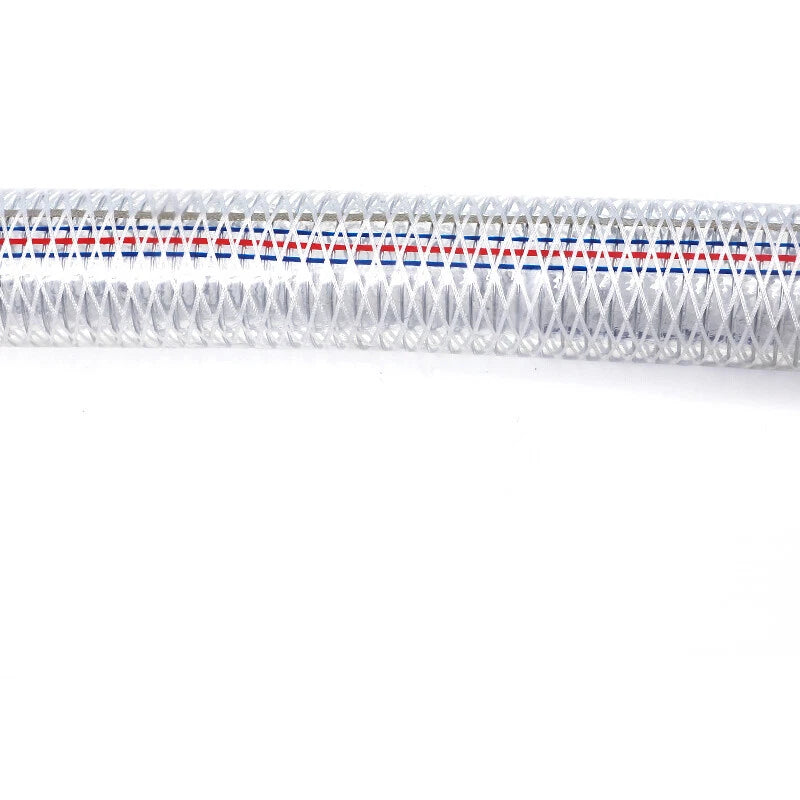

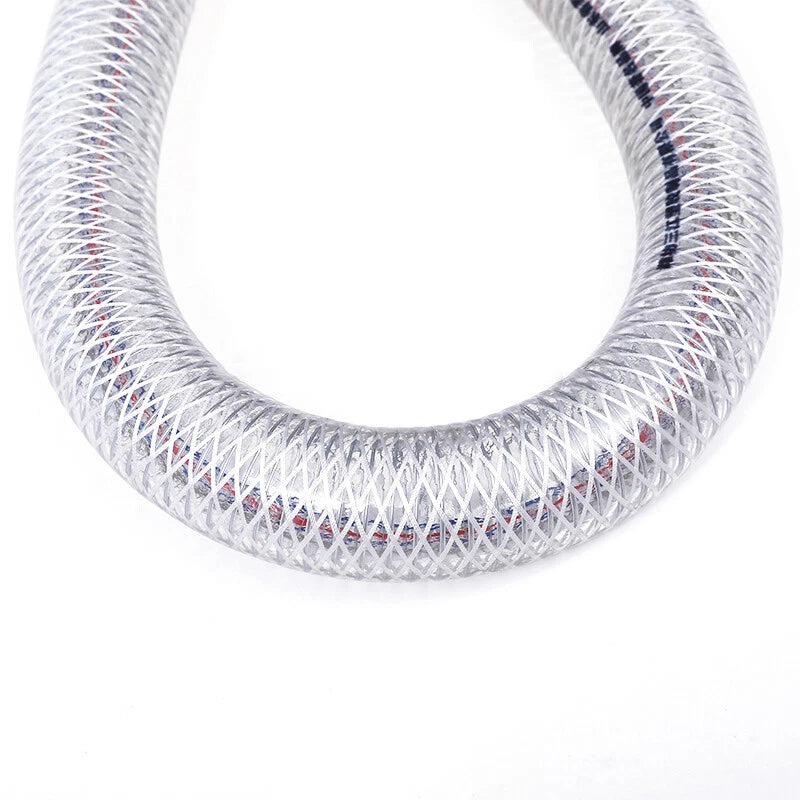

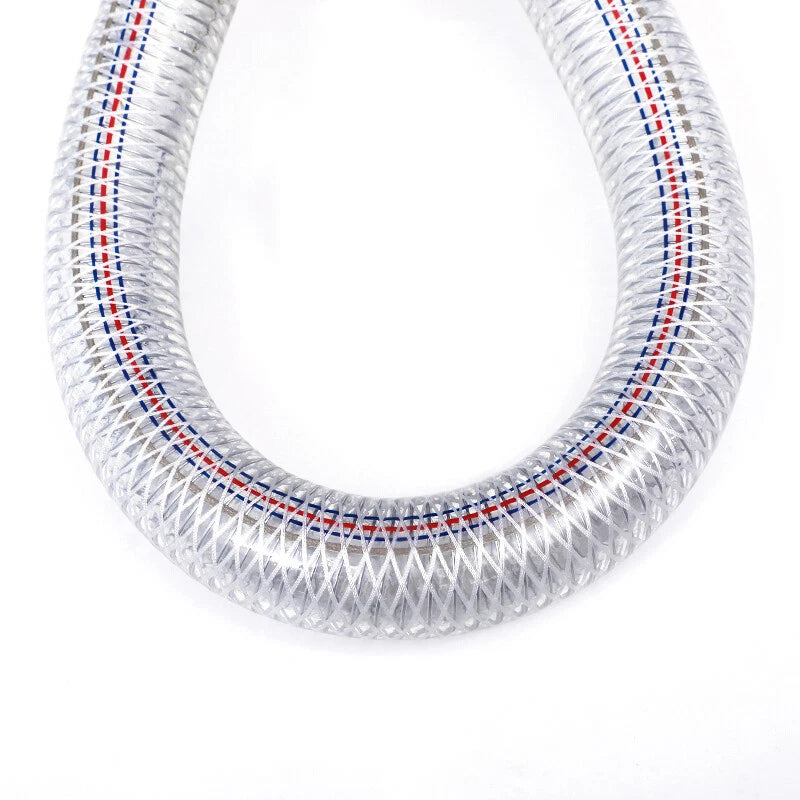

🧵Polyester Braid Reinforcement — An embedded polyester fiber braid resists internal pressure and prevents ballooning, making this hose suitable for water, oil, and compressed air transfer lines.
🔄Kink-Resistant Flexibility — The reinforced PVC wall maintains its round cross-section even through tight bends, reducing flow restriction in confined routing paths.
📏Wide Size Range — Available in 15 ID × OD combinations from 10mm × 16mm up to 102mm × 116mm, covering most standard fitting sizes used in plumbing, irrigation, and light industrial applications.
✂️Cut-to-Length Convenience — Sold in 1M, 2M, and 3M sections that can be trimmed with a utility knife, so you only use what you need without waste.

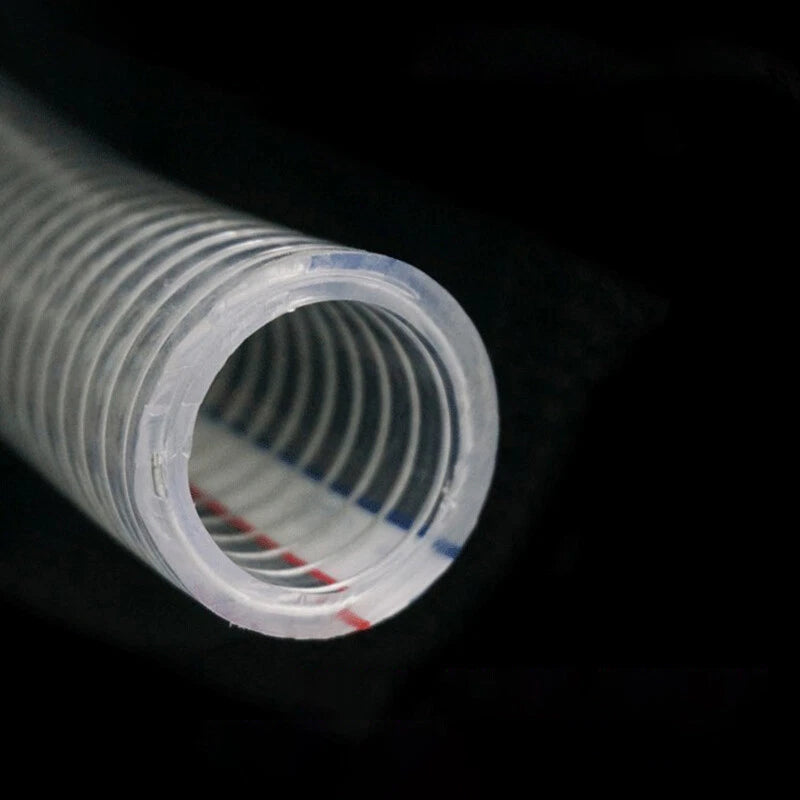

🛡️Smooth Bore Interior — The non-corrugated inner surface minimizes turbulence and buildup, maintaining consistent flow rates in water supply and fluid transfer applications.

📐 Technical Specifications — Clear PVC Reinforced Braided Hose

⚠️ Note: Wall thickness and pressure ratings are typical values for this hose type. Confirm exact specifications for your application before installation in pressure-critical systems.

Material	Clear PVC with polyester braid reinforcement
Available ID × OD	10×16mm, 12×18mm, 13×19mm, 16×22mm, 19×26mm, 25×32mm, 32×40mm, 38×47mm, 45×55mm, 50×60mm, 60×70mm, 64×74mm, 75×85mm, 89×102mm, 102×116mm
Wall Thickness	Typically 3mm (varies by size — see variant options)
Available Lengths	1M (≈3.3 ft) / 2M (≈6.6 ft) / 3M (≈9.8 ft)
Working Pressure	Typically 6–10 bar (87–145 psi) for smaller sizes; see variant options for larger diameters
Temperature Range	Typically −5°C to +60°C (23°F to 140°F)
Fluid Compatibility	Water, light oils, compressed air, fuel (low-pressure); not for strong solvents or steam
Fitting Compatibility	Standard barb fittings — BSP & NPT nominal sizes
Color	Clear / transparent
Reinforcement Type	Embedded polyester fiber braid
Quantity per Order	1 piece (single continuous length)

❓ Frequently Asked Questions

How do I choose the right hose size (ID vs OD)?

Match the hose Inner Diameter (ID) to the outer diameter of your barb fitting. For example, a 1/2" barb (≈13mm OD) typically fits the 13mm ID hose. The OD dimension tells you the space the hose occupies in your installation. If you're replacing an existing hose, measure the ID of the old hose with calipers. When in doubt, size up — a slightly larger ID can be clamped down, but a hose that's too small won't seat on the fitting.

What is the working pressure and burst pressure of this hose?

Working pressure varies by diameter. Smaller sizes (ID 10–19mm) generally handle up to 8–10 bar (116–145 psi). Larger diameters (ID 50mm and above) are typically rated lower due to the increased wall stress at larger bore sizes. Contact us to confirm the pressure rating for your specific size before use in pressurized systems.

Can this hose be used outdoors or in direct sunlight?

Clear PVC is generally not UV-stabilized, so prolonged direct sunlight exposure can cause the material to yellow and become brittle over time. For outdoor installations, we recommend routing the hose through conduit, wrapping it with UV-protective tape, or using a UV-resistant sleeve. In sheltered outdoor environments (under eaves, inside enclosures), the hose typically performs well.

Is this hose compatible with BSP or NPT fittings?

Yes. The hose is designed to slip over standard barbed fittings. It is compatible with both BSP and NPT barb connectors of the corresponding nominal size. Always secure the connection with a stainless steel or zinc-plated hose clamp to prevent pull-off under pressure. Do not rely on friction alone for pressurized applications.

What fluids can I run through this hose?

This hose is generally suitable for water, light mineral oils, compressed air, and low-pressure fuel lines. It is not recommended for strong solvents (acetone, MEK), concentrated acids or alkalis, or steam. For chemical transfer applications, always verify PVC compatibility with the specific fluid before installation.

How do I cut the hose cleanly to a custom length?

Use a sharp utility knife or a dedicated hose/tube cutter. Score around the circumference first, then cut through in one clean motion. Avoid back-and-forth sawing, which can fray the polyester braid and leave an uneven end face. A square, clean cut ensures a proper seal against the barb fitting face.

What temperature range can this hose handle?

Clear PVC reinforced hose typically operates between approximately −5°C and +60°C (23°F to 140°F). At temperatures above 50°C (122°F), the PVC may soften slightly, which can reduce pressure resistance. For high-temperature applications (hot water, steam), consider a silicone or EPDM hose instead.

🛒 Select your size (ID × OD) and length above, then add to cart — ships from our US warehouse.
