White 2:1 Heat Shrink Tubing — 1 Meter, 0.6mm to 80mm Diameter

Measure the outer diameter of the wire or connector you need to cover, then select a tubing diameter that is slightly larger before shrinking. Because this tubing has a 2:1 shrink ratio, the recovered diameter will be approximately half the supplied diameter. For example, a 10mm (≈3/8") tube will shrink down to roughly 5mm (≈3/16"). When in doubt, size up — you can always apply more heat, but you cannot expand tubing that is too small.

A 2:1 shrink ratio means the tubing will shrink to approximately half its original supplied diameter when heat is applied. For example, a 20mm (≈3/4") tube will recover to roughly 10mm (≈3/8"). This ratio is the most common standard for general-purpose wire insulation and bundling.

Standard 2:1 polyolefin heat shrink tubing typically activates at around 90°C (194°F) and fully recovers at approximately 120°C (248°F). A heat gun is the recommended tool. A lighter or match can work in a pinch but may cause uneven shrinkage or scorching, especially on smaller diameters.

Standard polyolefin tubing generally provides basic moisture resistance and is suitable for light outdoor use. However, it is not rated for prolonged UV exposure or submersion. For harsh outdoor or marine environments, consider adhesive-lined (3:1) tubing with a waterproof inner lining instead.

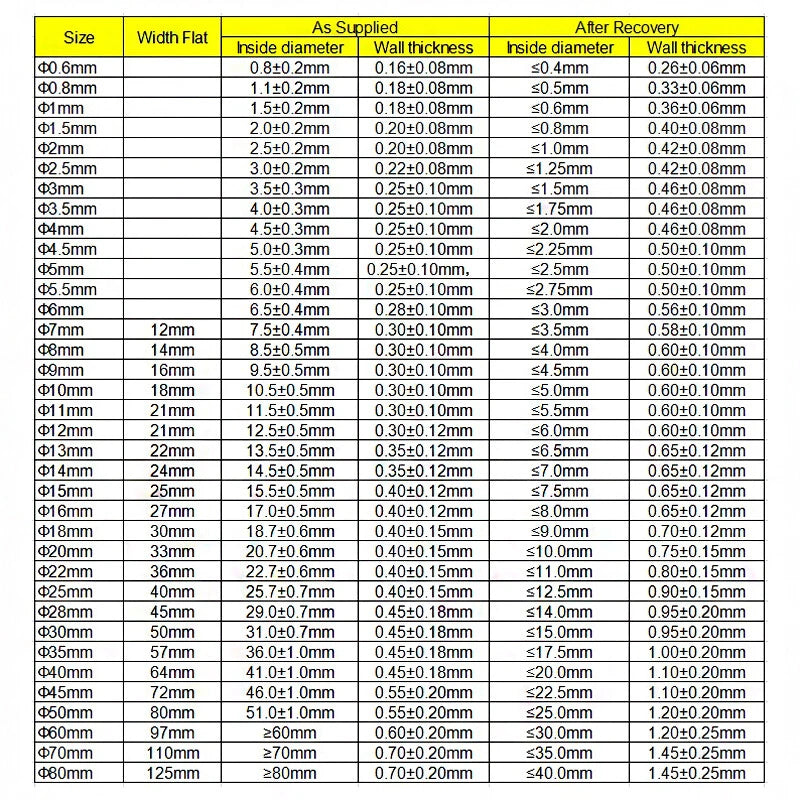

With diameters ranging from 0.6mm to 80mm, this tubing covers a very wide range of wire gauges — from fine signal wires (typically AWG 30–26 at the small end) up to large power cables and conduit bundles at the larger sizes. Always verify the supplied diameter against your wire's outer diameter before ordering.

This tubing is generally manufactured from polyolefin material, which is commonly used in electrical insulation applications. For specific compliance certifications (UL, RoHS, VW-1 flame rating), please contact us to confirm before use in safety-critical applications.

Yes. Each piece is supplied as a 1-meter (≈39.4") length and can be cut to any shorter length with scissors or a utility knife before or after shrinking. Cut ends do not fray or unravel.
