Concrete Screws: Definition, How They Work & Install Like a Pro

📌 What Are Concrete Screws?

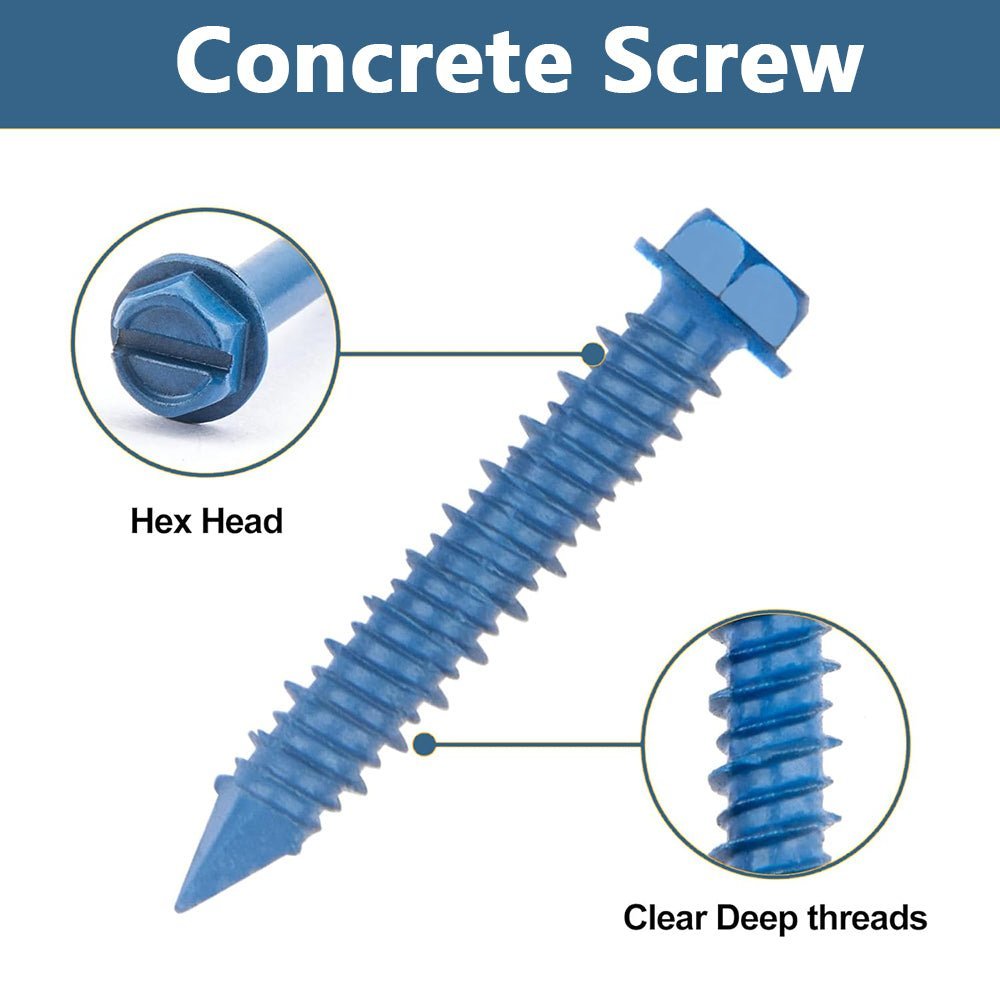

A concrete screw (often called a masonry screw) is a specialized fastener designed to tap its own threads directly into pre‑drilled holes in concrete, brick, or block. Unlike ordinary wood screws that rely on wedging, concrete screws use a unique high‑low thread geometry that cuts into the masonry without creating expansion pressure. This means no cracking, no waiting for epoxy to cure, and no extra anchors.

Key features that make them awesome:

• 🔩 Self‑tapping threads – They create their own mating threads as you drive them.
• 💪 High pull‑out strength – A 1/4″ screw can hold 200‑300 lbs in solid concrete.
• 🔁 Removable & reusable – Unscrew and reuse the same hole (unlike expansion anchors).
• 🛡️ Corrosion‑resistant coatings – Blue Climaseal®, stainless steel, or zinc for different environments.
• ⚡ Fast installation – Drill, clean, drive – done in under a minute per screw.

⚙️ How Concrete Screws Actually Work (The Engineering)

Think of a concrete screw as a tiny thread‑cutting machine. Here’s the step‑by‑step magic:

1. You drill a pilot hole using a carbide‑tipped masonry bit (slightly smaller than the screw diameter).
2. The screw’s high threads are designed to cut into the wall of the hole, while the low threads provide clearance for debris.
3. As you drive the screw, the threads don’t push the concrete outward — instead, they cold‑form the hole walls, creating a precise, interlocking fit.
4. The result is a strong mechanical bond without expansion stress, which means no cracks near edges.

This is why self tapping concrete screws are so efficient: they eliminate the need for plastic anchors, expansion sleeves, or setting tools. Just drill, clean, and drive. It’s like giving your concrete a custom‑made threaded hole.

🧱 Concrete Screws vs. Traditional Anchors: What’s the Difference?

When you need to attach something to concrete, you have options. Here’s how screws for concrete compare to other common methods:

For most Home DIY projects around the house — like attaching furring strips to a basement wall or mounting a hose reel — a concrete screw is the fastest, most forgiving solution. You can remove it without destroying the hole (unlike expansion anchors), which is a huge plus if you make a mistake.

🛠️ When to Use Concrete Screws (and When to Avoid Them)

✅ Perfect for:

• Framing basement walls (pressure‑treated lumber to concrete)
• Attaching electrical panels, conduit straps, or junction boxes
• Mounting shelves, cabinets, or workbenches in garages
• Securing sill plates or bottom plates to foundations
• Outdoor projects like fence posts brackets or deck ledgers (use stainless or coated masonry screws)

❌ Not ideal for:

• Thin concrete edges (within 2″ of an edge — can cause blowout)
• Overhead loads where vibration is constant (use drop‑in anchors for safety)
• Crumbly or low‑strength concrete (e.g., old spalling foundation)
• When you need to repeatedly remove and reinstall the fastener (threads may wear)

🛠️ How to Install Concrete Screws: Step‑by‑Step & Critical Details

Follow these steps for a perfect hold every time. Grab your hammer drill, safety glasses, and let’s get to work.

Step 1 – Gather the Right Tools

• ✅ Concrete screws (correct diameter & length for your load)
• ✅ Hammer drill with a carbide‑tipped masonry bit (bit size = screw diameter minus 1/64″; e.g., for 1/4″ screw use 3/16″ bit)
• ✅ Vacuum or compressed air (to clean the hole)
• ✅ Impact driver or drill with clutch (for driving screws)
• ✅ Tape measure, pencil, level
• ✅ Safety glasses & ear protection

Step 2 – Mark and Drill the Pilot Hole

• Mark the screw location on the concrete surface.
• Drill the hole at least 1/4″ deeper than the screw length (to collect dust).
• Hold the drill perpendicular. Use the hammer drill function at medium speed.
• Do not force the bit — let the hammer action do the work.

Step 3 – Clean the Hole (Absolutely Critical!)

• Use a vacuum, compressed air, or a wire brush to remove all dust and debris.
• A dirty hole prevents full thread engagement and can reduce holding power by up to 50%.
• Pro tip: insert the screw slightly and back it out to clear remaining dust.

Step 4 – Drive the Concrete Screw

• Place the screw through the fixture (bracket, shelf support, etc.) and into the hole.
• Drive with an impact driver or drill at medium speed (high speed can strip the hole).
• Stop as soon as the screw head is snug against the fixture. Over‑tightening will strip the threads.
• If the screw spins without tightening, the hole is too large — use a thicker screw or a drop‑in anchor.

Step 5 – Check and Adjust (If Needed)

• Concrete screws are removable — if a screw strips, back it out, clean the hole again, and re‑drive.
• For outdoor applications, use stainless steel or coated screws to prevent rust.
• Always test a screw in a scrap piece of concrete first if you’re new to the process.

✅ That’s it! The DIY formula for concrete screw success = 🧹 Clean the hole + 🔩 Use the correct bit size + ⚡ Drive at medium speed + 🧱 Don’t over‑tighten. With practice, you’ll be installing concrete screws faster than you can say “expansion anchor.”

🔧 Tek Screws for Concrete: What’s Different?

You might hear the term tek screws tossed around. True tek screws are self‑drilling screws designed for metal‑to‑metal or metal‑to‑wood applications — they have a drill‑point tip that eliminates pre‑drilling. Tek screws for concrete are less common; most concrete‑rated fasteners are still self‑tapping (requiring a pre‑drilled pilot hole). If a product is marketed as “tek screws for concrete,” it usually means a hardened self‑tapping screw with a specialized thread profile. For reliable holding power, stick with name‑brand concrete screws like HomeDIYer’s own line — they’re engineered specifically for masonry, not just rebranded metal screws.

❓ FAQ: Concrete Screws & Masonry Fastening
