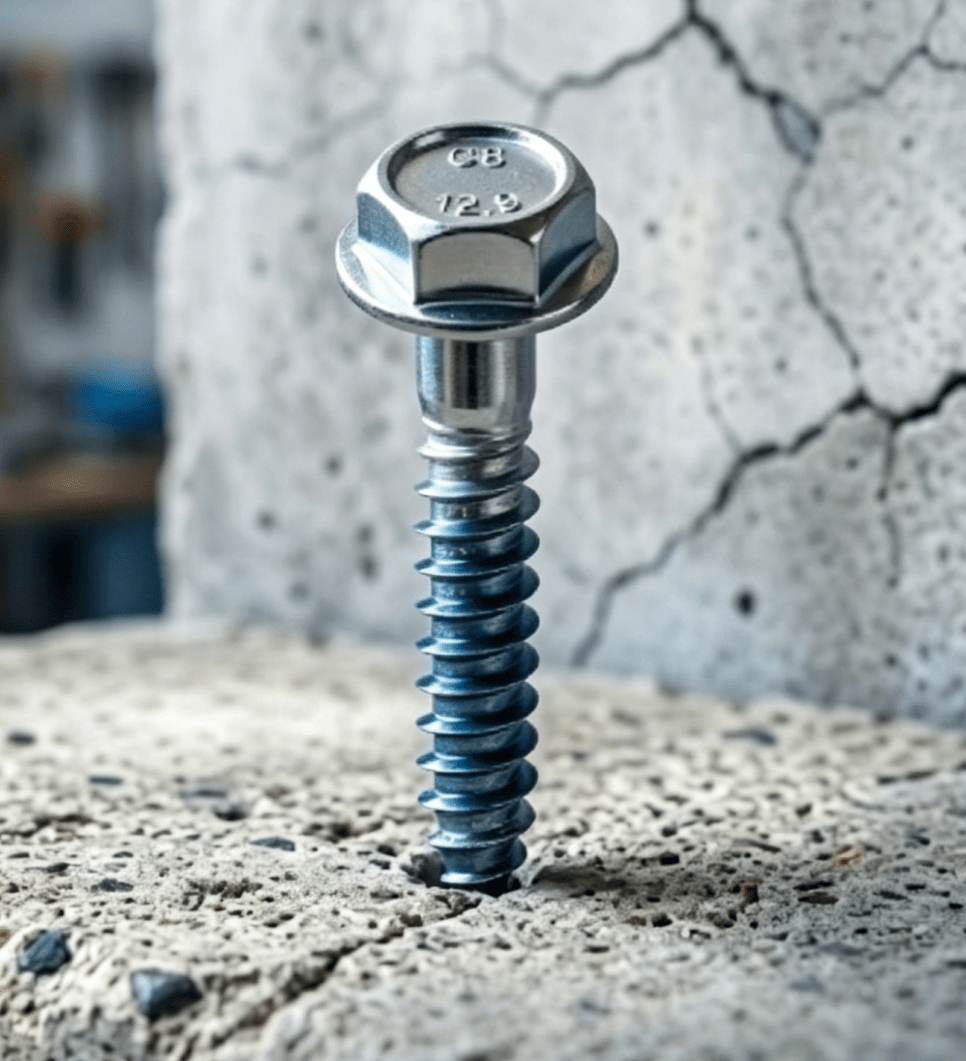

How Concrete Screws Work: Types, Cracked & Non-Cracked Concrete

If you’ve ever wondered how a simple screw can bite into solid masonry without an anchor, this article is for you. In this guide, we break down the gripping mechanism behind concrete screws, explain the different types of concrete screws you’ll encounter, and dive deep into the critical distinction between cracked and non-cracked concrete. Whether you’re fastening a shelf to a basement wall or mounting heavy equipment outdoors, understanding these fasteners will save you time, money, and headaches. We’ll also walk you through installation best practices, help you select the right screw for the job, and answer the most common questions.

What Are Concrete Screws and How Do They Work?

Concrete screws are specially hardened fasteners designed to tap their own threads directly into pre‑drilled holes in concrete, brick, or stone. Unlike traditional anchors that require a separate sleeve or plug, a concrete screw features alternating high and low threads that cut into the base material as it is driven. The deep, sharp threads displace dust and debris into the screw’s thread troughs, creating a tight mechanical interlock. This eliminates the need for expansion forces that can crack brittle substrates—a huge advantage when working with older or fragile masonry.

The installation process is straightforward: you drill a hole slightly deeper than the screw’s embedment using a hammer drill and a carbide‑tipped bit matching the screw diameter. After cleaning out the hole, you drive the screw with an impact driver or wrench. The result is a vibration‑resistant, instantly loadable connection that can be removed and reinstalled if needed. That self‑tapping ability is what makes concrete screws ideal for both temporary fixtures and permanent structural applications.

Types of Concrete Screws

Selecting the right fastener starts with understanding the various types of concrete screws available. Each style is engineered for specific load requirements, environmental conditions, and visual preferences. Below are the most common varieties you’ll find in any well‑stocked hardware collection—including our own concrete screws range at Home DIYer.

Hex Head Concrete Screws

Hex washer head screws are the workhorses of heavy‑duty fastening. The large bearing face distributes clamping force over a wider area, while the external hex accepts a socket or wrench for high‑torque installation. Use them for ledger boards, structural brackets, and equipment bases where pulling force is significant. Many hex head concrete screws sold at Home DIYer carry ETA certifications, meaning they are approved for use in both cracked and non-cracked concrete.

Countersunk (Flat Head) Concrete Screws

When a flush finish matters—think window frames, door thresholds, or wooden battens—countersunk concrete screws are the answer. The tapered head sits neatly into a countersunk hole, creating a smooth surface that won’t snag or protrude. These are often manufactured from bi‑metal or stainless steel to resist corrosion, making them a great choice for indoor renovations and sheltered exterior locations.

Pan Head and Tapper Screws

Pan head screws feature a slightly domed profile and a Phillips or Torx drive. They are commonly used with metal brackets, electrical boxes, and light‑duty fixtures. Tapper screws, a subset of concrete screws, have an even sharper thread angle for faster driving into softer masonry, such as brick or hollow block. If you are unsure which style fits your project, browsing the full concrete screws collection will help you compare head styles and diameters side by side.

Cracked vs. Non-Cracked Concrete: Why It Matters

Not all concrete is created equal, and the distinction between cracked and non-cracked concrete is one of the most important factors in fastener selection. In structural design, concrete is assumed to be “cracked” if tension zones may develop under service loads—something extremely common in suspended slabs, bridge decks, and areas prone to vibration. Non‑cracked concrete, by contrast, refers to slabs or footings where compression is dominant, and cracking is unlikely under normal conditions.

Why does this matter for concrete screws? A standard concrete screw may work perfectly in non‑cracked concrete, but can lose its grip if a crack propagates through the anchorage zone. For safety‑critical applications, you need screws that have been tested and approved for cracked concrete in accordance with European Technical Assessments (ETAs). These screws maintain holding power even if the substrate fissures, thanks to deeper thread engagement and optimized core geometry. Always check the manufacturer’s specifications—every product on the

How to Install Concrete Screws Correctly

Even the best concrete screws will underperform if installation isn’t precise. Follow these steps for a reliable hold:

1. Drill the hole. Use a hammer drill and a carbide‑tipped bit sized exactly to the screw’s nominal diameter. Drill to a depth at least 1/4 inch deeper than the screw’s embedment to accommodate dust.
2. Clean the hole thoroughly. Blow out dust with a bulb blower or compressed air, then brush the walls with a nylon bore brush. Dust left inside acts as a lubricant and dramatically reduces holding power.
3. Drive the screw. Using an impact driver or a torque‑controlled drill, insert the concrete screw straight into the hole. Do not over‑torque—stop once the head contacts the fixture firmly. If you hear clicking, back off slightly.
4. Check embedment. Most structural applications require a minimum embedment depth; consult the product datasheet. For drywall track or thin brackets, shallower embedment may be acceptable.

If you ever need to remove a concrete screw, simply unscrew it counter‑clockwise. The hole can be reused with a new screw of the same diameter, though in critical installations it’s safer to drill a fresh hole a few inches away.

Frequently Asked Questions About Concrete Screws

Are Home DIYer concrete screws durable enough for heavy‑duty applications?

Absolutely. Our concrete screws are manufactured from premium‑grade carbon steel with a hardened surface treatment, ensuring exceptional durability and tensile strength. Even the packaging reflects this attention to quality—every box is beautifully presented, protecting the screws from moisture and impact during storage so they arrive in perfect condition on your doorstep.

How fast is shipping, and what is the typical lead time?

We understand that renovation timelines are tight. Production at Home DIYer usually takes 1–2 business days, after which orders ship with a transit time of 3–7 business days, depending on your location. Every parcel is packed with care—customers frequently mention the impeccable packaging that ensures not a single screw is lost or damaged in transit.

Can I use these concrete screws for both home renovation and DIY crafts?

Definitely. Whether you are mounting kitchen cabinets, securing a pergola post, or creating a DIY shelving system, Home DIYer concrete screws deliver professional results. Their versatility across home renovation and DIY projects makes them a staple in any toolkit, and with our clear installation guide, even first‑time users get a rock‑solid fix.

How is the online shopping experience at Home DIYer?

We’ve designed the Home DIYer website for a smooth, intuitive browsing experience. Product specs, load tables, and installation tips are right at your fingertips. Should you have any questions, our customer service team responds promptly—often within hours—to help you choose the right fastener or troubleshoot your project.

What makes Home DIYer different from other fastener brands?

Beyond the strong and durable build of our concrete screws, the Home DIYer brand stands for transparency, speed, and community. We provide detailed technical data on every listing, ship from multiple warehouses to reduce delivery times, and actively share Home DIY inspiration across our social channels. Our goal is to make every Home DIY job safer, easier, and more affordable.

Wrapping Up

Concrete screws may be small, but their impact on structural integrity and project efficiency is huge. By understanding how they cut their own threads, recognizing the different types of concrete screws, and choosing the appropriate product for cracked and non-cracked concrete, you can tackle everything from delicate trim work to heavy‑duty anchorage with confidence.

Ready to experience the difference quality makes? Explore our complete concrete screws collection and stock up for your next build. While you’re there, create a free account to track orders and access exclusive DIY guides.
