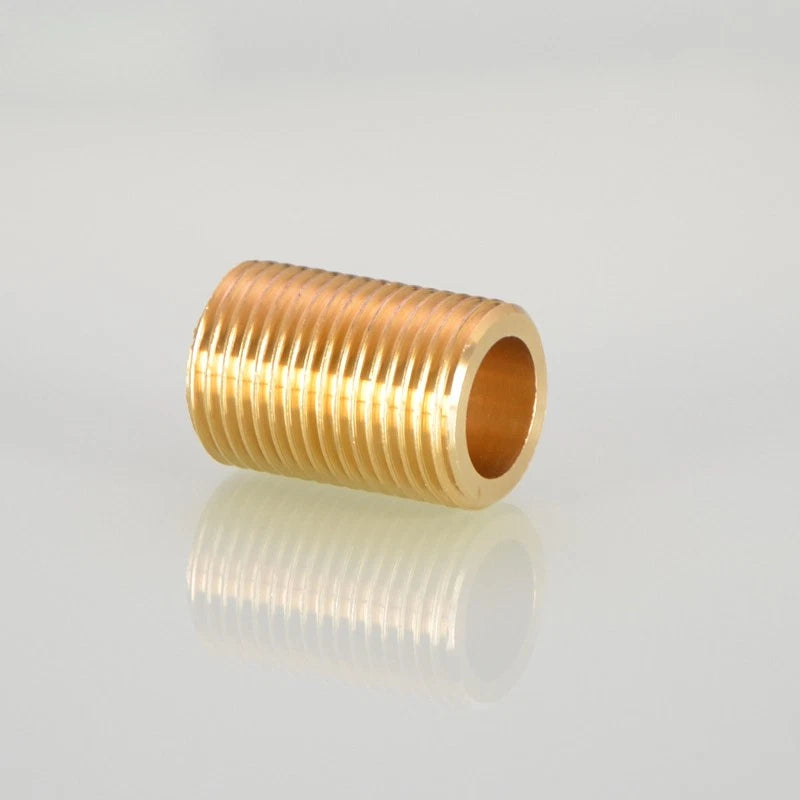

1/2" BSP Brass Male Thread Extension Pipe Nipple Connector | 3–12cm

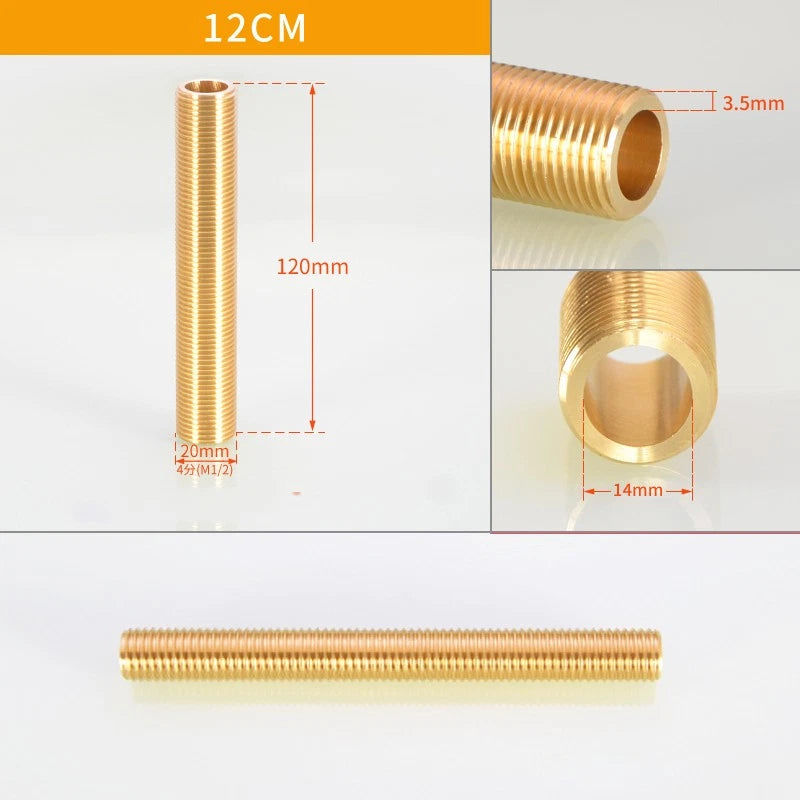

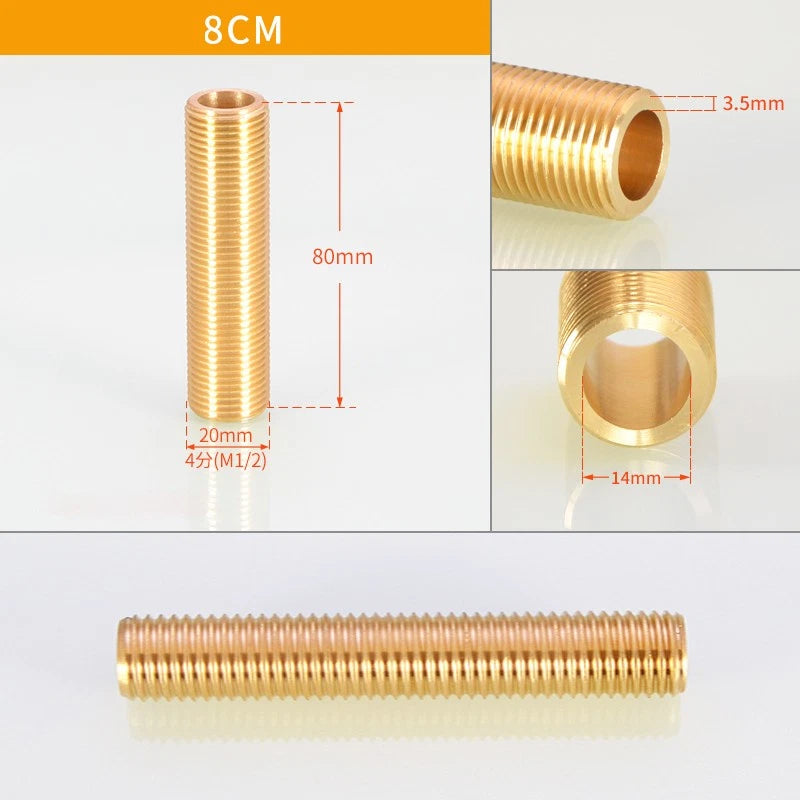

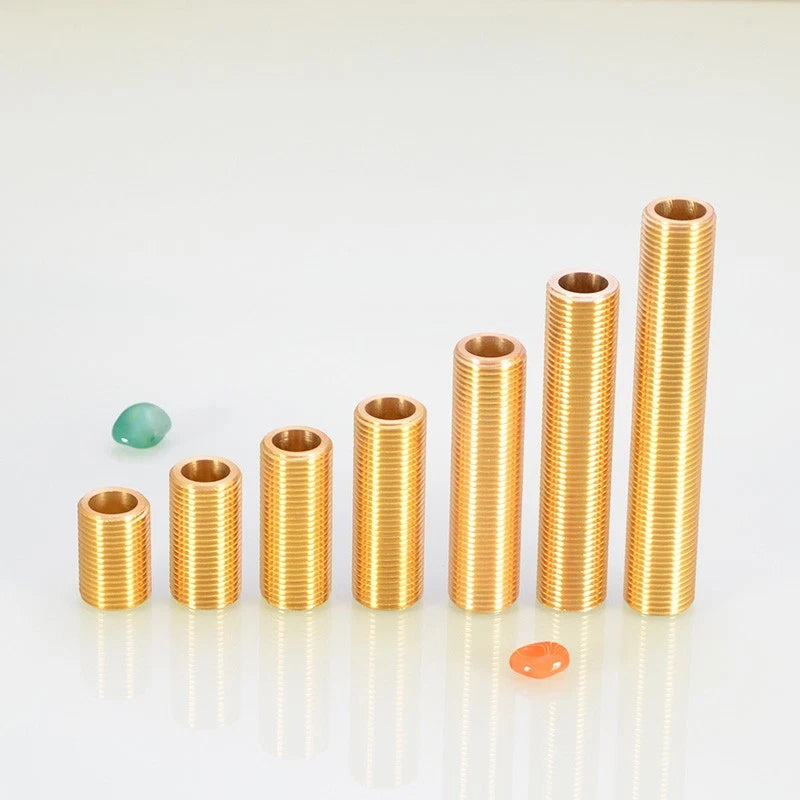

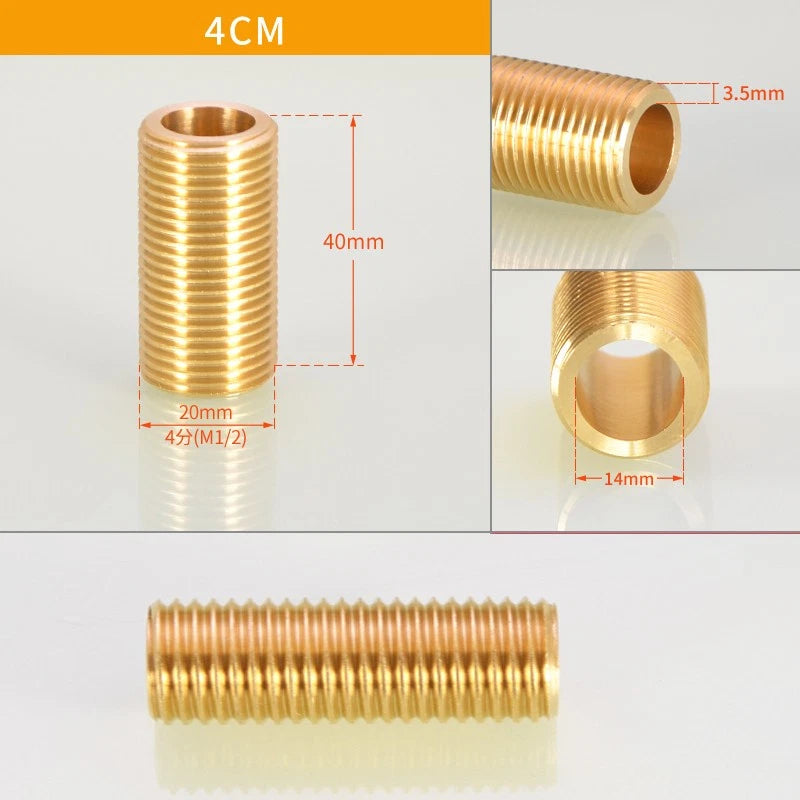

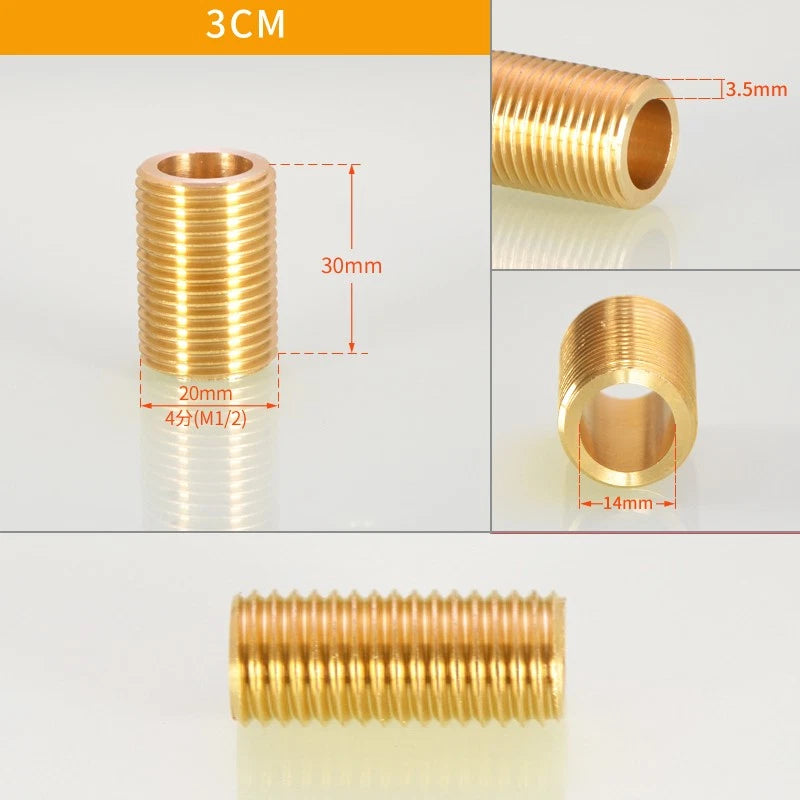

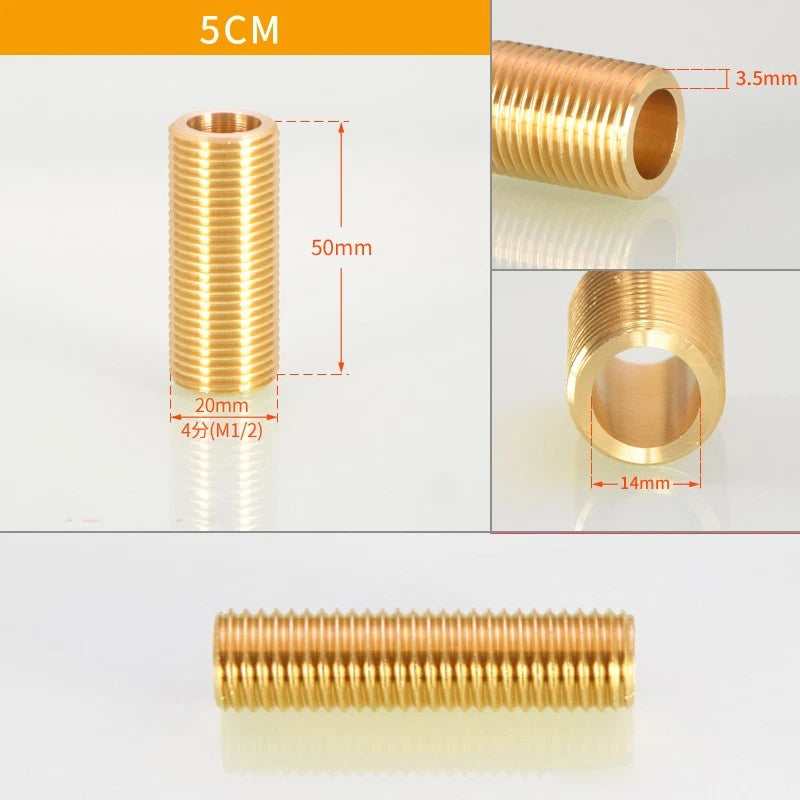

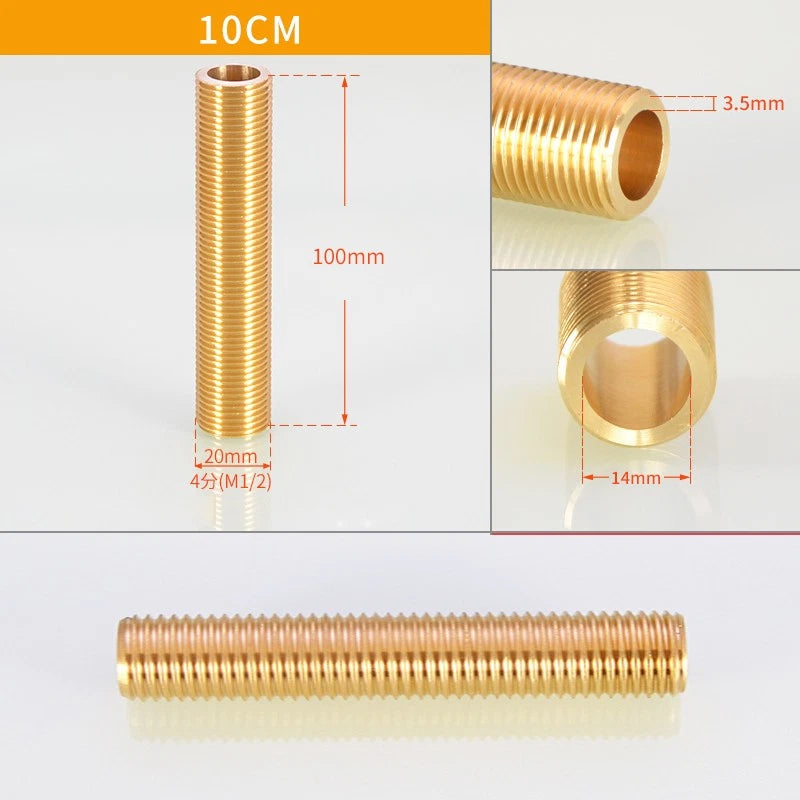

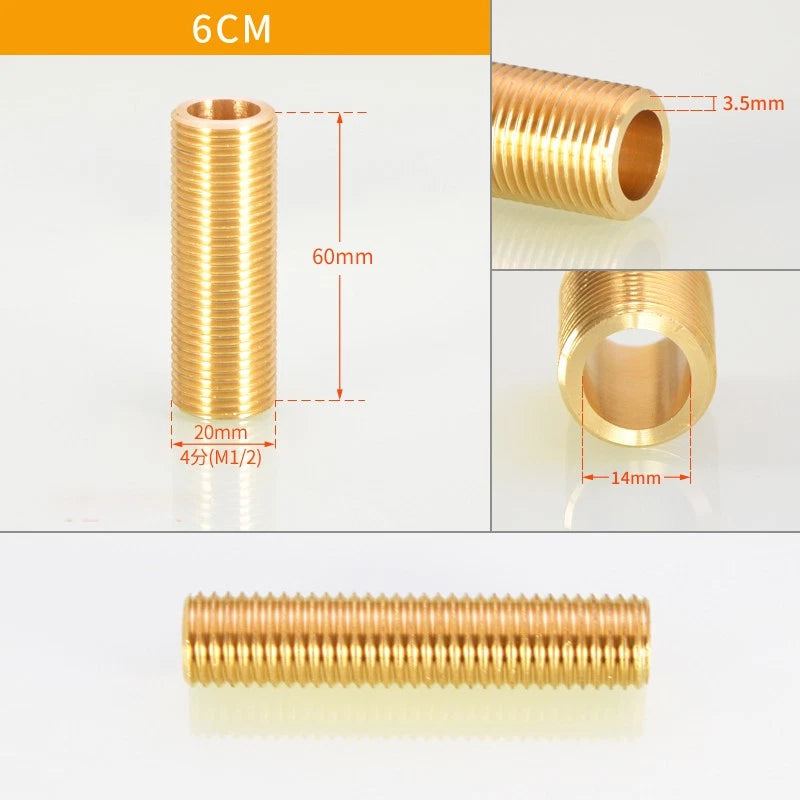

Measure the gap between your two fittings or fixtures, then subtract the thread engagement depth on each end — typically 8–12mm per side for 1/2" BSP. Choose the next size up to ensure adequate thread engagement. Available lengths range from 3cm (≈1.2") to 12cm (≈4.7"). When in doubt, go slightly longer; you can always add a union or coupling to take up slack.

Brass BSP fittings of this type are generally rated for working pressures up to 150 PSI (approximately 10 bar) in water and gas applications at ambient temperatures. For high-pressure steam, elevated-temperature, or safety-critical systems, please contact us to confirm suitability before ordering.

Yes. Brass has inherent corrosion resistance and is generally suitable for outdoor, damp, and humid environments. For prolonged exposure to salt air, chlorinated water, or aggressive chemicals, additional protective coatings or stainless-steel alternatives may be advisable. In most standard residential outdoor plumbing applications, brass performs reliably without additional treatment.

BSP (British Standard Pipe) and NPT (National Pipe Thread) are not directly interchangeable, even though they are close in size. The thread pitch and angle differ slightly, which can cause leaks or cross-threading if forced together. If your existing fittings are NPT, you will need a BSP-to-NPT adapter. If you are unsure which standard your system uses, check the fitting markings or measure the thread pitch with a thread gauge.

Yes — this is important. BSP parallel (BSPP) threads do not taper and do not self-seal. A sealing medium is always required. We recommend wrapping 2–3 layers of PTFE tape clockwise around the male threads before assembly, or using an approved pipe thread sealant compound. For gas applications, use a gas-rated sealant rather than standard plumber's PTFE tape.

Brass fittings are commonly used in low-pressure natural gas and propane systems. However, always verify your local building codes and regulations before installing any fitting in a gas line. Use an approved gas-rated thread sealant, and have the installation inspected by a licensed professional where required by code.

A standard pipe wrench or adjustable wrench is typically sufficient. Apply PTFE tape first, then hand-tighten the fitting, and finish with 1–2 additional turns using the wrench. Avoid over-tightening — excessive torque can crack the fitting body or strip the threads. A second wrench may be needed to hold the mating fitting steady during tightening.
