12mm PVC Heat Shrink Tubing — Clean, Color-Coded Protection for Battery Packs and Wiring
Whether you're rebuilding a battery pack, organizing a wiring harness, or protecting soldered splices, loose or mismatched insulation creates real problems — shorts, confusion during maintenance, and unprofessional results. This 12mm PVC heat shrink tubing gives hobbyists, EV builders, and electronics technicians a reliable, low-cost way to sleeve, insulate, and color-code their work in one step.

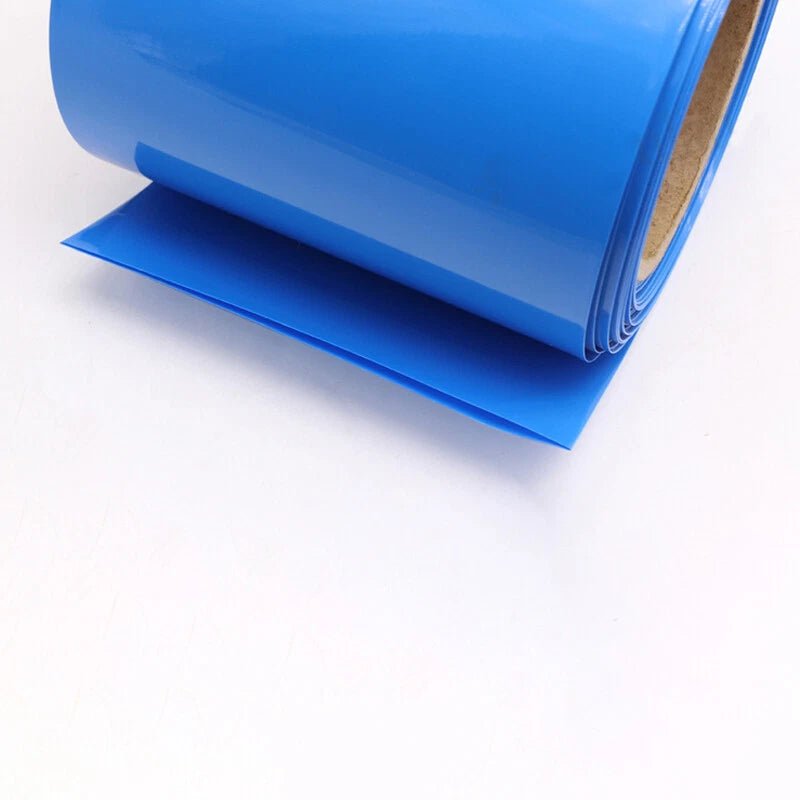

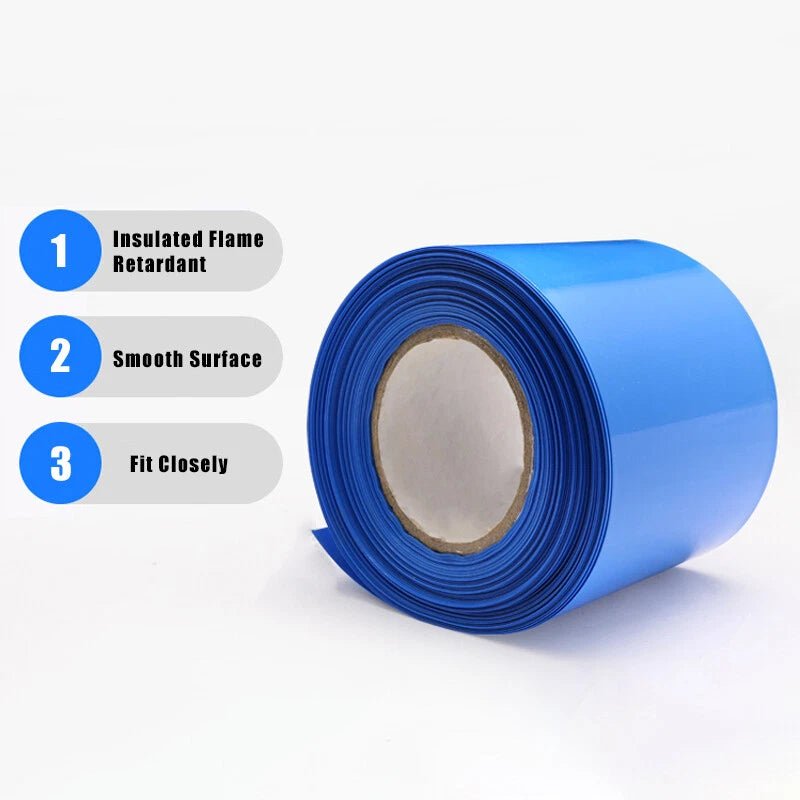

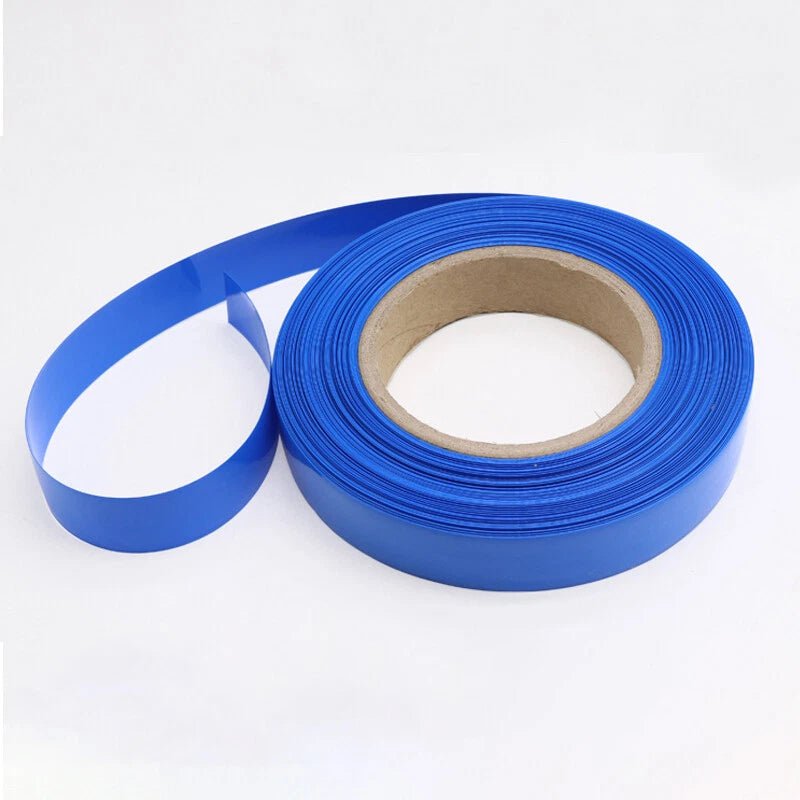

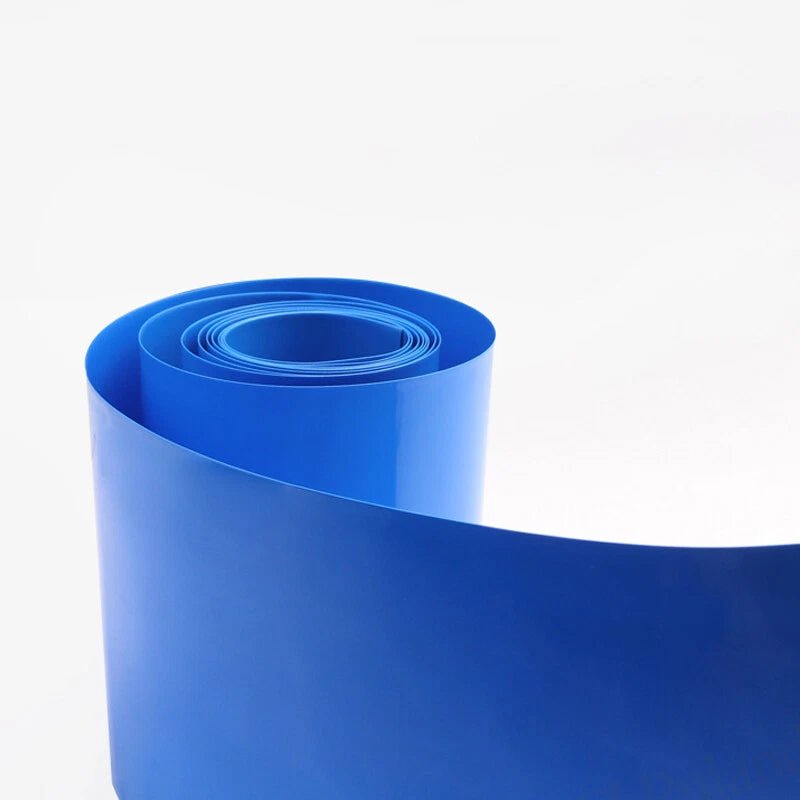

Each order is a continuous roll of 12mm flat-width PVC heat shrink tubing with a standard 2:1 shrink ratio, available in lengths from 1 Meter (≈3.3 ft) up to 200 Meters (≈656 ft) and in 8 colors: Black, White, Red, Green, Blue, Brown, Transparent, and Orange Yellow. The tubing is cut to your chosen length from a single roll, so there are no joints or seams. Wall thickness and recovered diameter are consistent with standard 12mm PVC tubing specifications — confirm fit against your component's outer diameter before cutting.
Typical use cases include sleeving 18650 lithium battery cells for pack rebuilds, insulating wire splices in RC vehicles and e-bike battery systems, color-coding conductors in automotive wiring harnesses, and protecting solder joints in low-voltage DC electronics projects. The transparent option is especially useful when you need to inspect the connection underneath without removing the sleeve.
ℹ️
Compatibility Note: 12mm flat width is generally suited for cylindrical cells up to ~18mm outer diameter (e.g., 18650 cells) and wire bundles or connectors of similar diameter. For 21700, 26650, or larger cells, please measure your component's OD and compare against the tubing's recovered inner diameter before ordering.
✅ Key Features of This 12mm PVC Heat Shrink Tubing
-
🔋Battery Pack Ready — 12mm flat width fits standard 18650 lithium cells snugly, making it a go-to choice for DIY battery pack rebuilds and cell-level insulation.
-

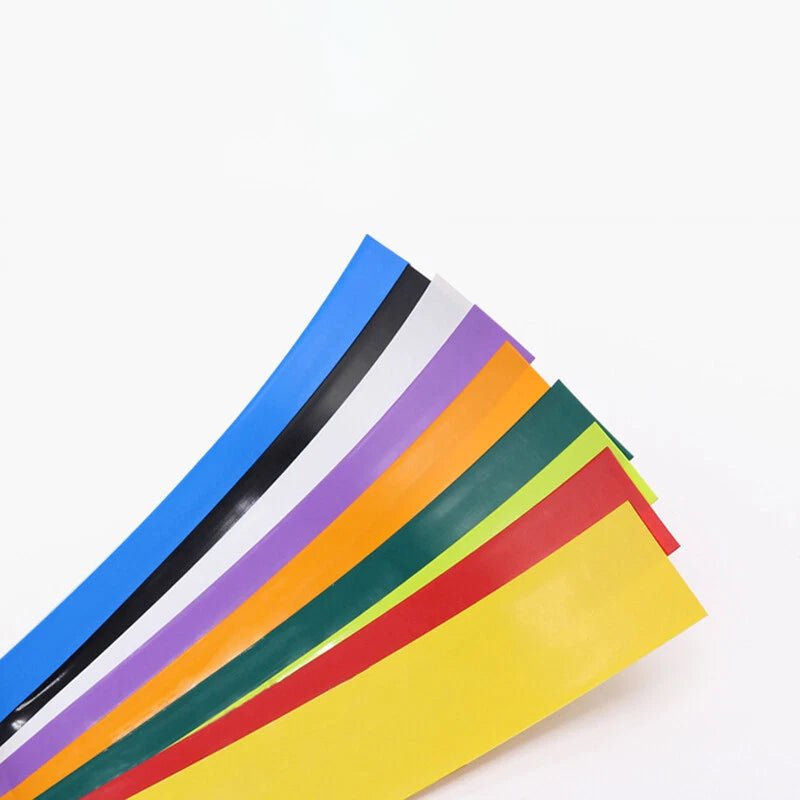

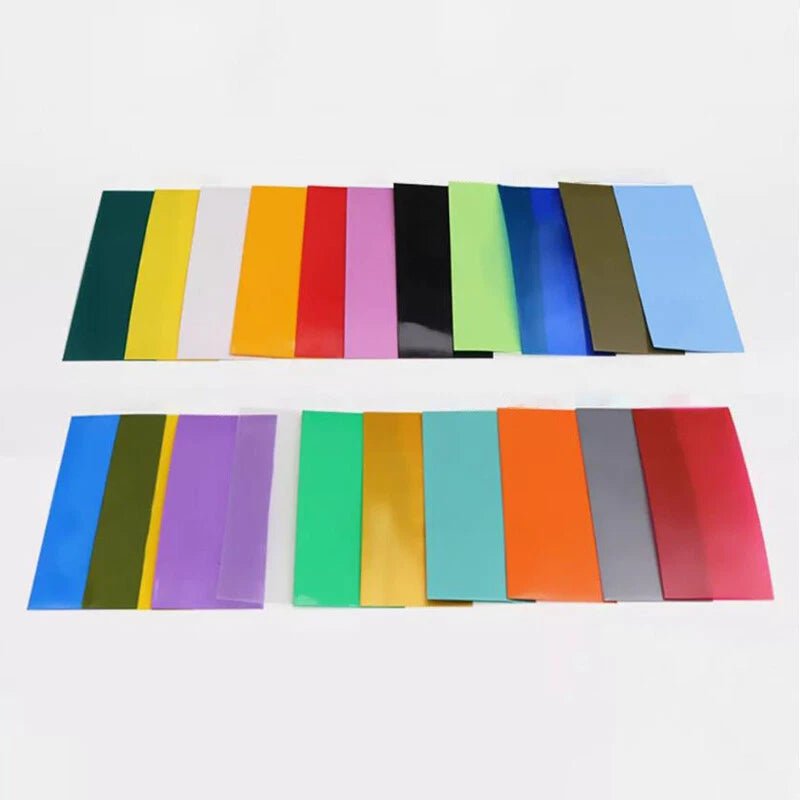

🎨8 Color Options for Circuit ID — Black, White, Red, Green, Blue, Brown, Transparent, and Orange Yellow let you color-code positive/negative leads, phase wires, or circuit groups at a glance.
-
📏Flexible Length Selection — Order exactly what you need: 1M for a quick repair, up to 200M for production runs or bulk wiring projects — all cut from a continuous, seam-free roll.
-
🔥2:1 Shrink Ratio — Shrinks to approximately half its expanded diameter with a heat gun or hot air station, conforming tightly to irregular shapes and connector bodies without gaps.
-
⚡Electrical Insulation for Low-Voltage DC — PVC material provides a reliable insulating barrier for wire splices, solder joints, and terminal connections in RC, e-bike, and electronics applications.
-
✂️Easy to Cut and Apply — Cuts cleanly with standard scissors or a utility knife; no special tooling required. Shrinks evenly along the length when heat is applied uniformly.
📐 Technical Specifications — 12mm PVC Heat Shrink Tubing
| Material |
PVC (Polyvinyl Chloride) |
| Flat Width (Before Shrink) |
12mm (≈15/32") |
| Shrink Ratio |
2:1 |
| Recovered Inner Diameter |
Typically ~6mm (≈1/4") — confirm against component OD |
| Wall Thickness (After Shrink) |
See variant options |
| Shrink Temperature |
Typically 70–90°C (158–194°F) |
| Service Temperature Range |
Typically -20°C to 60°C (-4°F to 140°F) |
| Available Colors |
Black, White, Red, Green, Blue, Brown, Transparent, Orange Yellow |
| Available Lengths |
1M, 5M, 10M, 20M, 50M, 100M, 200M |
| Voltage Rating |
Contact us to confirm |
| Typical Applications |
Battery cell sleeving, wire insulation, splice protection, cable bundling |
| Country of Origin |
See variant options |
⚠️
Spec Confirmation: Wall thickness, exact recovered ID, and voltage rating vary by production batch. If your application has strict electrical or dimensional tolerances, contact us before ordering to confirm current batch specifications.
❓ Frequently Asked Questions
What does 12mm refer to — the flat width or the diameter?

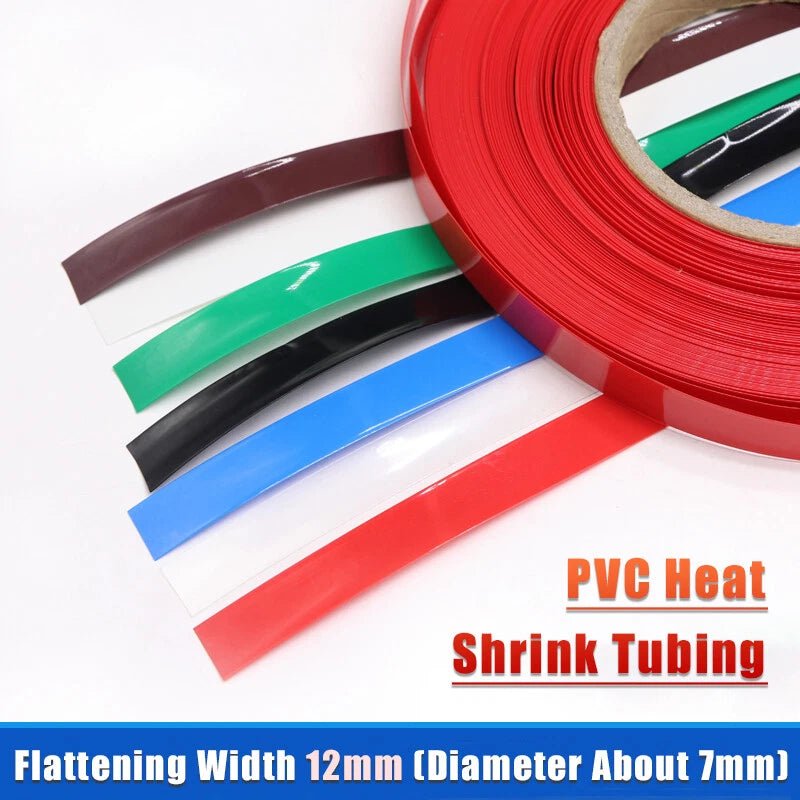

12mm refers to the flat (lay-flat) width before shrinking — this is the standard way PVC heat shrink tubing is measured. The recovered inner diameter is typically around 6mm (≈1/4") after full shrinkage, based on the standard 2:1 ratio. Always measure your component's outer diameter and compare it to the tubing's expanded inner diameter to confirm fit before cutting.
What size battery cells does this tubing fit?
At 12mm flat width, this tubing generally fits cylindrical cells up to approximately 18mm outer diameter — which covers the popular 18650 cell format. For larger formats such as 21700 (21mm OD) or 26650 (26mm OD), the tubing may not expand enough to slide over the cell. Measure your cell's OD and compare it to the tubing's expanded inner diameter (typically ~24mm before shrinking for 12mm flat-width PVC) before ordering.
What temperature is needed to shrink this tubing, and what tools work?
PVC heat shrink typically activates at 70–90°C (158–194°F). Suitable tools include:
- Heat gun (recommended — most even shrinkage)
- Hot air rework station
- Lighter or match held at a safe distance (for quick field repairs)
Avoid direct flame contact, which can scorch or melt the PVC unevenly. Move the heat source along the tubing length for consistent results.
Is this tubing rated for outdoor use or high-temperature environments?
PVC heat shrink is generally suited for indoor and moderate-environment applications. It typically handles service temperatures up to around 60°C (140°F) and offers basic moisture resistance. For prolonged outdoor UV exposure, engine bay heat, or industrial high-temperature environments, polyolefin or adhesive-lined tubing is generally a more appropriate choice. If outdoor durability is a requirement, contact us to discuss alternative options.
Can I use this for wire splicing and general electrical insulation?
Yes — PVC heat shrink tubing is widely used for wire splice insulation, solder joint protection, and terminal sleeving in low-voltage DC applications such as RC vehicles, e-bikes, solar systems, and consumer electronics. Always verify that the tubing's voltage rating is appropriate for your specific circuit before use. Contact us to confirm the current batch voltage rating if needed.
How much tubing do I need for a battery pack rebuild?
For individual 18650 cells, each sleeve is typically cut to 65–70mm (≈2.6") per cell to cover the full cell body with a small overlap at each end. A 1-meter roll covers approximately 14–15 cells. For a 10S4P pack (40 cells), a 5-meter roll is generally sufficient with material to spare. For larger packs or production quantities, the 50M, 100M, or 200M options offer significantly better value per meter.
Do the different colors affect electrical performance?
No — the 8 color options are for visual identification and color-coding only. Electrical insulation performance is consistent across all colors. Common color-coding conventions include red for positive, black for negative, and other colors for phase wires or circuit groups. The transparent option is useful when you need to inspect the connection or label underneath without removing the sleeve.
How do I choose between the 1M, 10M, 50M, and longer roll options?
Choose based on your project scale:
-
1M–5M: Single repairs, small projects, or trying a color before committing to a larger roll
-
10M–20M: Medium battery packs, wiring harness projects, or workshop stock for occasional use
-
50M–100M: Bulk wiring jobs, EV conversions, or workshop supply for regular use
-
200M: Production runs, resale, or high-volume assembly operations
All lengths are cut from a continuous roll with no joints or seams.
