18650 PVC Heat Shrink Tubing — Reliable Battery Sleeve Protection for DIY Builders
If you've ever had a bare 18650 cell short against a neighboring cell, a metal enclosure, or a stray wire, you know how quickly things can go wrong. DIY battery pack builders, e-bike enthusiasts, flashlight modders, and RC hobbyists all face the same challenge: keeping cylindrical cells insulated, organized, and protected without adding unnecessary bulk. This 18650 PVC heat shrink tubing is designed specifically for that job.

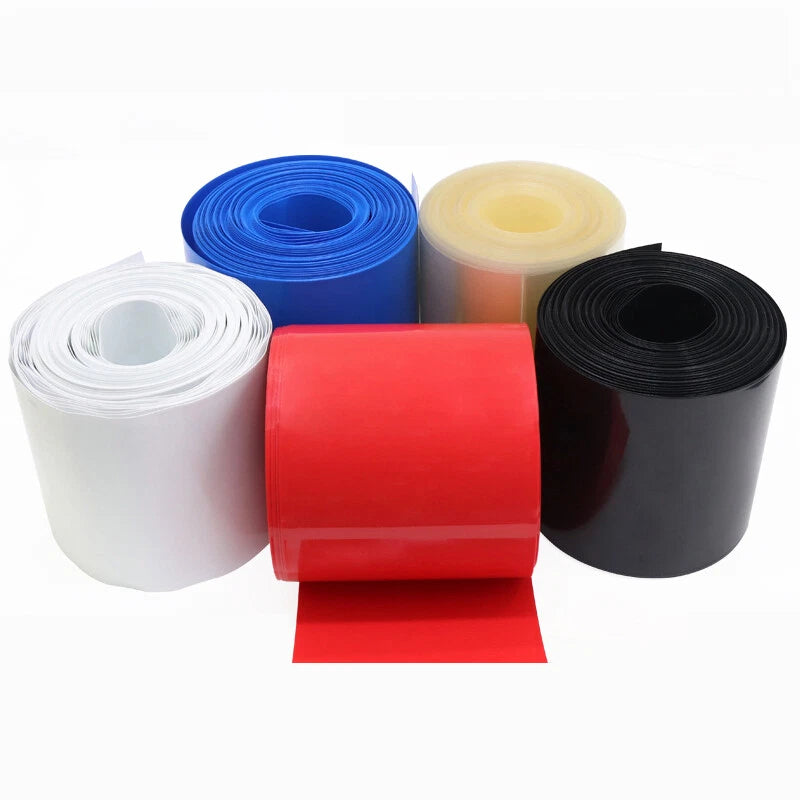

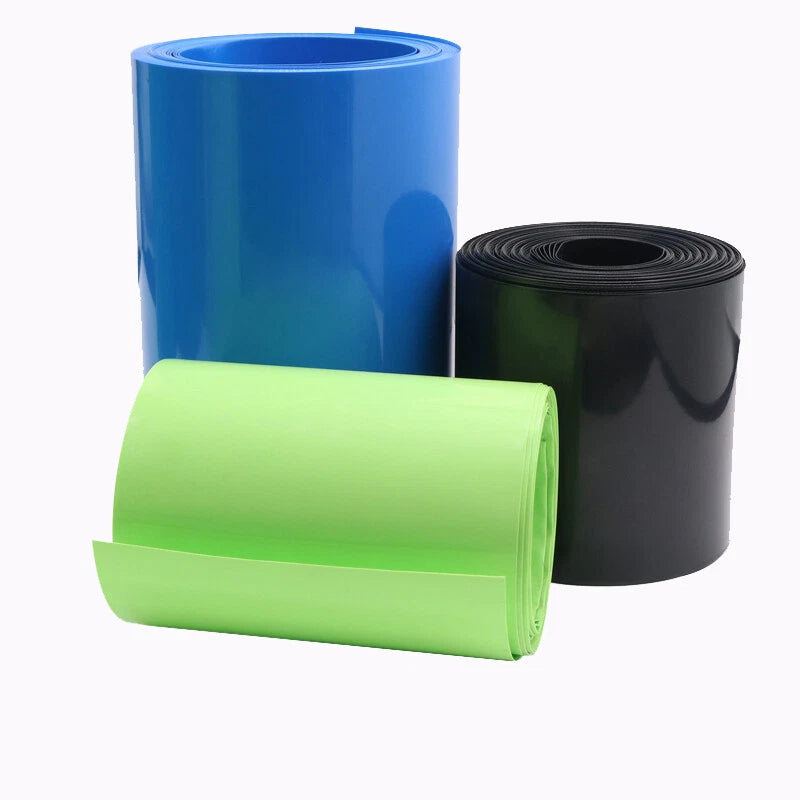

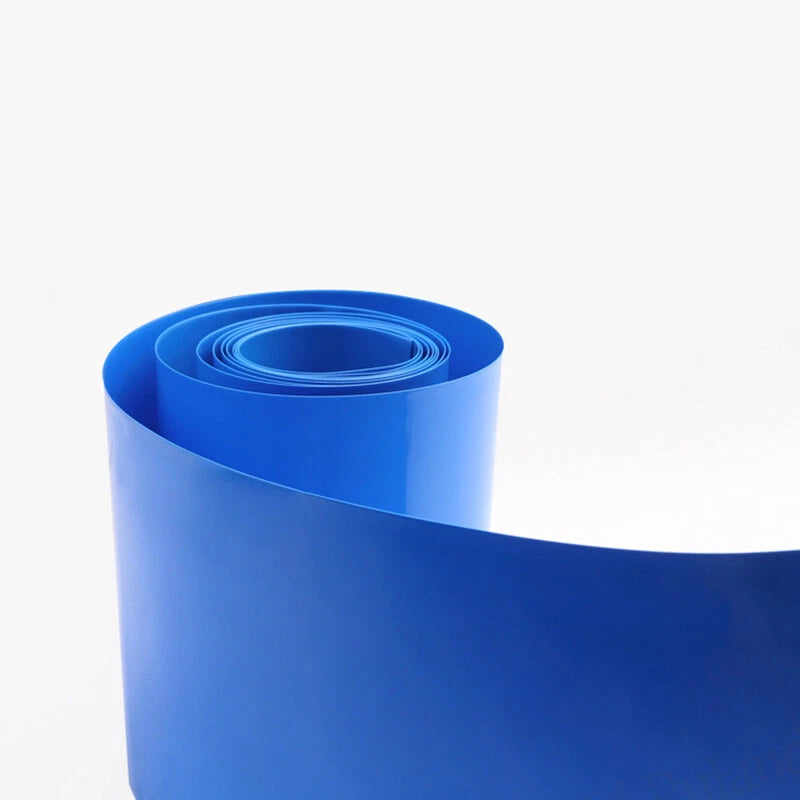

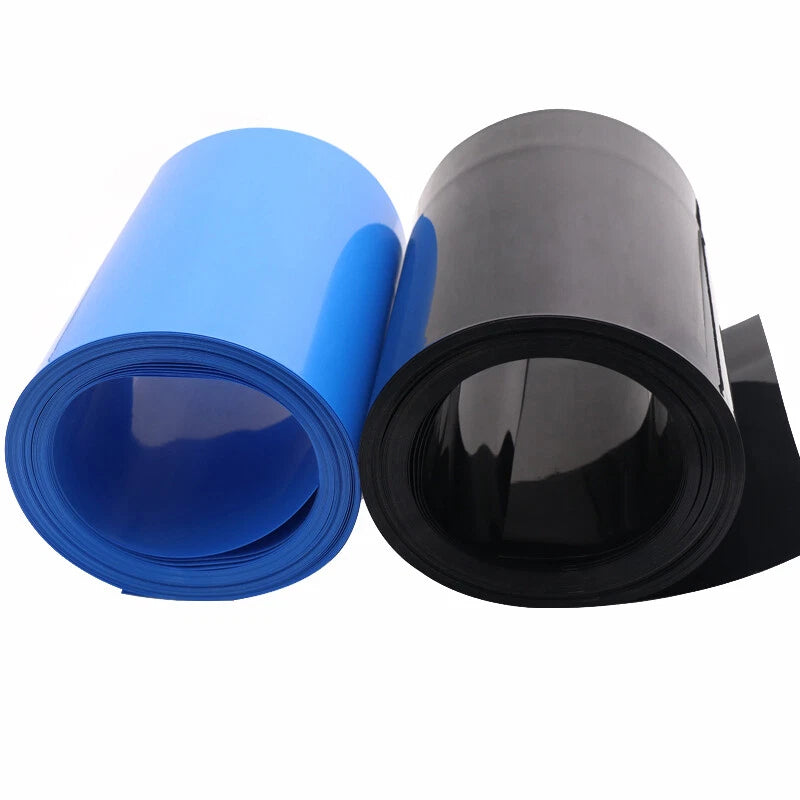

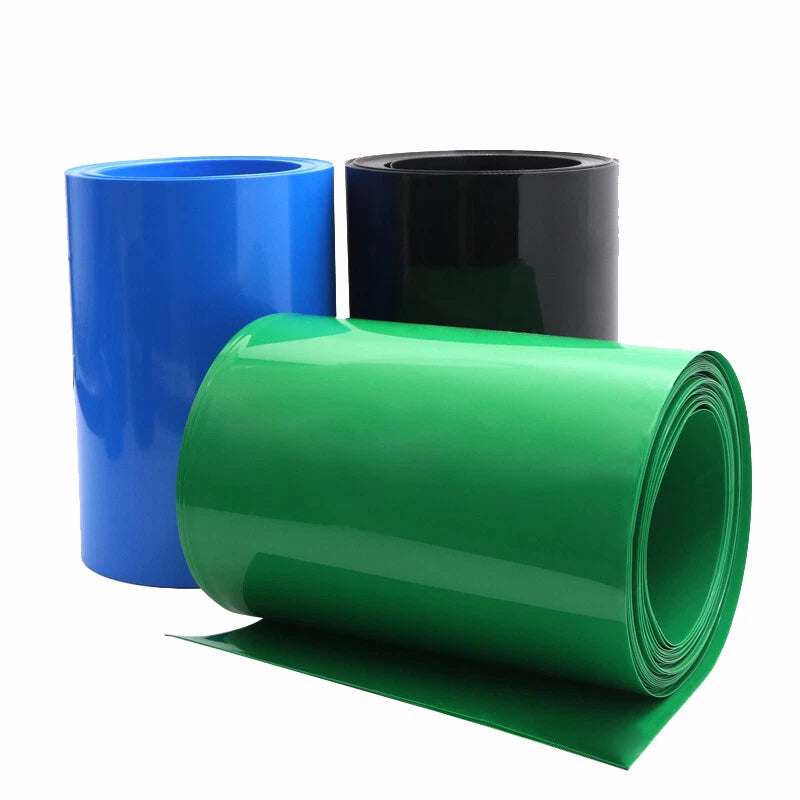

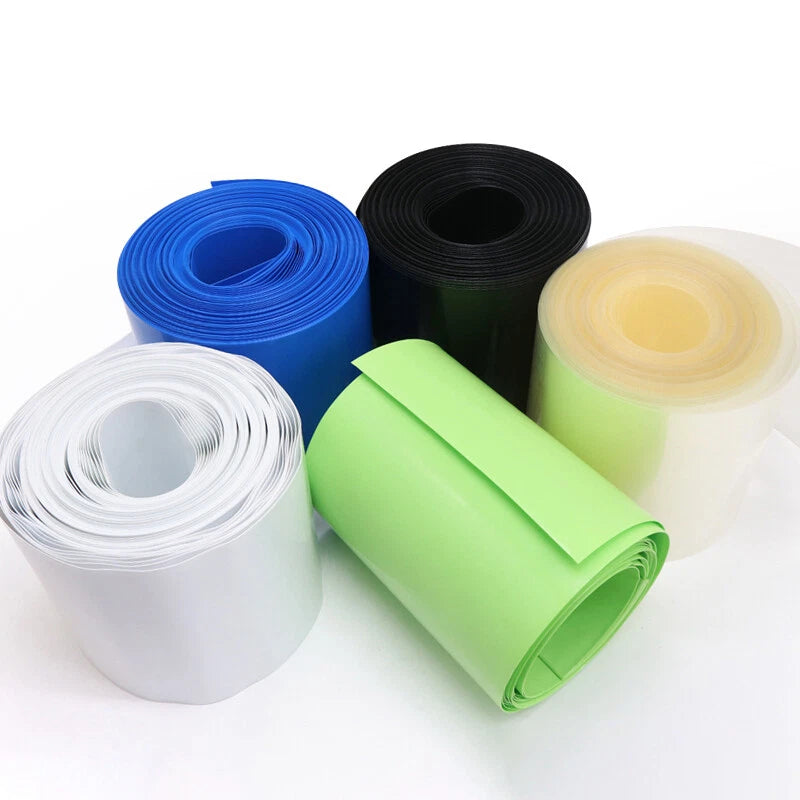

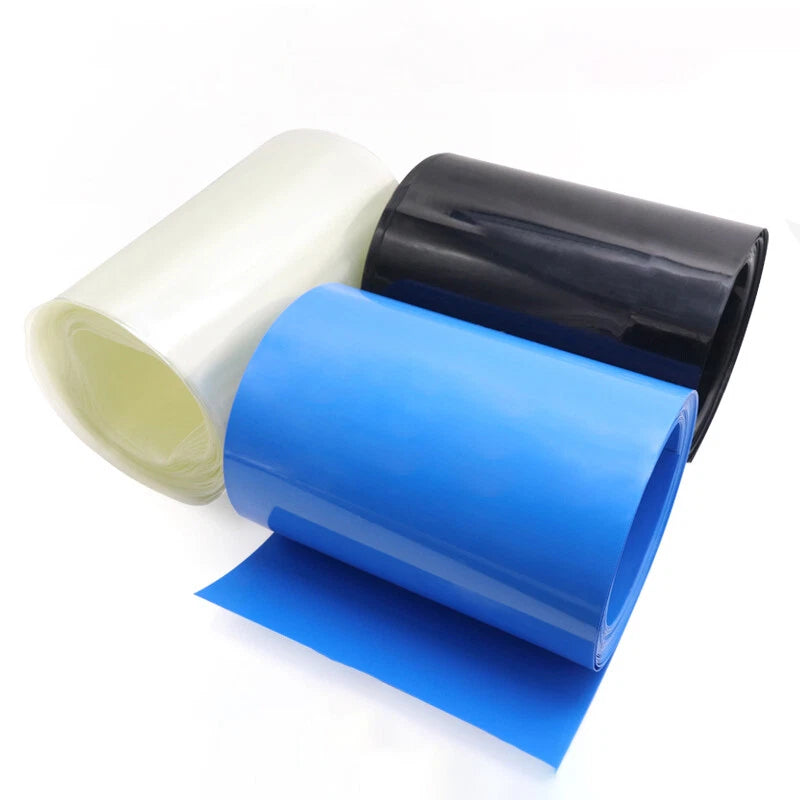

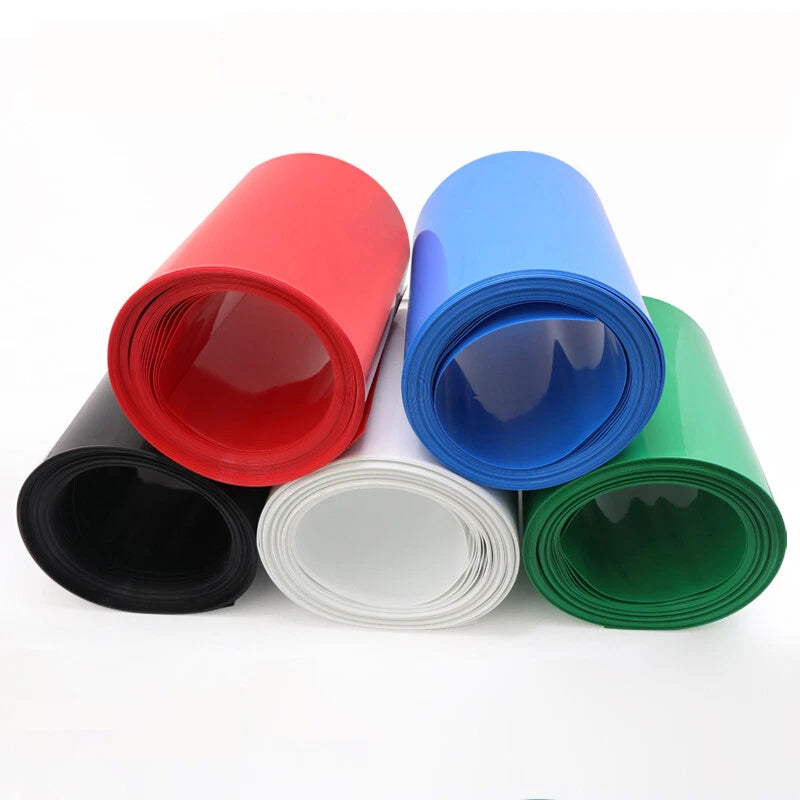

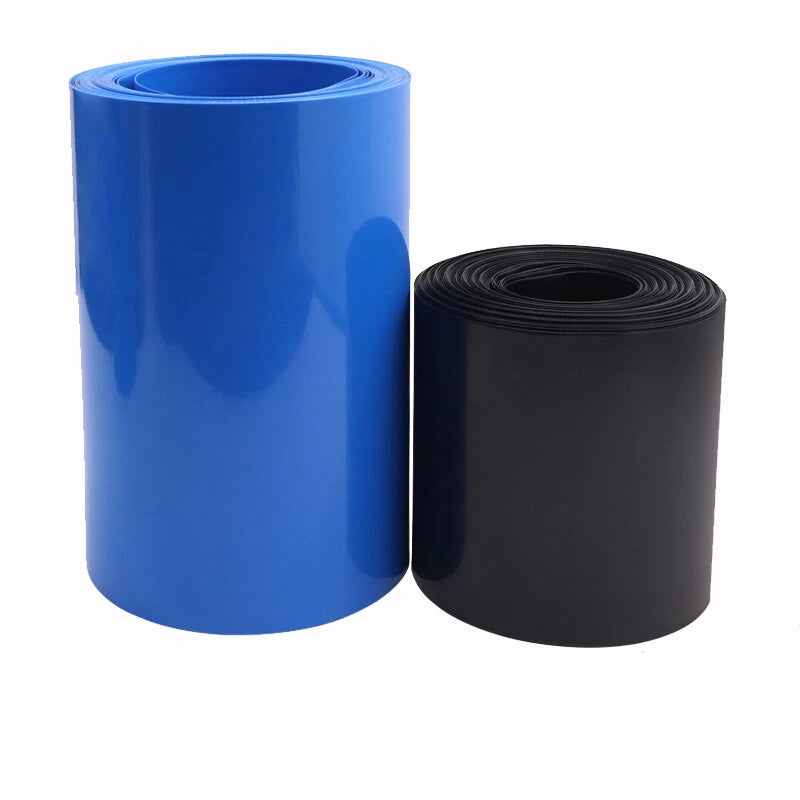

Each order covers a continuous length of flat PVC heat shrink tubing, available in widths from 200mm to 295mm (≈7.9" to 11.6") and lengths of 1 Meter (≈3.3 ft), 5 Meter (≈16.4 ft), or 10 Meter (≈32.8 ft). The tubing is sold by the meter so you cut exactly what you need — no waste. Colors include Black, Blue, Transparency, Grey, Fruit Green, White, Green, and Blue-Thicken (a heavier-wall blue variant for added insulation).
Typical use cases include wrapping individual 18650 cells before spot-welding into a battery pack for e-bikes or power tools, re-sleeving worn or damaged cell wrappers on flashlight or vaping batteries, and color-coding cells by capacity or chemistry in multi-cell DIY battery assemblies. The tubing also works well for 21700 and 26650 cells when the appropriate width is selected.
🔋 Compatibility: Designed for 18650 cylindrical cells. Also fits 21700, 26650, and other cylindrical formats — select the width that matches your cell's circumference. See the FAQ below for sizing guidance.
✅ Key Features of These 18650 PVC Heat Shrink Battery Sleeves
-
🛡️Electrical Insulation — PVC material provides a reliable dielectric barrier between cells, reducing the risk of short circuits in tightly packed DIY battery packs.
-
📏Wide Size Range — Flat widths from 200mm to 295mm cover standard 18650 cells as well as larger formats like 21700 and 26650, so one product line handles multiple build types.
-
✂️Cut-to-Length Flexibility — Sold by the meter in 1M, 5M, and 10M rolls, letting you cut each sleeve to the exact length needed — ideal for both small repairs and large-batch battery pack assembly.
-
🎨Multiple Color Options — Eight color choices including a clear Transparency option make it easy to color-code cells by chemistry or capacity, or to keep original cell markings visible.
-
🔥Low Activation Temperature — Shrinks at typically 70–90°C (158–194°F), compatible with standard heat guns, hot air stations, and careful use of a lighter — no specialized equipment required.
-
💧Moisture-Resistant Surface — The PVC outer layer resists light moisture and minor abrasion, helping protect cell labels and contacts during handling, storage, and assembly.
📐 Technical Specifications — PVC Heat Shrink Battery Sleeve Tubing
| Material |
PVC (Polyvinyl Chloride) |
| Flat Width Options |
200mm, 210mm, 220mm, 228mm, 235mm, 242mm, 250mm, 258mm, 268mm, 280mm, 285mm, 295mm |
| Length Options |
1 Meter (≈3.3 ft) / 5 Meter (≈16.4 ft) / 10 Meter (≈32.8 ft) |
| Shrink Ratio |
Typically 2:1 |
| Shrink Temperature |
Typically 70–90°C (158–194°F) |
| Color Options |
Black, Blue, Transparency, Grey, Fruit Green, White, Green, Blue-Thicken |
| Primary Application |
18650 single-cell battery sleeve / wrap |
| Compatible Cell Formats |
18650, 21700, 26650, and other cylindrical cells (width-dependent) |
| Wall Thickness (Blue-Thicken) |
Heavier wall than standard variants — see variant options |
| Sold As |
Continuous roll, cut to length by buyer |
| Country of Origin |
Contact us to confirm |
⚠️ Sizing Note: Flat width is the measurement of the tubing laid flat — not the recovered diameter. For a standard 18650 cell (~18.5mm OD), a 200–210mm flat width is typically appropriate. If you are unsure, order a 1M sample first to verify fit before committing to a larger roll.
❓ Frequently Asked Questions
How do I choose the right width for my 18650 battery?
Measure the circumference of your battery and divide by pi (~3.14) to get the diameter, then choose a flat width that is roughly 50–60% of the circumference. For a standard 18650 cell (~18.5mm diameter), a flat width of 200–210mm typically works well. When in doubt, size up — the tubing shrinks down to conform snugly. A 1M roll is a cost-effective way to test fit before buying a larger quantity.
What shrink ratio does this PVC tubing have?
PVC heat shrink tubing generally has a 2:1 shrink ratio, meaning it shrinks to approximately half its original flat width when heat is applied. Always verify the recovered diameter against your battery's actual outer diameter before ordering in bulk.
Can this tubing be used outdoors or in humid environments?
PVC heat shrink tubing is generally moisture-resistant and suitable for indoor and moderately humid environments. For prolonged outdoor or high-moisture exposure, consider an adhesive-lined polyolefin alternative for a more robust environmental seal.
What temperature is needed to shrink this tubing?
PVC heat shrink tubing typically activates between 70°C and 90°C (158°F–194°F). A heat gun on a low setting, a lighter held at a safe distance, or a hot air station all work well. Avoid direct flame contact to prevent scorching or uneven shrinkage.
Is this tubing compatible with other battery sizes besides 18650?
Yes. Because this listing covers widths from 200mm to 295mm, it can accommodate a range of cylindrical cells — including 21700, 26650, and custom battery packs — as long as the recovered diameter matches your cell's outer diameter. Check the variant options and compare against your battery specs before ordering.
How much tubing do I need per battery?
A standard 18650 cell is approximately 65mm (≈2.6") long. Cut the tubing slightly longer — typically 70–75mm — to allow for overlap at each end. One meter of tubing yields approximately 13–14 sleeves for standard 18650 cells, making the 5M and 10M rolls cost-effective for batch builds.
Does the color affect performance or insulation?
No. Color is purely cosmetic and does not affect shrink ratio, insulation properties, or durability. The Transparency option is particularly useful when you want to keep original cell markings, capacity ratings, or branding visible after sleeving.
What is the difference between the standard Blue and the Blue-Thicken variant?
The Blue-Thicken variant has a heavier wall thickness compared to the standard Blue, which generally provides additional mechanical protection and slightly improved insulation. It is typically priced higher and is a good choice for applications where the cells may experience more physical handling or vibration.
🛒 Select your width, color, and length above, then add to cart — ships from our US warehouse.
