3:1 Adhesive Lined Heat Shrink Tubing — Waterproof Protection from φ1.6mm to φ85mm
Anyone who has dealt with a corroded splice, a chafed wire, or a connector that worked loose in a wet environment knows the frustration of a repair that doesn't hold. Whether you're wiring a boat, building an automotive harness, or protecting outdoor low-voltage runs, standard 2:1 tubing often falls short — it doesn't seal, it doesn't grip irregular shapes, and moisture finds its way in. This 3:1 adhesive lined heat shrink tubing is built for those situations where a reliable, long-term seal matters.

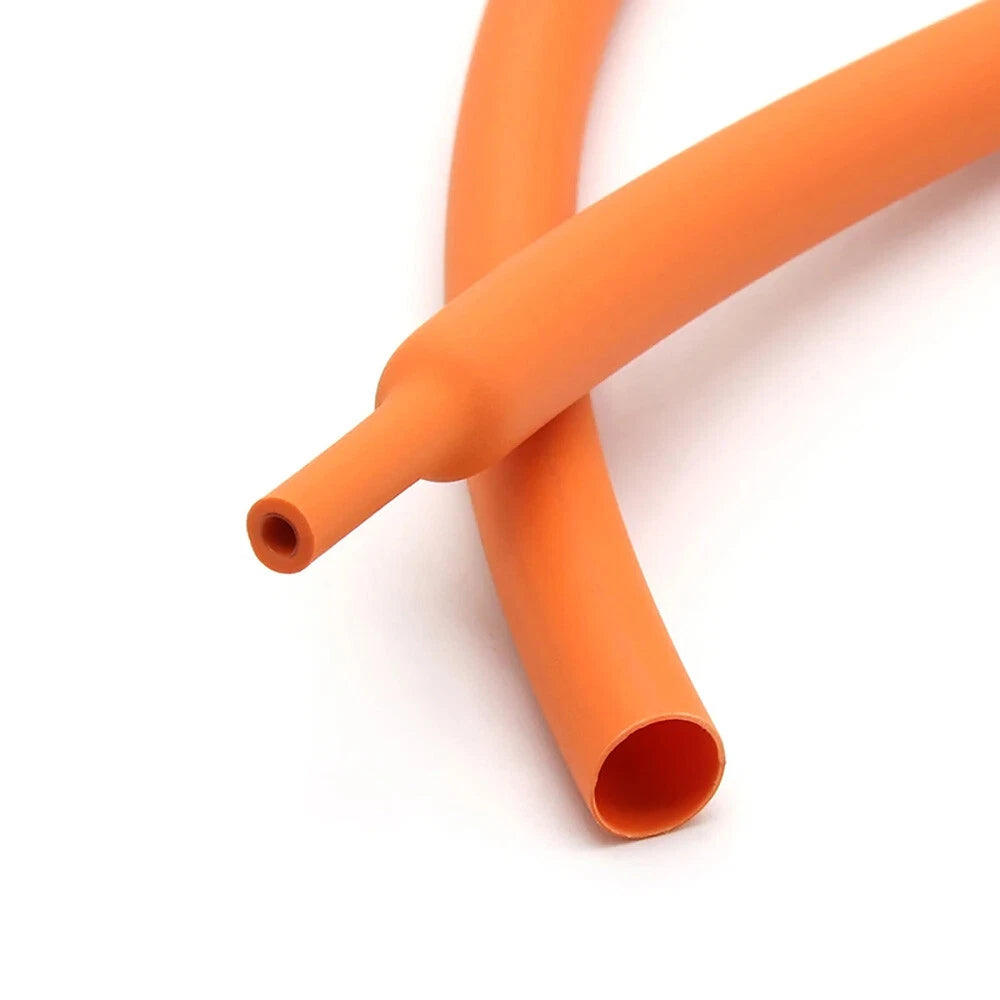

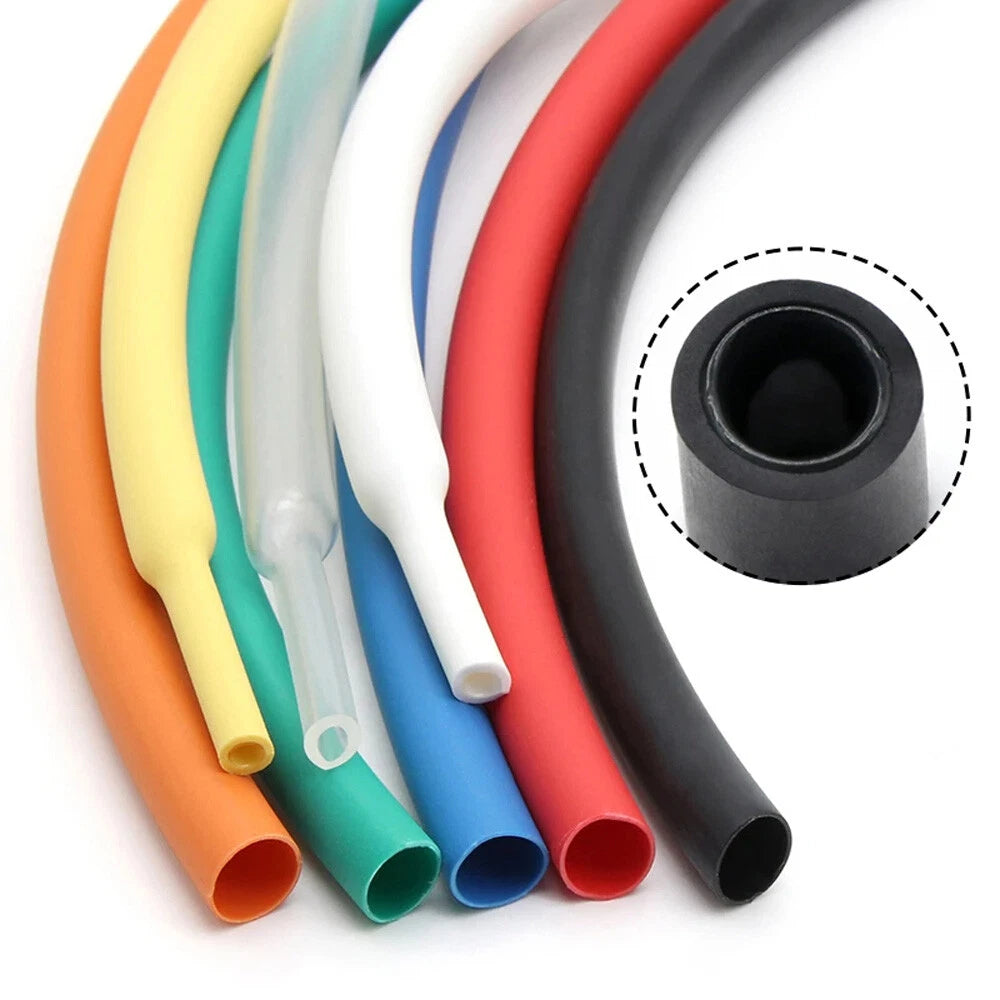

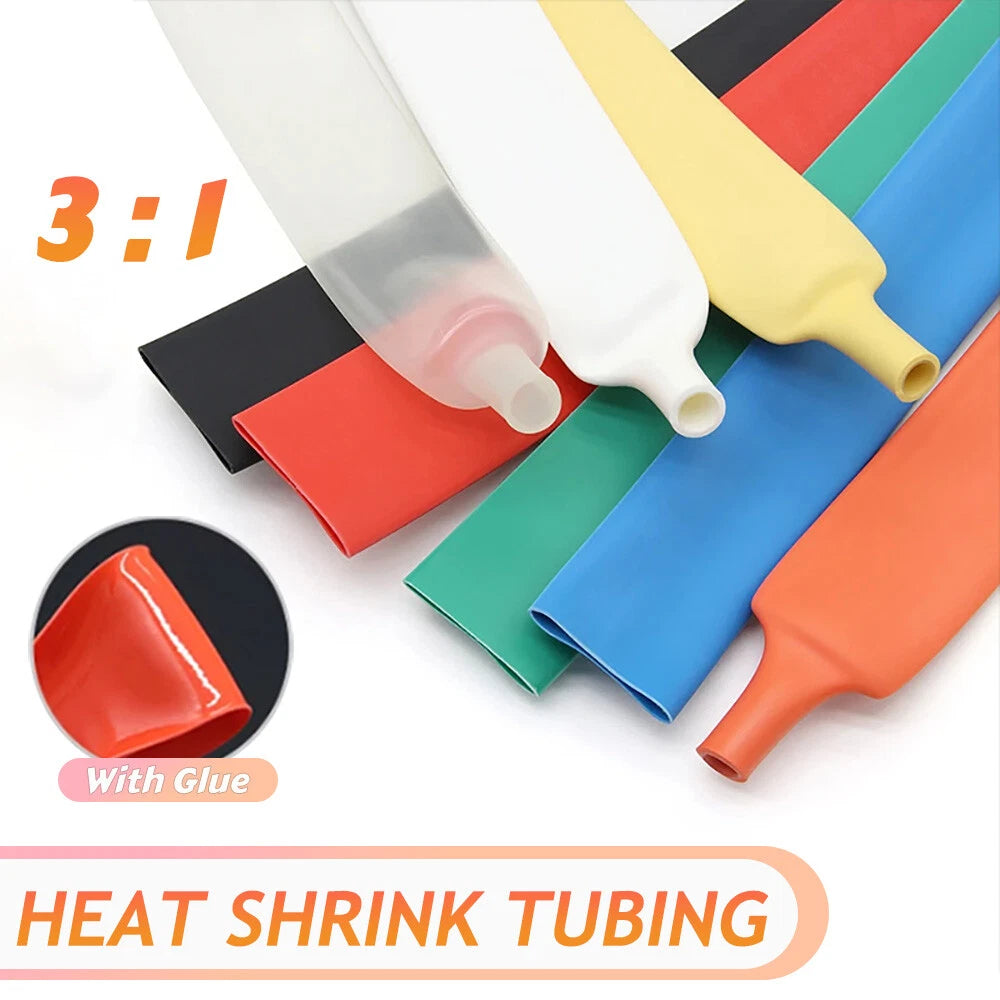

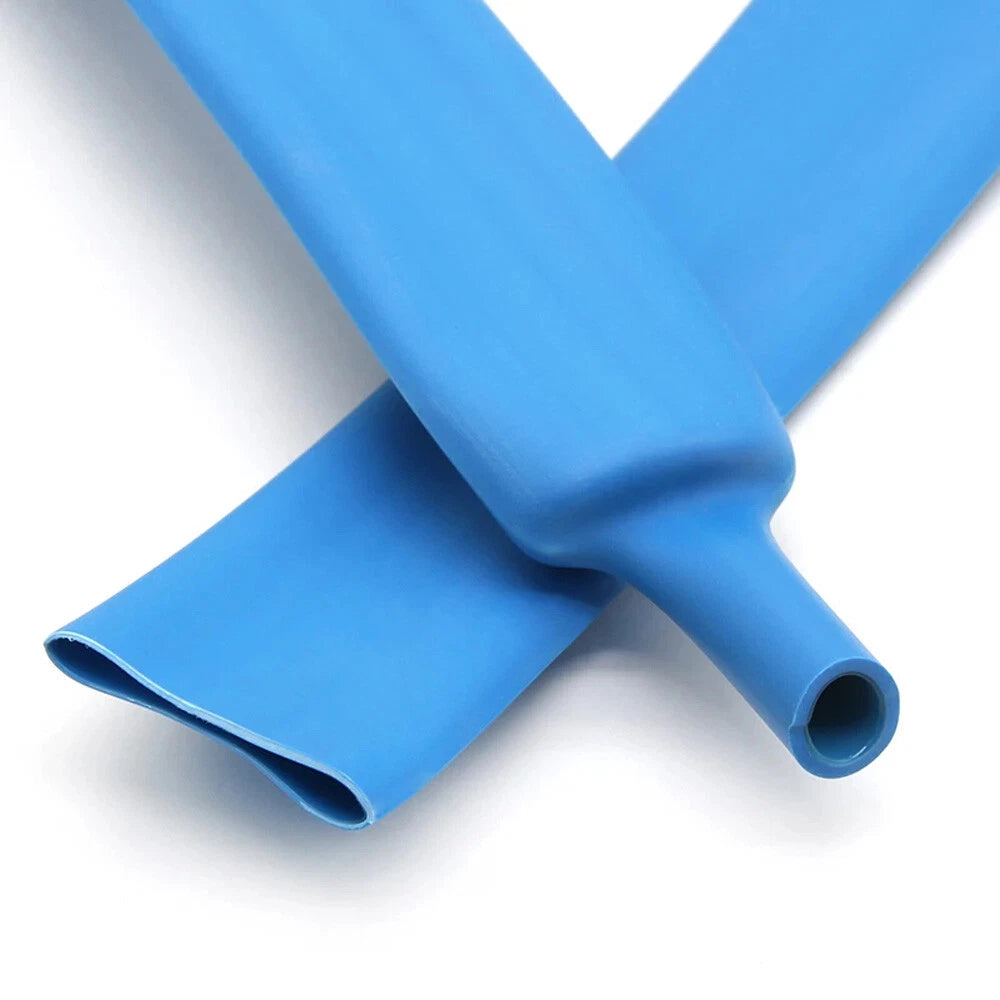

Each piece is a dual-wall construction: an outer polyolefin sleeve that shrinks to one-third of its expanded diameter, and an inner hot-melt adhesive layer that flows and bonds when heat is applied. Available in diameters from φ1.6mm (≈1/16") to φ85mm (≈3-3/8"), in 8 colors (Black, White, Red, Green, Yellow, Blue, Transparent, Orange), and in 1M or 5M lengths per order. The size range covers everything from fine signal wires up to large power cables and conduit ends.
Typical use cases include waterproof wire splices and butt connector sealing for marine and RV wiring, strain relief on cable ends and connector boots for automotive harness work, and color-coded cable identification in control panels and electrical enclosures — all applications where a clean, moisture-resistant finish is required.
ℹ️
Compatibility note: This tubing is compatible with copper, aluminum, and tinned wire conductors. The adhesive lining bonds to most clean, dry surfaces including PVC jacket, nylon, and bare metal. Not recommended for PTFE-coated wires without surface preparation. Verify the expanded diameter fits loosely over your component before applying heat.
✅ Key Features of These 3:1 Adhesive Lined Heat Shrink Tubes
-

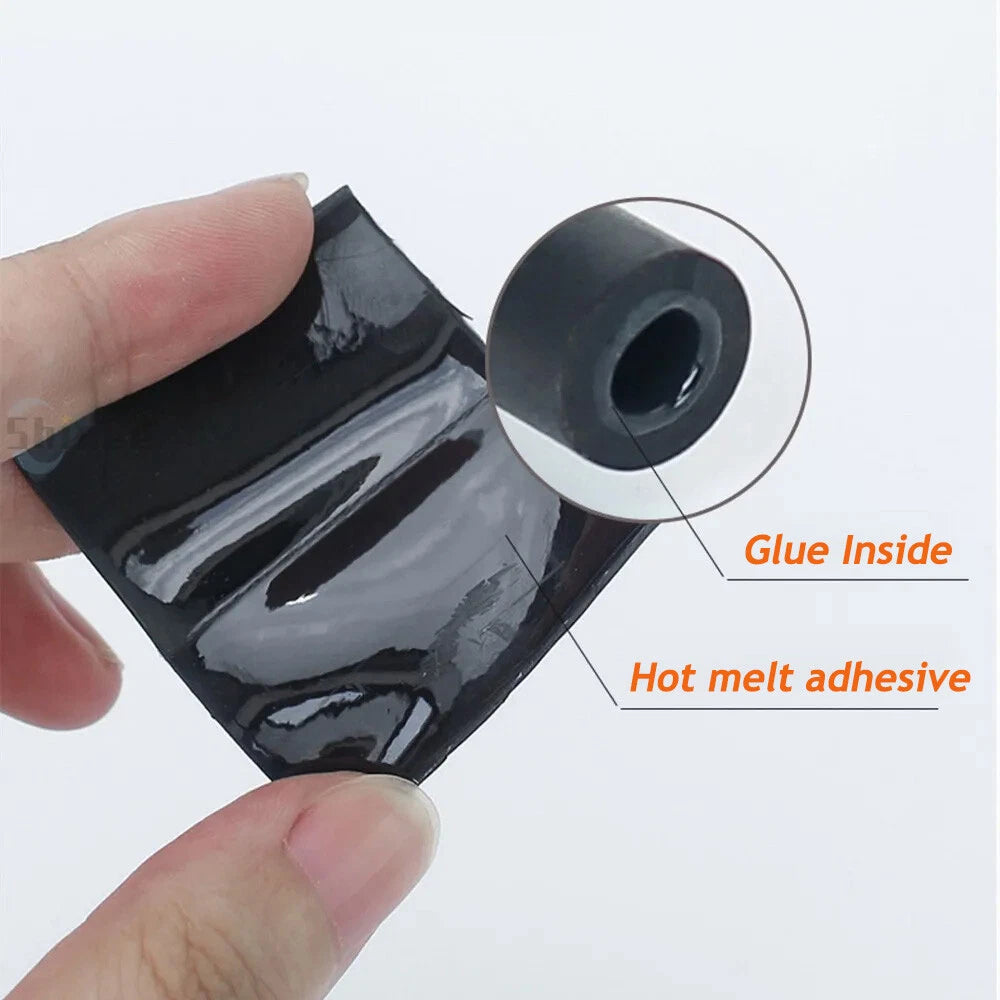

🔒Hot-Melt Adhesive Inner Layer — The dual-wall design flows adhesive into gaps and voids as it shrinks, creating a waterproof, airtight seal around splices, connectors, and cable ends — ideal for marine wire protection and outdoor electrical repairs.
-

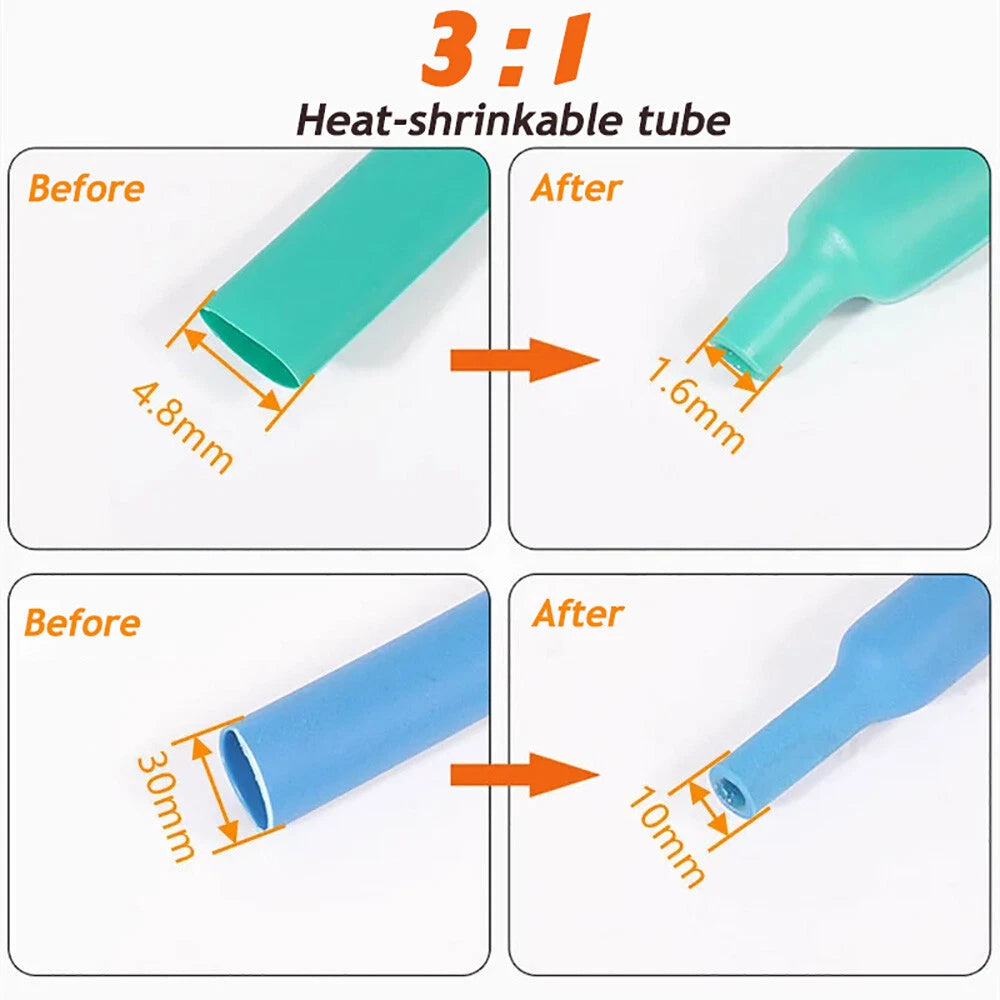

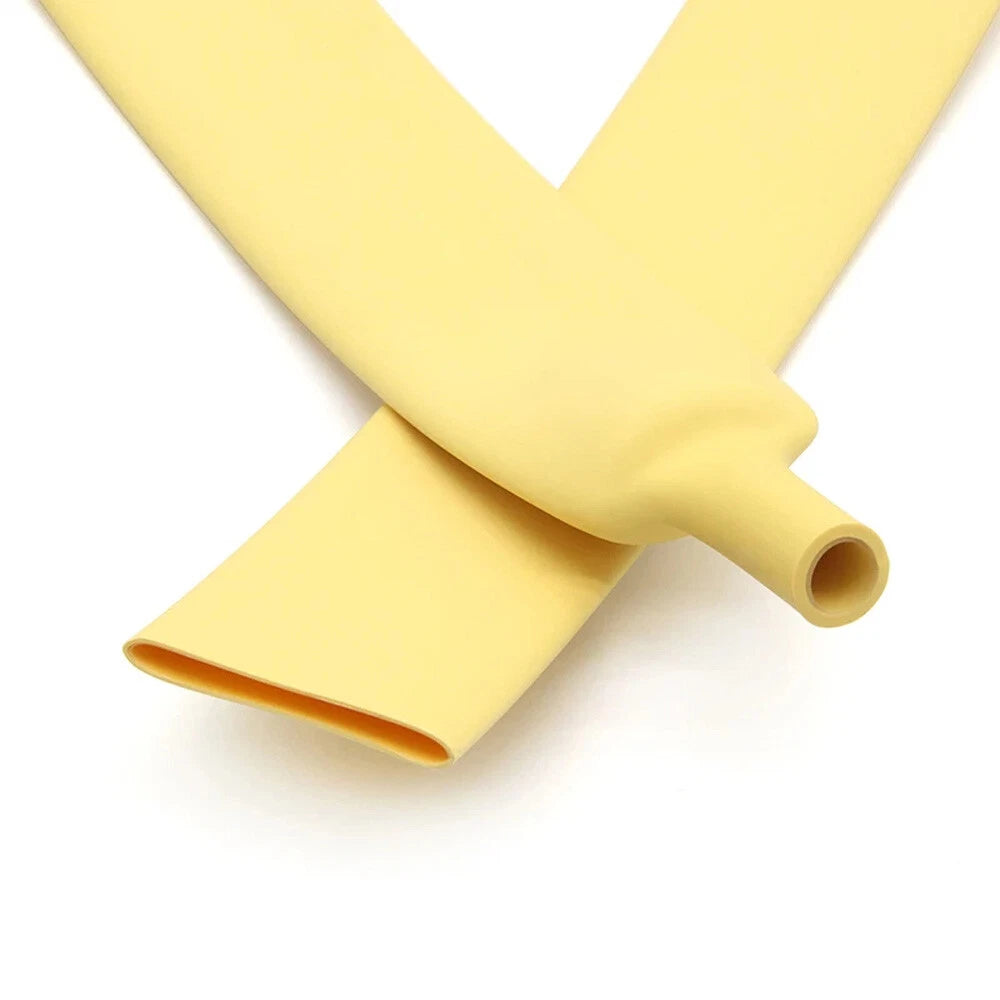

📐3:1 Shrink Ratio — Shrinks to approximately one-third of its expanded diameter, providing a tighter, more conforming fit over irregular shapes and stepped connectors compared to standard 2:1 heat shrink tubing.
-
📏Wide Diameter Range — Available from φ1.6mm (≈1/16") to φ85mm (≈3-3/8"), covering fine signal wires, medium power cables, and large conduit ends in a single product line.
-

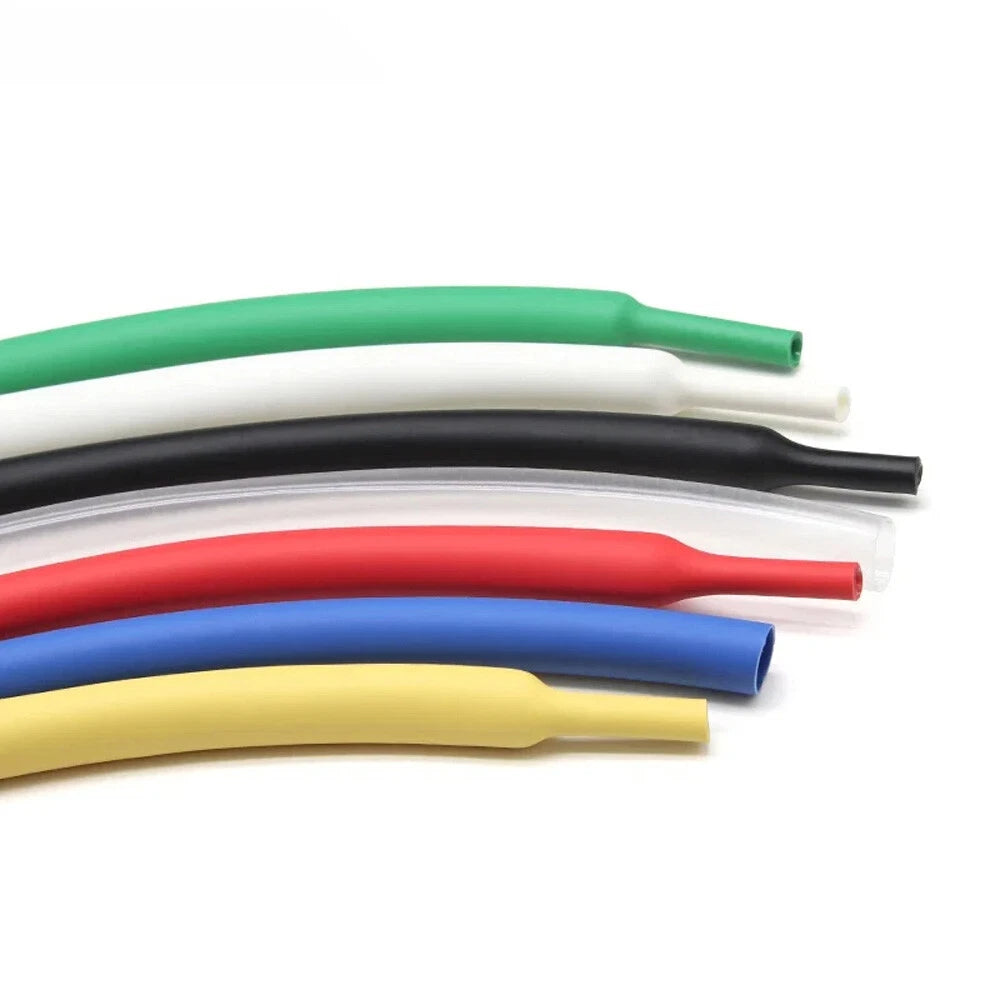

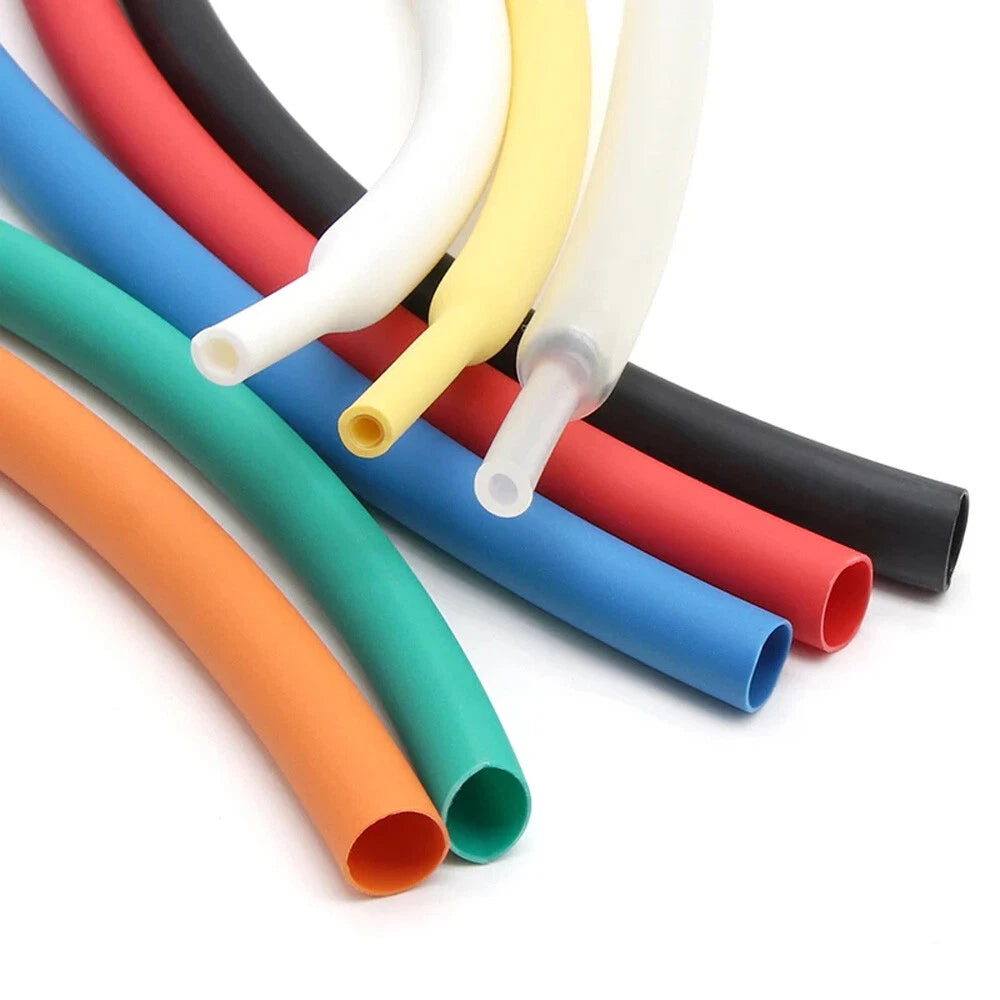

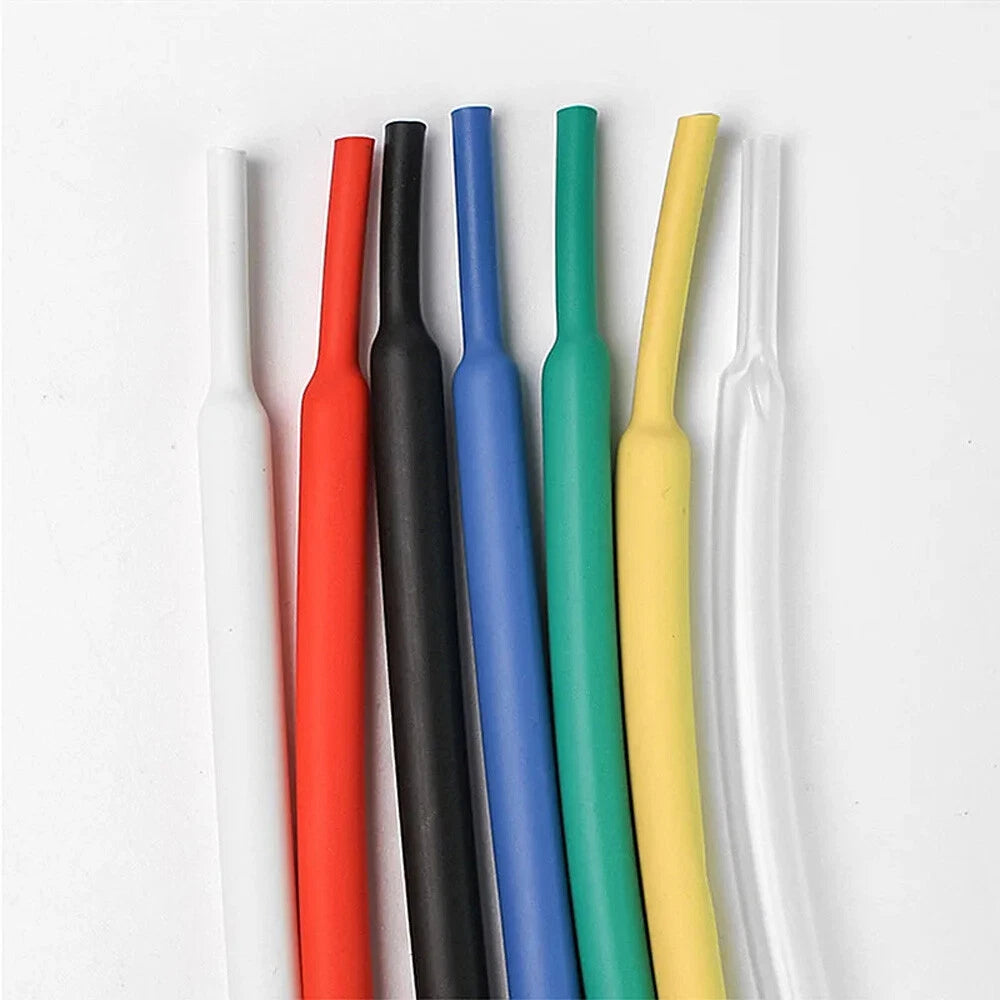

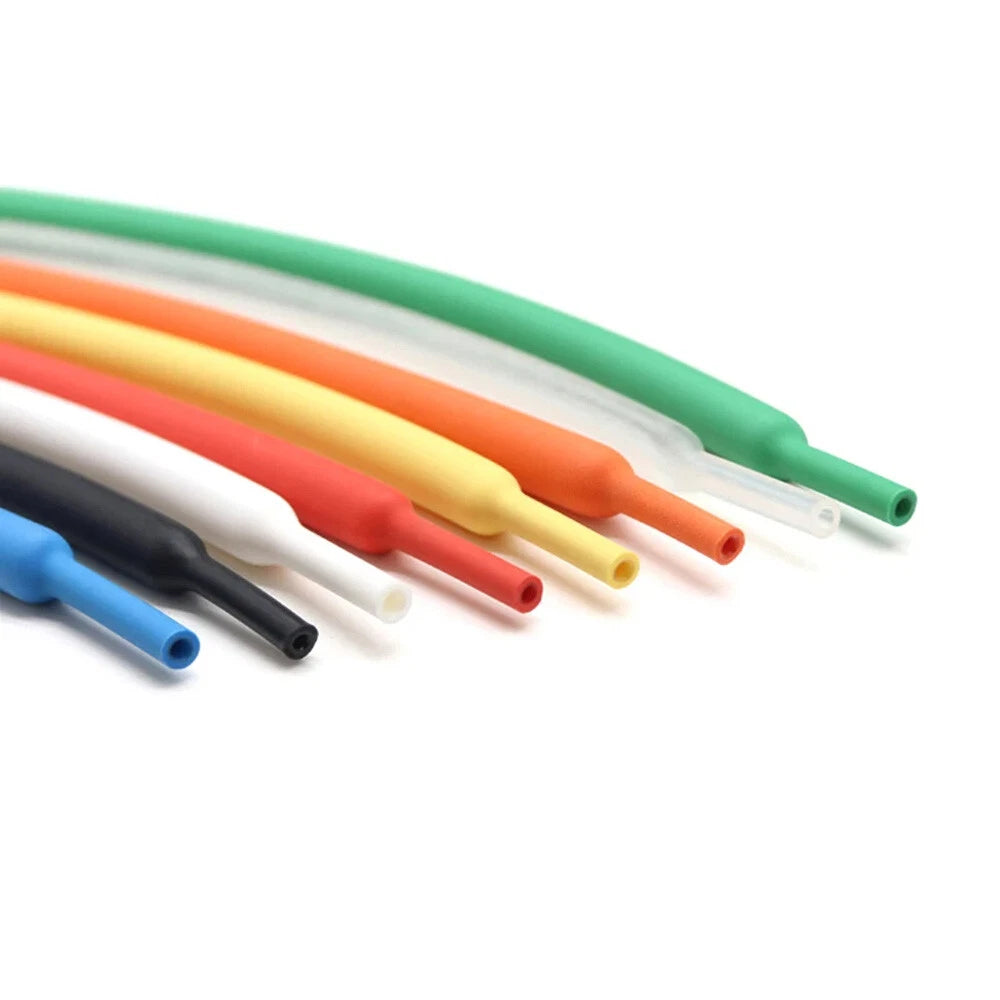

🎨8 Color Options — Black, White, Red, Green, Yellow, Blue, Transparent, and Orange allow color-coded wire identification in automotive harnesses, control panels, and multi-conductor cable assemblies.
-
✂️Cut-to-Length Flexibility — Supplied in 1M or 5M lengths so you can cut exactly what you need for each repair or production run, minimizing waste on adhesive lined wire sleeving projects.
-
🌡️Polyolefin Outer Wall — The outer sleeve is generally resistant to oils, solvents, and UV exposure, making it suitable for under-hood automotive use, outdoor junction boxes, and industrial cable management applications.

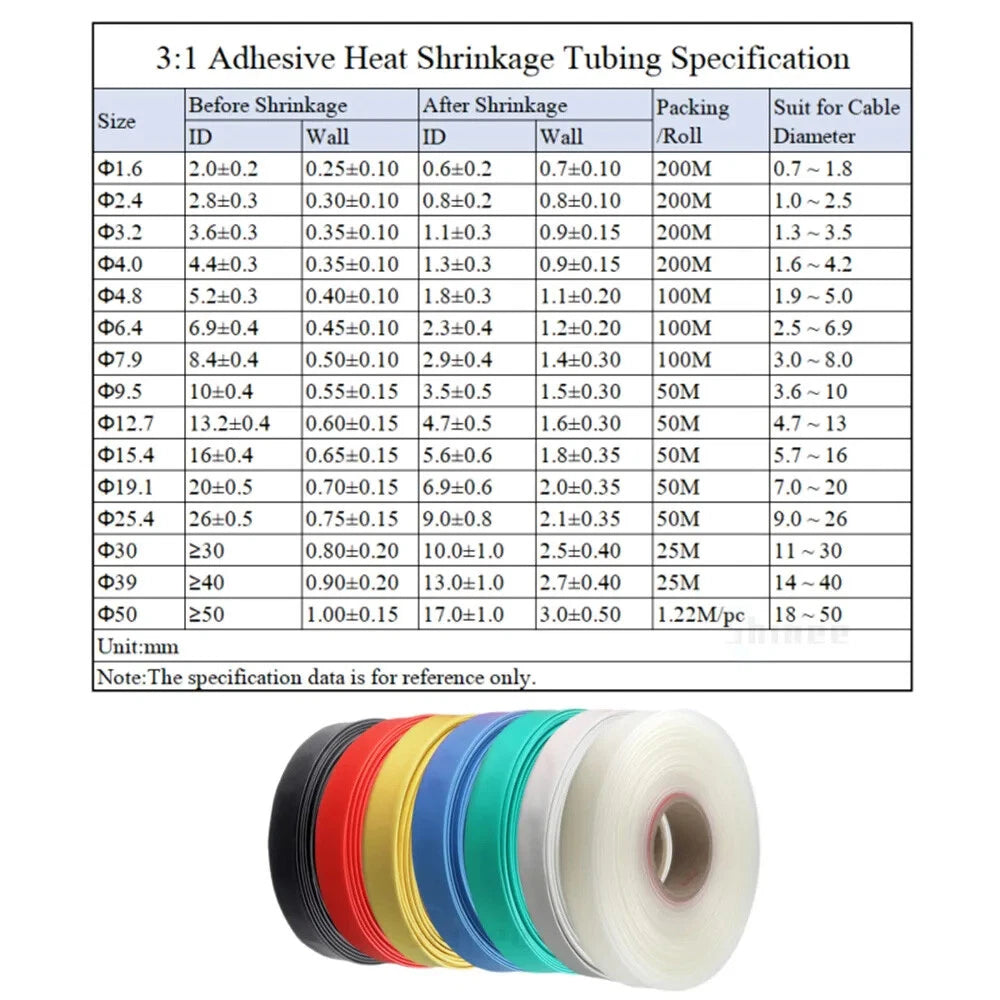

📐 Technical Specifications — 3:1 Dual-Wall Adhesive Heat Shrink Tubing
| Product Type |
Dual-wall heat shrink tubing with adhesive lining |
| Shrink Ratio |
3:1 |
| Outer Wall Material |
Polyolefin |
| Inner Layer |
Hot-melt adhesive (polyamide-based) |
| Expanded Diameter Range |
φ1.6mm (≈1/16") — φ85mm (≈3-3/8") |
| Available Colors |
Black, White, Red, Green, Yellow, Blue, Transparent, Orange |
| Available Lengths |
1 M / 5 M per order |
| Shrink Temperature |
Typically 120°C–175°C (248°F–347°F) for full shrink |
| Adhesive Activation Temperature |
Typically 70°C–120°C (158°F–248°F) |
| Operating Temperature (after shrink) |
See variant options or contact us to confirm |
| Application Method |
Heat gun recommended; avoid open flame |
| Compatibility |
Copper, aluminum, tinned wire; PVC, nylon, bare metal substrates |
| Ships From |
US warehouse |
⚠️
Size selection tip: Choose an expanded diameter that slides loosely over your wire or connector before shrinking. The recovered (shrunk) inner diameter will be approximately one-third of the expanded size. If you are unsure, size up one step — a slightly larger tube will still seal effectively once the adhesive flows.
❓ Frequently Asked Questions
How do I choose the right diameter for my wire or connector?
Measure the outer diameter of the wire, cable, or connector you need to cover. Choose a tubing size whose recovered (shrunk) inner diameter is slightly smaller than your component — this ensures a tight, waterproof seal. For example, φ3.2mm (≈1/8") tubing recovers to approximately 1.6mm (≈1/16"), so it works well on wires up to about 1.5mm OD. When in doubt, size up one step and confirm with the variant options listed on this page.
What shrink ratio does this tubing use, and why does it matter?
This tubing uses a 3:1 shrink ratio, meaning it shrinks to roughly one-third of its original expanded diameter. That larger ratio — compared to standard 2:1 tubing — makes it suitable for irregular shapes, connectors, and splices where you need more coverage and a tighter conforming fit around stepped or non-cylindrical surfaces.
What is the adhesive lining, and what does it do?
The inner wall is coated with a hot-melt adhesive (typically polyamide-based). When heat is applied, the adhesive melts and flows around the substrate, then cures to form a waterproof, strain-relieving bond. This makes the tubing suitable for outdoor, marine, and automotive applications where moisture ingress is a concern. Standard (non-adhesive) heat shrink does not provide this seal.
Can I use this tubing outdoors or in wet environments?
Yes. The adhesive lining creates a moisture-resistant seal when properly applied, making it generally suitable for outdoor wiring, marine cable management, and automotive harness protection. For fully submerged or high-pressure water exposure, confirm the specific variant's rating or contact us to confirm suitability for your application.
What tool do I need to shrink this tubing?
A heat gun is recommended for even, controlled shrinking. Most variants activate at temperatures typically between 70°C–120°C (158°F–248°F) for the adhesive to flow, and full shrink is achieved at around 120°C–175°C (248°F–347°F). Move the heat gun slowly along the tubing from the center outward to avoid trapping air bubbles. Avoid open flames, which can scorch the tubing unevenly.
Is this tubing compatible with standard wire gauges like AWG or metric?
Yes. The diameter range of φ1.6mm to φ85mm covers a wide span of wire gauges from fine signal wires (e.g., 28–24 AWG) up to large power cables and conduit. Select the expanded diameter that fits loosely over your wire before shrinking. See the variant options on this page for the full size range, and contact us if you need help matching a specific AWG or metric wire size.
Does the color affect performance, or is it purely for identification?

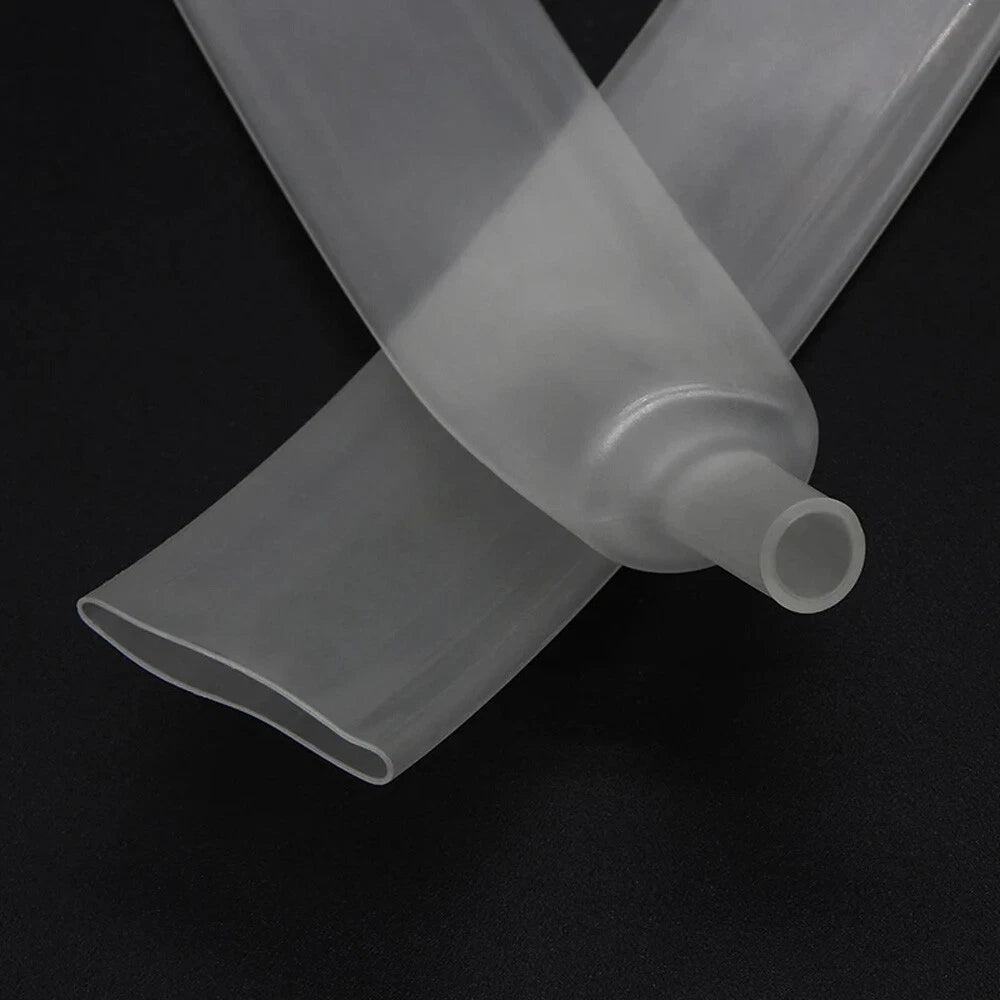

Color is primarily for identification and organization — for example, using red for positive leads and black for ground in automotive harness work. All color variants generally share the same wall thickness, shrink ratio, and adhesive properties. Transparent tubing allows you to see the underlying wire or label after shrinking, which is useful for inspection or traceability.
What is the difference between the 1M and 5M length options?
Both lengths are the same tubing — the 5M option simply provides more material per order, which is cost-effective for larger projects, production runs, or workshop stock. The 1M option is ideal for small repairs or sampling a size before committing to a larger quantity. Pricing per meter is generally lower on the 5M option.
🛒 Select your diameter, color, and length above, then add to cart — ships from our US warehouse.
