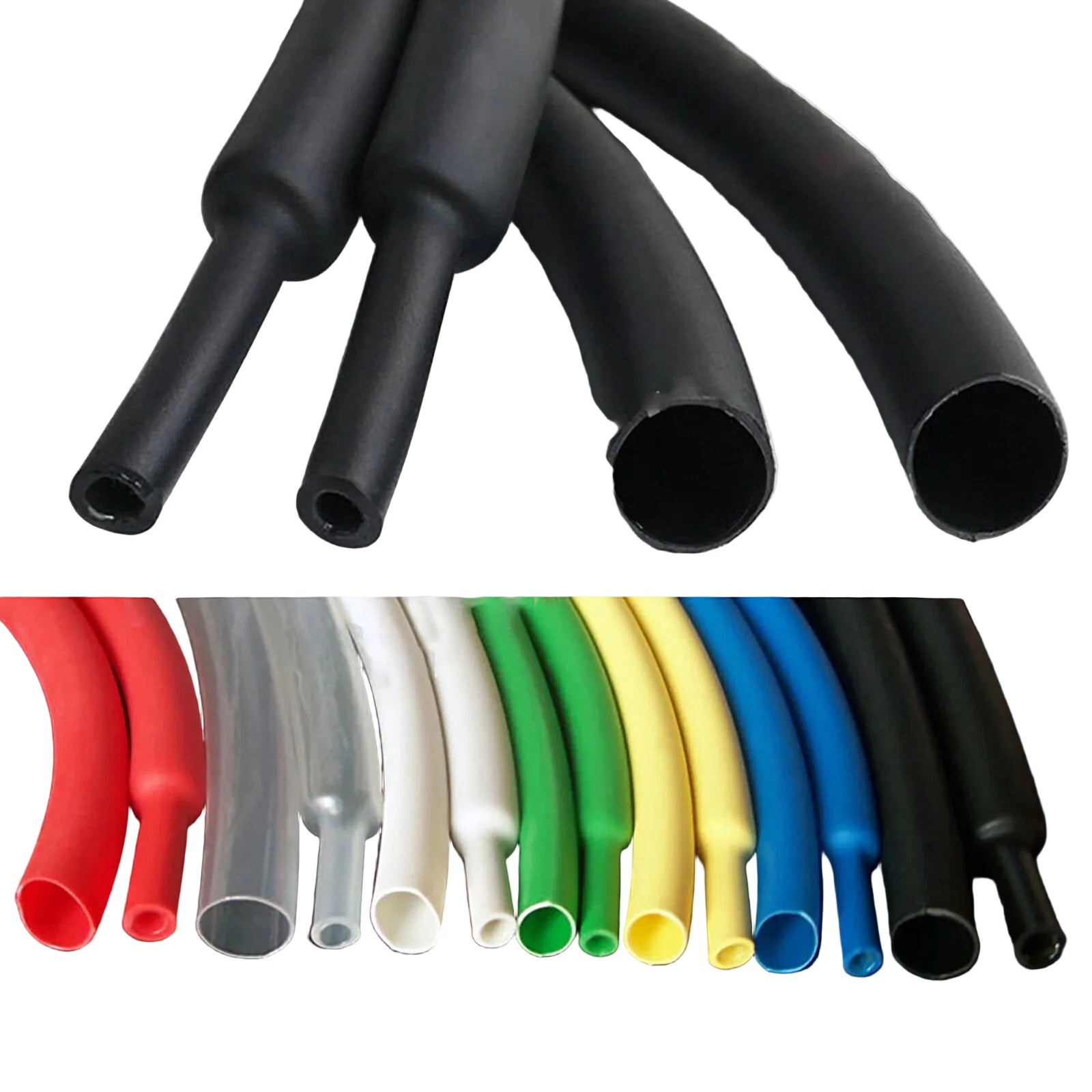

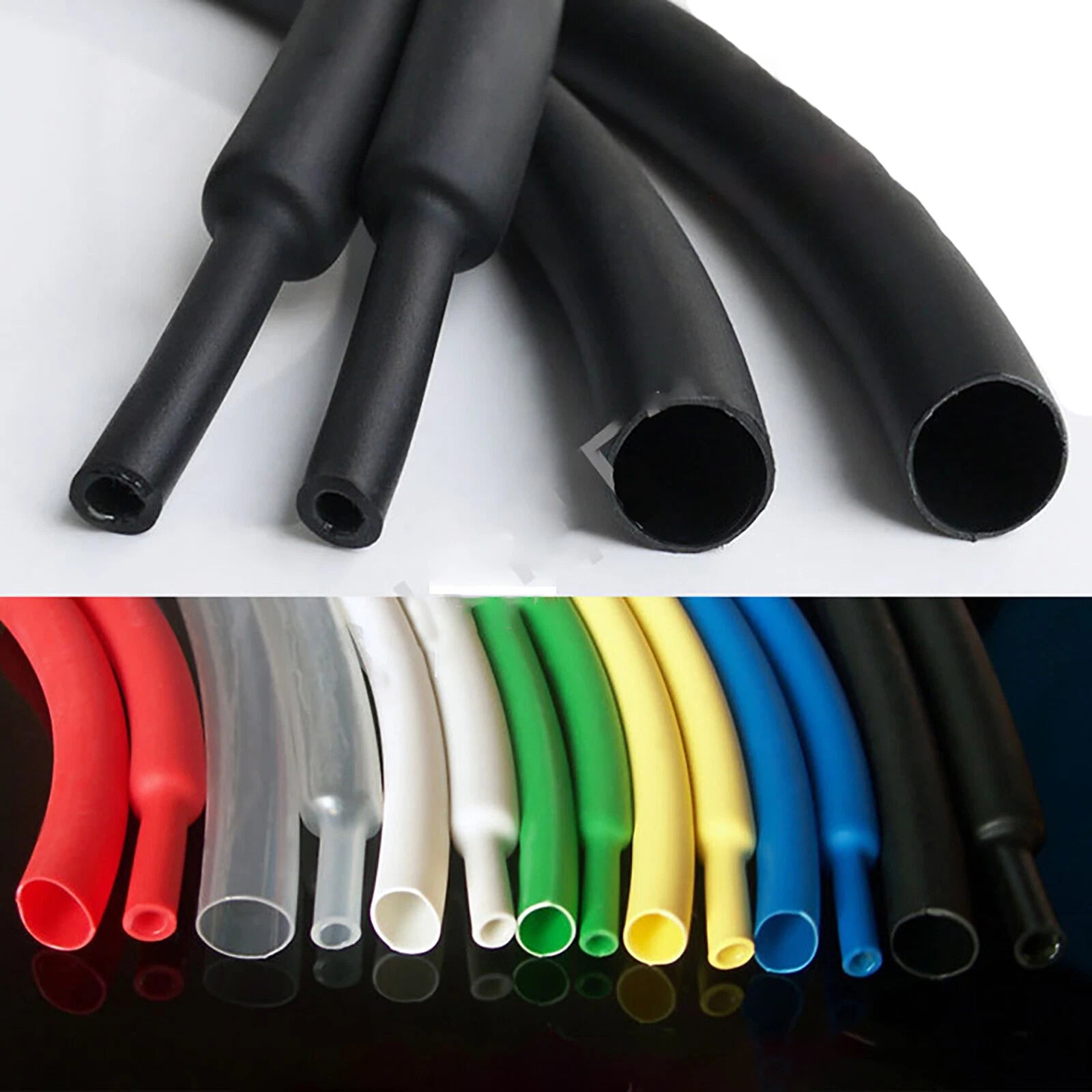

3:1 Dual Wall Adhesive Heat Shrink Tubing — Waterproof, Multiple Sizes & Colors

Measure the outer diameter of your wire bundle before shrinking. Choose a tube whose inner diameter is generally 1.2–1.5× the bundle diameter so it slides on easily. After heat is applied, the tubing typically shrinks to about one-third of its original diameter, creating a snug, sealed fit. For example, a Φ4mm tube shrinks to approximately Φ1.3mm. When in doubt, size up one step.

This is a 3:1 shrink ratio tubing, meaning it shrinks to one-third of its supplied inner diameter when heat is applied. This ratio is generally preferred over standard 2:1 tubing for irregular shapes, connectors, and thicker wire bundles because it provides a tighter, more conforming fit with less chance of gaps at stepped transitions.

Yes. The inner wall contains a hot-melt adhesive that flows and bonds to the substrate when heated, creating a moisture-resistant seal around the wire or connector. This makes it suitable for outdoor, marine, and automotive wiring applications where moisture ingress is a concern. For fully submersed applications, contact us to confirm the specific sealing rating.

Activation typically requires a heat source of around 120–150°C (248–302°F). A heat gun is strongly recommended for even, controlled shrinking. Open flames such as lighters or torches are not recommended — they can scorch the outer wall, cause uneven shrinkage, and may prevent the adhesive from flowing correctly.

In most cases, yes. Dual wall adhesive heat shrink tubing is designed to resist moisture, mild chemicals, and UV exposure, making it a common choice for automotive wiring harnesses, trailer connectors, and outdoor electrical installations. For extreme heat environments such as near exhaust manifolds, verify the specific continuous operating temperature of the variant you select by contacting us.

Generally, yes. The available inner diameters (Φ1.6mm through Φ9.5mm) cover a wide range of wire gauges from approximately 28 AWG up to 2/0 AWG. Select the diameter that fits loosely over your wire or connector before shrinking. If you are covering a multi-pin connector or solder joint, measure the widest point of the assembly.

Available colors include White, Black, Red, Yellow, Green, Blue, Transparent, and Orange. Color coding is commonly used in automotive and electrical work to identify wire circuits at a glance — for example, red for positive, black for negative, and other colors for specific signal or accessory circuits. This reduces troubleshooting time and wiring errors on complex harnesses.

For small repairs or a few connections, the 1M roll is typically sufficient. For wiring harness builds, trailer rewiring, or workshop stock, the 5M or 10M rolls offer better value per meter. Each roll is a continuous length that can be cut to any size with scissors or a utility knife. We recommend buying one size up from your minimum estimate to account for test cuts and future repairs.
