304 Stainless Steel BSP Hose Tail Barb Fittings — 1/8" to 2" Thread

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

304 Stainless Steel BSP Hose Tail Barb Fittings — 1/8" to 2" Thread

Name: 304 Stainless Steel BSP Hose Tail Barb Fittings — 1/8" to 2" Thread
Brand: HomeDIYer
Price: 2.37 USD
Availability: InStock

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Types: 304 stainless steel

Size: 1&8" - 6mm

Packing Qty: 1pcs

Preis:

$2.37 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

304 Stainless Steel BSP Hose Tail Barb Fittings — Reliable Connections for Water, Air & Fluid Lines

Leaking hose connections are one of the most frustrating problems in plumbing, irrigation, and pneumatic systems — especially when a poorly made fitting fails mid-project. Whether you're a plumber, HVAC technician, irrigation installer, or hands-on DIYer, these 304 stainless steel BSP hose tail barb fittings give you a corrosion-resistant, thread-secure connection that holds up in demanding environments.

Each fitting is machined from 304 stainless steel and features a BSP-threaded male end for connection to ports, valves, or manifolds, and a ribbed barb tail for gripping flexible hose. Available in BSP thread sizes from 1/8" to 2", with barb lengths ranging from 6mm (≈1/4") to 50mm (≈2"), sold individually (1 pc), in pairs (2 pcs), or in packs of 5 for project or workshop use.

Typical applications include garden irrigation hose connections, compressed air line fittings, water pump outlet connections, fuel transfer lines, and industrial fluid handling — anywhere a BSP thread hose tail connector is needed for a secure, clamp-ready joint.

🔗 Compatibility Note: These fittings use BSP (British Standard Pipe) thread — also called G-thread. BSP is not directly interchangeable with NPT (US National Pipe Thread). Verify your port thread standard before ordering. If unsure, measure your existing fitting or contact us to confirm.

✅ Key Features of These BSP Hose Tail Barb Fittings

🔩BSP Thread Compatibility — Male BSP thread (1/8" to 2") connects directly to BSP-threaded ports, valves, pumps, and manifolds without adapters in BSP-standard systems.
🛡️304 Stainless Steel Construction — Resists rust, oxidation, and mild chemical exposure, making these fittings suitable for outdoor plumbing, irrigation, and light industrial fluid lines.
📏Wide Size Range — Thread sizes from 1/8" to 2" and barb lengths from 6mm to 50mm cover a broad range of hose diameters and installation requirements in a single product line.
🔒Ribbed Barb Design — The stepped barb profile grips the inside of flexible hose securely, reducing pull-off risk when used with a hose clamp or crimp ferrule.
📦Flexible Pack Quantities — Order 1, 2, or 5 pieces per variant to match your project scope — from a single repair to stocking a workshop or completing a multi-point irrigation layout.

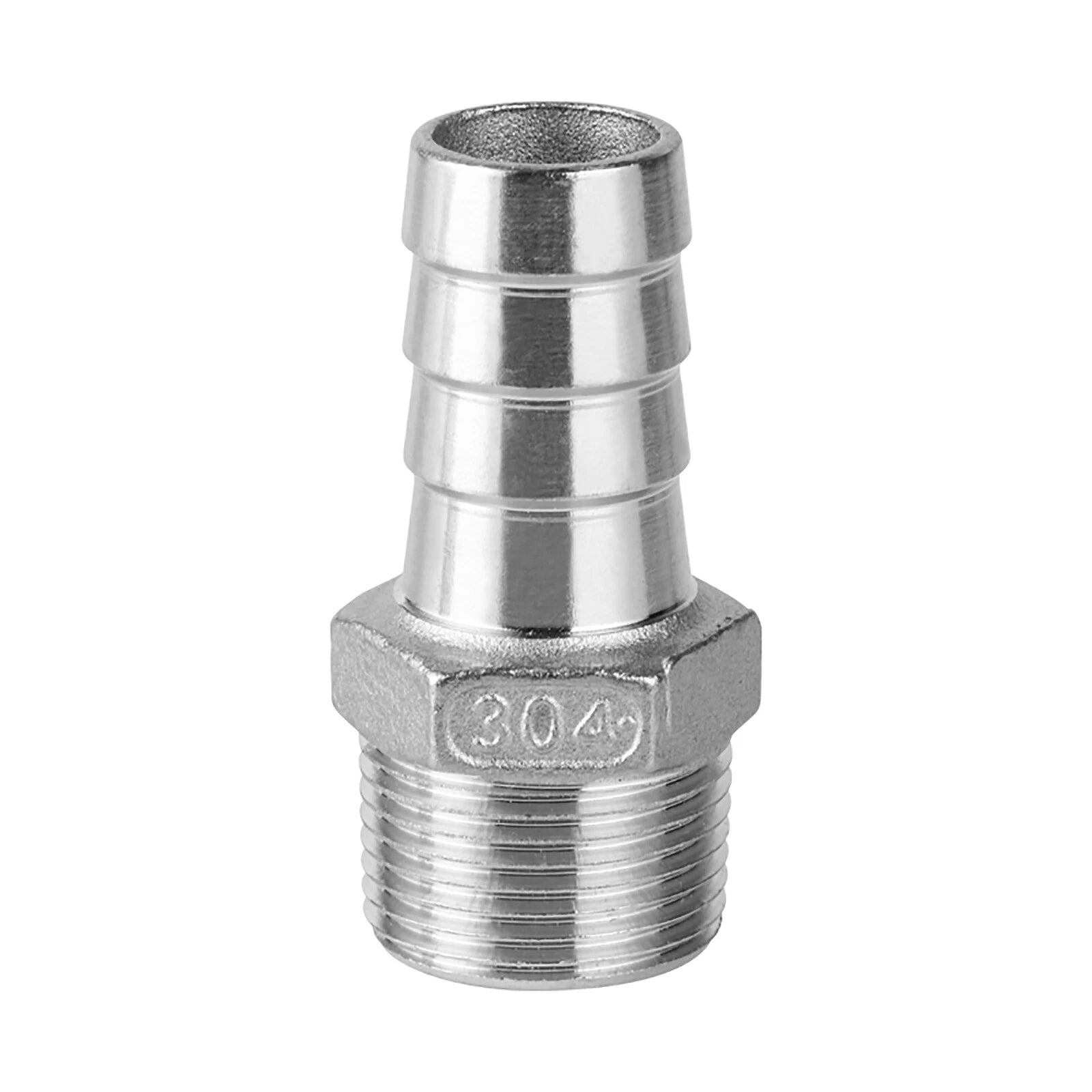

⚙️Machined Hex Body — The hex section allows wrench tightening for a controlled, torque-accurate installation without damaging the fitting body or thread.

📐 Technical Specifications — BSP Hose Tail Barb Pipe Fittings

Material	304 Stainless Steel
Thread Standard	BSP (British Standard Pipe) — Male
Thread Sizes Available	1/8", 1/4", 3/8", 1/2", 3/4", 1", 1.2", 1.5", 2"
Barb Lengths Available	6mm (≈1/4"), 8mm (≈5/16"), 10mm (≈3/8"), 12mm (≈15/32"), 13mm (≈1/2"), 14mm (≈9/16"), 15mm (≈19/32"), 16mm (≈5/8"), 19mm (≈3/4"), 20mm (≈25/32"), 25mm (≈1"), 32mm (≈1-1/4"), 40mm (≈1-9/16"), 50mm (≈2")
Pack Quantities	1 pc, 2 pcs, 5 pcs (select variant)
Finish	Natural brushed stainless
Drive / Installation	Hex body — wrench tightening
Sealant Required	Yes — PTFE tape or thread sealant recommended
Working Pressure	See variant options — depends on size and hose type
Typical Applications	Water, air, fuel, oil, irrigation, pneumatic lines
Country of Origin	Contact us to confirm

⚠️ Sizing Tip: The "Size" option shows BSP thread diameter first, then barb length (e.g., 1/4" – 10mm = 1/4" BSP male thread, 10mm barb). Match the thread to your port and the barb to your hose inner diameter. When in doubt, size up on the barb for a tighter grip.

❓ Frequently Asked Questions

How do I choose the right hose tail size and length?

Match the BSP thread size to your existing fitting or port (e.g., 1/4" BSP). Then choose a barb length that is typically equal to or slightly longer than your hose inner diameter for a secure grip. For example, a 6mm barb generally suits 6mm ID hose, while a 25mm barb suits larger bore hose. Always confirm with a caliper before ordering.

What pressure can these hose tail fittings handle?

304 stainless steel hose tail barb fittings are generally rated for moderate working pressures. Actual capacity depends on hose type, clamp method, and fluid temperature. For high-pressure hydraulic applications, consult a qualified engineer and verify ratings with your hose supplier.

Are these fittings suitable for outdoor or marine use?

304 stainless steel offers good corrosion resistance in most outdoor and mildly saline environments. For prolonged saltwater or highly chlorinated exposure, 316 stainless steel is typically recommended. These fittings are well-suited for garden irrigation, outdoor plumbing, and light marine applications.

What thread standard do these fittings use — BSP or NPT?

These fittings use BSP (British Standard Pipe) thread, also known as G-thread or Whitworth pipe thread. BSP is widely used in plumbing, pneumatics, and hydraulics across the UK, Europe, Australia, and Asia. It is not directly compatible with NPT (National Pipe Thread) used in North America without an adapter.

Do I need thread sealant with these fittings?

Yes. BSP parallel (BSPP) threads generally require PTFE tape or thread sealant compound to achieve a leak-free seal. BSP tapered (BSPT) threads can self-seal under pressure but still benefit from sealant. Always apply sealant to the male thread before assembly.

Which hose clamp should I use with these barb fittings?

Worm-drive hose clamps (also called jubilee clips) are the most common choice for securing hose to barb fittings. For higher-pressure or vibration-prone applications, double-bolt clamps or crimp ferrules are typically preferred. Match the clamp diameter to your hose outer diameter.

Can I use these fittings for fuel or chemical lines?

304 stainless steel is generally compatible with many fuels, oils, and mild chemicals. However, compatibility depends on the specific fluid, concentration, and temperature. Always verify chemical compatibility with a stainless steel compatibility chart before use in fuel or chemical transfer applications.

🛒 Select your thread size and barb length above, then add to cart — ships from our US warehouse.
