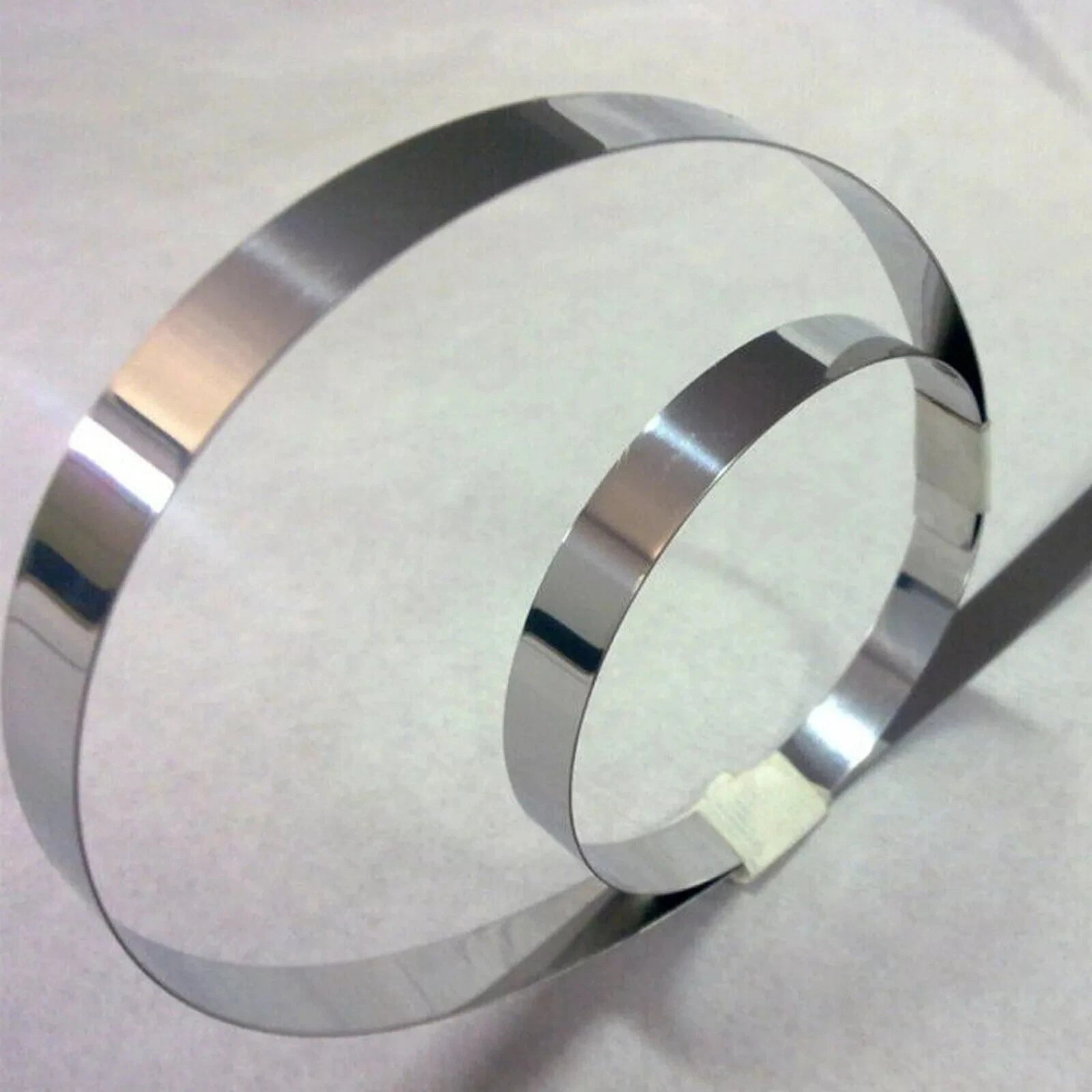

304 Stainless Steel Foil Sheet Strip — 0.01mm to 0.4mm Thin Metal Shim Plate

Match the foil thickness to your gap or tolerance requirement. For precision shimming and calibration work, thinner gauges (0.01–0.05mm / ≈0.0004"–0.002") are typically used. For structural spacers or gaskets, 0.1–0.4mm (≈0.004"–0.016") generally provides better rigidity. When in doubt, start with a thinner sheet and stack multiple pieces to reach your target gap — this is a common technique in precision shimming applications.

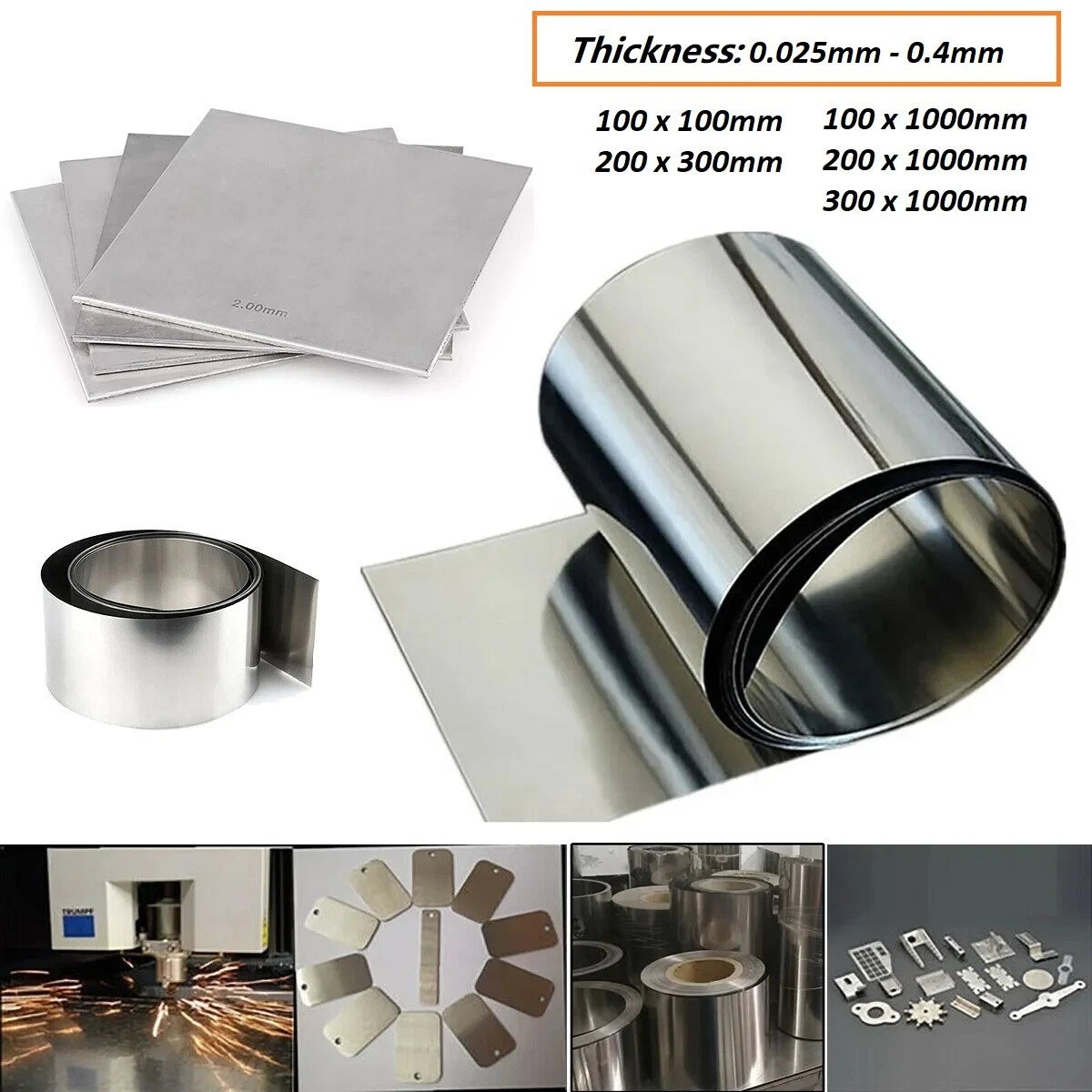

Three width/length formats are offered:

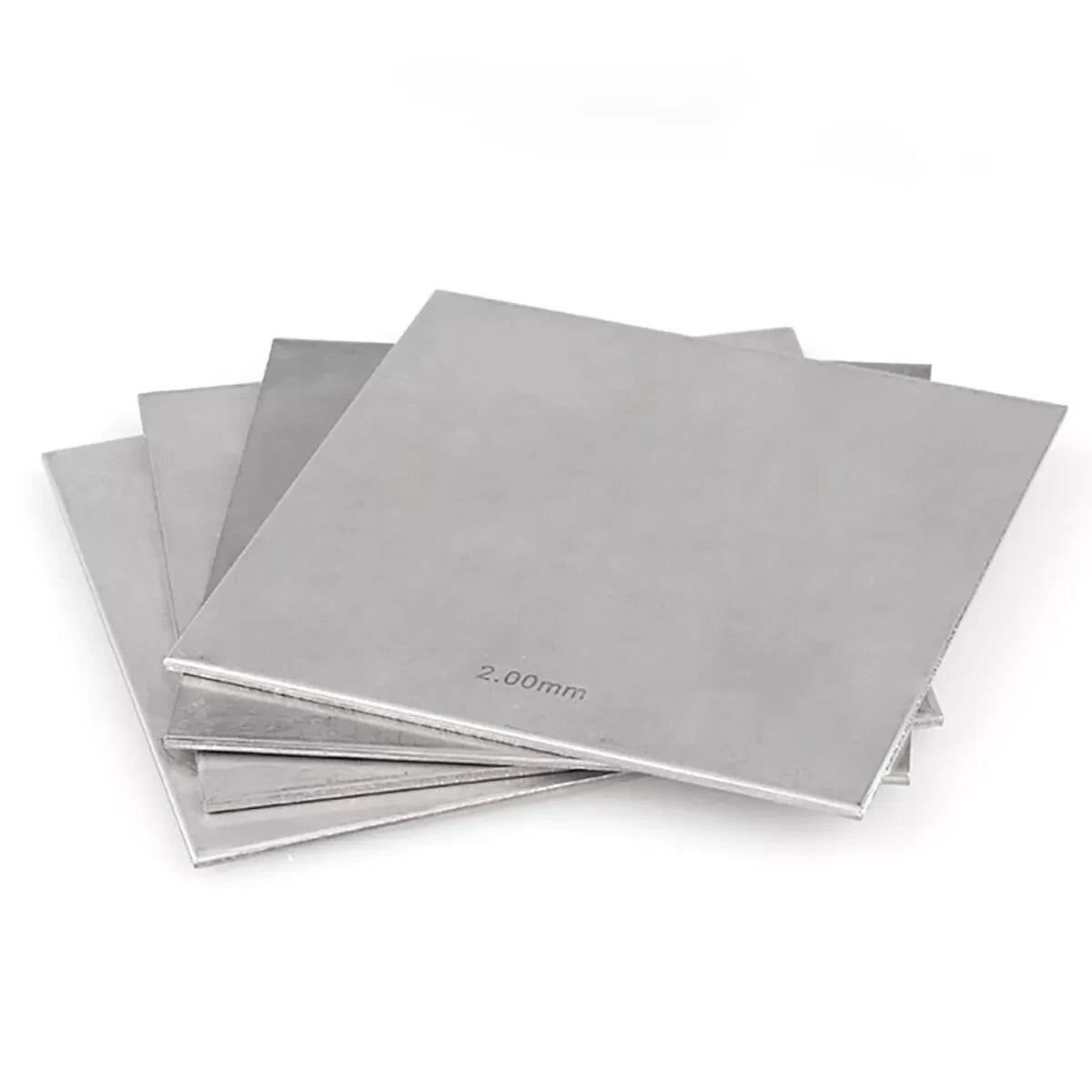

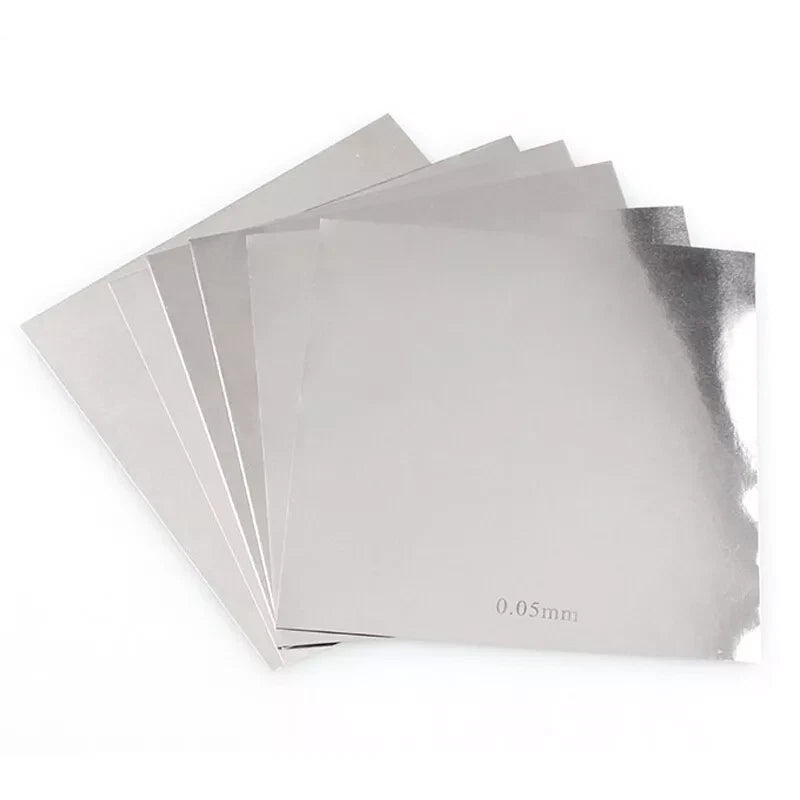

• 100×100mm — approximately 3.9"×3.9"
• 200×300mm — approximately 7.9"×11.8"

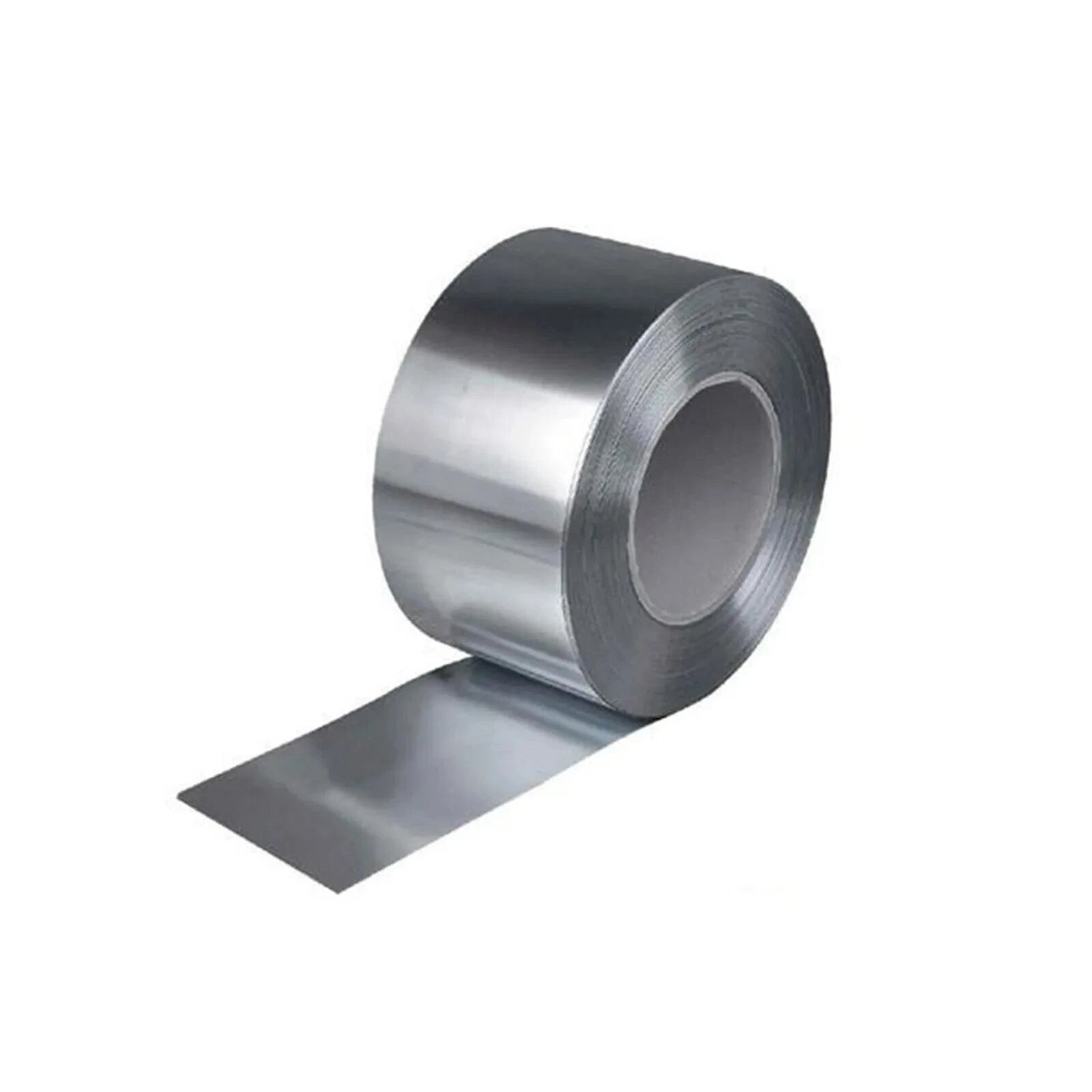

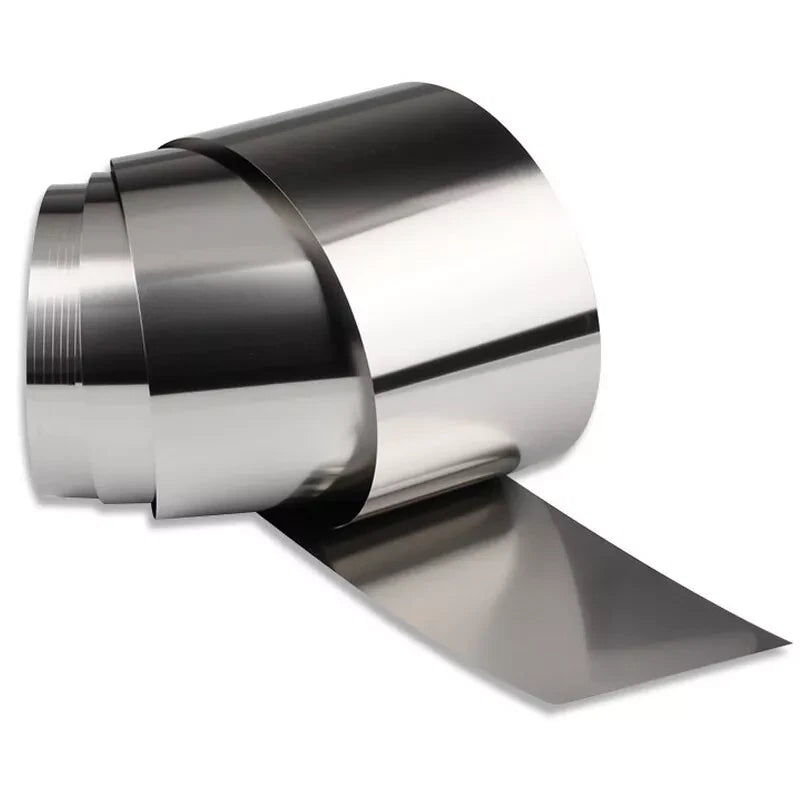

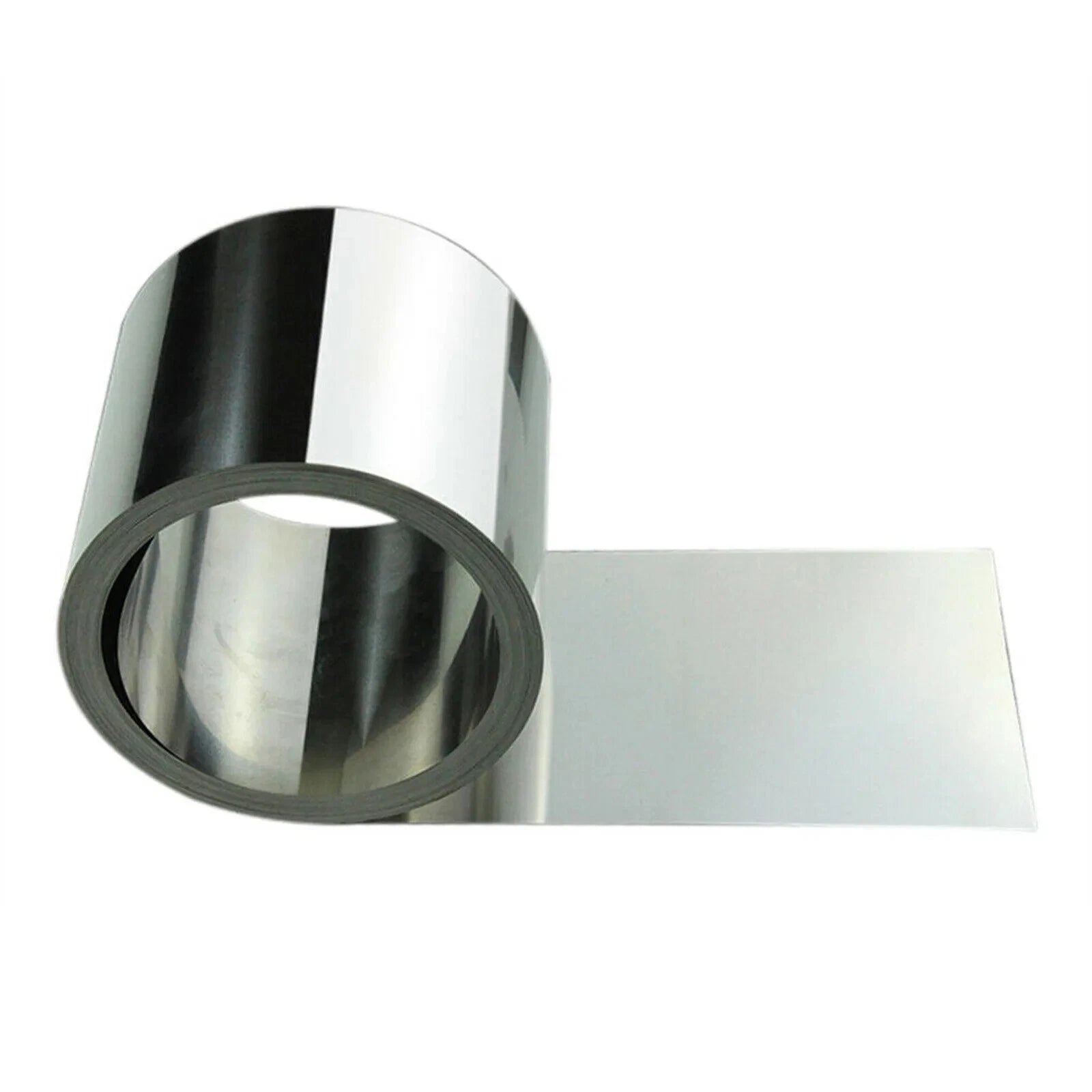

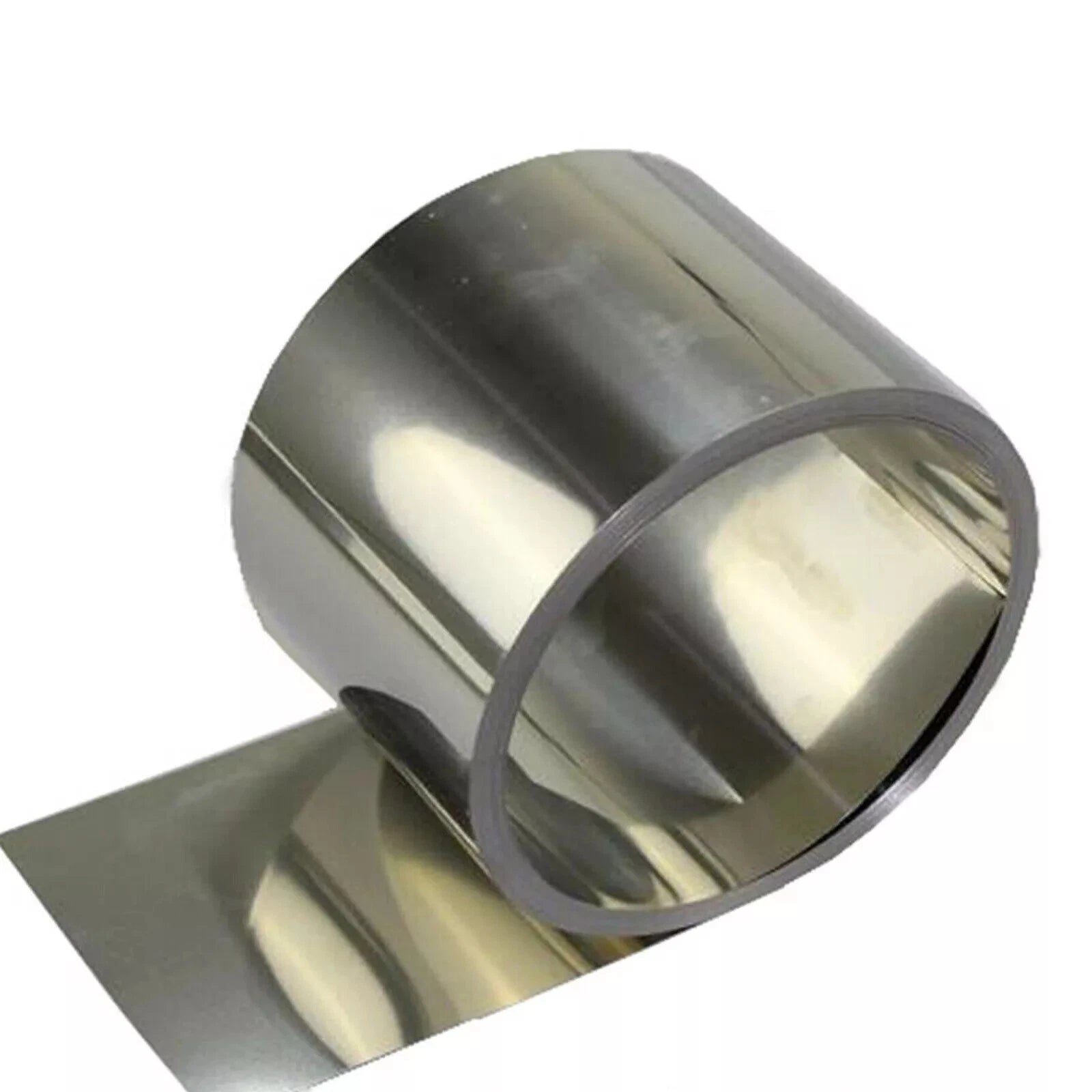

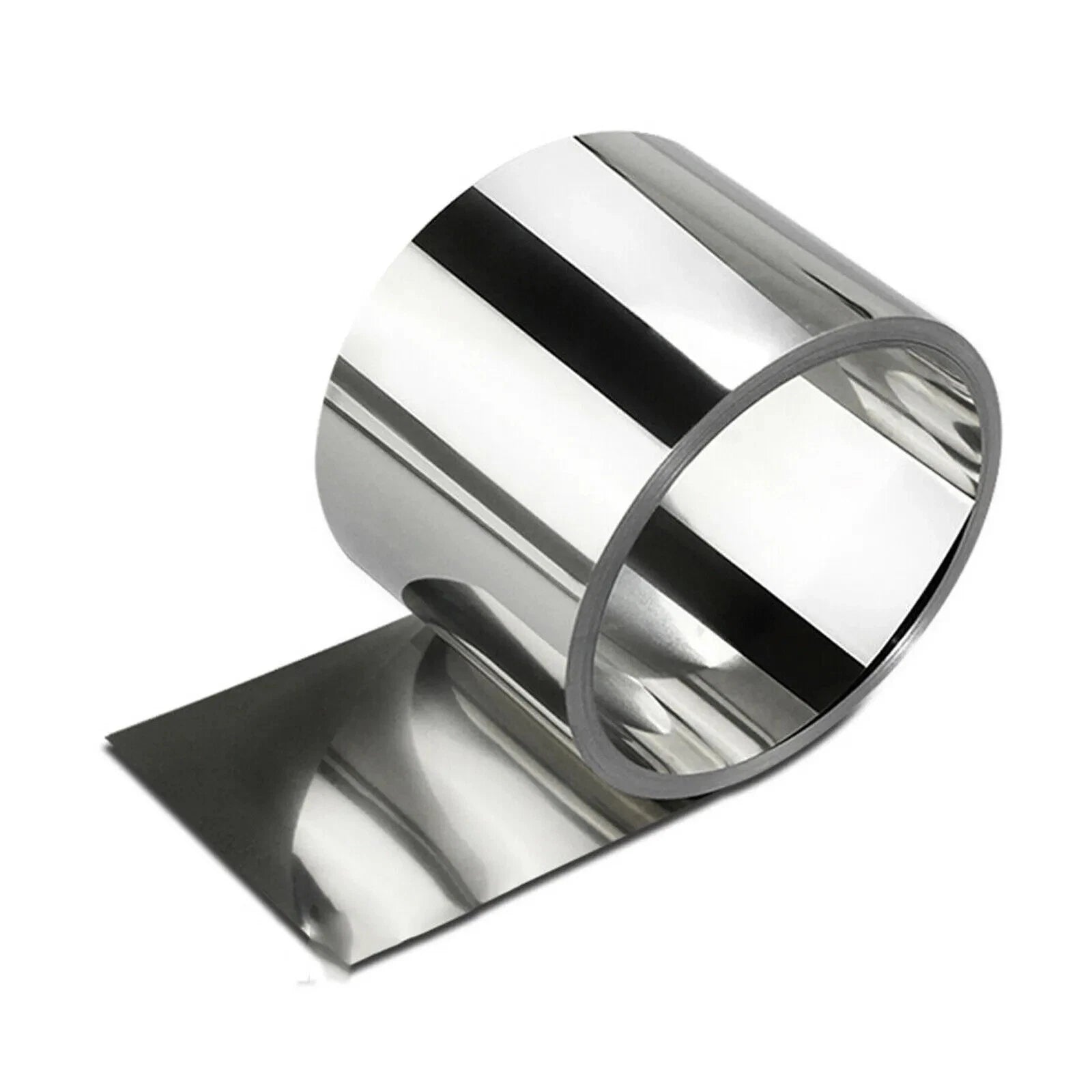

• Strip rolls: 100×1000mm (≈3.9"×39.4"), 200×1000mm (≈7.9"×39.4"), 300×1000mm (≈11.8"×39.4")

Thickness ranges from 0.01mm (≈0.0004") to 0.4mm (≈0.016") across all formats. Select your size and pack quantity from the variant dropdowns above.

304 stainless steel generally has a tensile strength of around 515 MPa (≈75,000 psi). At very thin gauges (under 0.05mm), the foil is flexible and not intended for structural load-bearing — it functions as a shim, gasket, or spacer rather than a structural member. Thicker gauges (0.2–0.4mm) provide significantly more rigidity and are suitable for light-duty shims and spacers in mechanical assemblies.

304 stainless steel offers good corrosion resistance in most indoor and mildly humid outdoor environments. It is generally not recommended for prolonged exposure to saltwater, chloride-rich environments, or highly acidic conditions — 316 stainless steel is typically preferred for marine or chemical applications. For standard workshop, automotive, or HVAC use, 304 grade is generally sufficient.

Yes. These flat shim sheets are not threaded and work as spacers or shims alongside any fastener system — metric or imperial. All dimensions are listed in millimeters with inch equivalents provided. The flat format is compatible with any bolt, screw, shaft, or housing where a precision spacer or thin metal shim is needed.

Yes. Thinner gauges (under 0.1mm) can typically be cut with sharp scissors or a craft knife on a cutting mat. Thicker gauges (0.2–0.4mm) generally require metal shears, a rotary cutter, or a nibbler tool. For precision shapes, laser cutting and CNC punching are also commonly used. Edges may be slightly sharp after cutting — deburring is recommended for hand-contact applications.

For light-duty gaskets and static seals, 0.05–0.15mm (≈0.002"–0.006") is typically sufficient. For higher-pressure applications or where more rigidity is needed to prevent blowout, 0.2–0.4mm (≈0.008"–0.016") is generally recommended. Always verify the specific pressure, temperature, and media compatibility requirements of your application before selecting a gauge. If you need guidance, contact us with your application details.
