What is the pressure rating of these elbow fittings?

Pressure ratings vary by size and installation conditions. 304 stainless steel BSP fittings in this size range typically handle working pressures of 150–1000 PSI depending on the DN size and wall thickness. Always verify with your system's pressure requirements and consult us to confirm if needed.

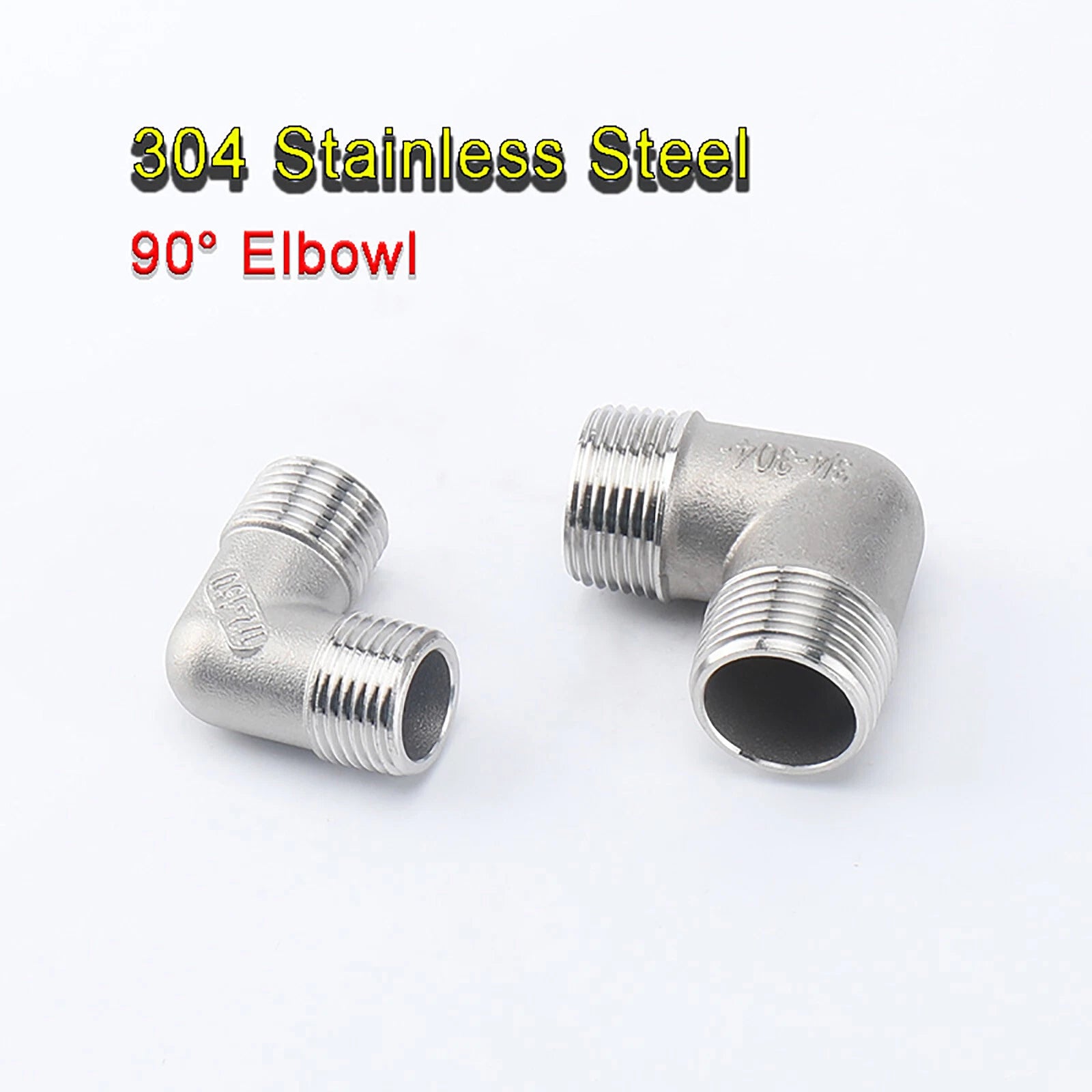

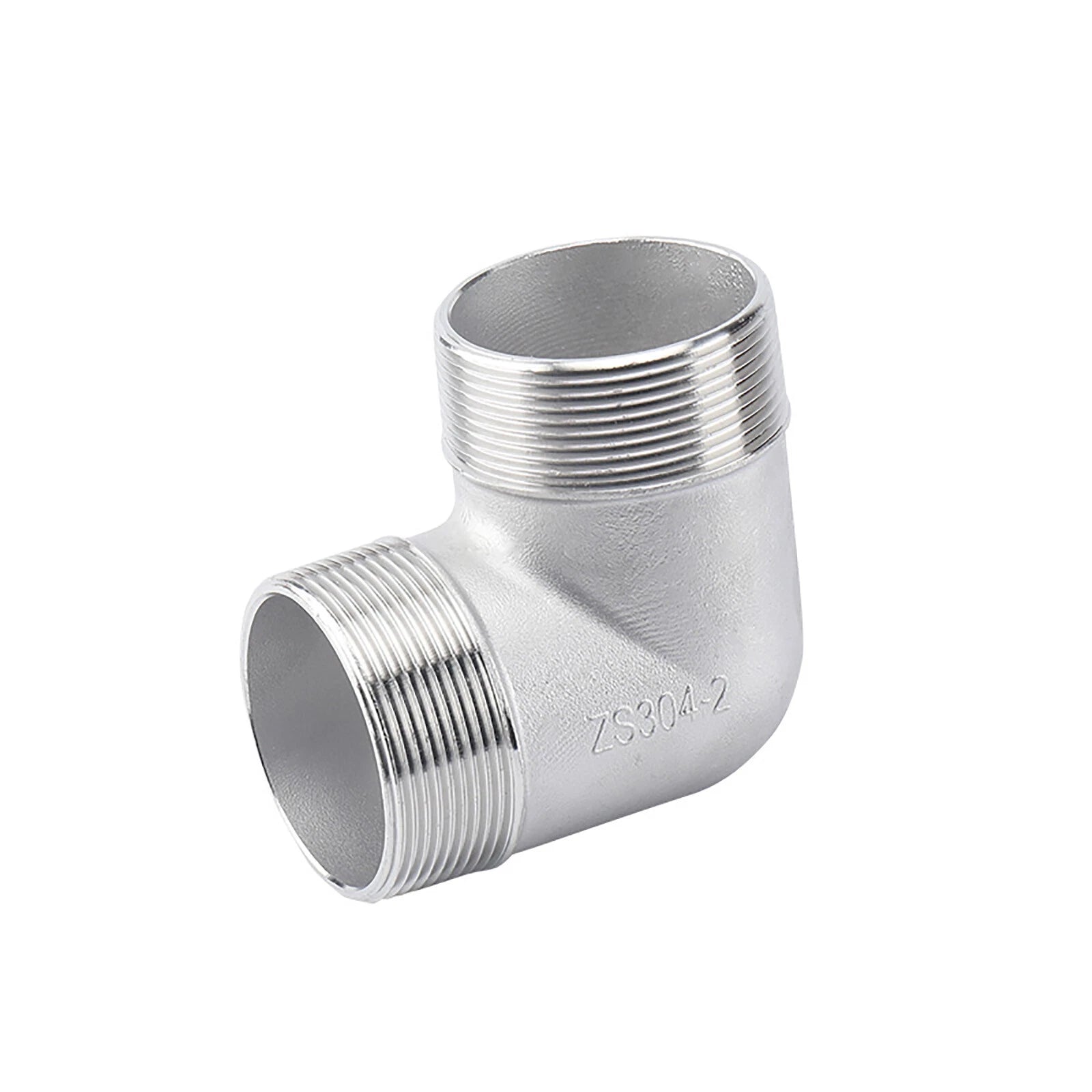

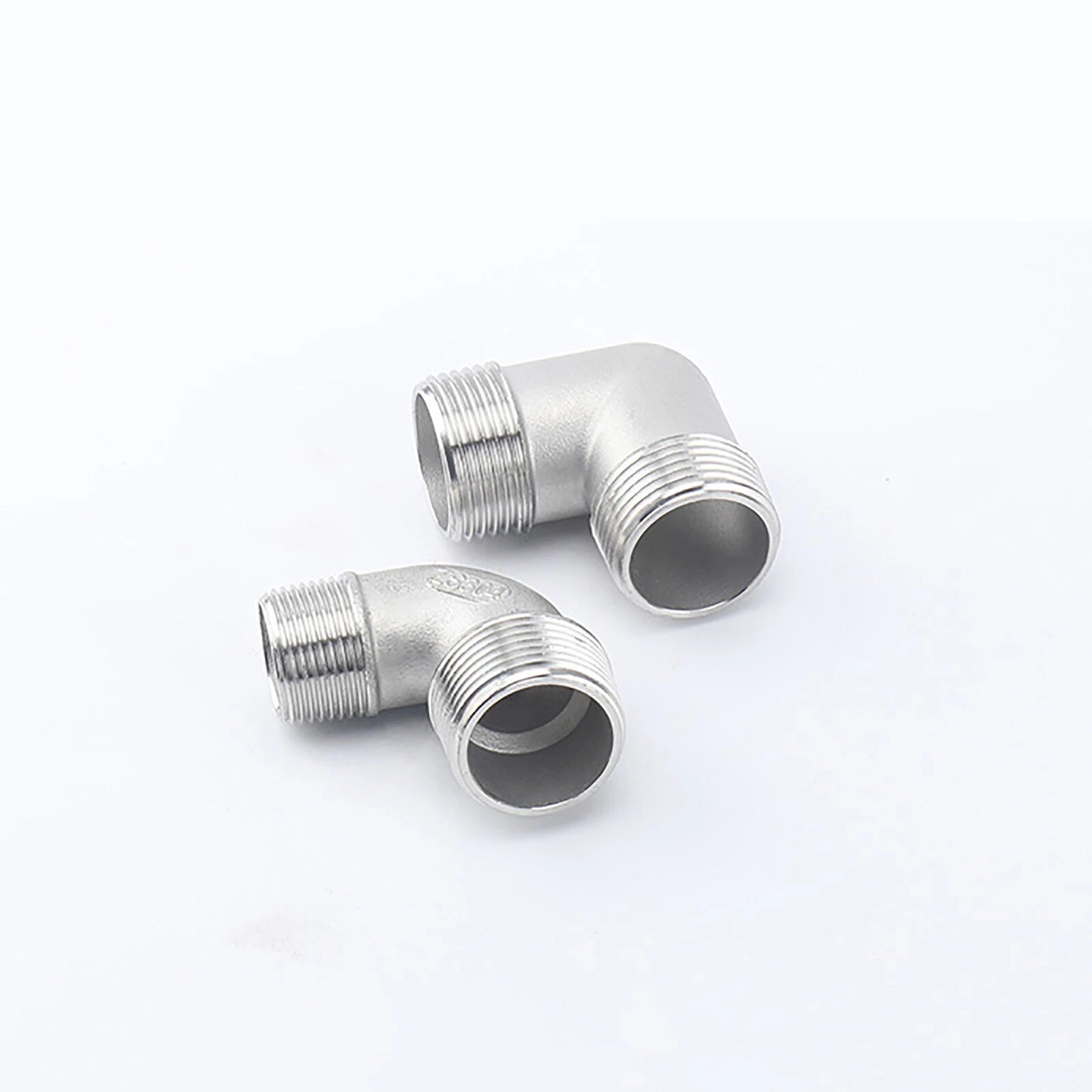

304 Stainless Steel Male 90° Elbow BSP Pipe Fitting — Equal & Reducer

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

304 Stainless Steel Male 90° Elbow BSP Pipe Fitting — Equal & Reducer

Name: 304 Stainless Steel Male 90° Elbow BSP Pipe Fitting — Equal & Reducer
Brand: HomeDIYer
Price: 7.28 USD
Availability: InStock

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Types:: Equal

Size(d):: DN8（1&4"）

Amount:: 1pcs

Preis:

$7.28 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

304 Stainless Steel Male 90° Elbow BSP Pipe Fitting — Reliable Direction Changes for Fluid & Plumbing Systems

When a pipe run needs to change direction and a standard coupling won't do the job, a poorly matched elbow fitting can mean leaks, corrosion, or a failed inspection. Plumbers, HVAC technicians, and DIY homeowners working on water supply lines, compressed air systems, or fluid transfer setups need a 90° elbow that threads in cleanly, holds pressure, and resists rust over years of service.

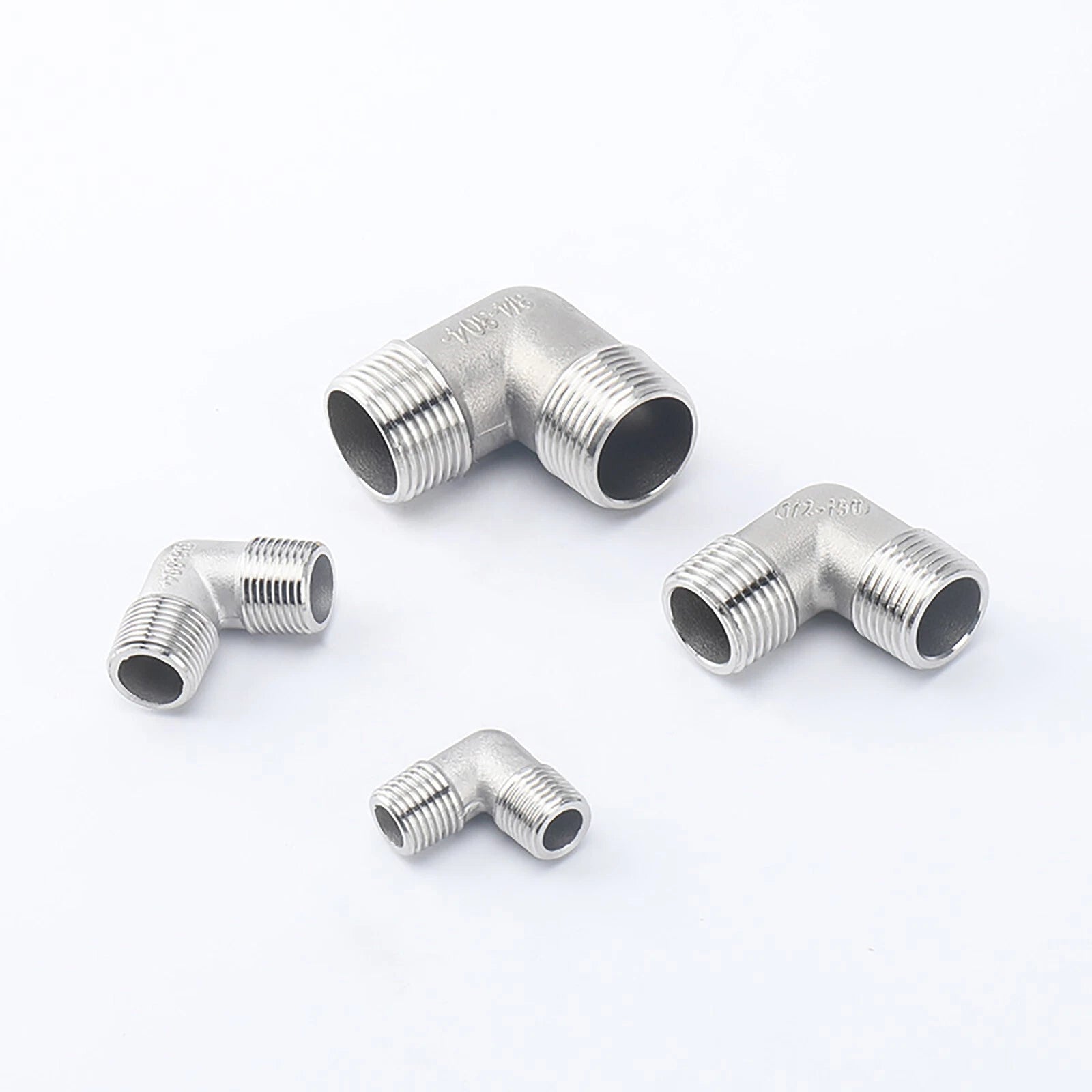

Each fitting is machined from 304 stainless steel and features a male BSP (British Standard Pipe) threaded end for secure connection to female BSP ports. Available in Equal type (same diameter on both ends) and Reducer type (DN25 to DN20, i.e., 1" to 3/4"), with sizes ranging from DN8 (1/4") through DN50 (2"). Sold individually (1 pc per order); select your type and size from the variant options above.

Typical applications include residential and commercial water supply plumbing, compressed air distribution lines, hydraulic fluid routing, and industrial process piping where a 90° directional change is needed. The BSP male thread makes these fittings a natural fit for systems using G-thread female ports on pumps, valves, manifolds, and pipe unions.

🔗 Thread Compatibility: These fittings use BSP (G-thread) male threads. Verify your system uses BSP female ports before ordering. BSP and NPT threads are not interchangeable without an adapter.

✅ Key Features of These 304 Stainless Steel Male 90° Elbow BSP Fittings

🔩True 90° Turn in One Fitting — Eliminates the need for two separate fittings to make a right-angle direction change, reducing potential leak points in your BSP pipe system.
🦾304 Stainless Steel Construction — Resists rust, oxidation, and mild corrosive media, making these male elbow adapters suitable for water, air, and light chemical fluid lines.

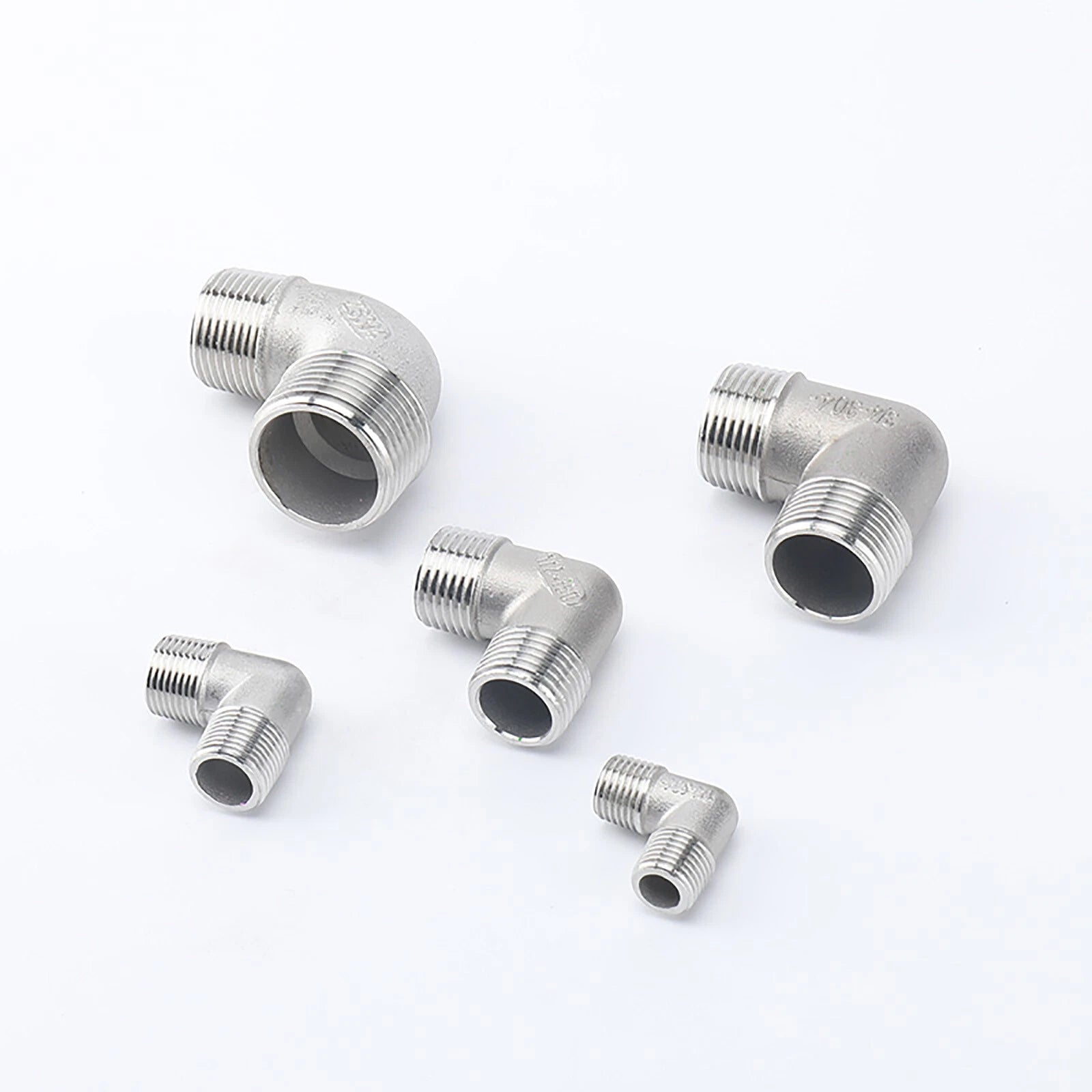

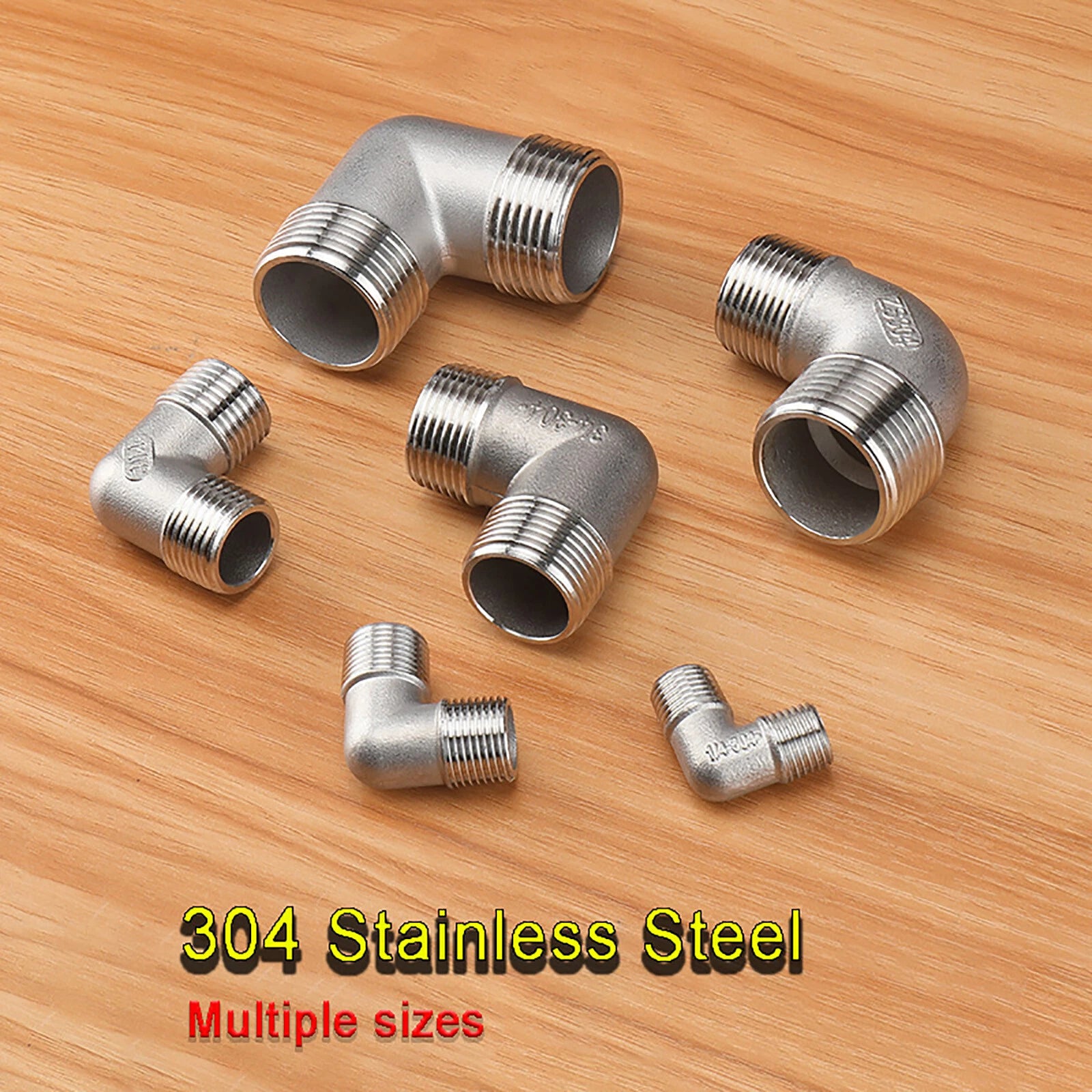

📐Wide Size Range DN8–DN50 — Covers 1/4" through 2" nominal pipe sizes, so you can match the fitting to your existing BSP plumbing without custom fabrication.
🔄Equal & Reducer Options — The Equal type maintains consistent pipe diameter through the turn; the Reducer type (DN25×DN20) lets you step down pipe size and change direction simultaneously.
🧵Precision-Cut BSP Male Threads — Machined to BSP/G-thread standards for consistent engagement with female BSP ports on valves, pumps, and pipe fittings without cross-threading.
🏗️Versatile Installation Scenarios — Suited for residential water supply lines, compressed air distribution, hydraulic systems, and industrial fluid routing where a 90° elbow connector is required.

📐 Technical Specifications — 304 Stainless Steel Male 90° Elbow BSP Pipe Fittings

Material	304 Stainless Steel
Fitting Type	Male 90° Elbow (Street Elbow)
Thread Standard	BSP (British Standard Pipe / G-thread), Male
Available Types	Equal (same diameter both ends); Reducer (DN25×DN20)

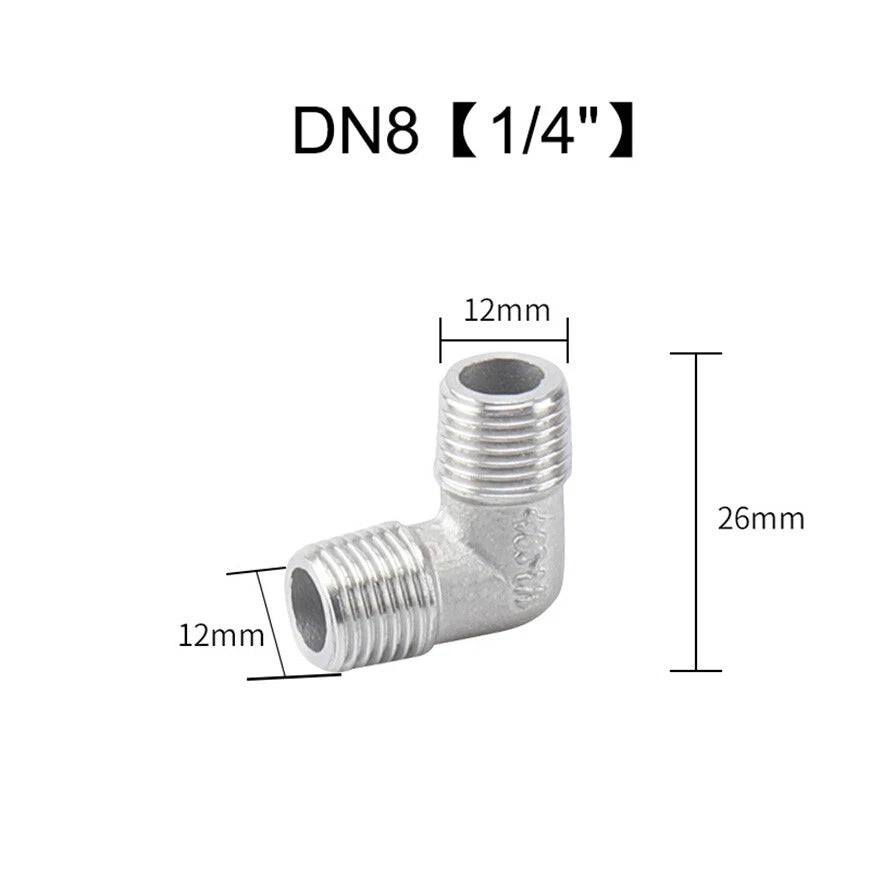

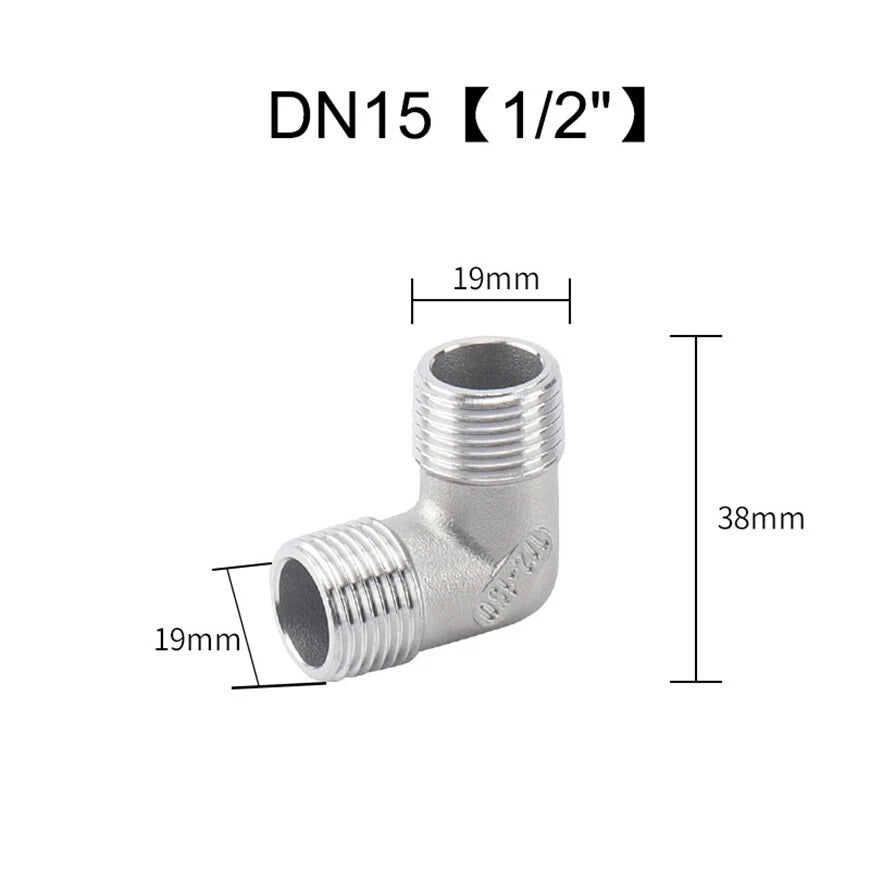

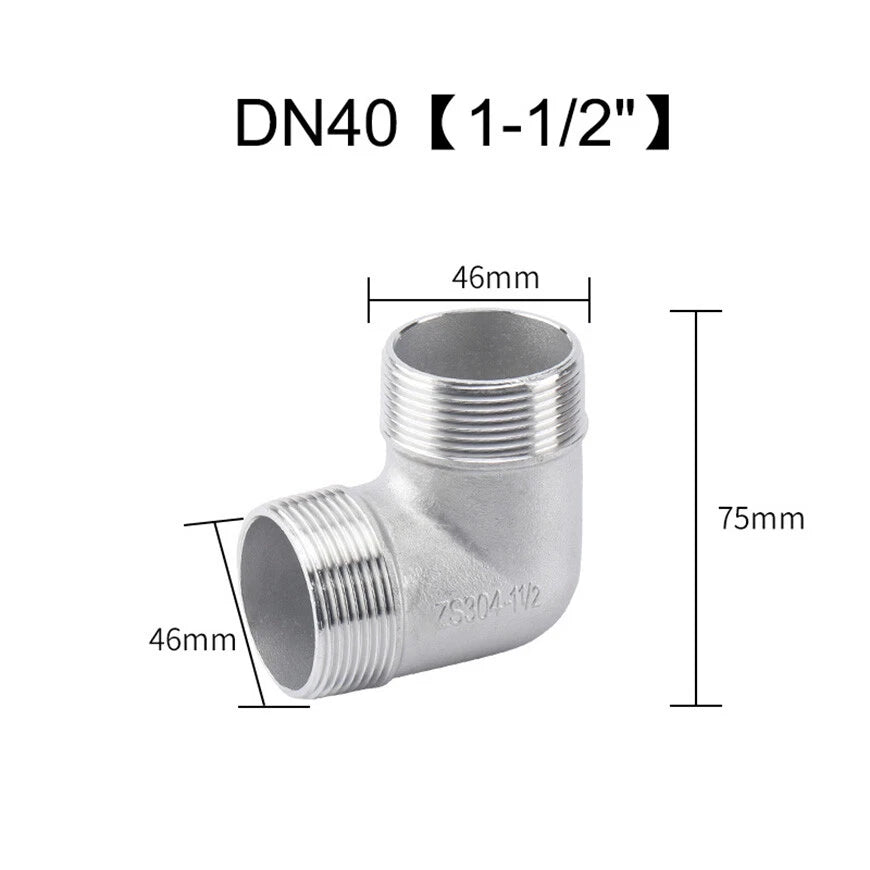

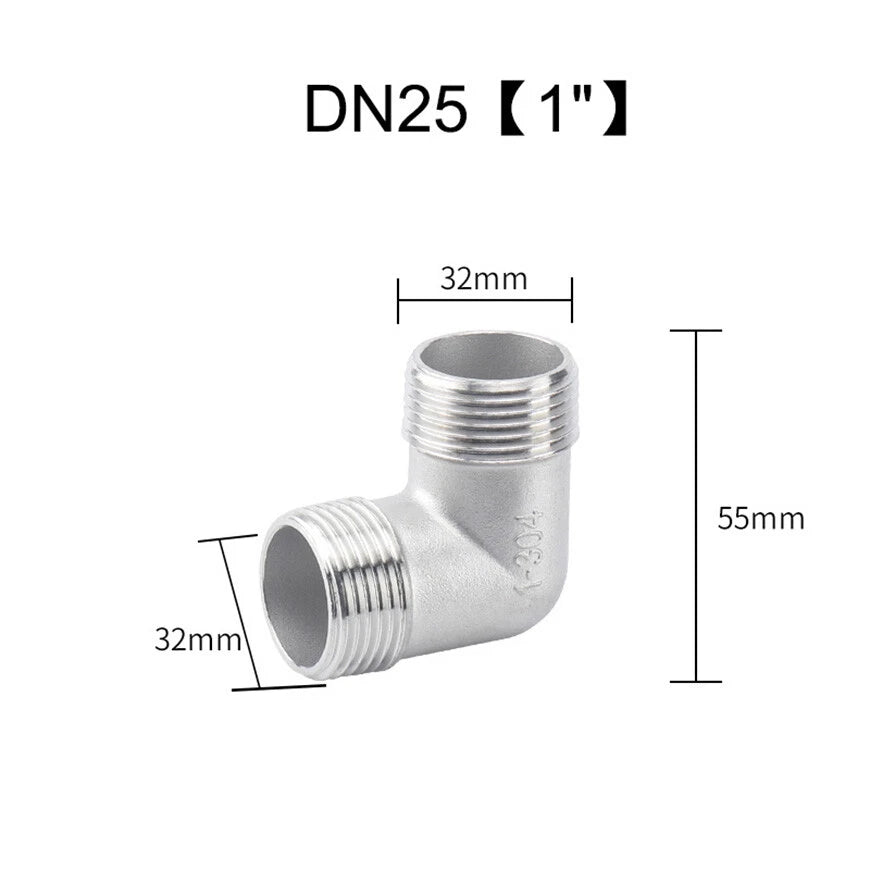

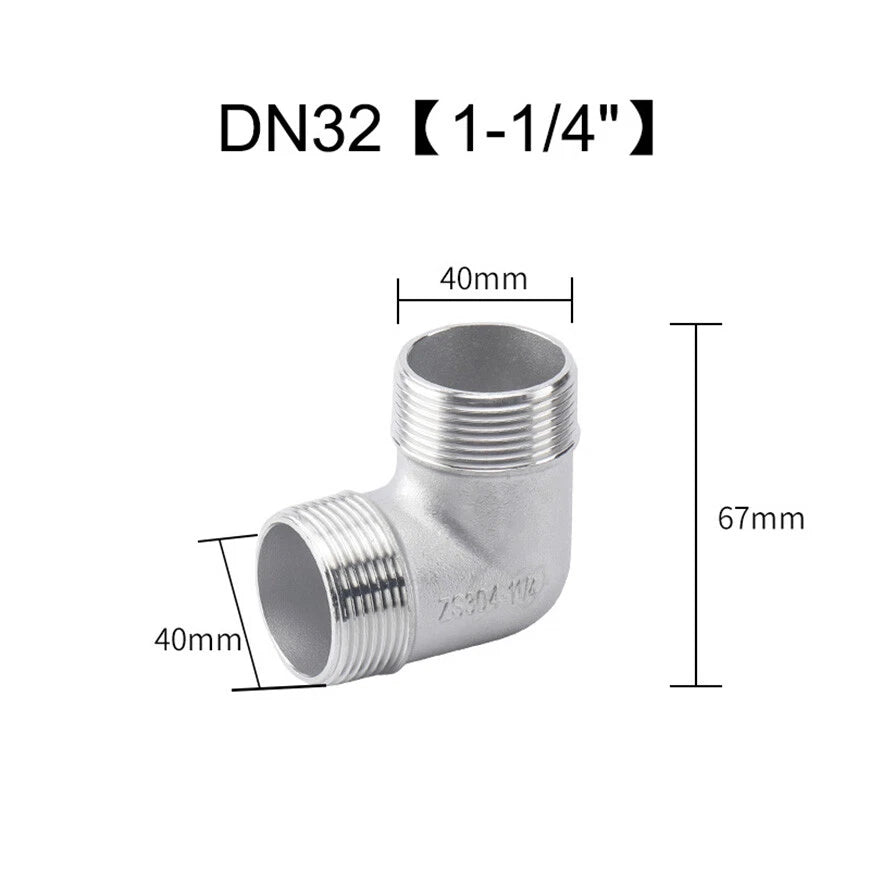

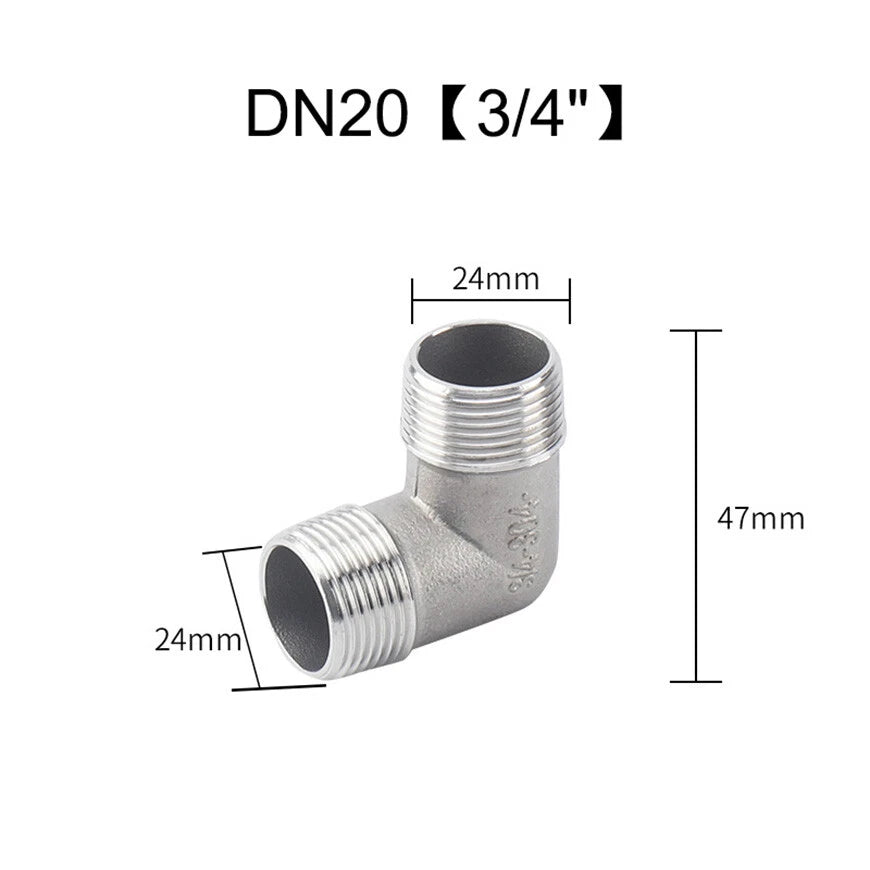

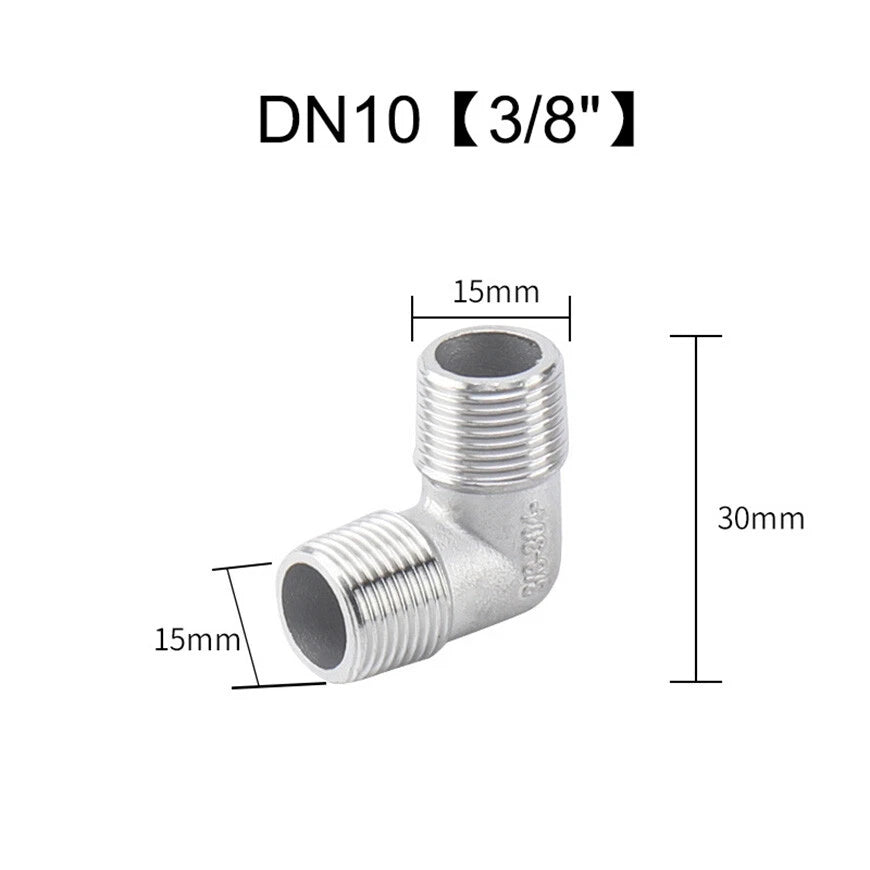

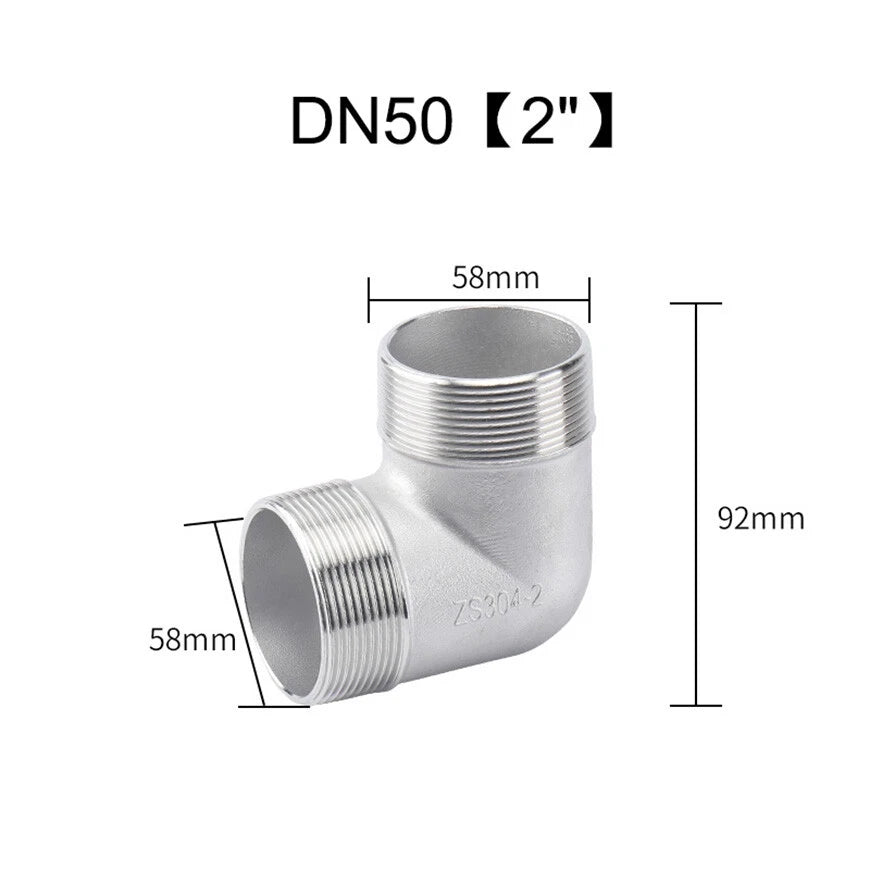

Size Range	DN8 (1/4") · DN10 (3/8") · DN15 (1/2") · DN20 (3/4") · DN25 (1") · DN32 (1-1/4") · DN40 (1-1/2") · DN50 (2")
Elbow Angle	90°
Surface Finish	Brushed / Mill finish (stainless)
Working Pressure	See variant options — typically rated for standard plumbing pressures; contact us to confirm for high-pressure applications
Temperature Range	Generally suitable for -20°C to 200°C (-4°F to 392°F); contact us to confirm for extreme conditions
Quantity per Order	1 pc
Compatible Systems	Water supply, compressed air, hydraulic fluid, light chemical lines (BSP female port required)
Country of Origin	See variant options

⚠️ Before You Order: Confirm your system uses BSP (G-thread) female ports. If you are unsure of your pipe's nominal size, measure the outer diameter of the pipe and compare to standard DN sizing charts. Contact us if you need help selecting the correct size.

❓ Frequently Asked Questions

How do I choose the right pipe size for my system?

Match the DN (nominal diameter) to your existing pipe's inner diameter. DN8 is approximately 1/4" (8mm), DN15 is 1/2" (15mm), DN25 is 1" (25mm), and DN50 is 2" (50mm). When in doubt, measure your pipe's outer diameter and subtract the wall thickness, or check the stamped size on your existing fittings. If you're converting from inch sizing: 1/4" = DN8, 3/8" = DN10, 1/2" = DN15, 3/4" = DN20, 1" = DN25, 1-1/4" = DN32, 1-1/2" = DN40, 2" = DN50.

What thread standard do these fittings use?

These fittings use BSP (British Standard Pipe) threads, also known as G-threads. BSP is widely used in plumbing, hydraulic, and pneumatic systems. If your system uses NPT (National Pipe Taper) threads, an adapter is required — BSP and NPT are not directly interchangeable due to differences in thread angle and pitch.

Are these fittings suitable for outdoor or corrosive environments?

Yes. 304 stainless steel generally offers good resistance to rust, oxidation, and mild corrosive media, making it suitable for outdoor plumbing, food-grade fluid systems, and marine-adjacent environments. For highly aggressive chemicals or prolonged saltwater immersion, 316 stainless steel is typically recommended for better chloride resistance.

What pressure can these elbow fittings handle?

Pressure ratings vary by size and installation conditions. 304 stainless steel BSP fittings in this size range typically handle working pressures suitable for standard residential and light commercial plumbing and compressed air systems. For high-pressure hydraulic or industrial applications, contact us to confirm the specific rating for your chosen size.

What is the difference between the Equal and Reducer types?

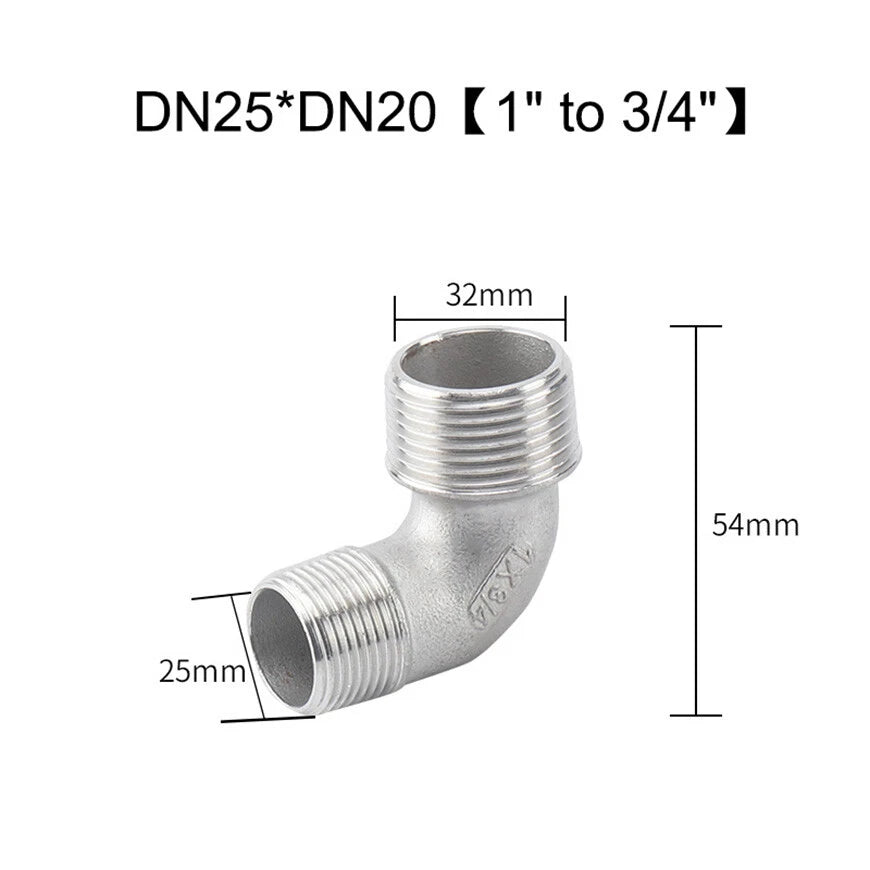

The Equal type connects two pipes of the same diameter at a 90° angle — both ends are the same DN size. The Reducer type (DN25×DN20, i.e., 1" to 3/4") connects pipes of two different diameters, allowing you to step down pipe size and change direction in a single fitting, which simplifies installation and reduces the number of joints.

Do I need thread sealant when installing these fittings?

Yes, thread sealant is generally recommended for BSP threaded fittings to ensure a leak-free connection. PTFE tape (Teflon tape) or pipe thread compound are the most common options. Apply sealant to the male threads before assembly and hand-tighten first, then use a wrench to achieve a snug fit — typically 1–3 additional turns past hand-tight depending on the application.

Can these fittings be used for gas lines?

304 stainless steel BSP fittings are generally compatible with compressed air and inert gas systems. For natural gas or propane lines, local building codes and regulations apply. Always verify compliance with your local authority having jurisdiction (AHJ) and a licensed plumber or gas fitter before installation.

🛒 Select your type and size above, then add to cart — ships from our US warehouse.
