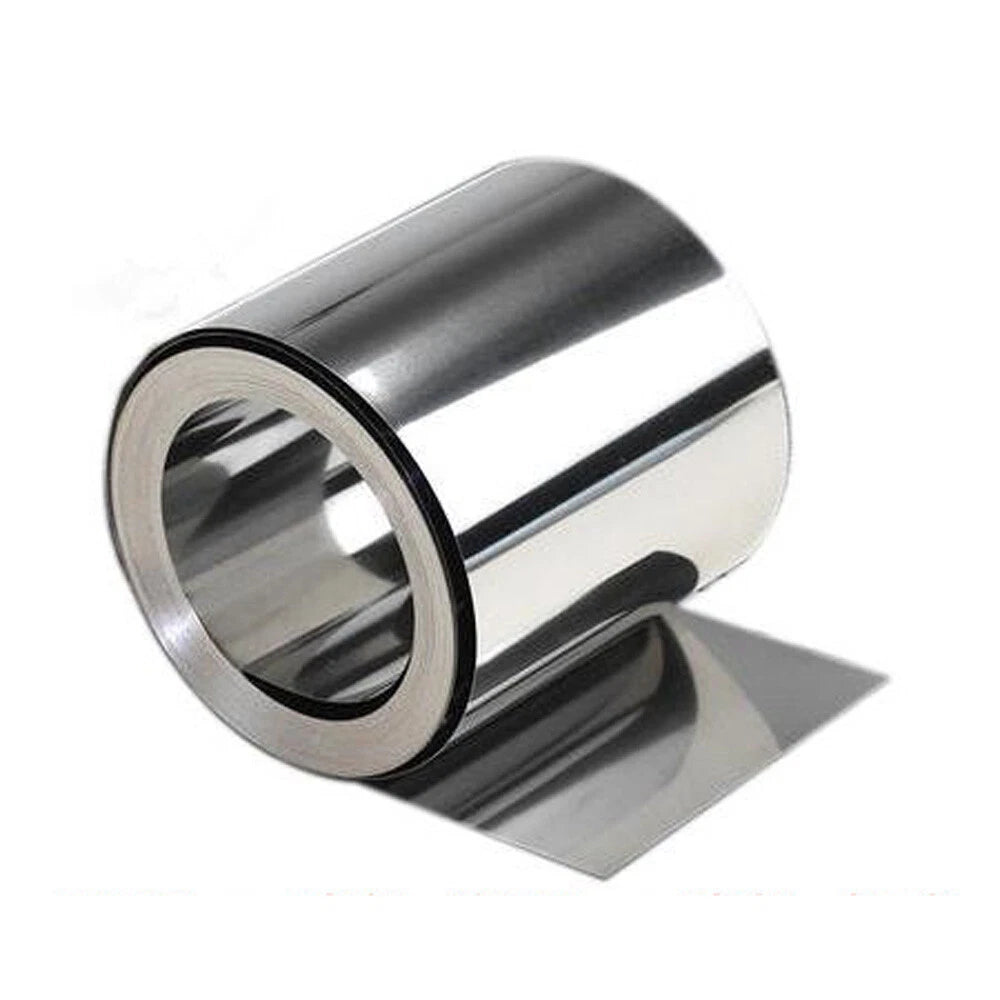

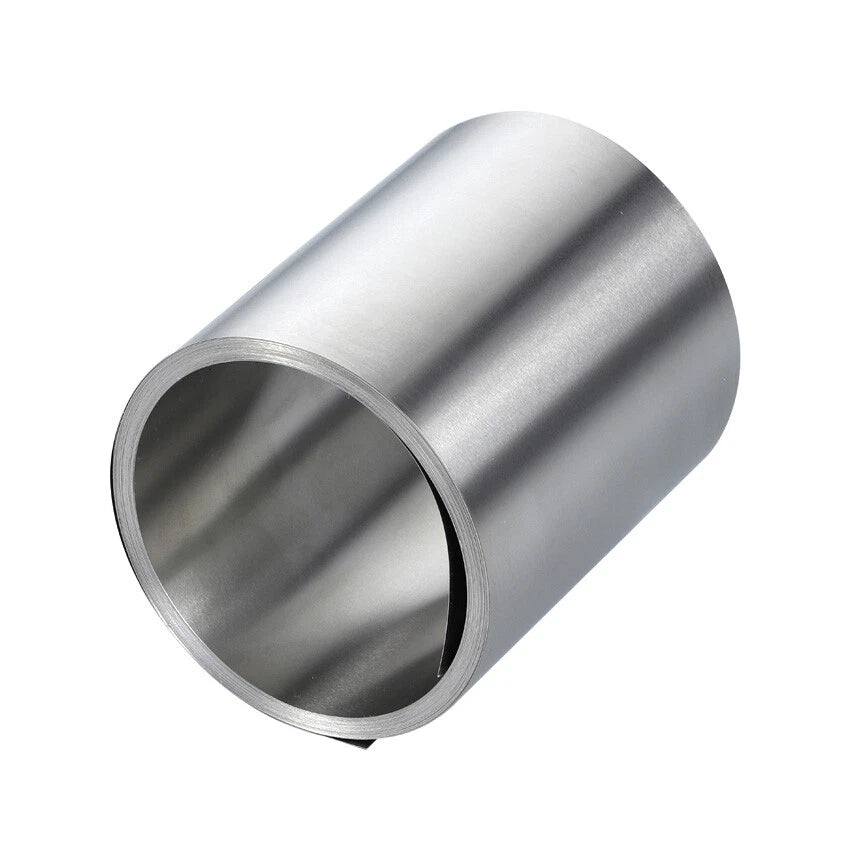

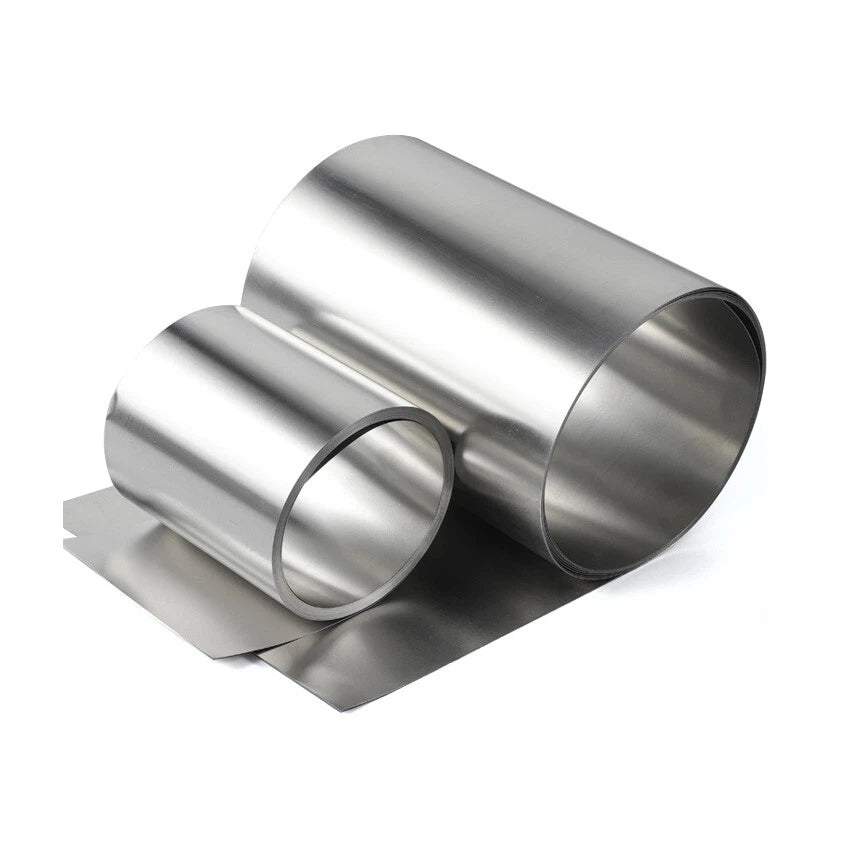

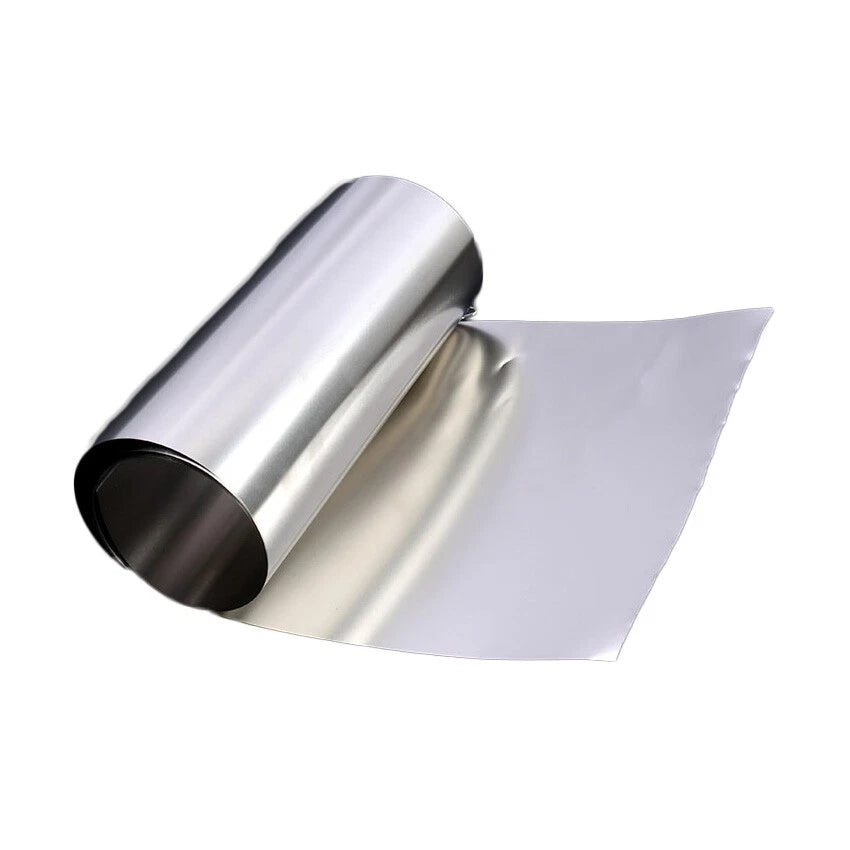

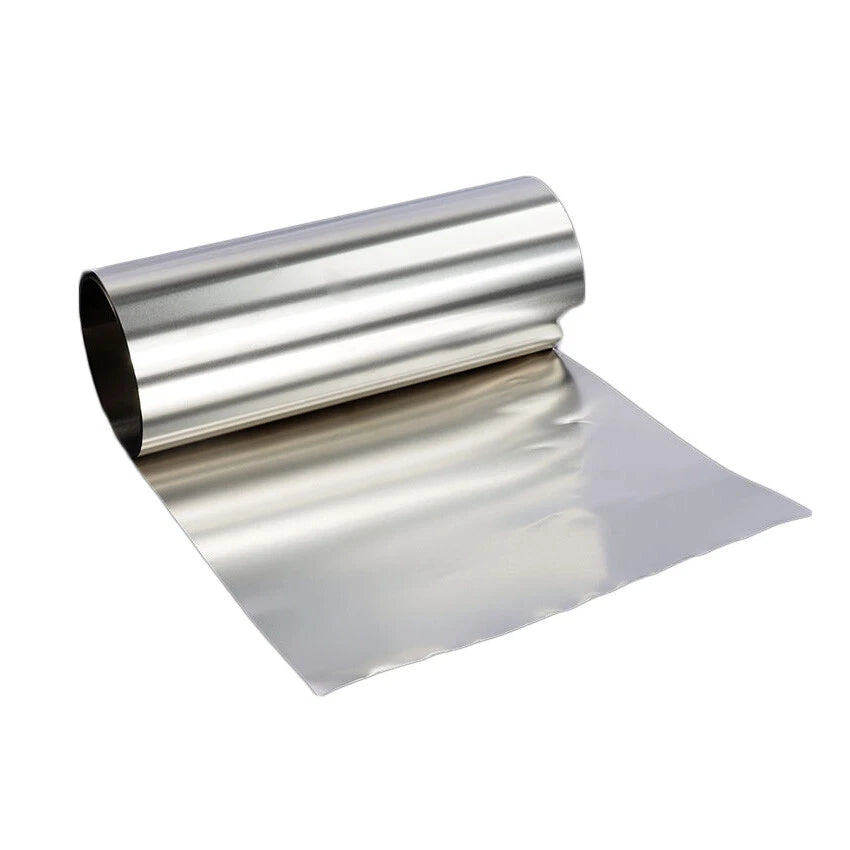

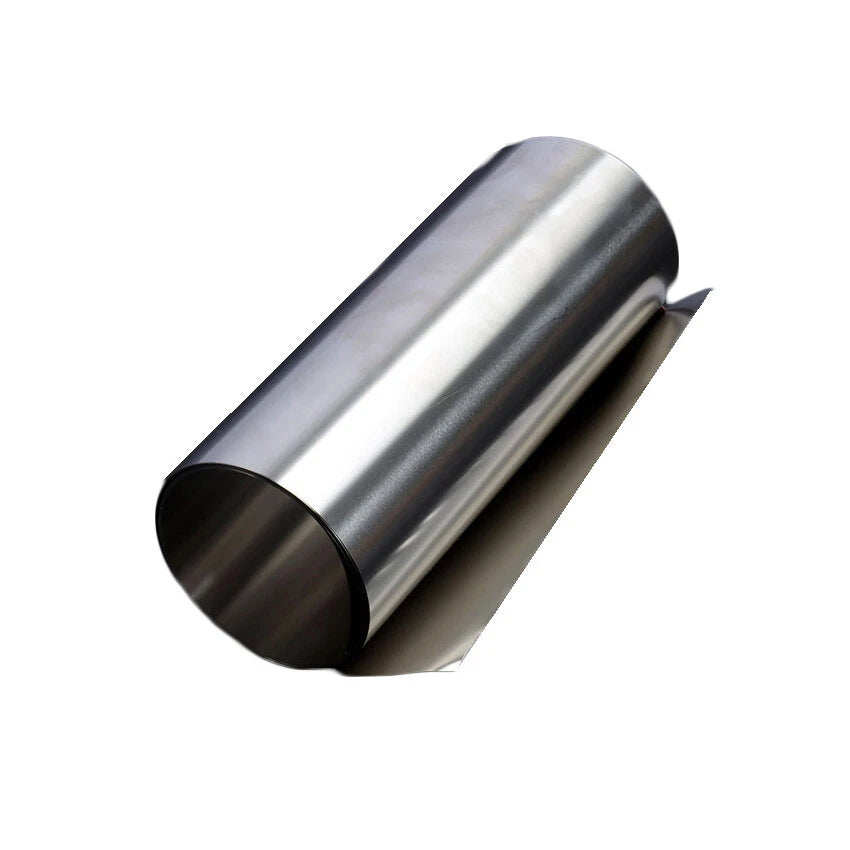

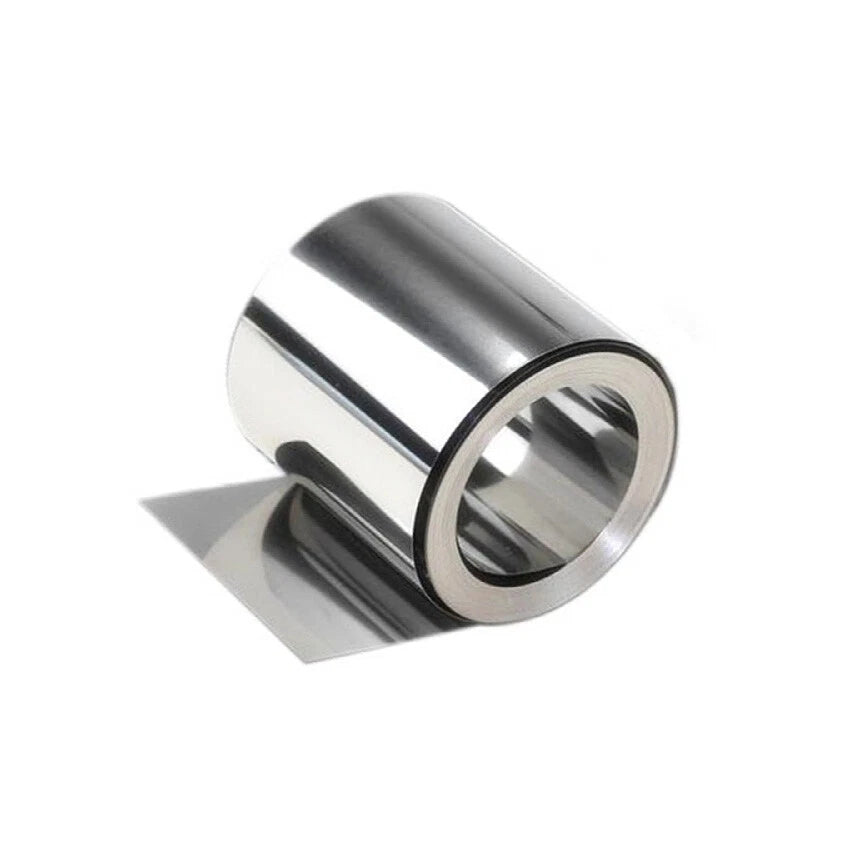

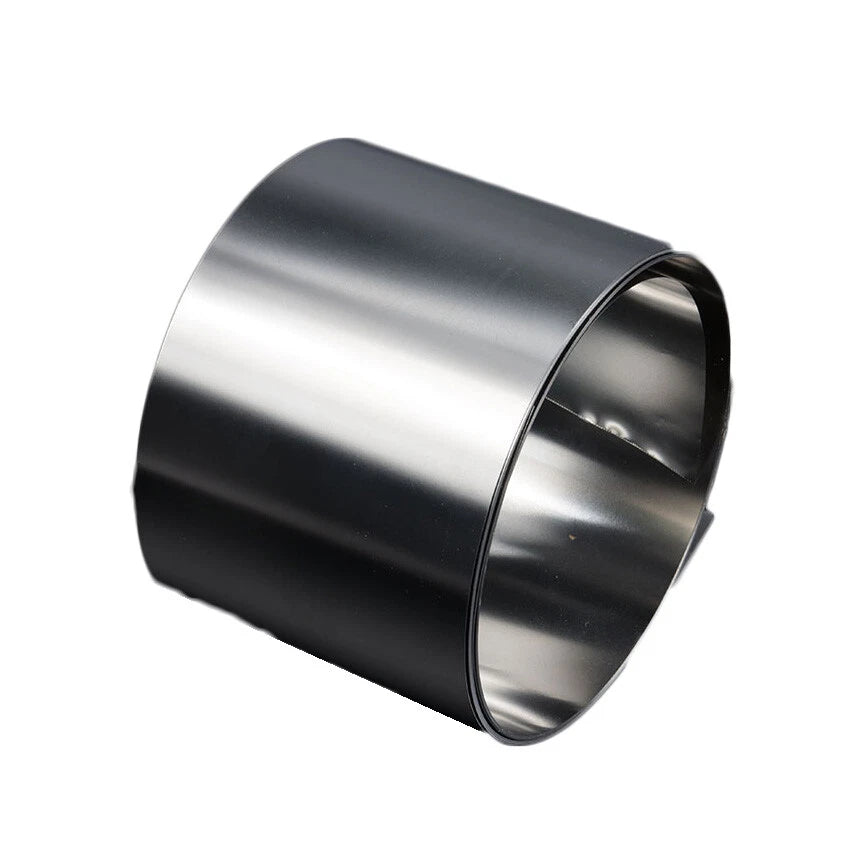

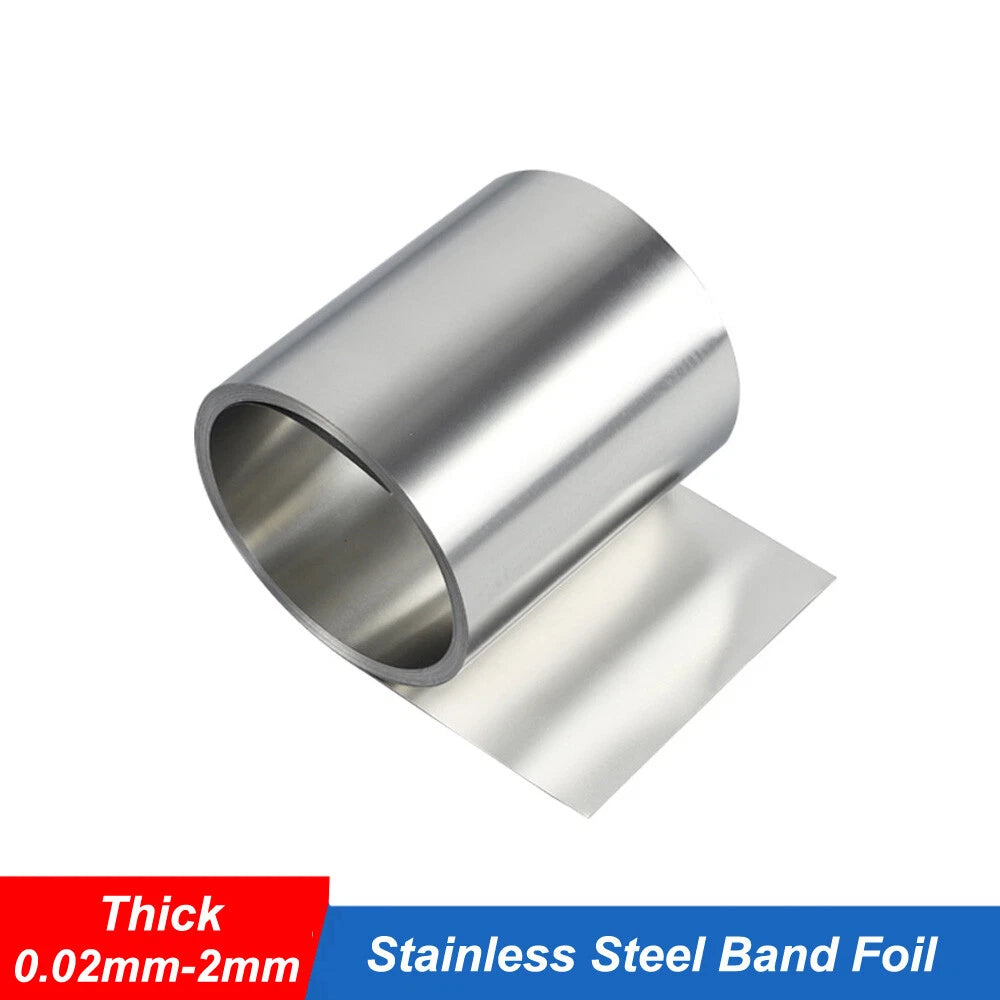

304 Stainless Steel Plate Band Foil Sheet Roll 0.02mm-2mm Thick 50mm-300mm Width

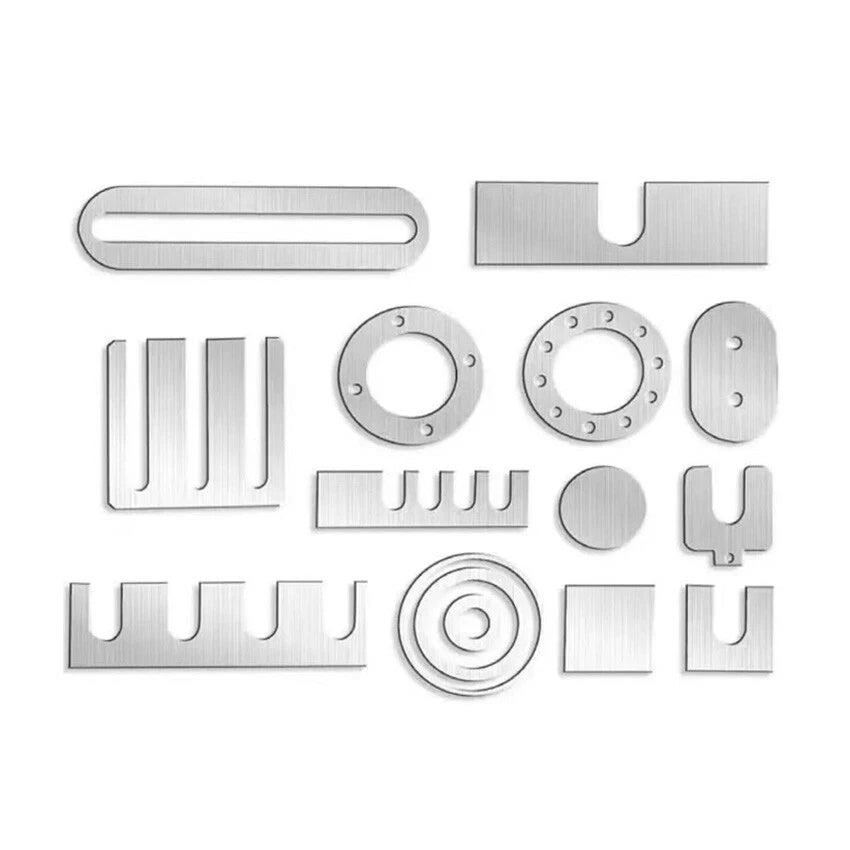

For precision shimming between mechanical parts, thicknesses of 0.02 mm – 0.1 mm are typical. For gasket blanks, 0.1 mm – 0.5 mm is common. For structural banding, brackets, or heat shields, 0.5 mm – 2 mm provides the rigidity needed. If you are unsure, start with a mid-range option and test fit before committing to a larger quantity.

Select a width equal to or slightly wider than your target dimension so you can trim to exact size. The 50 mm width suits narrow banding and small shim stacks; 100 mm covers most gasket and heat-shield work; 200 mm and 300 mm are suited to wider panel forming, splash guards, or large-format shimming tasks.

Grade 304 has a tensile strength of approximately 515 MPa (75,000 psi) in its annealed state, which is adequate for most shim and spacer applications where the material is under compressive load rather than direct tension. For high-cycle fatigue or extreme load environments, consult an engineer before specifying thin foil gauges.

Grade 304 stainless steel resists rust in most outdoor environments due to its chromium oxide passive layer. It performs well in rain, humidity, and mild salt exposure. In coastal or heavily chlorinated environments, Grade 316 would offer superior resistance; however, 304 is suitable for the majority of general outdoor DIY and fabrication uses.

Yes. Gauges up to approximately 0.2 mm can be cut cleanly with sharp scissors or a craft knife and steel ruler. Gauges from 0.3 mm to 0.6 mm respond well to aviation tin snips. Thicker gauges (0.8 mm – 2 mm) are best cut with an angle grinder, jigsaw with a metal blade, or CNC shearing equipment for clean, straight edges.

No. This product is standard Grade 304 (18% Cr, 8% Ni). Grade 304L is a low-carbon variant with improved weldability but similar corrosion resistance. Grade 316 adds molybdenum for enhanced resistance to chlorides and acids. For most shim, gasket, and general fabrication work, standard 304 is the appropriate and cost-effective choice.

Grade 304 is weldable using TIG, MIG, or spot welding processes. Thin foil gauges (below 0.2 mm) require careful heat control to avoid warping or burn-through. Soldering is possible with appropriate stainless steel flux, though welding produces a stronger, more durable joint for structural applications.
