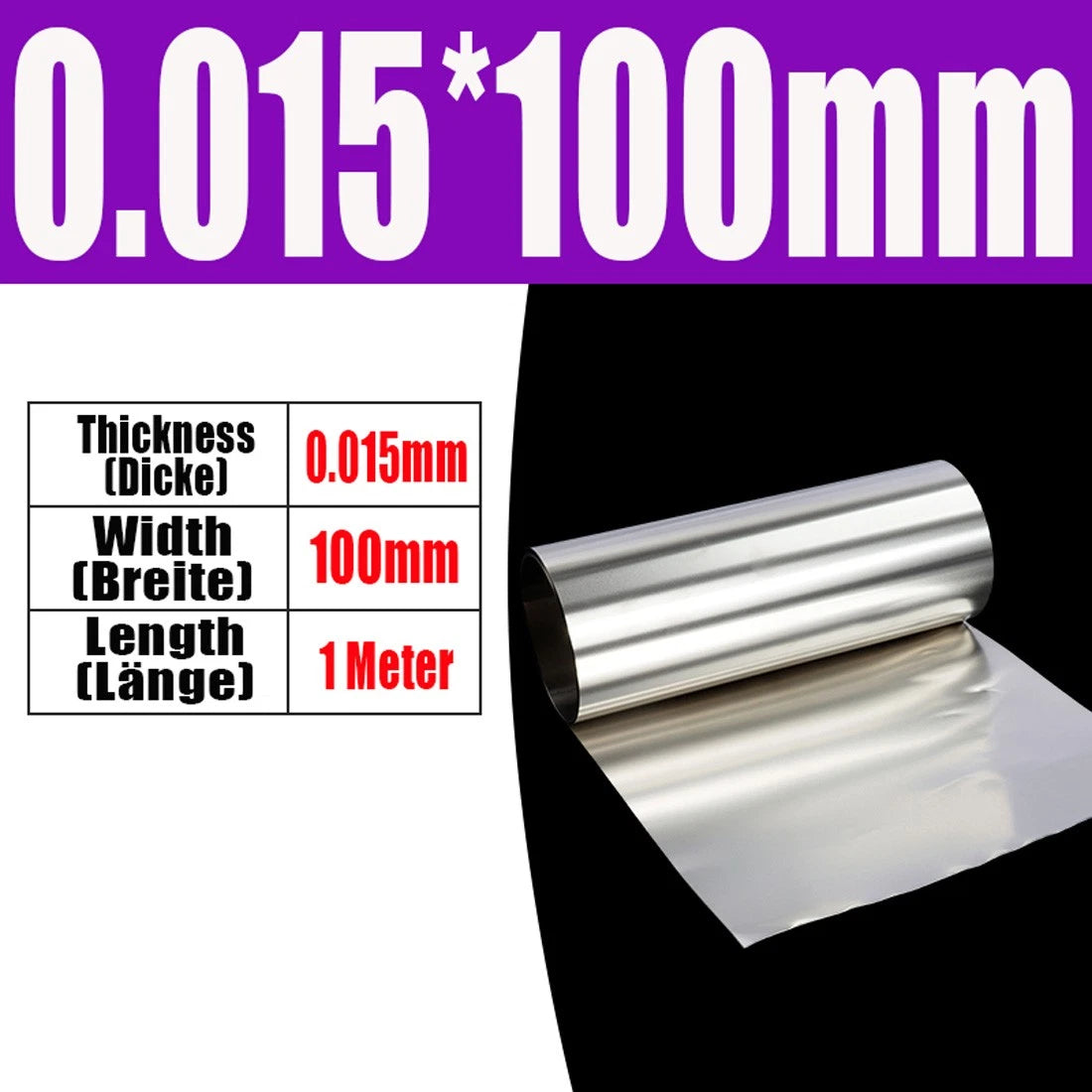

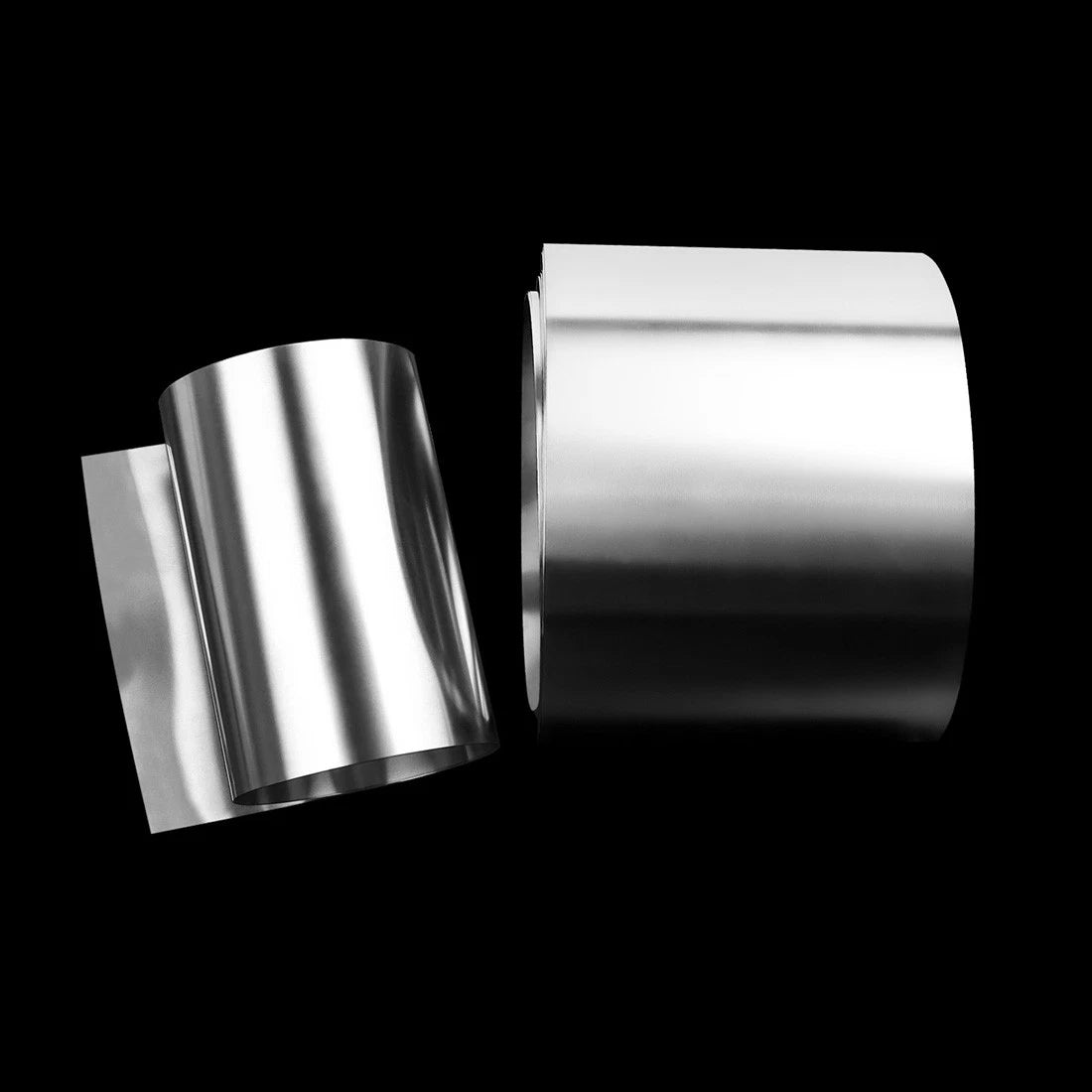

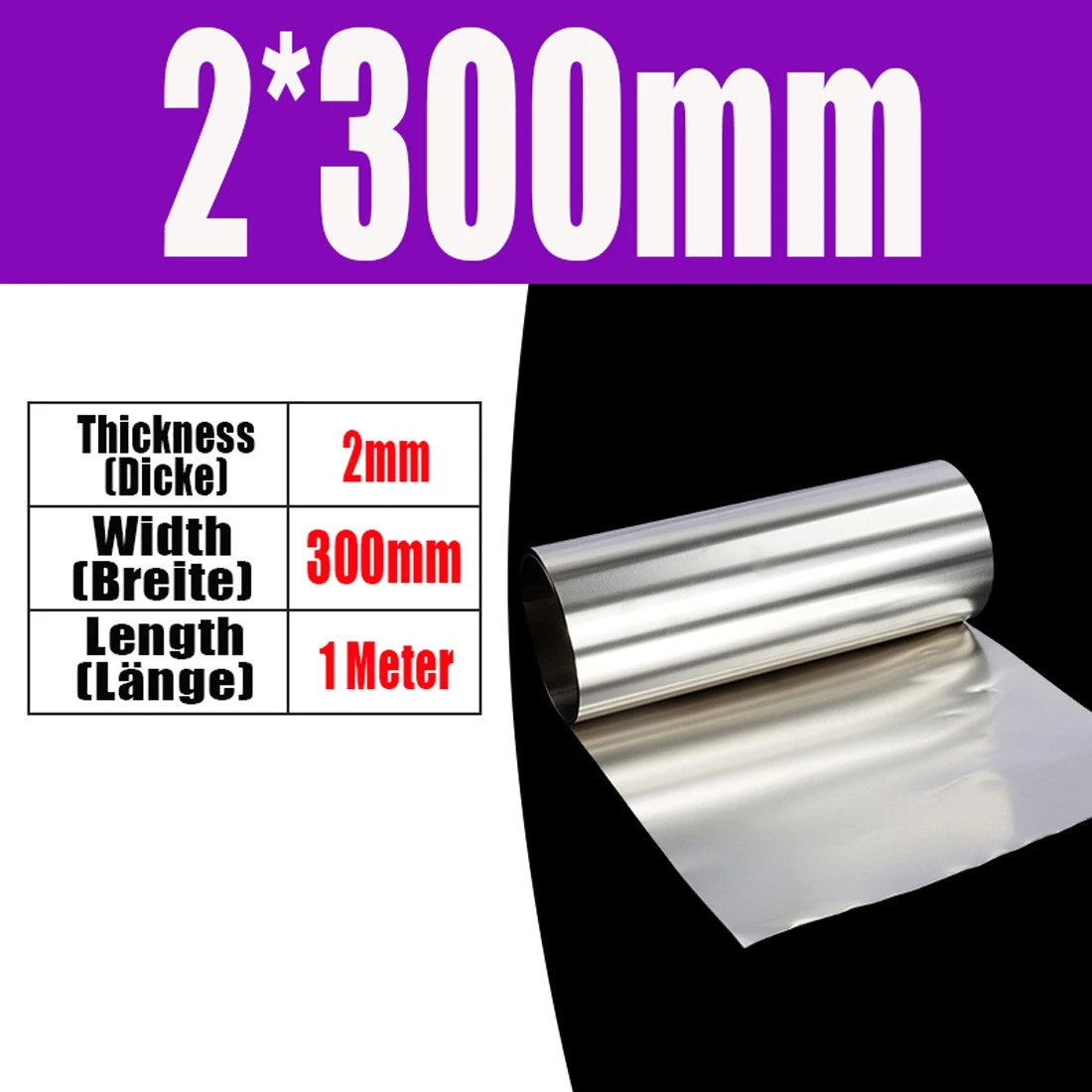

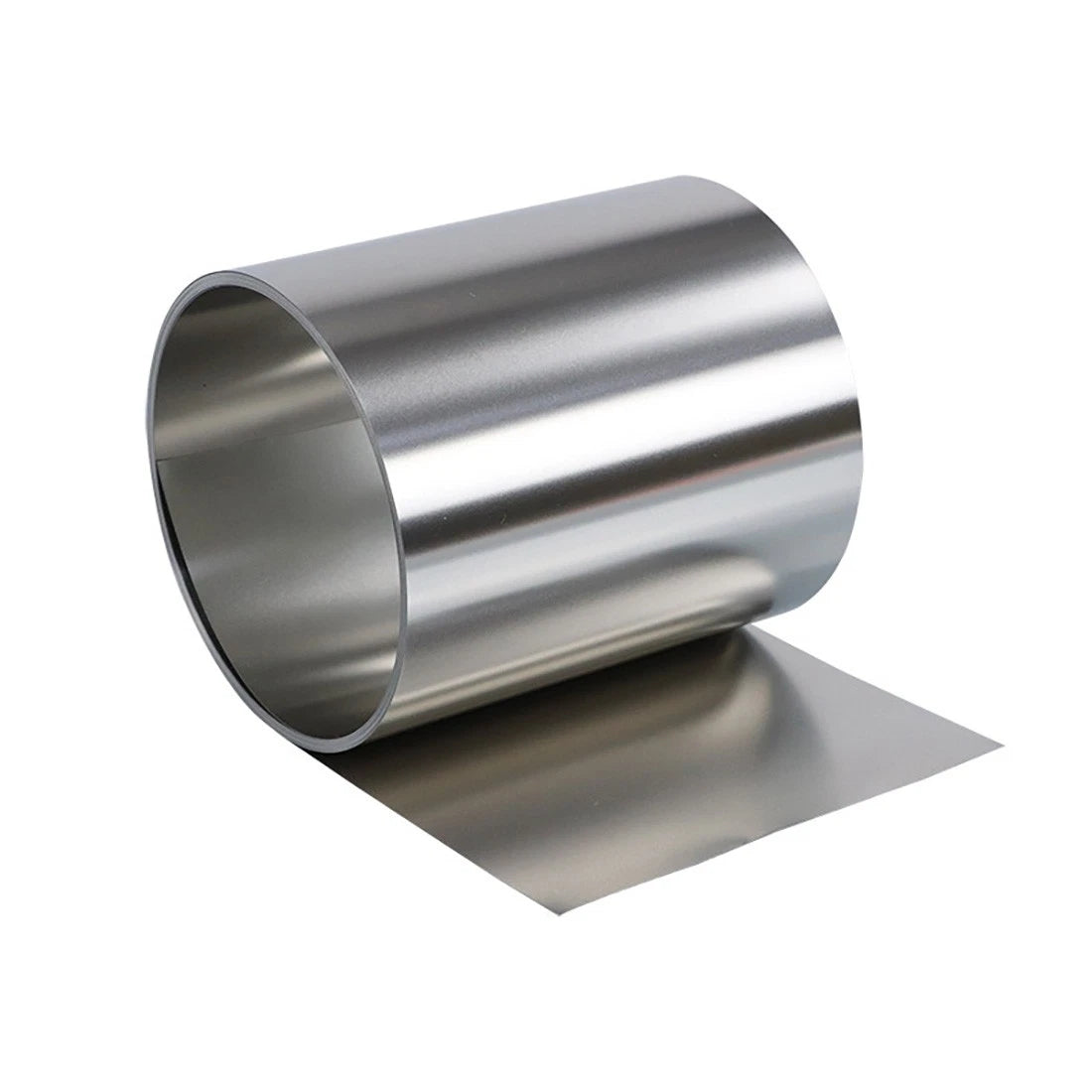

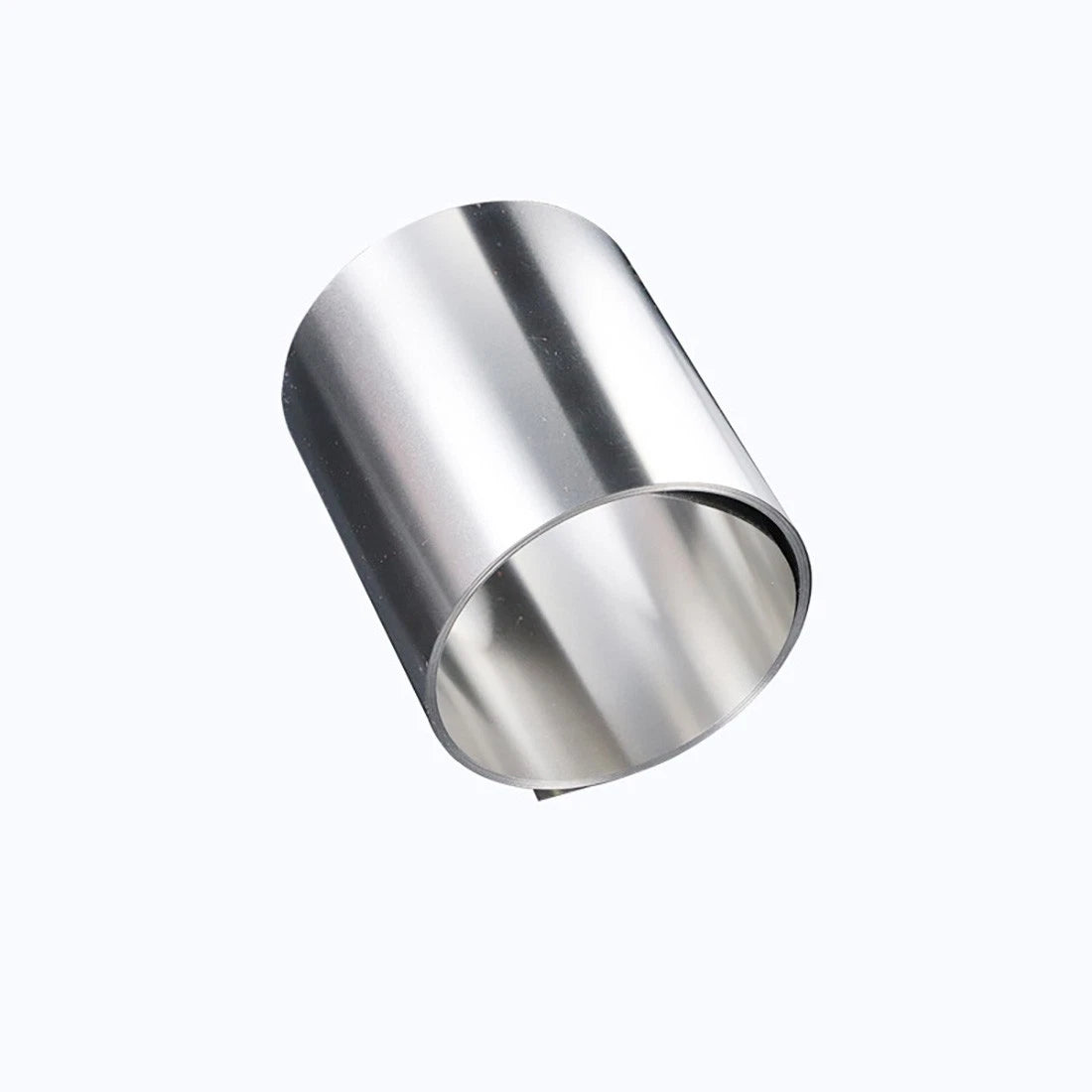

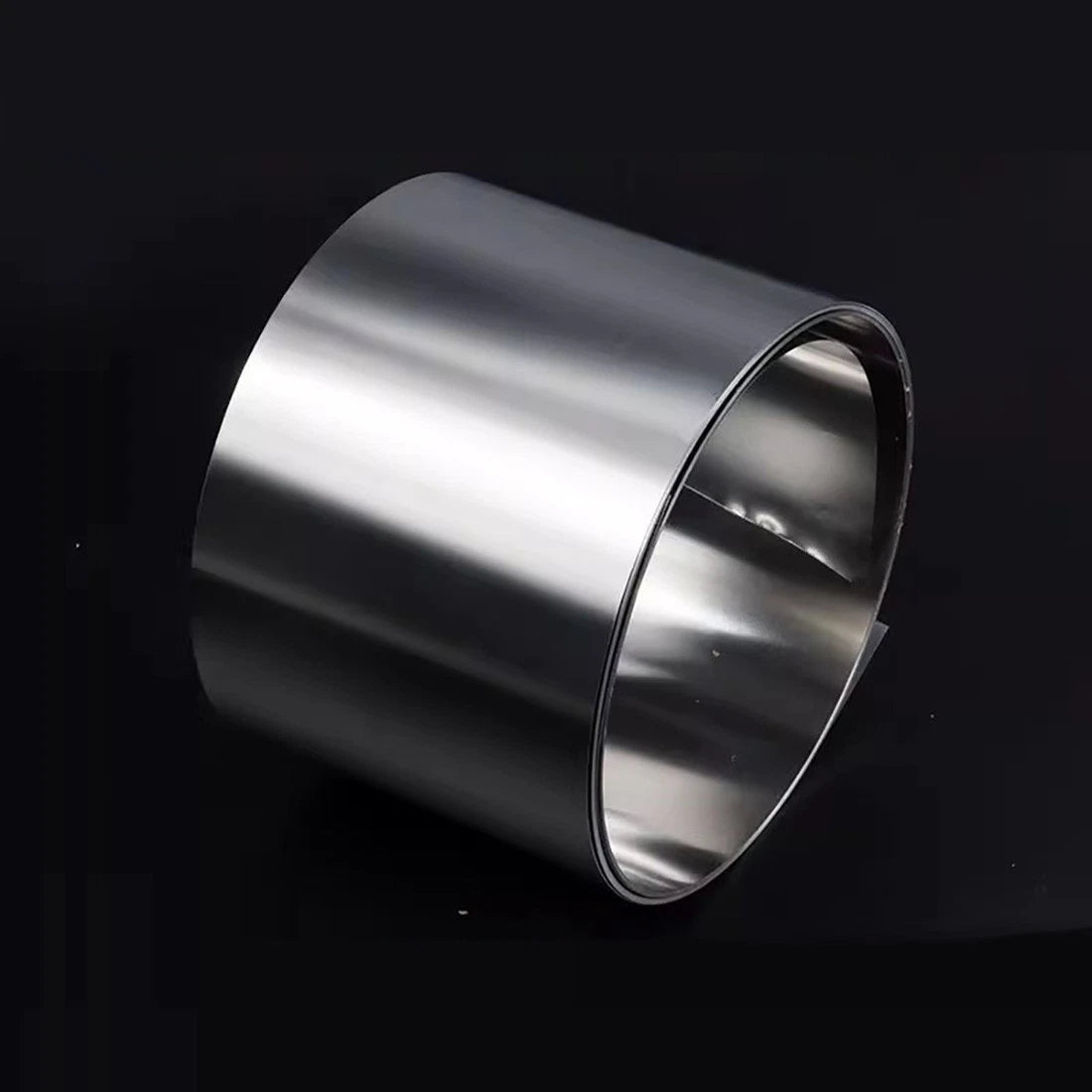

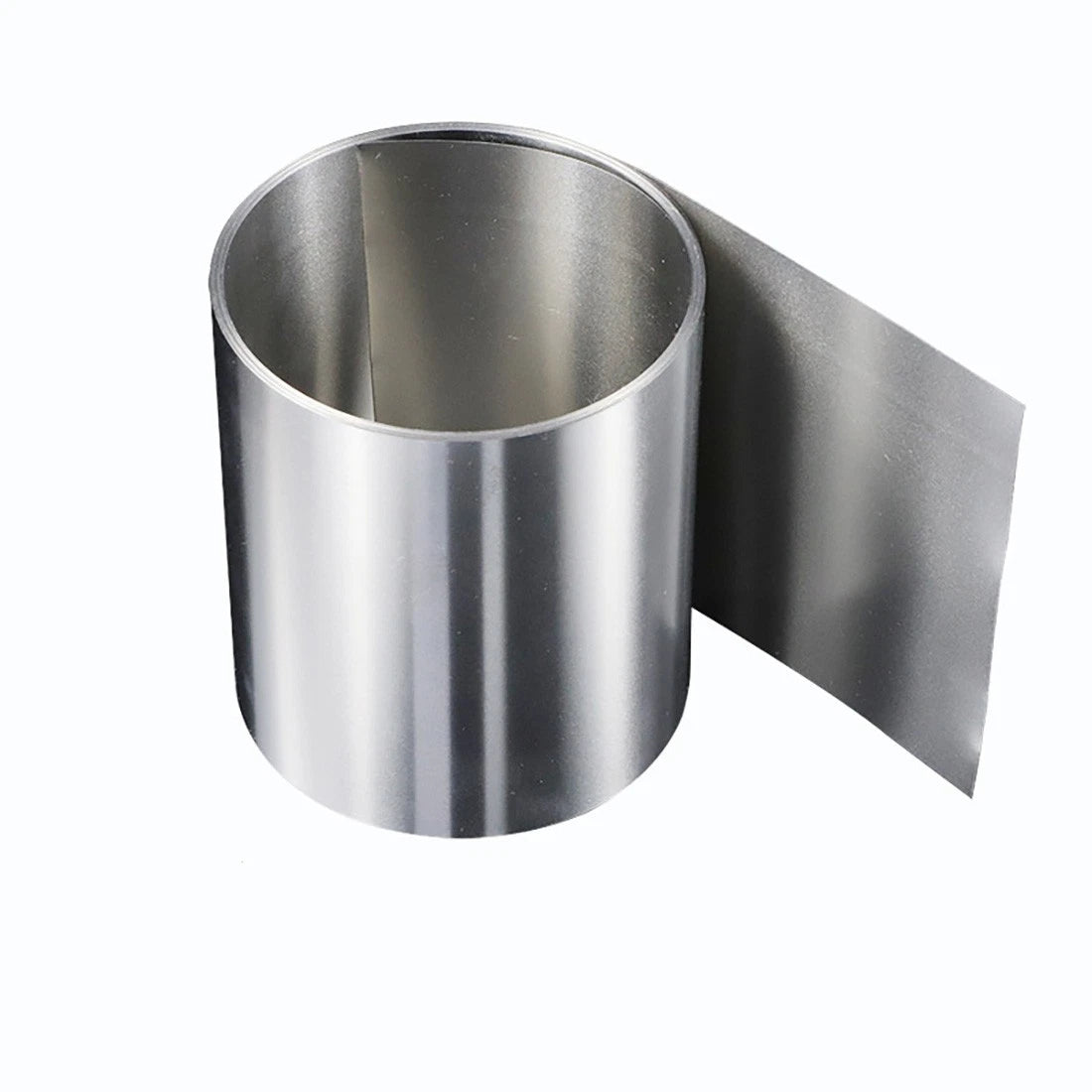

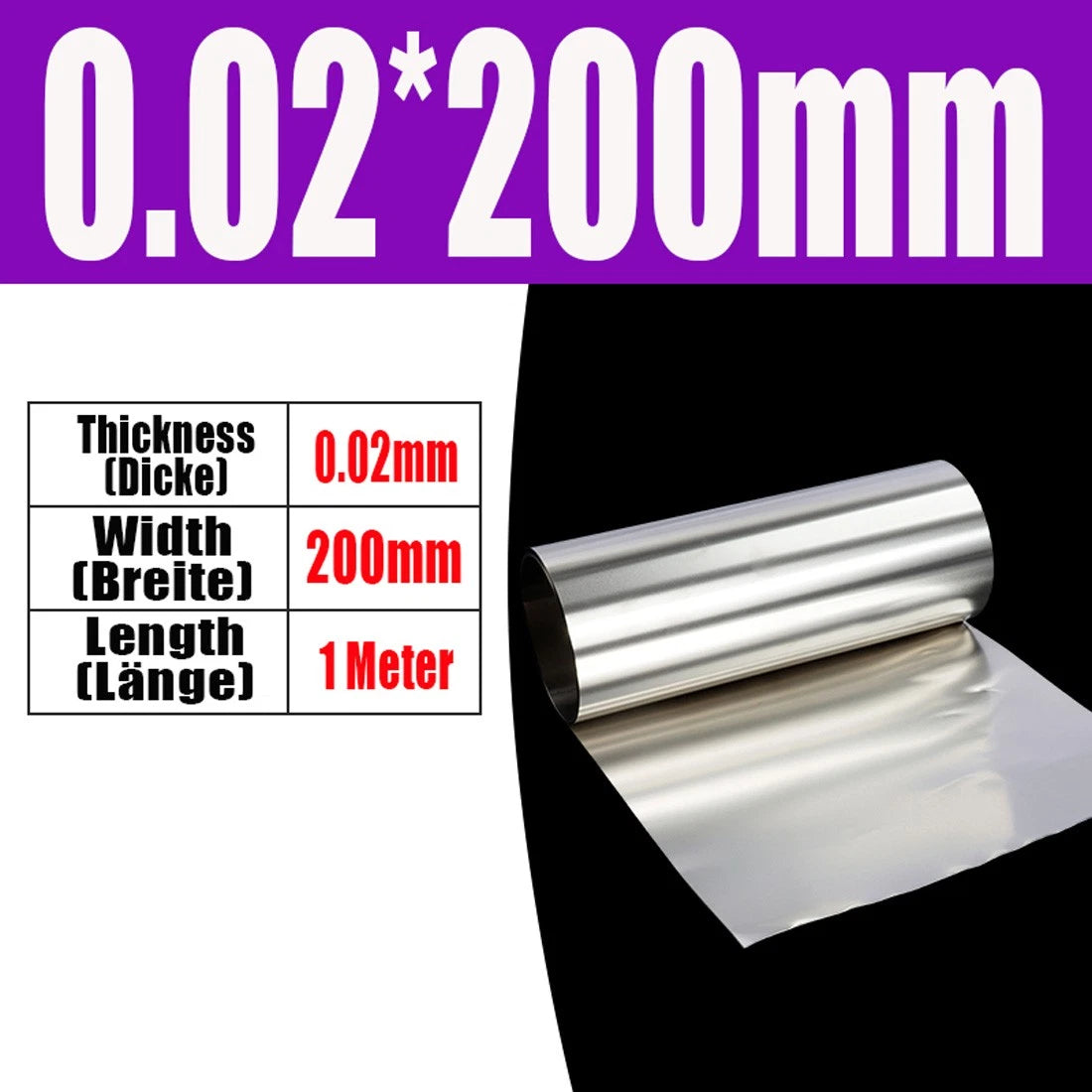

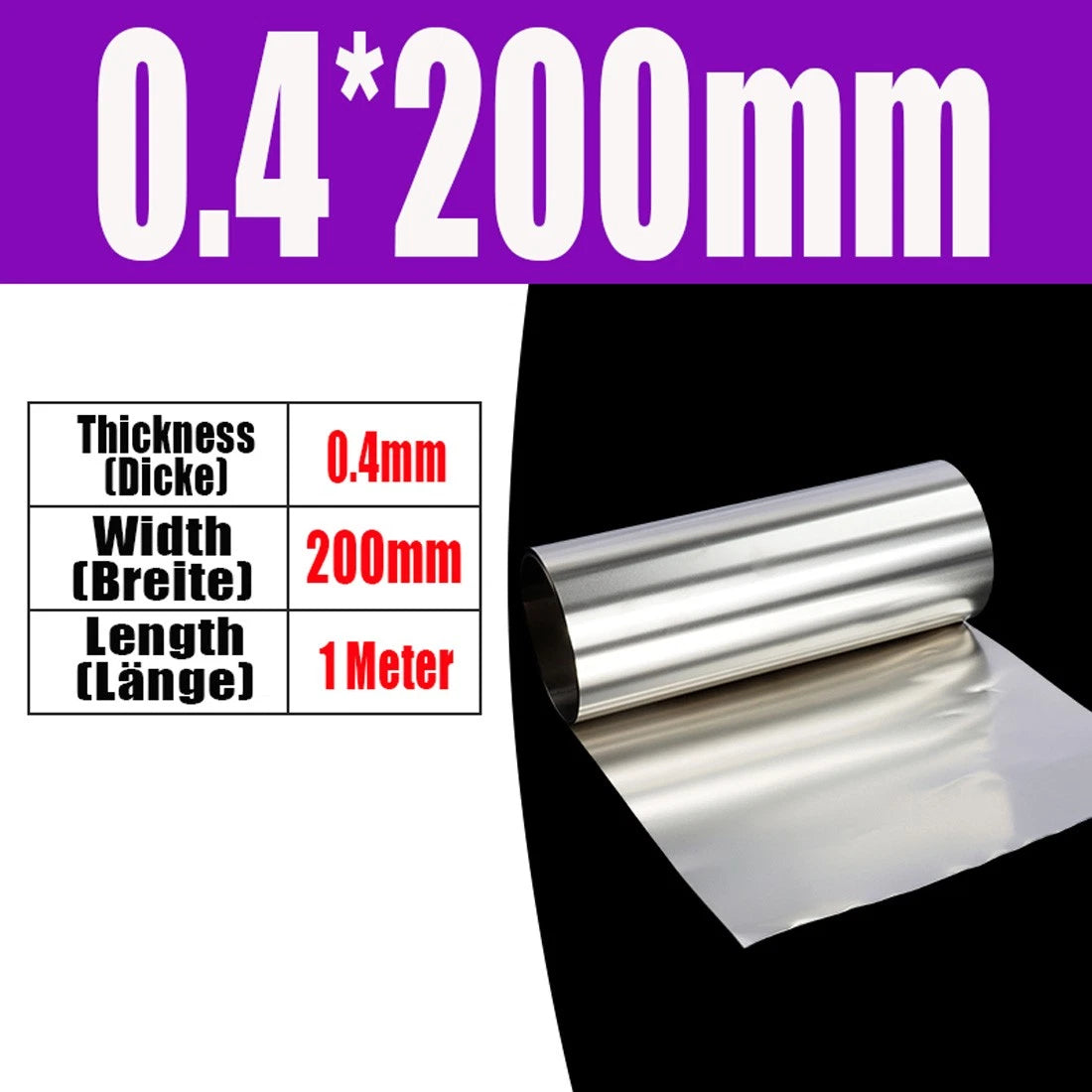

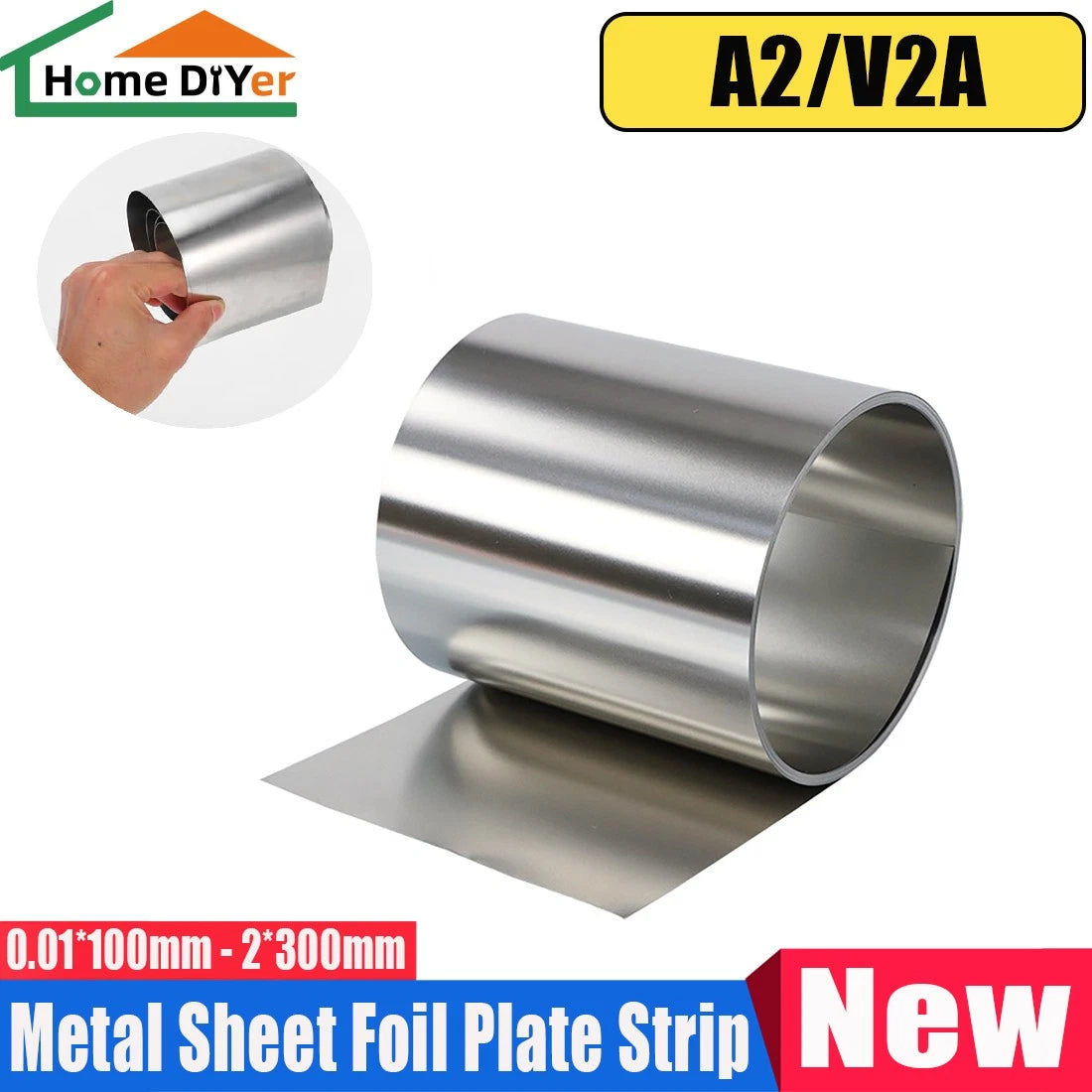

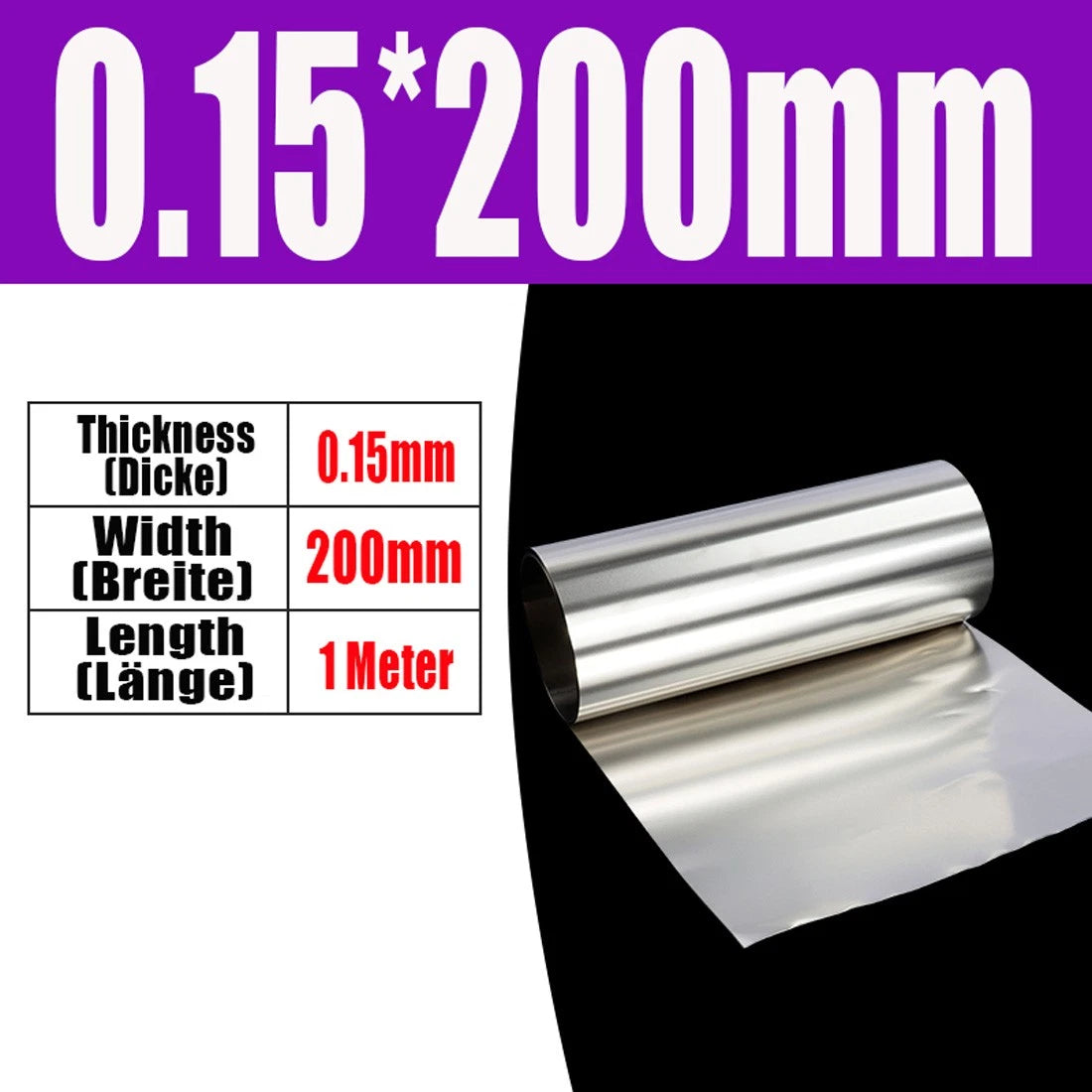

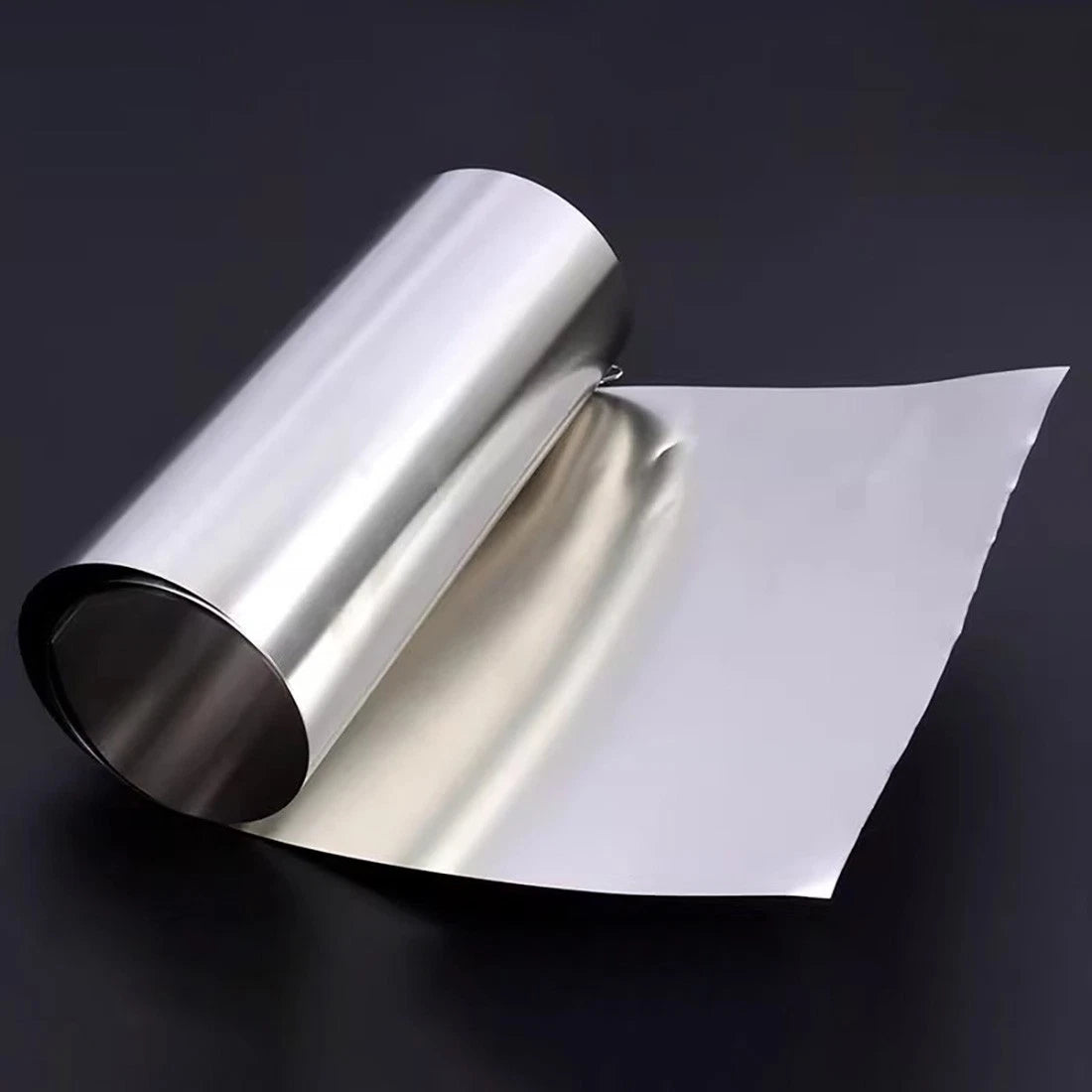

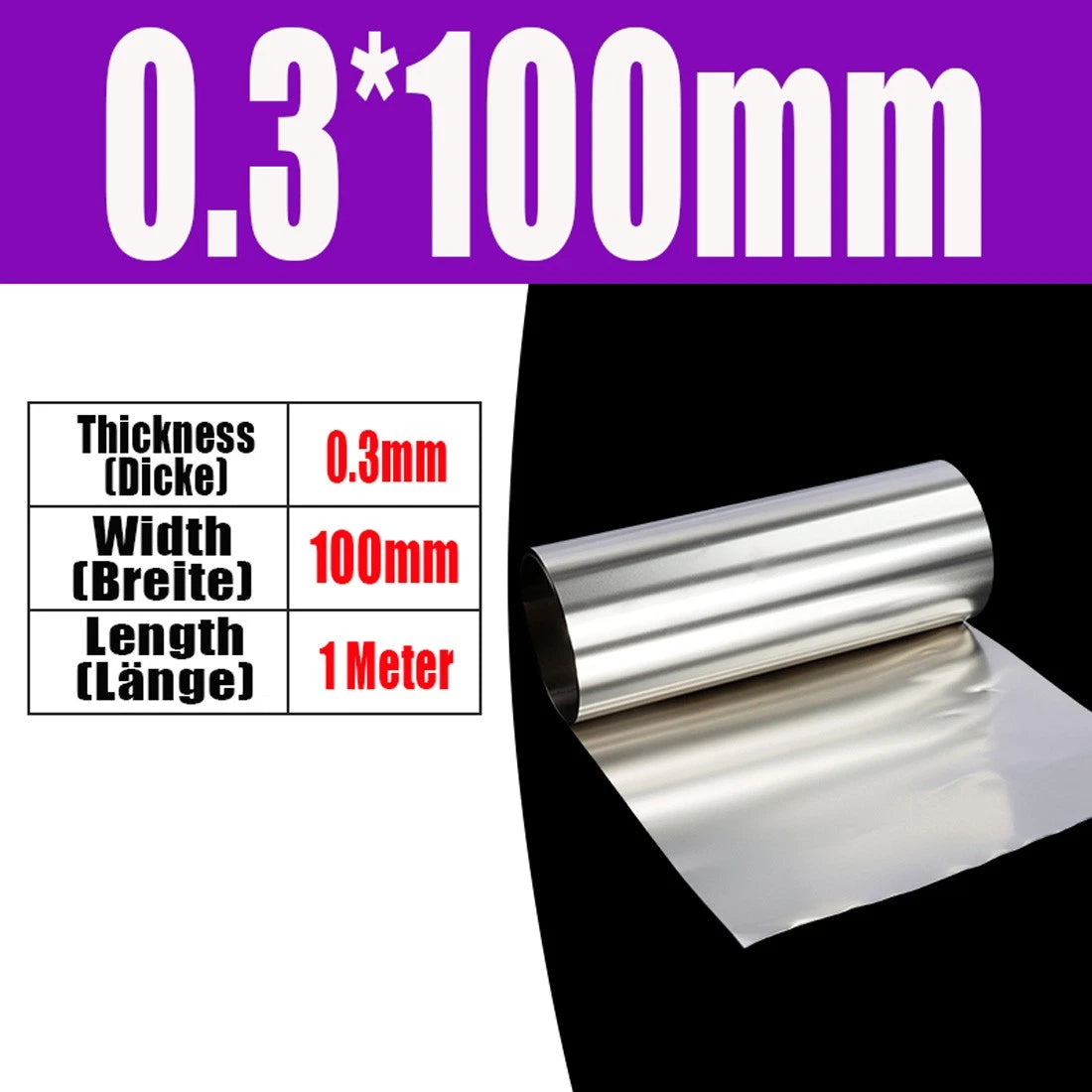

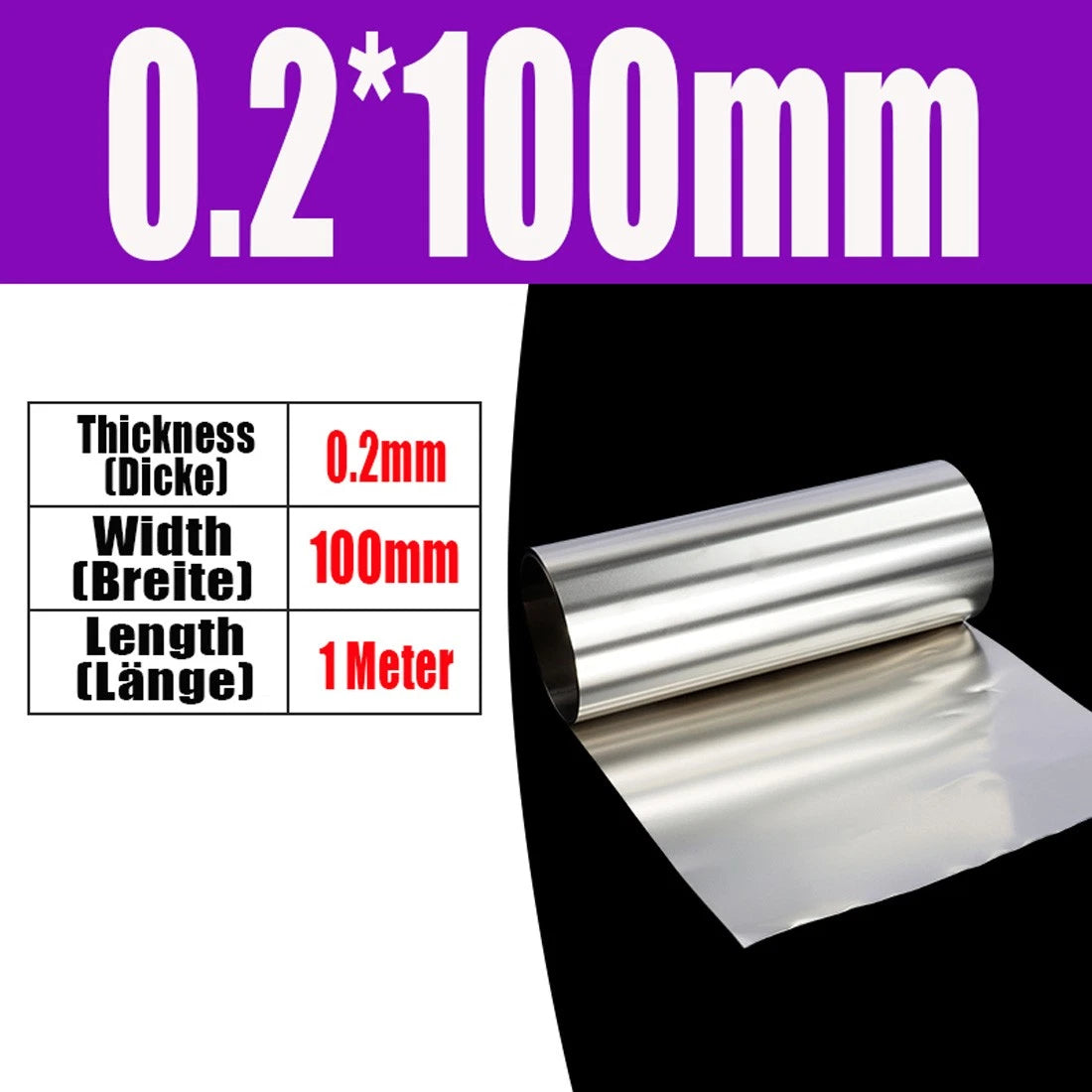

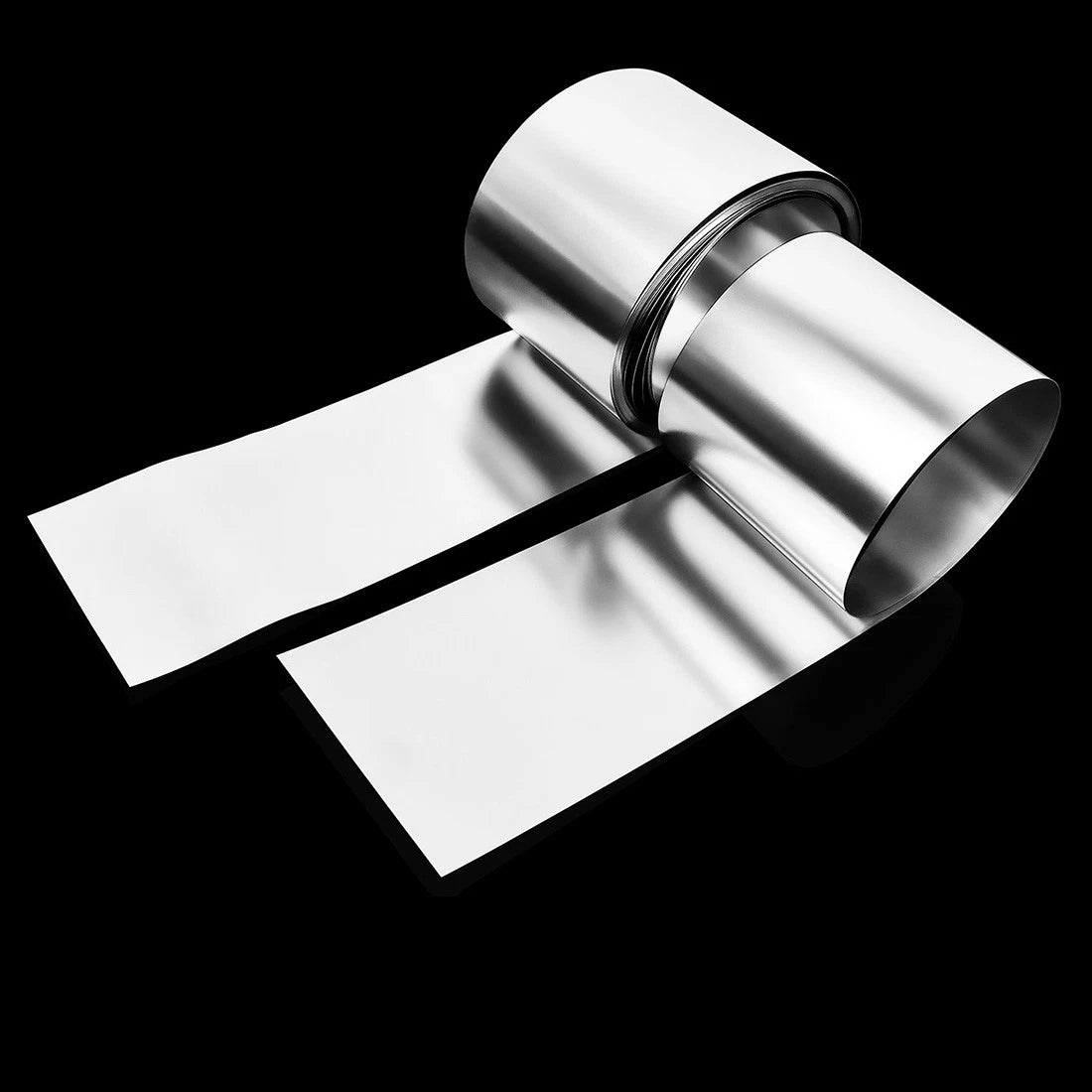

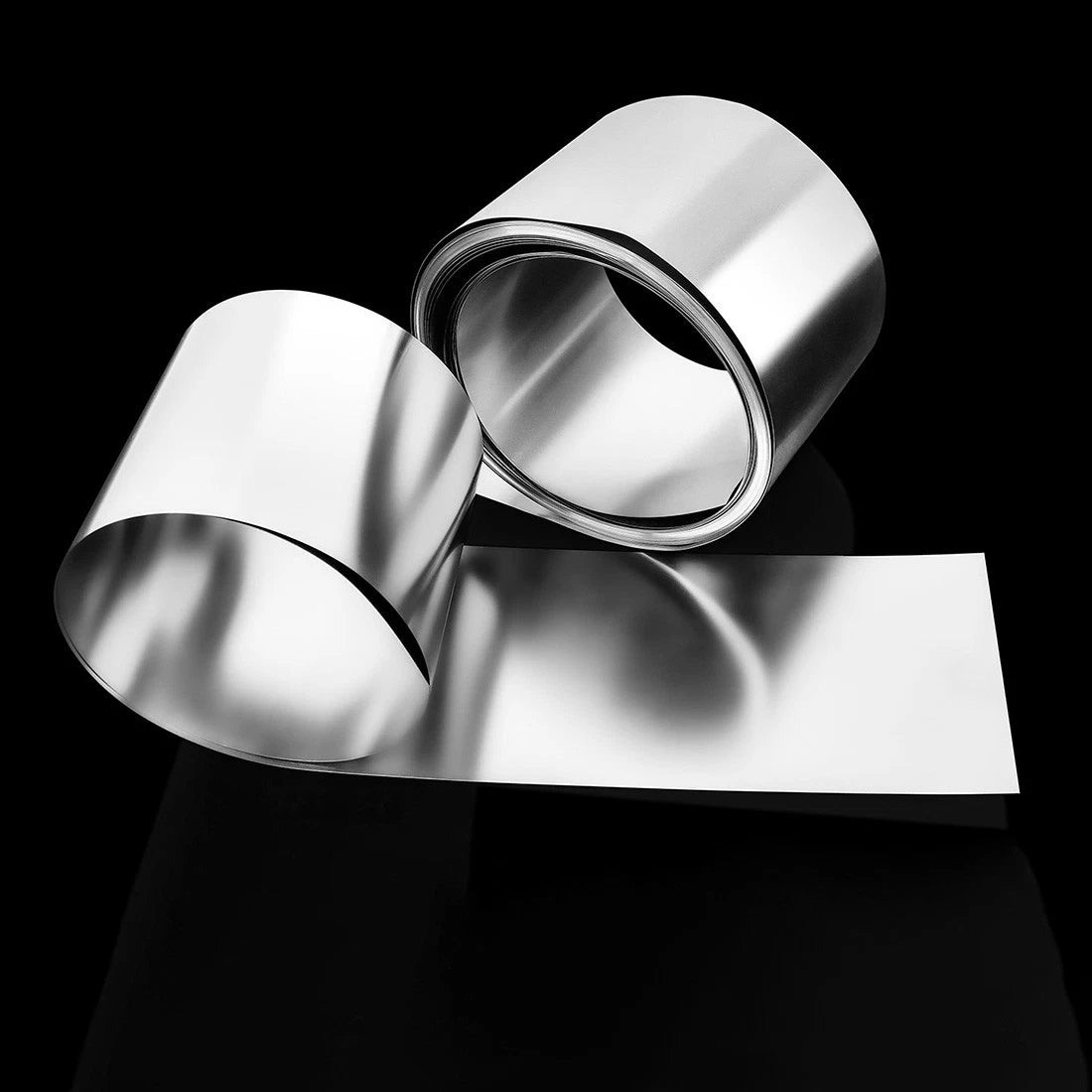

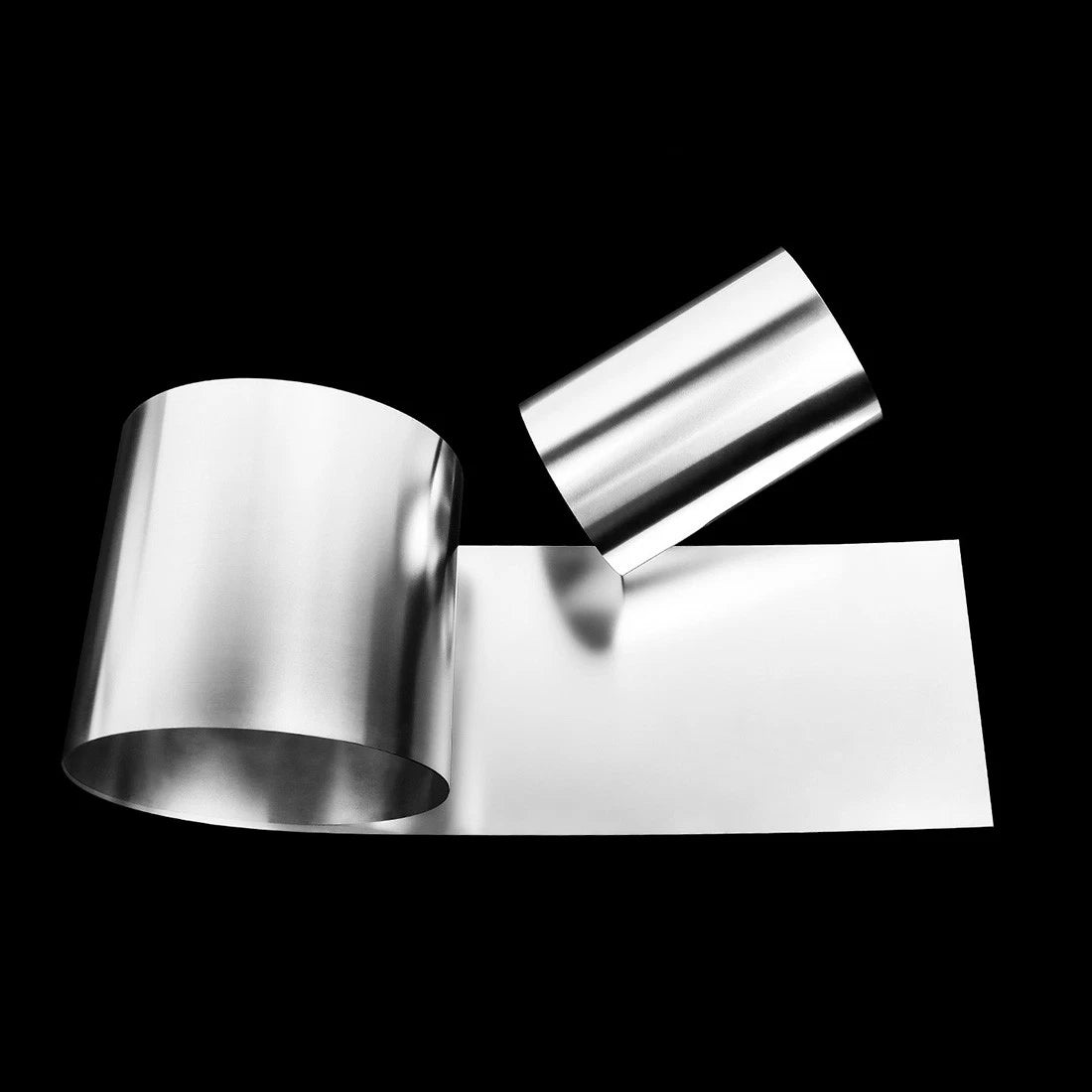

304 stainless Metal Sheet Foil Plate Strip Thickness 0.01mm-2mm Model Making DIY

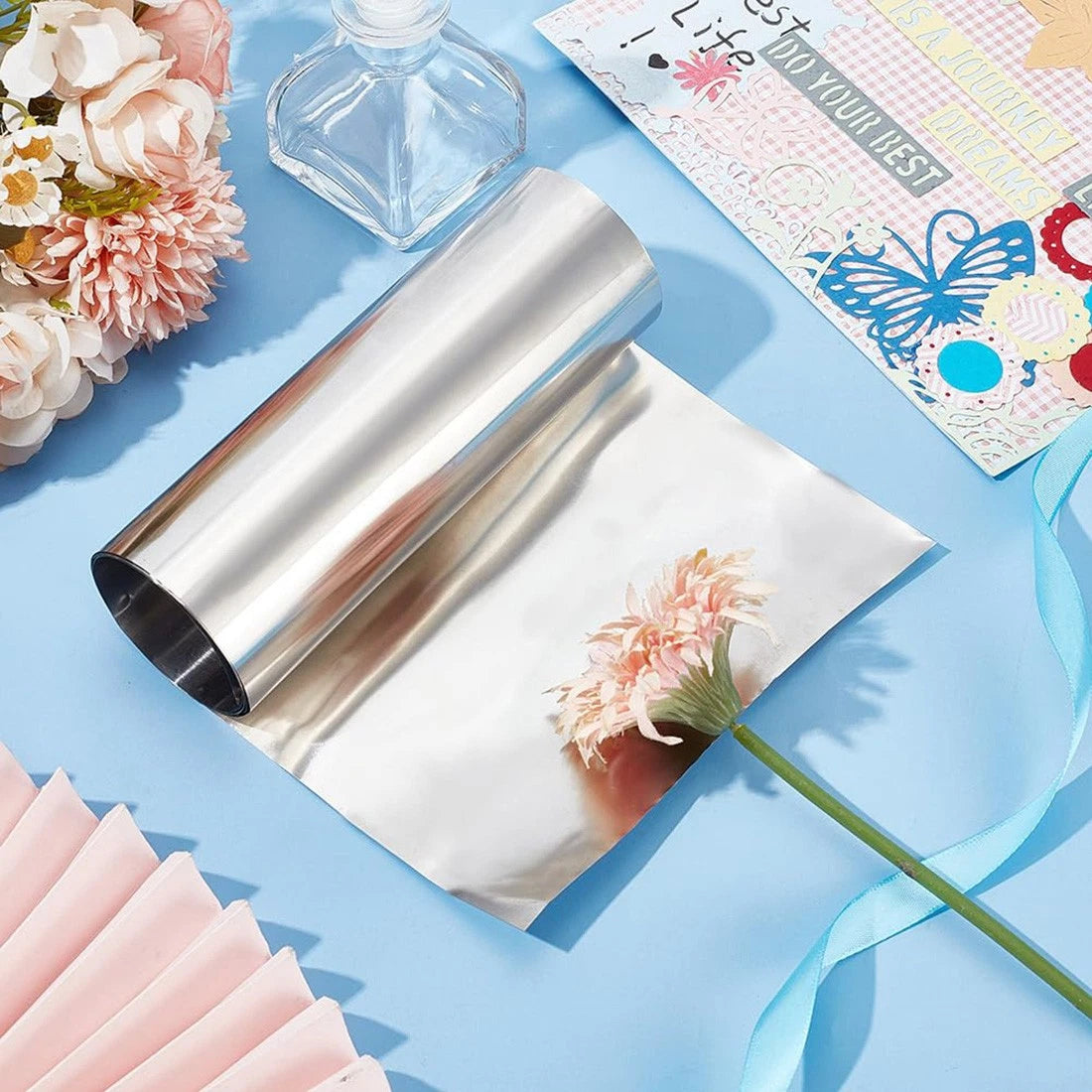

For decorative overlays, model skins, and foil work, thicknesses of 0.01 mm–0.05 mm are typical. Shimming and gap-filling applications usually call for 0.05 mm–0.3 mm. Structural backing plates, gaskets, and heat shields generally use 0.3 mm–2 mm. If you are unsure, measure the gap or reference the tolerance specification in your project drawings before ordering.

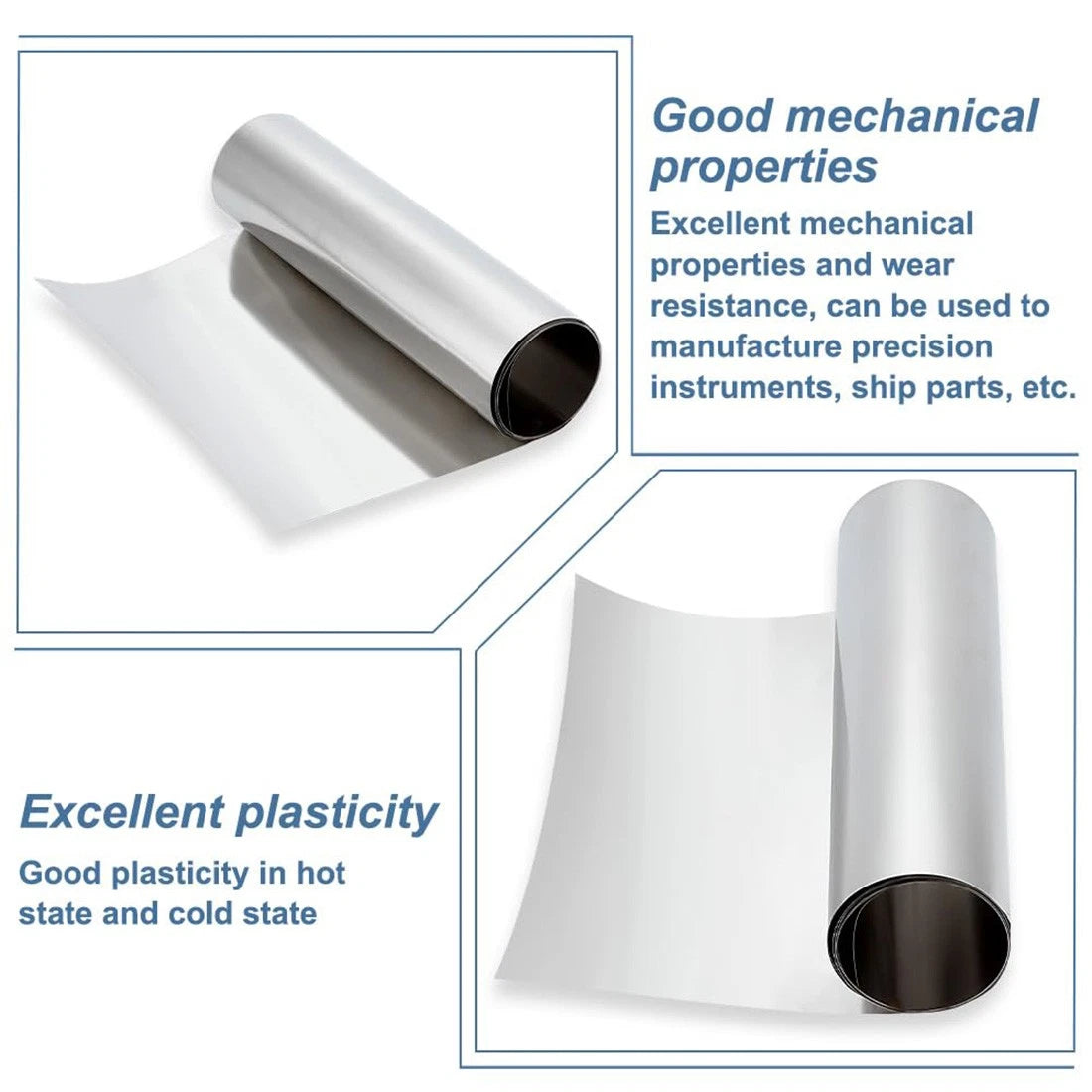

Yes. 304 stainless steel in its annealed form has a tensile strength of approximately 515–720 MPa, which is sufficient for most shimming, spacer, and light load-bearing applications. For high-cycle fatigue or heavy compressive loads, consult an engineer to confirm the gauge you select meets the required safety factor.

304 stainless steel resists rust in normal indoor and mildly humid environments due to its chromium oxide passive layer. It is not intended for prolonged immersion in chloride-rich solutions (such as seawater or pool water) without additional protection. For outdoor or marine use, 316-grade stainless steel is generally recommended instead.

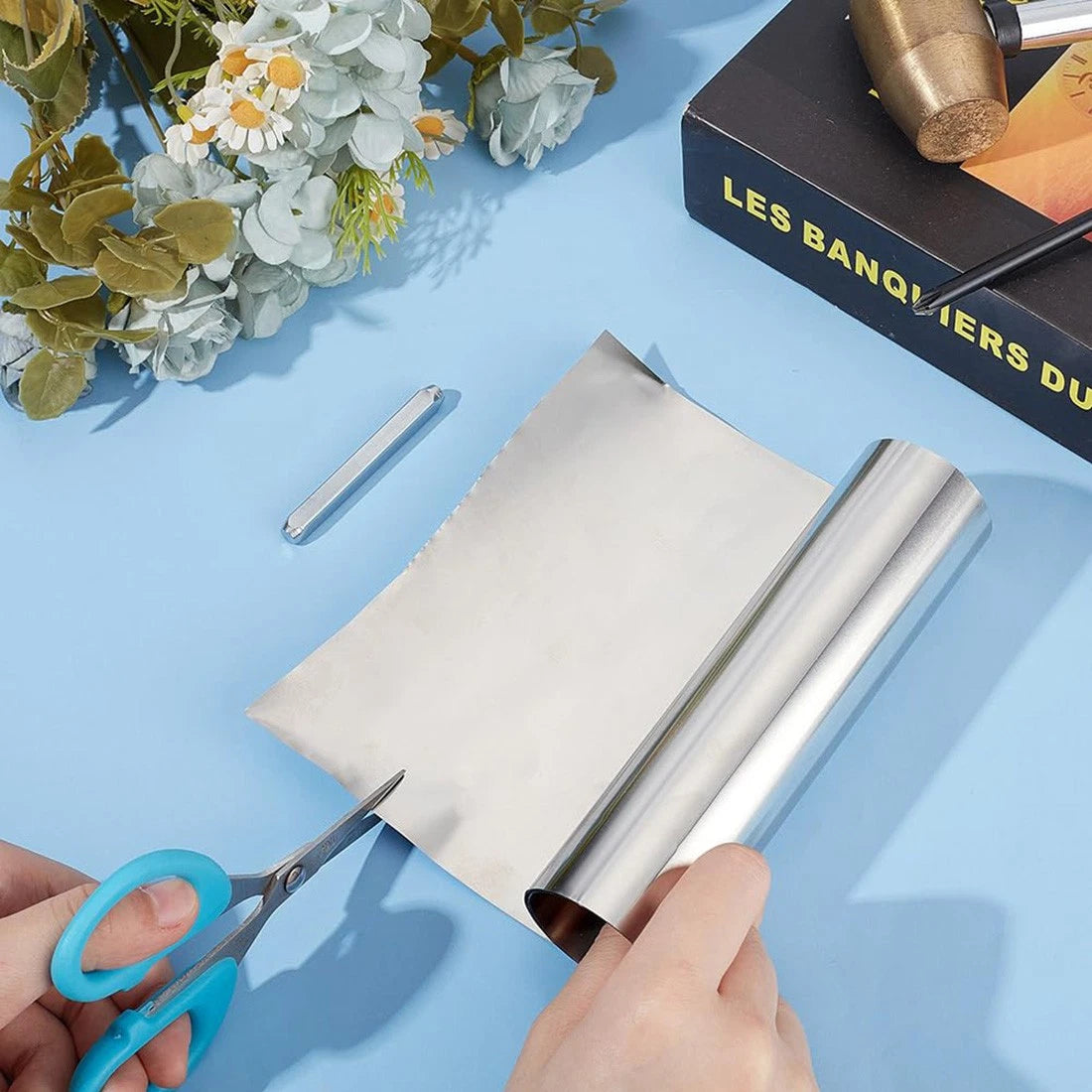

Thinner gauges (0.01 mm–0.1 mm) can be cut with sharp scissors, a craft knife, or a metal scriber and snap method. Mid-range gauges (0.1 mm–0.5 mm) suit tin snips or a guillotine shear. Thicker gauges (0.5 mm–2 mm) are best cut with an angle grinder fitted with a thin cutting disc, a jigsaw with a metal blade, or a bench shear. Always wear appropriate eye and hand protection.

304 stainless steel is weldable using TIG, MIG (with stainless wire and appropriate shielding gas), or spot welding. It can also be soft-soldered using an acid-based flux designed for stainless steel. Standard rosin flux used for electronics will not bond reliably to stainless without surface preparation. For thin foil gauges, a soldering iron with controlled temperature is recommended to avoid warping.

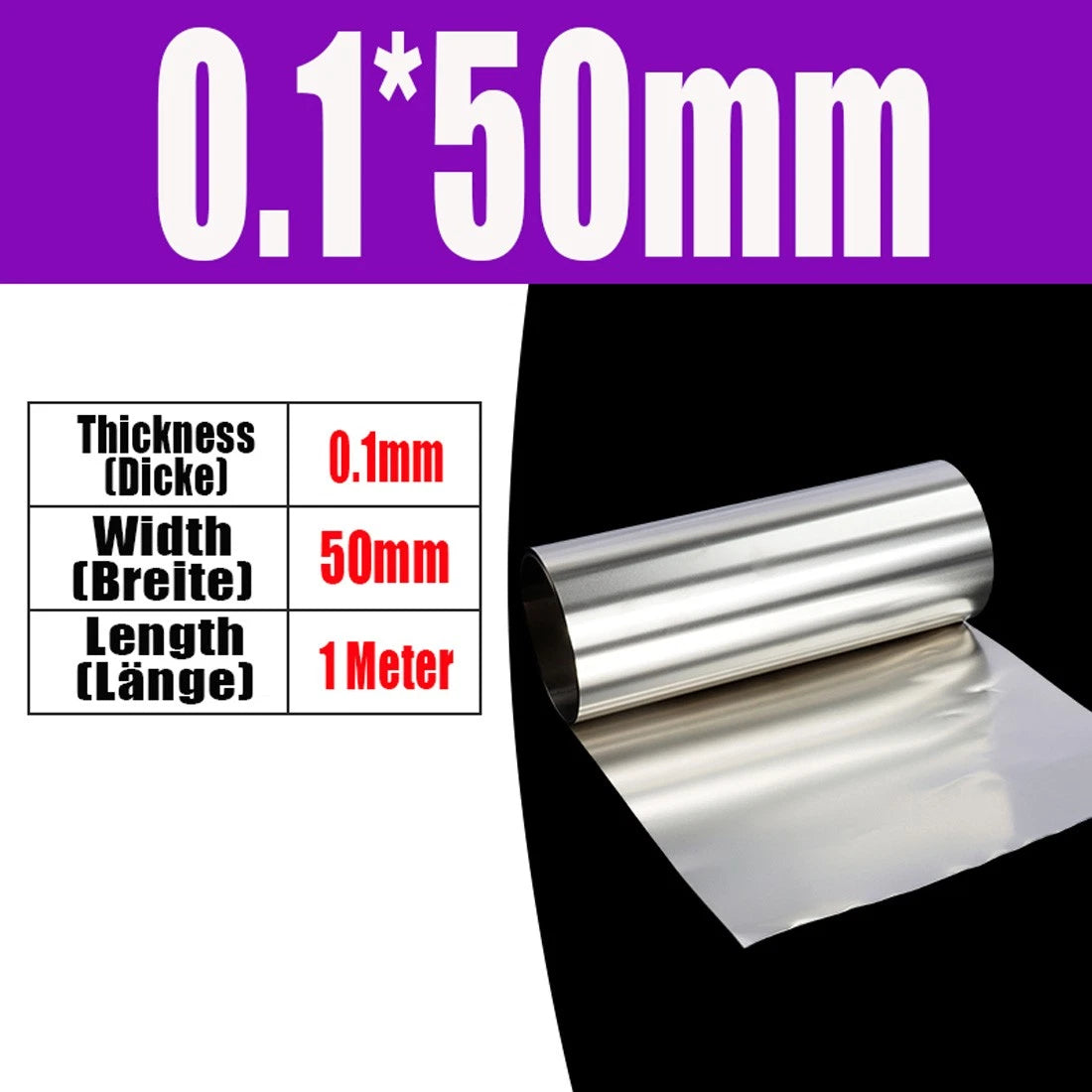

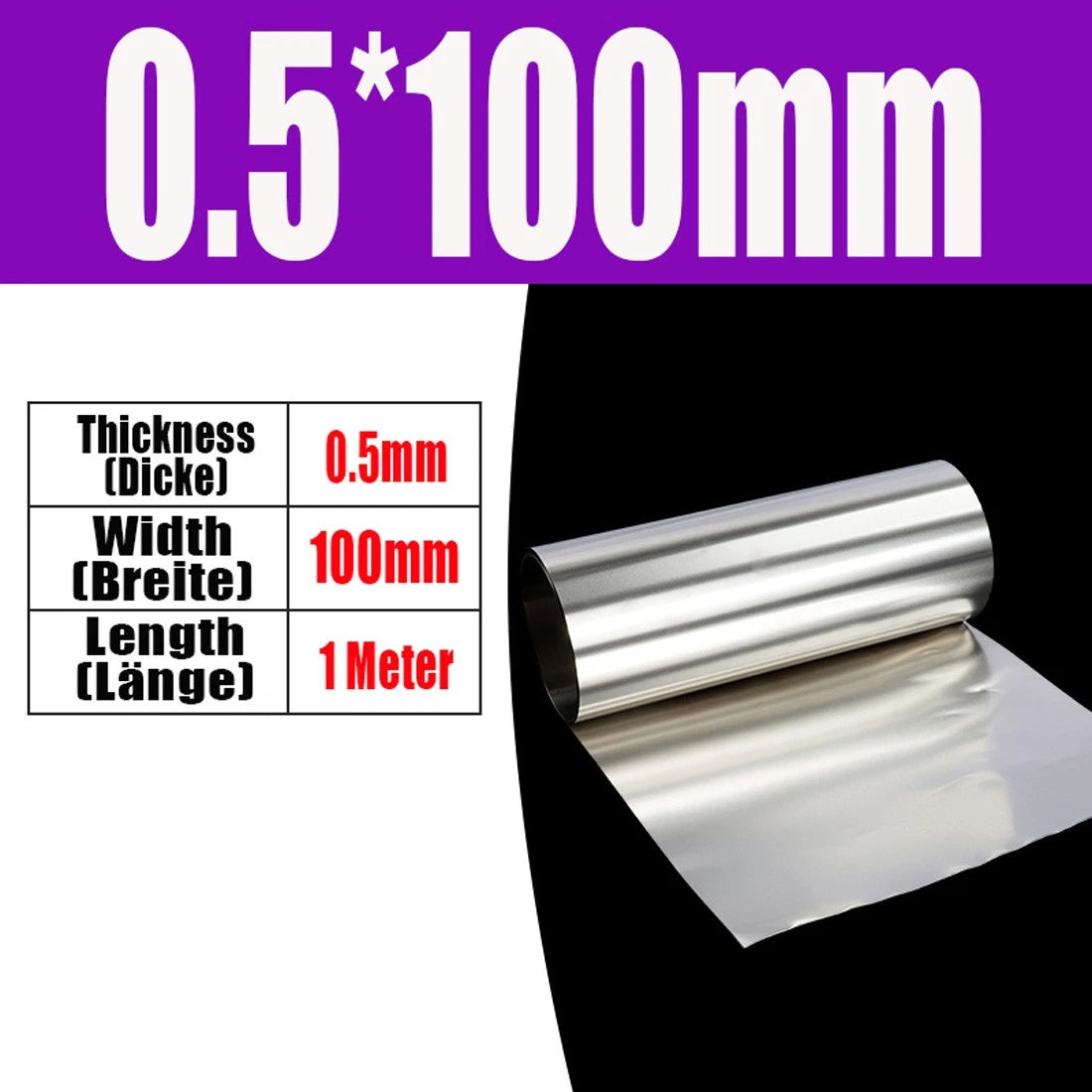

The 50 mm and 100 mm widths are most popular for scale model construction, architectural models, and craft projects where narrow strips are needed. The 200 mm and 300 mm widths suit larger panel work, heat shielding, and fabrication tasks where you need to cut multiple pieces from a single strip. Order the width closest to your largest required piece to minimise offcuts.

The 1 m option suits single-project or trial purchases where you want to confirm fit and finish before committing to more material. The 5 m length is cost-effective for medium projects or repeat use. The 10 m roll offers the lowest per-metre cost and is suited to production runs, ongoing workshop stock, or projects requiring multiple long cuts. Check the total linear metres your project requires before selecting.
