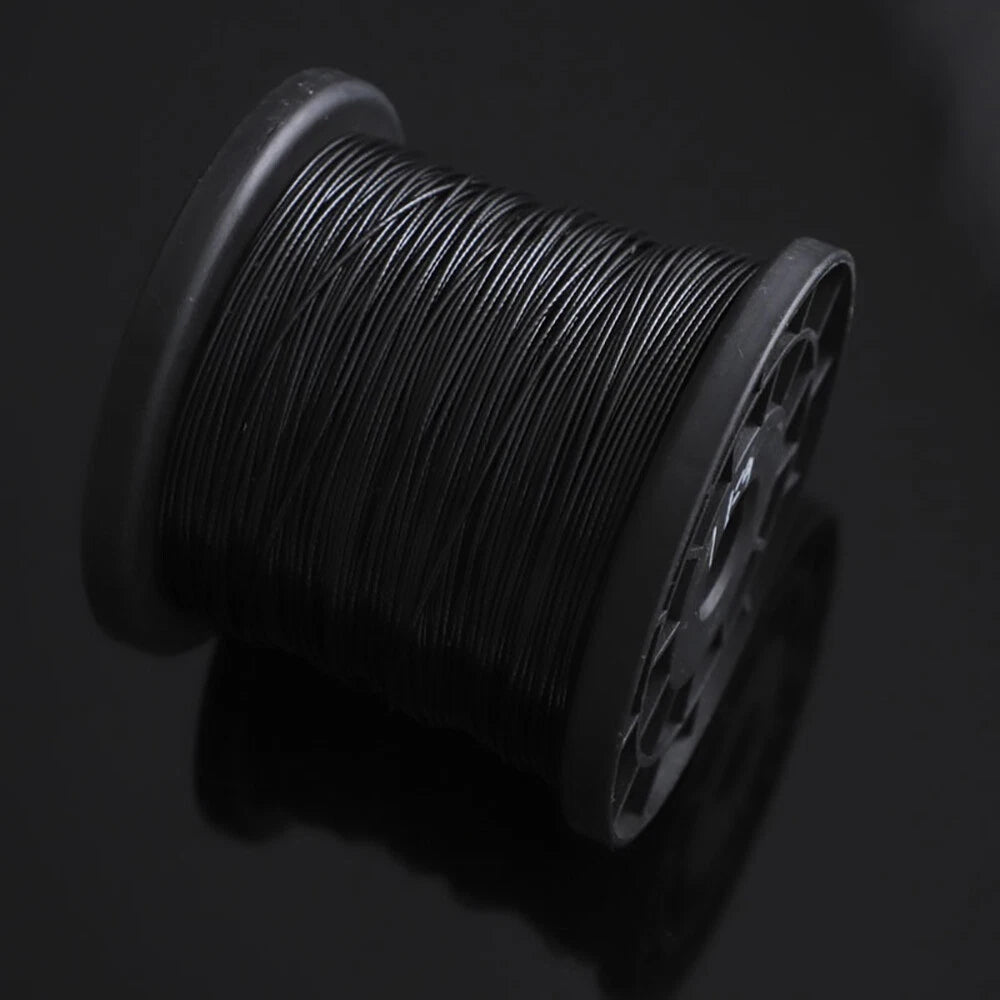

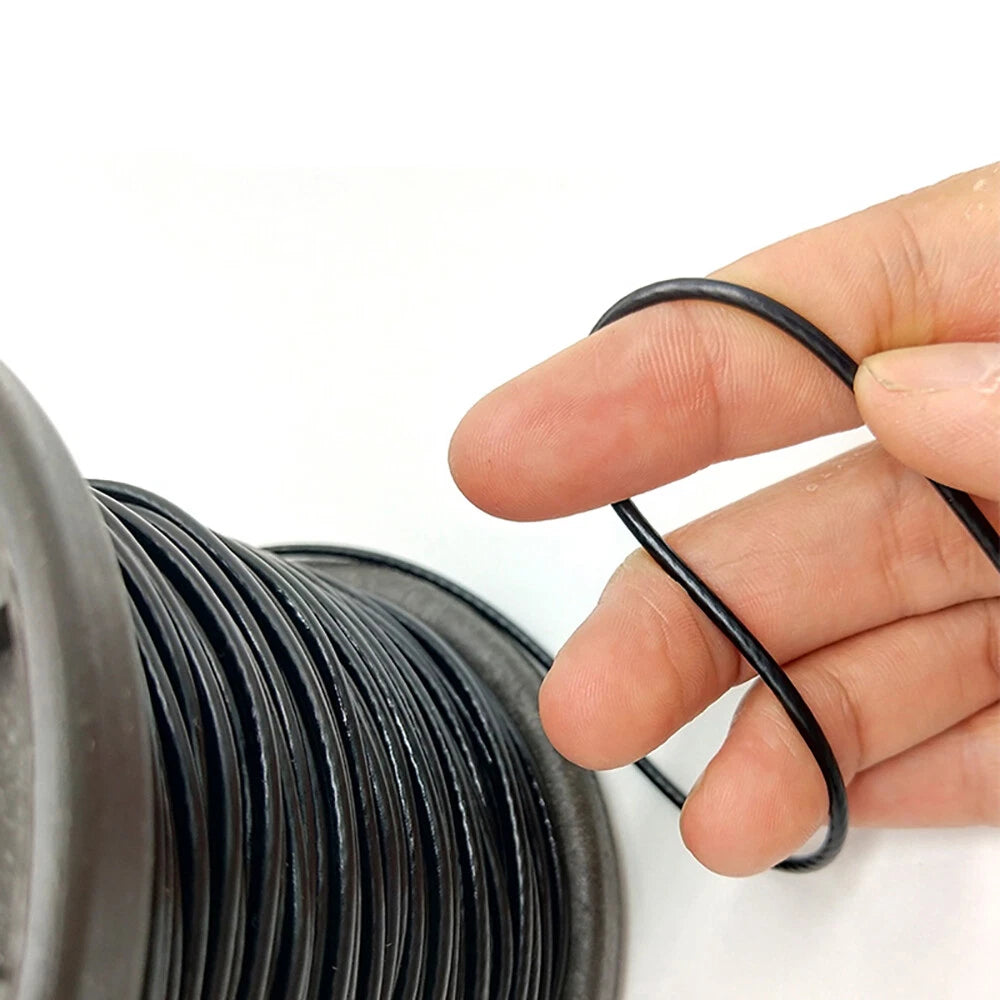

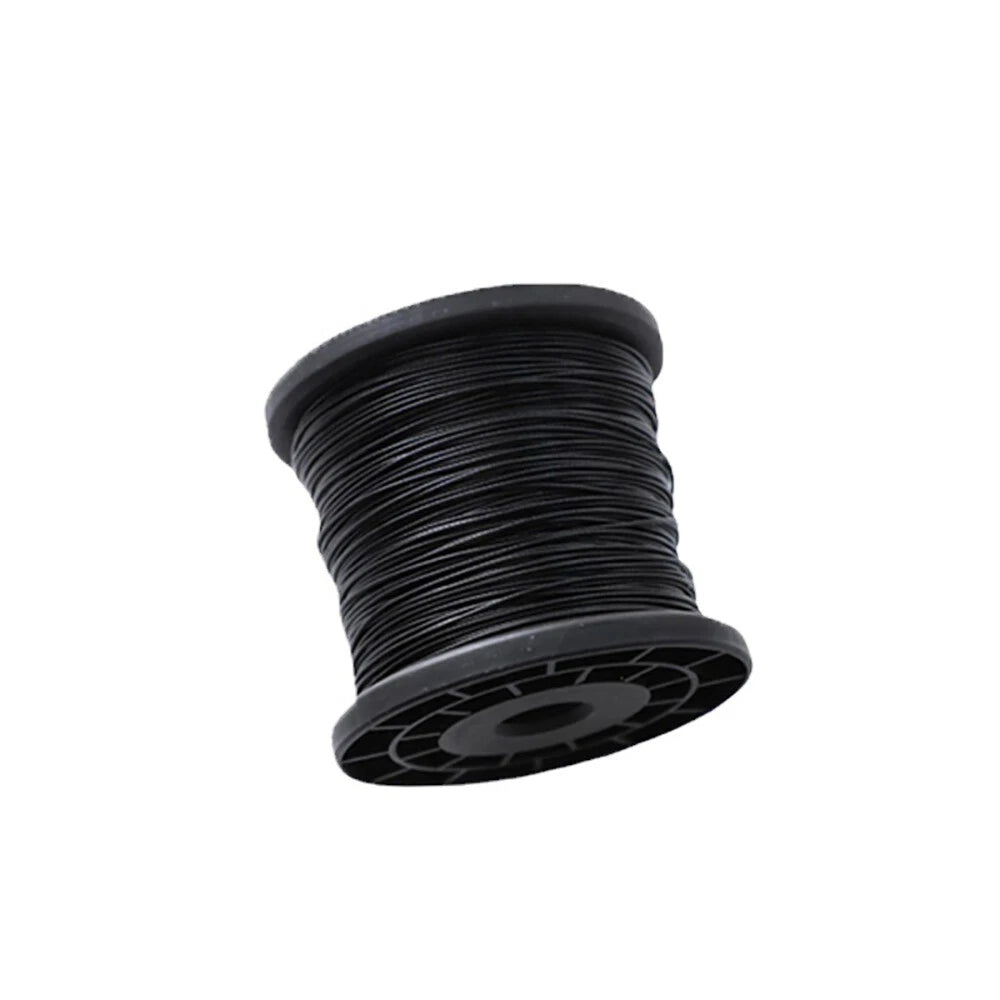

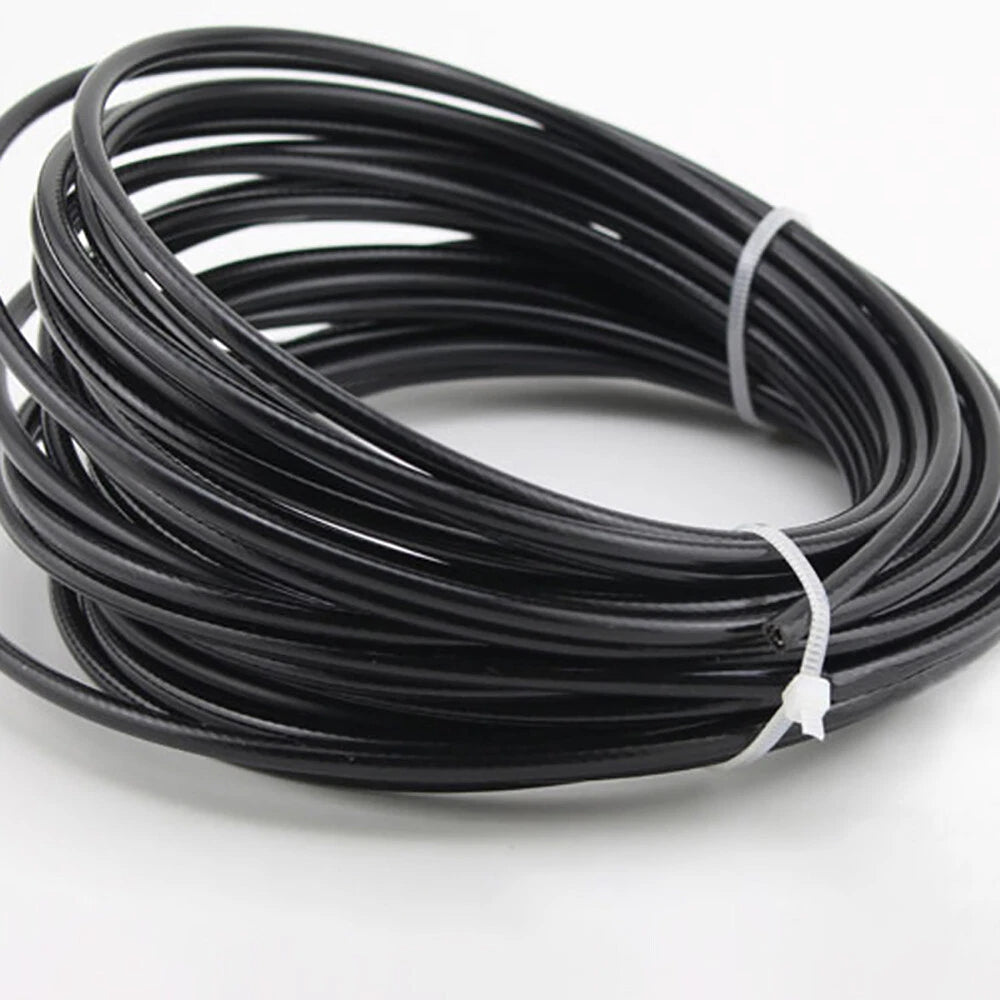

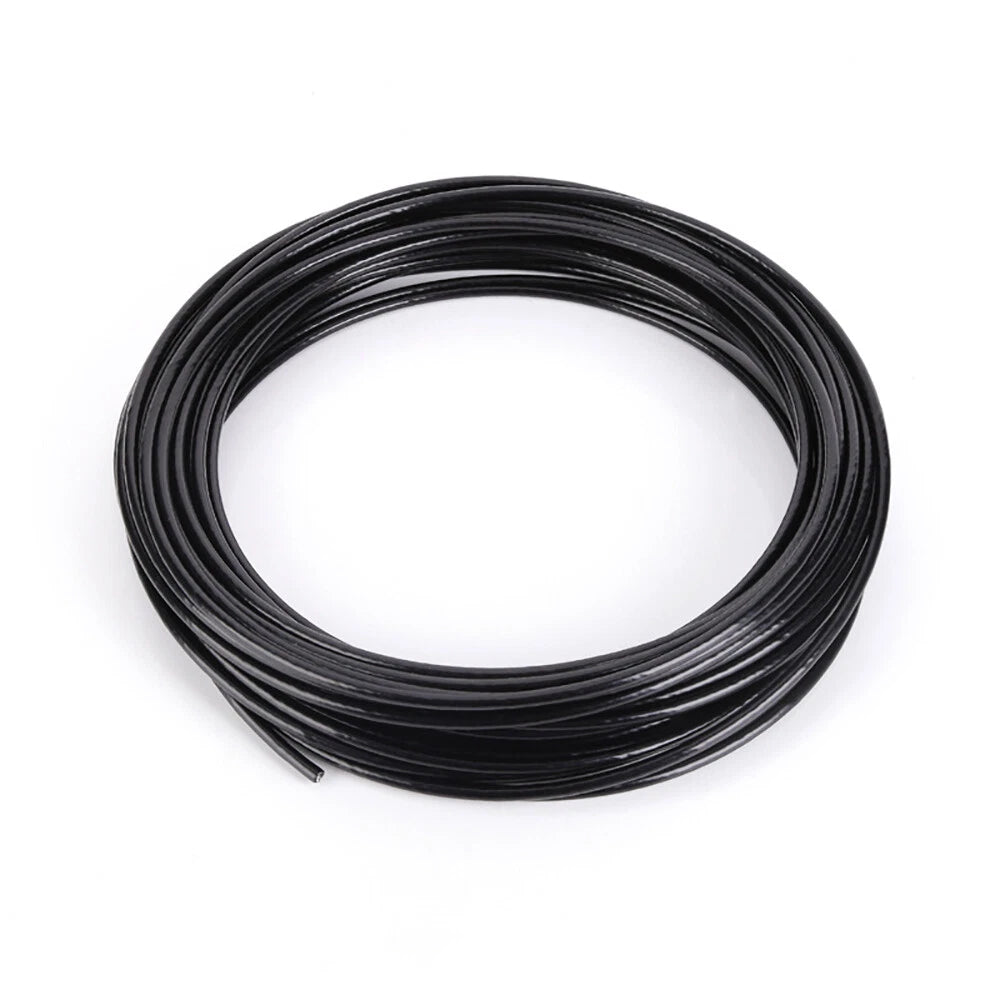

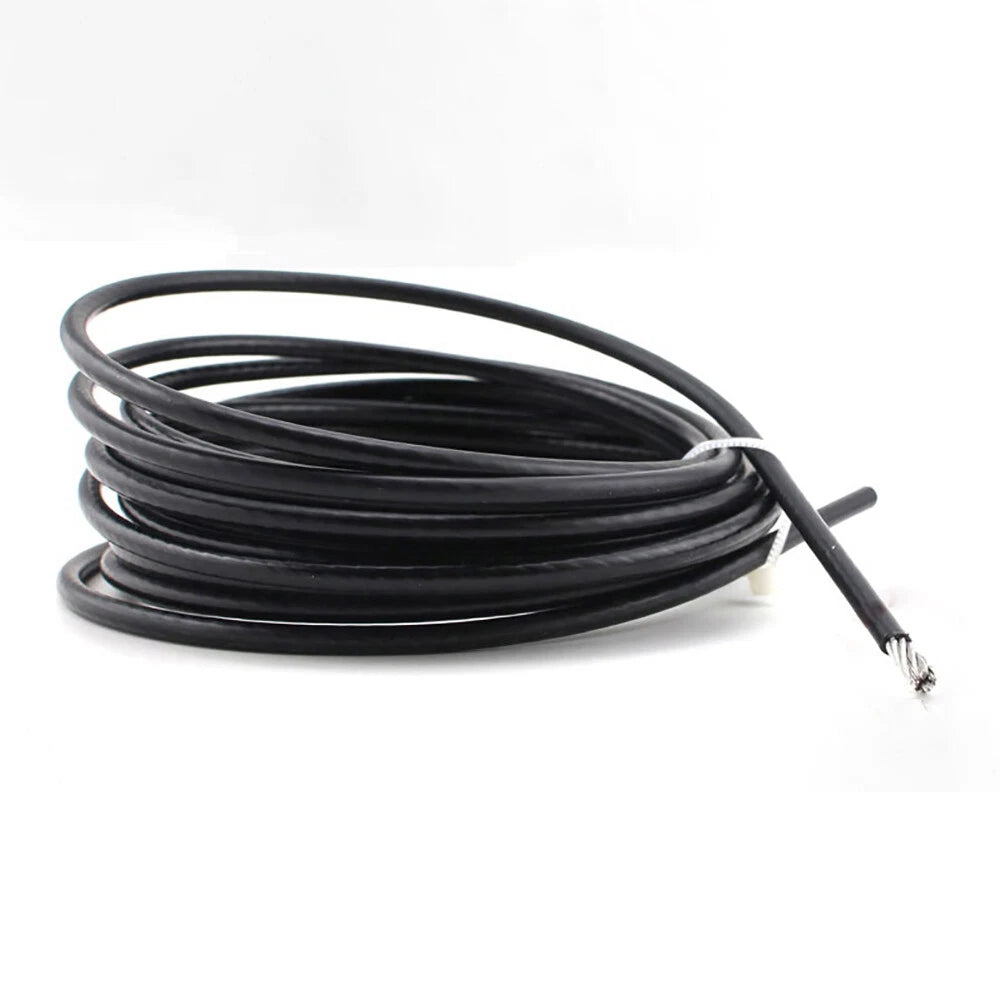

304 Stainless Steel Wire Rope Metal Cable Rigging Black PVC Plastic Coated 1-6mm

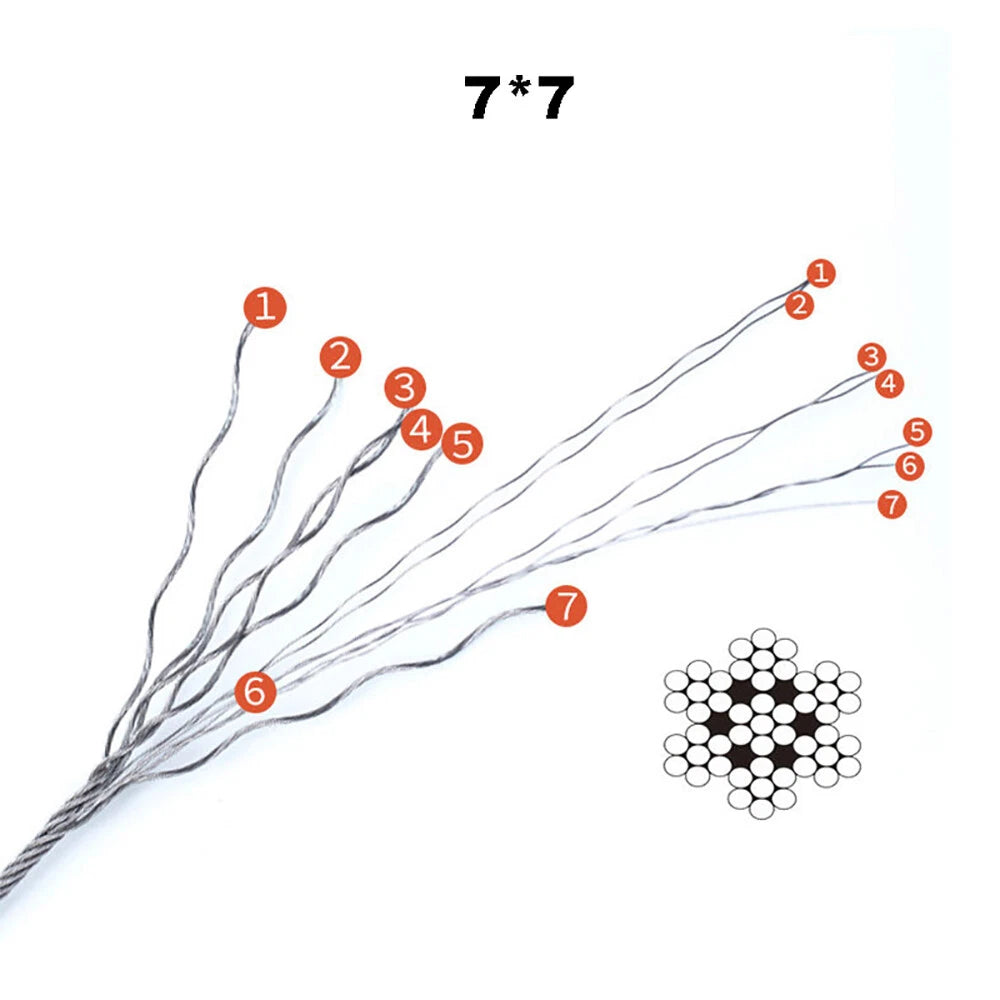

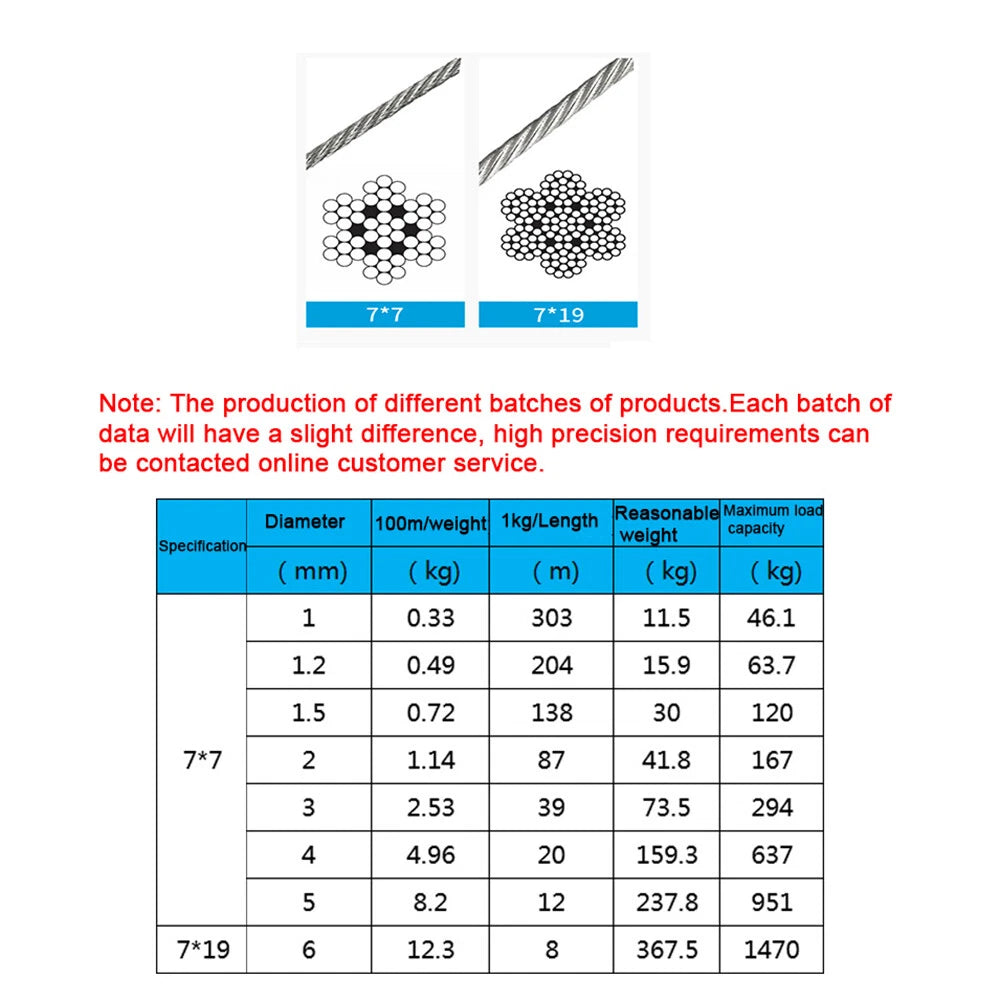

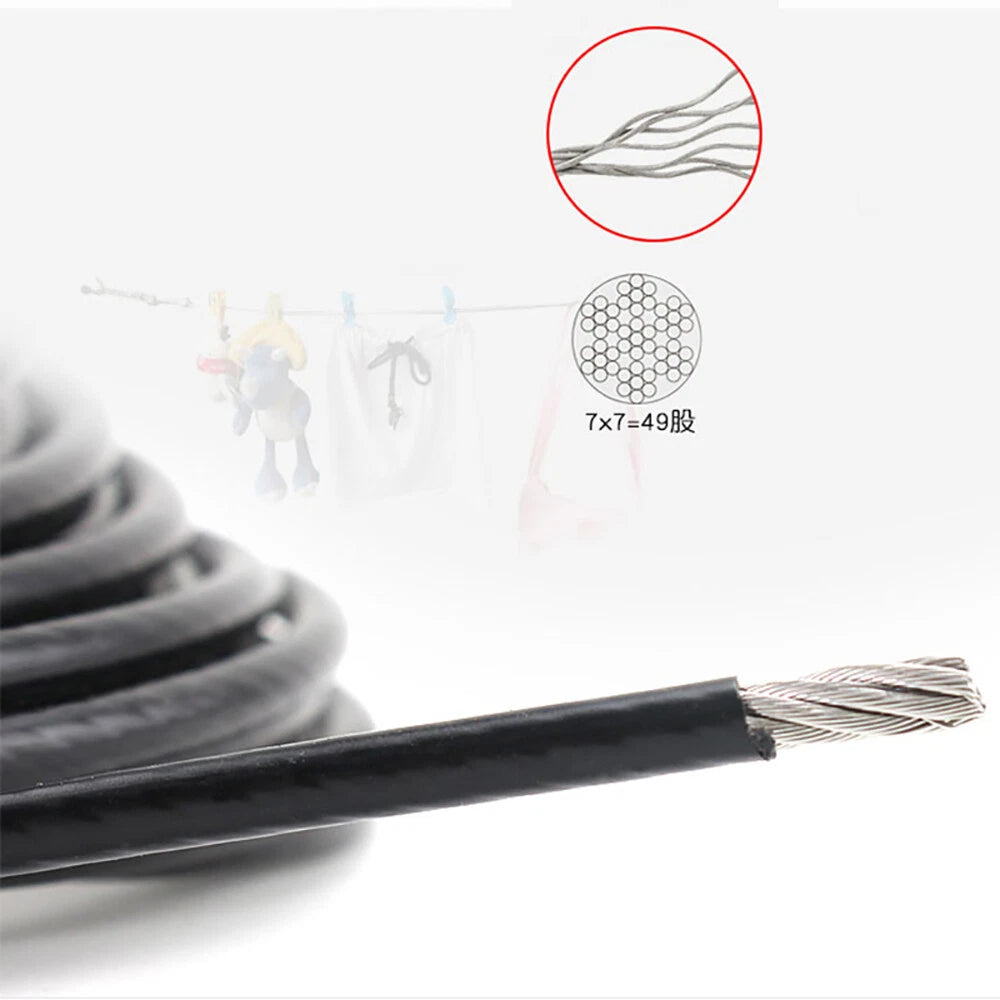

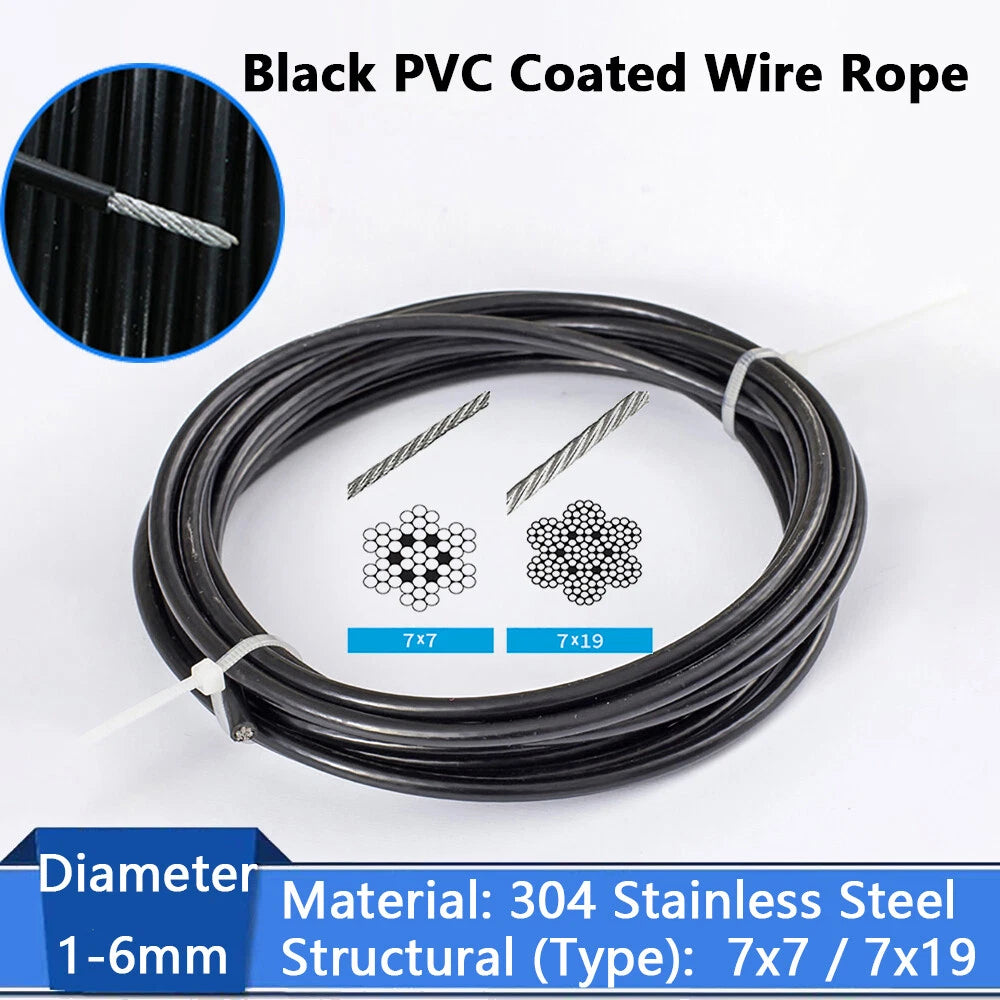

7×7 wire rope consists of 7 strands, each made of 7 individual wires, giving a total of 49 wires. It is stiffer and better suited to straight cable runs such as balustrade infill or trellis tensioning. 7×19 rope has 7 strands of 19 wires each (133 wires total), making it significantly more flexible — a better choice for routes that bend around corners, for running through pulleys, or for applications where the cable moves regularly.

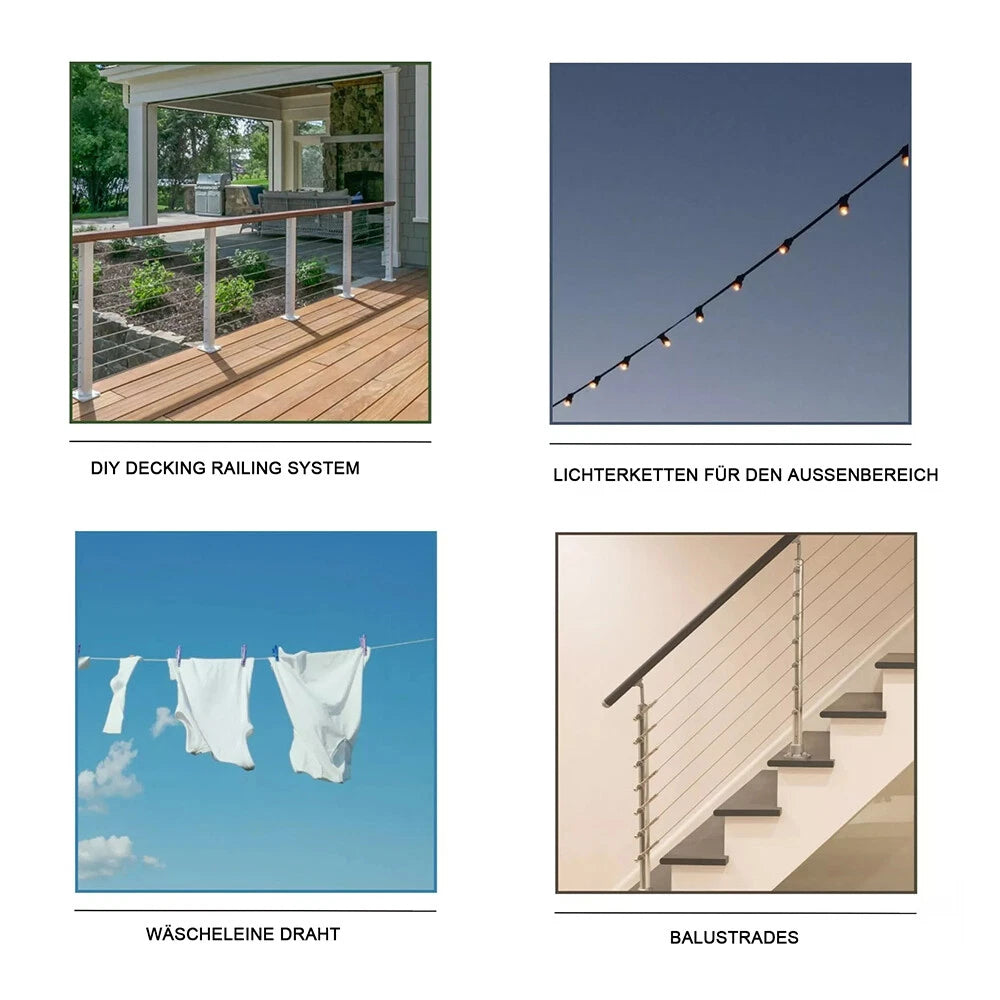

For residential deck balustrade cable railing, 3 mm or 4 mm diameter wire rope is the most common choice. 3 mm suits lighter-duty or shorter spans (typically up to 2–3 m between posts), while 4 mm or 5 mm is recommended for longer spans or where local building codes specify a minimum breaking load. Always verify the minimum breaking load requirement for your jurisdiction before selecting a diameter.

304 stainless steel performs well in most outdoor and mildly coastal environments. It resists rust and oxidation under normal exposure. However, in highly aggressive salt-spray environments — such as directly on a beachfront or on a boat — 316 marine-grade stainless steel is generally recommended for superior chloride resistance. The black PVC coating on this rope provides an additional barrier that extends service life in moderate coastal conditions.

This wire rope is compatible with standard 304 stainless steel swage fittings (jaw, eye, stud), wire rope clips (bulldog grips), thimbles, and turnbuckles sized to the matching cable diameter. When ordering fittings, match the fitting's bore or cable-entry diameter to the overall diameter of the PVC-coated rope, not just the bare wire core. If you are swaging fittings onto the bare wire, strip back the PVC sheath at the termination point first.

Use a dedicated wire rope cutter (rotary or guillotine type) rather than angle grinders or bolt cutters, which can splay the strands. Before cutting, wrap the cut point tightly with electrical tape or a cable tie on both sides of the intended cut line. After cutting, apply a small amount of clear silicone sealant or heat-shrink tubing to the cut end to prevent the PVC jacket from peeling back and the wire strands from unravelling.

Each swaged or mechanical termination typically consumes 50–100 mm of cable depending on the fitting type. For a run with two end terminations, add at least 200–250 mm to your measured span length. If you are using turnbuckles, factor in the adjustment range (typically 50–100 mm) so the turnbuckle can be tensioned to the correct load after installation. Ordering the next length increment up is a low-cost way to ensure you have enough material.

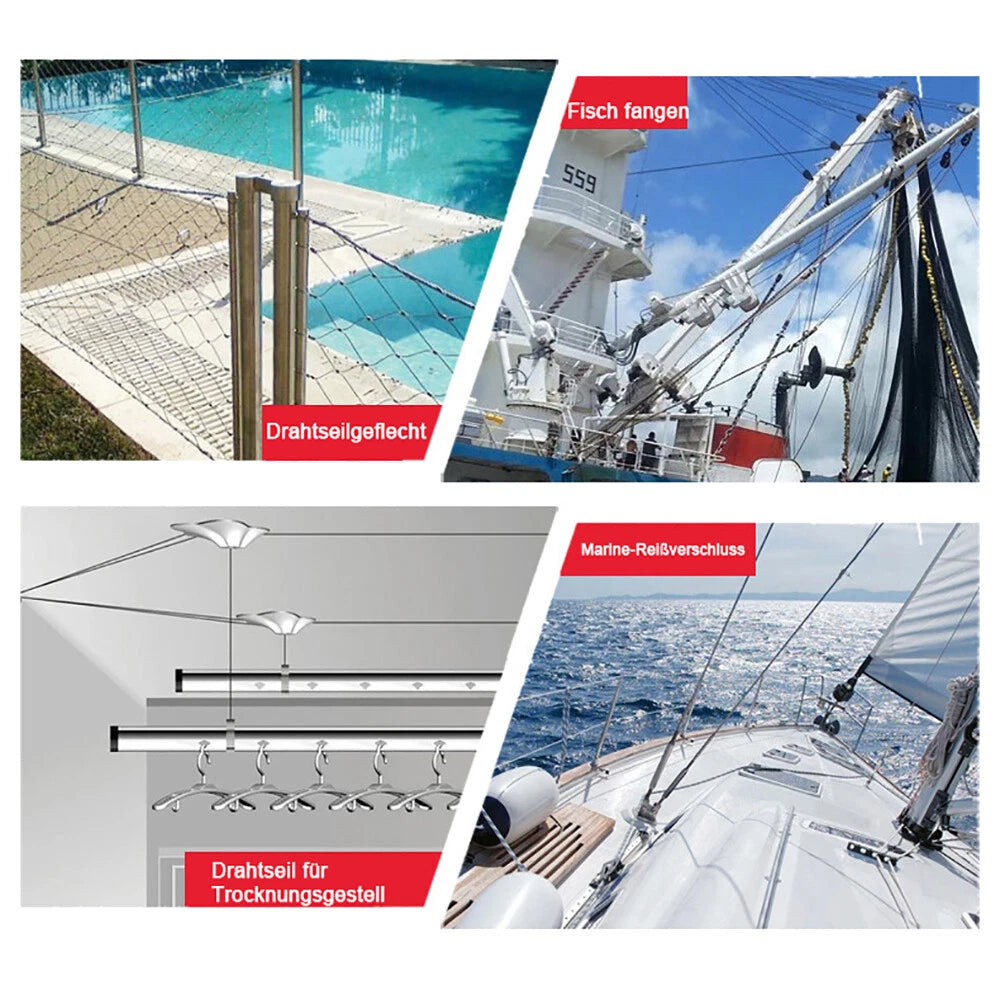

Yes. The 1 mm to 2 mm diameters in 7×7 construction are well suited to garden trellis tensioning wire, where the black PVC coating blends into the background and protects plant stems from abrasion. For shade sail rigging, 3 mm to 4 mm diameter is more appropriate given the higher tensile loads involved. Pair with stainless steel eye bolts, turnbuckles, and snap hooks rated for the expected load.
