3:1 Heat Shrink Tubing with Adhesive Glue Lining — Reliable Wire Protection from 1.5mm to 65mm
Exposed wire splices, corroded connectors, and unprotected terminals are a constant headache for electricians, automotive technicians, marine riggers, and serious DIYers. One failed seal can mean a short circuit, a warranty void, or a safety hazard. This dual-wall 3:1 heat shrink tubing with adhesive glue lining was designed to eliminate that risk — delivering a watertight, strain-relieving sleeve that stays put even in harsh environments.

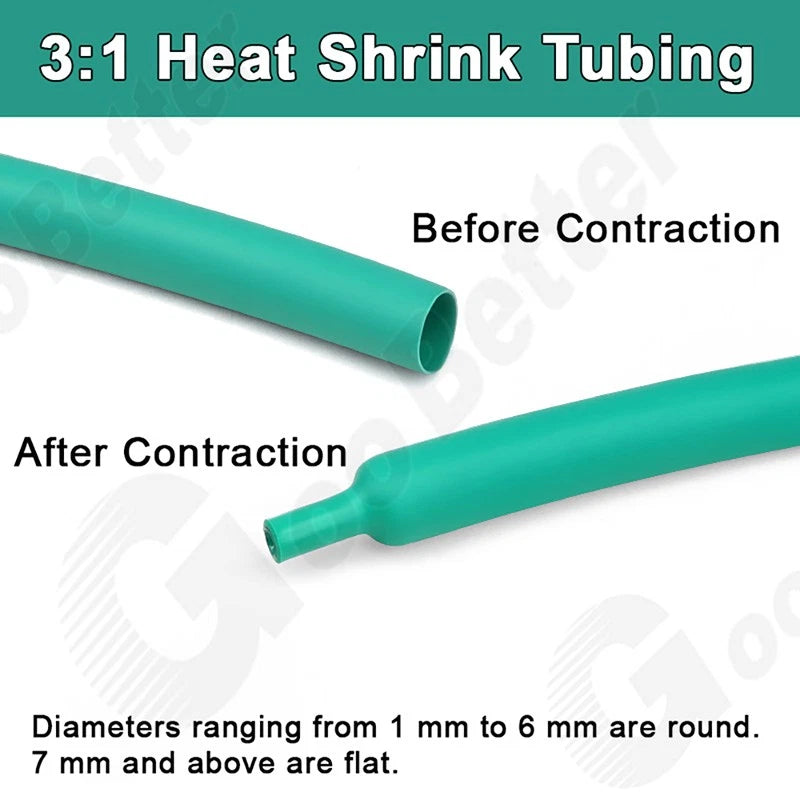

Each piece is made from flexible polyolefin with a 3:1 shrink ratio, meaning it recovers to approximately one-third of its expanded diameter when heat is applied. The adhesive-lined variants feature a hot-melt inner wall that flows around the substrate on heating, creating a moisture-resistant bond. Available in diameters from 1.5mm (≈1/16") to 65mm (≈2-9/16"), lengths of 1 meter (≈39") or 5 meters (≈197"), and a wide range of colors including Black, White, Red, Green, Yellow, Blue, Transparent, and Orange. Non-adhesive single-wall options are also available in the Black colorway for general insulation and bundling.

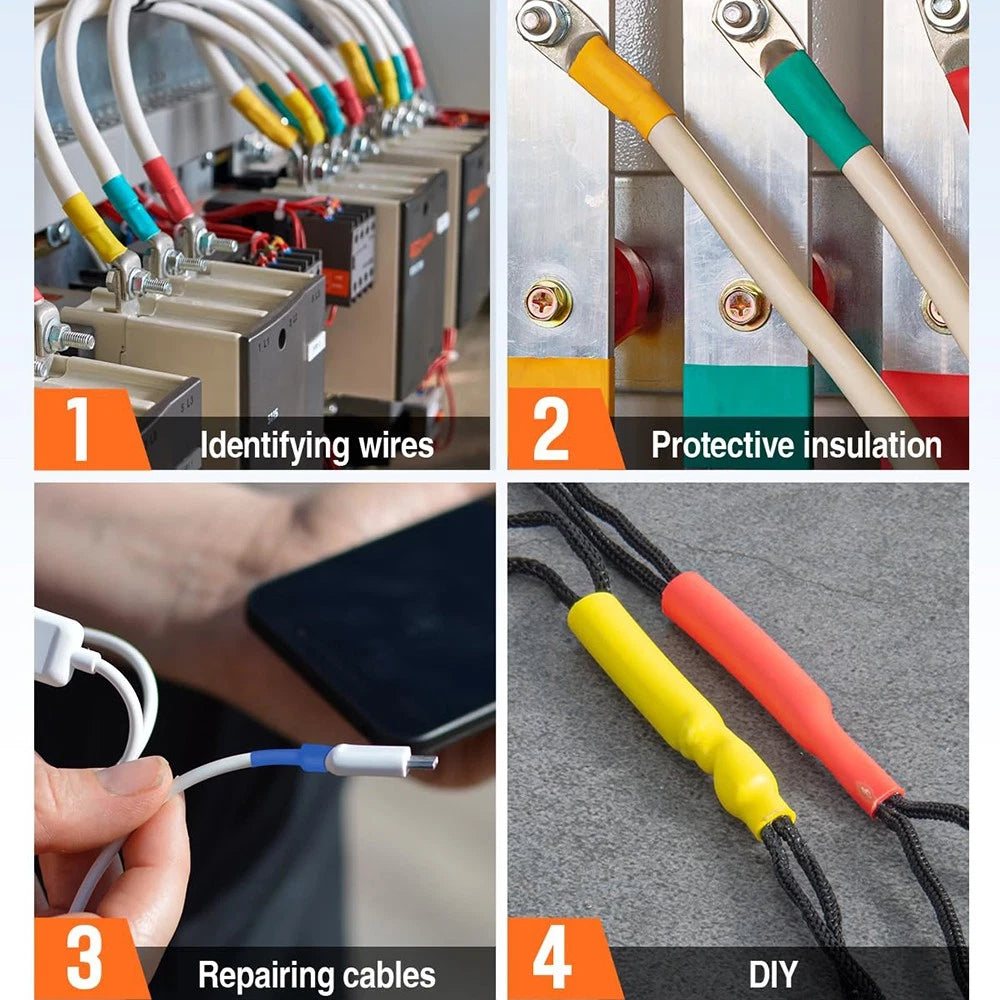

Typical applications include automotive wiring harness repair and trailer connector sealing, marine cable management and bilge pump wiring, battery terminal protection and solar panel lead insulation, and industrial control panel wire labeling using color-coded sleeving.
🔌
Compatibility: Fits standard round wire, multi-conductor cable, and cylindrical connectors. Adhesive-lined variants bond to polyolefin, PVC, nylon, and most metal substrates. Verify expanded inner diameter against your component OD before ordering.
✅ Key Features of These 3:1 Adhesive-Lined Heat Shrink Tubes
-

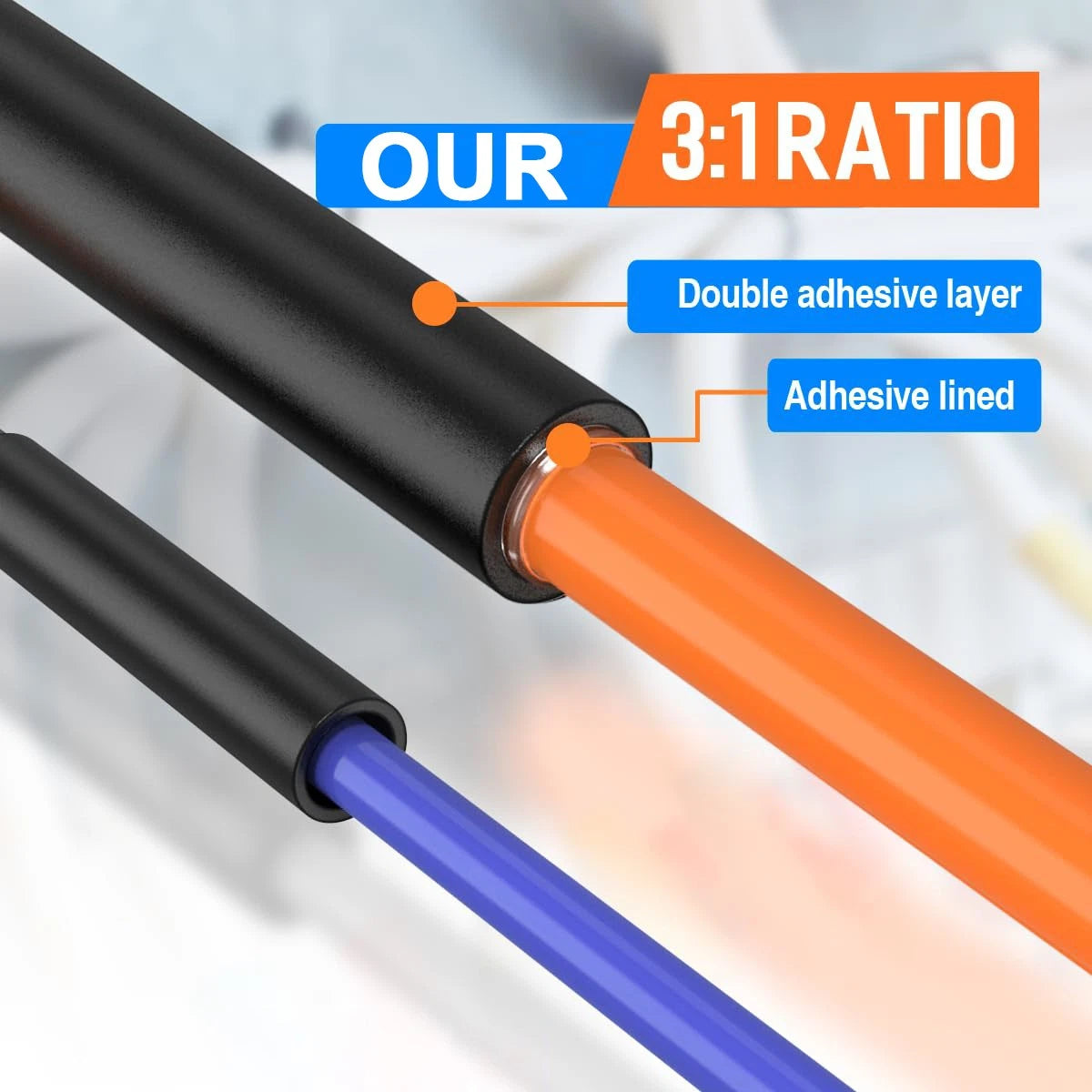

💧Waterproof Dual-Wall Construction — The hot-melt adhesive inner layer melts and flows on heating, forming a moisture-resistant seal ideal for marine cable sleeving and outdoor wire protection.
-

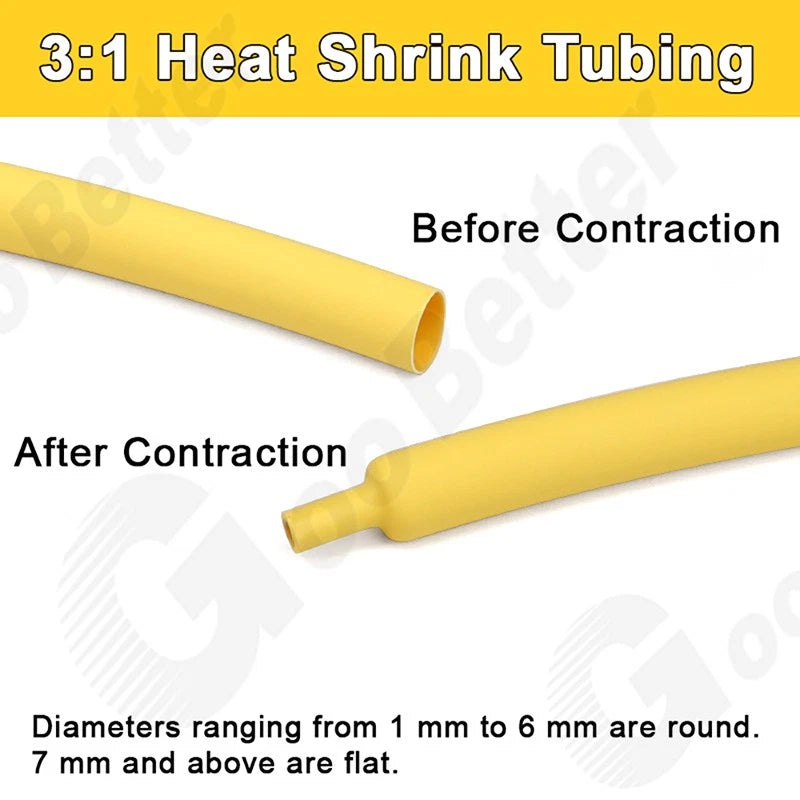

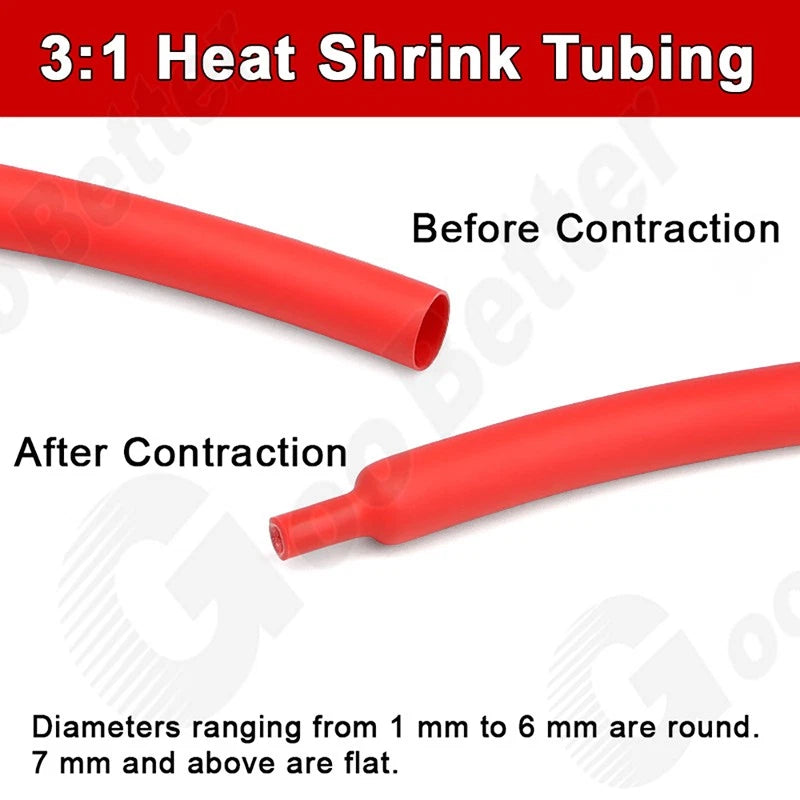

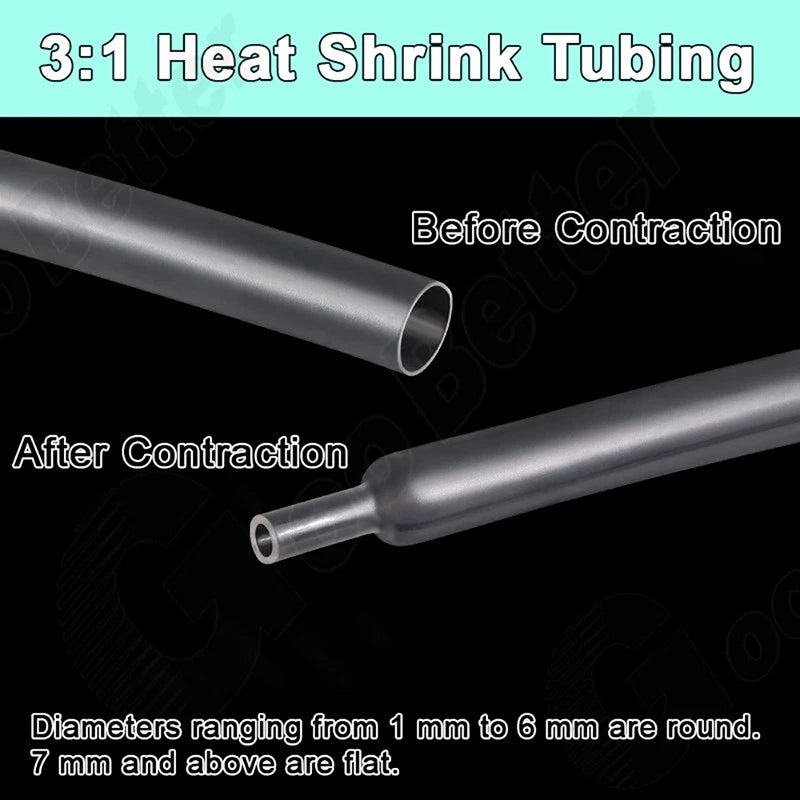

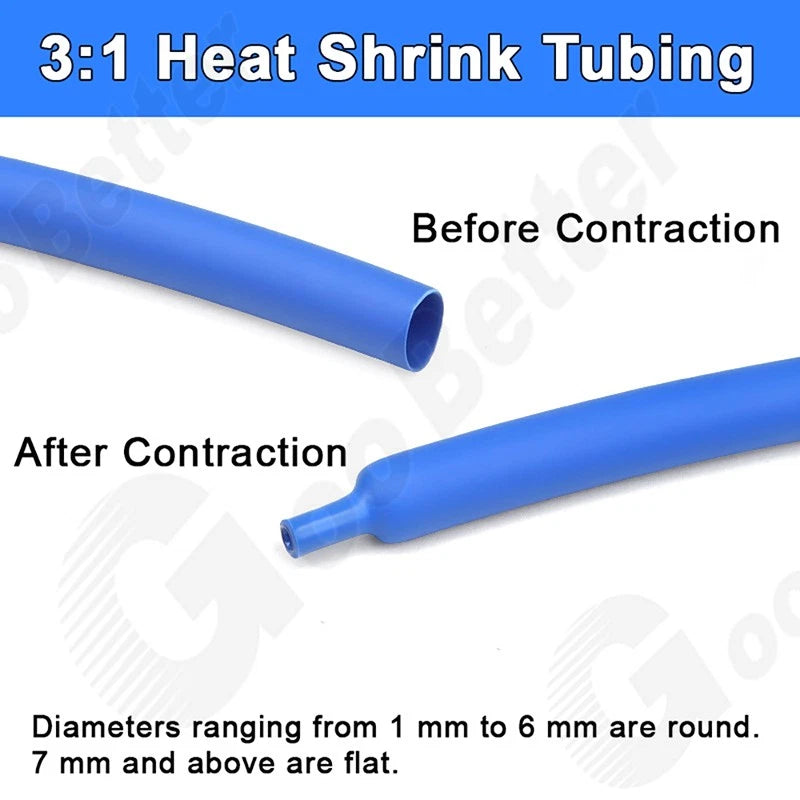

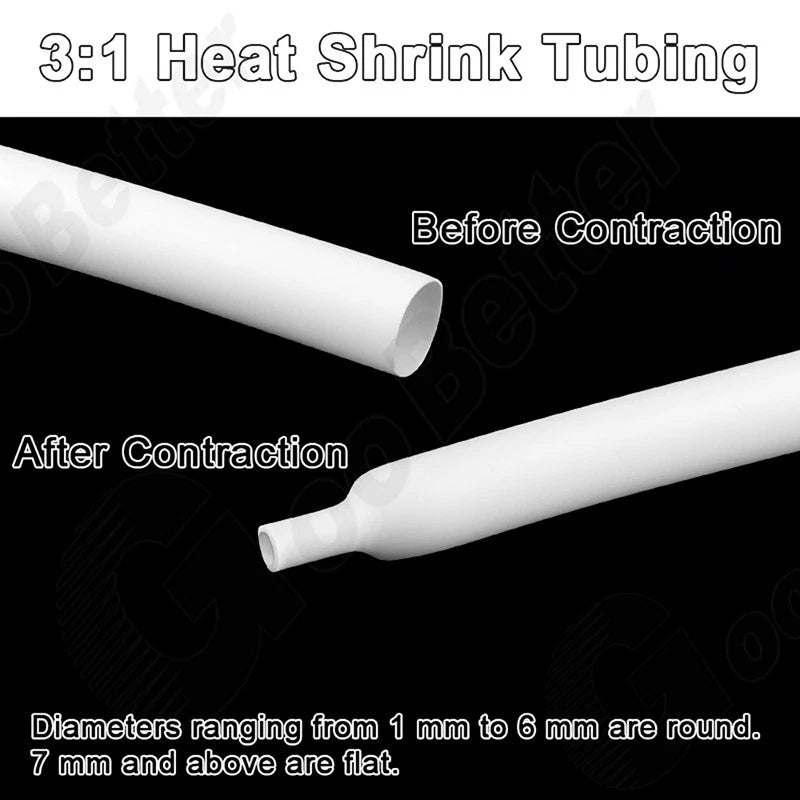

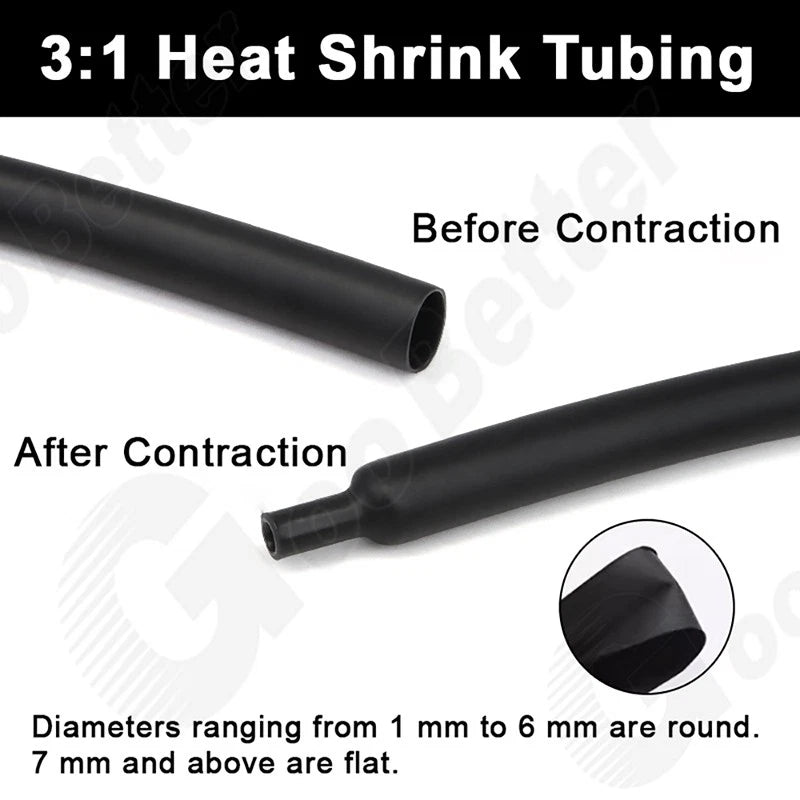

📐3:1 Shrink Ratio — Recovers to approximately one-third of expanded diameter, accommodating irregular connector shapes and stepped transitions that standard 2:1 tubing cannot cover.
-
📏Wide Diameter Range — Available from 1.5mm (≈1/16") to 65mm (≈2-9/16"), covering everything from fine instrument wire to large battery cables and hydraulic hose sleeving.
-

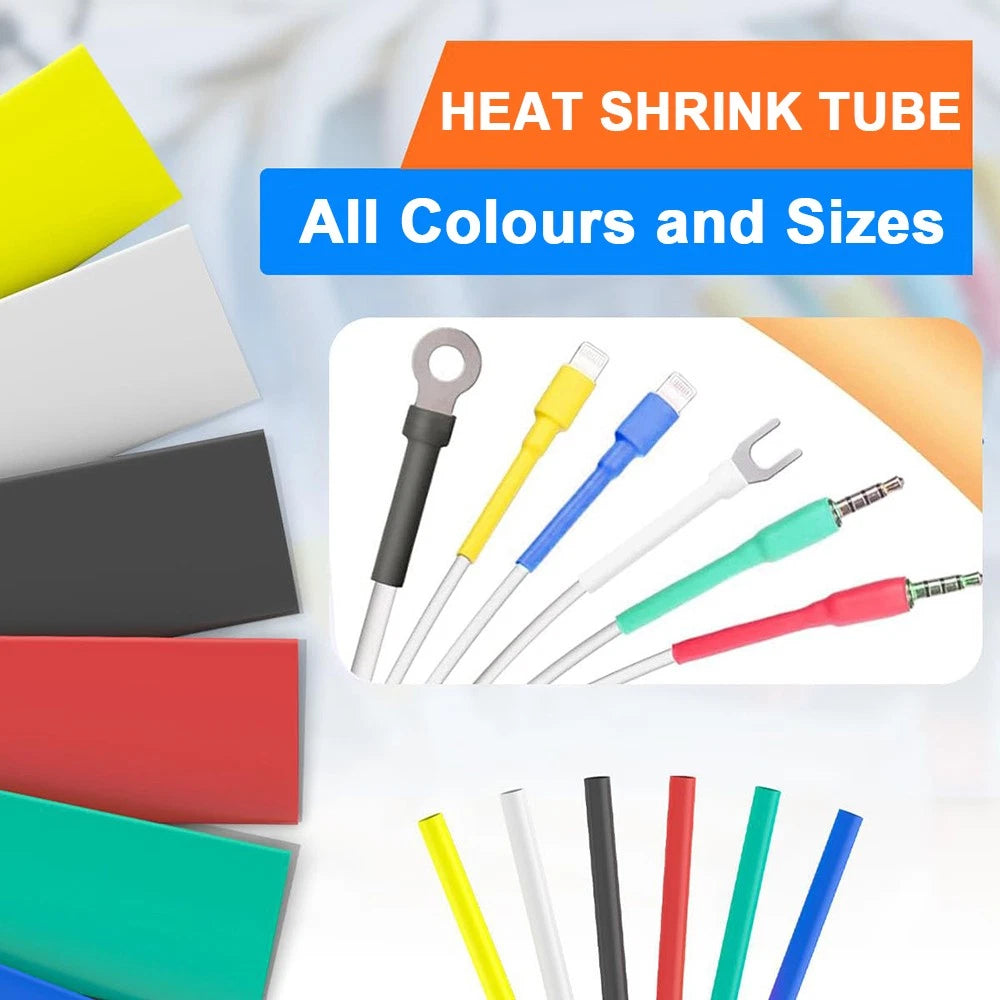

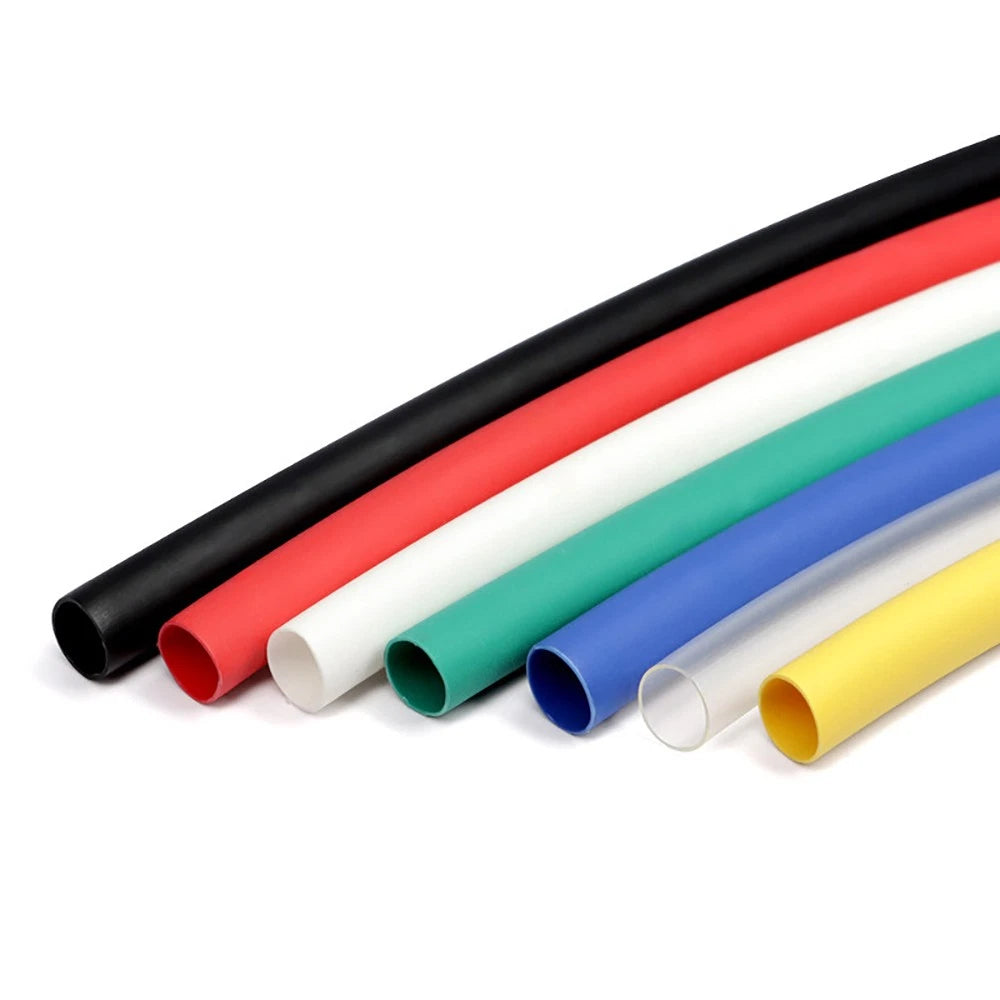

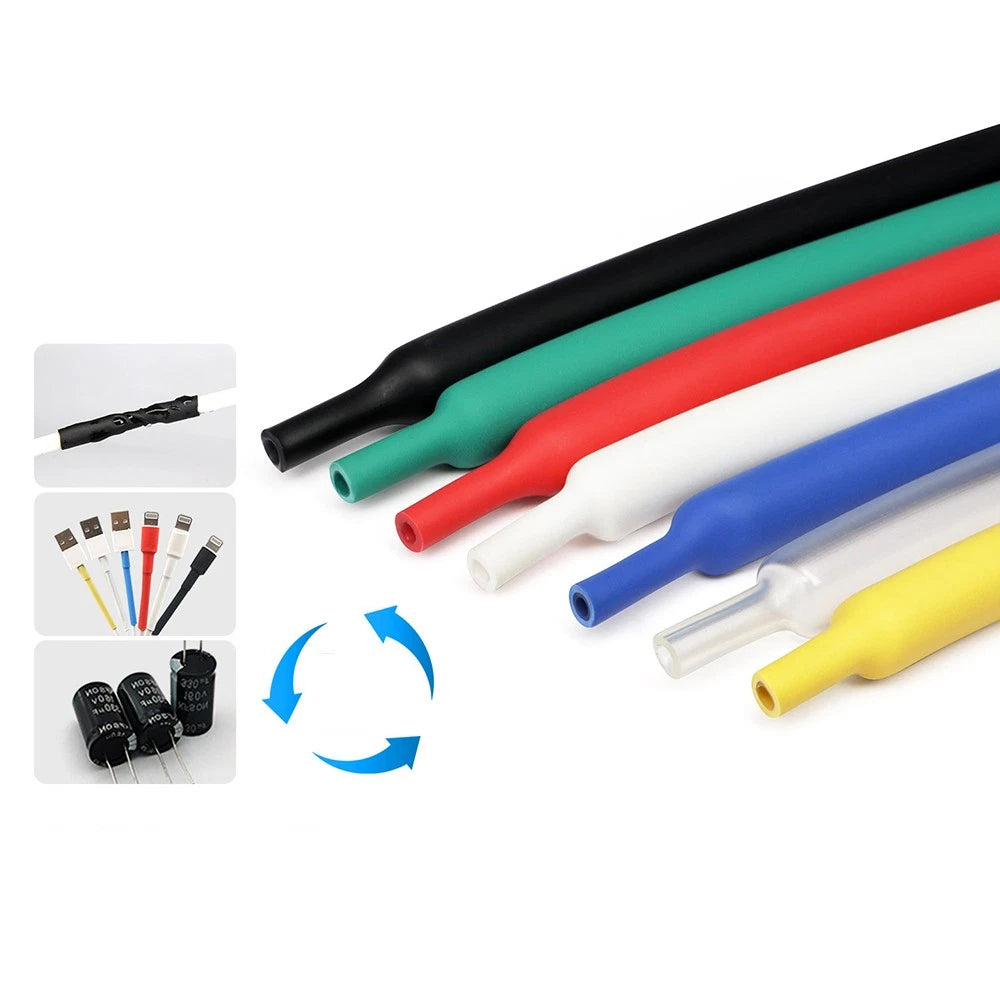

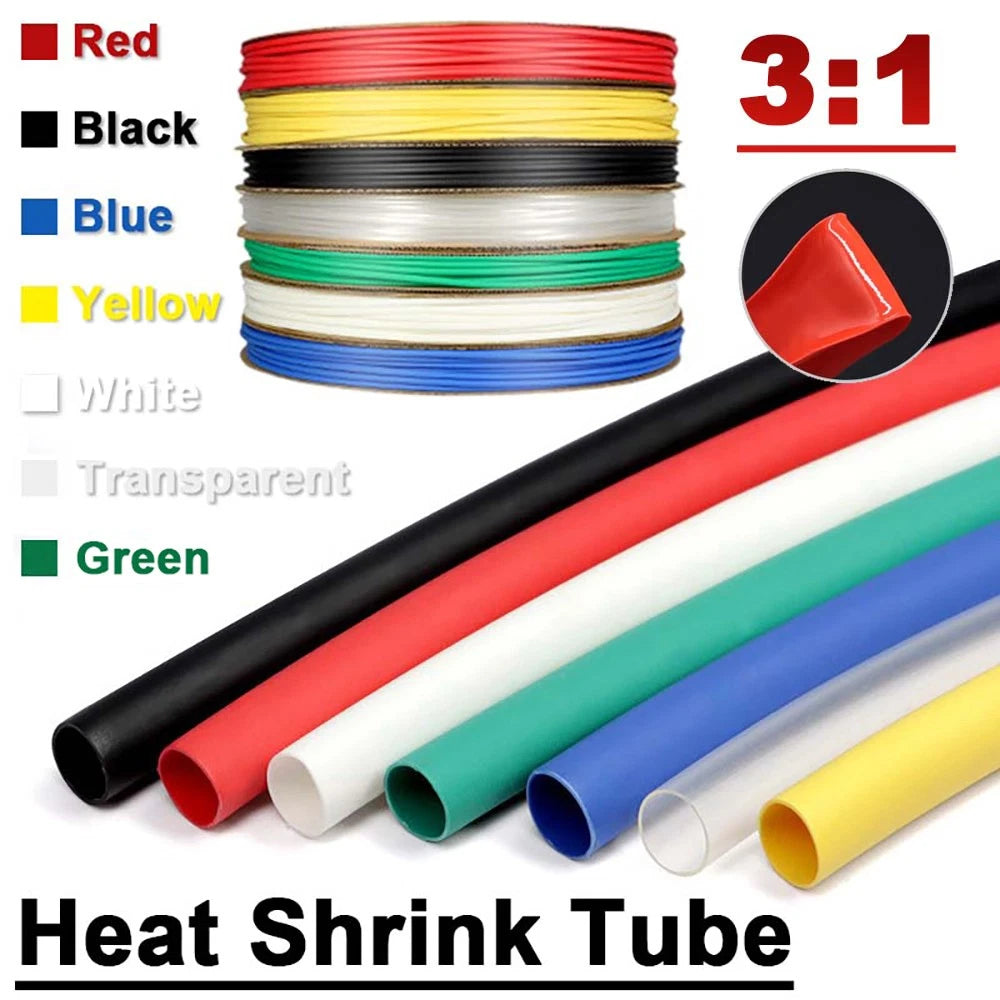

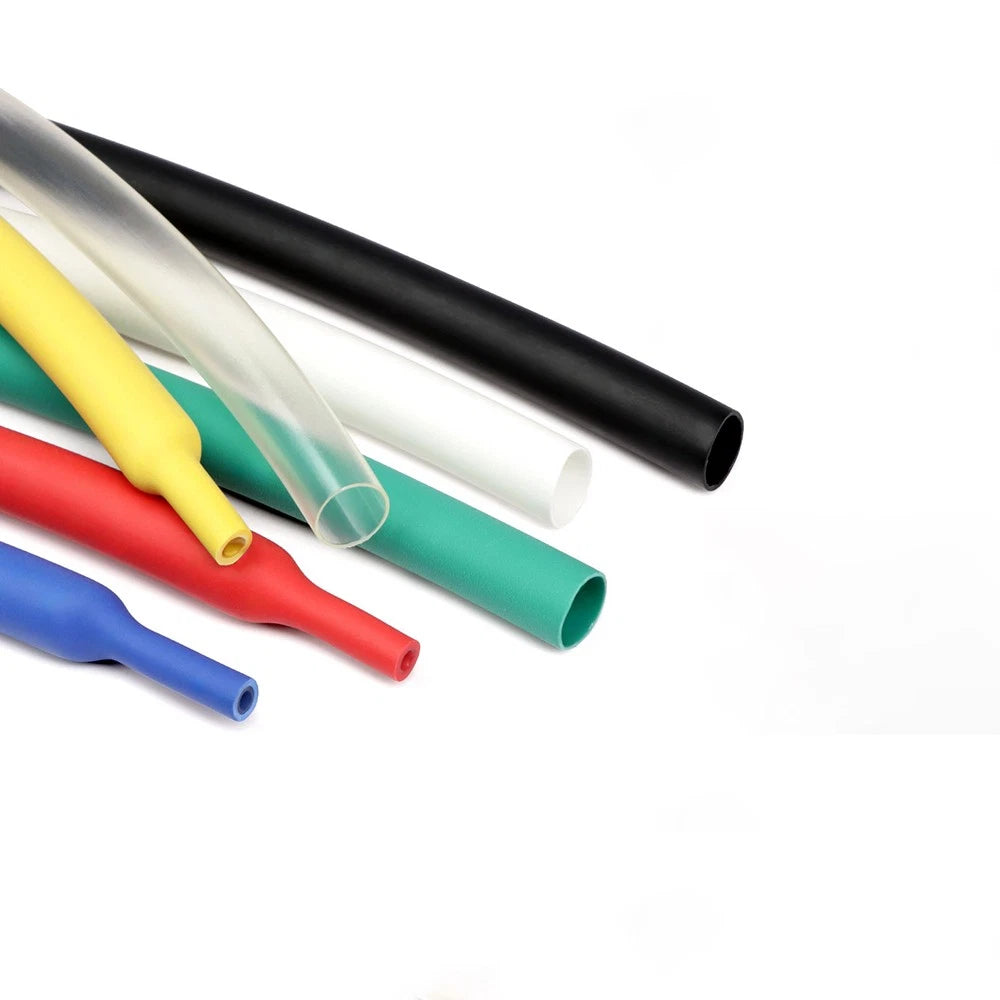

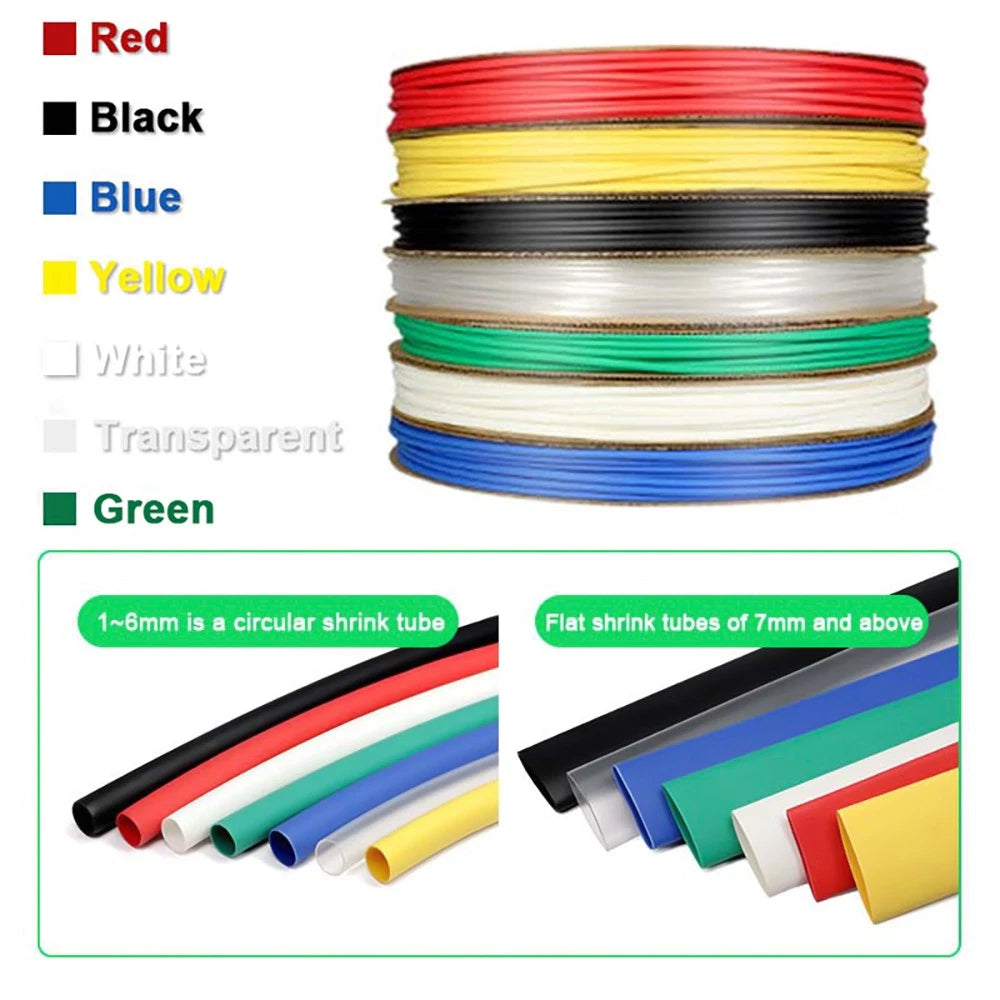

🎨Color-Coded Options — Eight color choices (Black, White, Red, Green, Yellow, Blue, Transparent, Orange) support wire identification and circuit labeling in automotive and industrial wiring harnesses.
-
🔥Flexible Polyolefin Outer Wall — Remains pliable after shrinking, resisting cracking in vibration-heavy environments such as engine bays, trailer wiring, and marine bilge areas.
-
✂️Cut-to-Length Convenience — Supplied in 1-meter or 5-meter lengths so you can cut exactly what you need for each splice, terminal, or connector without waste.

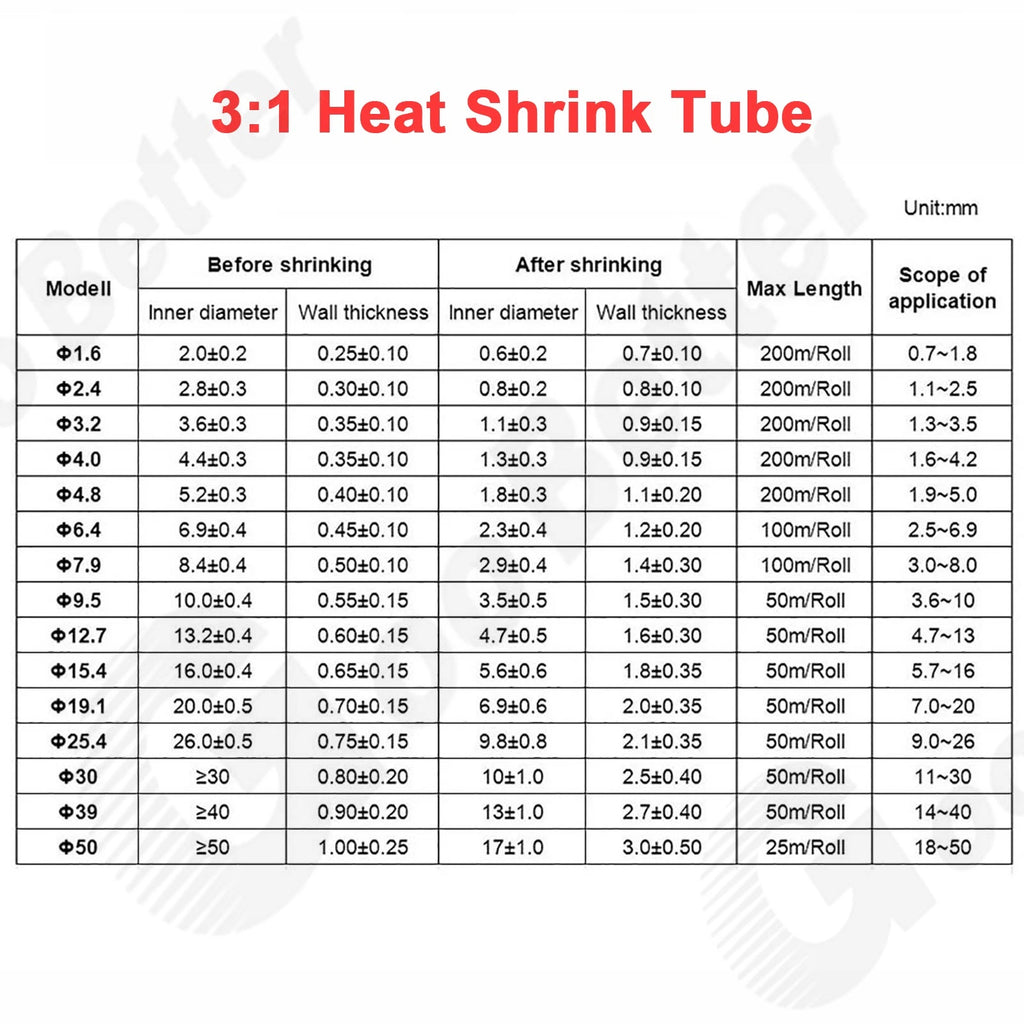

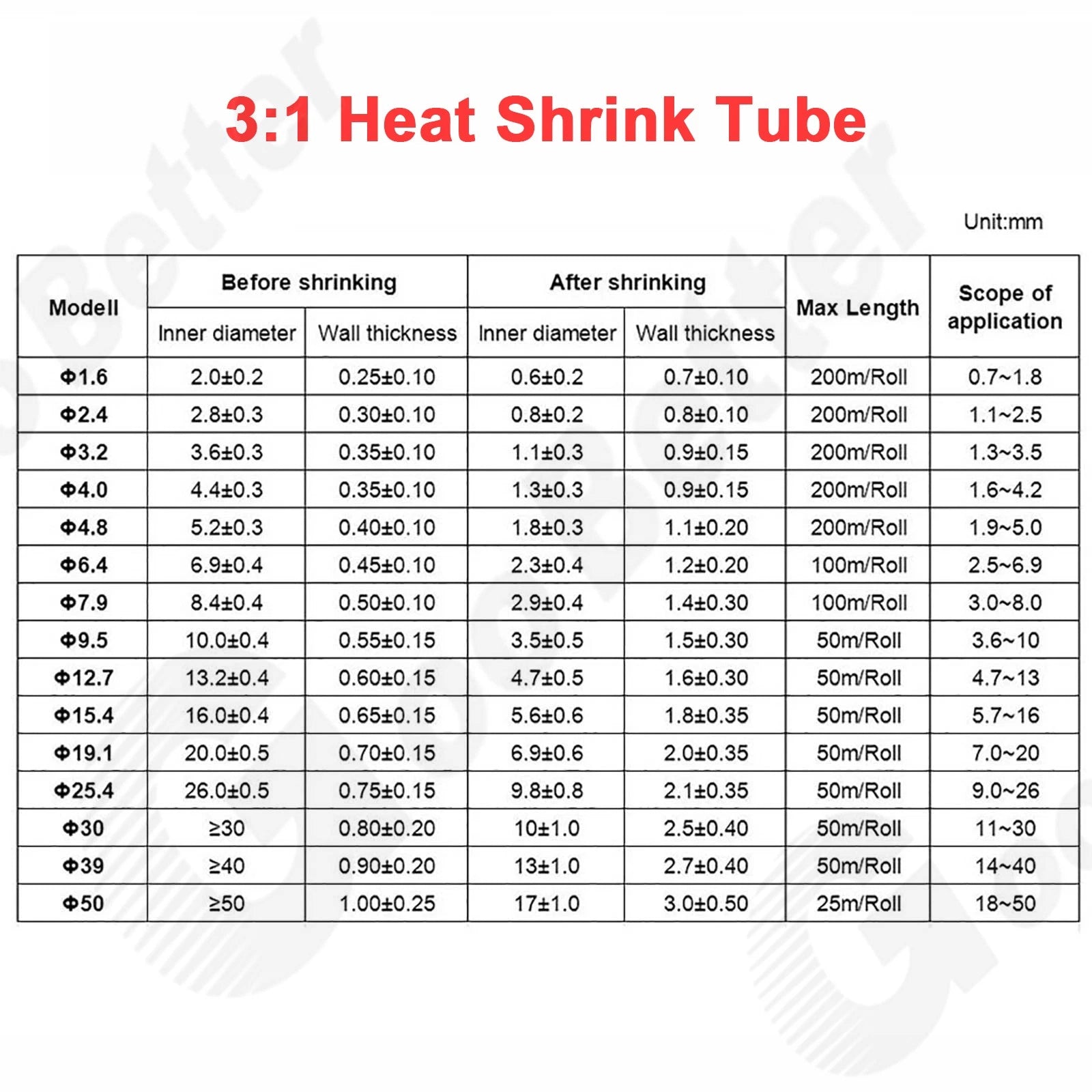

📐 Technical Specifications — 3:1 Dual-Wall Adhesive Heat Shrink Tubing
| Material |
Polyolefin (dual-wall with hot-melt adhesive inner layer on adhesive variants) |
| Shrink Ratio |
3:1 |
| Available Diameters (Expanded) |
1.5mm, 1.6mm, 2mm, 2.4mm, 3mm, 3.2mm, 4mm, 4.5mm, 4.8mm, 6mm, 6.4mm, 7.9mm, 9mm, 9.5mm, 12mm, 12.7mm, 15mm, 15.4mm, 18mm, 19.1mm, 24mm, 25.4mm, 30mm, 39mm, 50mm, 65mm |
| Available Lengths |
1 Meter (≈39") / 5 Meters (≈197") |
| Color Options |
Black (With & Without Adhesive), White, Red, Green, Yellow, Blue, Transparent, Orange (With Adhesive) |
| Shrink Temperature |
Typically 120°C (248°F) full recovery; begins shrinking at approx. 70°C (158°F) |
| Operating Temperature Range |
See variant options / Contact us to confirm for specific applications |
| Adhesive Activation |
Hot-melt inner wall activates during heat shrink process (adhesive variants only) |
| Suitable Substrates |
Polyolefin, PVC, nylon, metal conductors, and most cylindrical connectors |
| Recommended Tool |
Heat gun (low-to-medium setting); avoid open flame |
⚠️
Size tip: Select a tube whose expanded inner diameter is at least 10–20% larger than your component's outer diameter. The 3:1 ratio means a 9.5mm tube recovers to approximately 3.2mm. When in doubt, size up one step.
❓ Frequently Asked Questions
How do I choose the right diameter for my wire or connector?
Measure the outer diameter of the wire, cable, or connector before shrinking. Choose a tube whose expanded (pre-shrink) inner diameter is at least 10–20% larger than your component. With a 3:1 shrink ratio, the tube will shrink down to roughly one-third of its original diameter — so a 9.5mm (3/8") tube recovers to approximately 3.2mm (1/8"). When in doubt, size up one step to ensure full coverage.
What does the 3:1 shrink ratio mean?
A 3:1 ratio means the tubing shrinks to approximately one-third of its original expanded diameter when heat is applied. This is generally wider coverage than standard 2:1 tubing, making it suitable for irregular shapes, connectors, and stepped transitions where a tighter fit is needed over a larger range of diameters.
What is the adhesive glue lining and why does it matter?
The inner wall of adhesive-lined (dual-wall) tubing is coated with a hot-melt adhesive. When heated, this adhesive melts and flows around the substrate, creating a waterproof, strain-relieving seal. Non-adhesive (single-wall) variants provide insulation and bundling without the waterproof seal — choose based on whether moisture protection is required.

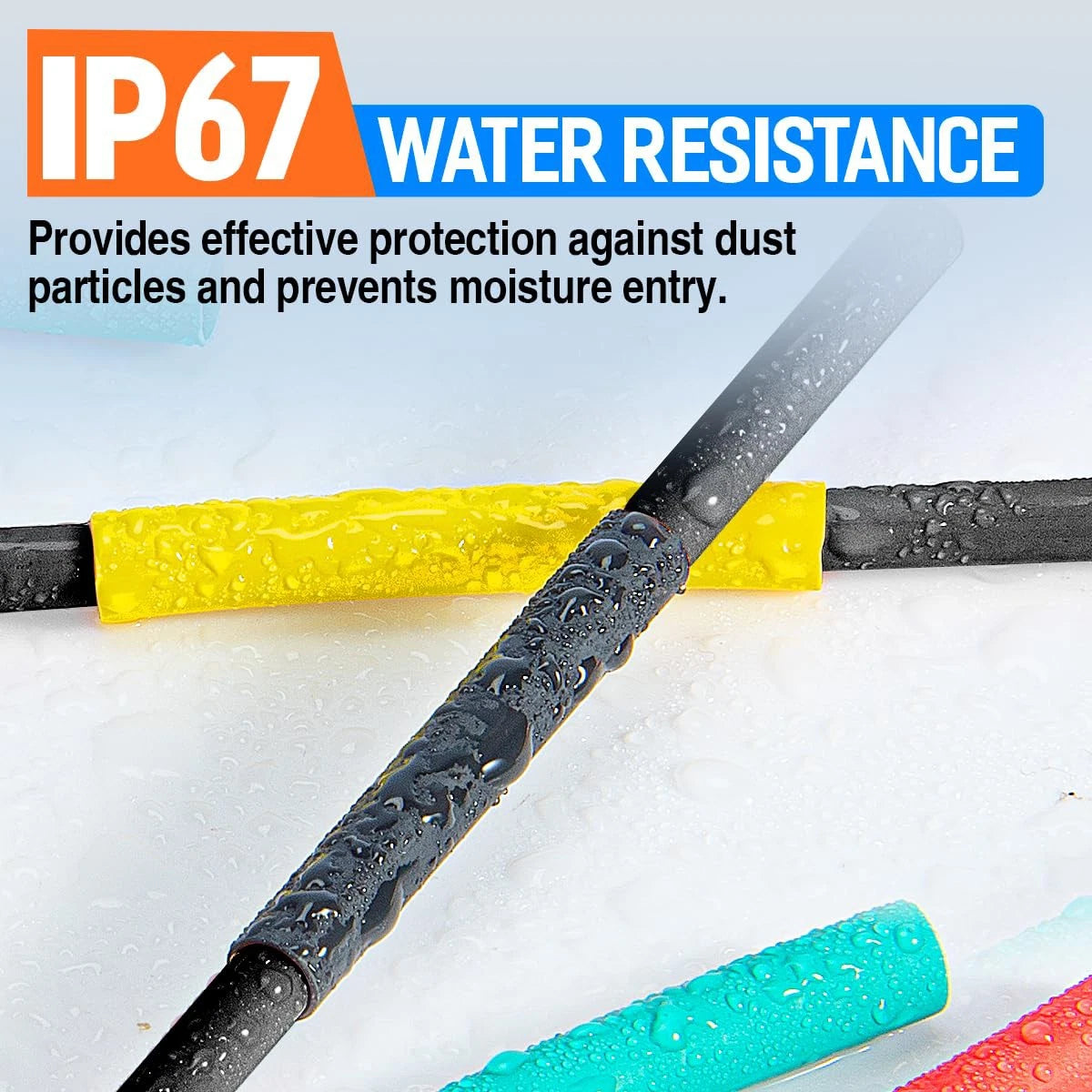

Can this heat shrink tubing be used outdoors or in marine environments?
Yes. The adhesive-lined variants are generally rated for outdoor and marine use because the glue lining creates a moisture-resistant seal around the conductor. The polyolefin outer wall typically withstands UV exposure and temperature extremes. For submersion or continuous water contact, contact us to confirm the specific variant's suitability before ordering.
What temperature is needed to shrink this tubing?
Polyolefin heat shrink tubing typically begins to shrink at around 70–90°C (158–194°F) and fully recovers at approximately 120°C (248°F). A heat gun set to low-to-medium is generally sufficient. Avoid open flames, which can scorch or unevenly shrink the tubing and may damage the adhesive layer.
Is this tubing compatible with automotive wiring and connectors?
Yes. The dual-wall adhesive-lined construction is widely used in automotive wiring harnesses, trailer connectors, and battery terminals. The glue lining seals out moisture and vibration, which is important in engine-bay and underbody applications. Always verify the operating temperature range matches your specific application before installation.
What is the difference between the adhesive and non-adhesive versions?
Non-adhesive (single-wall) tubing provides electrical insulation, color-coding, and mechanical protection without a waterproof seal — ideal for general wire bundling and labeling. Adhesive-lined (dual-wall) tubing adds a hot-melt inner layer that bonds to the substrate for strain relief and moisture resistance. Choose non-adhesive for dry indoor use and adhesive-lined for outdoor, marine, or high-vibration environments.
🛒 Select your color, diameter, and length above, then add to cart — ships from our US warehouse.
