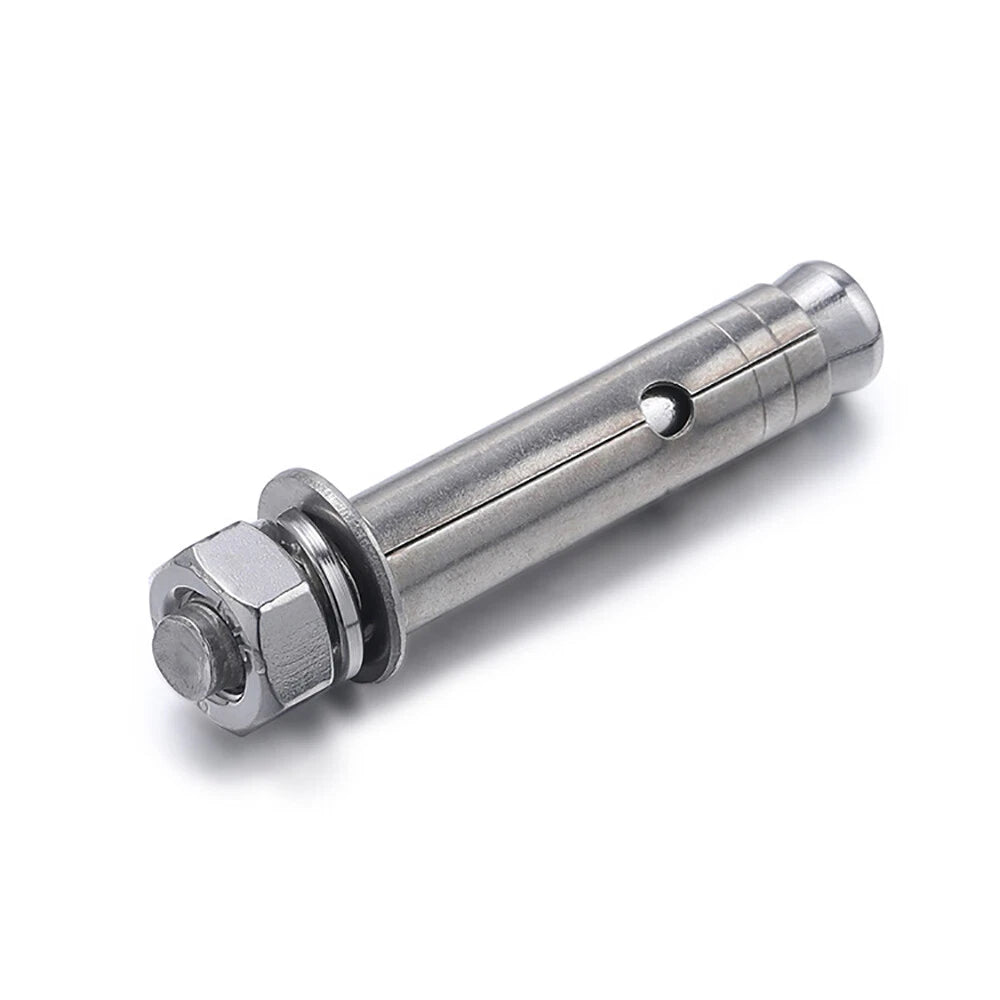

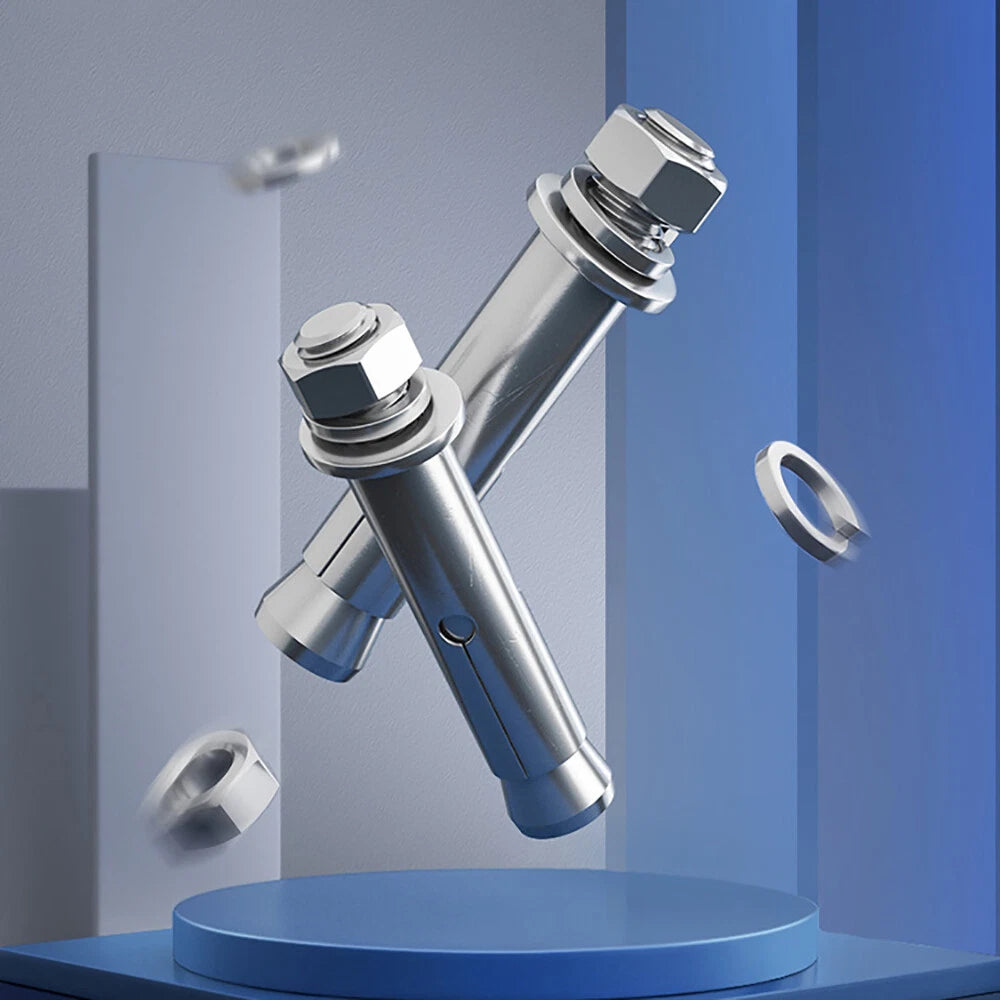

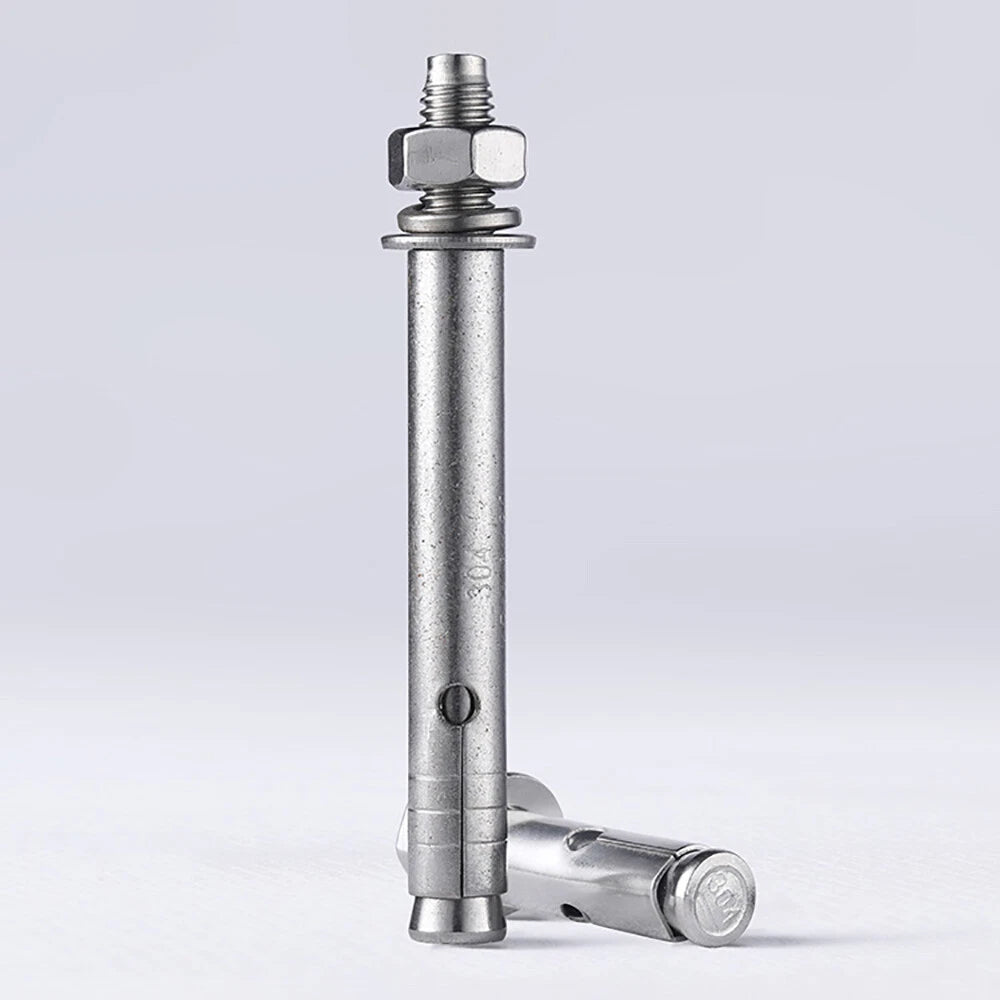

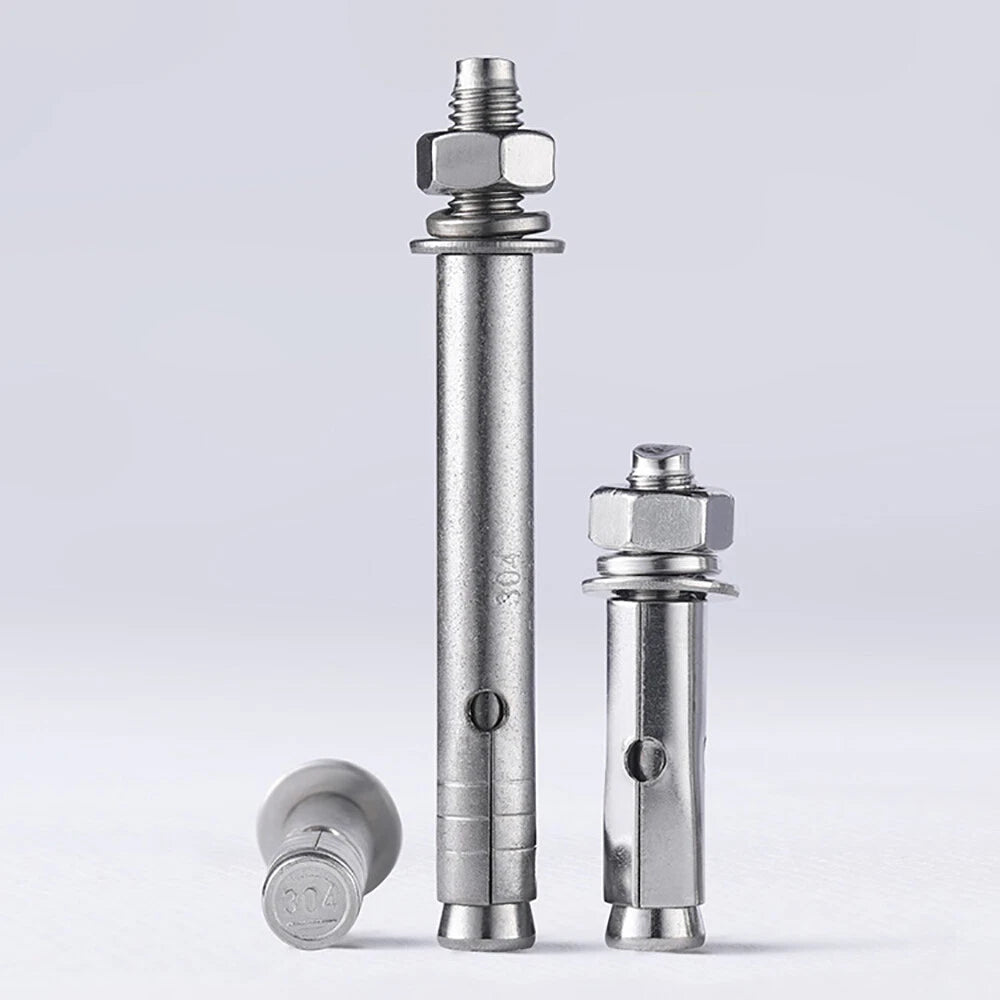

316 Stainless Steel Expansion Bolts – Heavy-Duty Wedge Anchors M6 M8 M10 M12 M14 M16

Match the bolt diameter to your fixture's hole size — for example, an M8 bolt requires an 8mm hole drilled into the base material. For length, a general rule is that the embedment depth should be at least 10× the bolt diameter. For an M8 bolt, aim for at least 80mm embedment, so a 100mm bolt is typically a safe choice when accounting for fixture thickness. In inches: M8 ≈ 5/16", M10 ≈ 3/8", M12 ≈ 1/2", M16 ≈ 5/8".

Load capacity depends on bolt diameter, embedment depth, and the compressive strength of the base material. In standard concrete (C20/25), an M10 wedge anchor generally achieves a tensile load of 8–12 kN and a shear load of 6–10 kN. Larger diameters and deeper embedment increase capacity. Always consult a structural engineer for safety-critical or overhead applications.

Yes. These bolts are made from 316 stainless steel, which contains molybdenum for enhanced resistance to chloride-induced corrosion. They are generally suitable for coastal, marine, and outdoor applications where standard 304 stainless steel would corrode prematurely. For fully submerged or highly aggressive chemical environments, confirm suitability with us before ordering.

These expansion bolts use standard metric coarse threads (ISO 68-1). The M6–M16 designations refer to the nominal thread diameter in millimeters. They are compatible with standard metric nuts, flat washers, and spring washers of the same grade. No proprietary hardware is required.

Wedge-style expansion anchors are designed for solid base materials such as poured concrete, solid brick, and natural stone. They are generally not recommended for hollow block, aerated concrete (AAC/Hebel), or soft masonry, as the expansion mechanism requires solid material to grip. For hollow or lightweight substrates, a sleeve anchor or chemical anchor is typically the better choice.

1. Drill a hole matching the bolt's nominal diameter to the required depth using a hammer drill and carbide-tipped bit.
2. Blow out dust and debris with compressed air or a blow pump — a clean hole is critical for full expansion.
3. Insert the bolt through your fixture and into the hole.

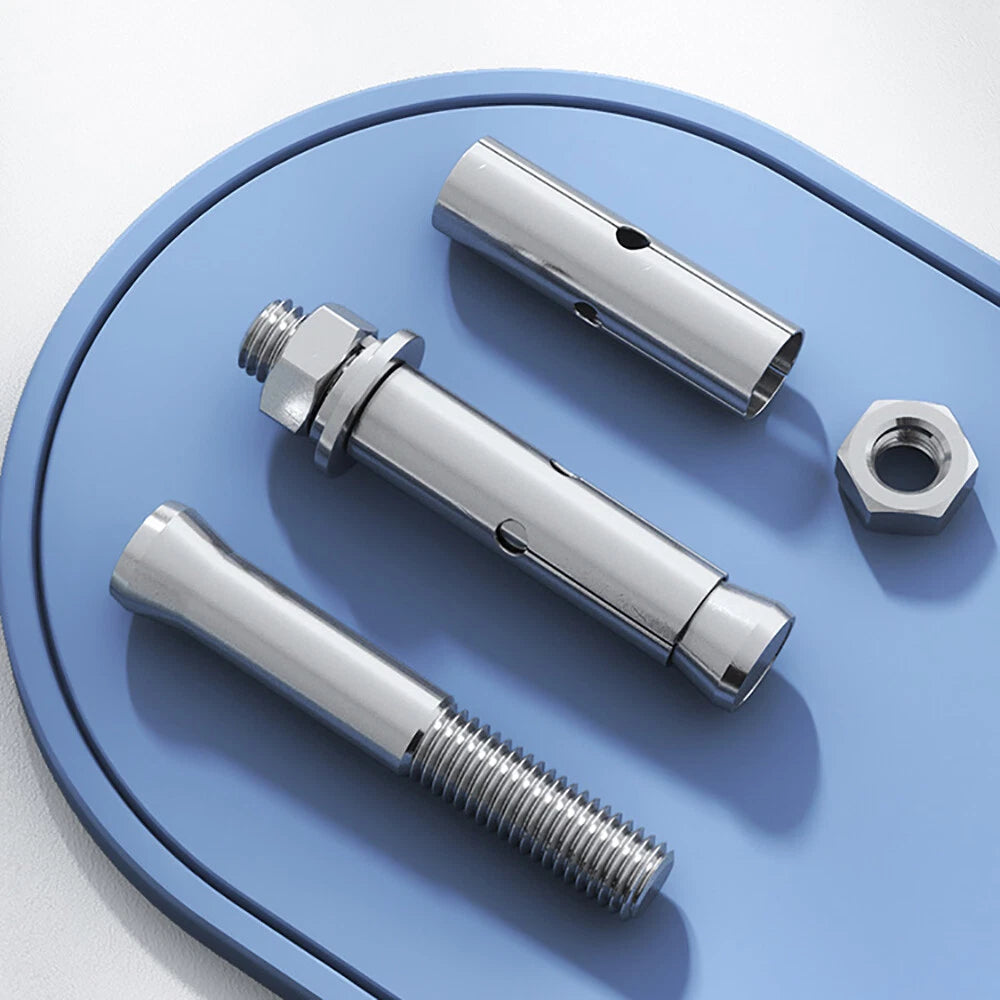

4. Tighten the nut with a wrench to the specified installation torque. As the nut advances, the wedge sleeve expands against the hole wall, locking the anchor in place.
5. Do not over-torque — this can crack the surrounding concrete or strip the anchor.

316 stainless steel adds 2–3% molybdenum to the 304 alloy, which significantly improves resistance to pitting and crevice corrosion in chloride-rich environments — saltwater, de-icing salts, swimming pool chemicals, and industrial atmospheres. For most indoor, dry applications, 304 is sufficient. For outdoor, coastal, or chemically exposed installations, 316 is the recommended grade and is worth the modest price premium.
