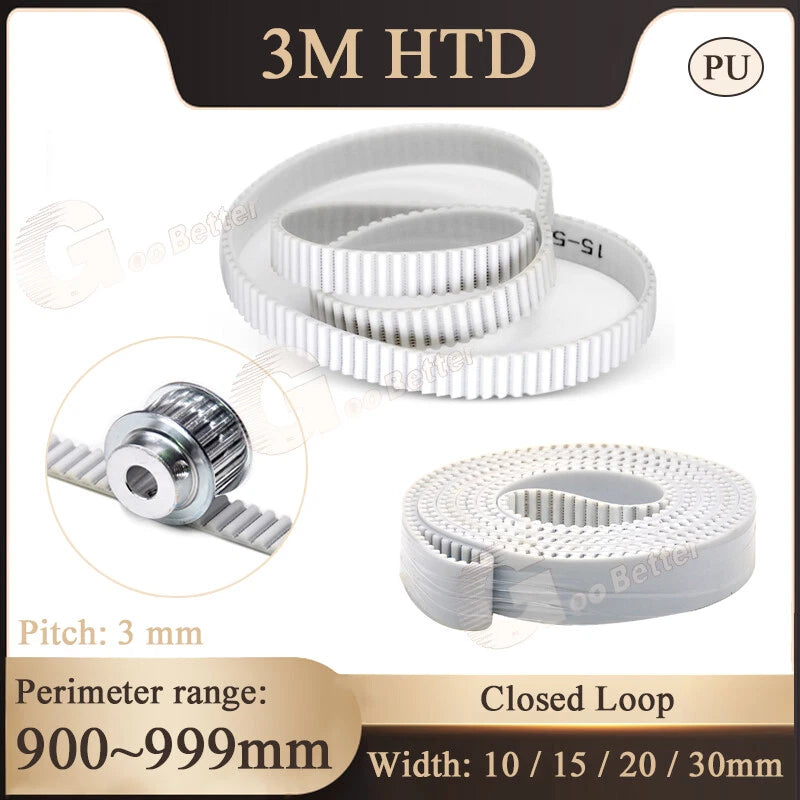

3M HTD PU Timing Belt – Closed Loop Synchronous Drive Belt for CNC & 3D Printers

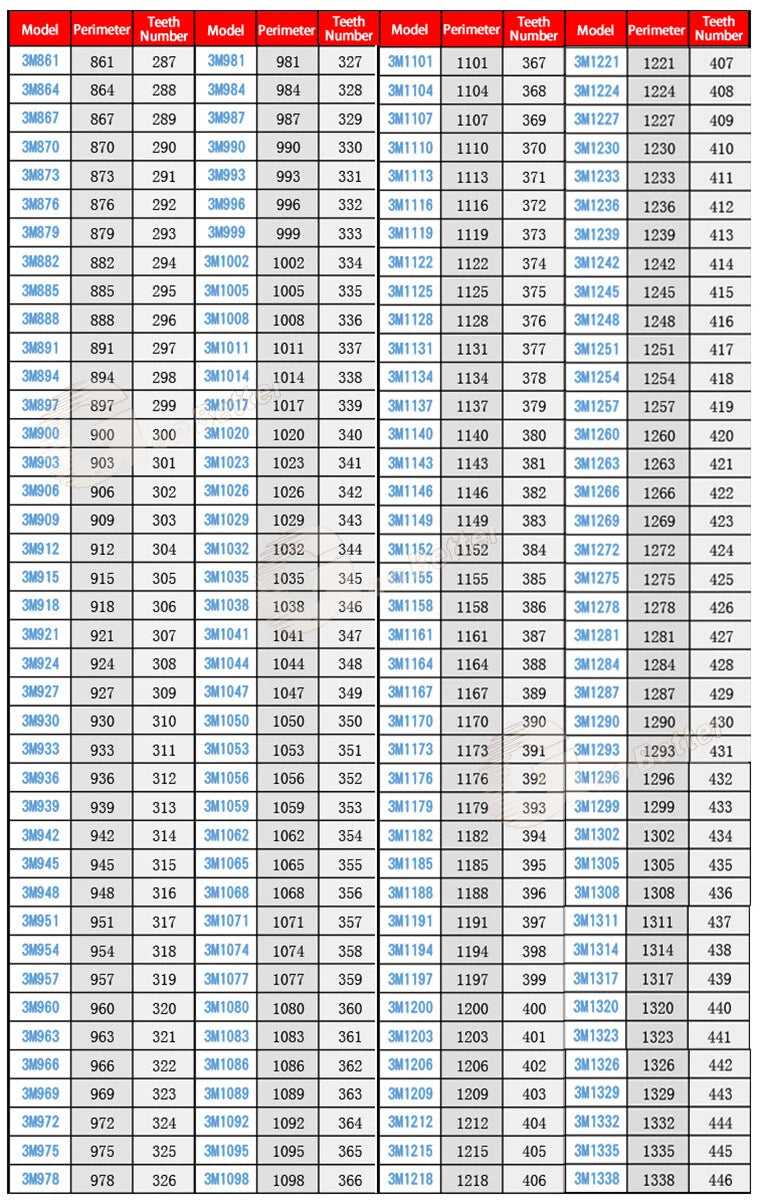

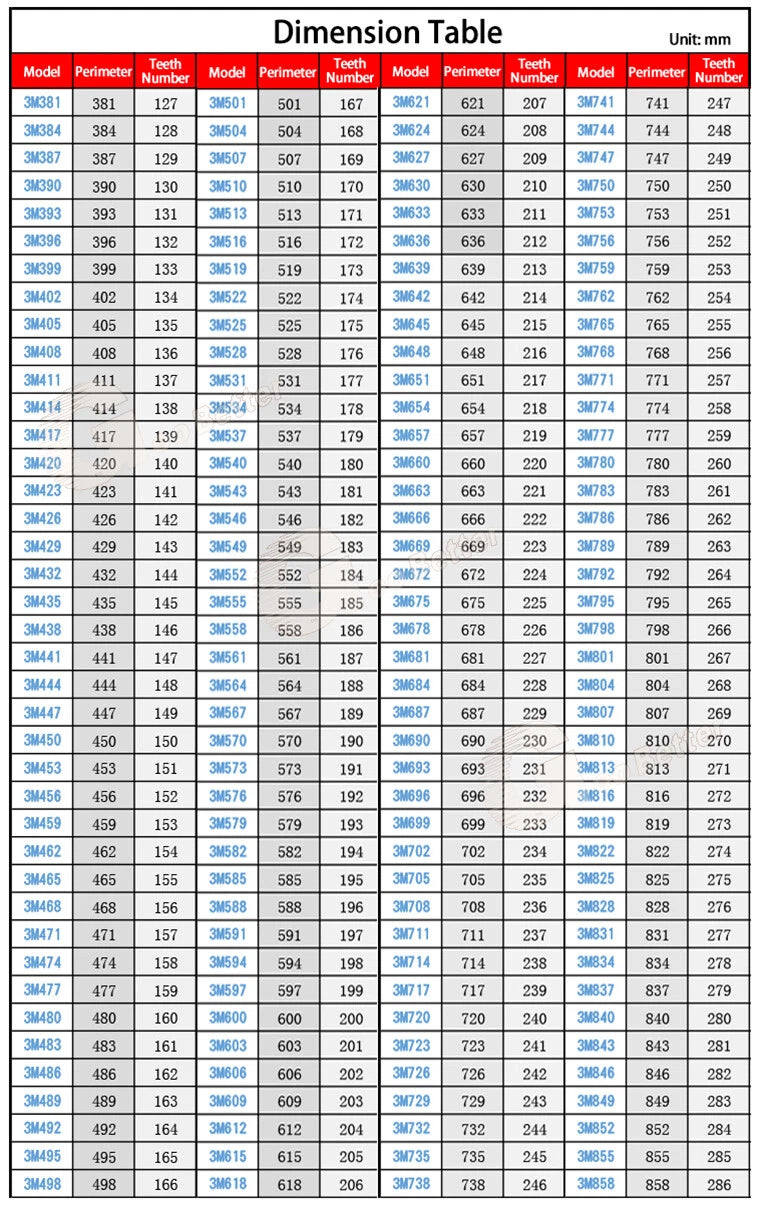

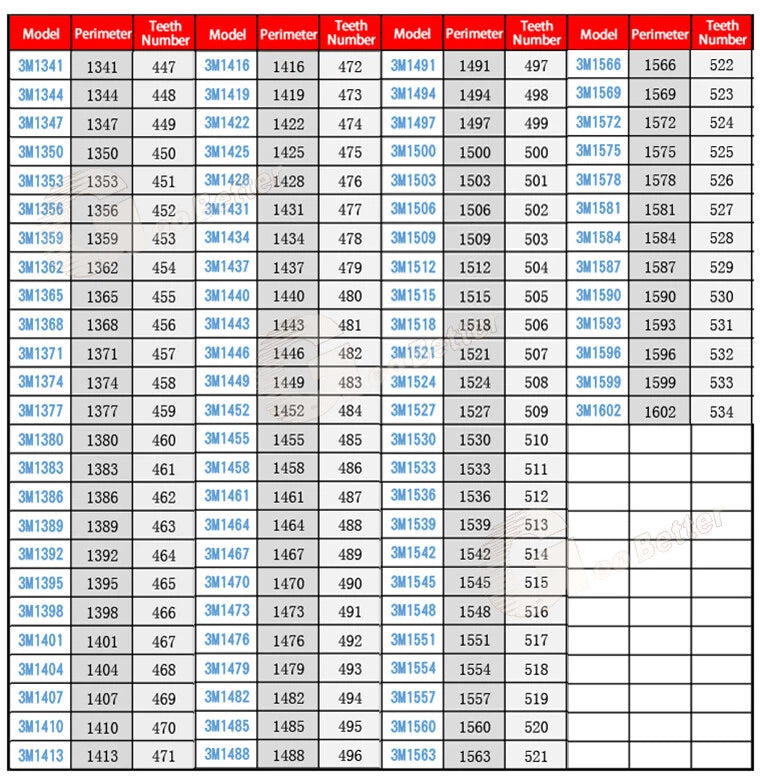

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Perimeter ≈ 2 × C-to-C distance + (π × pulley pitch diameter). Most CNC and 3D printer builds typically fall in the 900–999mm range covered by these variants. When in doubt, size up — a slightly longer belt can generally be tensioned with an idler; a short one cannot be installed. Select your perimeter in 3mm increments from the options above.

'3M' refers to a 3mm tooth pitch (center-to-center distance between adjacent teeth), and 'HTD' stands for High Torque Drive — a curvilinear tooth profile designed to reduce stress concentration and improve load distribution compared to trapezoidal tooth belts. This generally results in smoother, quieter operation and longer service life under moderate-to-high torque loads.

Tensile strength and torque capacity depend on belt width and operating conditions. Wider belts (20mm, 30mm) generally carry higher loads. For light-duty CNC routing and 3D printing, the 10mm and 15mm widths are typically sufficient. For heavier automation or conveyor applications, the 20mm or 30mm widths are recommended. Contact us to confirm suitability for your specific load requirements.

The polyurethane (PU) construction offers better resistance to oils, moisture, and mild chemicals compared to neoprene rubber belts. PU timing belts are generally suitable for light outdoor or humid environments. However, prolonged UV exposure or immersion in harsh chemicals is not recommended. For demanding outdoor applications, confirm operating conditions with us before ordering.

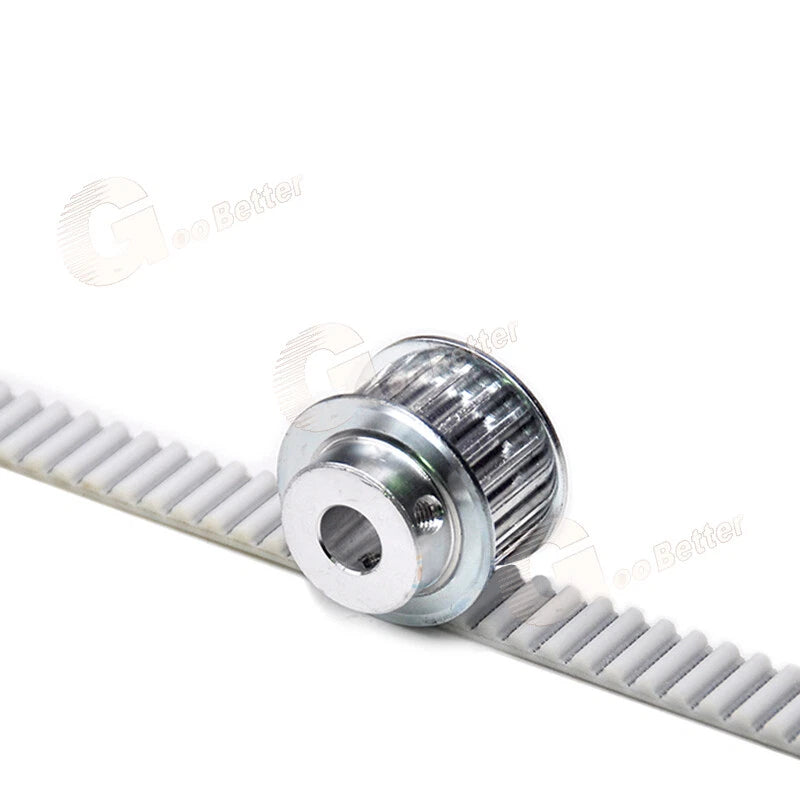

This belt is compatible with HTD 3M profile pulleys (3mm pitch, curvilinear tooth form). It is not interchangeable with GT2, MXL, or trapezoidal T-profile pulleys of the same pitch. Always verify your pulley is labeled 'HTD 3M' before ordering. Common tooth counts for 3M pulleys typically range from 12T to 60T depending on the application.

Polyurethane belts with steel cord reinforcement typically offer lower stretch under load, better dimensional stability, and longer fatigue life compared to standard rubber belts. This translates to more consistent positioning accuracy in CNC and 3D printing applications where repeatability matters. PU belts also tend to run cleaner with less particulate shedding.

No — closed-loop (endless) timing belts cannot be cut and rejoined without specialized equipment. They are manufactured as a continuous loop to a specific perimeter. If you need a non-standard length not listed in our variants, please contact us to inquire about custom sizing options.
