3M HTD Timing Belt Closed Loop — Reliable Synchronous Drive for CNC & 3D Printers

When a slipping or stretched belt throws off your CNC router's positioning or causes layer shifts in your 3D prints, the root cause is almost always a belt that wasn't built for precision. Makers, machine builders, and automation engineers who need repeatable, backlash-free motion depend on a belt that holds its pitch under load — every single cycle.

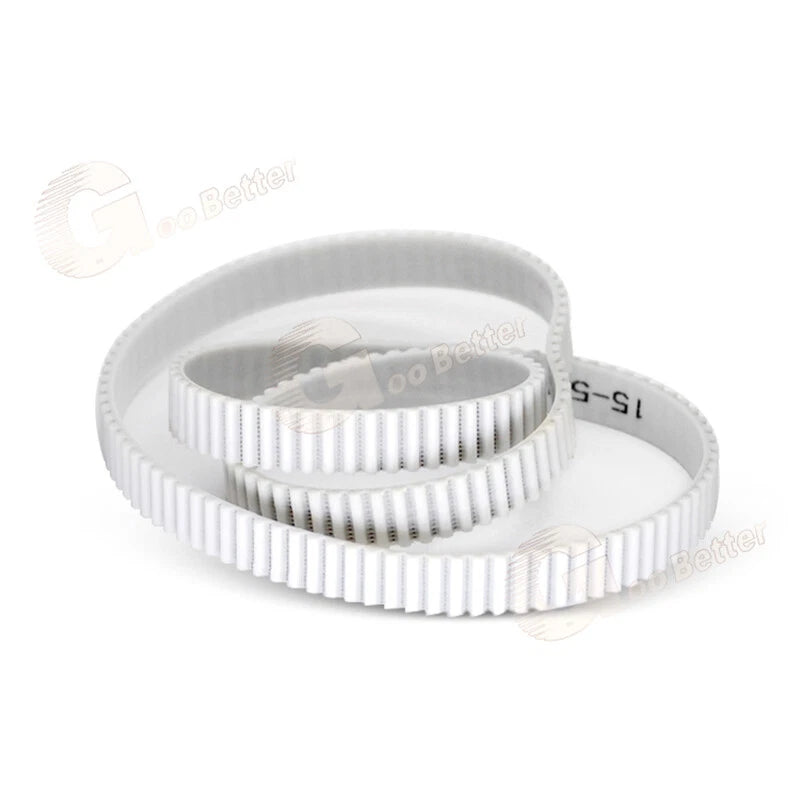

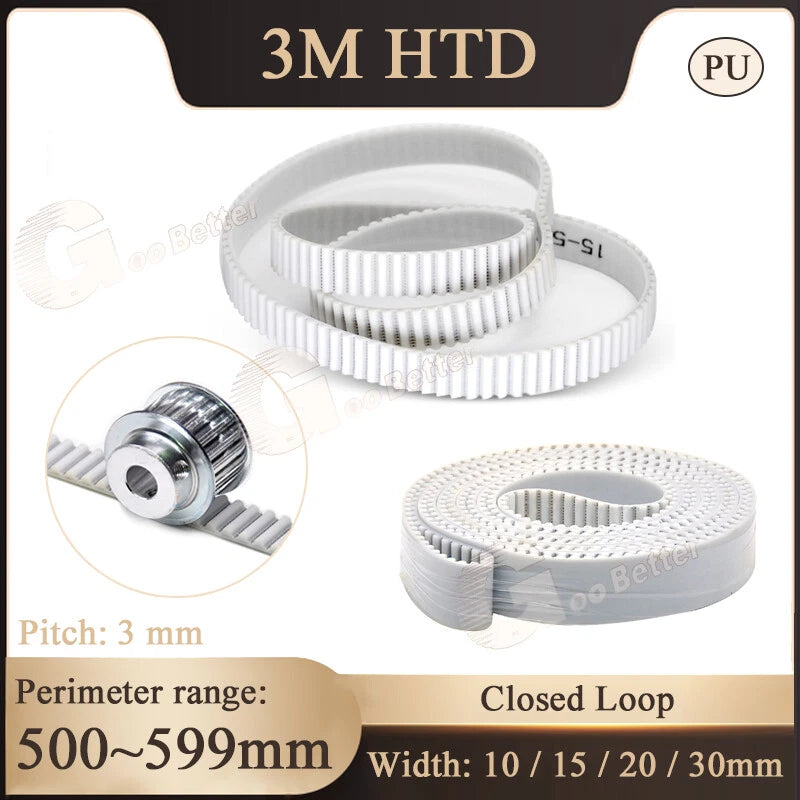

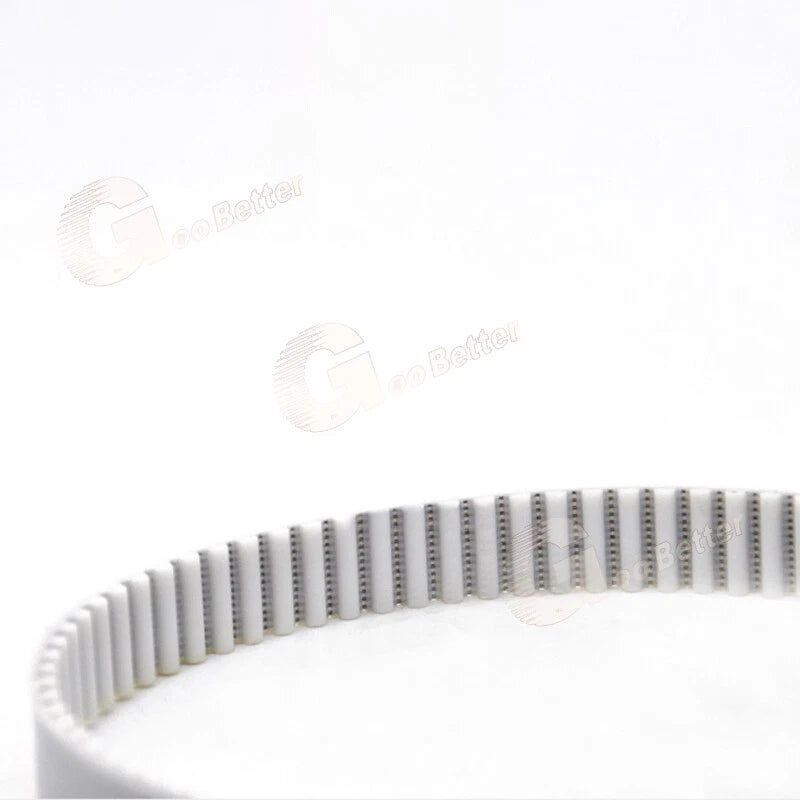

Each belt is a closed-loop (endless) polyurethane synchronous belt with a 3M HTD tooth profile (3mm pitch). Available perimeters range from 501mm (≈19.7") to 597mm (≈23.5"), in 3mm increments, with widths of 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), and 30mm (≈1-3/16"). The PU construction with steel cord reinforcement delivers low elongation and consistent tooth engagement across the full perimeter.

Typical applications include CNC router axis drives, 3D printer X/Y motion systems, laser engraver carriage drives, and light industrial conveyor or indexing systems where a 3M HTD closed-loop synchronous belt is required for accurate positioning.

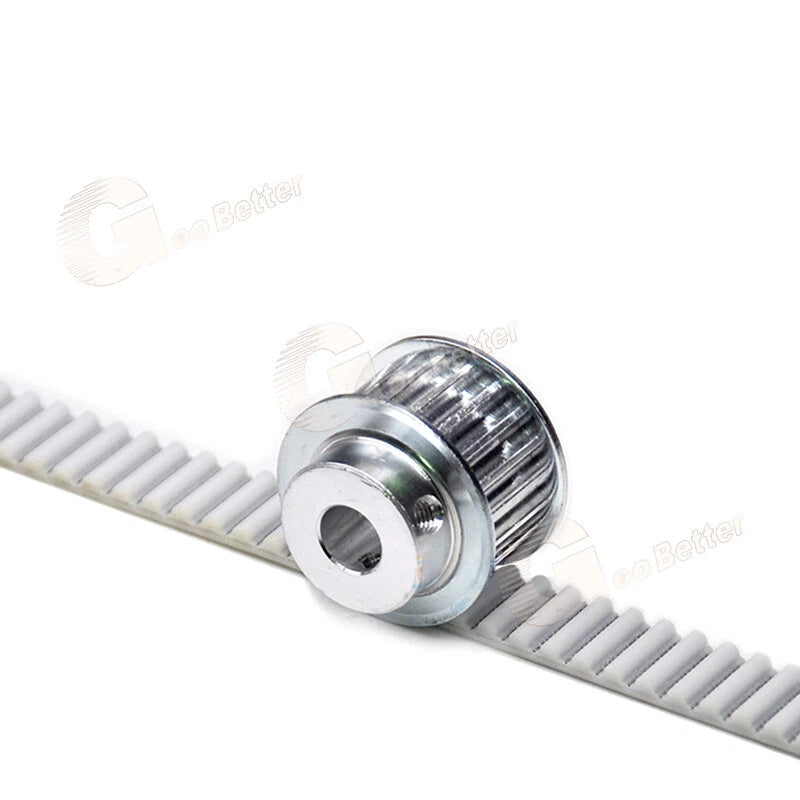

🔗 Compatibility: Designed for standard 3M HTD pulleys (3mm pitch, High Torque Drive profile). Not compatible with GT2 (2mm), T5 (5mm), or other pitch pulleys. Confirm your pulley pitch and groove width before ordering.

✅ Key Features of These 3M HTD Closed-Loop PU Timing Belts

⚙️3M HTD Tooth Profile — The 3mm pitch HTD tooth geometry provides positive engagement with matching pulleys, reducing the risk of tooth skip under dynamic loads common in CNC and 3D printer drive systems.
🔄Closed-Loop Construction — Seamless endless loop design eliminates the weak point of a mechanical joint, ensuring consistent tension distribution and smooth rotation throughout the belt's service life.
🧱Polyurethane Body with Steel Cord — PU material resists abrasion and light oil exposure better than standard rubber, while the steel cord reinforcement keeps elongation low for accurate synchronous positioning.
📐Wide Size Selection — Perimeters from 501mm to 597mm in 3mm steps, and widths of 10mm, 15mm, 20mm, and 30mm, cover a broad range of CNC router, 3D printer, and automation belt replacement needs.
🔇Low-Noise Operation — The HTD tooth profile and PU construction generally produce quieter operation compared to chain or gear drives, making these belts well-suited for workshop and office-adjacent environments.
🔁Direct Drop-In Replacement — Standardized 3M HTD dimensions mean these belts are typically interchangeable with OEM belts on popular CNC platforms and 3D printer motion systems without modification.

⚠️ Before ordering: Measure your existing belt's perimeter and width, or calculate the required perimeter from your pulley center distance. Perimeter is measured along the inner circumference (pitch line). See FAQ below for the calculation method.

📐 Technical Specifications — 3M HTD Closed-Loop PU Timing Belt

Belt Type	Synchronous Timing Belt, Closed Loop (Endless)
Tooth Profile	3M HTD (High Torque Drive, 3mm pitch)
Belt Material	Polyurethane (PU)
Reinforcement	Steel cord (typically included; contact us to confirm for specific variants)
Available Perimeters	501mm–597mm (≈19.7"–23.5"), in 3mm increments
Available Widths	10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 30mm (≈1-3/16")
Tooth Pitch	3mm
Compatible Pulley Type	3M HTD pulleys (3mm pitch)
Typical Applications	CNC routers, 3D printers, laser engravers, light automation
Operating Temperature	See variant options
Color	See variant options
Country of Origin	Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right perimeter size for my machine?

Measure the center-to-center distance between your two pulleys, then use this formula: Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 200mm center distance with two 15-tooth 3M HTD pulleys typically yields a perimeter around 501–510mm. Always verify against your machine's actual belt path before ordering. If you're replacing an existing belt, measure the old belt's inner circumference directly.

What pitch is this timing belt, and is it compatible with HTD pulleys?

This belt uses a 3mm HTD (High Torque Drive) tooth profile. It is designed to mesh with standard 3M HTD pulleys only. It is not interchangeable with GT2 (2mm pitch), T5 (5mm pitch), or other profiles — always confirm your pulley's pitch marking before purchasing.

What load or torque can this belt handle?

Polyurethane 3M HTD belts generally handle moderate torque loads suitable for CNC routing, 3D printing, and light automation. Wider belts (20mm, 30mm) carry proportionally higher loads than narrower widths (10mm, 15mm). For heavy industrial applications or high-speed drives, contact us to confirm suitability for your specific load requirements.

Can this belt be used outdoors or in environments with coolant or oil?

Polyurethane offers better moisture and light oil resistance than standard rubber belts, making it generally suitable for indoor CNC environments with occasional coolant mist exposure. It is not recommended for prolonged outdoor UV exposure or full immersion in liquids. For chemically aggressive environments, contact us to confirm compatibility.

Which width should I choose — 10mm, 15mm, 20mm, or 30mm?

Width selection depends on the torque and load of your application. 10mm is typically sufficient for light-duty 3D printers and small CNC axes. 15mm and 20mm suit mid-range CNC routers and automation systems. 30mm is generally used for higher-torque drives or wider pulley configurations. Always match the belt width to your pulley's groove width for proper tracking.

Is this a closed-loop belt or an open-ended belt?

This is a closed-loop (endless) belt — it has no seam or mechanical joint. It is designed for continuous loop drive systems where the belt runs in a fixed circuit around pulleys, as found in most CNC machines and 3D printers. If you need open-ended belt sold by the meter, that is a different product type.

What is the belt made of, and does it include steel cord reinforcement?

The belt body is made from polyurethane (PU), which provides flexibility, abrasion resistance, and better chemical resistance than rubber. Most PU timing belts in this category include steel cord reinforcement for dimensional stability and low stretch under load. Contact us if your application requires a specific cord specification or tensile rating.

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
