3M HTD Timing Belt Closed Loop — Reliable PU Synchronous Drive for CNC & 3D Printer Builds

When a slipping or mismatched drive belt causes your CNC router to lose steps or your 3D printer to produce layer shifts, the root cause is almost always an incompatible belt profile or incorrect perimeter. Makers, machine builders, and automation engineers who need a dimensionally precise, closed-loop 3M HTD timing belt that installs without splicing or joining will find this listing covers the most common perimeter sizes in one place.

Each belt is a seamless closed loop made from polyurethane (PU) with steel cord tensile reinforcement. The HTD (High Torque Drive) tooth profile features a curvilinear cross-section for reduced stress concentration. Perimeter options range from 1401mm (≈55.2") to 1497mm (≈58.9"), in 3mm increments. Width options are 10mm, 15mm, 20mm, and 30mm — select both dimensions using the variant dropdowns above.

Typical use cases include CNC router X/Y/Z axis drives, FDM 3D printer motion systems, laser cutter gantry drives, and light industrial conveyor or indexing applications where a 3M HTD closed-loop synchronous belt is specified. The steel-cord construction also makes these belts a practical replacement for worn OEM belts in servo-driven robotic joints and pick-and-place machines.

ℹ️ Compatibility Notice: These belts are designed exclusively for 3M HTD profile pulleys (3mm pitch, curvilinear tooth). They are not compatible with GT2, T5, T10, or trapezoidal-profile pulleys. Verify your pulley specification before ordering.

✅ Key Features of These 3M HTD Closed-Loop PU Timing Belts

  • 🔁Seamless Closed-Loop Construction — No splice, no joint, no weak point. The belt installs as a continuous loop, eliminating the failure mode common to cut-and-joined belts in CNC and 3D printer drive systems.
  • ⚙️HTD Curvilinear Tooth Profile — The rounded HTD tooth geometry distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear stress and improving torque transmission in servo and stepper motor drives.

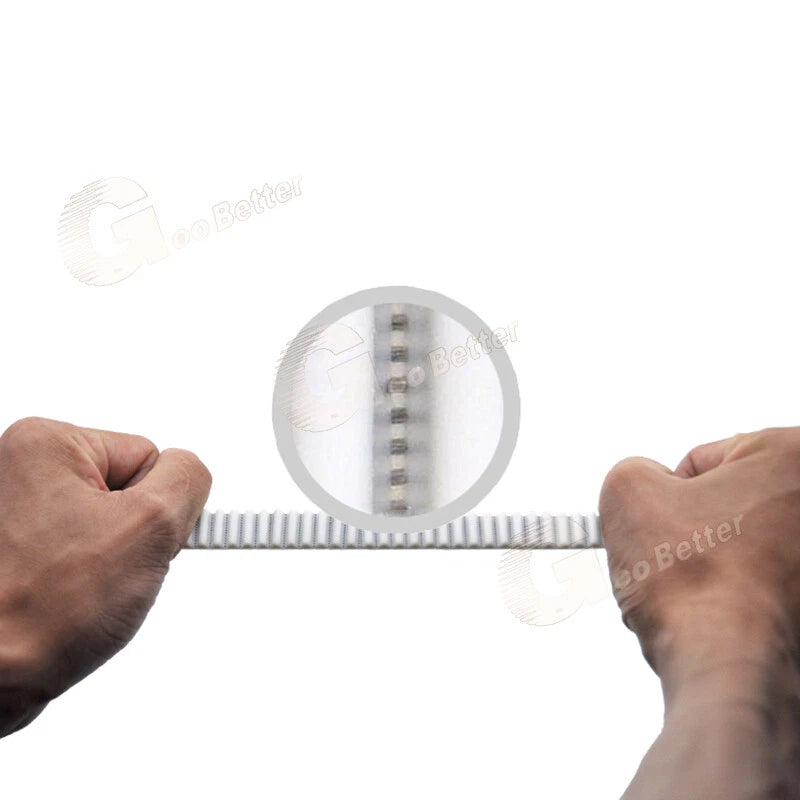

  • 🧲Steel Cord Tensile Reinforcement — Embedded steel cords resist elongation under dynamic loads, maintaining consistent pitch accuracy over time — critical for dimensional repeatability in CNC routing and additive manufacturing.
  • 🛡️Polyurethane Body — Oil & Abrasion Resistant — PU construction offers better resistance to oils, greases, and surface wear compared to standard neoprene rubber belts, extending service life in lightly contaminated or industrial environments.
  • 📐Wide Size Selection — 1401mm to 1497mm Perimeter — Available in 3mm perimeter increments across four widths (10 / 15 / 20 / 30mm), covering a broad range of pulley center-distance configurations for custom machine builds.
  • 🚀Drop-In Replacement for OEM 3M HTD Belts — Dimensionally matched to standard 3M HTD specifications, making these belts a straightforward swap for worn or broken drive belts in existing CNC machines, laser cutters, and robotic systems.

📐 Technical Specifications — 3M HTD Closed-Loop Timing Belt

Belt Profile HTD (High Torque Drive) — Curvilinear tooth
Pitch 3mm (3M)
Belt Material Polyurethane (PU)
Tensile Member Steel cord
Belt Type Closed loop (seamless, no splice)

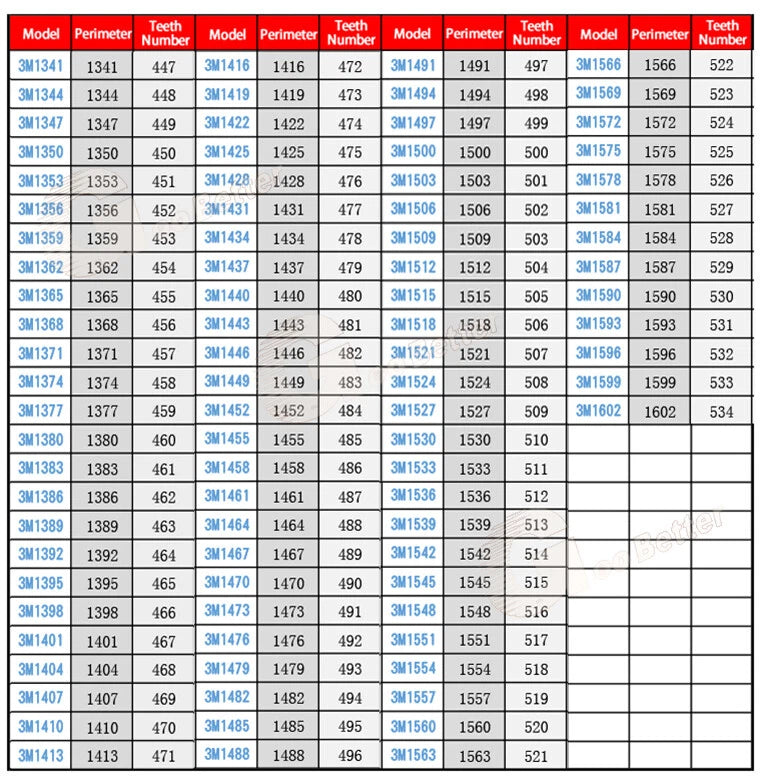

Perimeter Range 1401mm (≈55.2") – 1497mm (≈58.9"), in 3mm increments
Available Widths 10mm / 15mm / 20mm / 30mm

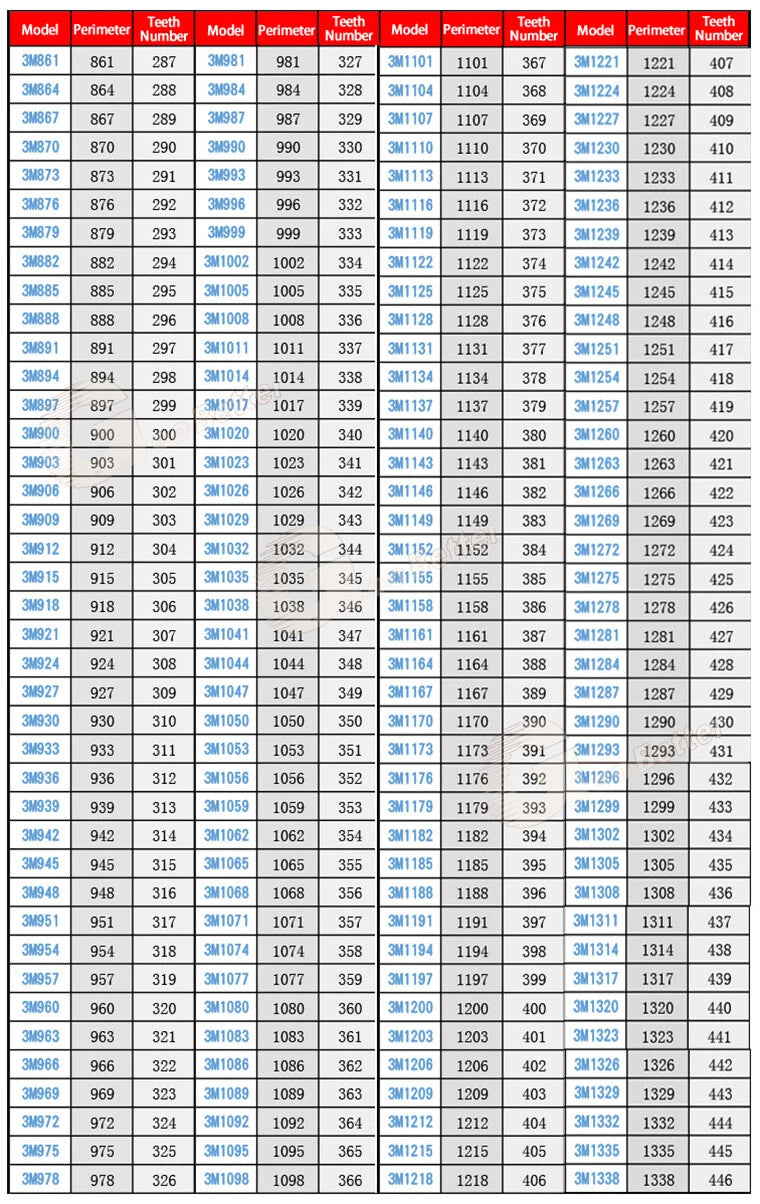

Tooth Count (per perimeter) See variant options (Perimeter ÷ 3mm pitch)
Compatible Pulley Profile 3M HTD only (not GT2, T5, T10, or trapezoidal)
Tensile Strength Contact us to confirm for your load requirement
Operating Temperature See variant options / Contact us to confirm
Color / Finish Typically black PU body with silver steel cord
Typical Applications CNC router drives, 3D printer motion systems, laser cutter gantries, servo-driven automation
⚠️ Sizing Note: Perimeter is measured along the belt's pitch line (inside the tooth roots), not the outer circumference. If you are replacing an existing belt, measure the old belt's perimeter or count the teeth and multiply by 3mm to confirm the correct size.

❓ Frequently Asked Questions

How do I choose the right perimeter size for my 3M HTD timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt perimeter using the standard formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For example, a 1440mm (≈56.7") belt typically suits a center distance of around 680–700mm with standard 3M pulleys. When in doubt, size up — a slightly longer belt can generally be tensioned; a belt that's too short cannot be installed.

What does '3M HTD' mean and how is it different from other timing belts?

'3M' refers to a 3mm tooth pitch (distance between tooth centers), and 'HTD' stands for High Torque Drive — a curvilinear tooth profile designed to reduce stress concentration and improve load distribution compared to trapezoidal (MXL/XL) profiles. HTD belts generally handle higher torque at lower speeds and are widely used in CNC routers, 3D printers, and servo-driven axes.

How strong is this timing belt — what load can it handle?

These belts use steel cord tensile members embedded in a polyurethane body, which typically provides tensile strength significantly higher than neoprene/fiberglass alternatives. Wider belts (20mm, 30mm) carry proportionally higher loads. For precise load ratings, refer to your application's torque requirements and contact us to confirm suitability for heavy-duty use.

Can this belt be used outdoors or in oily environments?

Polyurethane (PU) timing belts generally offer good resistance to oils, greases, and many common industrial fluids, making them suitable for light-duty outdoor or mildly contaminated environments. However, prolonged UV exposure or immersion in aggressive solvents may degrade performance over time. For harsh outdoor applications, confirm compatibility with your specific conditions before ordering.

What pulleys are compatible with this 3M HTD belt?

This belt is designed for standard 3M HTD pulleys (3mm pitch, HTD tooth profile). It is not interchangeable with GT2, T5, T10, or trapezoidal-profile pulleys of the same pitch. Always verify that your pulley is specifically rated for 3M HTD profile. The belt width must also match or be narrower than the pulley flange width.

How do I convert the perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference:

  • 1401mm ÷ 25.4 ≈ 55.2"
  • 1440mm ÷ 25.4 ≈ 56.7"
  • 1461mm ÷ 25.4 ≈ 57.5"
  • 1497mm ÷ 25.4 ≈ 58.9"

All perimeter options are selectable in the variant dropdown above.

Which width should I choose — 10mm, 15mm, 20mm, or 30mm?

Width selection depends on the torque and lateral load your application requires. Narrower belts (10mm) are typically used in light-duty 3D printers and small CNC axes. Wider belts (20mm, 30mm) are suited for higher-torque servo drives, robotic joints, or industrial automation where side loads are greater. In most cases, match the belt width to your pulley's usable face width.

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
