3M HTD Timing Belt Closed Loop — PU Synchronous Drive Belt for CNC, 3D Printer & Pulley Systems

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 600mm (≈23.6") belt is typically used with a center distance of roughly 270–280mm on standard 3M pulleys. Always verify against your machine's actual belt path before ordering. If replacing an existing belt, measure the old belt's outer perimeter directly.

Width determines load capacity and must match or be narrower than your pulley face. For light-duty 3D printers and small desktop CNC routers, 10mm or 15mm is generally sufficient. For heavier gantry systems, higher torque spindle drives, or applications where belt stretch must be minimized, 20mm or 30mm provides greater tensile strength. When in doubt, go wider — you can always use a wider belt on a wider pulley.

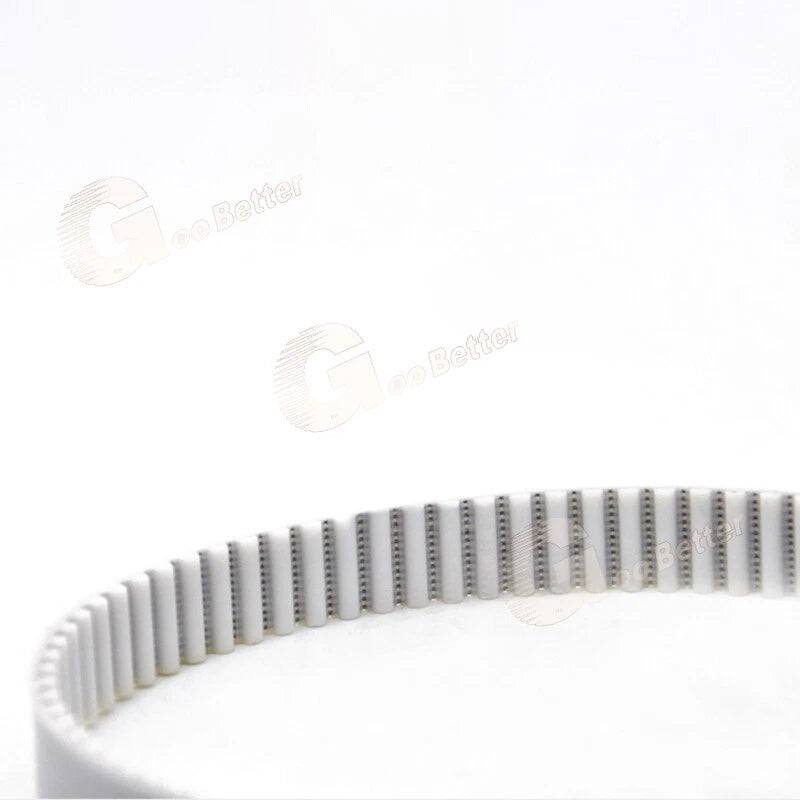

The polyurethane body with steel cord reinforcement gives this belt strong tensile resistance compared to standard rubber belts. Exact load ratings vary by width; wider belts carry higher loads. In most CNC router and 3D printer belt-driven axis applications, the 3M pitch belt handles the required torque without slipping when properly tensioned. For high-load industrial applications, contact us to confirm suitability.

Polyurethane (PU) timing belts are generally more resistant to moisture, oils, and mild chemicals than standard neoprene belts. They are typically suitable for indoor industrial environments and light outdoor use. For prolonged outdoor exposure, high-humidity conditions, or contact with aggressive chemicals, contact us to confirm compatibility before ordering.

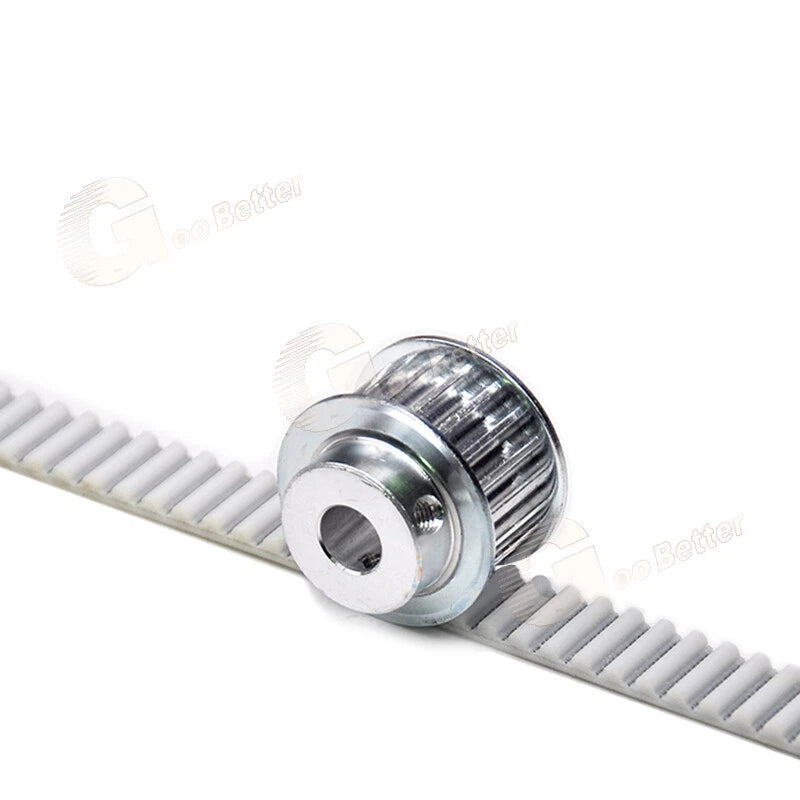

Yes. This belt uses the 3M pitch (3mm tooth-to-tooth spacing) with an HTD (High Torque Drive) tooth profile, designed to mesh with standard 3M HTD pulleys. Verify that your pulley's tooth profile is labeled "3M HTD" before installing. Do not use with GT2 or other pitch pulleys — the tooth geometry is different and will cause premature wear or skipping.

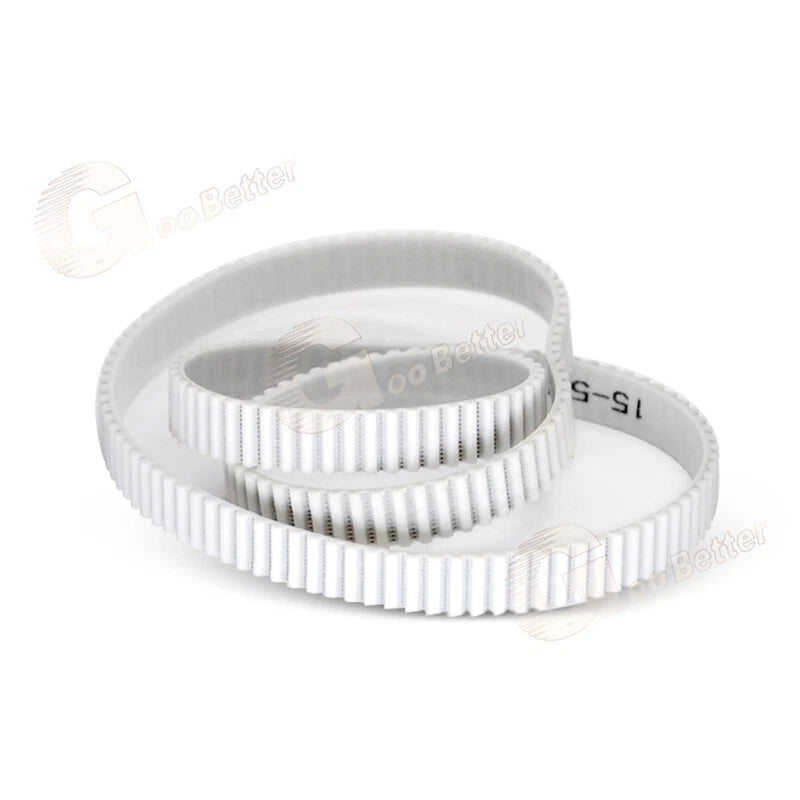

Closed-loop (endless) belts have no joint or splice, which eliminates the weak point found in cut-and-joined belts. This results in smoother, more consistent motion — critical for CNC positioning accuracy and 3D print layer consistency. Open-ended belts are typically used in linear systems with tensioners; closed-loop belts are used in fixed-perimeter pulley drives.

Divide the mm value by 25.4. Quick reference: 600mm ≈ 23.6" | 615mm ≈ 24.2" | 630mm ≈ 24.8" | 645mm ≈ 25.4" | 660mm ≈ 26.0" | 675mm ≈ 26.6" | 690mm ≈ 27.2" | 699mm ≈ 27.5". Select the size closest to your measured belt path perimeter.

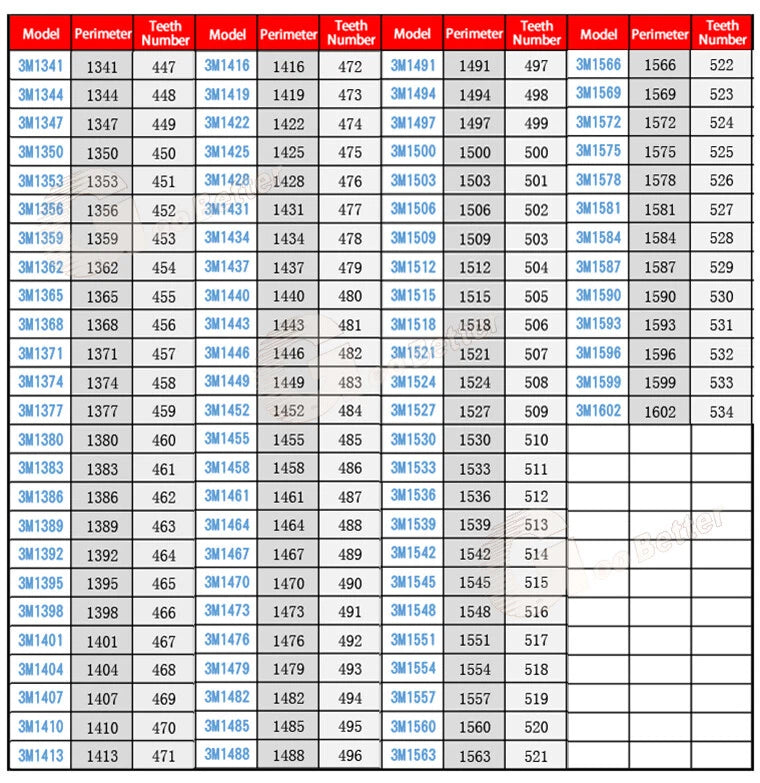

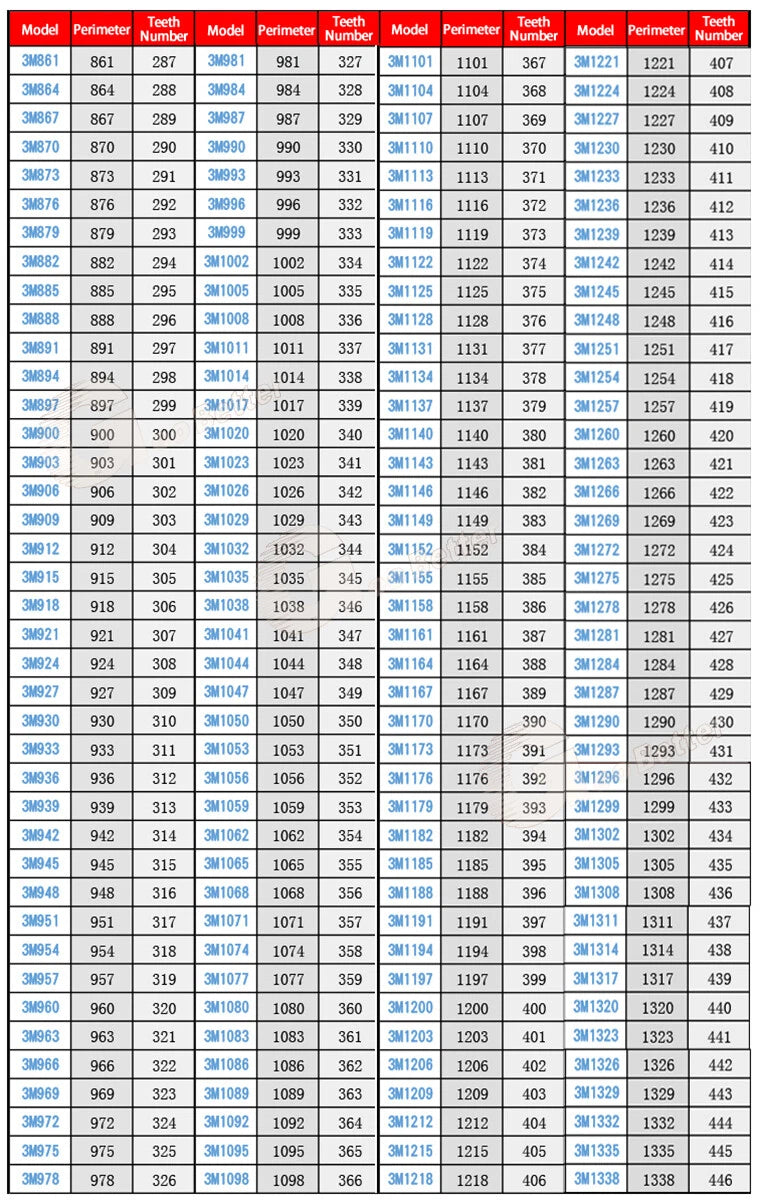

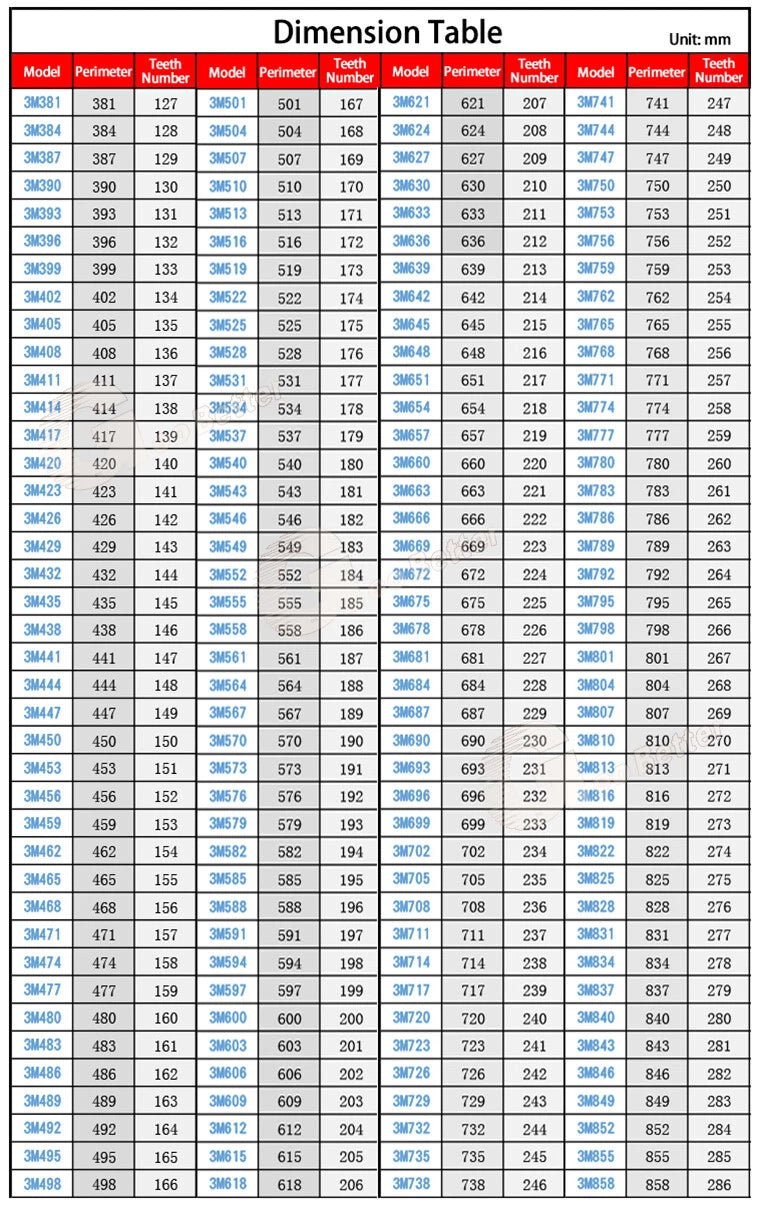

The number of teeth equals the perimeter divided by the pitch (3mm). For example: 600mm ÷ 3mm = 200 teeth | 630mm = 210 teeth | 660mm = 220 teeth | 690mm = 230 teeth | 699mm = 233 teeth. This is useful when specifying belts by tooth count for your machine's documentation.
