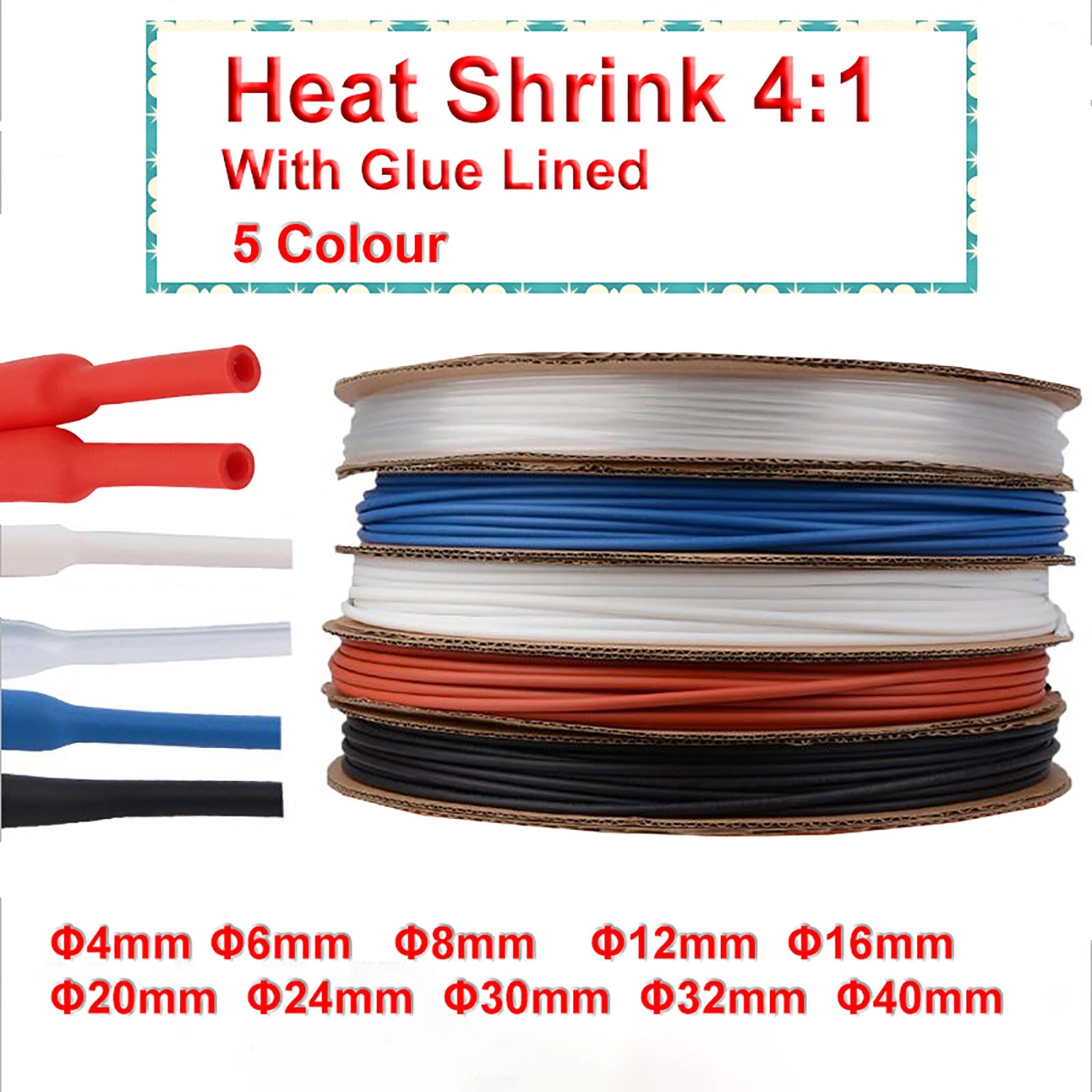

4:1 Adhesive Glue-Lined Heat Shrink Tubing — Waterproof Protection for Every Connection
Loose wire splices, corroded battery terminals, and exposed connector ends are the kind of problems that show up at the worst possible moment — mid-project, on the road, or out on the water. Whether you're a professional auto electrician, a marine rigger, or a hands-on DIYer tackling a wiring harness, you need a seal you can trust. This 4:1 adhesive glue-lined heat shrink tubing delivers a watertight, strain-relieved bond that standard single-wall tubing simply cannot match.

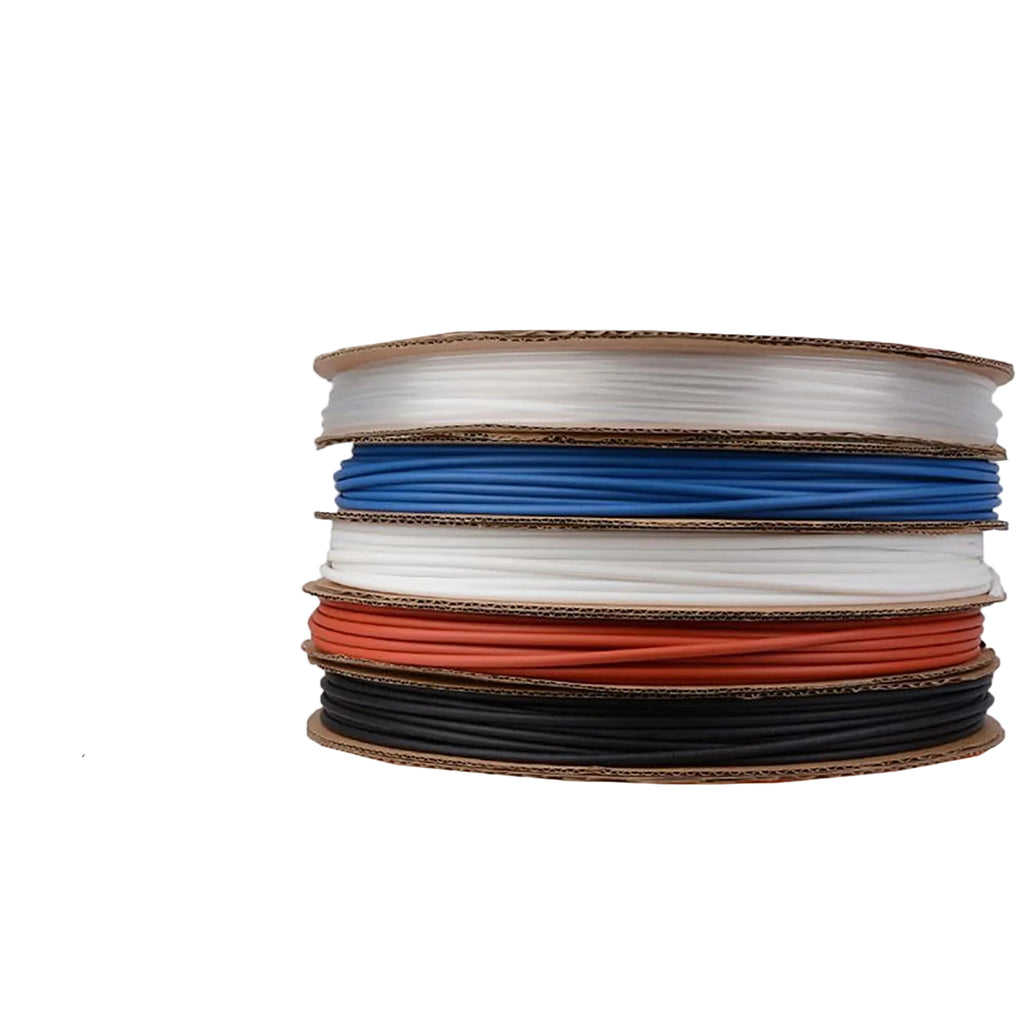

Each piece is a dual-wall construction: a flexible polyolefin outer jacket over a hot-melt adhesive inner lining. Available in diameters from Φ4mm (≈5/32") to Φ40mm (≈1-9/16") and lengths from 1M (≈3.3 ft) to 25M (≈82 ft), with five color options — Black, Clear, Red, White, and Blue. The 4:1 shrink ratio means the tube collapses to one-quarter of its original diameter, conforming tightly to irregular shapes, stepped connectors, and multi-conductor bundles.
Typical use cases include automotive wiring harness repairs and battery terminal protection, marine and RV electrical connections exposed to moisture and vibration, and workshop cable management where color-coded identification speeds up troubleshooting. The adhesive inner wall flows into gaps and bonds to the substrate as it cools, creating a seal that resists water ingress, fuel splash, and mechanical stress — making this waterproof dual-wall heatshrink sleeving a go-to for any environment where a standard heat shrink tube would fall short.
🔌 Compatible with copper and aluminum wire, ring terminals, butt connectors, battery lugs, and most round or near-round substrates. Verify the unshrunk inner diameter against your bundle OD before ordering.
✅ Key Features of These 4:1 Adhesive Glue-Lined Heat Shrink Tubes
-
💧Dual-Wall Waterproof Seal — The hot-melt adhesive inner lining flows around the substrate when heated, creating a watertight bond that blocks moisture, salt spray, and condensation — essential for marine and outdoor wiring repairs.
-
📐True 4:1 Shrink Ratio — Shrinks to one-quarter of its original diameter, giving a far tighter, more conforming fit than standard 2:1 tubing — ideal for stepped connectors, irregular shapes, and multi-wire bundles.
-
🎨Five Color Options for Circuit Identification — Black, Clear, Red, White, and Blue allow color-coded wiring organization; the Clear variant lets you visually inspect the connection after shrinking without cutting the sleeve.
-
📏Wide Size Range — Φ4mm to Φ40mm — Covers everything from thin signal wires to large battery cables and hydraulic hose ends, reducing the need to stock multiple product lines for a single job.
-
🔧Strain Relief Built In — The adhesive layer bonds mechanically to the wire jacket and connector body, distributing flex stress along the sleeve rather than concentrating it at the joint — extending service life in high-vibration automotive and marine installations.
-
📦Bulk Lengths Up to 25M — Available in 1M through 25M cuts so you can buy exactly what a single repair needs or stock a full workshop roll — with per-meter cost dropping significantly on longer lengths.

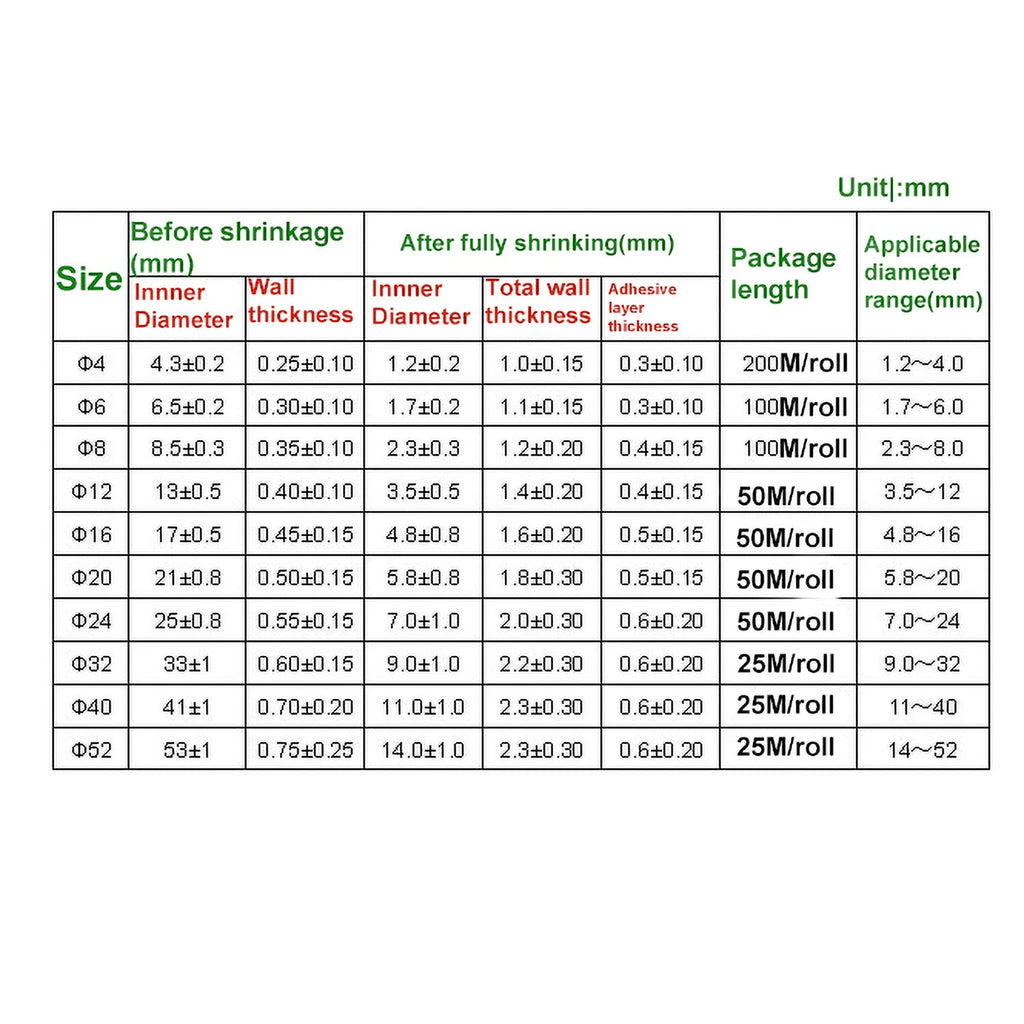

📐 Technical Specifications — 4:1 Dual-Wall Adhesive Heat Shrink Tubing
| Shrink Ratio |
4:1 |
| Construction |
Dual-wall: polyolefin outer jacket + hot-melt adhesive inner lining |
| Available Diameters (unshrunk) |
Φ4mm (≈5/32"), Φ6mm (≈1/4"), Φ8mm (≈5/16"), Φ12mm (≈15/32"), Φ16mm (≈5/8"), Φ20mm (≈25/32"), Φ24mm (≈15/16"), Φ30mm (≈1-3/16"), Φ32mm (≈1-1/4"), Φ40mm (≈1-9/16") |
| Available Colors |
Black, Clear, Red, White, Blue |
| Available Lengths |
1M (≈3.3 ft), 2M (≈6.6 ft), 3M (≈9.8 ft), 5M (≈16.4 ft), 8M (≈26.2 ft), 10M (≈32.8 ft), 15M (≈49.2 ft), 25M (≈82 ft) |
| Shrink Temperature |
Typically begins at 70–90°C (158–194°F); adhesive activates at approx. 120–150°C (248–302°F) |
| Outer Jacket Material |
Polyolefin (flame-retardant grade — see variant options to confirm) |
| Inner Adhesive |
Hot-melt thermoplastic adhesive |
| Longitudinal Shrinkage |
Typically <5% |
| Recommended Tool |
Heat gun (open flame not recommended) |
| Typical Applications |
Automotive wiring, marine electrical, battery terminals, trailer connectors, cable strain relief |
| Operating Temperature (post-shrink) |
See variant options to confirm |
⚠️ Size note: Diameters listed are unshrunk (before heat is applied). After shrinking at a 4:1 ratio, the final inner diameter will be approximately one-quarter of the listed size. Always measure your wire bundle or connector OD and select a tube with an unshrunk ID that is comfortably larger.
❓ Frequently Asked Questions
How do I choose the right diameter for my wire or connector?
Measure the outer diameter of the wire bundle or connector before shrinking. Choose a tube whose unshrunk inner diameter is at least 10–20% larger than your bundle. After heat is applied, the tube shrinks to approximately 1/4 of its original diameter (4:1 ratio), so a Φ8mm tube will shrink down to roughly Φ2mm. When in doubt, size up — you can always apply more heat, but you cannot reverse an over-shrunk tube.
What temperature is needed to activate the shrink and the adhesive?
The tubing generally begins to shrink at around 70–90°C (158–194°F) and the inner adhesive typically flows and bonds at approximately 120–150°C (248–302°F). A heat gun set to medium-high is recommended. Avoid open flames, which can scorch the outer jacket unevenly.
Is this tubing rated for outdoor or marine use?
Yes. The dual-wall construction — a polyolefin outer layer plus a hot-melt adhesive inner lining — creates a watertight seal around the substrate. This makes it suitable for outdoor, marine, and automotive environments where moisture, salt spray, and vibration are concerns. For prolonged submersion, contact us to confirm the specific variant's suitability before ordering.
What is the difference between 4:1 and 2:1 heat shrink tubing?
The ratio describes how much the tube shrinks in diameter when heat is applied. A 4:1 tube shrinks to one-quarter of its original diameter, giving it a much tighter final fit than a 2:1 tube. This makes 4:1 adhesive-lined tubing ideal for irregular shapes, stepped connectors, and applications where a secure mechanical grip and waterproof seal are both required.
Can I use this on automotive wiring and battery terminals?
Yes. This glue-lined heat shrink tubing is commonly used on automotive wiring harnesses, battery terminals, trailer connectors, and marine electrical connections. The adhesive inner wall bonds to the wire jacket and connector body, preventing moisture ingress and reducing strain on the joint.
How do I select the right length for my project?
For single splices or connector ends, a 1M or 3M length is generally sufficient for multiple repairs. For wiring harness runs, cable management on boats or vehicles, or workshop stock, the 5M–25M lengths offer better value per meter. Note that the tubing does not shrink significantly in length — typically less than 5% — so cut your piece slightly longer than the area you need to cover.
Does the color affect performance, or is it purely cosmetic?
Color is primarily for identification and organization — for example, using red for positive leads and black for ground in automotive wiring. The Clear variant allows you to inspect the connection underneath after shrinking. All colors share the same dual-wall construction and adhesive lining, so performance is equivalent across the color range.
🛒 Select your size, color, and length above, then add to cart — ships from our US warehouse.
