4:1 Adhesive Heat Shrink Tubing 16mm — Waterproof Glue Lined Sleeving for Reliable Wire Protection

Loose wire splices and exposed connectors are a liability — whether you're wiring a boat, routing cables through an engine bay, or tidying up an outdoor electrical panel. DIYers, auto electricians, and marine technicians who need a durable, moisture-resistant seal rely on adhesive-lined heat shrink tubing to get the job done right the first time.

This listing covers 4:1 adhesive heat shrink tubing with a 16mm (≈5/8") inner diameter before shrinkage. Each piece is glue-lined — a dual-wall construction with a polyolefin outer layer and a hot-melt adhesive inner layer. Available in lengths of 1 m (≈3.3 ft), 2 m (≈6.6 ft), 5 m (≈16.4 ft), and 10 m (≈32.8 ft), and in five colors: Black, White, Red, Blue, and Transparent.

Typical use cases include waterproofing automotive wire harness splices, sealing marine cable penetrations, protecting outdoor low-voltage wiring connections, and color-coding multi-conductor bundles in control panels. The 4:1 shrink ratio makes this tubing well suited for covering irregular shapes, stepped connectors, and cable ends where a standard 2:1 tube would not conform tightly enough.

🔌 Compatibility: Fits wire bundles and connectors up to approximately 14–15mm in diameter before shrinking. Recovered inner diameter is typically ~4mm. Verify your substrate diameter before ordering.

⚠️ Note: Exact recovered diameter and adhesive flow characteristics may vary slightly by color. If your application has strict dimensional tolerances, contact us to confirm before purchase.

✅ Key Features of These 4:1 Glue Lined Heat Shrink Tubes

💧Waterproof Adhesive Lining — The inner hot-melt glue layer flows and bonds to the substrate during shrinkage, creating a moisture-resistant seal ideal for marine wiring, outdoor electrical connections, and automotive wire splices exposed to rain or condensation.
📐4:1 Shrink Ratio — Shrinks to one-quarter of its original diameter, recovering from 16mm (≈5/8") down to approximately 4mm. This wide recovery range accommodates stepped connectors, irregular cable ends, and bundled wires that standard 2:1 tubing cannot seal effectively.

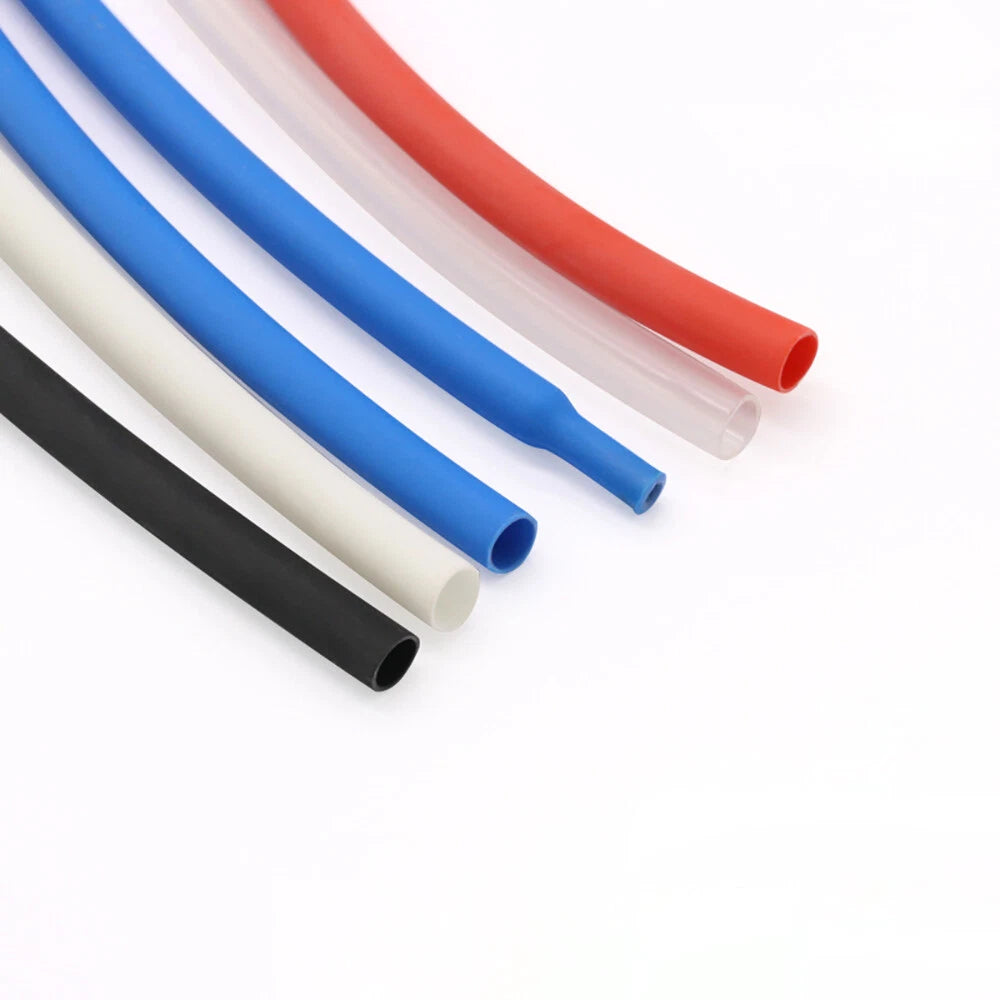

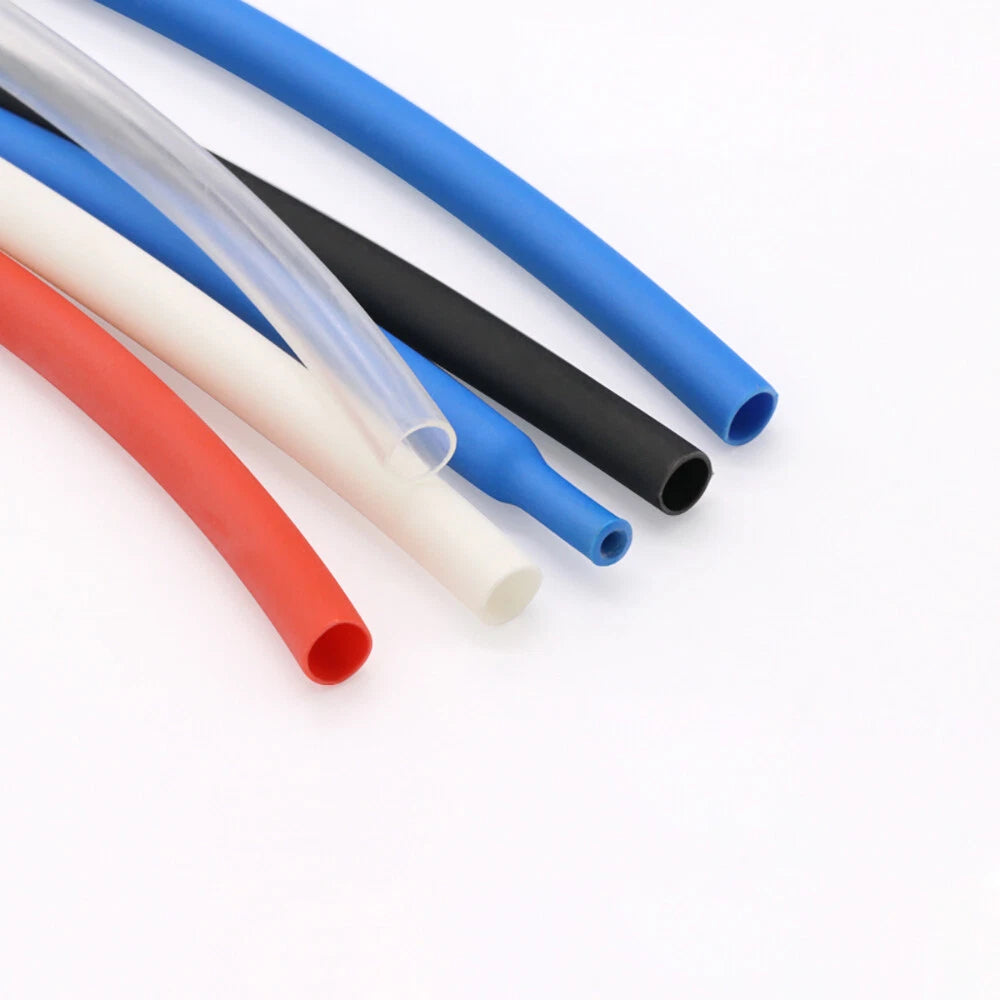

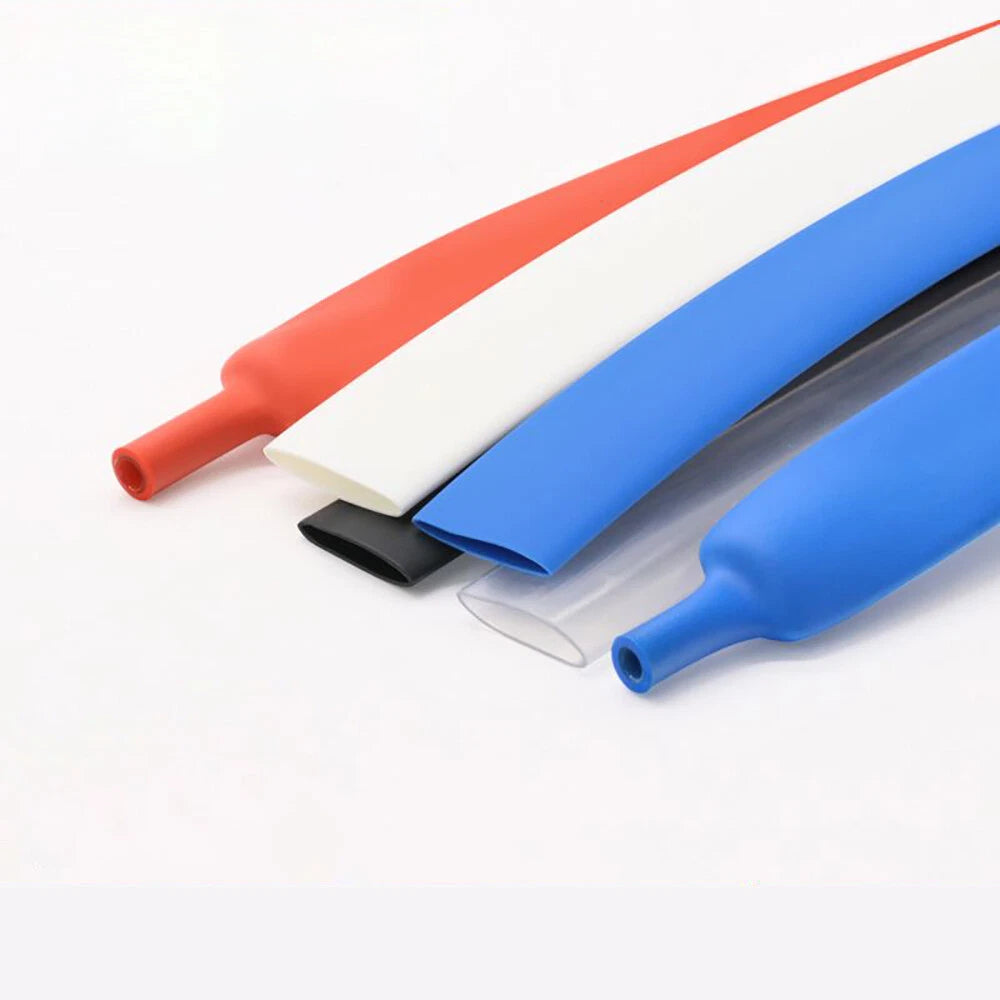

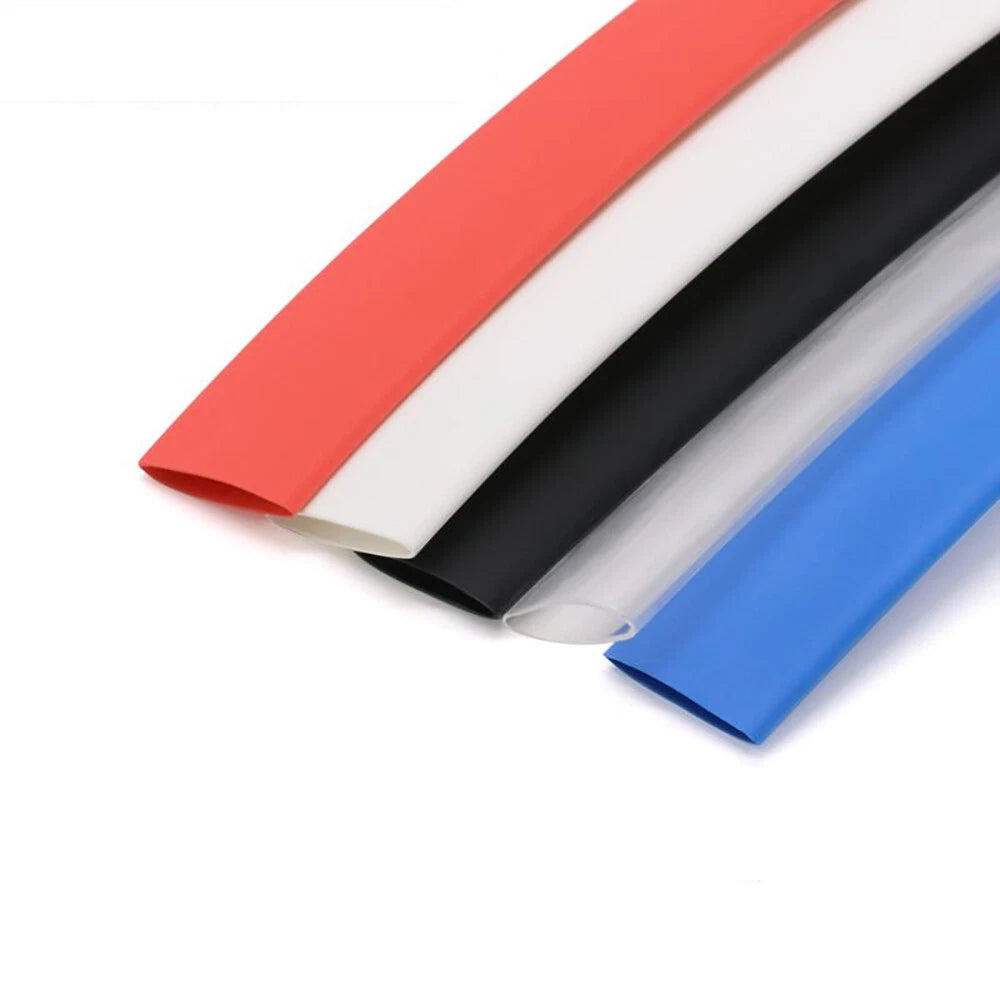

🎨Five Color Options — Available in Black, White, Red, Blue, and Transparent for color-coded wiring systems or visual inspection. Transparent tubing lets you verify the underlying connection without cutting the sleeve.
✂️Cut-to-Length Flexibility — Supplied in 1 m, 2 m, 5 m, and 10 m lengths so you can cut exactly what you need for each job, reducing waste on small repairs or stocking up for larger wiring harness projects.
🔥Low Activation Temperature — Begins shrinking at approximately 70–90°C (158–194°F), making it compatible with standard heat guns. Uniform shrinkage reduces the risk of air pockets or incomplete adhesive bonding along the sleeve.

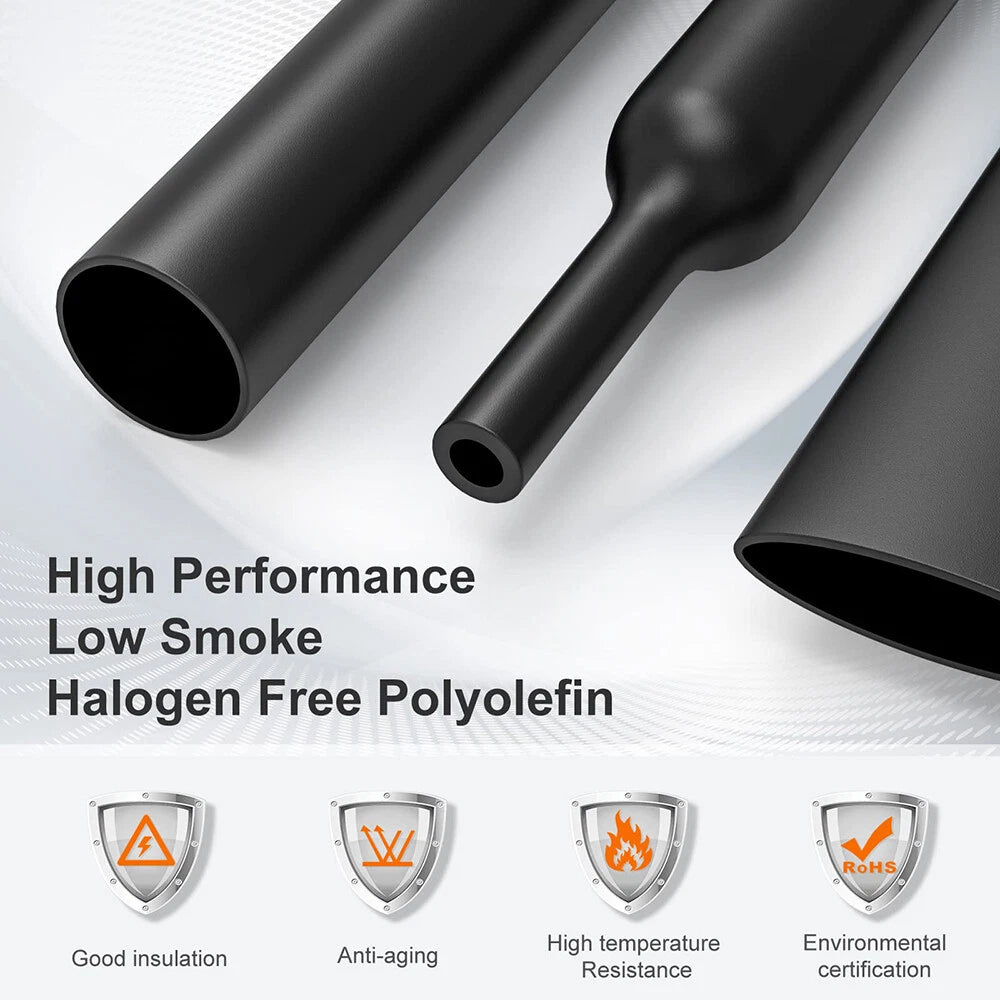

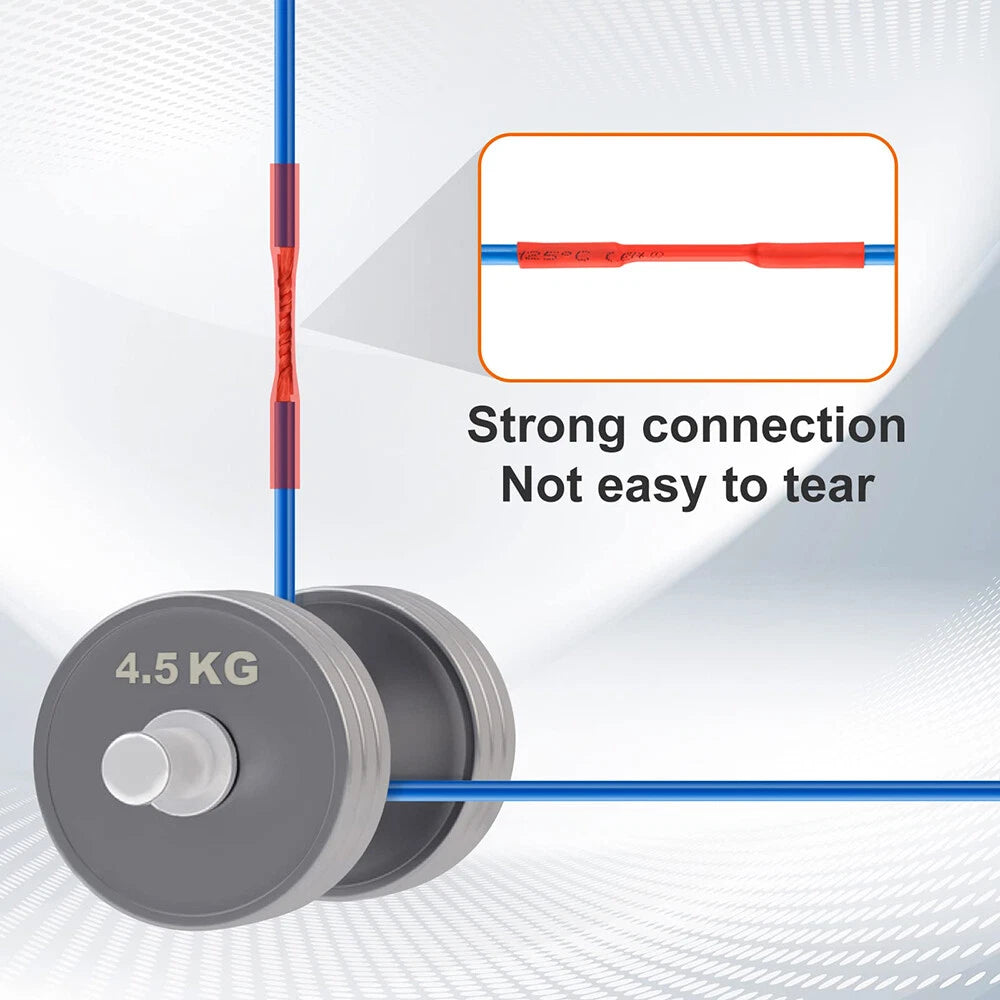

🛡️Dual-Wall Construction — The polyolefin outer layer resists abrasion, chemicals, and UV degradation, while the adhesive inner wall bonds mechanically to the wire insulation — providing both physical protection and an environmental seal in a single step.

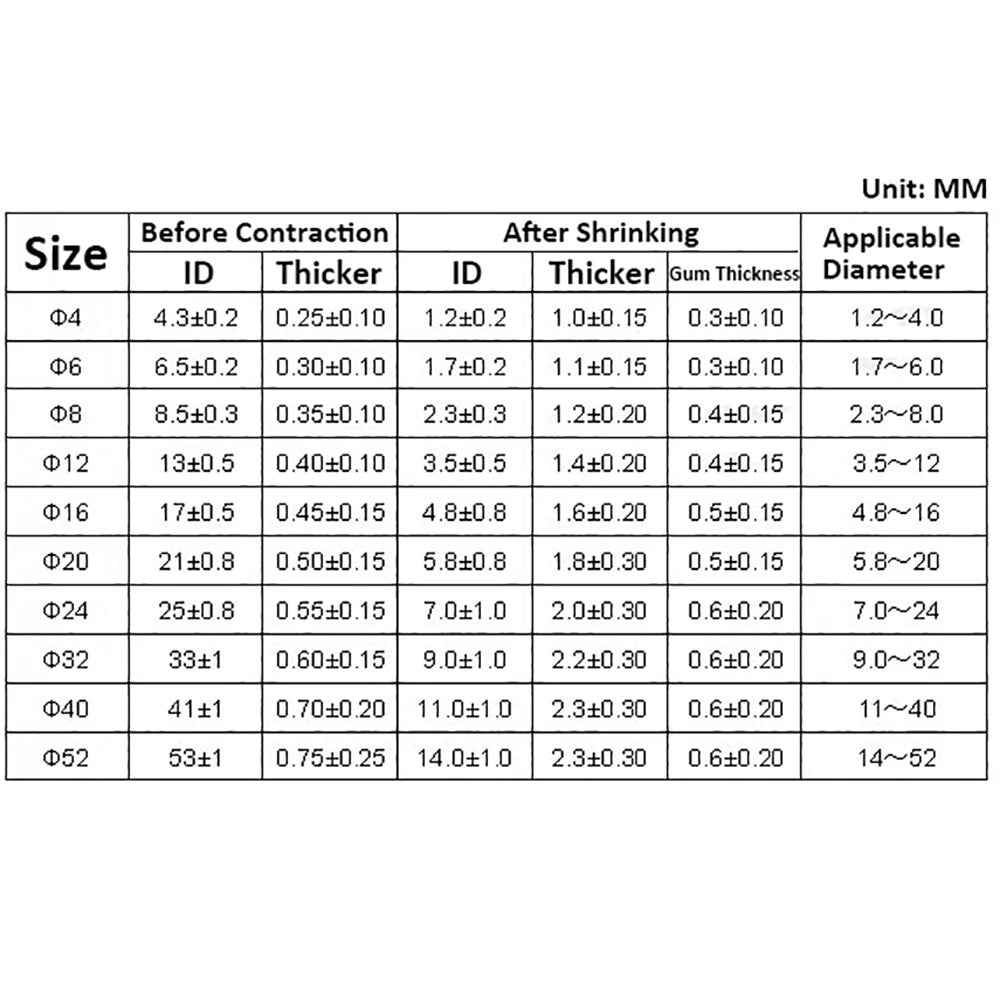

📐 Technical Specifications — 4:1 Adhesive Heat Shrink Tubing

Inner Diameter (before shrink)	16mm (≈5/8")
Recovered Inner Diameter (after shrink)	Typically ~4mm (≈5/32") — see variant options
Shrink Ratio	4:1
Wall Construction	Dual-wall: polyolefin outer + hot-melt adhesive inner
Shrink Temperature	Typically 70–90°C (158–194°F) activation; ~120°C (248°F) full recovery
Available Lengths	1 m (≈3.3 ft), 2 m (≈6.6 ft), 5 m (≈16.4 ft), 10 m (≈32.8 ft)
Available Colors	Black, White, Red, Blue, Transparent
Waterproof / Adhesive Lined	Yes — glue-lined for moisture-resistant seal
Recommended Tool	Heat gun (open flame usable with caution)
Typical Applications	Automotive wiring, marine cables, outdoor electrical, control panels
Operating Temperature Range	Contact us to confirm for your specific application
Country of Origin	See variant options

❓ Frequently Asked Questions

What length of heat shrink tubing do I need?

Measure the section of wire or connector you need to cover, then add at least 10–15mm (≈1/2") of overlap on each end. For most automotive or marine splices, 1 metre (≈3.3 ft) is sufficient for several joints. For larger wiring harness projects, 5 m or 10 m rolls are generally more economical per metre.

What does 4:1 shrink ratio mean?

A 4:1 shrink ratio means the tubing shrinks to one-quarter of its original inner diameter when heat is applied. For this 16mm tubing, the recovered inner diameter is typically around 4mm, allowing it to grip tightly over a wide range of wire gauges and connector bodies that a standard 2:1 tube would not seal properly.

Is this heat shrink tubing waterproof?

Yes. The inner adhesive (glue-lined) layer melts and flows around the substrate as the tubing shrinks, creating a moisture-resistant seal. This makes it suitable for outdoor, marine, and automotive applications where exposure to water, humidity, or condensation is a concern. For prolonged saltwater immersion, contact us to confirm suitability.

What temperature is needed to shrink this tubing?

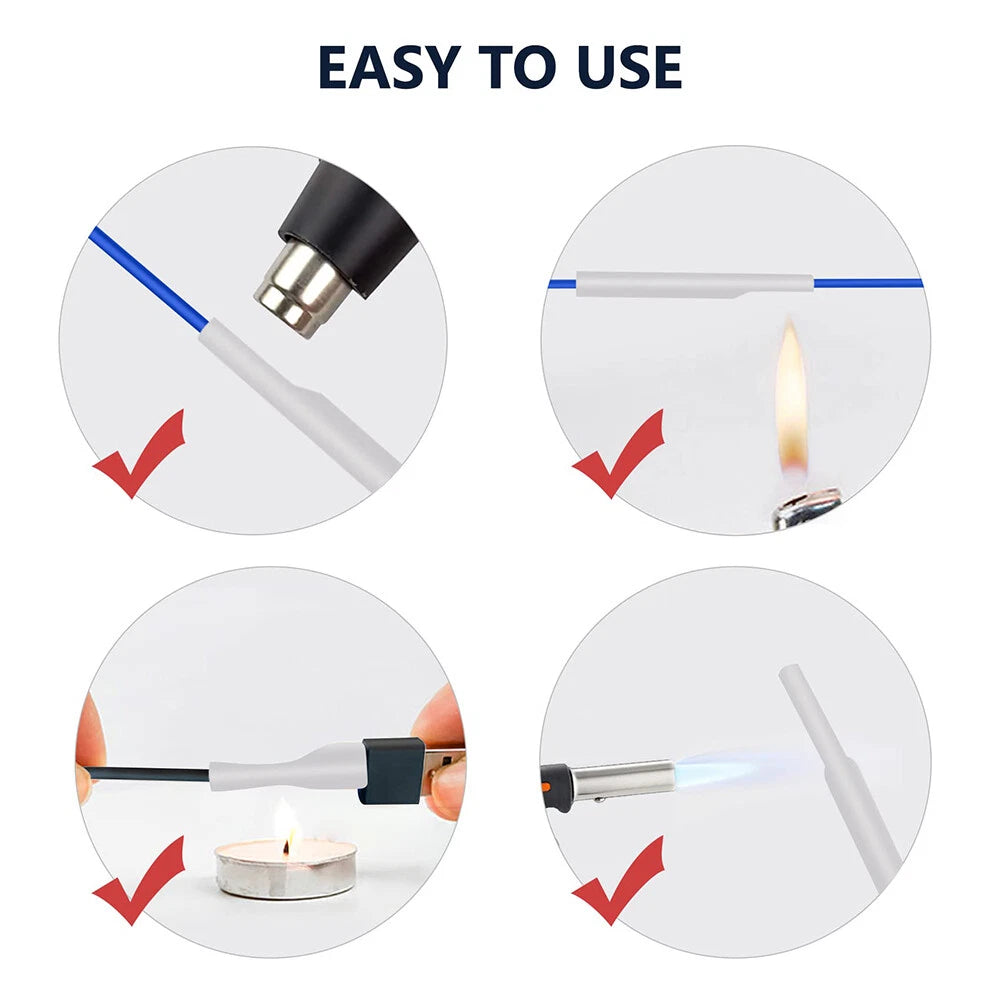

This tubing generally begins to shrink at around 70–90°C (158–194°F) and fully recovers at approximately 120°C (248°F). A heat gun is recommended for even, controlled shrinking. An open flame can be used carefully but may cause uneven shrinkage or scorching of the outer layer.

What wire gauges or connector sizes does 16mm tubing fit?

Before shrinking, the 16mm inner diameter typically accommodates wire bundles, connectors, or cable ends up to about 14–15mm in diameter. After full shrinkage (4:1 ratio), it recovers to approximately 4mm. Always verify your substrate diameter against the supplied dimensions before ordering to ensure a proper fit.

Can I use this tubing for outdoor or marine wiring?

Yes. The adhesive glue lining provides a watertight seal that is generally suitable for outdoor, marine, and automotive environments. For prolonged saltwater immersion or extreme UV exposure, we recommend confirming the specific operating conditions with us before purchase.

Does the color affect performance?

No. All color variants — Black, White, Red, Blue, and Transparent — share the same 4:1 shrink ratio, adhesive lining, and waterproof properties. Color choice is typically used for color-coding wiring systems or aesthetic preference. Transparent tubing allows visual inspection of the underlying connection without cutting the sleeve.

🛒 Select your color and length above, then add to cart — ships from our US warehouse.
