20mm 4:1 Glue-Lined Heat Shrink Tubing — Waterproof Protection for Wires & Connectors
Exposed wire splices, corroded marine connections, and unprotected automotive harnesses are a constant headache for electricians, boat owners, and DIYers alike. One failed seal can mean a short circuit, water ingress, or hours of troubleshooting. This 20mm 4:1 adhesive heat shrink tubing is engineered to eliminate that risk — delivering a tight, waterproof, strain-relieved seal every time.
Each piece is a dual-wall construction: a flexible polyolefin outer sleeve paired with a hot-melt adhesive inner lining. The 20mm (≈13/16") pre-shrink inner diameter shrinks down to approximately 5mm (≈3/16") at a 4:1 ratio, accommodating a wide range of cable and connector sizes. Available in Black, White, Red, and Transparent finishes, and sold by the metre in lengths of 1m (≈3.3 ft), 2m (≈6.6 ft), 5m (≈16.4 ft), and 10m (≈32.8 ft) — cut to your exact project needs.

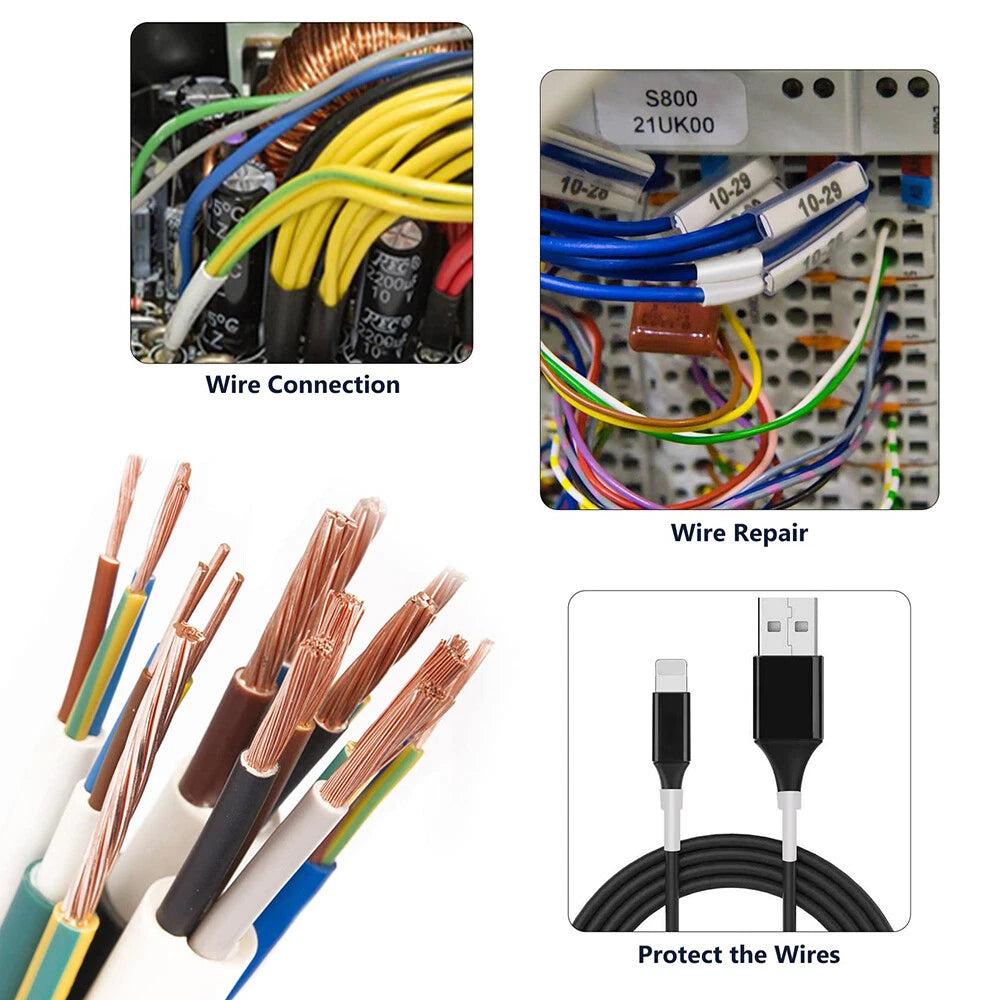

Ideal for waterproofing marine electrical connections, sealing automotive wiring harness splices, protecting outdoor low-voltage landscape lighting cables, and providing strain relief on industrial cable assemblies. The glue-lined design makes it a go-to choice for anyone searching for waterproof heat shrink tubing for marine wiring or adhesive-lined heatshrink for outdoor electrical repairs.
ℹ️ Compatibility: Fits cables and connectors with an outer diameter of approximately 5mm–18mm. Designed for use with standard heat guns. Compatible with copper, aluminum, and tinned wire. Suitable for 12V–48V DC automotive, marine, and low-voltage applications.
✅ Key Features of These 4:1 Glue-Lined Heat Shrink Tubes
-
💧Waterproof Adhesive Seal — The hot-melt glue inner layer melts and flows during shrinking, creating a fully sealed, moisture-resistant barrier — essential for waterproof wire splice protection in marine and outdoor environments.
-
🔄4:1 Shrink Ratio — Shrinks from 20mm (≈13/16") down to approximately 5mm (≈3/16"), covering a wider range of connector and cable sizes than standard 2:1 tubing — no need for multiple sizes on the same job.
-

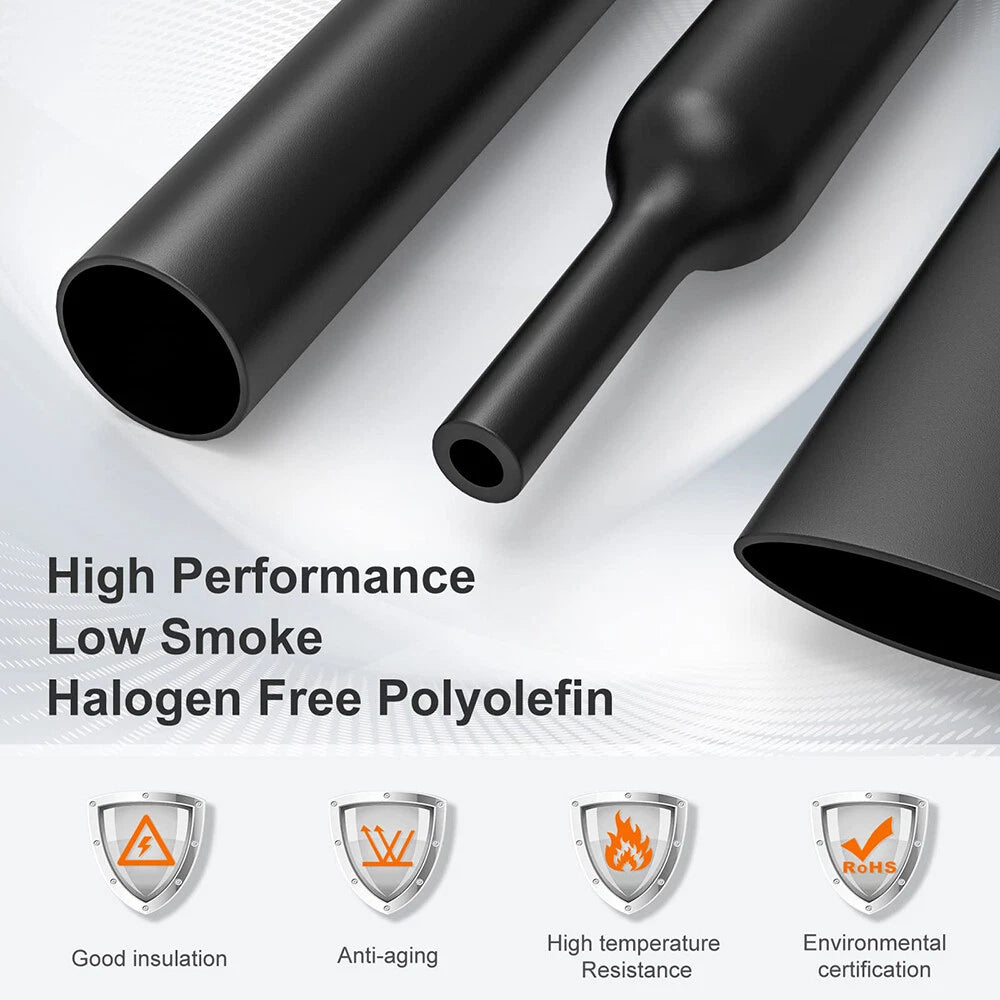

🛡️Dual-Wall Polyolefin Construction — The outer polyolefin sleeve resists UV exposure, mild chemicals, and abrasion, making it reliable for outdoor electrical cable protection and underhood automotive use.
-
🔌Strain Relief Built In — The bonded adhesive layer grips the cable jacket firmly, reducing mechanical stress at connection points — a critical feature for vibration-resistant wire connections in vehicles and equipment.
-

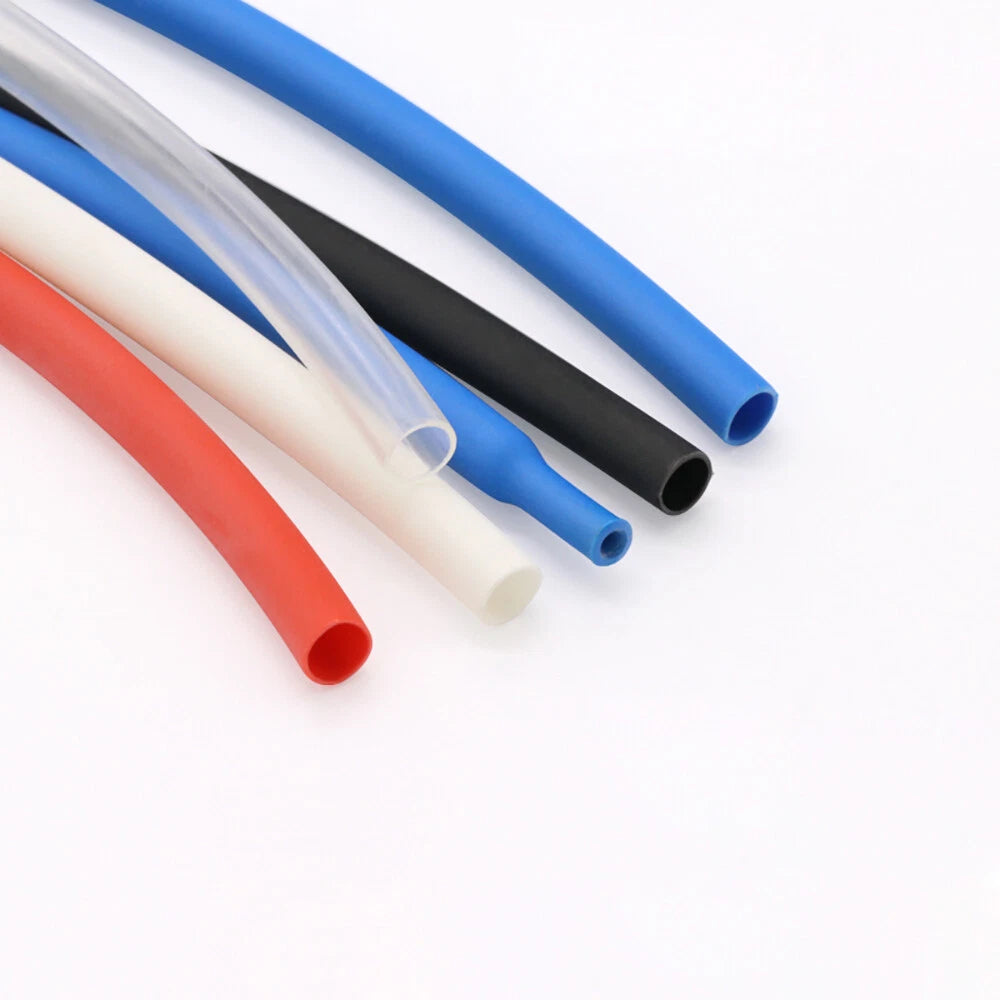

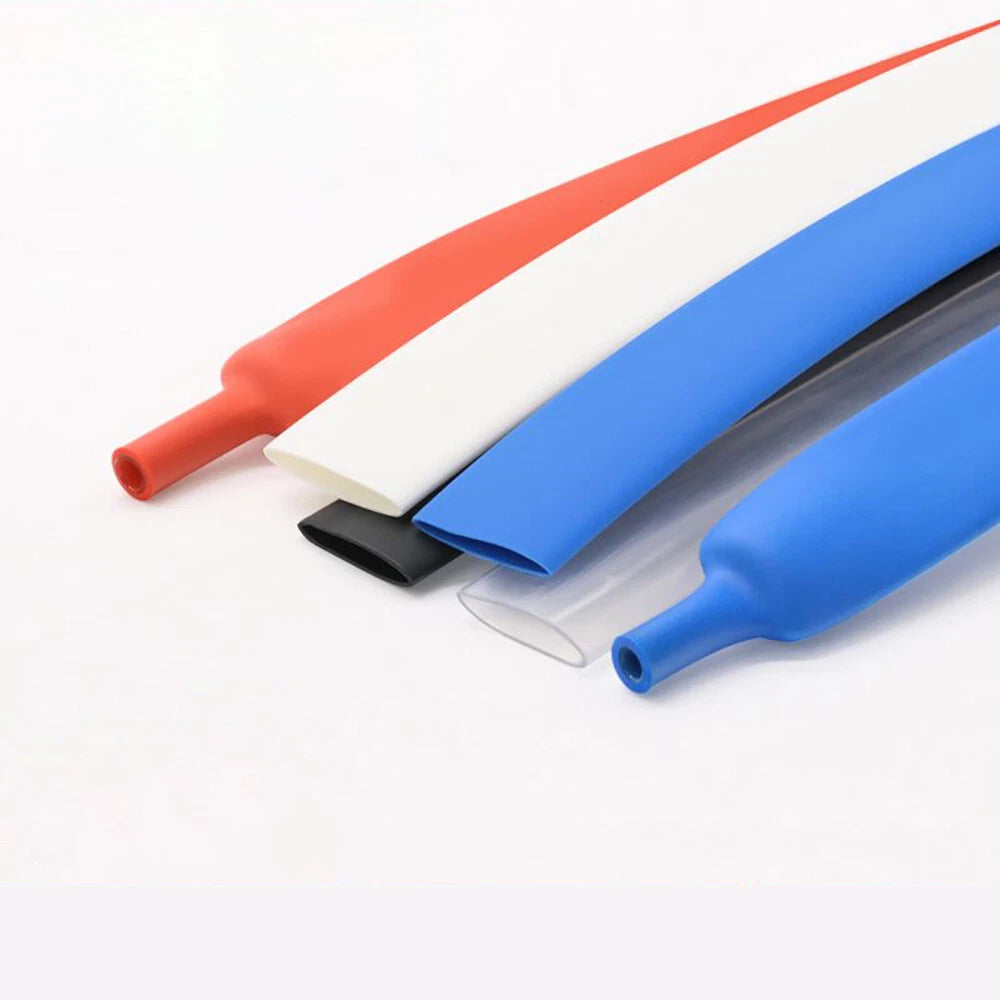

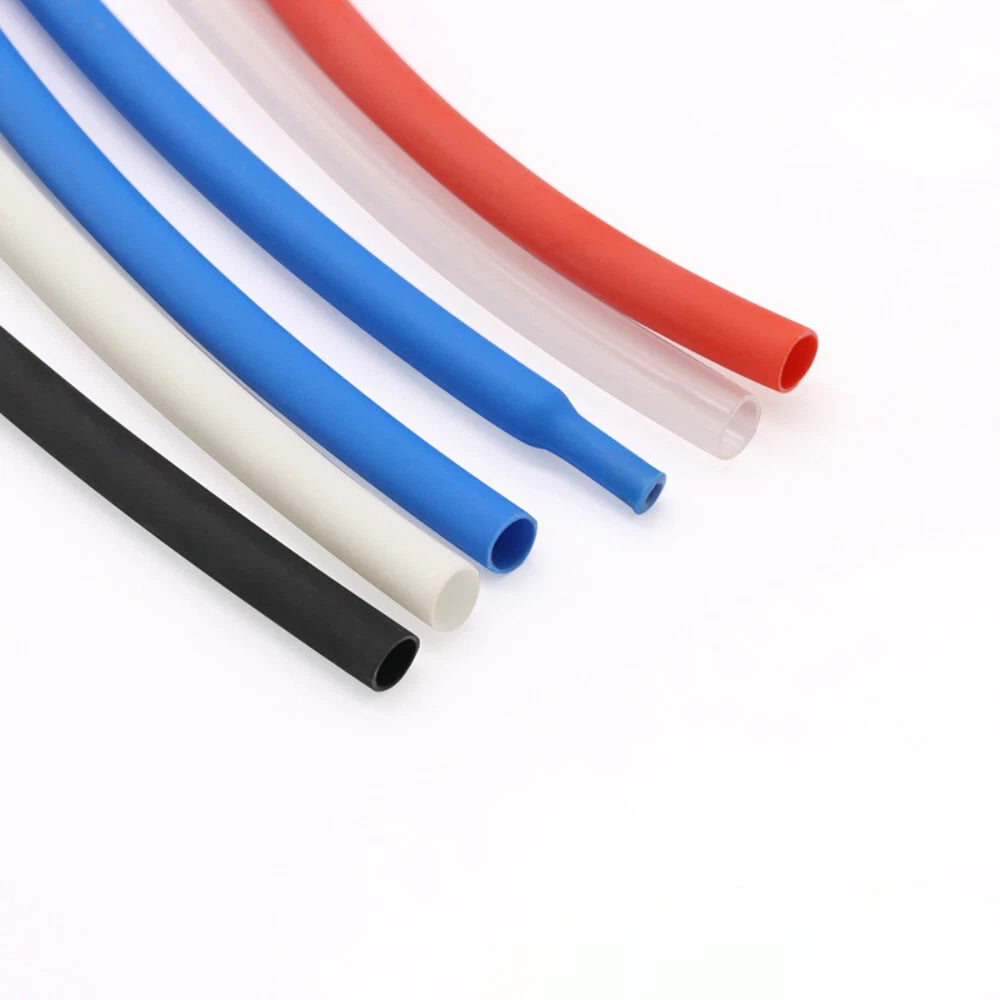

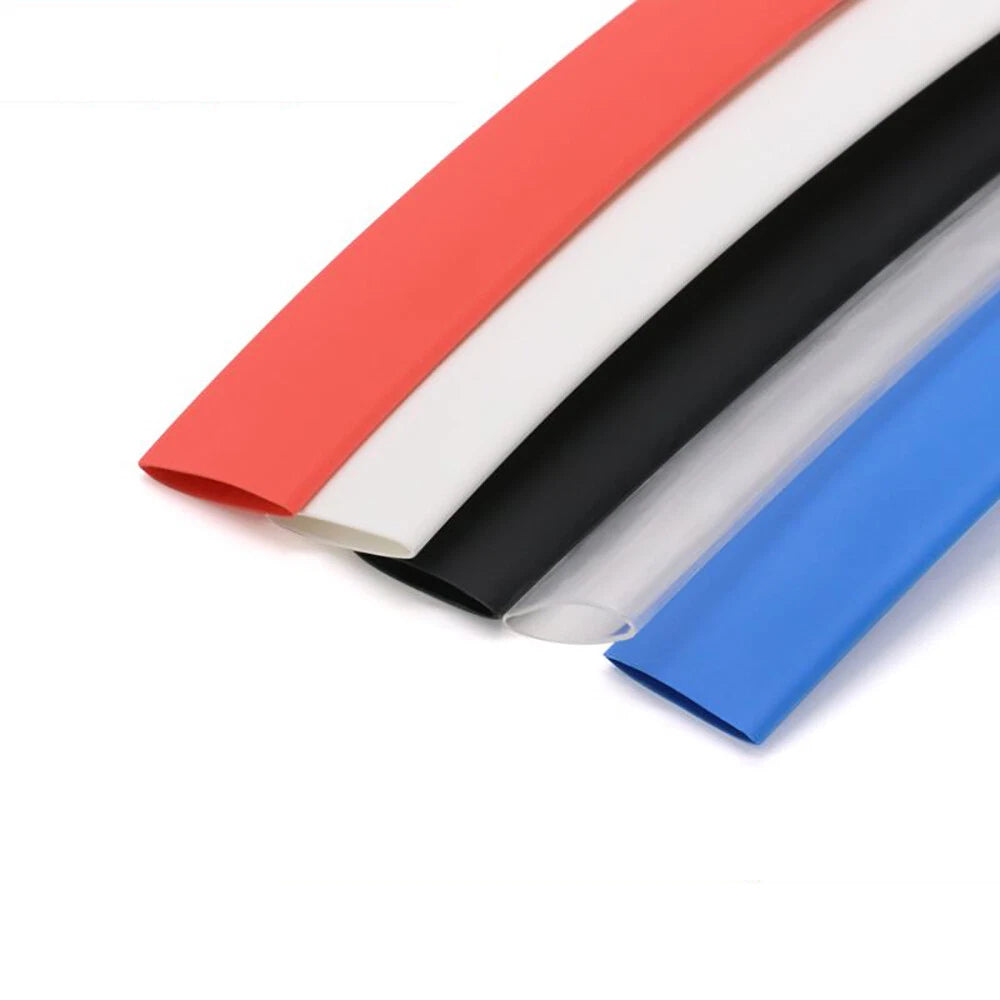

🎨Four Color Options — Black for UV-resistant general use, White for clean interior installs, Red for positive-wire identification, and Transparent for post-shrink visual inspection of the splice underneath.
-
📏Cut-to-Length Flexibility — Available in 1m, 2m, 5m, and 10m lengths so you buy exactly what your project requires — no waste, no leftover rolls taking up drawer space.
📐 Technical Specifications — 4:1 Adhesive Heat Shrink Tubing
| Inner Diameter (Before Shrink) |
20mm (≈13/16") |
| Inner Diameter (After Shrink) |
Approximately 5mm (≈3/16") — 4:1 ratio |
| Shrink Ratio |
4:1 |
| Wall Construction |
Dual-wall — polyolefin outer + hot-melt adhesive inner |
| Material |
Polyolefin (outer), Hot-melt adhesive (inner liner) |
| Color Options |
Black, White, Red, Transparent |
| Available Lengths |
1m (≈3.3 ft), 2m (≈6.6 ft), 5m (≈16.4 ft), 10m (≈32.8 ft) |
| Activation Temperature |
Typically 120–150°C (248–302°F) — heat gun recommended |
| Recommended Cable Diameter Range |
Approximately 5mm–18mm outer diameter |
| Voltage Rating |
See variant options / Contact us to confirm for high-voltage use |
| UV Resistance |
Yes (polyolefin outer wall) |
| Waterproof / Moisture Seal |
Yes — adhesive liner creates sealed barrier when fully shrunk |
| Suitable Applications |
Marine, automotive, outdoor low-voltage, industrial cable assemblies |
⚠️ Note: Voltage and temperature ratings vary by batch. If your application requires certified ratings (e.g., UL, MIL-SPEC), please contact us to confirm specifications before ordering.
❓ Frequently Asked Questions
How do I choose the right length of heat shrink tubing for my project?
Measure the total length of wire, connector, or splice you need to cover, then add at least 10–15% extra for overlap and trimming. For example, if you need to cover 80cm (≈31.5") of wiring, a 1 Metre length is generally sufficient for a single run. For larger wiring harnesses or multiple splices, the 5 Metre or 10 Metre options offer better value.
What does the 4:1 shrink ratio mean, and why does it matter?
A 4:1 shrink ratio means the tubing shrinks to one-quarter of its original inner diameter when heat is applied. For this 20mm tubing, it will typically shrink down to approximately 5mm (≈3/16"). This makes it suitable for covering a wide range of cable diameters and irregular shapes, including connectors and splices that standard 2:1 tubing cannot accommodate.
How strong is the adhesive lining, and can it hold up under mechanical stress?

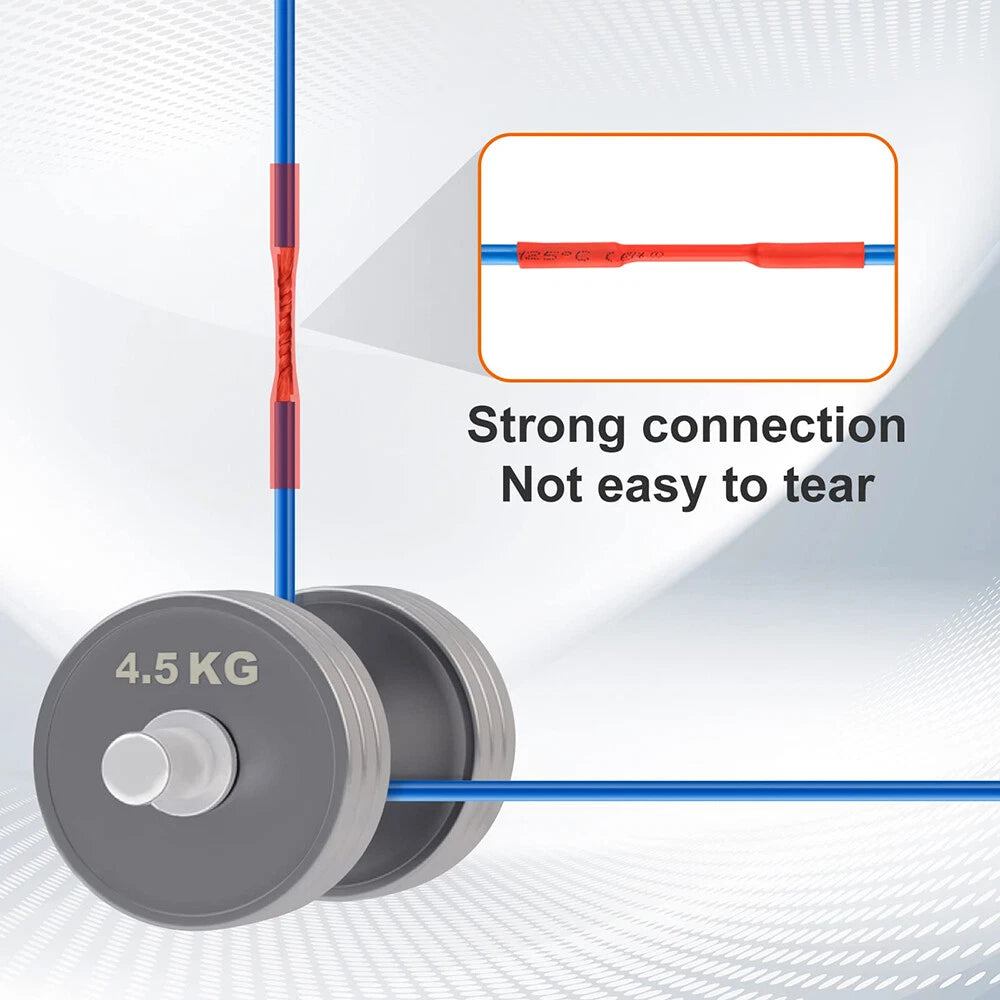

The inner adhesive (hot-melt glue) layer melts and flows during shrinking, bonding firmly to the underlying surface. Once cooled, it generally provides a secure mechanical grip that resists pull-out forces and vibration. It is not a structural adhesive, but it significantly improves strain relief compared to single-wall tubing.
Is this heat shrink tubing safe for outdoor and marine use?
Yes. The dual-wall construction with a sealed adhesive liner creates a waterproof barrier that is generally suitable for outdoor wiring, marine electrical connections, and underground splice protection. The polyolefin outer wall typically resists UV exposure, moisture, and mild chemical contact. For prolonged submersion, confirm suitability with your specific application requirements.
What wire or cable diameter range does the 20mm tubing fit before shrinking?
With a 20mm (≈13/16") inner diameter before shrinking and a 4:1 ratio, this tubing can typically accommodate cables and connectors ranging from approximately 5mm to 18mm in diameter. For best results, the cable diameter should be no more than about 90% of the pre-shrink inner diameter to allow the adhesive to flow and seal properly.
What temperature is needed to shrink this tubing, and what tools can I use?

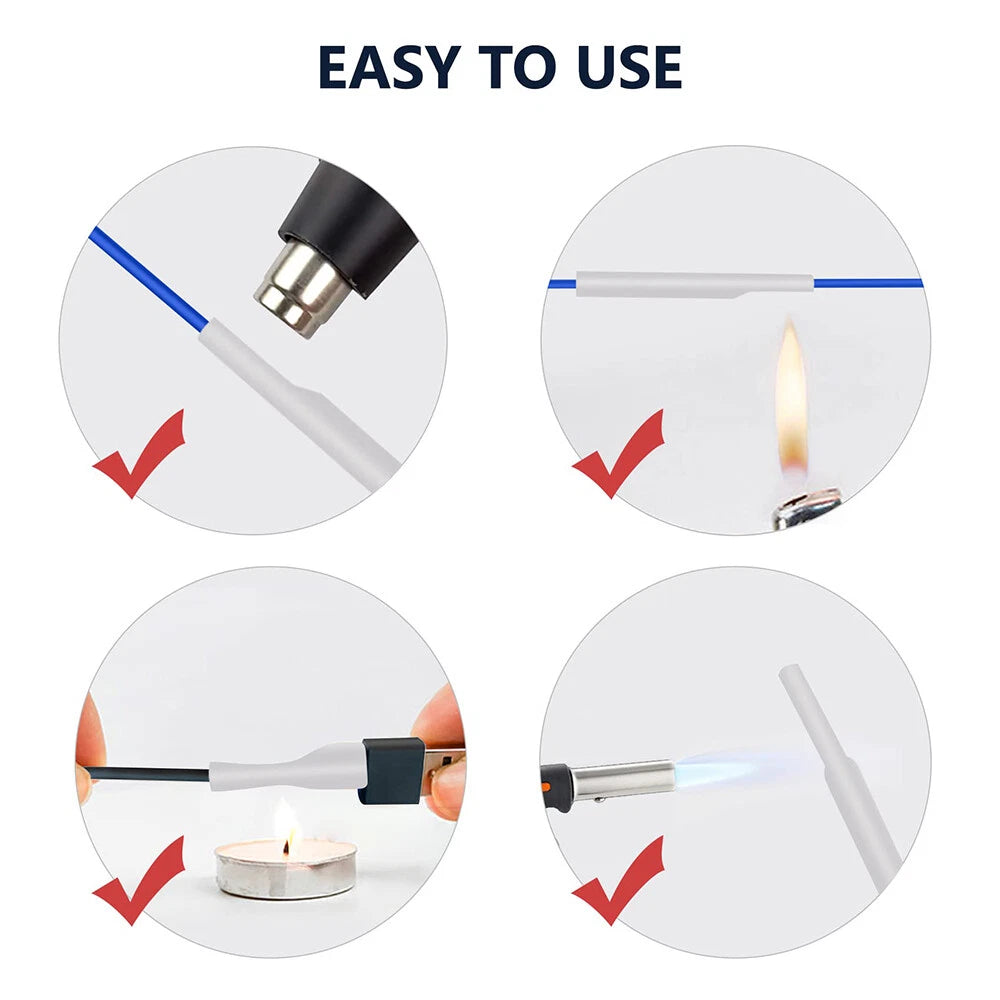

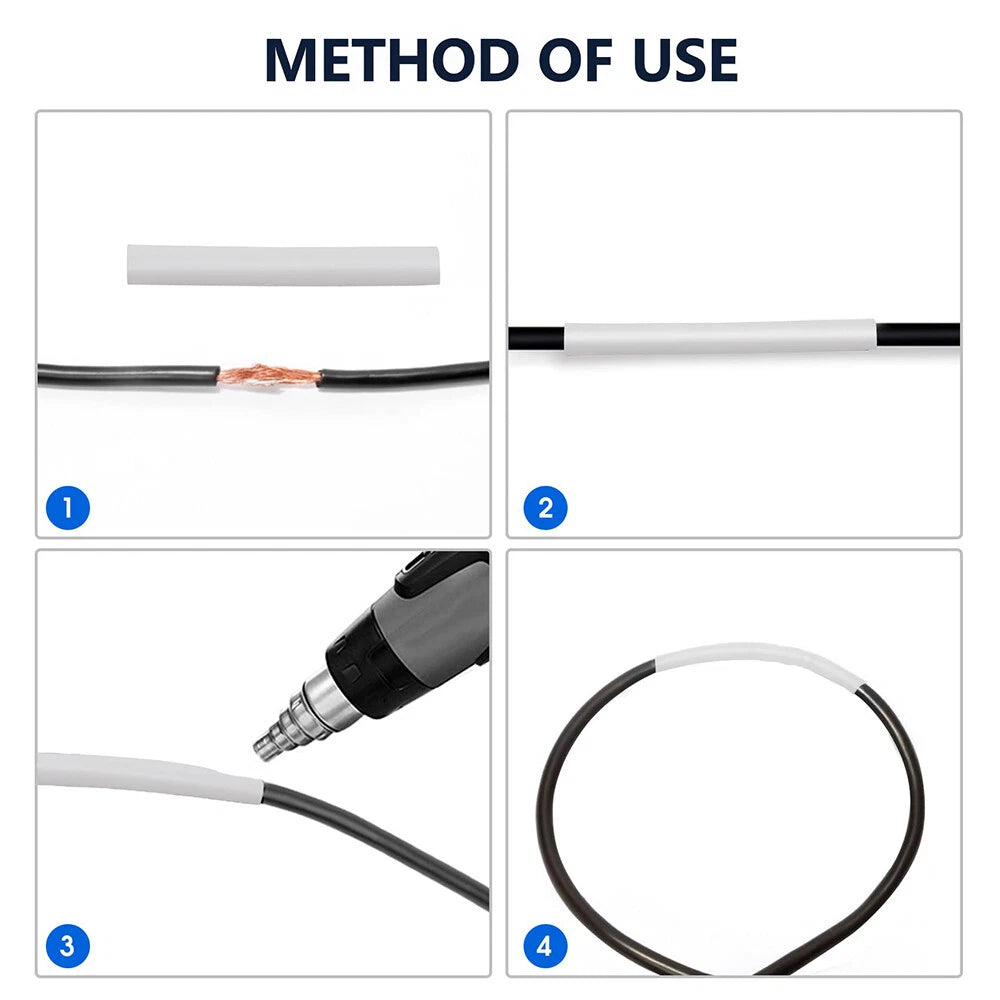

Glue-lined 4:1 polyolefin tubing typically requires a heat source of around 120–150°C (248–302°F) to begin shrinking, with full adhesive activation occurring at higher temperatures. A heat gun is strongly recommended for even, controlled shrinking. Open flames (lighters, torches) can be used carefully but risk scorching the tubing or creating uneven shrinkage.
Which color should I choose — black, white, red, or transparent?
Black is the most common choice for general electrical work and outdoor use, as it offers the best UV resistance. White suits applications where aesthetics matter, such as marine cabin wiring or appliance repairs. Red is often used for positive wire identification in automotive and marine wiring. Transparent allows you to inspect the connection underneath after shrinking, which is useful for quality-checking splices.
🛒 Select your color and length above, then add to cart — ships from our US warehouse.
