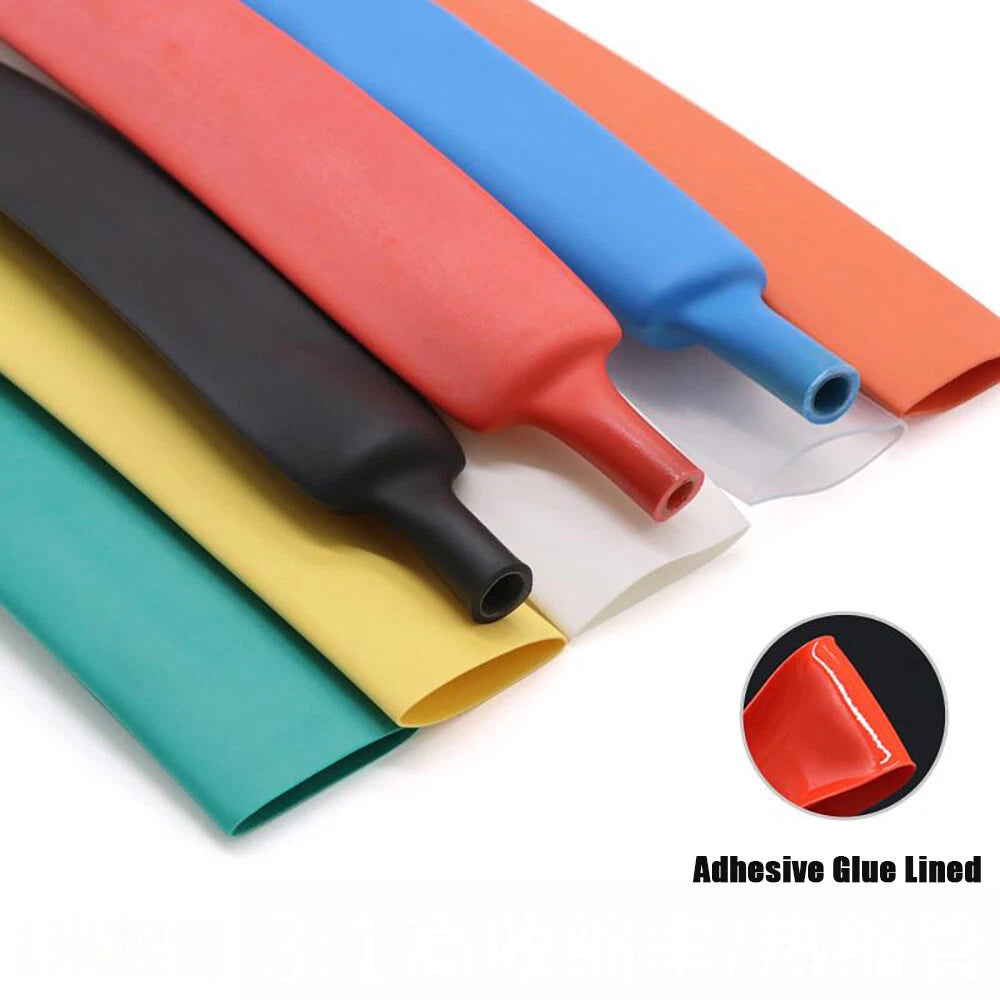

4:1 Ratio Adhesive Glue Lined Heat Shrink Tubing — Waterproof Heatshrink Sleeving

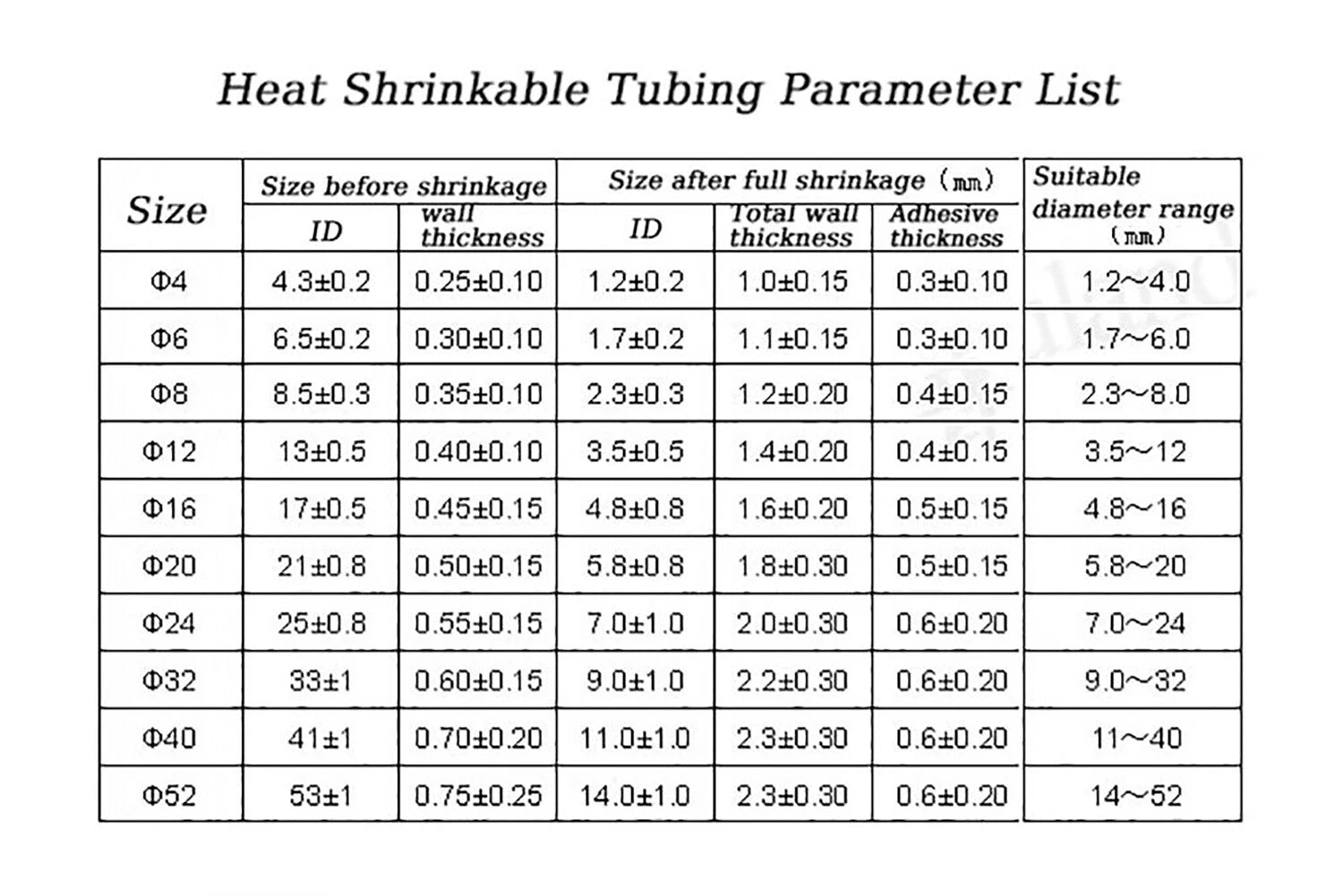

Measure the outer diameter of the cable or connector you need to cover, then select a tubing size whose recovered (shrunken) inner diameter is slightly smaller than that measurement. For example, φ4mm tubing typically recovers to about 1mm, making it suitable for thin wires. When in doubt, size up — you can always apply more heat to achieve a tighter fit. See variant options for the full diameter range (φ4mm to φ40mm).

Quick inch reference: φ4mm ≈ 5/32", φ6mm ≈ 1/4", φ8mm ≈ 5/16", φ12mm ≈ 15/32", φ16mm ≈ 5/8", φ20mm ≈ 25/32", φ24mm ≈ 15/16", φ32mm ≈ 1-1/4", φ40mm ≈ 1-9/16".

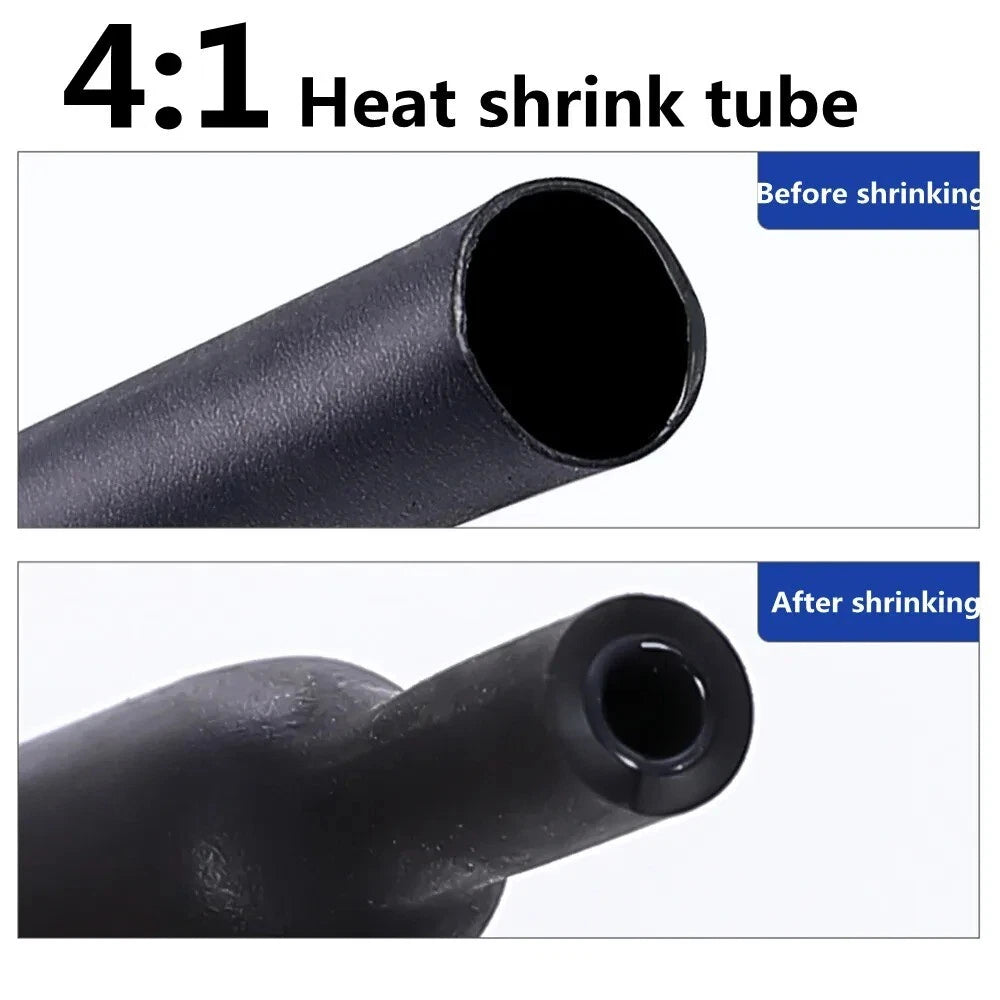

This tubing uses a 4:1 shrink ratio, meaning it shrinks to one-quarter of its original diameter when heat is applied. This is significantly more than standard 2:1 tubing, making it well-suited for irregular shapes, connectors, and splices where a tight, conforming seal is needed. It is generally the preferred choice for large connectors, stepped cable transitions, and any application where a snug fit is critical.

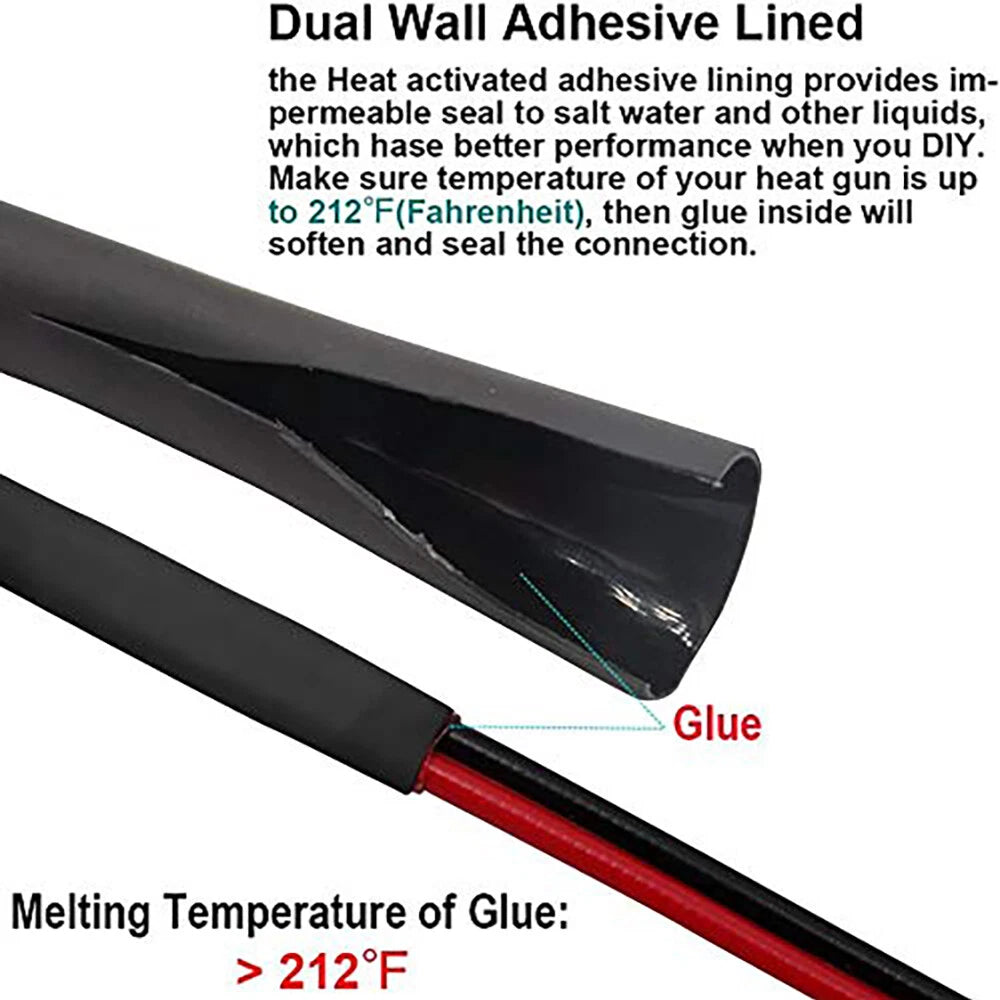

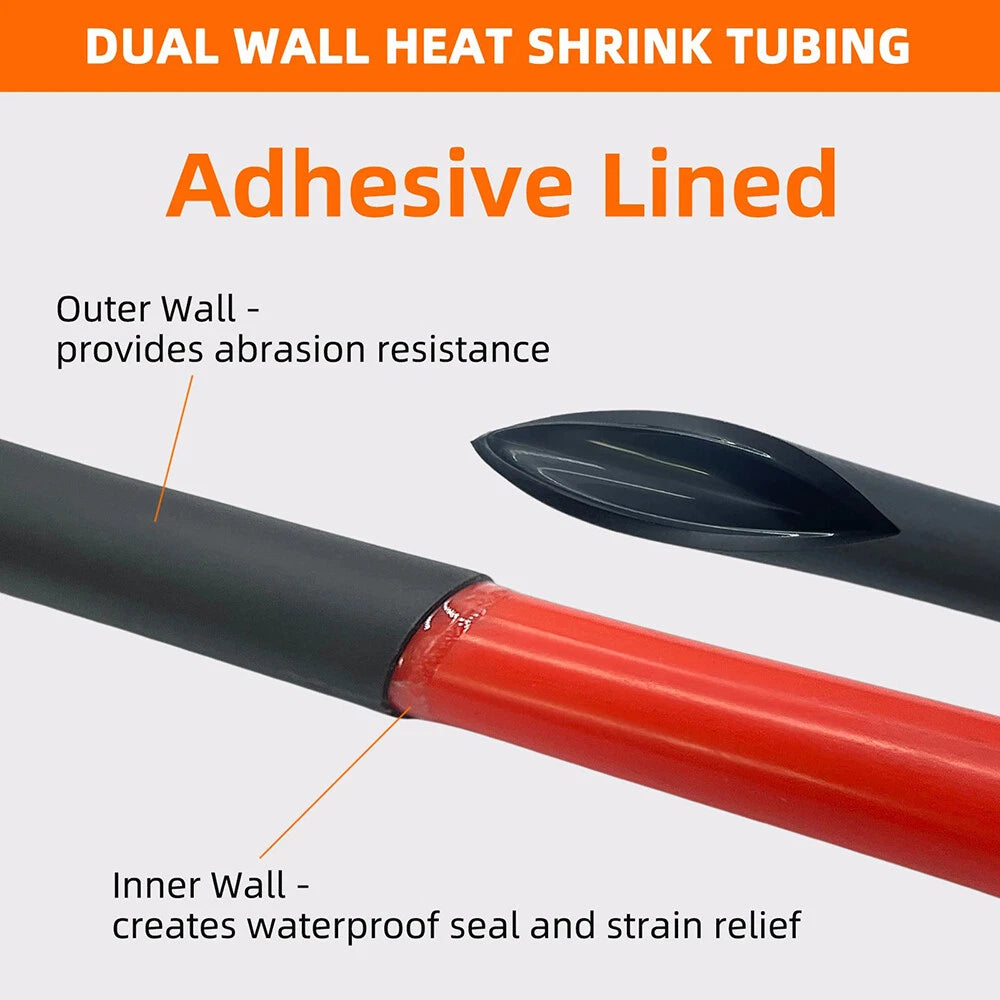

Yes. The inner adhesive lining melts and flows during shrinking to create a watertight seal around the substrate. This generally makes it suitable for outdoor, marine, and automotive environments where moisture ingress is a concern — including bilge pump wiring, trailer lighting, and deck connectors. For continuous submersion applications, contact us to confirm suitability for your specific use case.

Dual-wall adhesive-lined heat shrink tubing of this type typically activates at around 70–90°C (158–194°F) and fully shrinks at approximately 120–135°C (248–275°F). A heat gun is strongly recommended over an open flame for even, controlled shrinkage — open flames can scorch the outer wall or cause uneven adhesive flow. Contact us to confirm exact activation temperatures for your selected diameter.

Yes. The adhesive-lined construction provides strain relief and a moisture-resistant seal, making it a common choice for automotive wiring harnesses, trailer connectors, battery terminals, and electrical splices. The 4:1 ratio ensures a snug fit over bulky connectors and terminals. It is also widely used for solar panel lead protection and RV electrical systems.

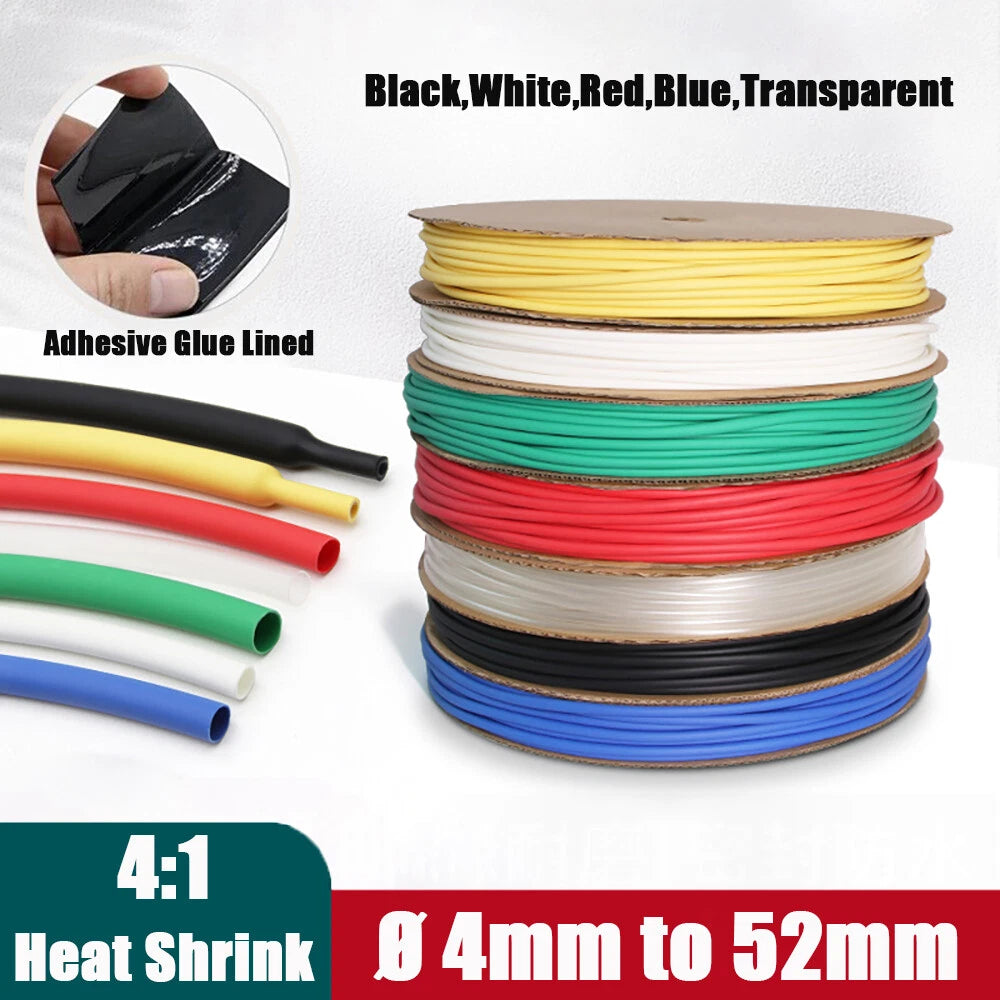

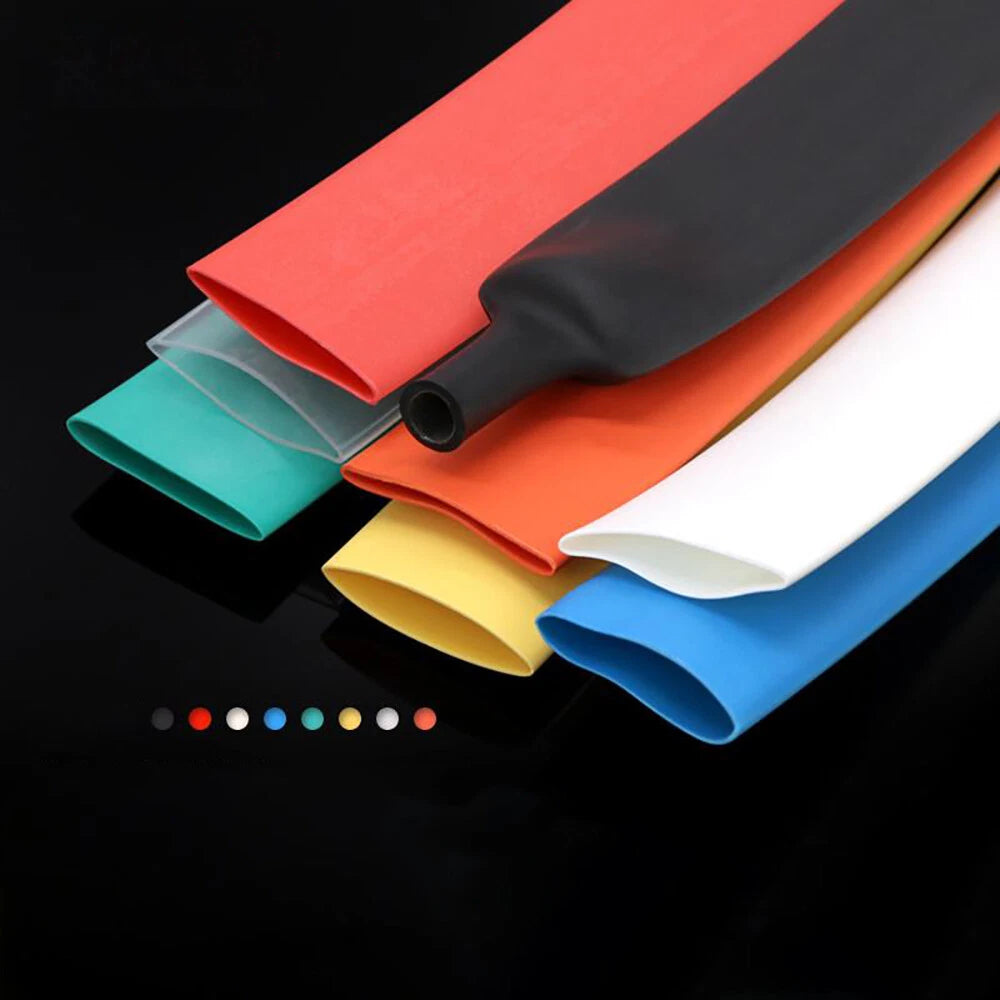

Color is primarily for identification and organization purposes. Black is the most common choice for general wiring. White, Red, Blue, and Transparent options allow color-coding of circuits or a clean, visible finish. Transparent tubing lets you see the underlying wire or label after shrinking. Performance characteristics are generally the same across all color variants.

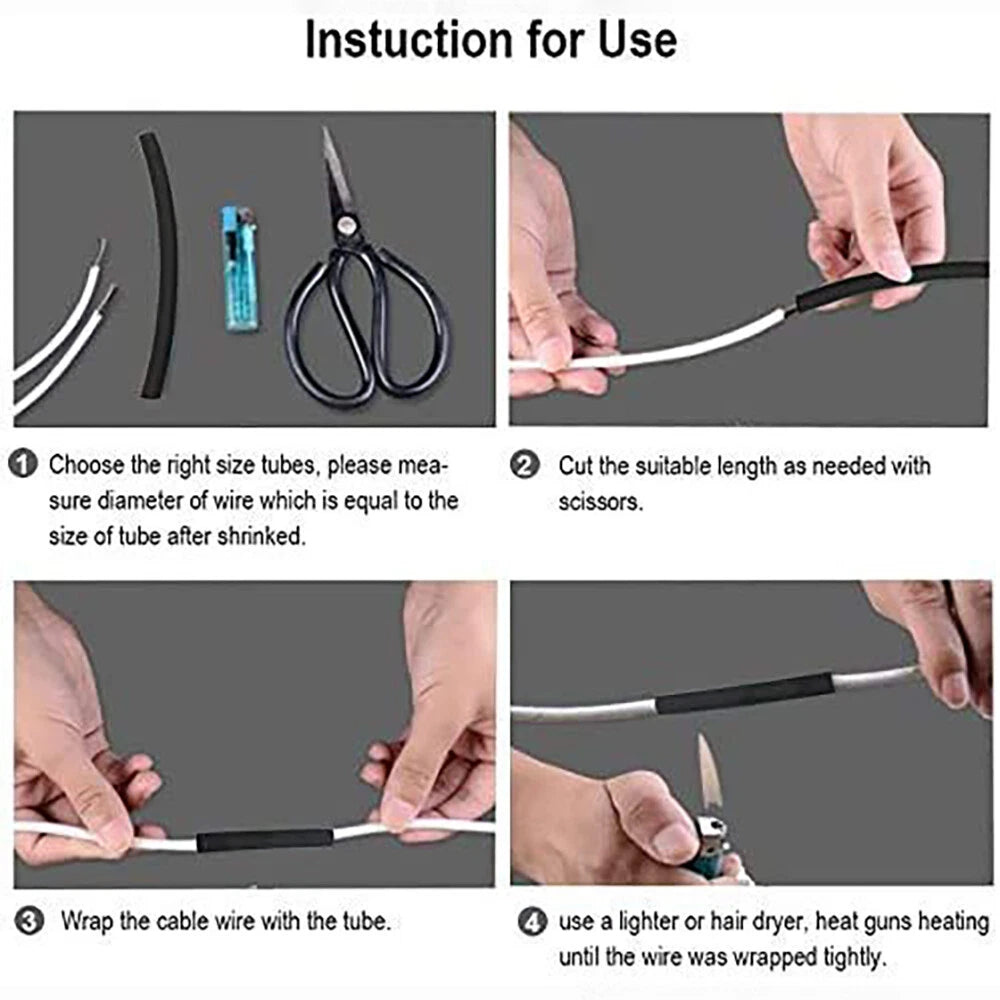

Cut the tubing to your desired length before shrinking using sharp scissors or a utility knife for a clean edge. It is much easier to cut cleanly before heat is applied. Leave a small overlap — typically 5–10mm (about 1/4"–3/8") — on each end beyond the area you want to seal to ensure full adhesive coverage after shrinkage.
