5:1 Heat Shrink Tubing Set — Waterproof Dual-Wall Wire Insulation for Reliable Connections

Loose wire splices and exposed connectors are one of the most common causes of electrical failures in automotive, marine, and outdoor DIY projects. Whether you're chasing an intermittent short in your truck's wiring harness or sealing a junction box on a dock, you need insulation that stays put — even when moisture, vibration, and UV exposure are working against you. This 5:1 heat shrink tubing set is built for exactly those situations, giving hobbyists, mechanics, and electricians a dependable solution for waterproof wire insulation.

Each set includes an assortment of dual-wall heat shrink tubes in multiple diameters, available in 164, 328, or 492-piece counts packaged in either a resealable bag or an organized storage box. The tubes feature a 5:1 shrink ratio — meaning the expanded tube shrinks down to one-fifth of its original diameter — and an inner adhesive lining that melts during heating to form a moisture-resistant seal. Diameter sizes in the assortment typically range from small-gauge signal wire coverage up to heavier connector sleeves; see variant options for the exact size breakdown.

These dual-wall adhesive-lined tubes are well suited for automotive wiring repairs, marine electrical connections, trailer harness protection, and outdoor junction sealing. The wide shrink ratio makes them especially useful when working with connectors, terminals, or irregular shapes where standard 2:1 tubing falls short — a common search for anyone looking for waterproof wire connector covers or adhesive heat shrink for marine wiring.

🔌 Compatibility: Works with copper and aluminum conductors. Suitable for 12V automotive, marine, RV, and low-voltage outdoor electrical applications. Confirm wire gauge and connector diameter against variant size chart before ordering.

✅ Key Features of These 5:1 Dual-Wall Heat Shrink Tubes

💧Adhesive Inner Wall for Waterproof Sealing — The dual-wall construction includes a hot-melt adhesive lining that flows into gaps during shrinking, creating a moisture-resistant barrier ideal for outdoor and marine wire insulation.
📐5:1 Shrink Ratio for Versatile Fit — A 5:1 ratio gives you far more coverage flexibility than standard 2:1 tubing, making these sleeves effective for connectors, terminals, and irregular wire bundles where a tight recovered fit matters.
🎯Multi-Diameter Assortment in One Kit — Instead of buying individual spools, this set bundles multiple diameter sizes so you have the right tube on hand for everything from thin signal wires to heavier gauge automotive cables.
🔥Low Activation Temperature — Tubes typically begin shrinking at around 90°C (194°F), so a standard heat gun activates them quickly and evenly without scorching nearby components.
📦Bag or Box Packaging Options — Choose a resealable bag for portable toolbox storage or a labeled storage box to keep diameters sorted and accessible in a workshop environment.
⚡Electrical Insulation with Mechanical Protection — Beyond moisture sealing, the recovered tubing adds a layer of abrasion resistance and strain relief around splices and connector entries, reducing the risk of chafing failures in high-vibration environments.

📐 Technical Specifications — 5:1 Dual-Wall Heat Shrink Tubing Kit

Product Type	Dual-Wall Adhesive-Lined Heat Shrink Tubing Assortment
Shrink Ratio	5:1
Wall Construction	Dual-wall (outer polyolefin + inner hot-melt adhesive)
Waterproof Rating	Moisture-resistant seal when fully recovered (adhesive-lined)
Diameter Range	See variant options (assorted sizes per set)
Piece Count Options	164 pieces / 328 pieces / 492 pieces
Packaging Options	Resealable Bag or Labeled Storage Box
Typical Piece Length	Generally ~100mm (≈4") per piece — contact us to confirm
Activation Temperature	Typically 90–120°C (194–248°F)
Compatible Conductors	Copper, aluminum (insulated wire and cable)
Typical Applications	Automotive, marine, RV, outdoor low-voltage wiring
Color	See variant options
Country of Origin	Contact us to confirm

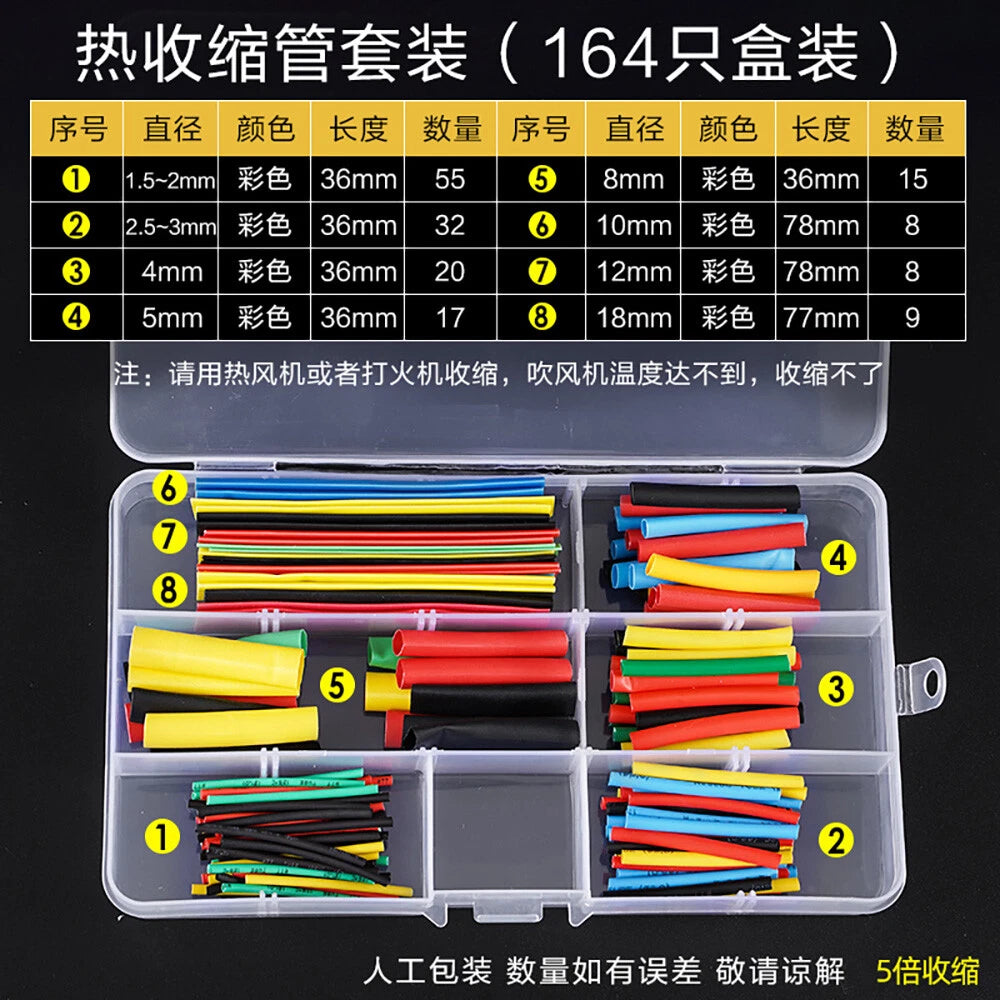

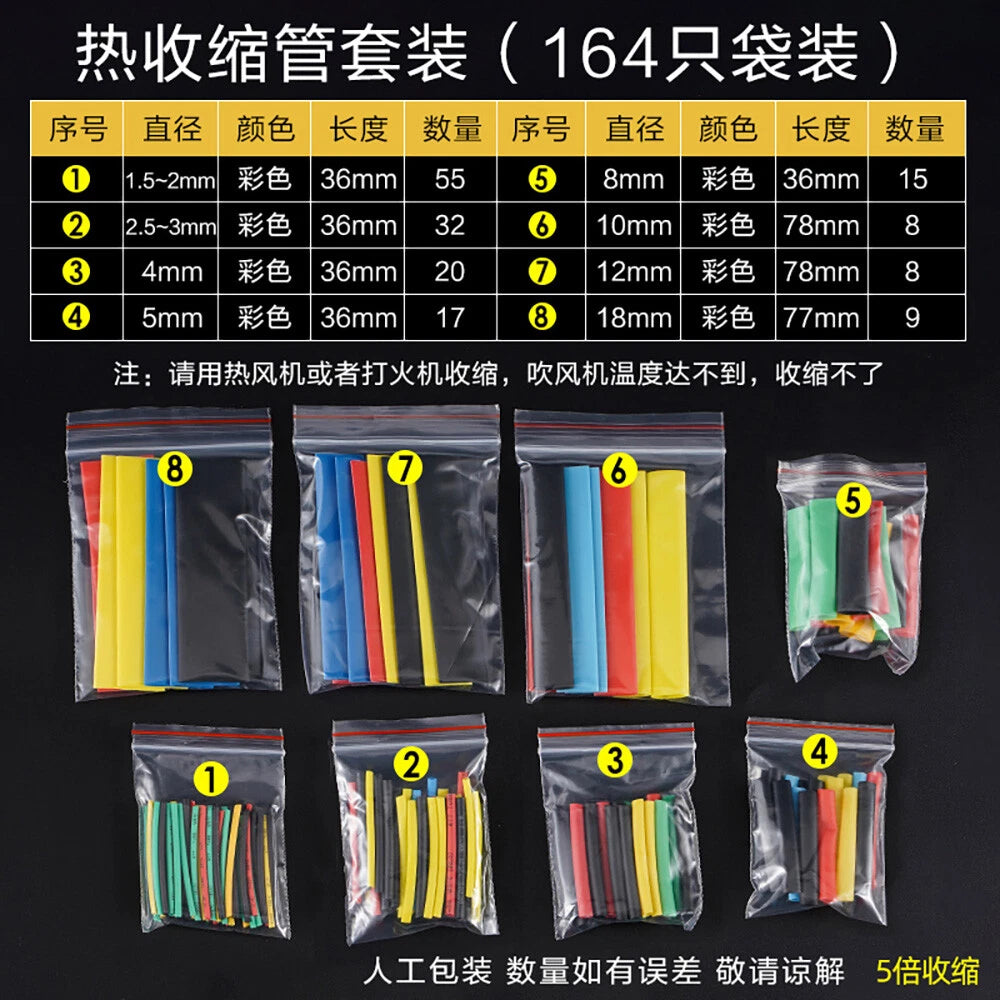

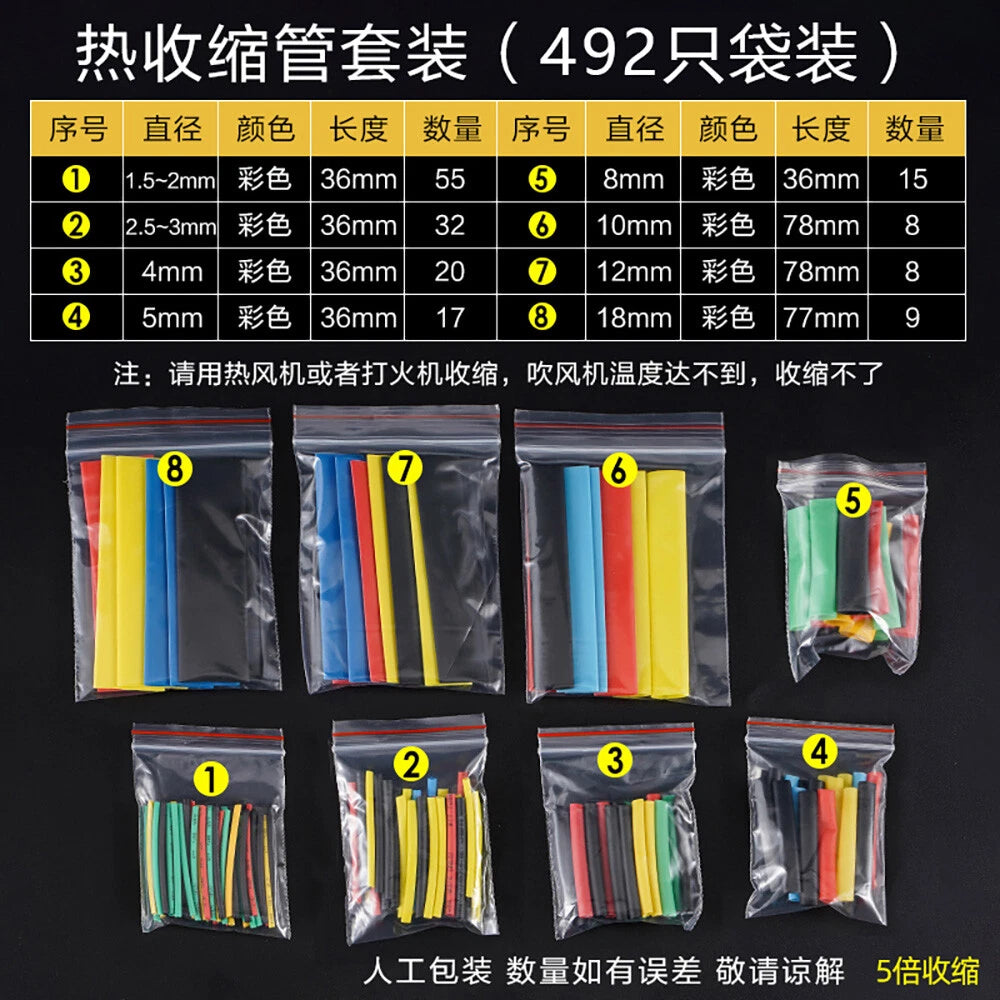

⚠️ Spec Note: Exact diameter sizes and piece distribution per set vary by variant. Review the size chart in the product images or contact us before ordering if you need a specific diameter confirmed.

❓ Frequently Asked Questions

How do I choose the right diameter for my wires?

Measure the outer diameter of the wire or connector you need to cover, then select a tube whose recovered (post-shrink) inner diameter is slightly smaller than that measurement. With a 5:1 shrink ratio, a tube that starts at 12mm (≈1/2") will recover to roughly 2.4mm (≈3/32"), giving you a wide working range. When in doubt, size up one step.

Is this heat shrink tubing truly waterproof?

Yes. These are dual-wall tubes with an inner adhesive lining that melts and flows during shrinking to create a moisture-resistant seal around the wire or connector. They are generally suitable for outdoor, marine, and automotive wiring exposed to rain, humidity, and splashing.

What temperature is needed to shrink these tubes?

Typically a heat gun set to around 90–120°C (194–248°F) is sufficient to activate shrinking. Avoid open flames when possible, as uneven heat can cause bubbling or uneven shrinkage.

Can I use these outdoors or in marine environments?

Yes. The adhesive inner wall creates a seal that resists moisture ingress, making these tubes generally suitable for outdoor electrical connections, boat wiring, and automotive applications. For prolonged saltwater submersion, confirm the specific tube rating with us.

What wire gauges are compatible with this kit?

The kit typically covers a range of wire gauges from small signal wires up to heavier automotive cables. Because the set includes multiple diameter sizes, it is generally compatible with AWG 8 through AWG 28 wiring. See variant options for the exact size assortment included.

What is the difference between the Bag and Box packaging options?

Both contain the same tubing assortment. The Bag option is a resealable poly bag suited for occasional use or toolbox storage, while the Box option comes in a labeled storage box that keeps sizes organized and is ideal for workshops or frequent use.

How long are the individual tubing pieces in the set?

Individual pieces are typically pre-cut to a standard length — generally around 100mm (≈4") each — making them ready to use without additional cutting for most connector and splice applications. Contact us to confirm exact cut lengths for your set size.

🛒 Select your set size and packaging above, then add to cart — ships from our US warehouse.
