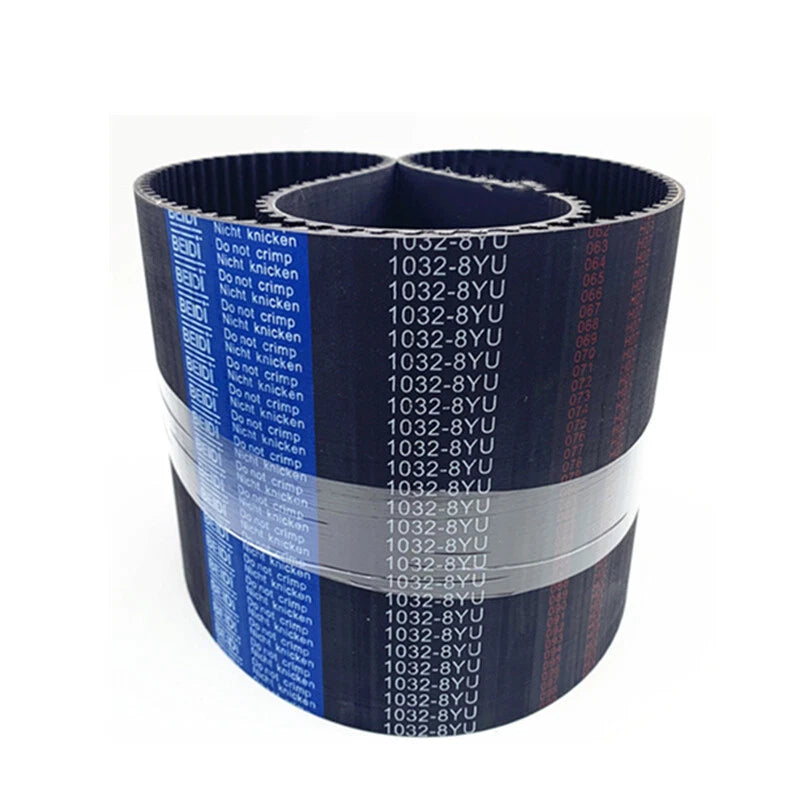

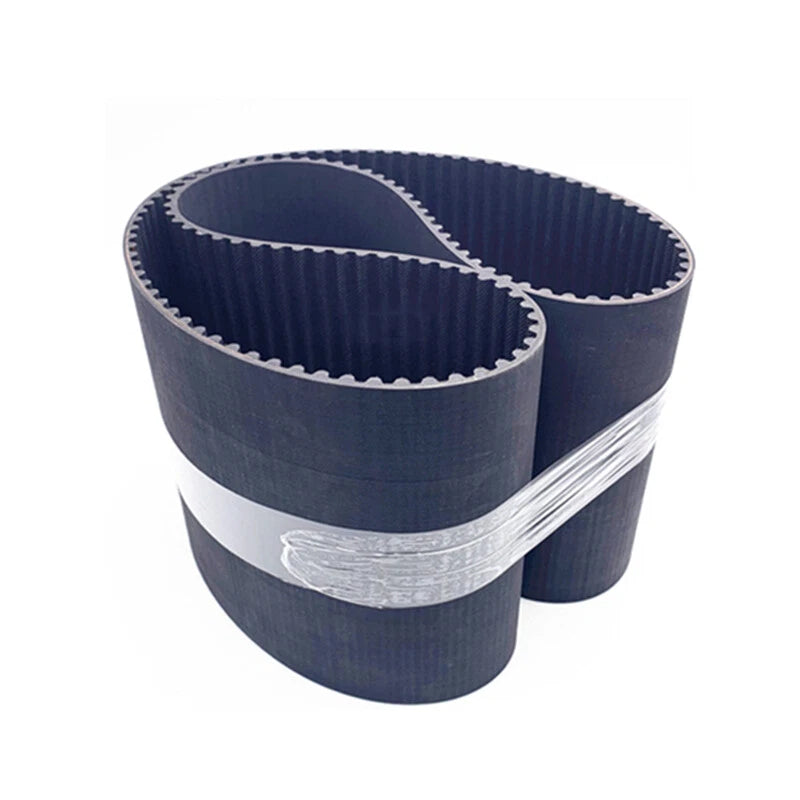

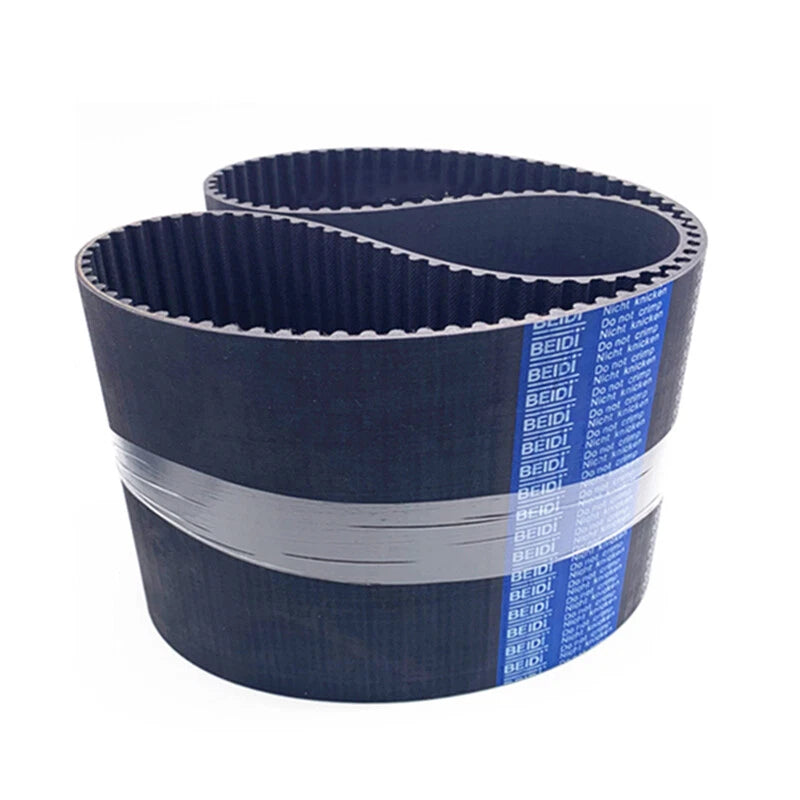

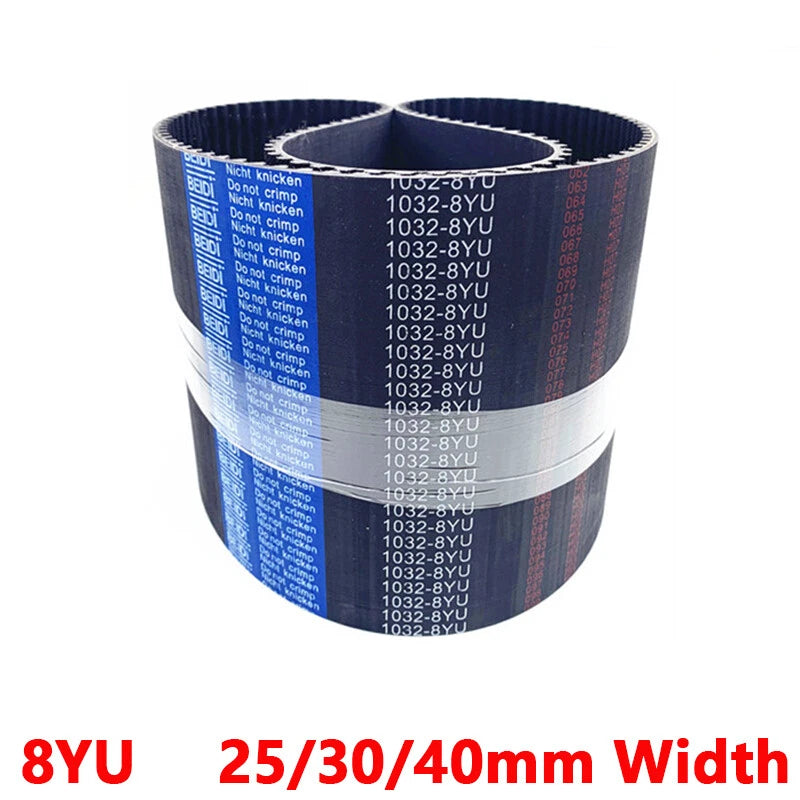

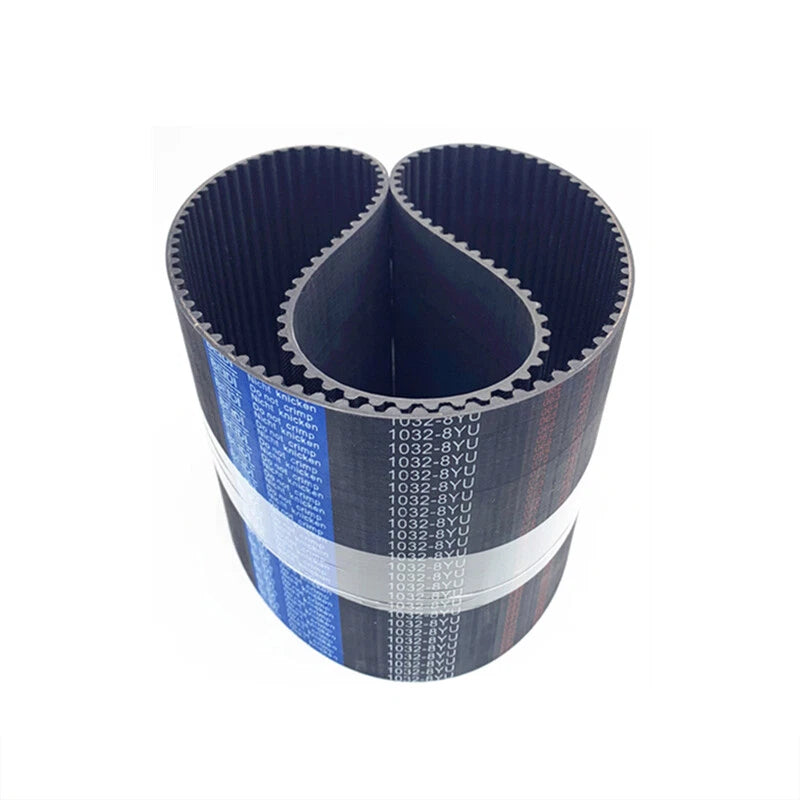

8YU Closed Loop Timing Belt — Reliable 8mm Pitch Drive for CNC, Laser & Pulley Systems

When your CNC router, laser cutter, or automated drive system demands precise, slip-free motion, a worn or mismatched timing belt is the last thing you want. Builders, machine retrofitters, and automation engineers who rely on 8mm pitch drive systems need a closed loop synchronous belt that holds tension, meshes cleanly, and doesn't stretch under load. This 8YU closed loop timing belt is designed exactly for those applications.

Each belt is a single closed loop — no splicing, no joining hardware required. Available in widths of 25mm (≈1"), 30mm (≈1.18"), and 40mm (≈1.57"), with circumference options ranging from 520mm (≈20.5") up to 2000mm (≈78.7"), covering 65 to 250 teeth at an 8mm pitch. Select the size that matches your pulley center distance and drive width.

Typical applications include CNC router axis drives, laser cutter gantry systems, conveyor belt mechanisms, and custom pulley-driven automation rigs where an 8YU synchronous belt is specified. The closed loop design ensures consistent tooth engagement across the full belt circumference, making it a dependable choice for repetitive, high-cycle motion control.

🔗 Compatibility Note: These belts are designed for 8YU-standard pulleys with 8mm pitch. Verify your pulley tooth profile and belt width before ordering. Width options: 25mm, 30mm, 40mm.

✅ Key Features of These 8YU Closed Loop Synchronous Timing Belts

  • 🔄Closed Loop Construction — Seamless single-loop design eliminates splice points, ensuring uniform tension and smooth tooth engagement throughout the drive cycle.
  • 📐8mm Pitch Tooth Profile — Matches 8YU pulley standards used in CNC routers, laser cutters, and industrial conveyor drives for accurate, repeatable positioning.
  • 📏Wide Size Selection — Available in 55 length options from 520mm to 2000mm and three widths (25/30/40mm), covering a broad range of closed loop timing belt applications.
  • ⚙️Synchronous Drive Design — Positive tooth engagement prevents slippage under load, maintaining axis accuracy in CNC and motion control systems where belt stretch causes positioning errors.
  • 🏗️Wider Belt Options for Higher Torque — The 40mm width variant is suited for heavier-duty drives where greater tensile strength and load distribution are needed compared to narrower belts.
  • 🚚Ships from US Warehouse — Stocked domestically for faster delivery to US-based builders, machine shops, and automation integrators without extended international lead times.

📐 Technical Specifications — 8YU Closed Loop Synchronous Timing Belt

Belt Type Closed Loop Synchronous Timing Belt
Pitch 8mm (8YU standard)
Width Options 25mm (≈1"), 30mm (≈1.18"), 40mm (≈1.57")
Length Range 520mm (≈20.5") — 2000mm (≈78.7")
Tooth Count Range 65 teeth — 250 teeth
Compatible Pulley Standard 8YU, 8mm pitch
Drive Type Synchronous (positive engagement, no slip)
Material See variant options / Contact us to confirm
Tensile Load Rating See variant options / Contact us to confirm
Typical Applications CNC routers, laser cutters, 3D printers, conveyor drives, pulley automation systems
Quantity per Order 1 belt per unit
⚠️ Before ordering: Confirm your machine's required belt pitch (8mm), tooth count, and width. Measure pulley center distance to calculate the correct belt circumference. Mismatched pitch or width will prevent proper installation.

❓ Frequently Asked Questions

How do I choose the right belt length for my CNC machine?

Measure the center-to-center distance between your pulleys, then calculate the required belt circumference. The tooth count multiplied by the pitch (8mm) gives you the belt length. For example, a 100-tooth belt = 800mm (≈31.5"). Select the closest available size from the variant options above.

What width should I choose — 25mm, 30mm, or 40mm?

Width selection depends on the load and torque requirements of your drive system. Generally, 25mm suits lighter CNC and 3D printer applications, 30mm handles moderate loads, and 40mm is suited for heavier-duty industrial or high-torque setups. Always match the belt width to your pulley flange width.

What is the load capacity of these timing belts?

Load capacity varies by width and length. Wider belts (40mm) typically handle higher tensile loads than narrower options. For specific rated tension values relevant to your application, please contact us to confirm before ordering.

Can these belts be used outdoors or in humid environments?

These belts are generally suited for indoor mechanical environments. For outdoor or high-humidity use, performance may vary depending on the specific material composition. Contact us to confirm suitability for your operating conditions before purchasing.

What pulley standard is compatible with 8YU belts?

8YU belts use an 8mm pitch tooth profile and are compatible with 8YU-standard pulleys. Always verify your pulley's tooth profile, pitch, and flange width before ordering to ensure a proper mesh and prevent belt tracking issues.

Are these belts suitable for 3D printers and laser cutters?

Yes, 8YU closed loop timing belts are commonly used in CNC routers, laser cutters, and larger-format 3D printers where an 8mm pitch drive system is specified. Confirm your machine's belt specification (pitch, width, and circumference) before purchasing to ensure compatibility.

How do I convert belt length from mm to inches?

Divide the mm value by 25.4. Quick reference: 520mm ≈ 20.5", 800mm ≈ 31.5", 1000mm ≈ 39.4", 1200mm ≈ 47.2", 1600mm ≈ 63", 2000mm ≈ 78.7".

🛒 Select your size and width above, then add to cart — ships from our US warehouse.
