90° Elbow Pipe Reducing Connector PVC Fittings Adaptor 20 25 32 40-90mm

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

90° Elbow Pipe Reducing Connector PVC Fittings Adaptor 20 25 32 40-90mm

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Inner Dia.: 25x20mm

QTY(Pcs): 1

Colour: White

Preis:

$6.09 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

90° Elbow PVC Reducing Connectors — Leak-Free Direction Changes for Every Pipe Run

When a plumbing run needs to change direction and step down to a smaller pipe diameter at the same junction, using two separate fittings wastes space and introduces extra leak points. Plumbers, irrigation installers, and DIY homeowners working on water supply or drainage systems need a single fitting that handles both tasks cleanly. These 90° elbow pipe reducing connectors solve that problem in one compact body.

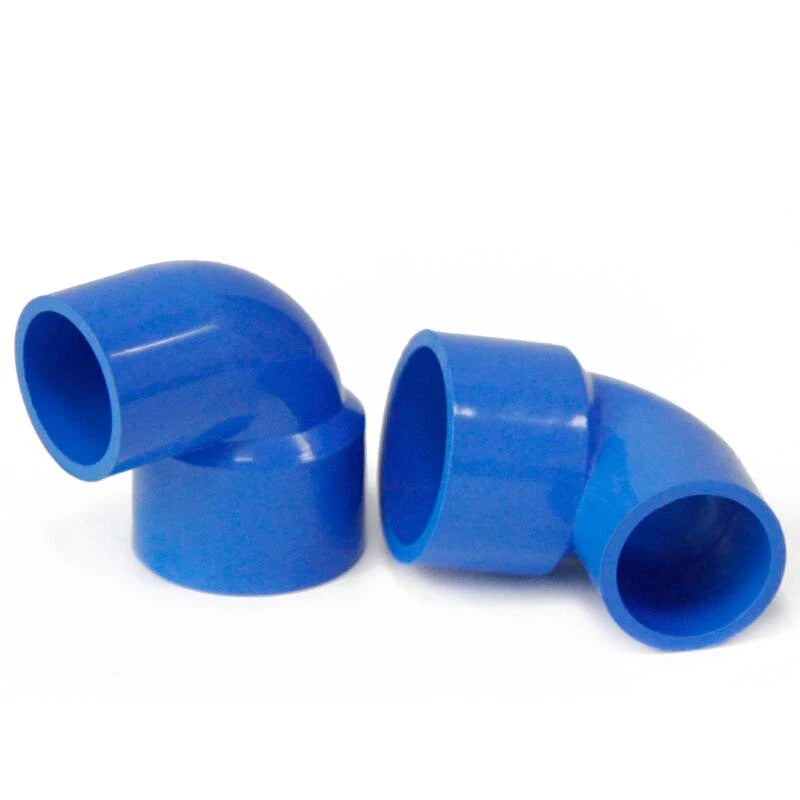

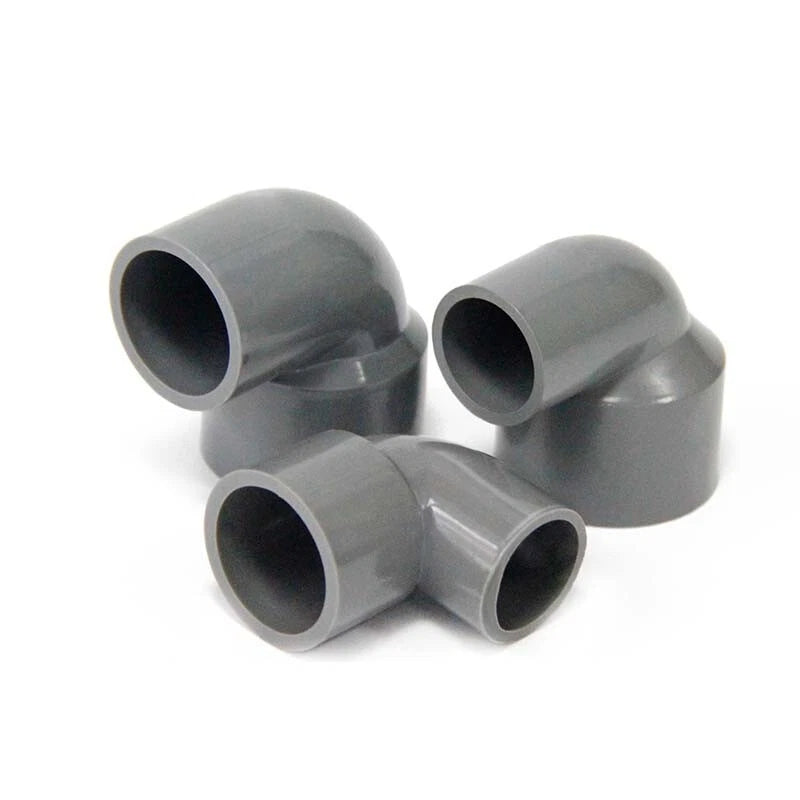

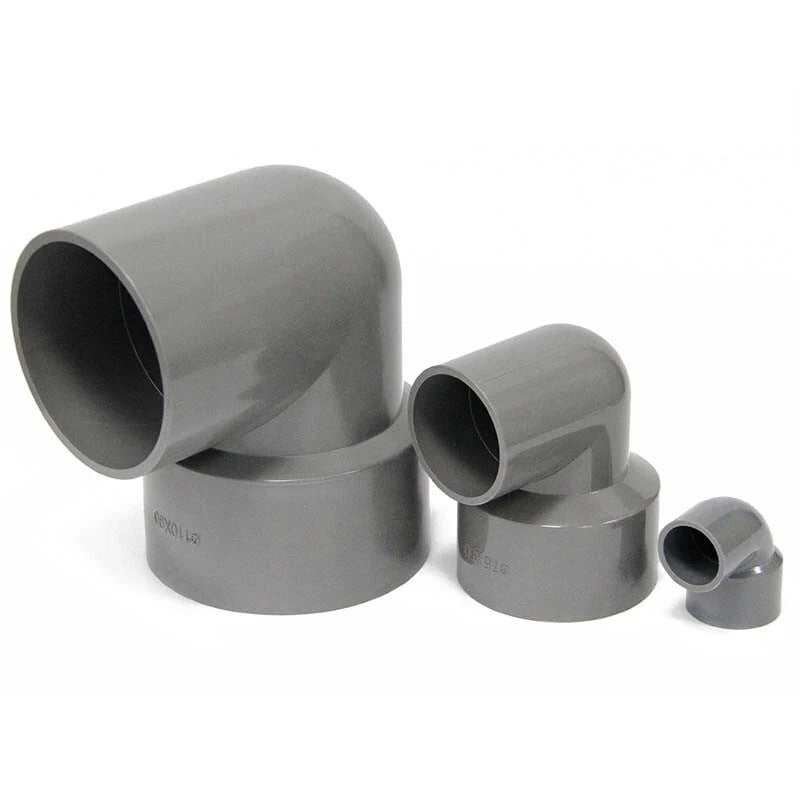

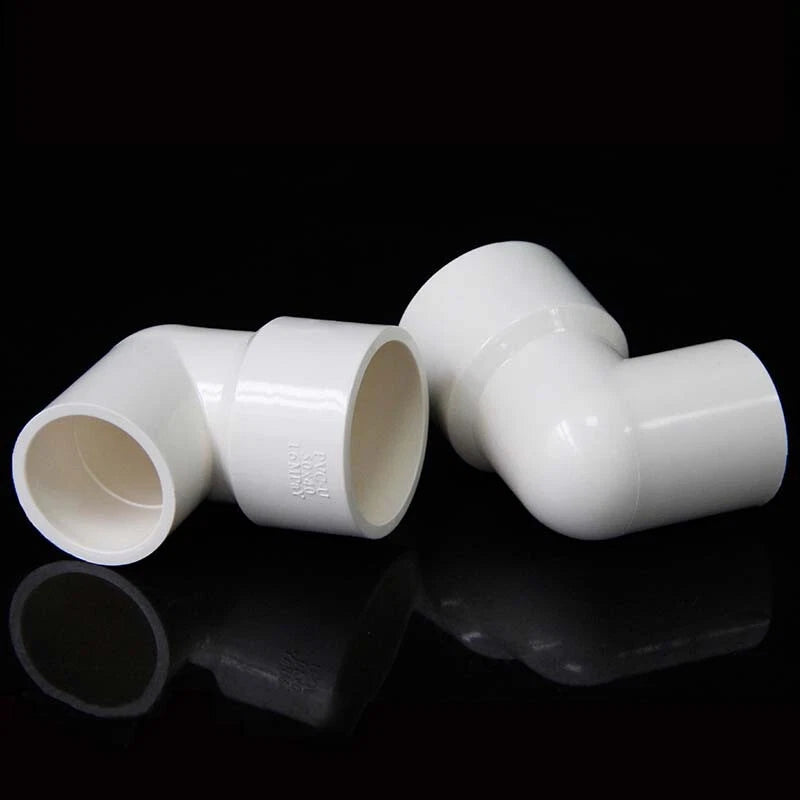

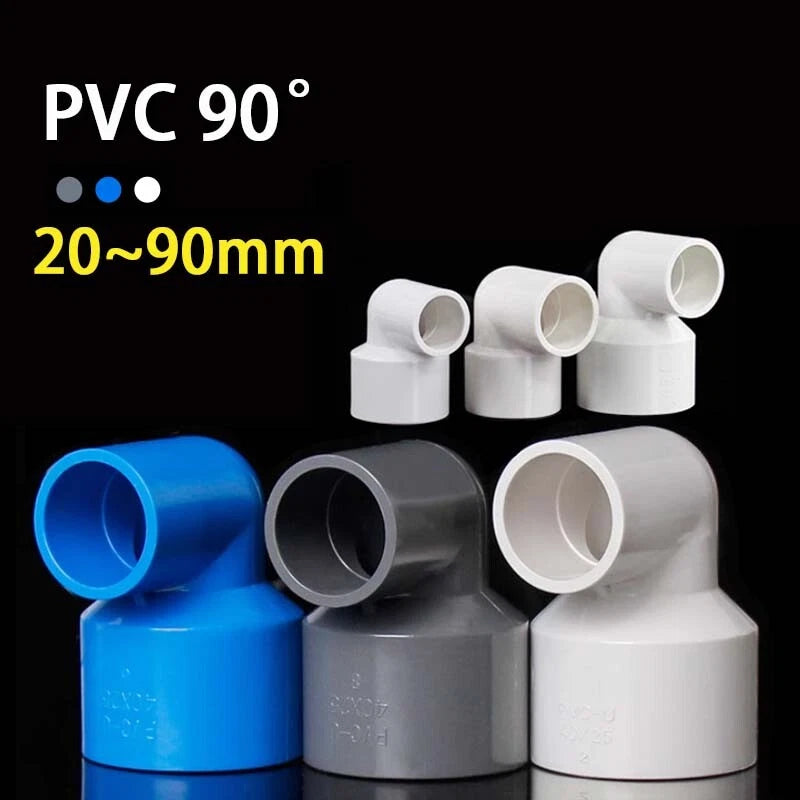

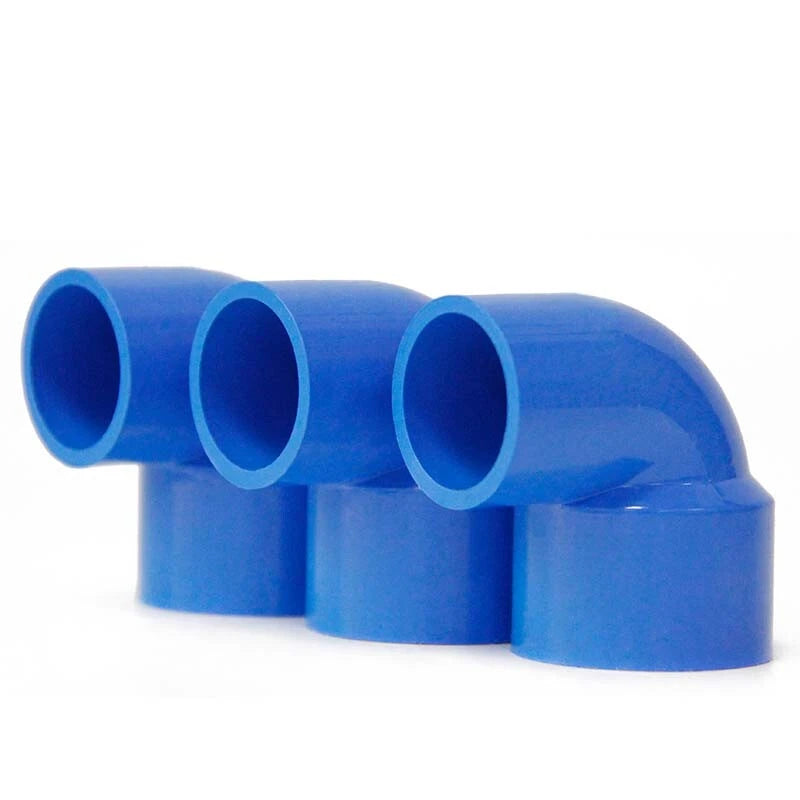

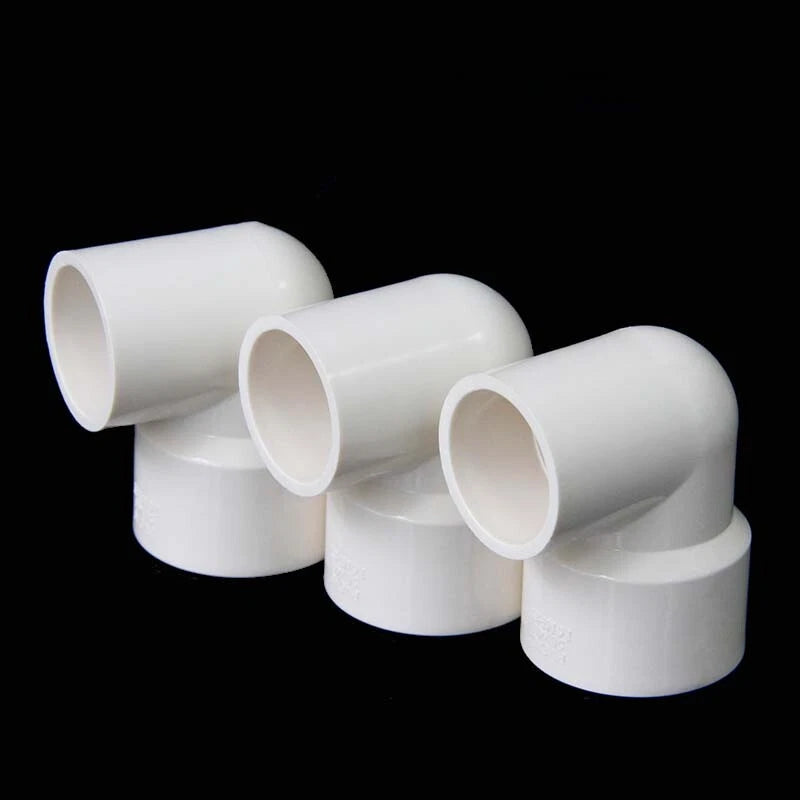

Each fitting is molded from rigid PVC (polyvinyl chloride) and features a 90-degree elbow profile with two different socket diameters — a larger inlet and a smaller outlet — allowing a simultaneous direction change and pipe size reduction. Inner diameter combinations range from 25×20 mm (approximately 1" × ¾") up to 110×90 mm (approximately 4⅓" × 3½"), covering the most common metric pipe sizes used in residential and light commercial plumbing. Available in White, Blue, and Grey to match existing pipework or colour-code systems.

Typical applications include cold water supply line transitions where a main run steps down to a branch feed, garden drip-irrigation manifolds requiring a 90° turn with a reducer, and above-ground drainage or grey-water systems where space-saving compact fittings are essential. The reducing elbow is also widely used in aquarium and pond filtration pipework, as well as in industrial fluid-handling setups that use metric PVC pipe.

🔗 Compatibility: Designed for metric PVC pressure pipe (water supply grade). Verify your pipe's outer diameter matches the fitting's inner socket diameter before ordering. Not rated for hot water or steam applications.

✅ Key Features of These 90° Elbow PVC Reducing Connectors

📐Dual-Function Design — Changes pipe direction 90° and reduces to a smaller diameter in a single fitting, eliminating the need for a separate elbow and reducer.
🔩Wide Size Range — Inner diameter combinations from 25×20 mm up to 110×90 mm cover the most common metric PVC pipe transitions in residential and light commercial work.
🎨Three Colour Options — White, Blue, and Grey finishes allow colour-coding of pipe systems or matching existing visible pipework for a clean, professional appearance.
💧Solvent-Weld Socket Ends — Both sockets accept standard PVC solvent cement for a permanent, leak-free bond that withstands normal cold water supply pressures.
📦Flexible Pack Quantities — Available in packs of 1, 3, 5, 10, or 20 pieces, making it practical for single repairs, small projects, or bulk installation jobs.
🏗️Rigid PVC Construction — Resistant to corrosion, scale build-up, and common household chemicals, maintaining flow capacity over the service life of the installation.

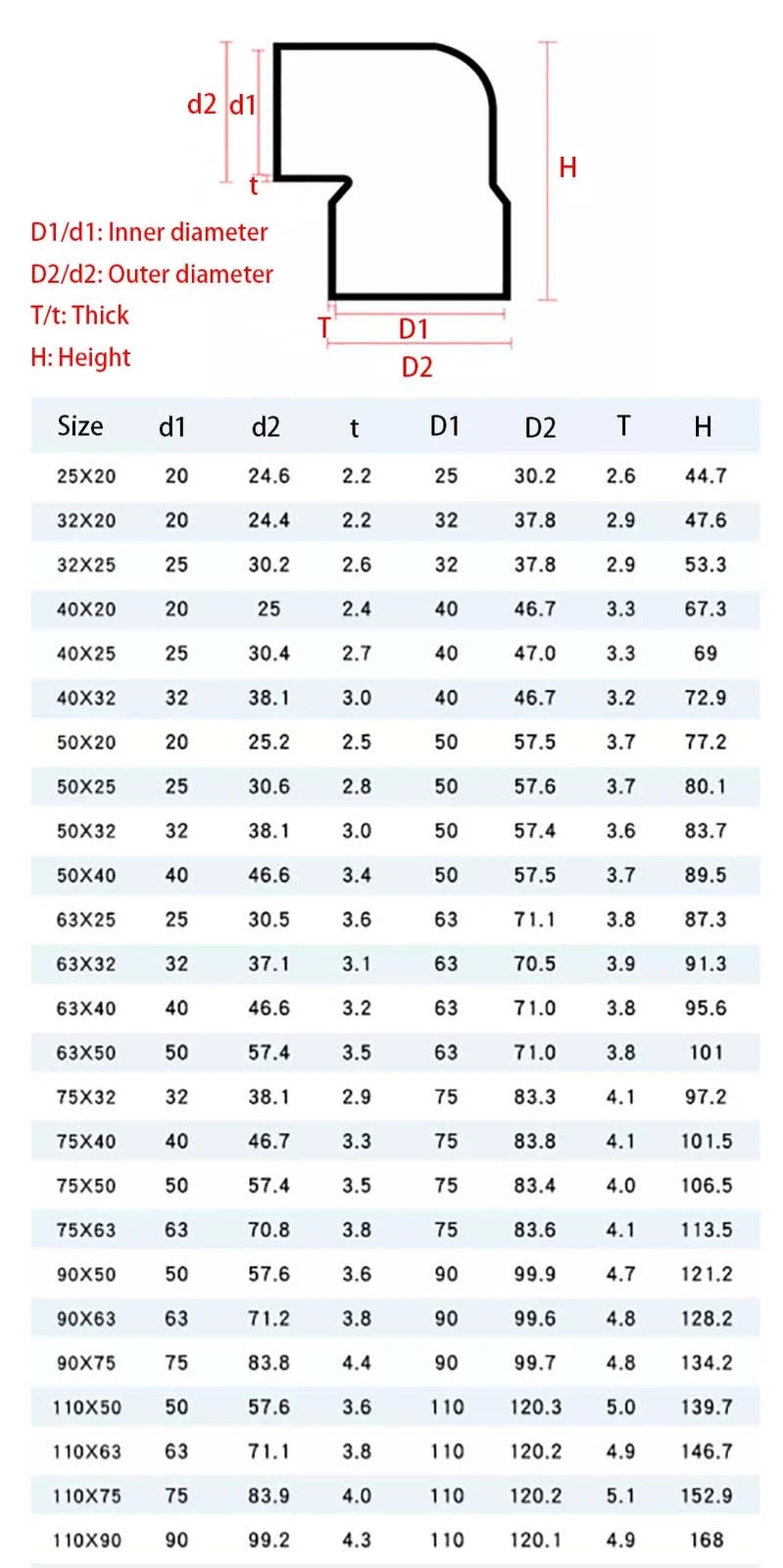

📐 Technical Specifications — PVC 90° Elbow Reducing Connectors

Material	Rigid PVC (Polyvinyl Chloride)
Fitting Type	90° Elbow Reducing Connector
Connection Method	Solvent-weld socket (both ends)
Inner Diameter Range	25×20 mm up to 110×90 mm (see variant options)
Available Colours	White, Blue, Grey
Pack Quantity	1 / 3 / 5 / 10 / 20 pcs (see variant options)
Applicable Fluid	Cold water, irrigation water, grey water
Temperature Rating	See variant options
Pressure Rating	See variant options
Wall Thickness	See variant options
Finish	Smooth interior and exterior

❓ Frequently Asked Questions

How do I choose the correct inner diameter combination?

Measure the outer diameter (OD) of each pipe you are connecting. The fitting's inner socket diameter should match the pipe's OD. For example, if your main pipe has a 32 mm OD and your branch pipe has a 20 mm OD, select the 32×20 mm variant. If you are unsure, contact us to confirm before ordering.

Can these fittings be used for hot water lines?

These fittings are molded from standard rigid PVC, which is rated for cold water applications only. They are not suitable for hot water supply, steam, or any fluid consistently above approximately 60 °C (140 °F). For hot water systems, consider CPVC or other heat-rated fittings.

What adhesive should I use to join these fittings?

Use a standard PVC solvent cement (also called PVC glue or solvent weld adhesive) appropriate for the pipe pressure class. Clean and dry both the pipe end and the socket interior, apply primer if required by local code, then apply solvent cement to both surfaces and push together with a quarter-turn. Allow the joint to cure fully before pressurising the system.

Are these fittings resistant to corrosion and chemicals?

Rigid PVC is inherently corrosion-resistant and unaffected by most household water treatment chemicals, chlorine, and mild acids or alkalis at normal concentrations. It will not rust or scale internally. Avoid contact with strong solvents, concentrated acids, or aromatic hydrocarbons, which can degrade PVC.

Do the White, Blue, and Grey variants differ in any way other than colour?

The colour variants share the same dimensions and connection method. Colour is typically used to distinguish pipe systems — for example, blue for cold water supply and grey for drainage or grey-water lines — or simply to match existing visible pipework. Select the colour that suits your installation's coding or aesthetic requirements.

Which pack size should I order for a typical home repair?

For a single repair or replacement, the 1-piece pack is the most economical choice. If you are installing multiple branch points along a run, the 3- or 5-piece packs offer a lower per-unit cost. Contractors or those completing larger irrigation or plumbing projects will find the 10- or 20-piece packs most cost-effective.

Are these fittings compatible with both pressure pipe and drainage pipe?

These fittings are designed primarily for water supply (pressure) pipe applications. They can also be used in low-pressure drainage and grey-water systems where the pipe OD matches the socket size. Always verify the pressure rating of the fitting against your system's operating pressure before installation.

🛒 Select your inner diameter combination, quantity, and colour above, then add to cart.
