A2 Stainless Steel Eye Bolts with Threaded Shank — Reliable Anchor Points from M5 to M20

Whether you're rigging a catenary wire across your garden, hanging a swing, securing a tarp, or setting up a pulley system in your workshop, finding an eye bolt that won't rust out or strip under load is the difference between a job done right and a callback. DIYers, riggers, and tradespeople who work with wire rope, chain, or hanging fixtures need fasteners that hold their shape and their strength over time — and that's exactly what these A2 stainless steel eye bolts are built to do.

Each eye bolt features a fully threaded shank in standard ISO metric coarse thread, available in diameters from M5 (≈3/16") through M20 (≈3/4") and lengths from 20mm (≈0.79") to 90mm (≈3.54"). The closed circular eye provides a smooth, continuous loop for attaching wire, rope, hooks, carabiners, or shackles. Material is A2 stainless steel (equivalent to 304 grade), offering solid corrosion resistance for indoor and most outdoor environments. Available in packs of 1, 2, 5, or 10 — choose the quantity that matches your project scope.

Typical use cases include catenary wire hanging systems for garden lights or privacy screens, structural anchor points in timber or masonry (with appropriate anchors), workshop overhead rigging, marine deck fittings in sheltered environments, and DIY swing or hammock suspension. The metric thread makes them straightforward to pair with standard hex nuts and washers for a secure, flush installation.

🔩 Thread Compatibility: ISO metric coarse thread (M5–M20). Fits standard metric nuts, threaded inserts, and tapped holes. Not compatible with UNC/UNF inch threads.

✅ Key Features of These A2 Stainless Steel Eye Bolts

  • 🌊A2 Stainless Steel Construction — Made from A2 (304-grade equivalent) stainless steel for dependable corrosion resistance in outdoor, humid, and light coastal environments without surface coatings that can chip or peel.
  • 🔗Closed-Loop Eye Design — The fully enclosed circular eye prevents wire, rope, or hooks from slipping out under load, making these eye bolts suitable for catenary wire hanging and suspended load applications.
  • 📐Wide Size Range — M5 to M20 — Covers the most common metric fastener sizes for light-duty hanging (M5–M6) through medium structural anchoring (M10–M20), so you can match the bolt to the actual load rather than over- or under-specifying.
  • 🔧Fully Threaded Shank — The complete threaded length gives you flexibility in installation depth and allows use with standard metric hex nuts and washers for a secure, adjustable fit in timber, metal, or masonry anchors.
  • 📦Flexible Pack Quantities — Available in packs of 1, 2, 5, or 10 per size, so whether you need a single replacement anchor point or a full run of catenary wire fixings, you only buy what you need.
  • 🏠Versatile Indoor & Outdoor Use — Suitable for garden wire systems, workshop rigging, hanging planters, swing sets, tarp anchors, and light marine deck applications where a threaded eyelet screw with corrosion resistance is required.

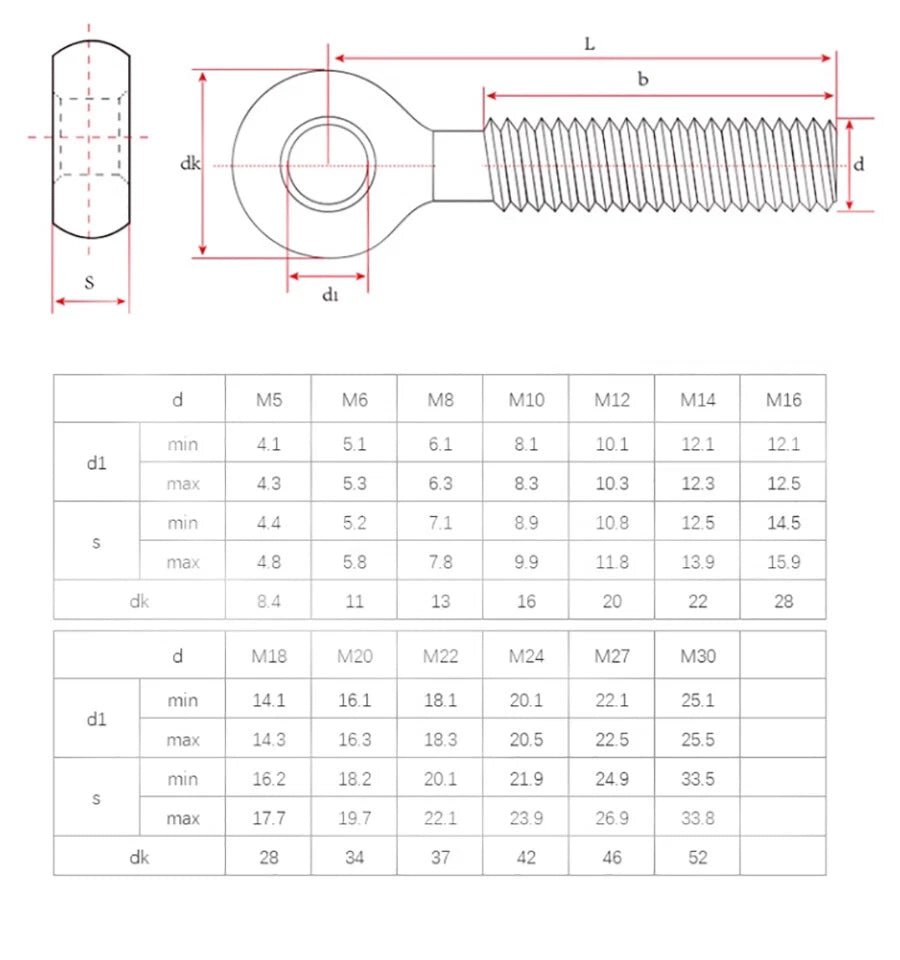

📐 Technical Specifications — A2 Stainless Steel Eye Bolts

Material A2 Stainless Steel (304-grade equivalent)
Thread Standard ISO Metric Coarse (DIN 580 / similar)
Available Diameters M5, M6, M8, M10, M12, M14, M16, M18, M20
Available Lengths 20mm (≈0.79") – 90mm (≈3.54") — see variant options
Eye Type Closed circular loop
Finish Natural stainless (no coating)
Pack Quantity Options 1, 2, 5, or 10 pieces per order
Working Load Limit See variant options — varies by diameter and installation
Nut / Washer Included Not included — source matching metric nut/washer separately
Suitable Environments Indoor, outdoor, light coastal — contact us to confirm for aggressive marine use
⚠️ Installation Note: Always verify thread engagement depth (minimum 1.5× bolt diameter recommended) and apply an appropriate safety factor for your load. For critical structural or overhead lifting applications, consult a qualified engineer.

❓ Frequently Asked Questions

How do I choose the right eye bolt size and length?

Match the diameter (M5, M6, M8, etc.) to your load requirements and the thread pitch of your receiving nut or tapped hole. For length, measure the material thickness you're threading into and add at least 1.5× the bolt diameter for adequate thread engagement. For example, an M8 bolt threading into 20mm of material generally needs at least 12mm of thread engagement. Lengths in this listing range from 20mm (≈0.79") to 90mm (≈3.54").

What load can these eye bolts handle?

Working load limits vary by diameter and installation method. As a general guideline, A2 stainless steel eye bolts are typically rated for vertical loads ranging from around 50 kg for M5 up to several hundred kg for M20, when properly installed and fully threaded. Always apply a safety factor appropriate for your application and consult an engineer for critical load-bearing uses.

Are these eye bolts suitable for outdoor or marine use?

Yes. A2 stainless steel (equivalent to 304 grade) offers good corrosion resistance for most outdoor environments including rain, humidity, and mild coastal exposure. For highly aggressive marine or saltwater environments, A4 (316 grade) stainless is generally recommended for longer service life.

What thread standard do these eye bolts use — are they compatible with my existing hardware?

These eye bolts use standard ISO metric coarse threads (M5 through M20), compatible with standard metric nuts, threaded inserts, and tapped holes of the same designation. They are not compatible with UNC/UNF inch-standard threads commonly found in older US hardware.

Can I use these for catenary wire or hanging light systems?

Yes, these eye bolts are commonly used for catenary wire systems, hanging garden lights, privacy screen wire, and similar suspended load applications. Ensure the eye opening is large enough for your wire diameter or hook gauge, and verify the load rating for your specific size before installation.

Do I need a washer or nut with these eye bolts?

In most installations, a matching metric nut and flat washer are recommended to secure the eye bolt firmly against the surface and prevent loosening under dynamic or vibrating loads. These are not included and should be sourced separately in the matching metric size (e.g., M8 nut for an M8 eye bolt).

What is the difference between the pack quantity options?

Each listing offers packs of 1, 2, 5, or 10 eye bolts of the same size. Buying in larger packs generally offers a lower per-unit cost, making them ideal for projects requiring multiple anchor points — such as a full run of catenary wire fixings or a set of swing suspension points.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
