A2 Stainless Steel Lifting Eye Bolts DIN 580 — M3 M4 M5 M6 M8, 9mm–200mm

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Size (Diameter x Length): M3 x 9mm

Bolt Material: A2 Stainless Steel

Pack Size: 1 Pcs

Preis:

$2.30 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

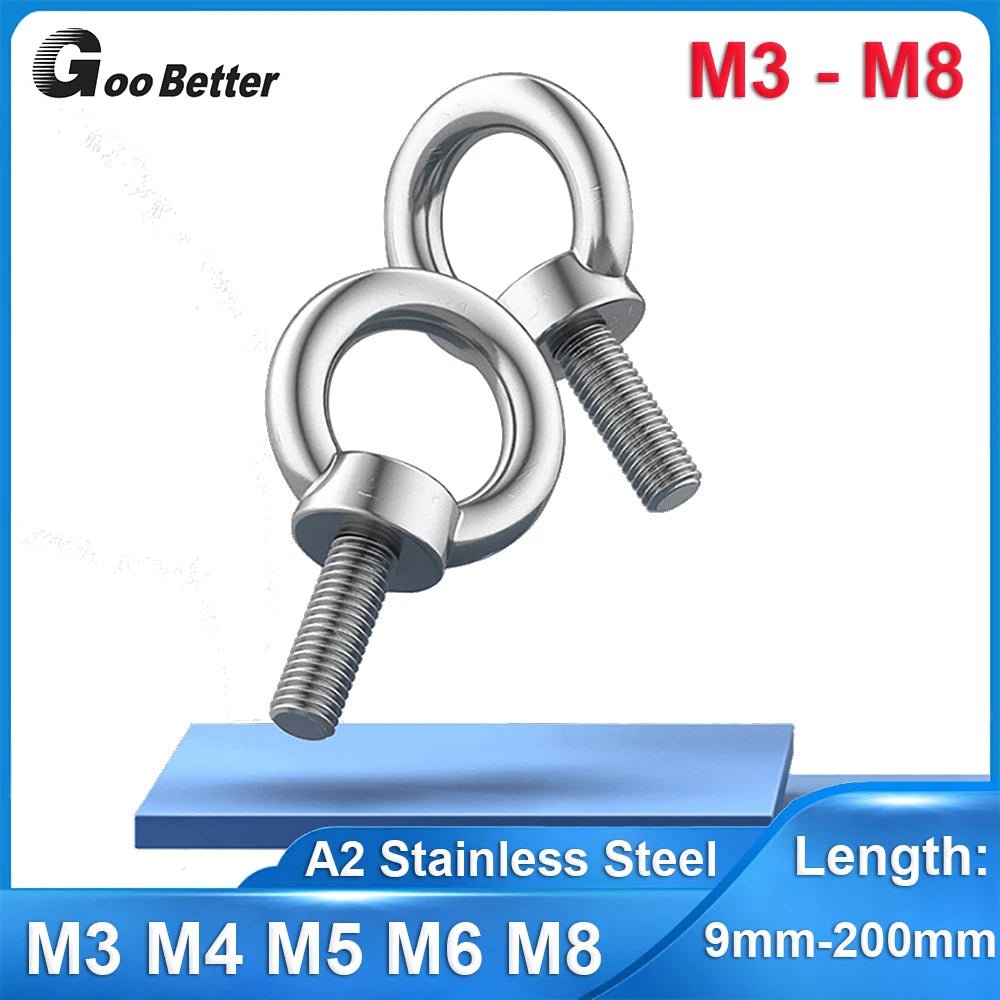

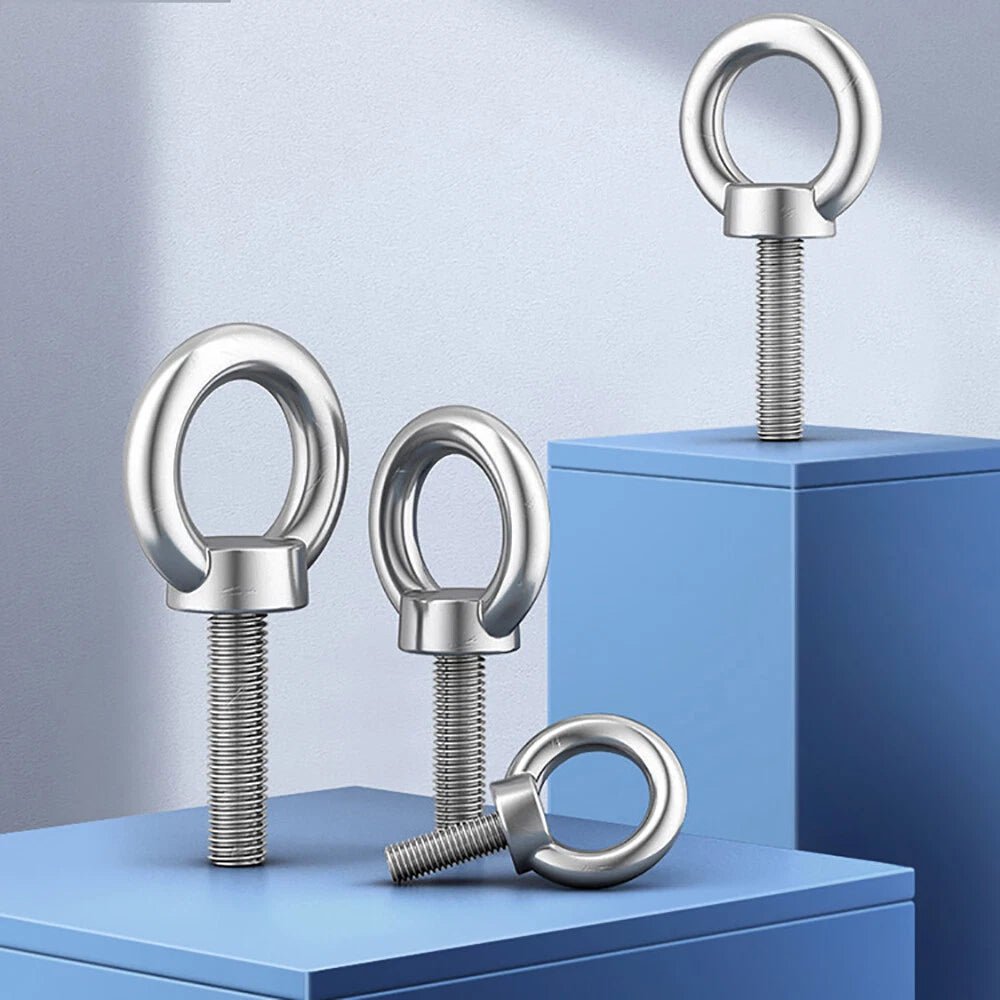

A2 Stainless Steel Lifting Eye Bolts — Secure, Rust-Resistant Rigging for Any Project

Whether you're rigging a workshop pulley, hanging heavy equipment, or securing loads for transport, finding an eye bolt that won't corrode, strip, or fail under tension is non-negotiable. These A2 stainless steel lifting eye bolts are built for DIYers, fabricators, riggers, and tradespeople who need a reliable metric fastener across a wide range of thread sizes and shank lengths.

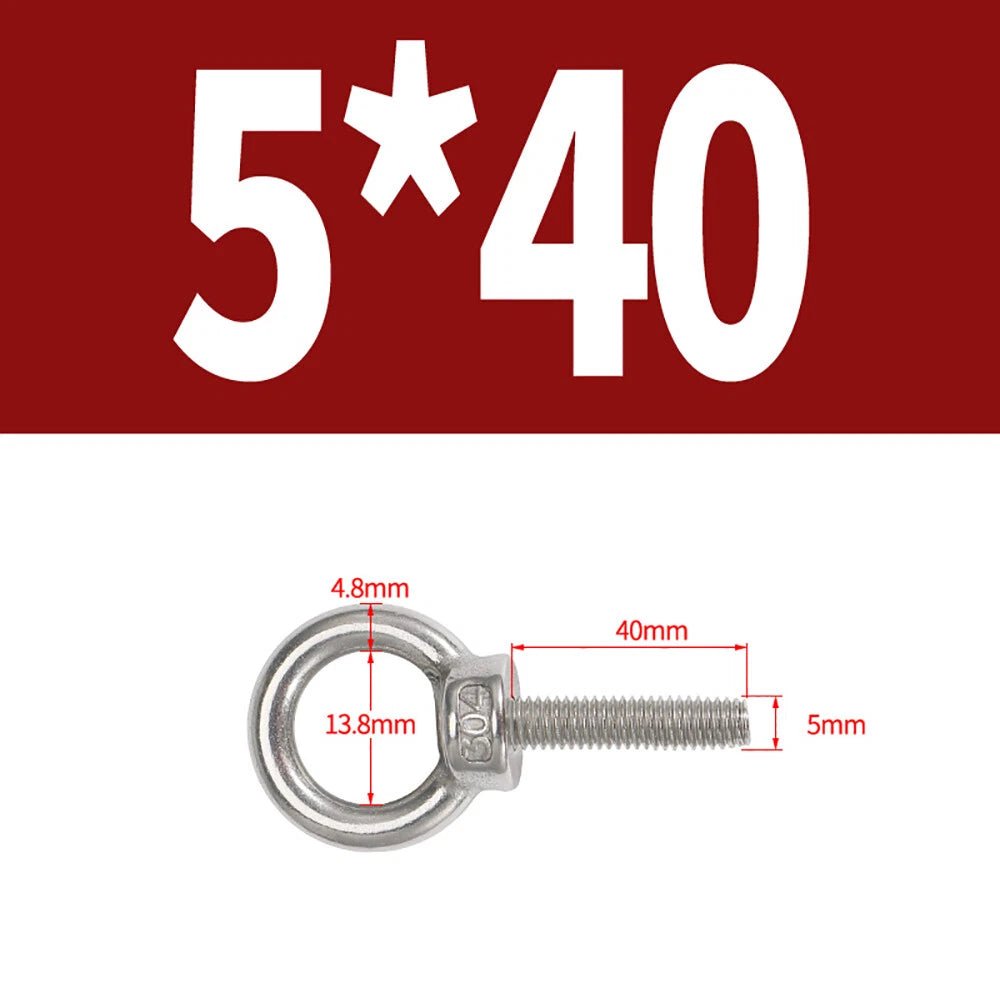

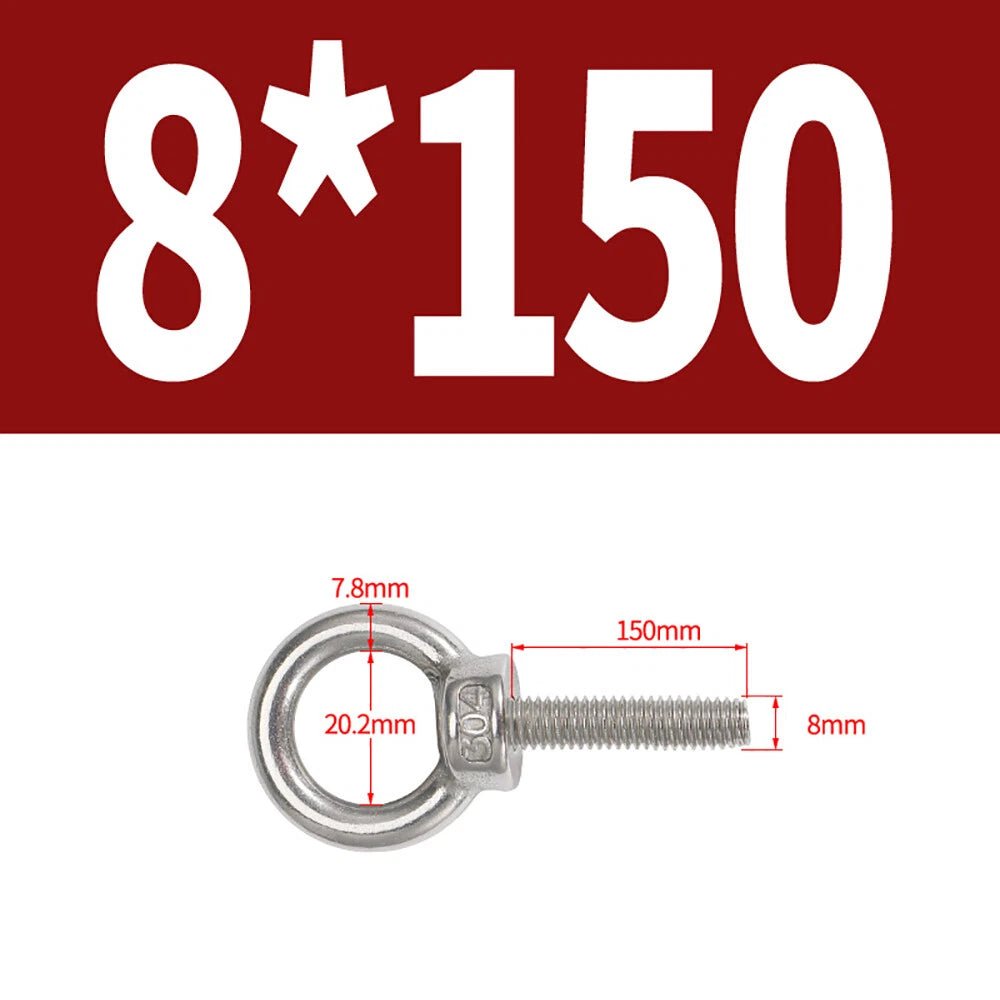

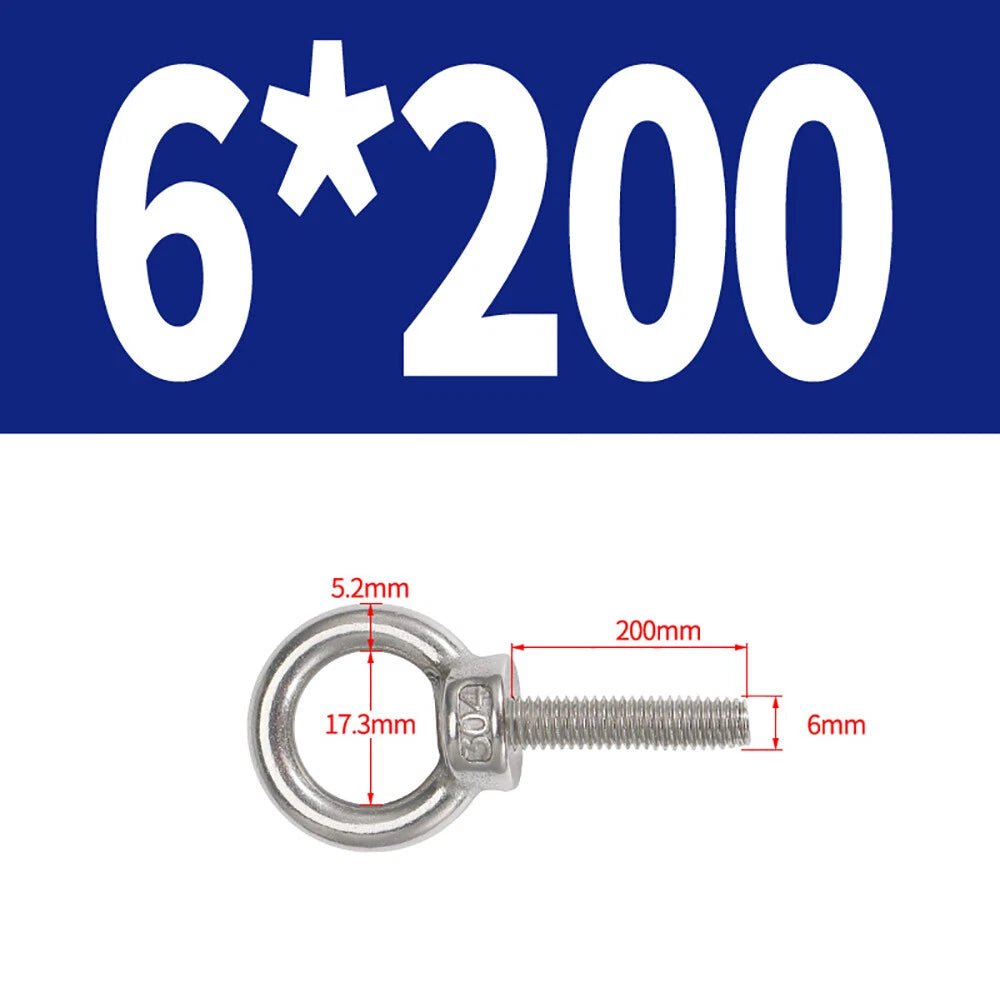

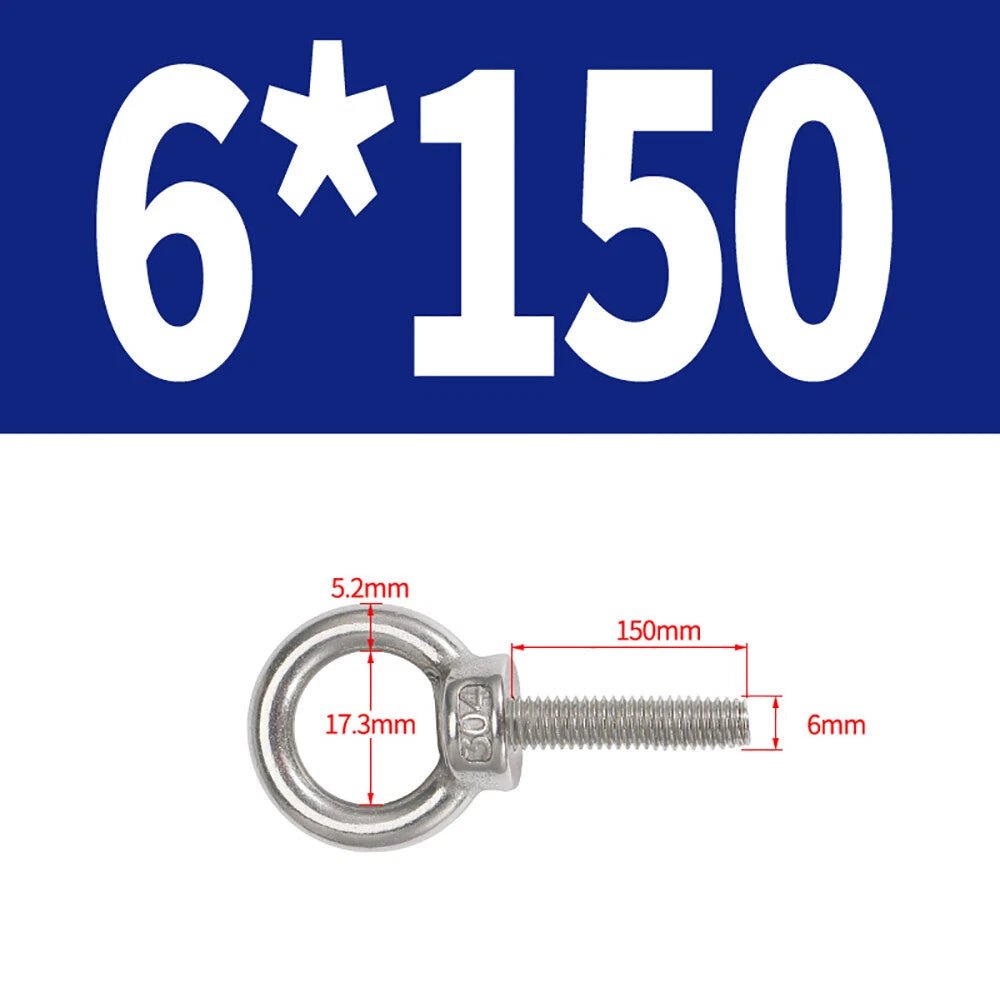

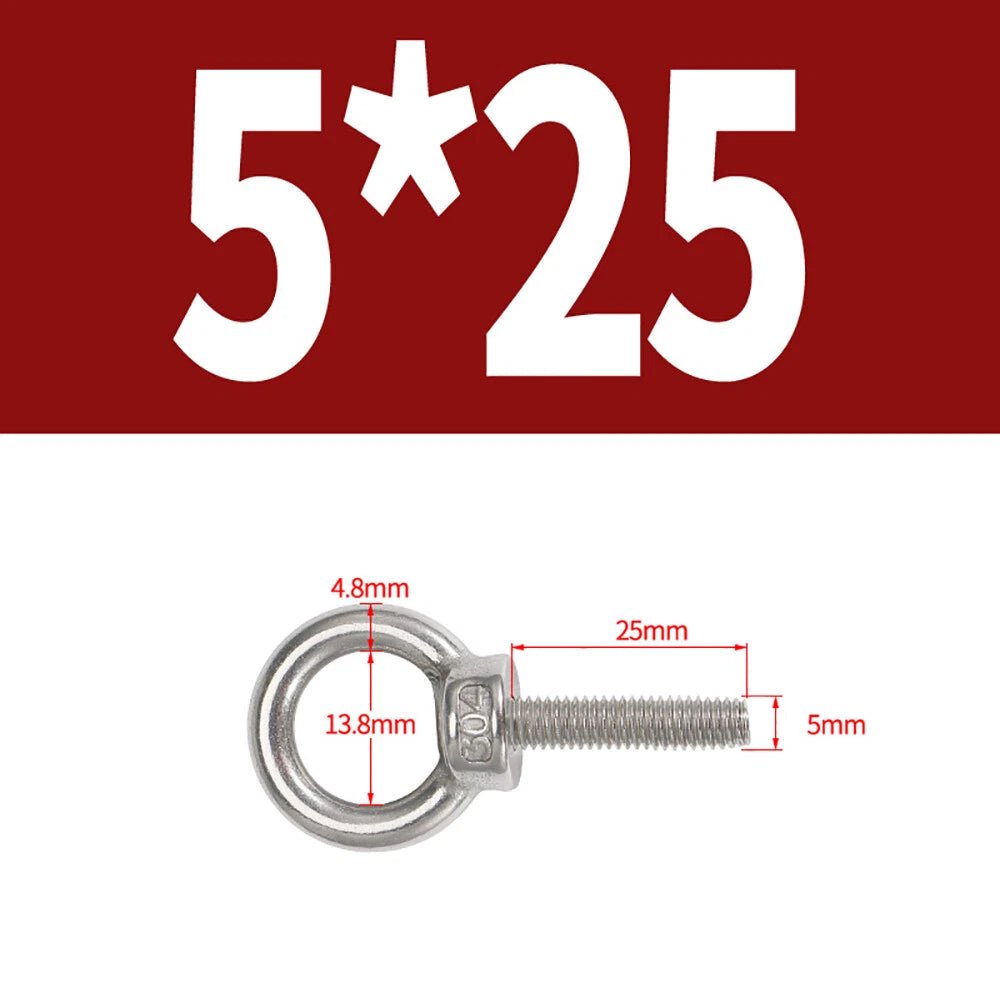

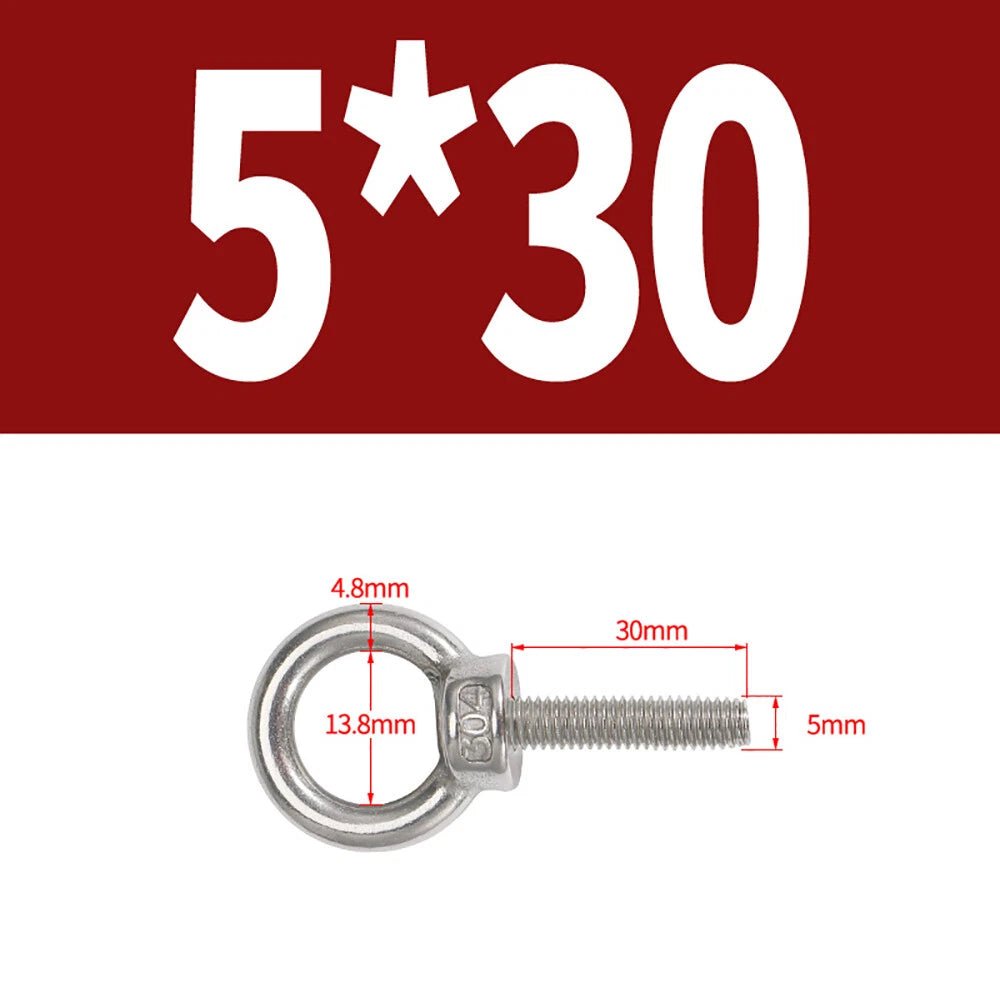

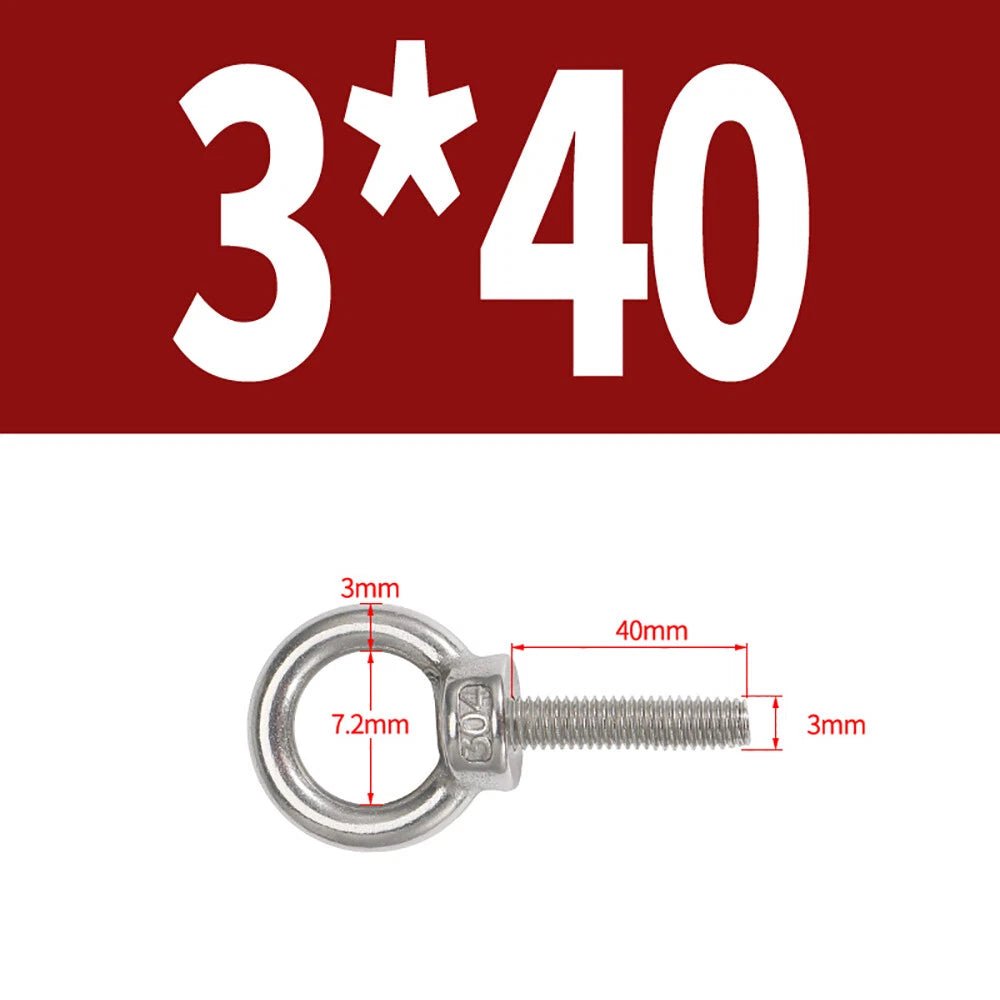

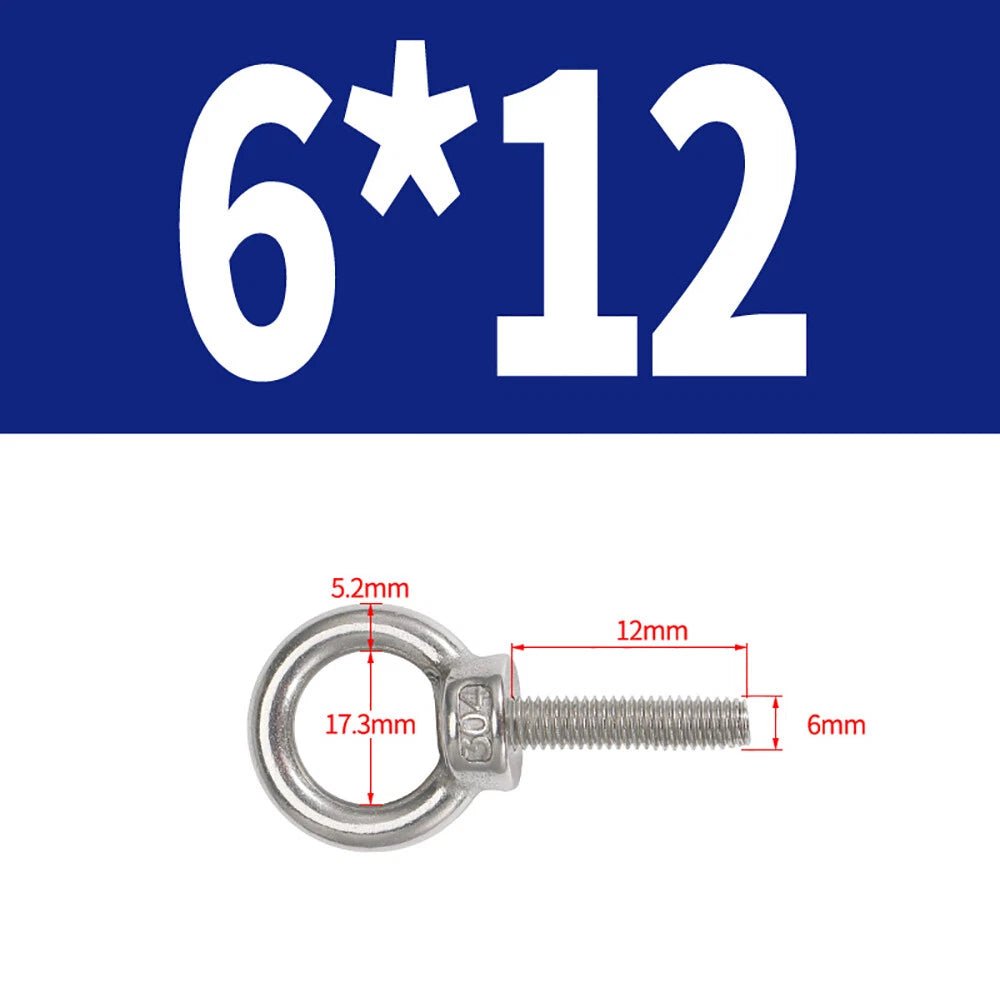

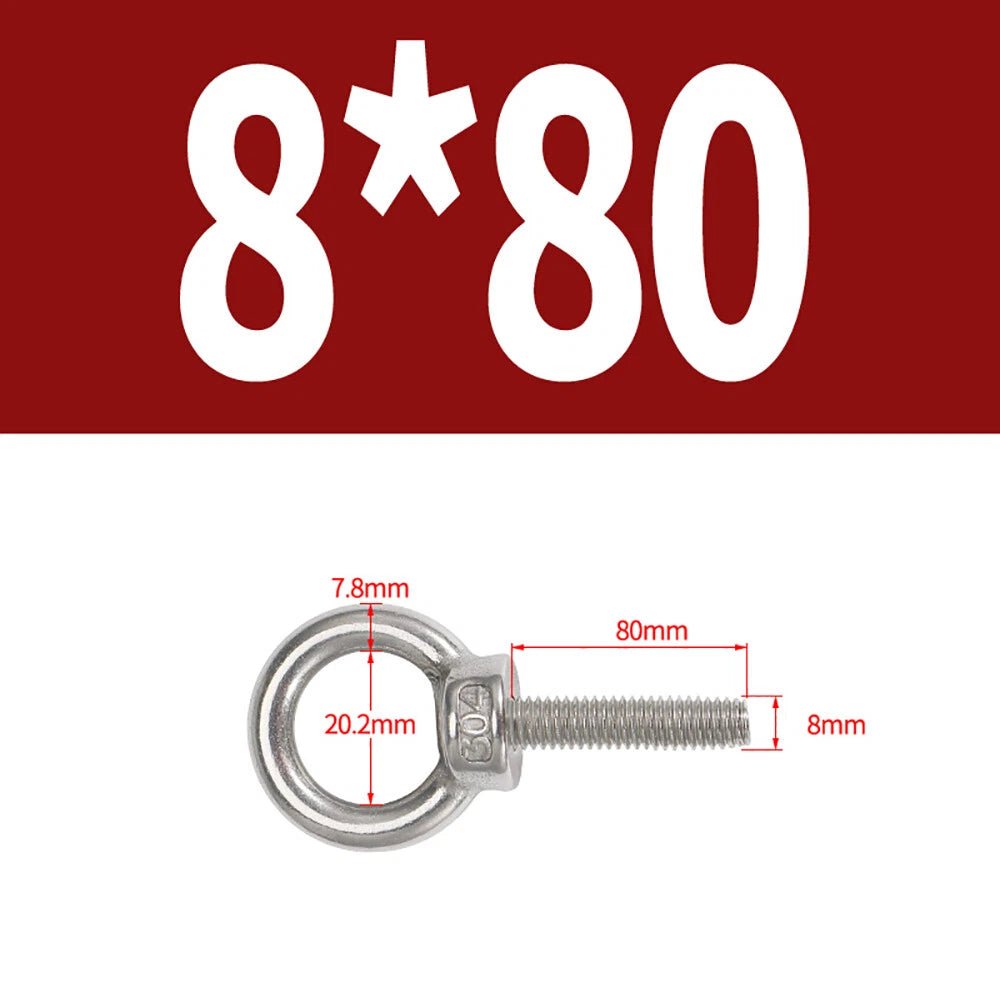

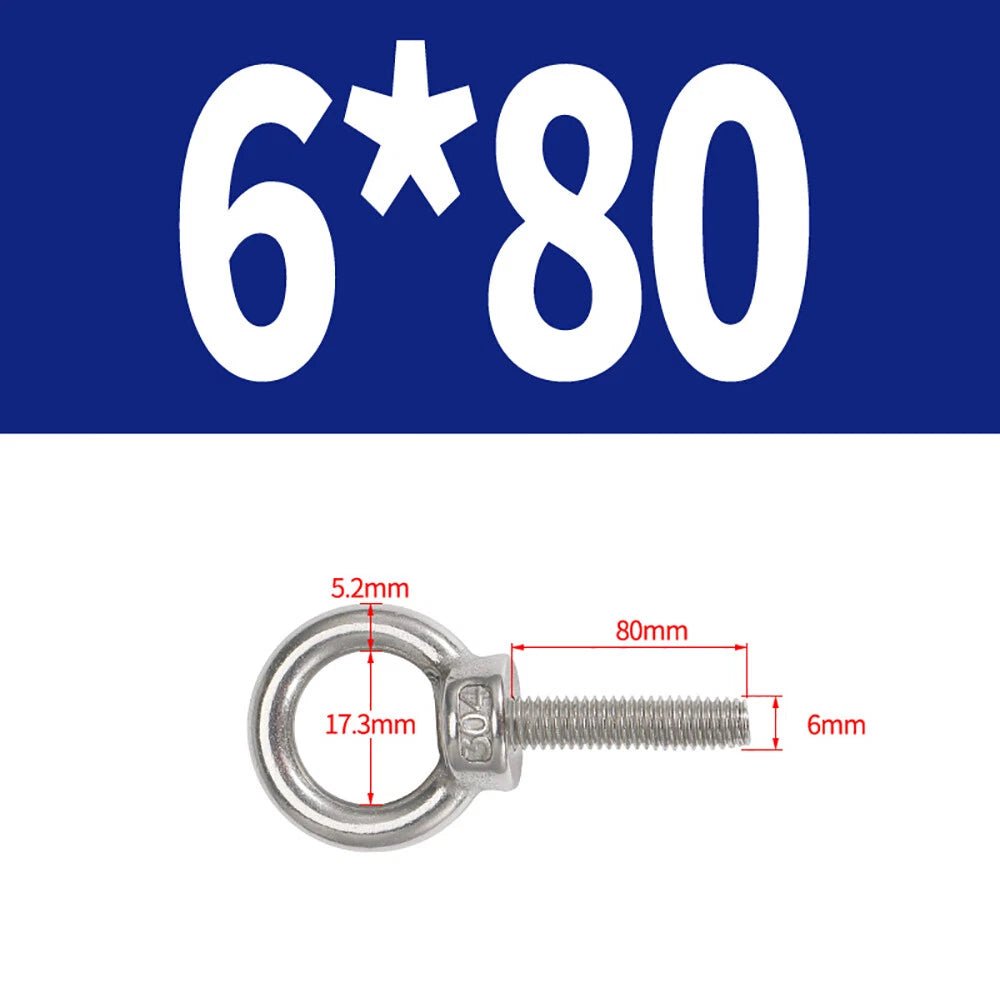

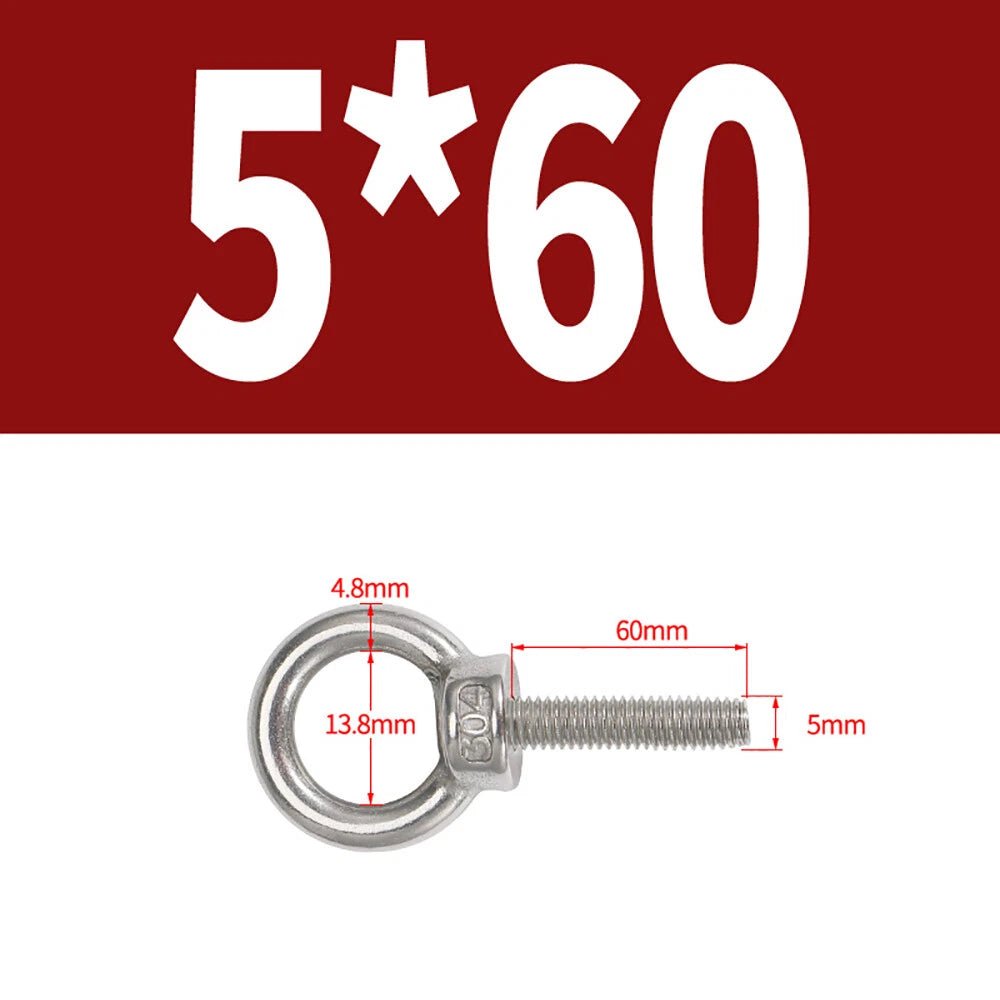

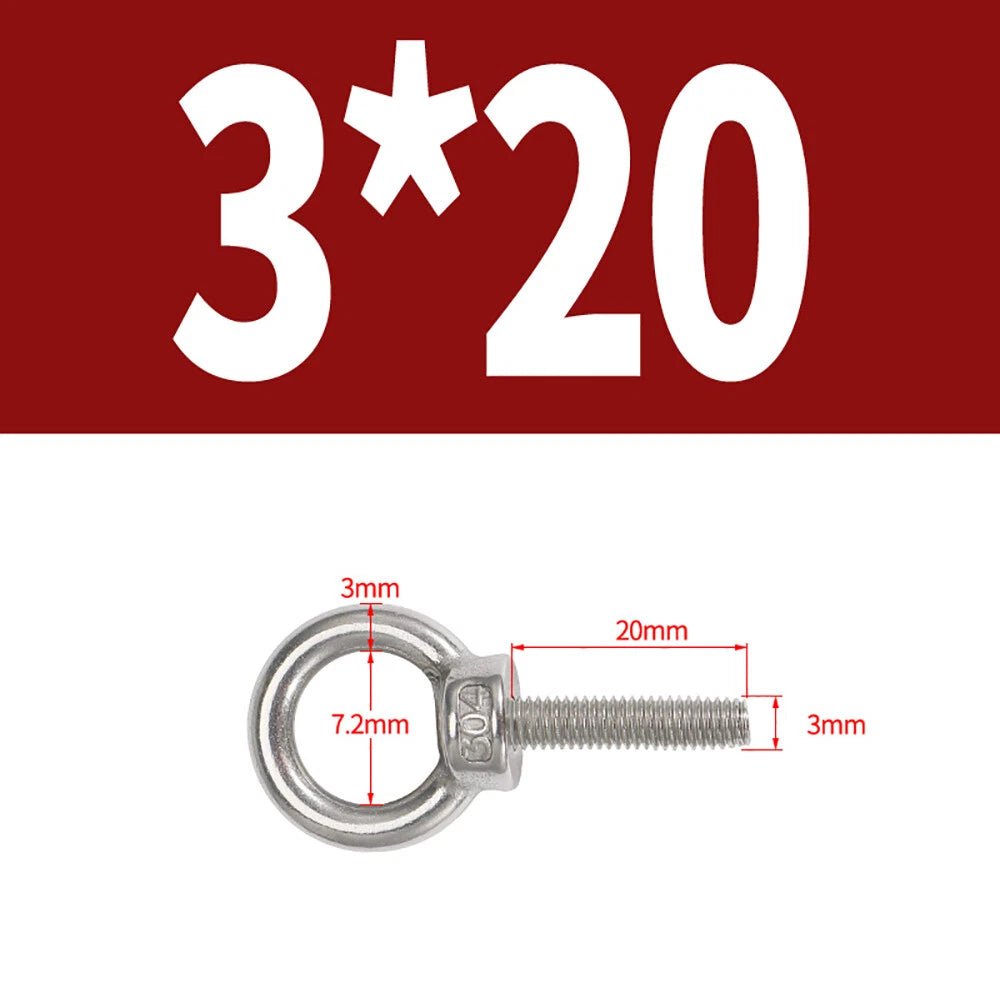

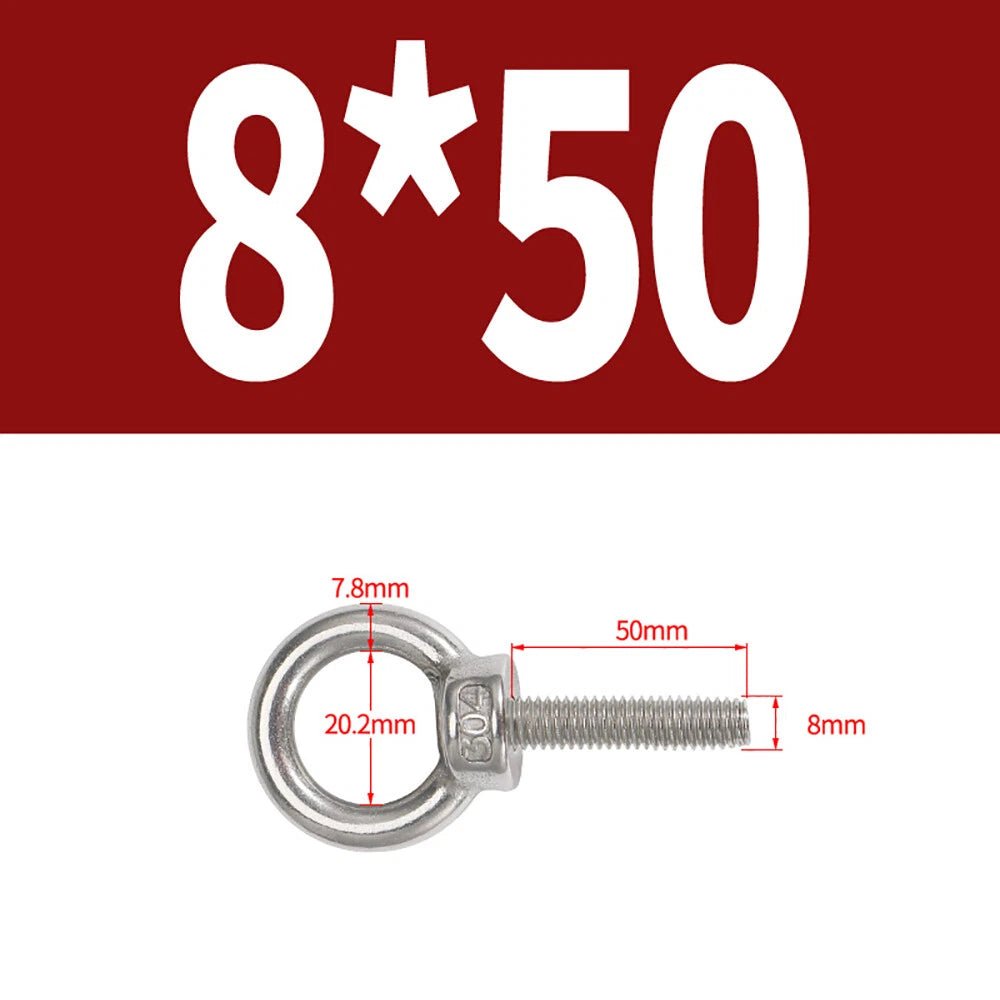

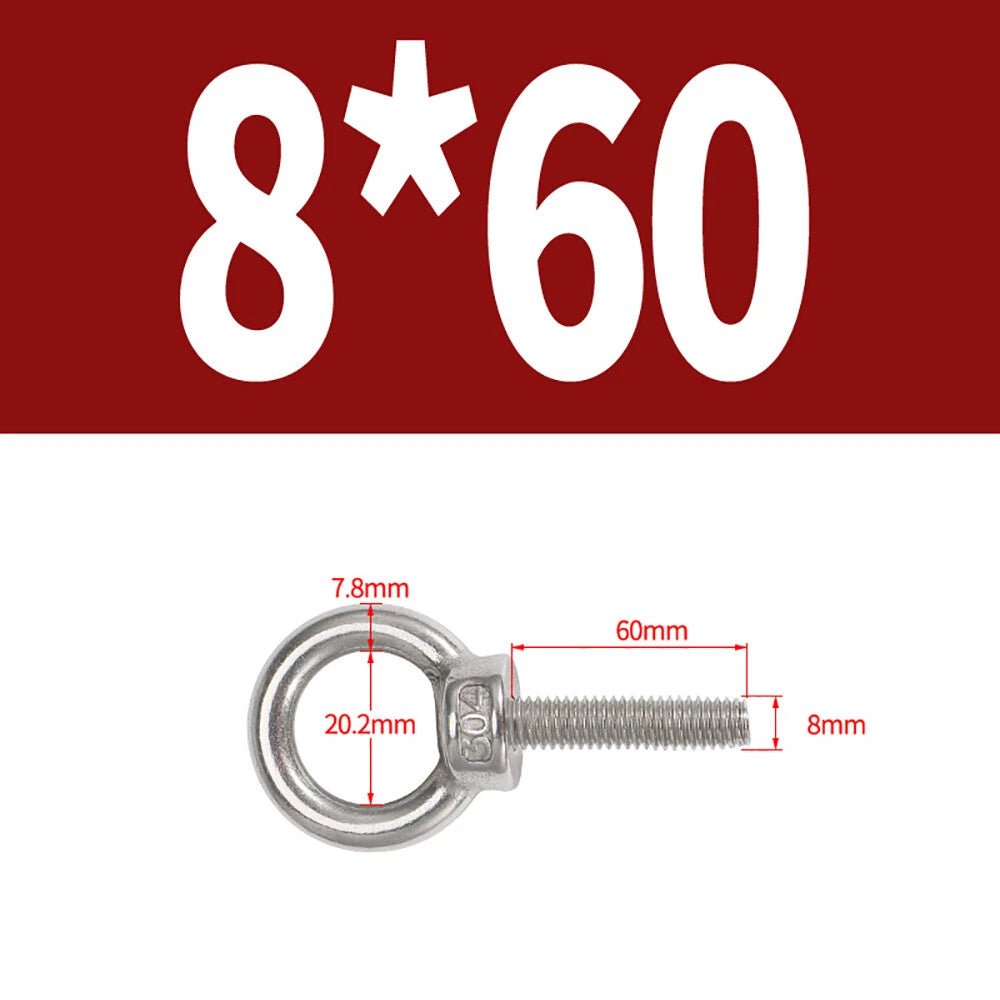

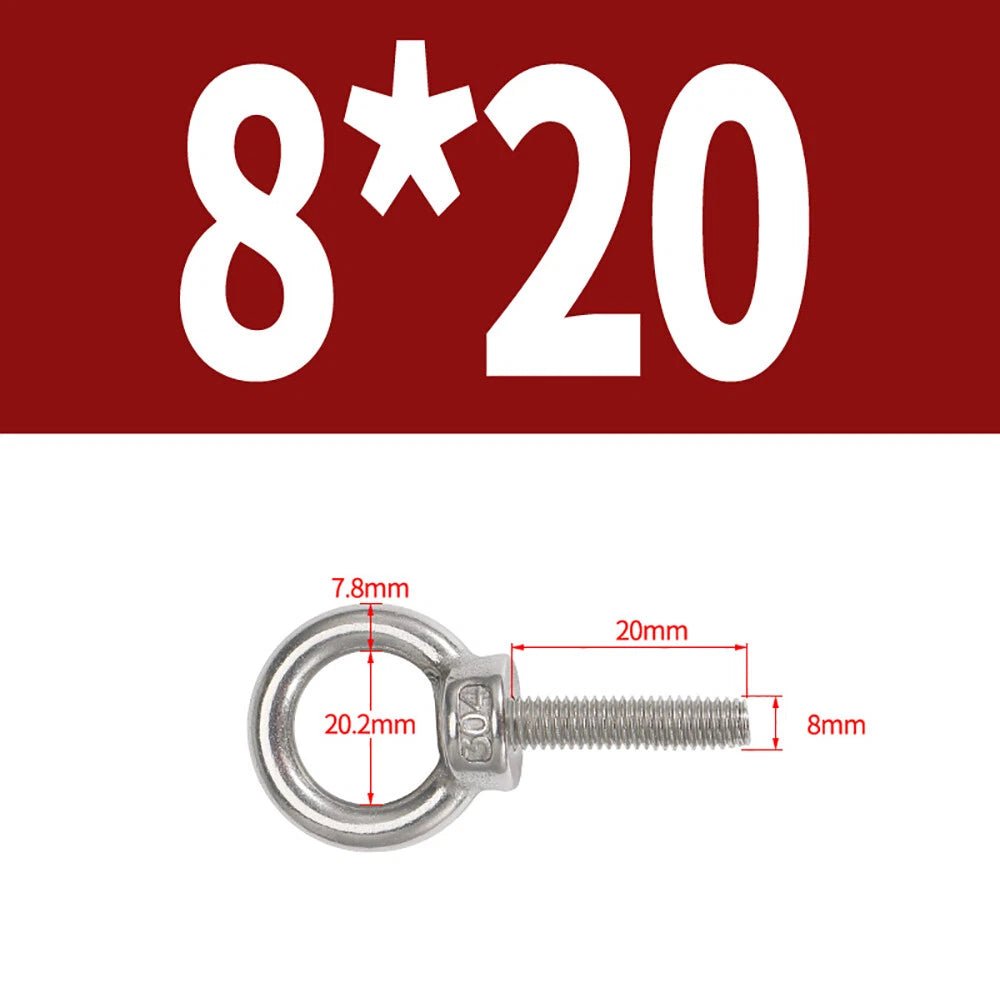

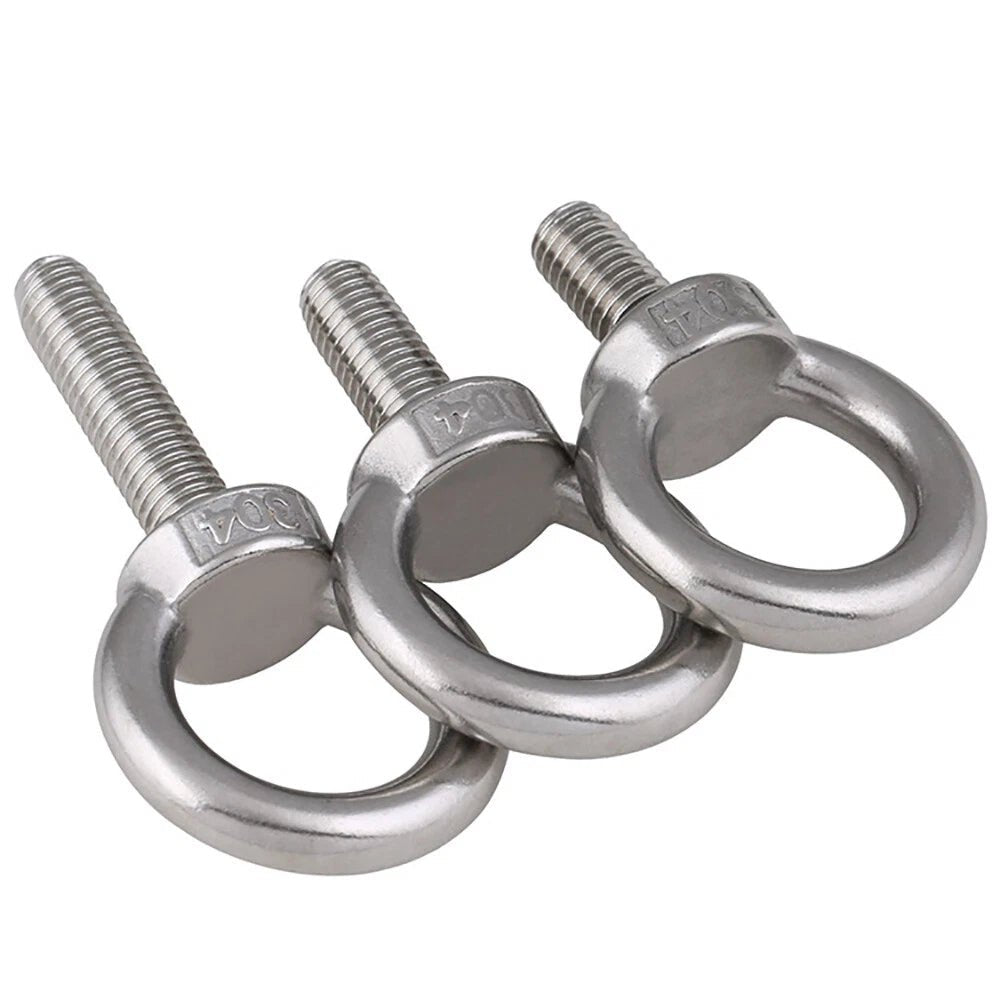

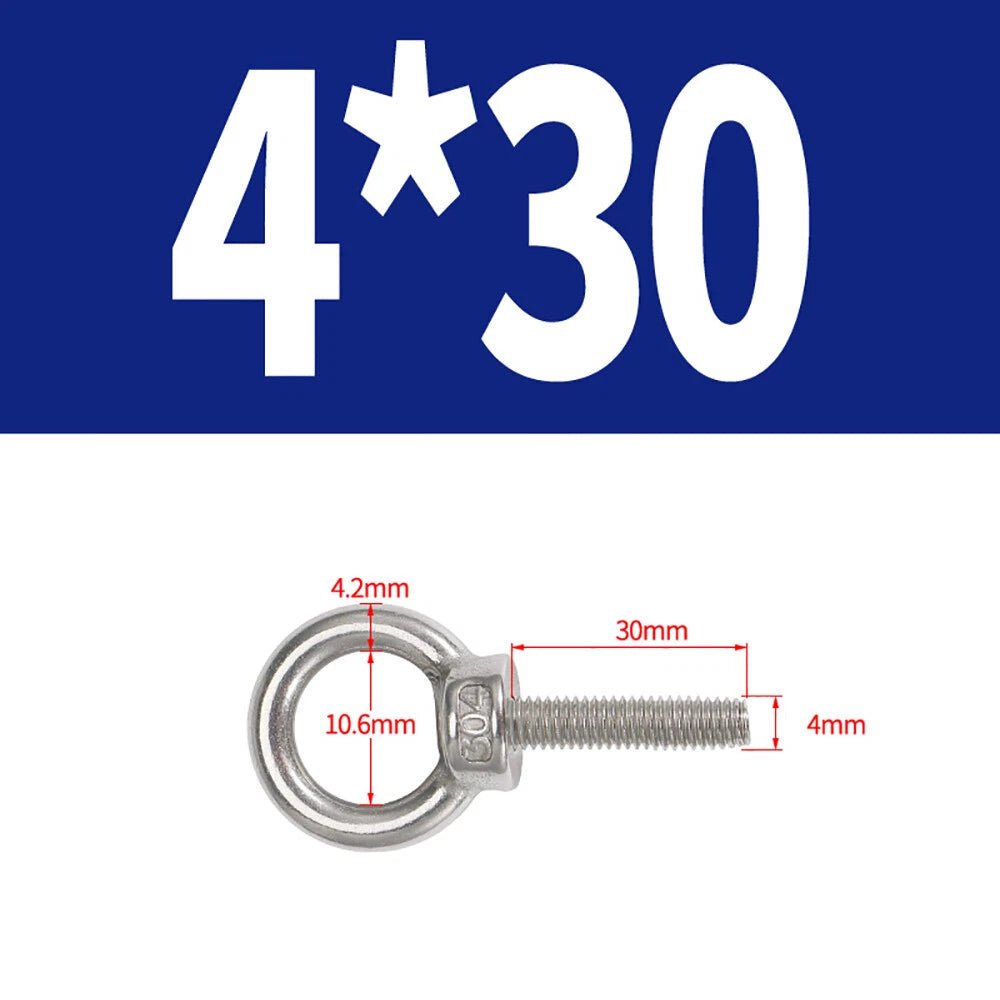

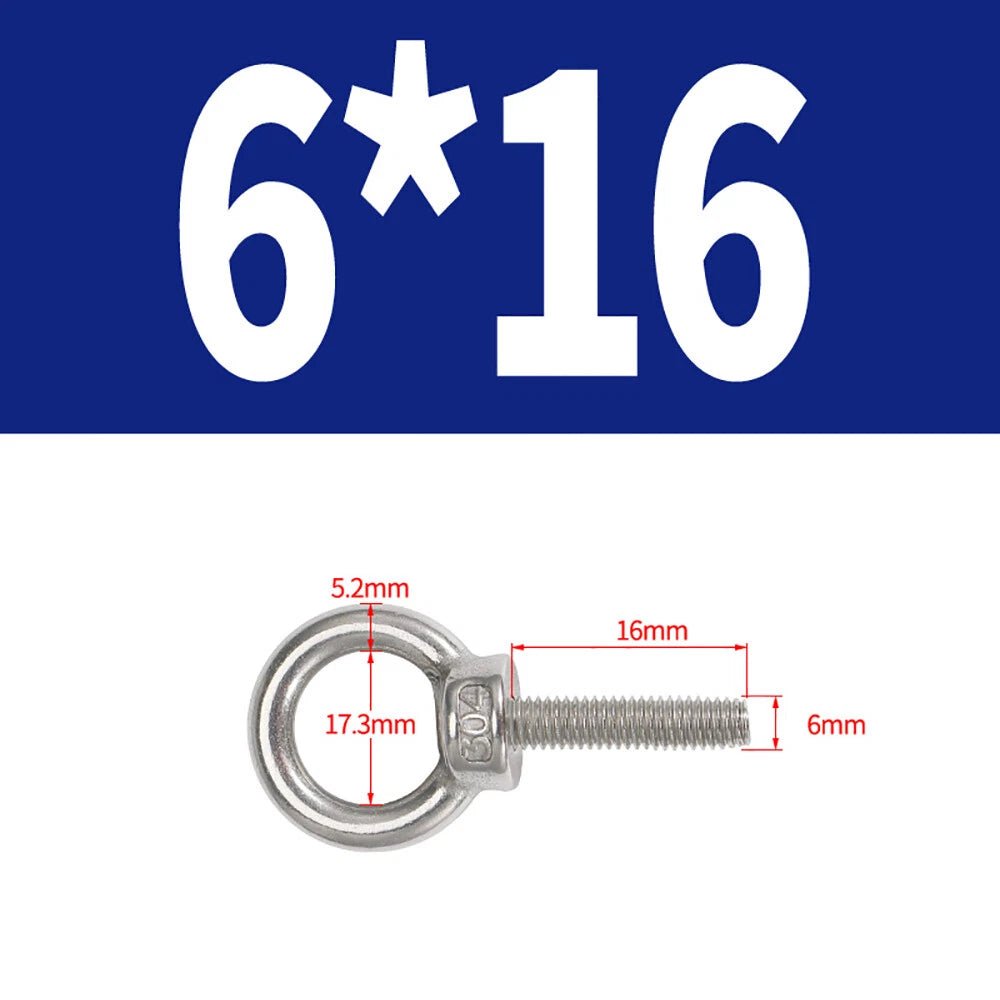

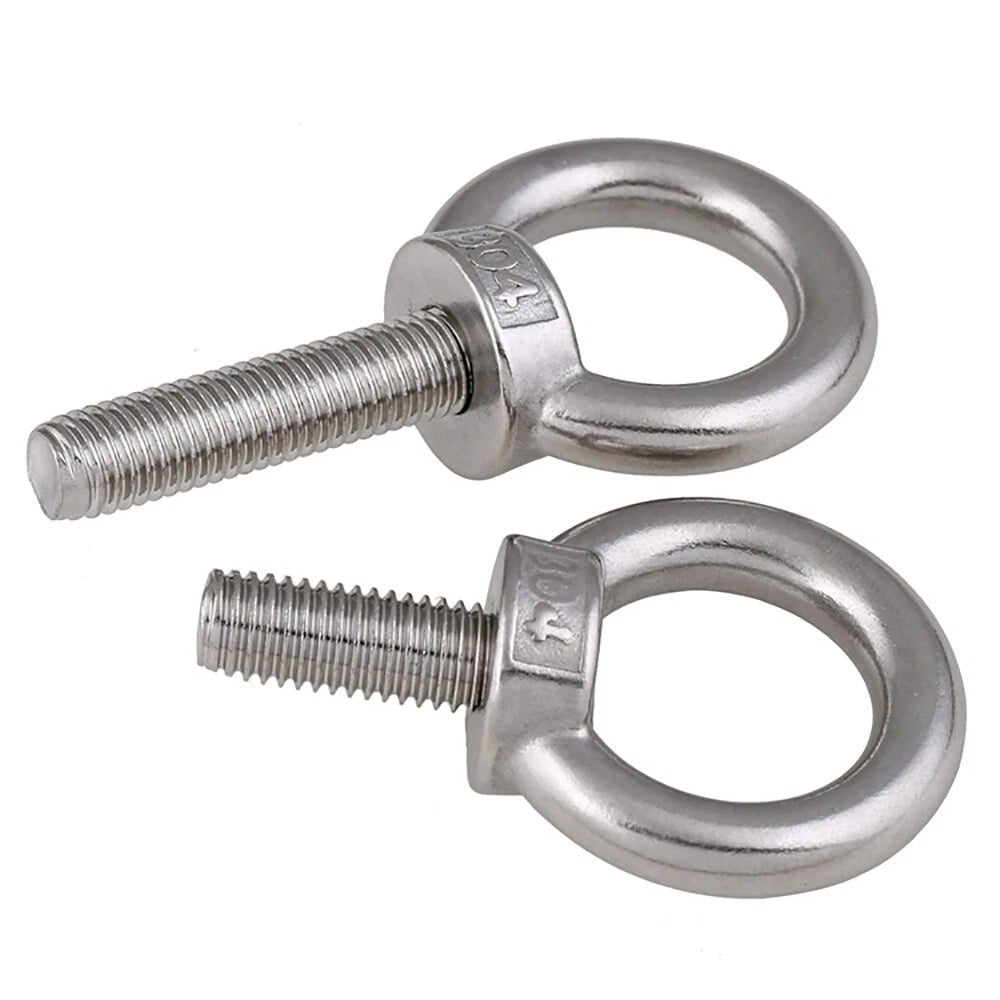

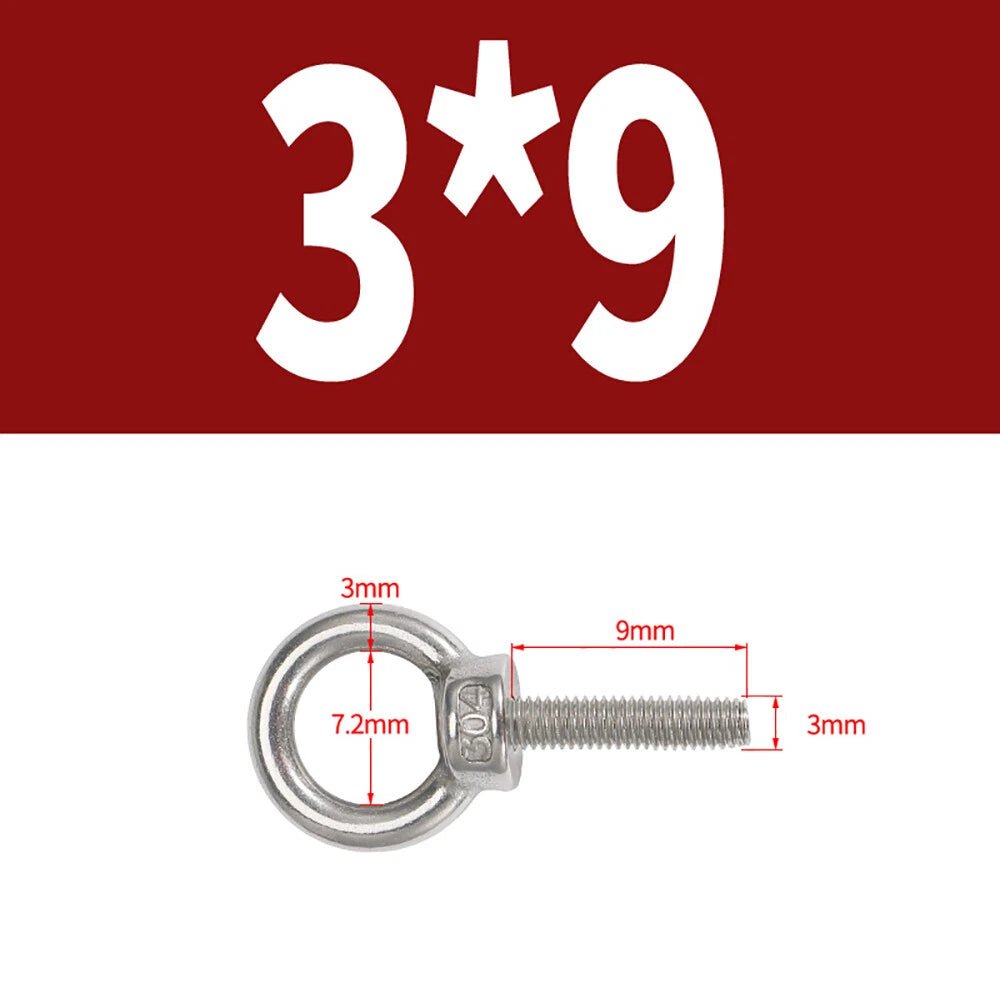

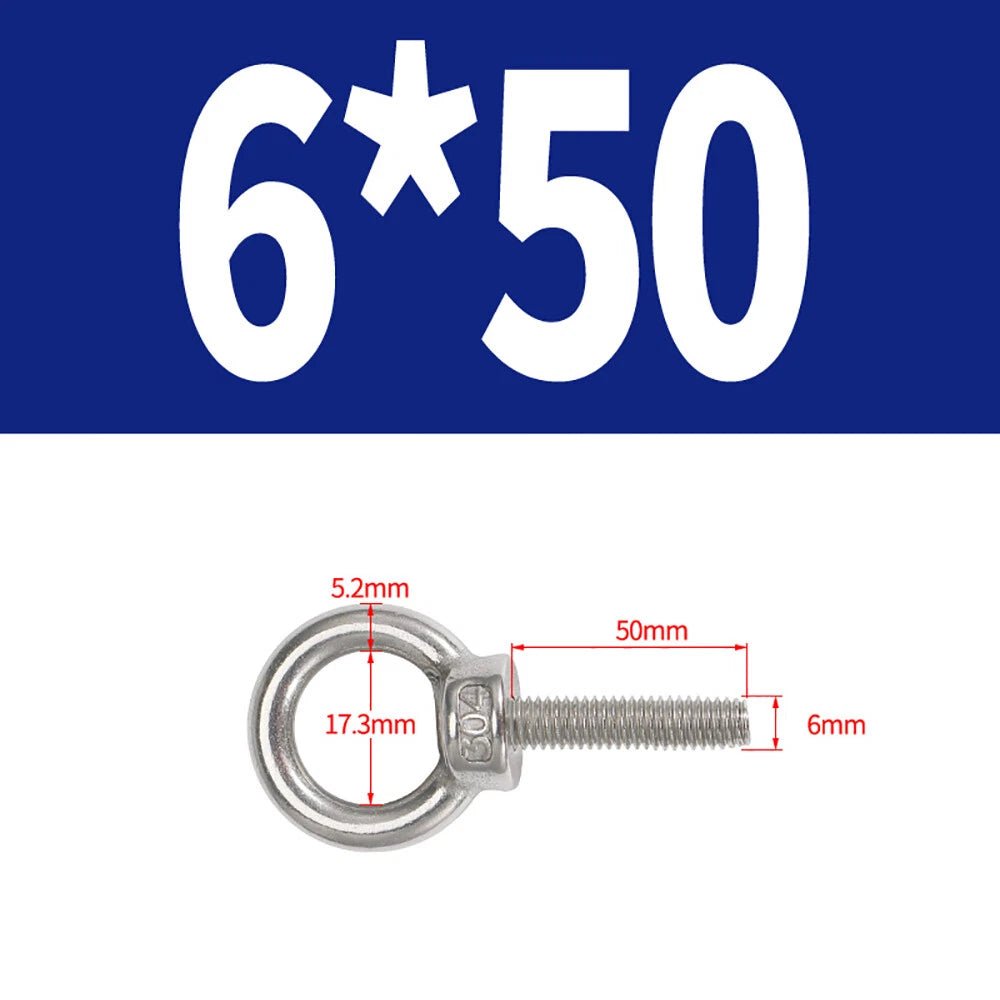

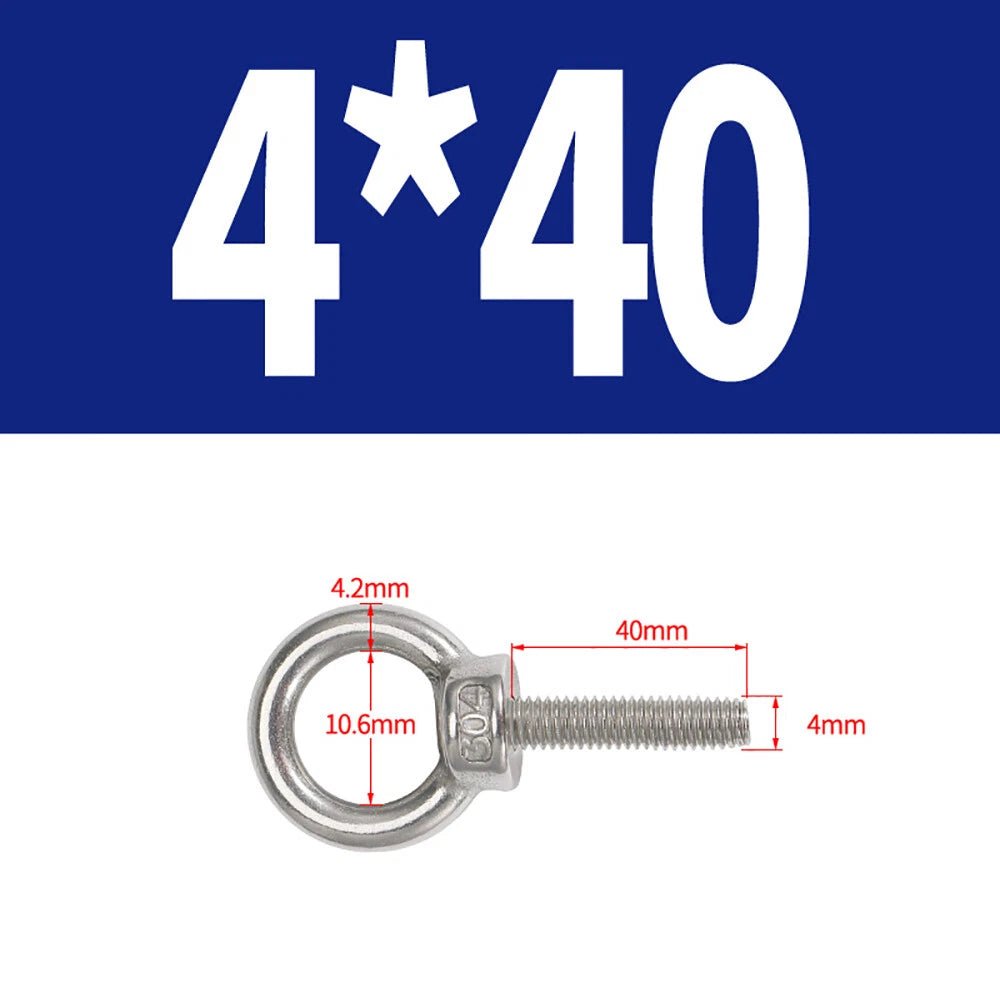

Each bolt is manufactured to DIN 580 standard in A2-70 (304) stainless steel with a round closed-loop head and metric coarse thread. Available in thread diameters M3, M4, M5, M6, and M8, with shank lengths from 9mm (approx. 3/8") to 200mm (approx. 7.9"). Sold individually or in packs of 2, 5, or 10.

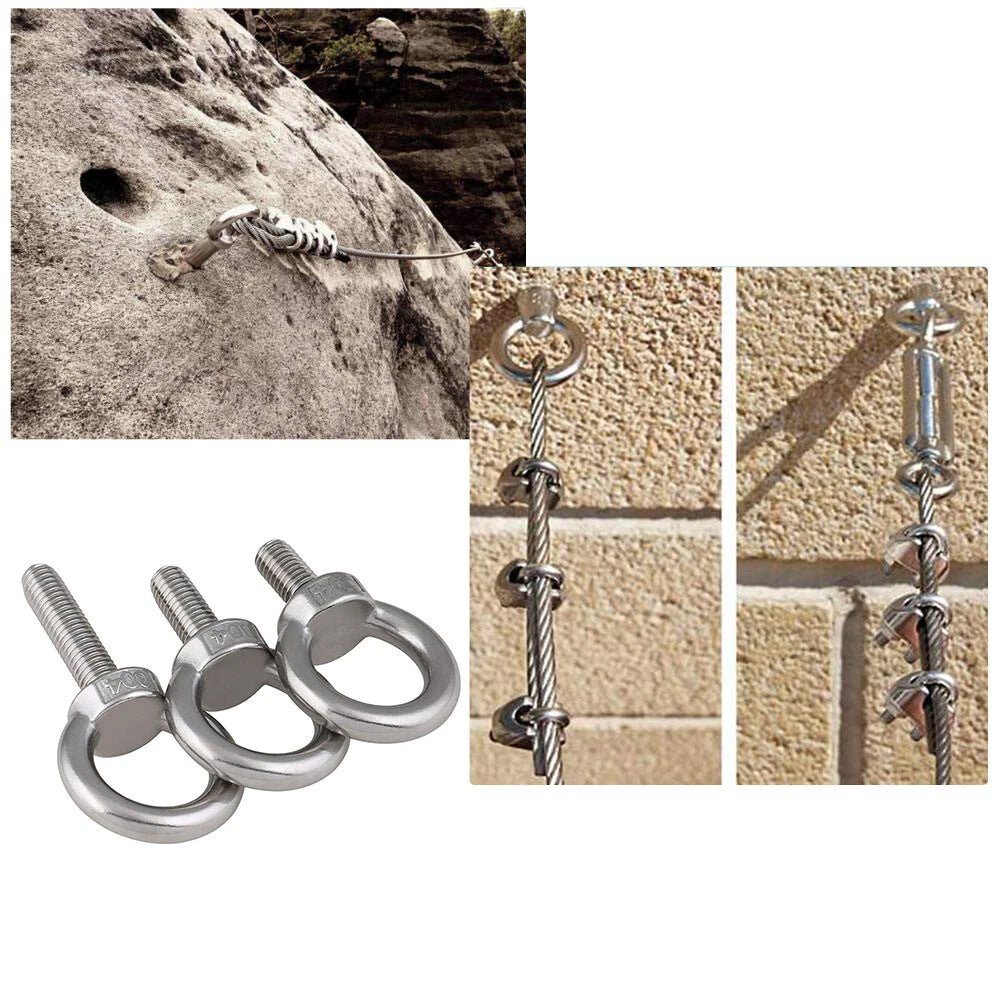

Typical use cases include workshop ceiling rigs and cable management systems, outdoor garden and pergola hanging hardware, marine and boating tie-down points, and light-duty rigging for stage and display installations where a stainless steel eye bolt with metric thread is required.

🔩 Thread Compatibility: Metric coarse thread (DIN 580) — fits standard ISO metric nuts and tapped holes in M3, M4, M5, M6, and M8. Not compatible with UNC/UNF inch threads.

✅ Key Features of These A2 Stainless Steel Lifting Eye Bolts

🦾A2-70 (304) Stainless Steel — Grade A2-70 construction delivers solid tensile strength and resists rust in outdoor, humid, and light marine environments without surface coatings that can chip or peel.
📐DIN 580 Standard — Manufactured to the internationally recognized DIN 580 specification for metric lifting eye bolts, ensuring dimensional consistency and thread compatibility with standard ISO metric hardware.
🔄Wide Size Range — M3 to M8, 9mm to 200mm — Covers the most common metric eye bolt sizes so you can match the exact thread diameter and shank length your application requires without ordering from multiple suppliers.
⭕Closed Round Loop Head — The fully closed ring provides a secure attachment point for hooks, carabiners, shackles, and wire rope, reducing the risk of accidental disengagement compared to open-hook designs.
📦Flexible Pack Sizes (1, 2, 5, or 10 Pcs) — Order a single bolt for a one-off repair or a 10-pack for a larger installation — pricing scales with quantity so you only pay for what you need.
🏗️Long-Shank Options for Deep Thread Engagement — Shank lengths up to 200mm (approx. 7.9") allow threading through thick timber, steel plate, or structural members where standard short-shank eye bolts would not provide adequate engagement.

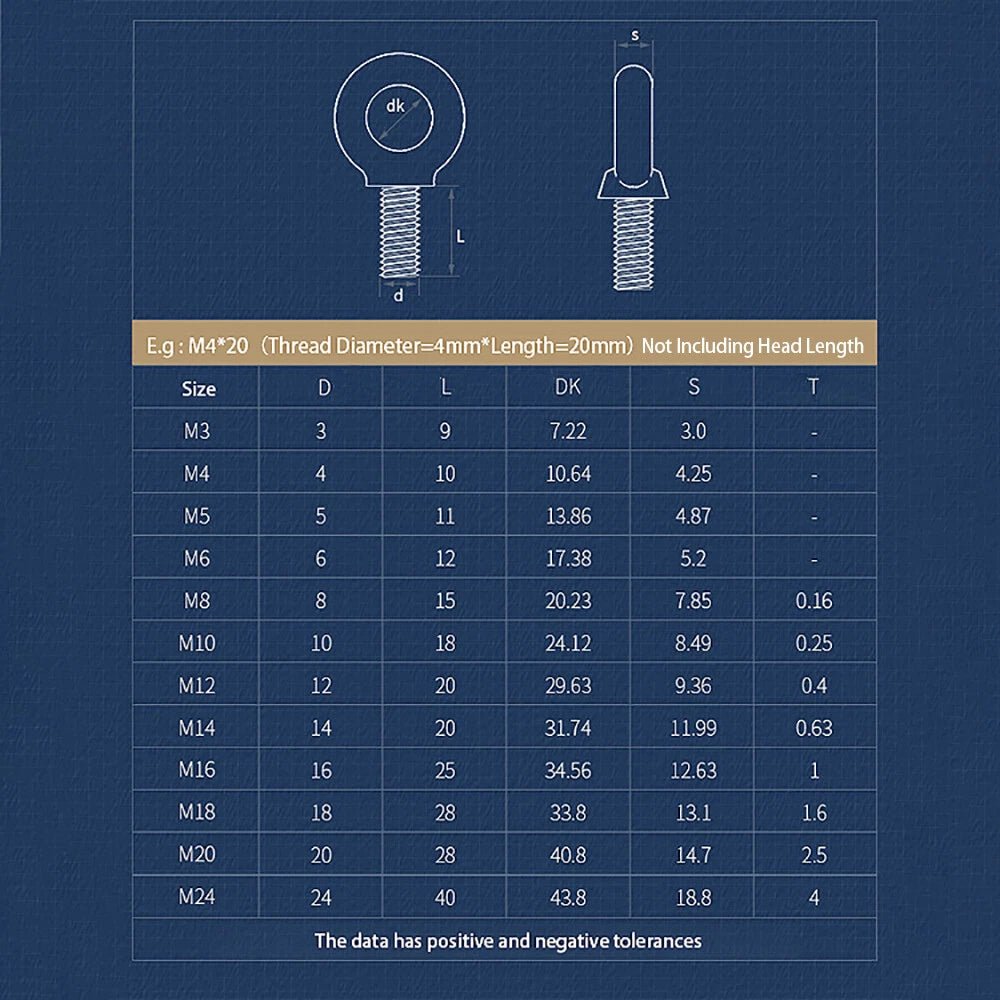

📐 Technical Specifications — Lifting Eye Bolts DIN 580

Standard	DIN 580
Material	A2 Stainless Steel (304)
Grade	A2-70
Thread Type	Metric Coarse (ISO)
Thread Sizes Available	M3, M4, M5, M6, M8
Shank Length Range	9mm (approx. 3/8") – 200mm (approx. 7.9")
Head Style	Round Closed Loop (Eye)
Finish	Natural Stainless Steel
System of Measurement	Metric
Pack Sizes	1 Pcs, 2 Pcs, 5 Pcs, 10 Pcs
Working Load Limit	See variant options — varies by thread size and installation angle
Country of Origin	China

⚠️ Important: Always verify the working load limit (WLL) for your specific size before use. Derate for angled pulls. Not rated for lifting personnel or safety-critical overhead applications.

❓ Frequently Asked Questions

How do I choose the right size lifting eye bolt?

Match the thread diameter (M3, M4, M5, M6, or M8) to your tapped hole or nut. For shank length, the bolt should generally engage at least 1.5x the thread diameter. For example, an M6 bolt threading into 20mm of steel would typically use a 25–30mm shank. For through-bolting, choose a shank length equal to or slightly longer than the material thickness.

What load can these lifting eye bolts handle?

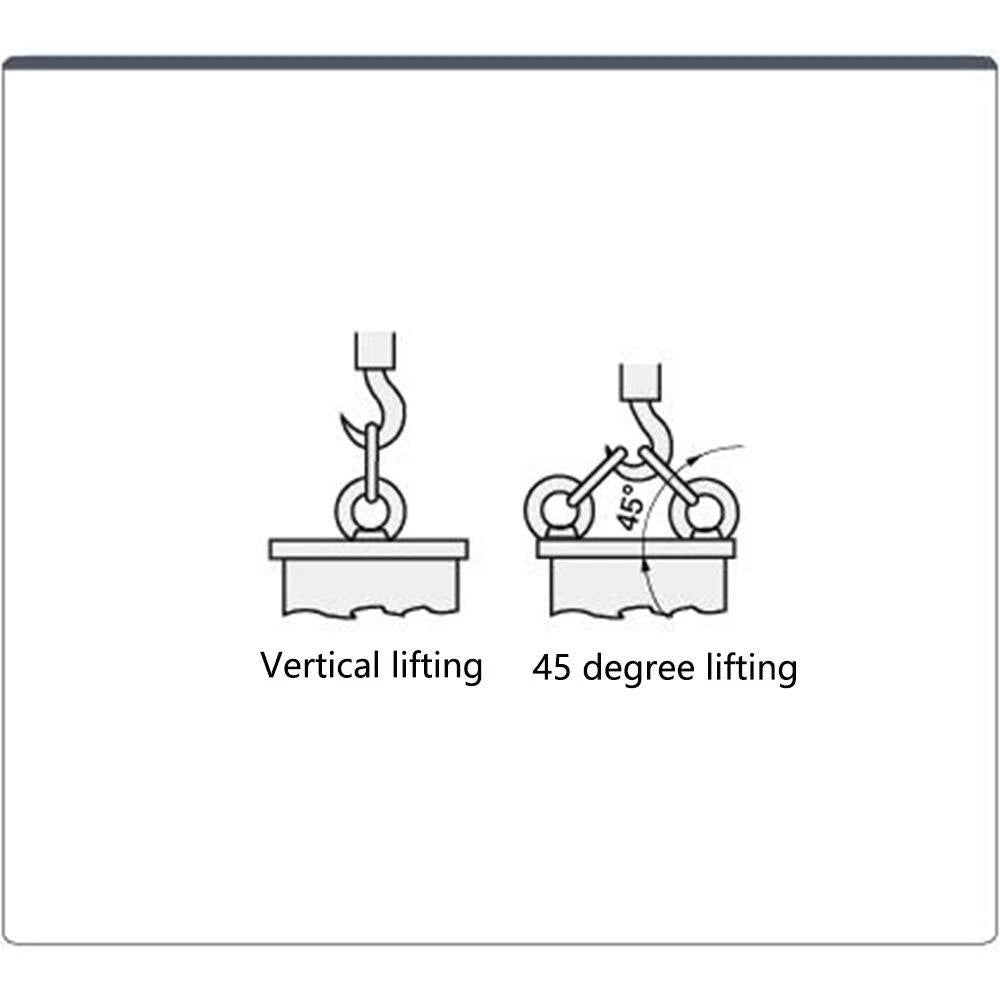

Working load limits vary by thread size and installation angle. A2-70 stainless steel eye bolts typically support axial (straight-pull) loads ranging from around 50 kg for M3 up to several hundred kg for M8. Always consult a DIN 580 load table for your specific size and derate significantly for angled pulls — a 45° angle can reduce WLL by up to 70%. Never exceed the rated WLL.

Are these eye bolts suitable for outdoor or marine use?

Yes. A2 (304) stainless steel offers good corrosion resistance in most outdoor environments including light marine exposure. For prolonged saltwater immersion or highly chlorinated environments, A4 (316) grade is generally recommended. These bolts are well-suited for garden, workshop, pergola, and general outdoor rigging applications.

What thread standard do these eye bolts use — are they compatible with my hardware?

These are metric coarse-thread eye bolts conforming to DIN 580. They are compatible with standard ISO metric nuts and tapped holes in M3, M4, M5, M6, and M8. They are not compatible with UNC or UNF inch threads. If you're unsure, check your existing hardware with a metric thread gauge before ordering.

Can I use these eye bolts for lifting people or safety-critical overhead applications?

No. These are general-purpose fasteners and are not certified for lifting personnel or safety-critical overhead lifting. For such applications, use certified lifting hardware with documented WLL ratings, third-party testing, and regular inspection records in compliance with applicable OSHA or ASME standards.

What is the difference between the shank lengths, and which should I choose?

The shank length determines how deep the bolt threads into your material. Shorter shanks (e.g., 9–15mm) suit thin panels or shallow tapped holes. Longer shanks (e.g., 100–200mm) are used when threading through thick timber or structural members where additional thread engagement is needed. Choose a shank length that provides full thread engagement without the bolt bottoming out in a blind hole.

Do these come with a nut or washer included?

No — nuts and washers are not included. These are eye bolts only. Compatible metric nuts, flat washers, and lock washers are available separately in our store. For through-bolting applications, pair with an M-series hex nut of the matching thread size.

🛒 Select your size and pack quantity above, then add to cart — ships from our US warehouse.
