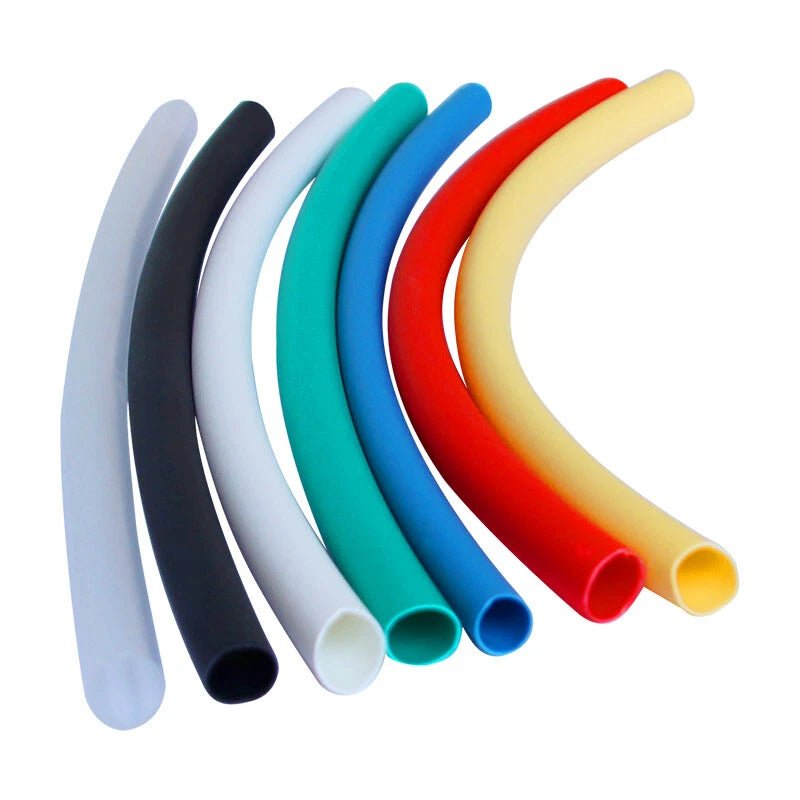

Adhesive Heat Shrink Tubing — Glue-Lined 3:1 Waterproof Wire Protection
Exposed wire splices and bare connectors are an invitation for corrosion, shorts, and failure — especially in vehicles, boats, and outdoor installations. Whether you're a professional auto electrician, a marine rigger, or a weekend DIYer tackling a wiring project, you need a seal you can trust to hold up against moisture, vibration, and temperature swings.

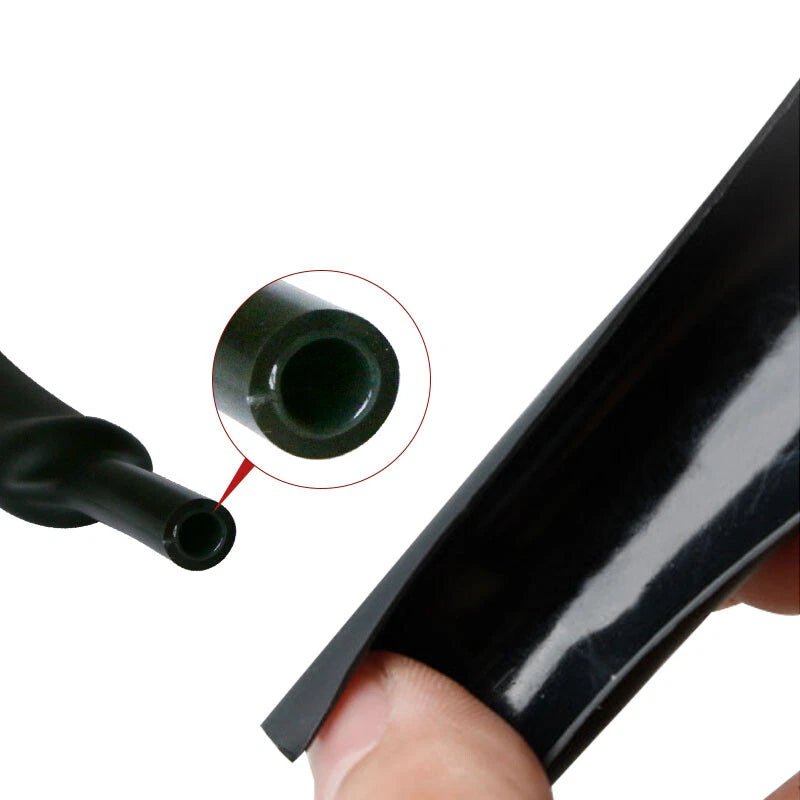

This adhesive heat shrink tubing features a dual-wall construction: a polyolefin outer layer with a hot-melt adhesive inner lining. When heat is applied, the tube shrinks at a 3:1 ratio while the adhesive flows to fill gaps and bond tightly to the substrate, creating a waterproof, strain-relieved sleeve. Available in diameters from 1.6mm (≈1/16") to 65mm (≈2-9/16"), in lengths of 1 meter (≈3.3 ft), 2 meters (≈6.6 ft), 5 meters (≈16.4 ft), and 10 meters (≈32.8 ft), and in 8 colors for easy circuit identification.
Typical use cases include sealing automotive wire harness splices to prevent corrosion, waterproofing marine trailer connector terminals, protecting battery cable ends on RVs and off-road vehicles, and bundling and color-coding low-voltage wiring in home automation and solar installations.
🔌
Compatible with copper, aluminum, and most insulated wire types. Suitable for automotive, marine, outdoor, and industrial wiring applications. Shrinks with a standard heat gun at typically 90–120°C (195–250°F).
✅ Key Features of These Adhesive Glue-Lined Heat Shrink Tubes
-
💧Waterproof Adhesive Inner Lining — The hot-melt glue layer melts during shrinking to flow around wires and connectors, forming a moisture-resistant seal that keeps corrosion and water ingress out of critical connections.
-

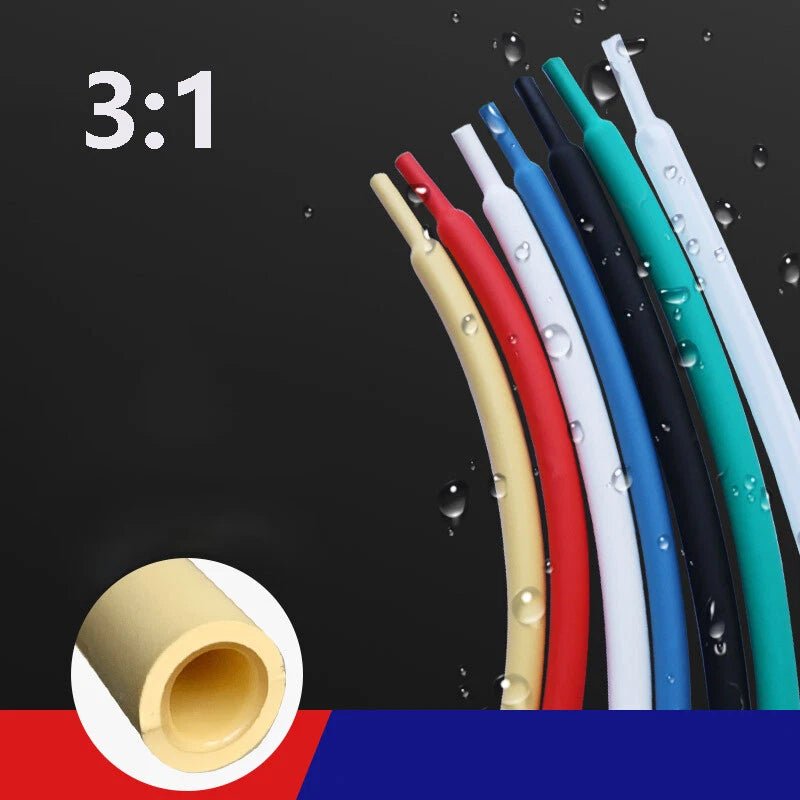

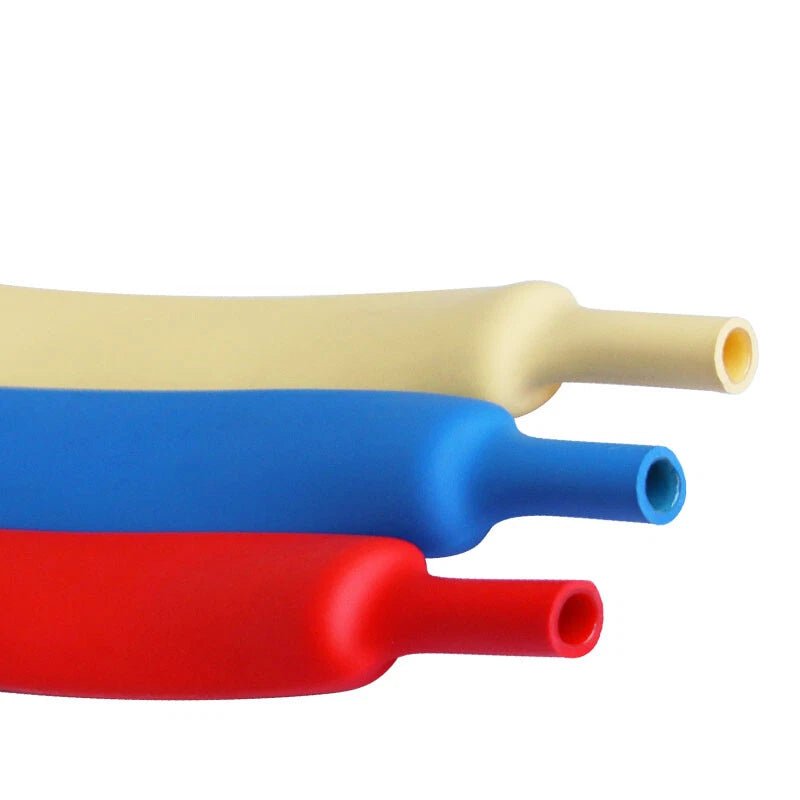

🔥3:1 Shrink Ratio — Shrinks to one-third of its original diameter, conforming tightly to irregular shapes, stepped connectors, and bundled cables where standard 2:1 tubing would leave gaps.
-
📏Wide Diameter Range — Available from 1.6mm (≈1/16") up to 65mm (≈2-9/16"), covering everything from fine instrument wire to large battery cables and conduit ends.
-
🎨8 Color Options for Circuit Identification — Choose from Black, Red, White, Transparent, Yellow, Blue, Green, and Orange to color-code wiring harnesses and make future troubleshooting faster.
-
🚗Vibration and Strain Relief — The bonded adhesive layer adds mechanical support at connection points, reducing stress on solder joints and crimp terminals in automotive and marine environments subject to constant vibration.
-
✂️Cut-to-Length Flexibility — Sold in 1m, 2m, 5m, and 10m lengths so you can buy exactly what your project needs — no waste on small jobs, great value on large wiring harness builds.
📐 Technical Specifications — Glue-Lined Heat Shrink Tubing
| Product Type |
Dual-Wall Adhesive Heat Shrink Tubing |
| Shrink Ratio |
3:1 |
| Inner Lining |
Hot-melt adhesive (glue-lined) |
| Outer Material |
Polyolefin |
| Available Diameters |
1.6mm, 2.4mm, 3.2mm, 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm, 15.4mm, 19.1mm, 25.4mm, 30mm, 39mm, 50mm, 65mm |
| Available Lengths |
1 Meter (≈3.3 ft), 2 Meter (≈6.6 ft), 5 Meter (≈16.4 ft), 10 Meter (≈32.8 ft) |
| Available Colors |
Black, Red, White, Transparent, Yellow, Blue, Green, Orange |
| Shrink Temperature |
Typically 90–120°C (195–250°F) |
| Operating Temperature |
See variant options / Contact us to confirm |
| Waterproof / Moisture Seal |
Yes (adhesive lining) |
| Suitable Applications |
Automotive, marine, outdoor, industrial, DIY electrical |
| Sold As |
Single continuous length per order |
⚠️
Not all diameter and color combinations are available in every length. Please check the variant selector above to confirm your specific combination is in stock before ordering.
❓ Frequently Asked Questions
How do I choose the right diameter for my wires?
Measure the outer diameter of the bundle or connector you need to cover, then choose a tubing size whose recovered (shrunken) diameter is slightly smaller than that measurement. As a general rule, the pre-shrink diameter should be at least 1.2× the bundle diameter. For example, a 4mm wire bundle typically works well with 6.4mm (1/4") tubing. When in doubt, size up — you can always apply more heat to get a tighter fit, but you can't un-shrink tubing that's too small.
What shrink ratio does this tubing use?
This tubing has a 3:1 shrink ratio, meaning it shrinks to approximately one-third of its original diameter when heat is applied. This makes it suitable for irregular shapes, connectors, and splices where a tight, conforming fit is needed — and where standard 2:1 tubing would leave gaps or fail to seal properly.
Is this tubing waterproof and suitable for outdoor use?
Yes. The inner adhesive lining melts and flows during shrinking to create a moisture-resistant seal around the substrate. It is generally suitable for outdoor, marine, and automotive environments exposed to rain, humidity, and salt spray. For prolonged submersion or high-pressure water exposure, contact us to confirm suitability for your specific application.
What temperature is needed to shrink this tubing?
Typically, a heat gun set to around 90–120°C (195–250°F) is sufficient to activate shrinking and melt the adhesive. Move the heat gun slowly and evenly along the tubing for a uniform seal. A lighter can work in a pinch but may cause uneven shrinkage or scorching. Avoid using an open flame directly on the tubing for extended periods.
What materials and wire types is this tubing compatible with?
This glue-lined heat shrink tubing is compatible with copper, aluminum, and most insulated wire types. It adheres well to smooth metal connectors, terminals, and plastic housings. It is generally not recommended for PTFE-coated or silicone-jacketed wires without testing first, as the adhesive may not bond reliably to those surfaces.
How do I select the right length for my project?
For single splices or connector sealing, 1 meter is usually more than enough. For wiring harnesses, automotive builds, or marine projects, the 5-meter or 10-meter options offer better value per meter. Cut to length before applying heat — once shrunk, the tubing cannot be repositioned. Each listing is sold as a single continuous length.
Can I use this tubing in automotive or marine applications?
Yes. The adhesive lining creates a corrosion-resistant, vibration-dampening seal that is well-suited for automotive wiring, trailer connectors, boat wiring, and other environments exposed to moisture, salt, and vibration. Many professional auto electricians and marine riggers use dual-wall glue-lined tubing specifically because it outperforms standard single-wall heat shrink in harsh conditions.
🛒 Select your diameter, color, and length above, then add to cart — ships from our US warehouse.
