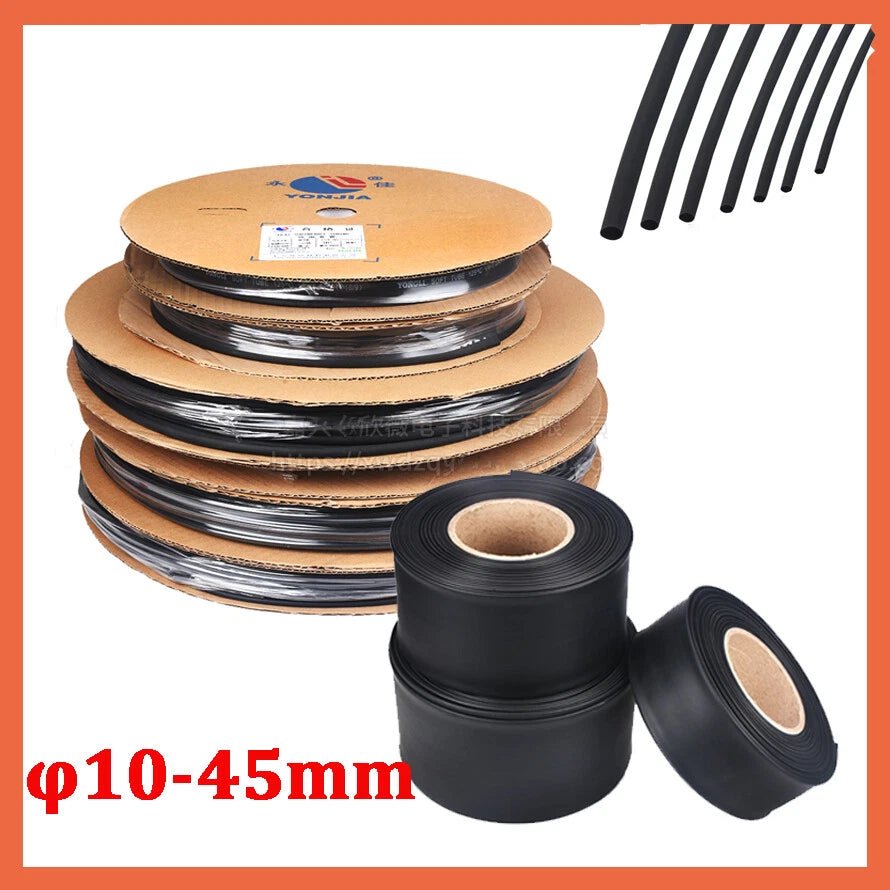

Black Heat Shrink Tubing 10mm–45mm — Reliable Wire Insulation for Every Project
Whether you're rewiring a boat, bundling cables in an electrical panel, or protecting splices on an automotive harness, loose or exposed wires are a safety hazard you can't ignore. Electricians, auto technicians, marine riggers, and serious DIYers all need a heat shrink tubing solution that fits a wide range of conductor sizes without ordering a dozen separate products.
This listing offers black heat shrink tubing in diameters from 10mm (≈3/8") to 45mm (≈1-3/4"), available in 25M (≈82 ft), 50M (≈164 ft), and 100M (≈328 ft) continuous rolls. The tubing is made from flame-retardant polyolefin with a typical 2:1 shrink ratio, meaning a 20mm tube shrinks down to approximately 10mm when heated. Wall thickness and exact recovered diameter vary by size — see variant options for the specific combination you need.
Typical use cases include insulating and protecting wire splices and solder joints in automotive and marine wiring, bundling and color-coding cable runs in electrical enclosures and control panels, and providing abrasion-resistant sleeving over hydraulic hose fittings or mechanical cable ends in industrial maintenance applications.
🔌
Compatibility: Fits standard copper and aluminum conductors, multi-conductor cables, and bundled wire harnesses. Shrinks with a standard heat gun (typically 90°C–120°C activation). Suitable for 600V-rated insulation applications — confirm voltage rating with your local electrical code before use.
✅ Key Features of These Black Heat Shrink Tubes
-
📏Wide Diameter Range — Covers 10mm through 45mm (≈3/8" to 1-3/4") in a single product line, reducing the need to stock multiple SKUs for large-diameter wire insulation jobs.
-
🔥2:1 Shrink Ratio — Typically shrinks to half its supplied diameter when heated, creating a snug, uniform fit around conductors, connectors, and cable bundles without adhesive.
-
🛡️Flame-Retardant Polyolefin — Resists ignition and self-extinguishes, meeting the expectations of automotive wiring repair and electrical panel sleeving where fire safety is a priority.
-
🌊Moisture & Abrasion Resistance — The recovered tubing forms a protective barrier against moisture ingress and mechanical abrasion, making it suitable for marine cable protection and outdoor electrical installations.
-

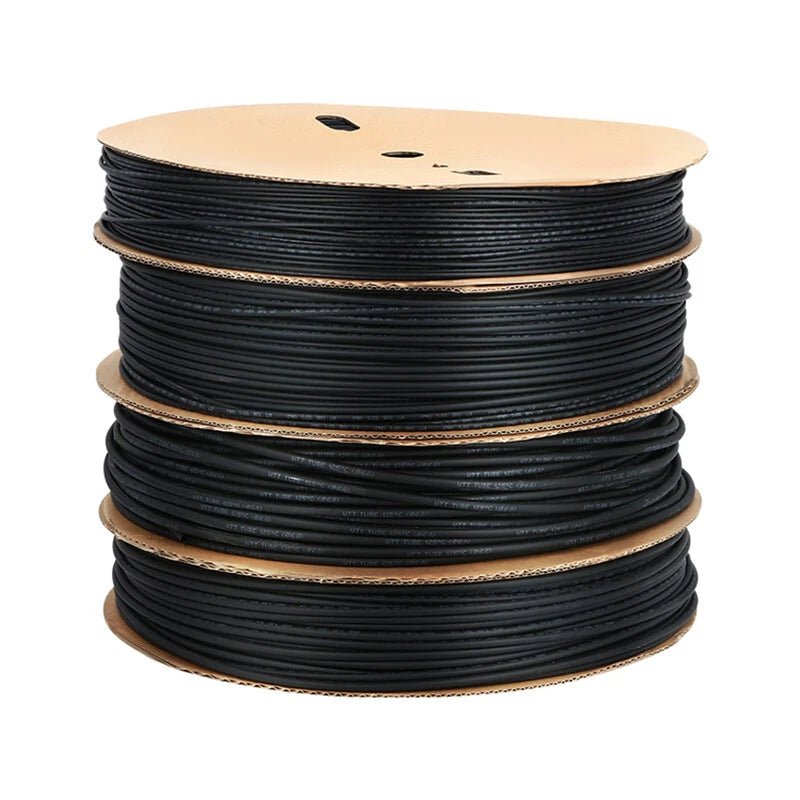

🎯Continuous Roll Format — Supplied in 25M, 50M, and 100M rolls so you can cut exactly the length you need for each splice or bundle — no waste from pre-cut pieces that are too short.
-
⚡Clean Black Finish — Uniform matte black color provides a professional appearance on finished harnesses and is compatible with standard cable labeling and heat-shrink printing workflows.
📐 Technical Specifications — Heat Shrink Tubing
| Material |
Flame-retardant polyolefin |
| Color |
Black |
| Available Diameters (supplied) |

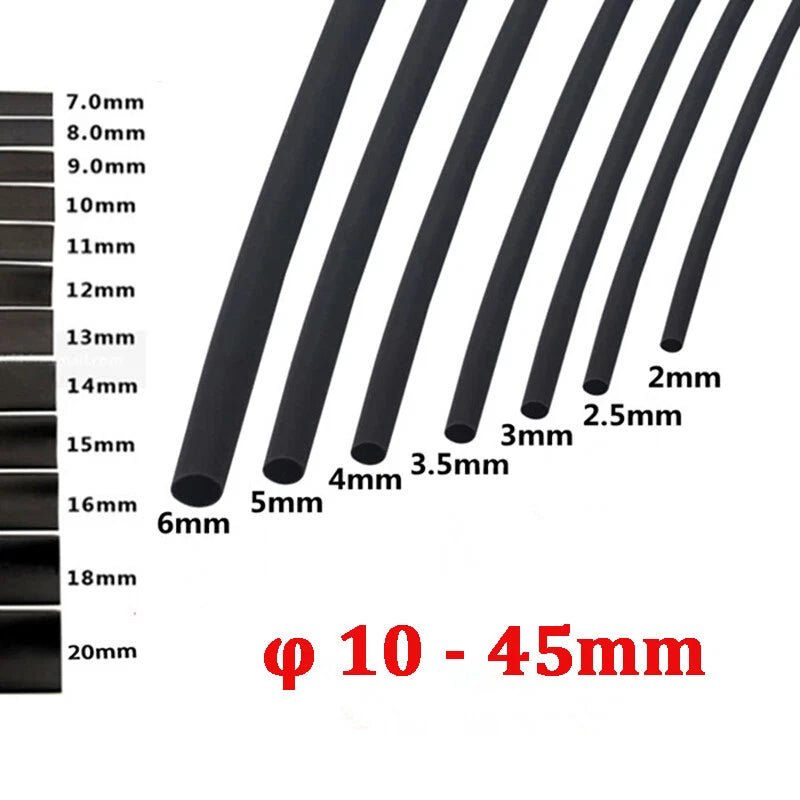

10mm (≈3/8"), 12mm (≈1/2"), 14mm (≈9/16"), 16mm (≈5/8"), 18mm (≈11/16"), 20mm (≈3/4"), 22mm (≈7/8"), 25mm (≈1"), 28mm (≈1-1/8"), 30mm (≈1-3/16"), 35mm (≈1-3/8"), 40mm (≈1-9/16"), 45mm (≈1-3/4") |
| Shrink Ratio |
Typically 2:1 (supplied diameter shrinks to approximately half when heated) |
| Roll Lengths |
25M (≈82 ft), 50M (≈164 ft), 100M (≈328 ft) |
| Activation Temperature |
Typically 90°C–120°C (194°F–248°F) — standard heat gun compatible |
| Operating Temperature Range |
See variant options / Contact us to confirm |
| Wall Thickness (recovered) |
See variant options |
| Voltage Rating |
See variant options / Contact us to confirm |
| Compliance / Standards |
Contact us to confirm |
| Packaging |

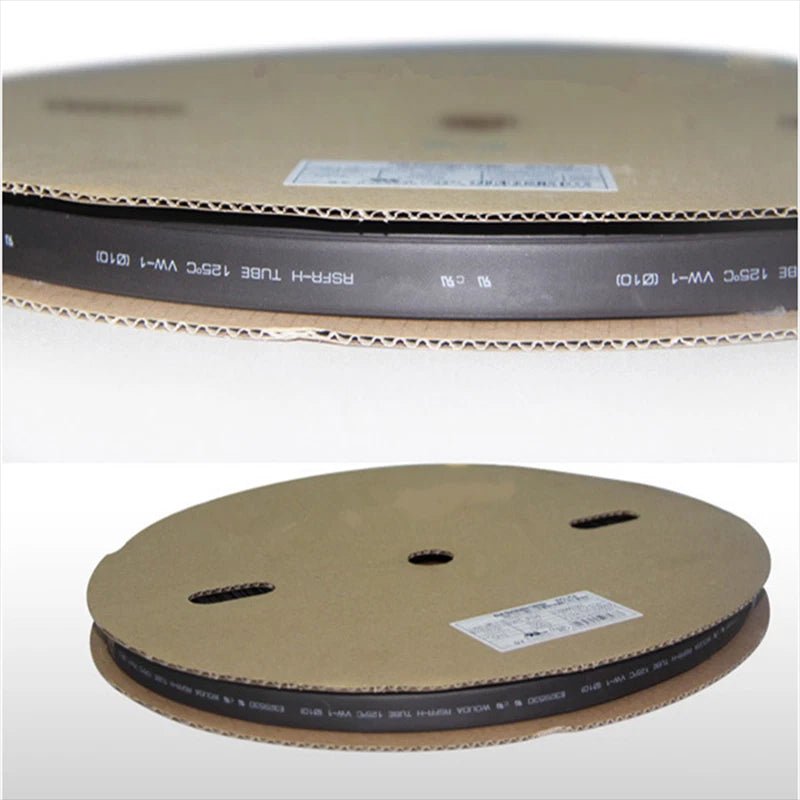

Continuous roll, individually packaged |
⚠️
Heads up: If your application requires a specific voltage rating, operating temperature, or UL/RoHS certification, please contact us before ordering so we can confirm the exact specification for your chosen diameter and length.
❓ Frequently Asked Questions
How do I choose the right diameter for my wire or cable?
Measure the outer diameter of your cable or bundle before shrinking. Choose a supplied (expanded) tube diameter that is roughly 20–30% larger than your cable's OD so the tube slides on easily. After shrinking at a 2:1 ratio, the recovered diameter will be approximately half the supplied size. For example, a 20mm tube recovers to roughly 10mm — ideal for a cable bundle measuring 8–10mm across. When in doubt, size up one step rather than down.
What heat source do I need to shrink this tubing?
A standard electric heat gun set to 90°C–120°C (194°F–248°F) is generally sufficient. Move the heat gun slowly and evenly along the tube to avoid scorching. A lighter or torch can work in a pinch for small diameters, but is not recommended for larger sizes (25mm and above) as uneven heat can cause bubbling or incomplete shrinkage.
How strong is the tubing once it has shrunk — will it hold up to pulling or abrasion?
Recovered polyolefin heat shrink tubing is generally resistant to moderate mechanical abrasion and provides good tensile strength along the sleeve. It is not a structural fastener — it will not prevent a connector from pulling off a wire under high tension. For high-vibration or high-pull-force applications, combine the tubing with a proper crimp or solder joint. Exact tensile and tear strength values vary by diameter; contact us to confirm for your specific size.
Can I use this tubing outdoors or in marine environments?
Polyolefin heat shrink tubing is generally moisture-resistant and performs well in outdoor and marine cable protection applications when properly applied. However, this is a standard (non-adhesive-lined) tubing, so it does not create a fully waterproof seal at the ends. For submersed or salt-spray environments, consider using adhesive-lined (dual-wall) heat shrink tubing instead, or seal the ends with marine-grade silicone after shrinking.
Is this tubing compatible with standard wire gauges and connector types used in the US?
Yes — the diameter range (10mm–45mm) covers a wide span of AWG wire sizes and multi-conductor cable bundles commonly used in US automotive, marine, and industrial wiring. The 10mm size is typically suitable for bundles of 4–6 AWG wires, while the 45mm size can accommodate large cable bundles or conduit-style applications. Always verify the expanded and recovered diameters against your specific cable OD before ordering.
How much tubing do I actually need — which roll length should I order?
For occasional repairs and small projects (a few splices or connector ends), the 25M (≈82 ft) roll is generally sufficient. For workshop or shop use where you're regularly making harnesses or bundling cables, the 50M (≈164 ft) roll offers a good balance of quantity and cost. The 100M (≈328 ft) roll is best suited for production runs, fleet maintenance, or contractors who use large-diameter sleeving regularly. Larger rolls typically offer a lower cost-per-meter.
Does this tubing meet any safety or compliance standards (UL, RoHS, etc.)?
Compliance certifications vary by production batch and diameter. If your application requires UL listing, RoHS compliance, or a specific military/aerospace standard, please contact us with your diameter and quantity requirements before placing your order so we can confirm the applicable certifications for that variant.
🛒 Select your diameter and length above, then add to cart — ships from our US warehouse.
