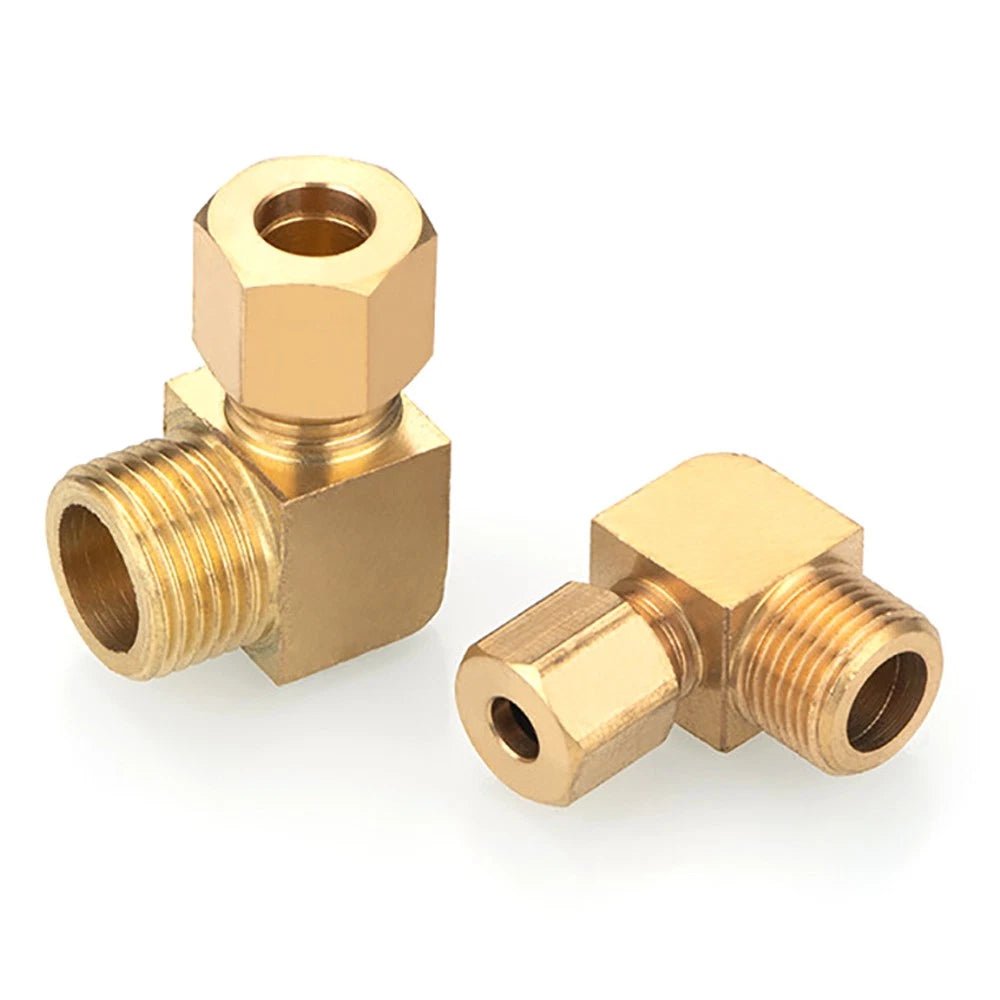

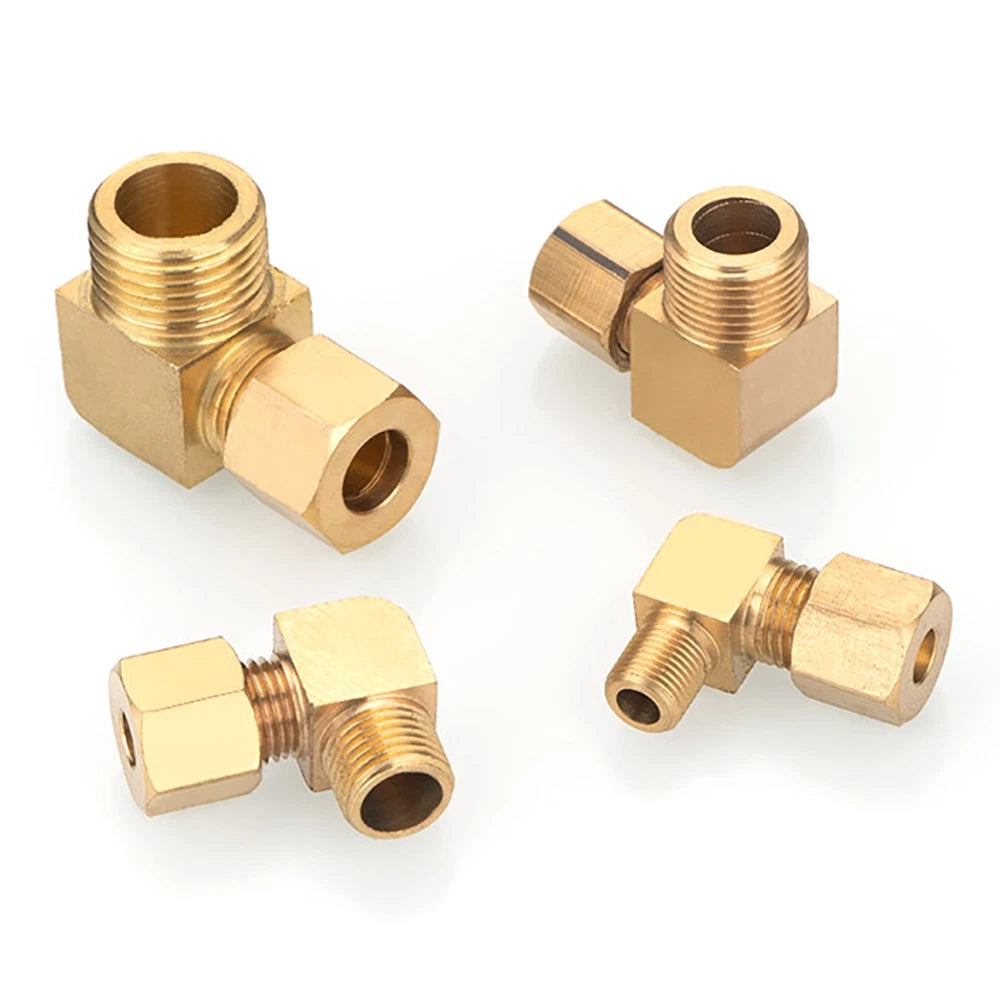

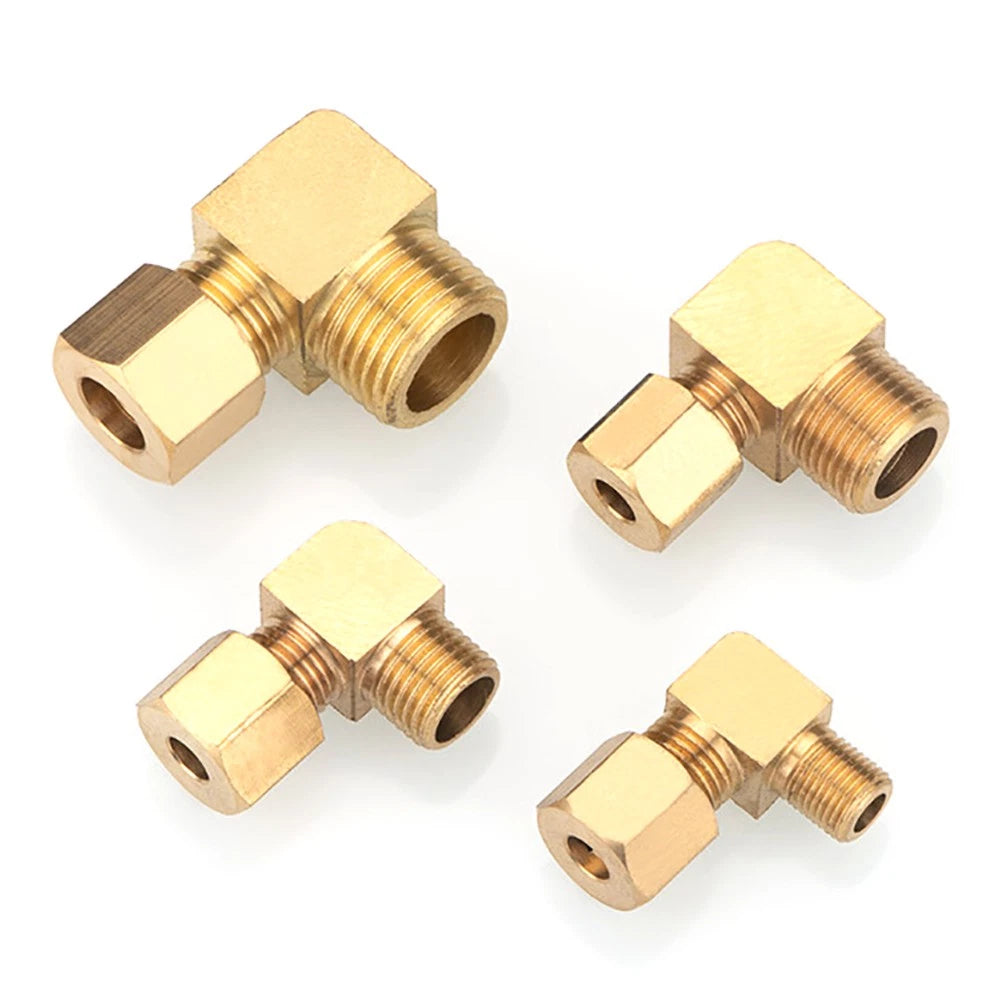

Brass Compression 90° Elbow Fittings for 6–12mm Copper Tube | Ferrule Connector

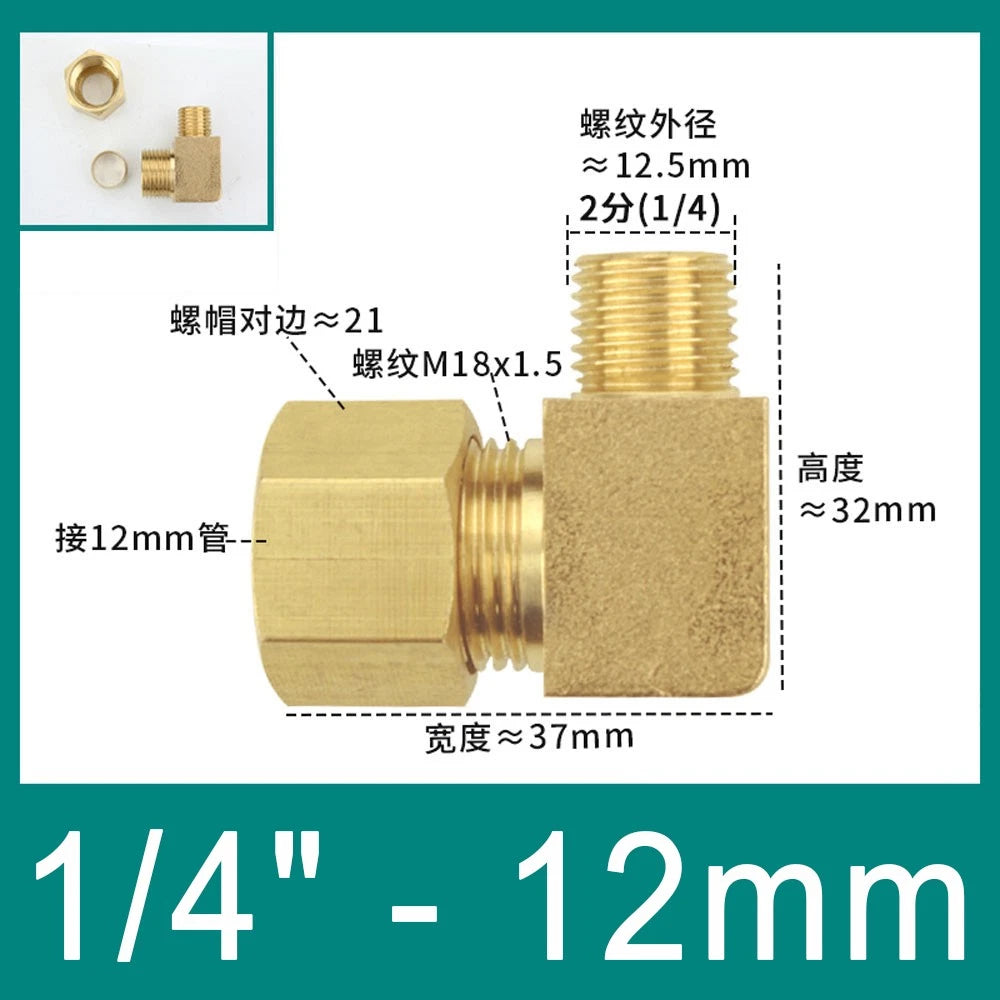

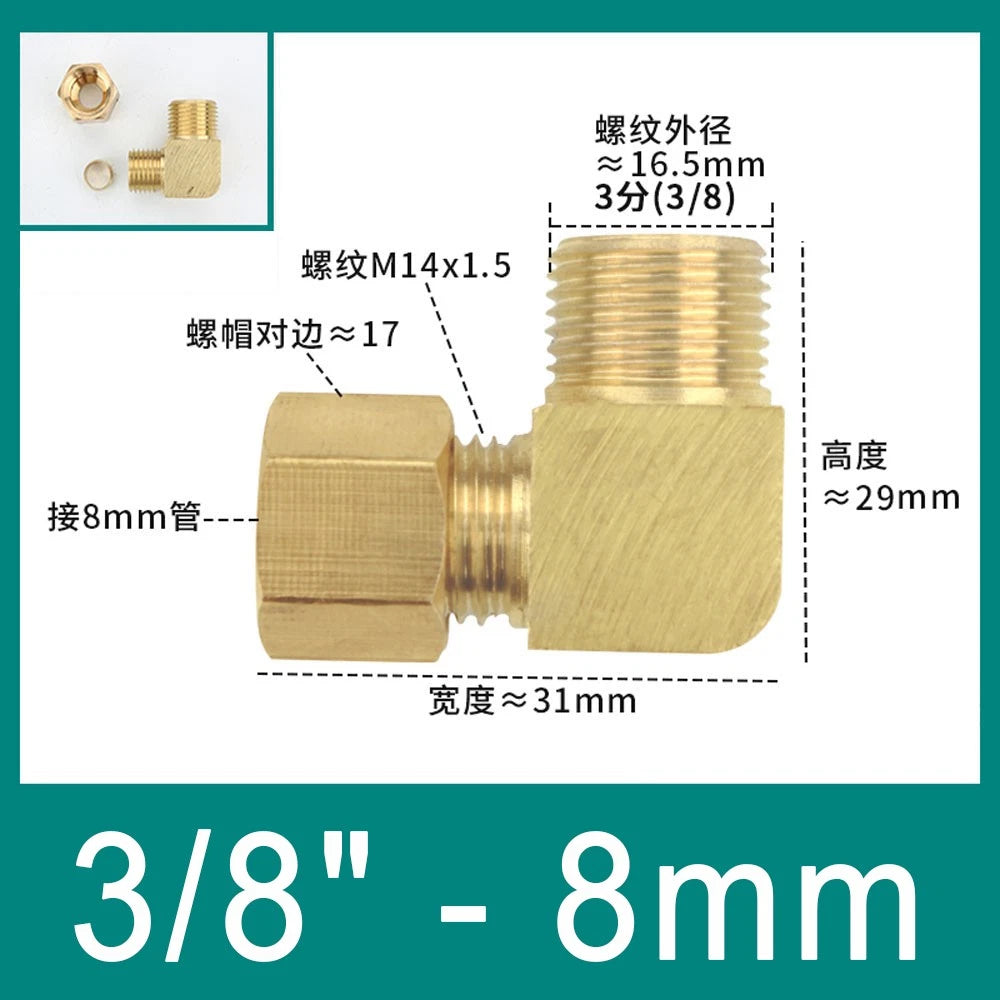

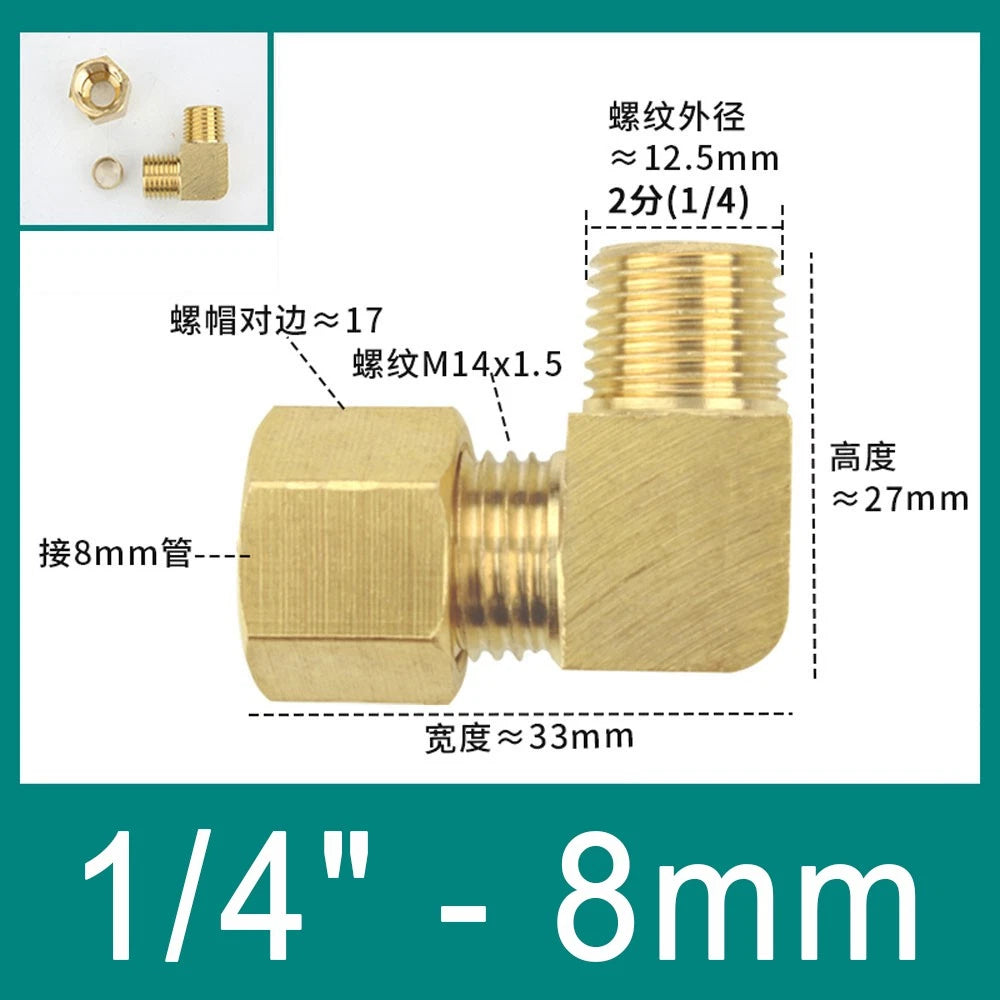

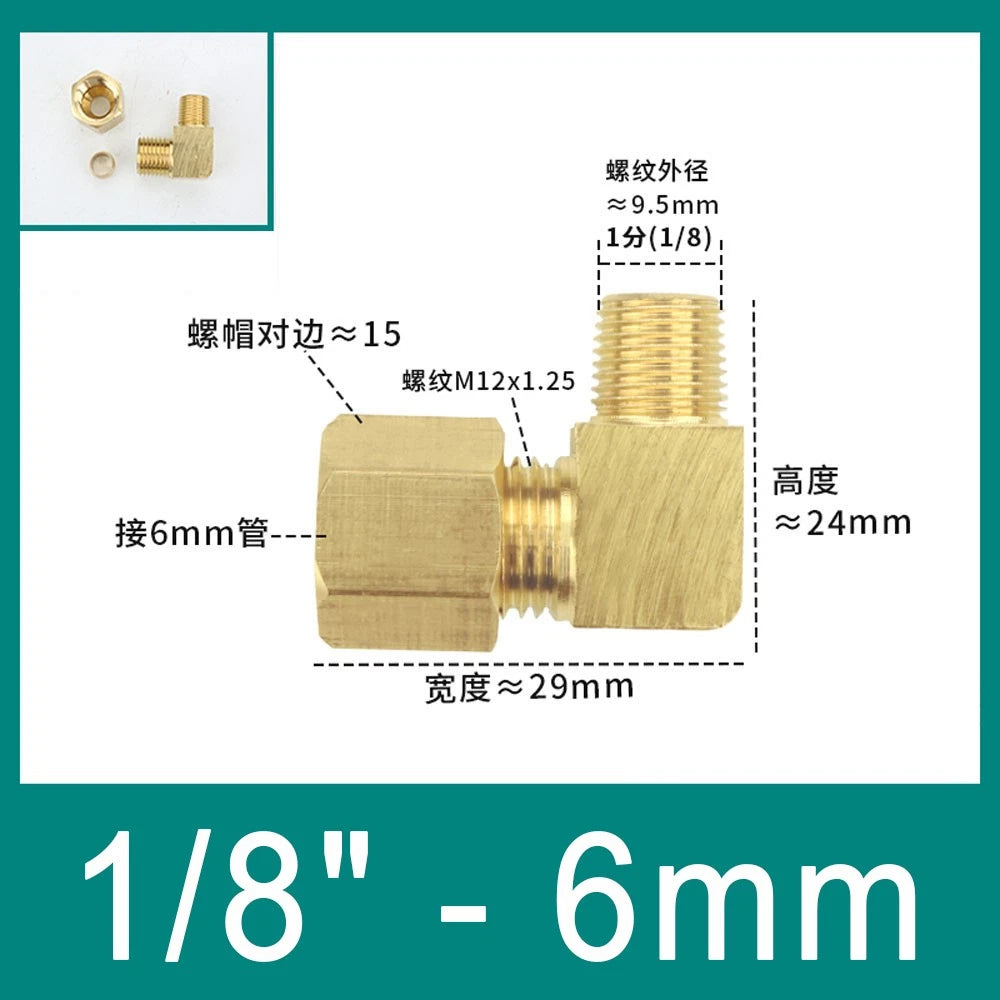

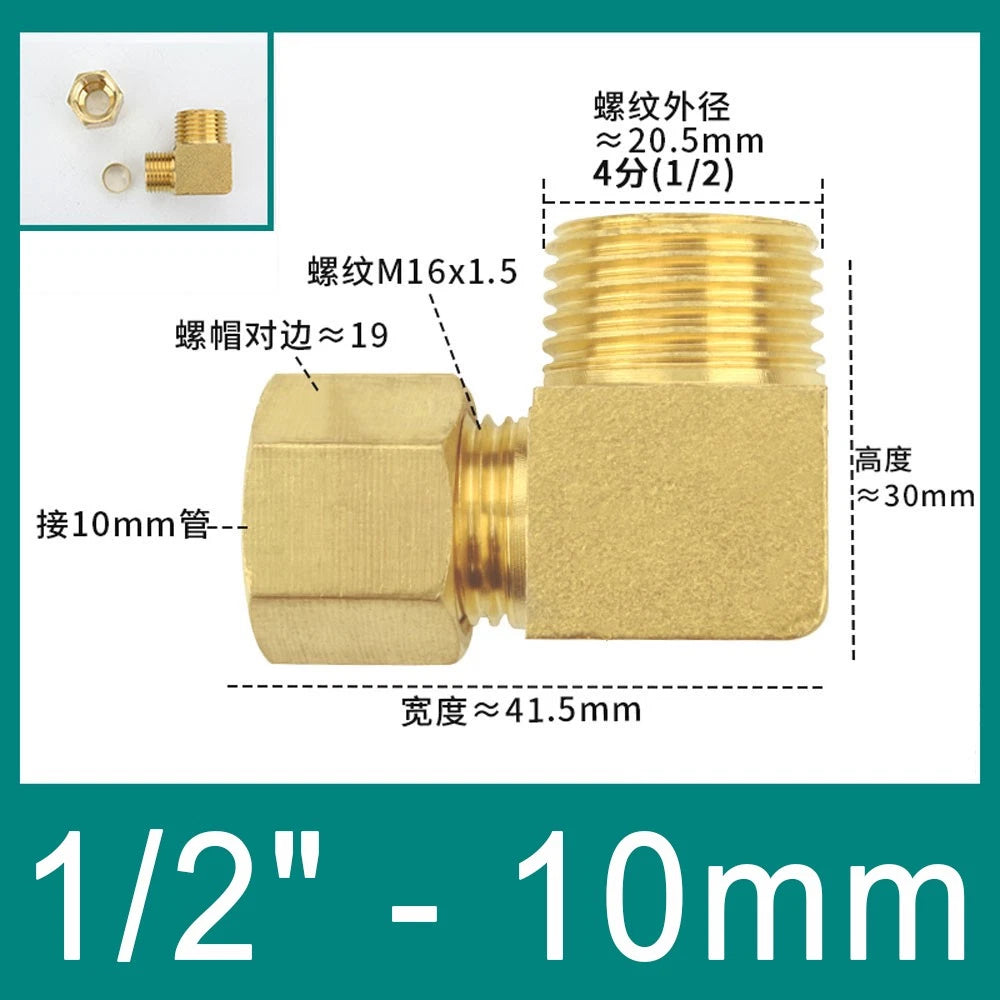

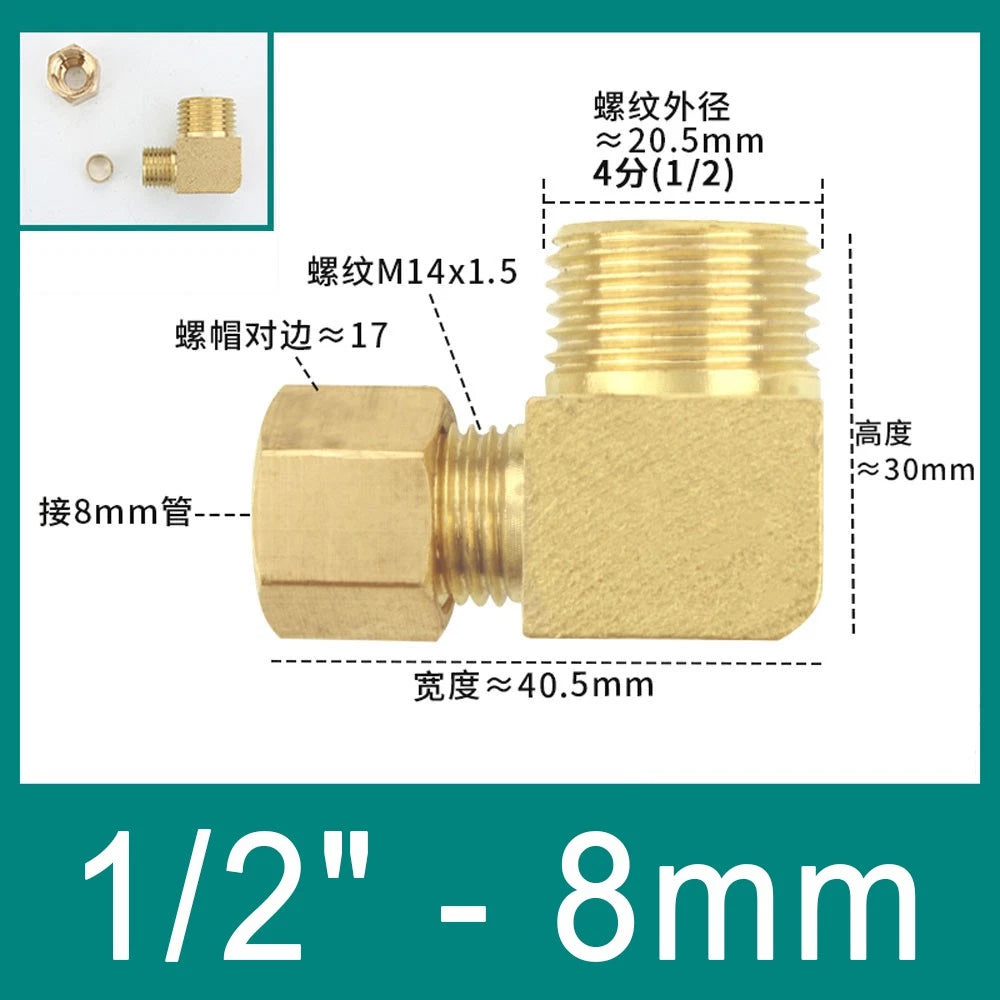

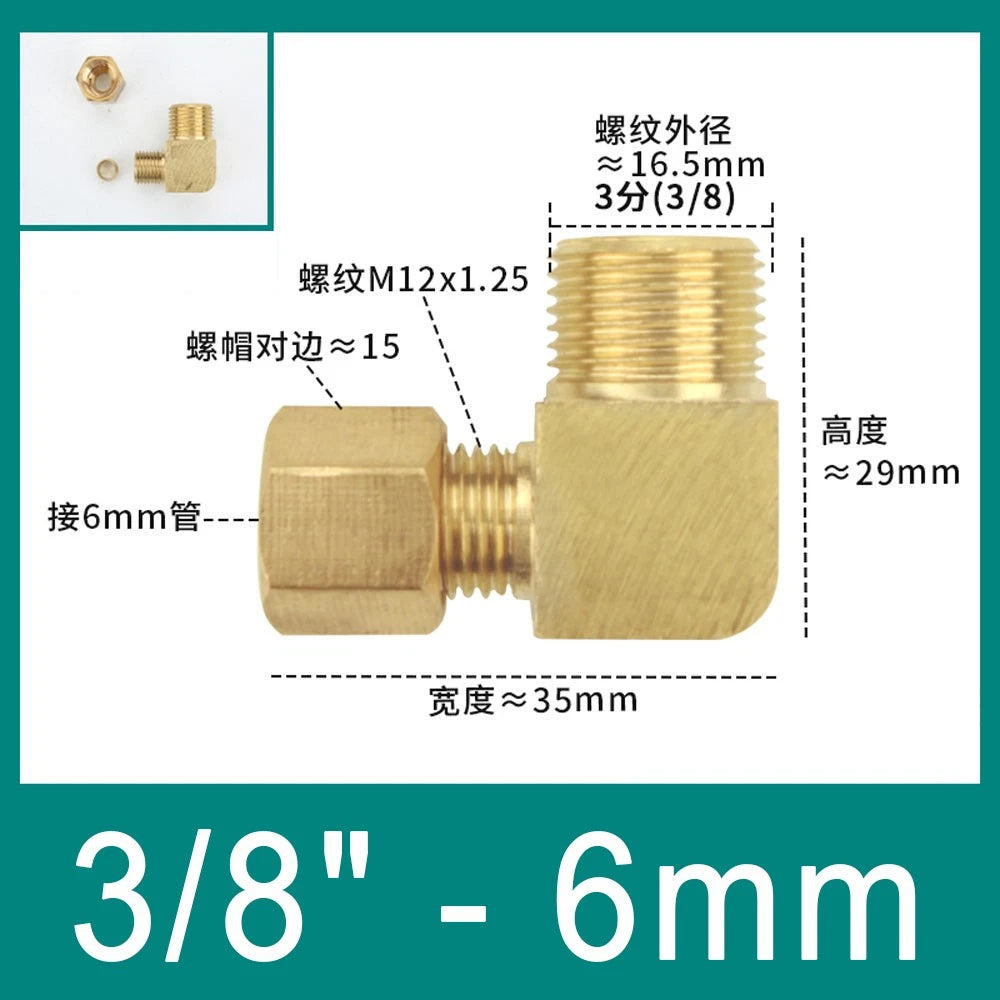

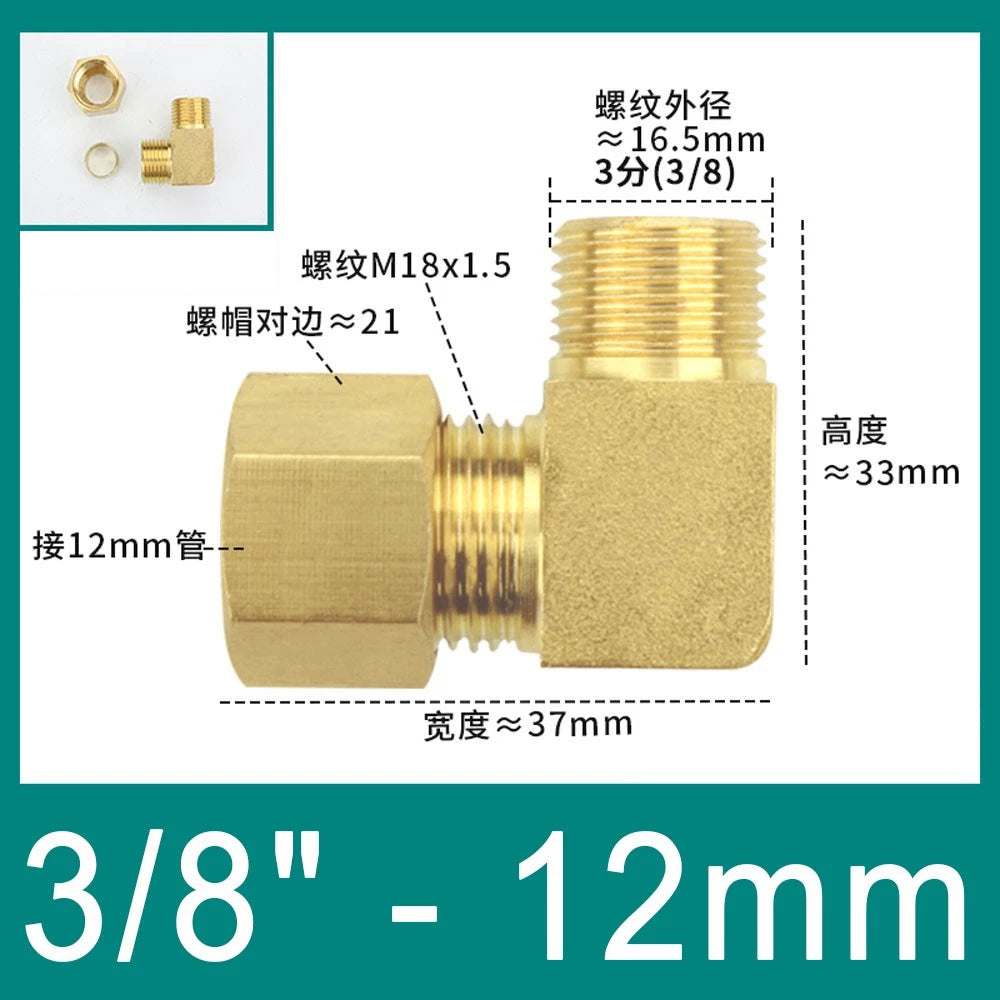

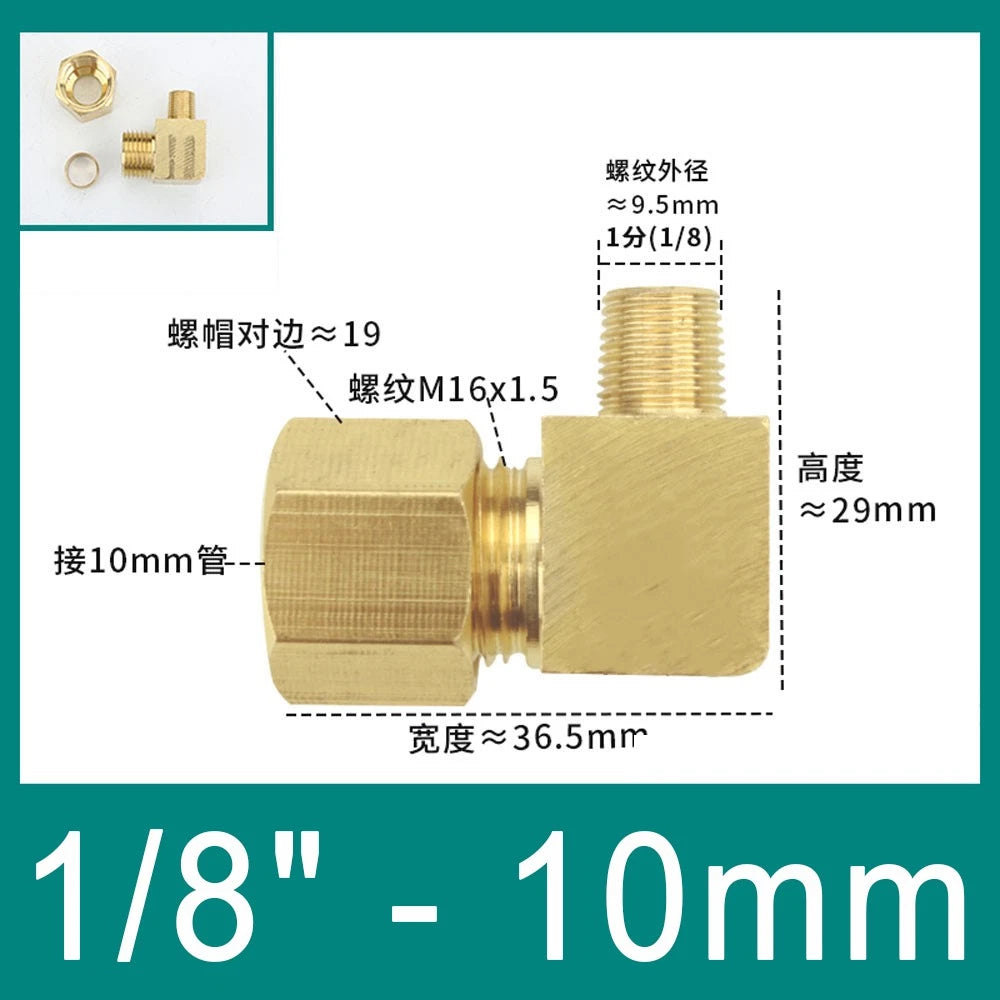

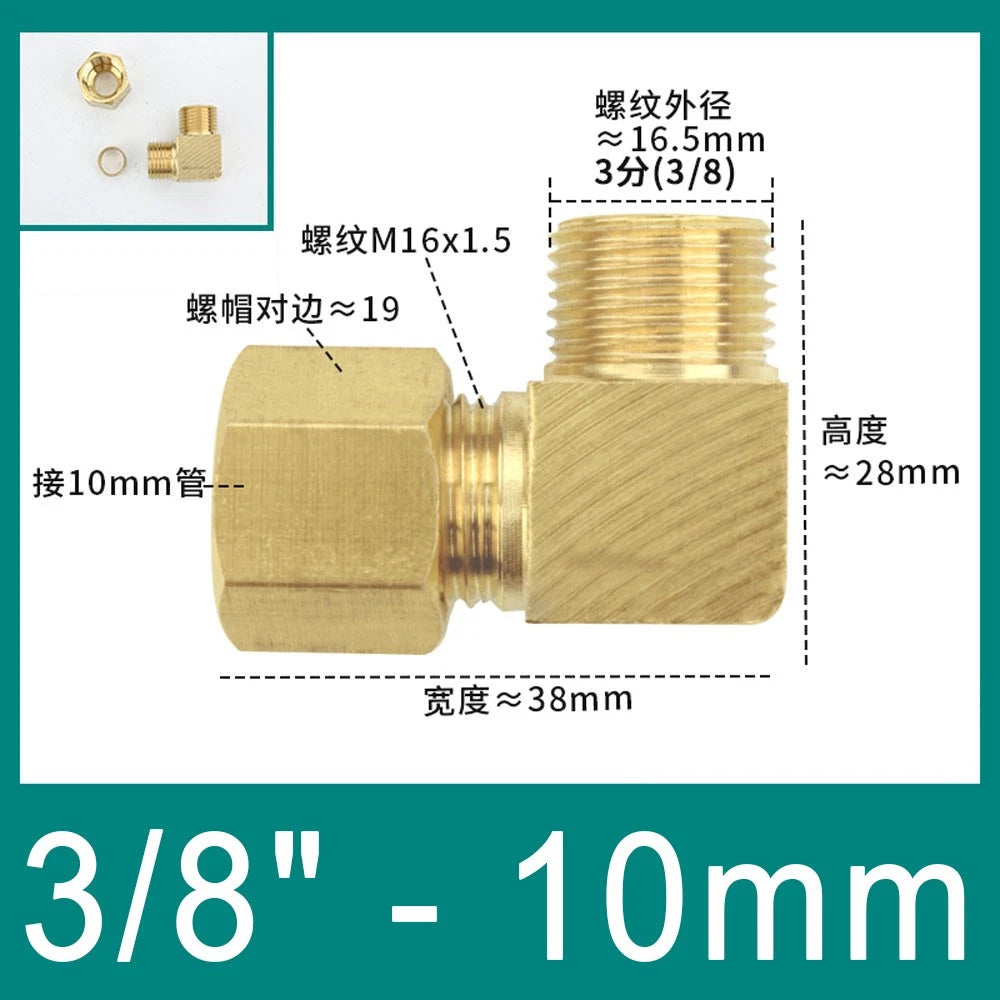

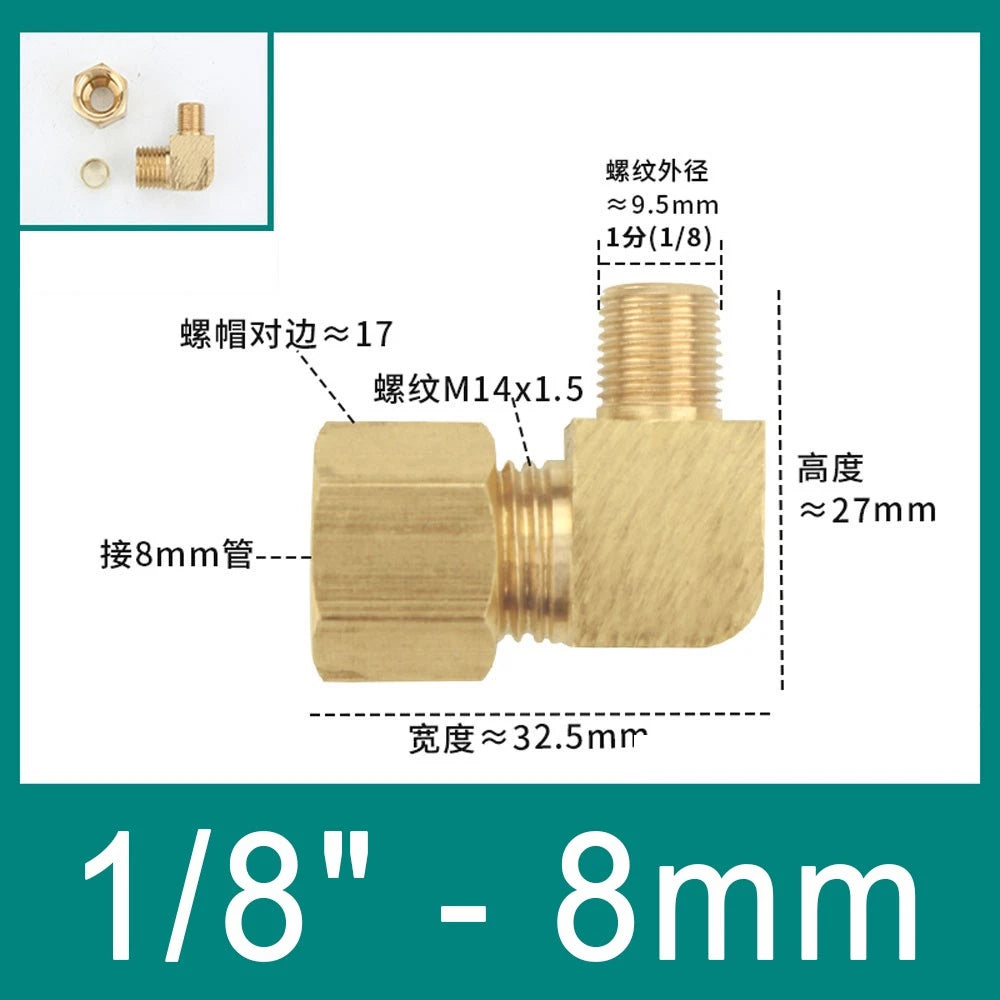

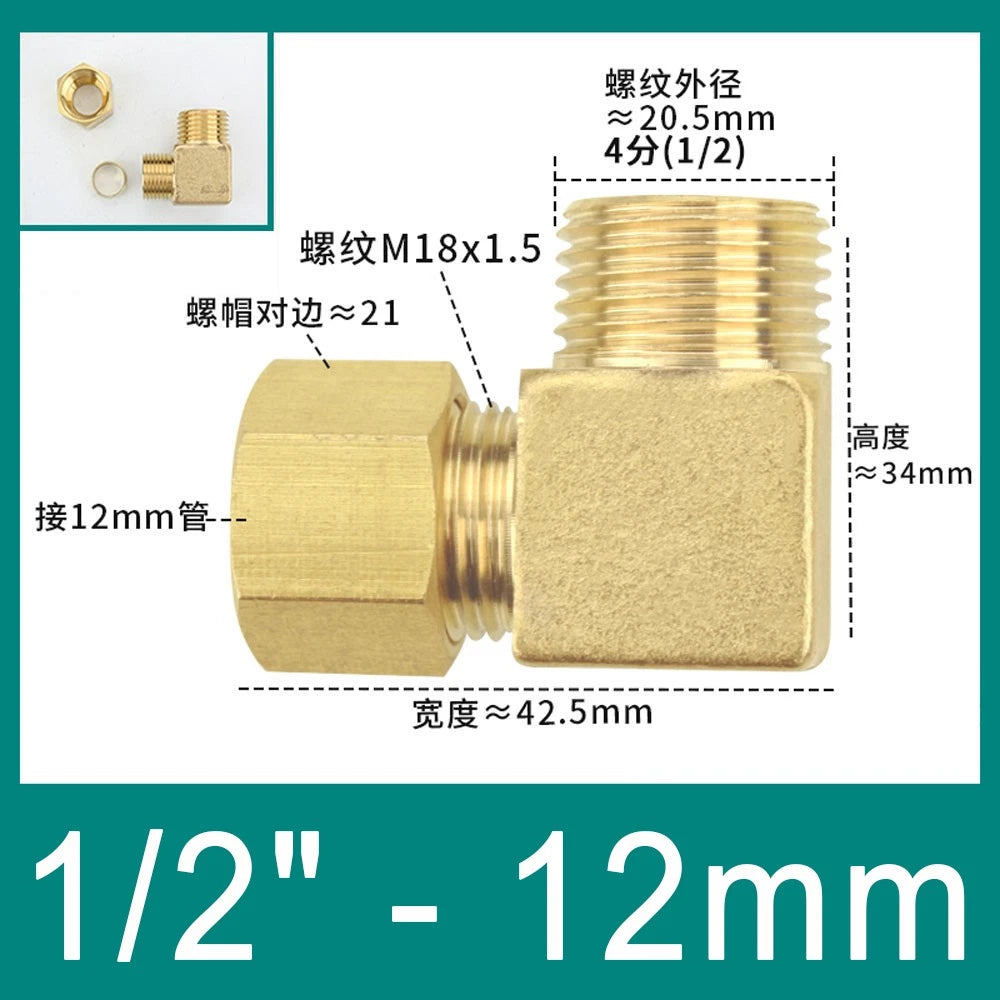

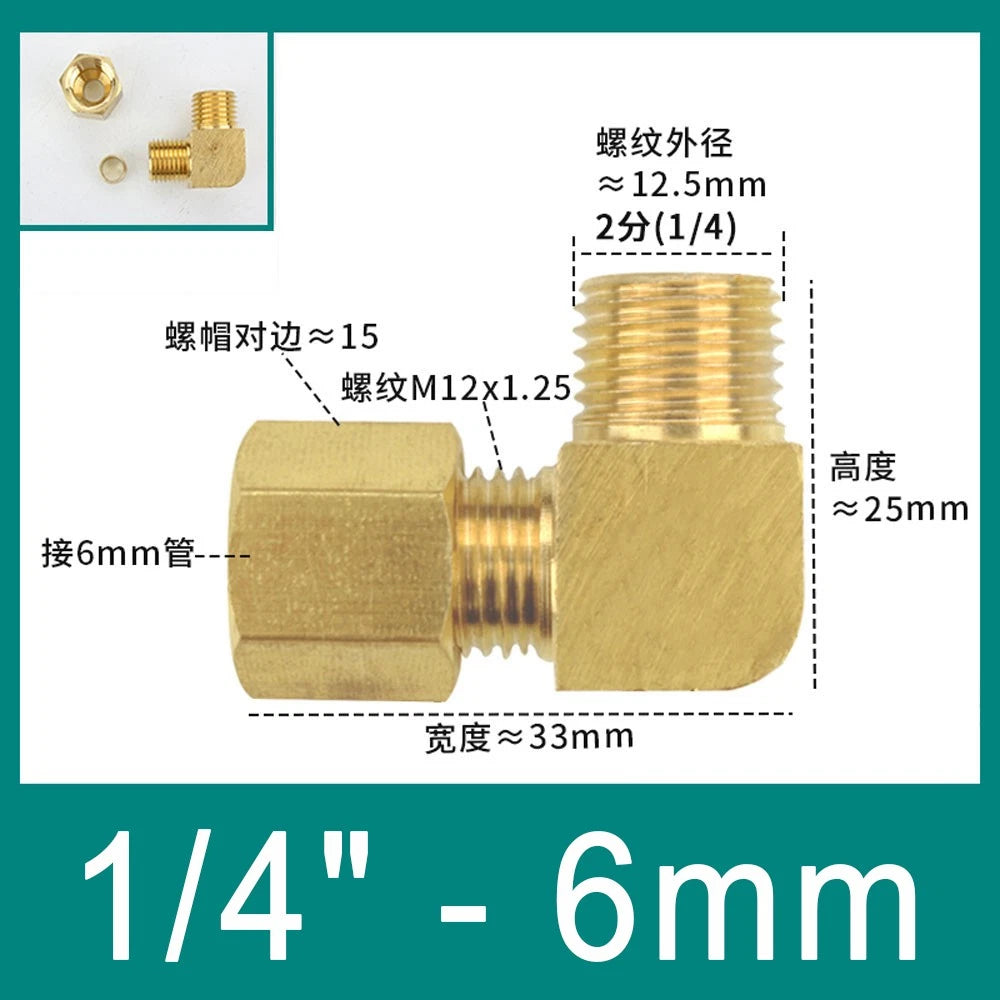

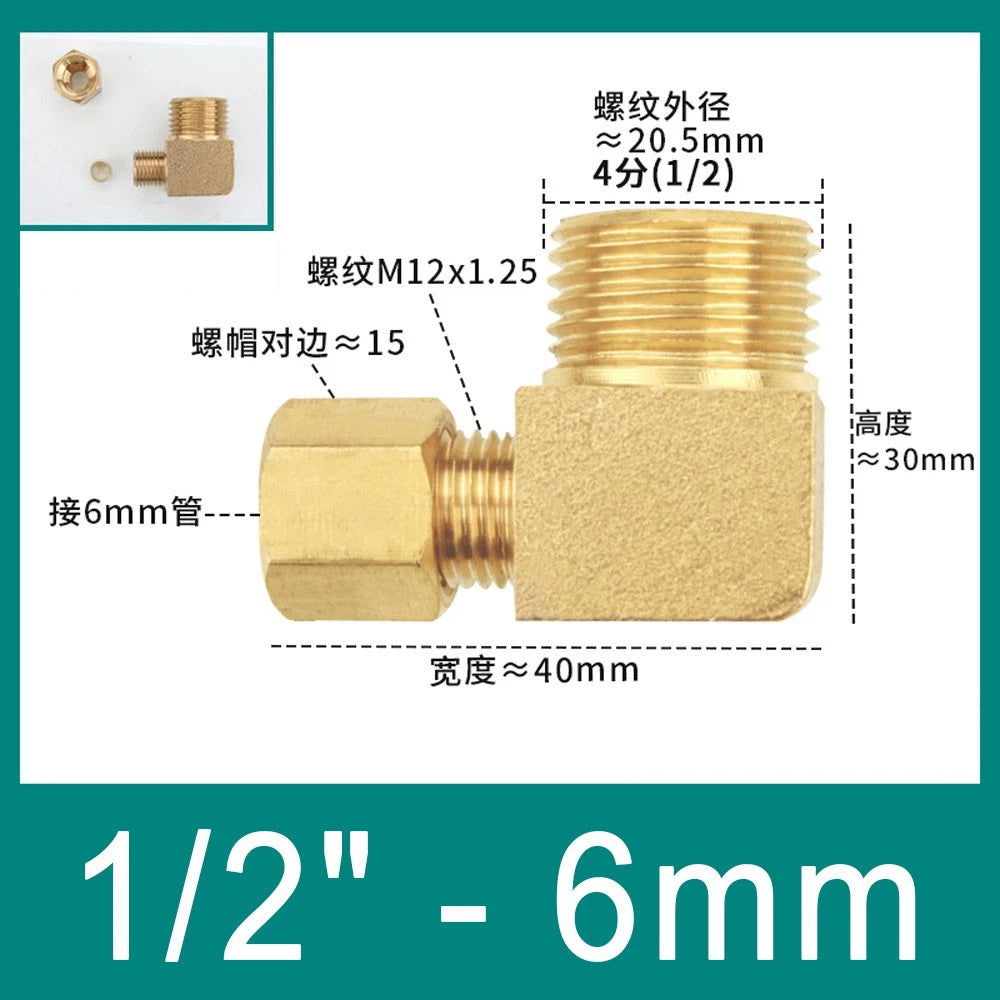

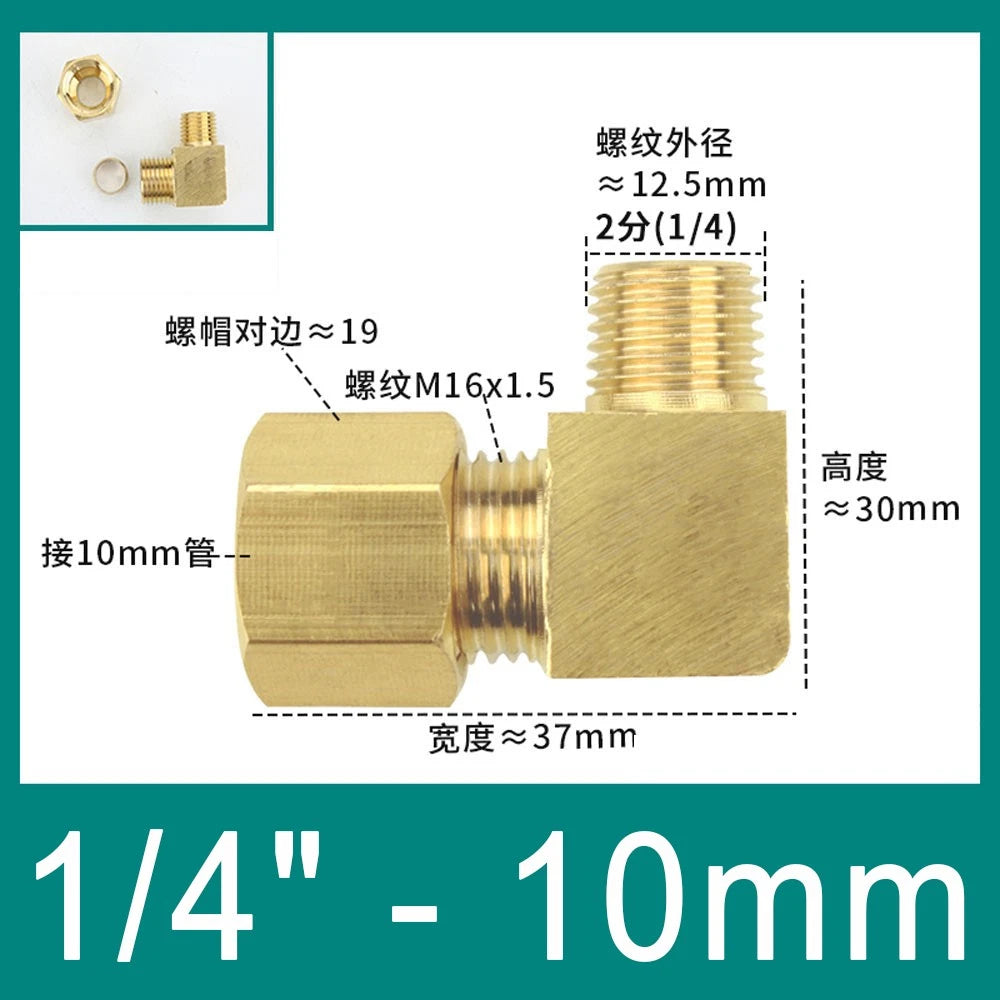

Select the size that matches your copper tube's outer diameter (OD). For example, if your tube measures 8mm OD (≈5/16"), choose the 8mm option. The thread size (1/8" to 1/2" BSP) should match your pipe or valve port. When in doubt, measure the OD of your tube with calipers before ordering — the tube OD is not the same as the nominal pipe size.

Quick reference: 6mm ≈ 1/4" | 8mm ≈ 5/16" | 10mm ≈ 3/8" | 12mm ≈ 1/2"

Brass compression fittings of this type are generally rated for working pressures up to 200 PSI (≈14 bar) in typical plumbing and HVAC applications. Actual ratings depend on tube wall thickness, installation quality, and operating temperature. Contact us to confirm specifications for your specific application before use in high-pressure systems.

Brass is naturally resistant to corrosion and performs well in damp or humid indoor conditions. For outdoor installations, brass generally holds up well in sheltered locations. In fully exposed outdoor or marine environments with prolonged saltwater exposure, additional protection or stainless steel alternatives are typically recommended for long-term reliability.

These fittings use BSP (British Standard Pipe) threads, available in 1/8", 1/4", 3/8", and 1/2" sizes. BSP threads are widely used in plumbing and HVAC systems in the UK, Europe, Australia, and many other regions. BSP and NPT threads are not interchangeable. If your system uses NPT threads, please contact us before ordering to confirm compatibility.

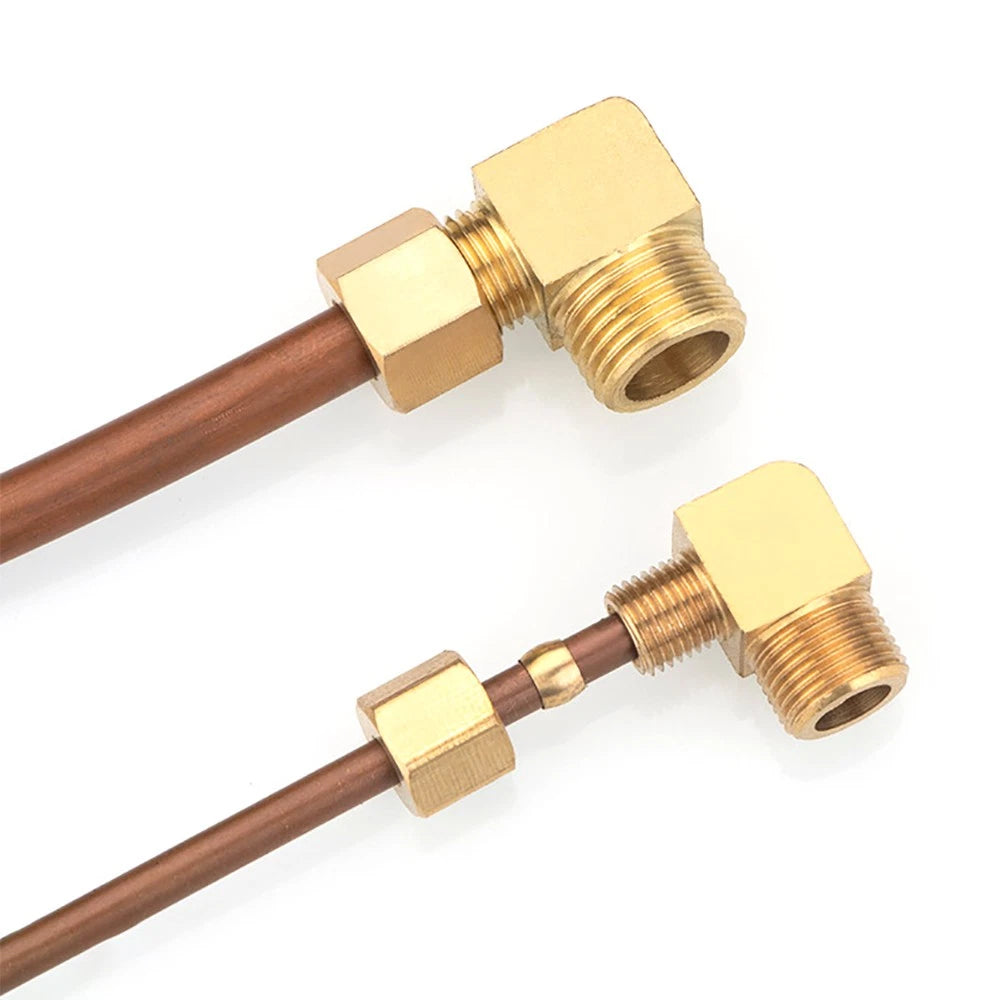

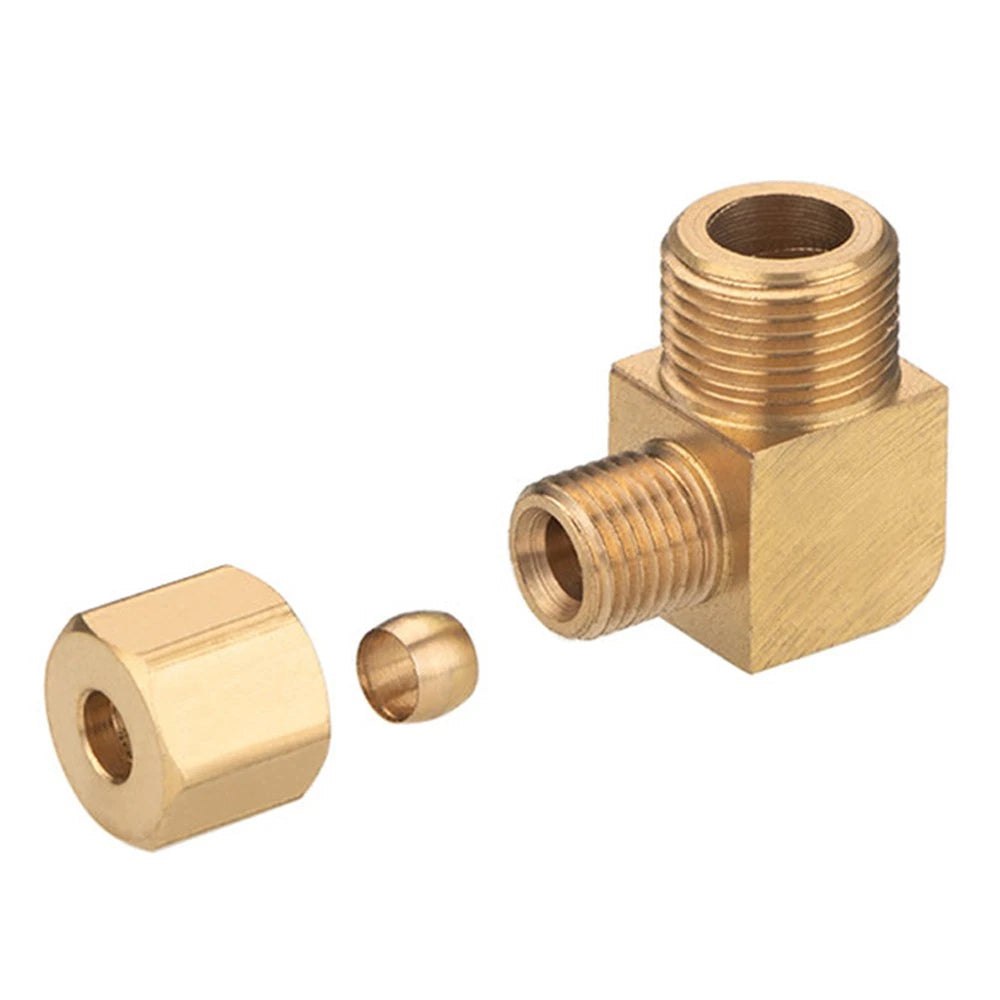

No special tools are required. A standard adjustable wrench or open-end spanner is sufficient. The installation process is straightforward: insert the copper tube into the fitting body, slide the ferrule (olive) over the tube, thread on the compression nut, and tighten. The ferrule compresses around the tube to create a leak-free seal — no soldering, no flux, no heat.

Yes. Brass compression fittings are generally compatible with both soft (annealed) and hard-drawn copper tubing, as well as many types of thin-wall brass tubing. Ensure the tube OD matches the fitting size exactly for a proper seal. Using an undersized or oversized tube will prevent the ferrule from seating correctly.

The fitting body and nut can typically be reused. However, the ferrule (olive) deforms permanently during initial installation as it compresses around the tube. In most cases, the ferrule should be replaced if the fitting is reassembled on a new tube section to ensure a reliable, leak-free seal. Reusing the original ferrule on the same tube in the same position is sometimes acceptable for temporary reassembly.

For a single fixture repair or one direction change, the 1 Pcs option is sufficient. For small projects with 2–3 elbows, the 3 Pcs pack offers better value. The 5 Pcs and 10 Pcs packs are well-suited for larger installations, multi-room plumbing runs, or keeping spares on hand for maintenance work.
