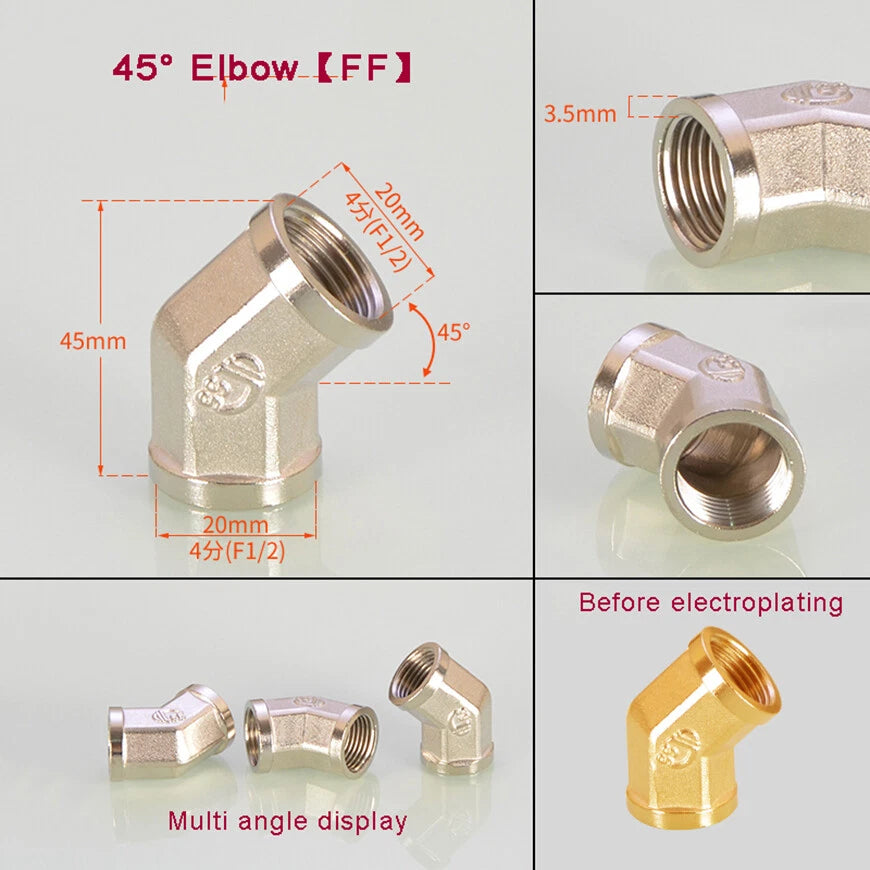

Size：: 45° Elbow【FF】

Packing Qty:: 1pcs

Preis:

$4.18 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

BSP 1/2" Brass Pipe Fittings — Reliable Connections for Water, Air & Gas Lines

Plumbers, HVAC technicians, and serious DIYers know the frustration of a leaking joint or a fitting that simply doesn't match the thread standard on hand. Whether you're rerouting a water supply line, building a compressed air manifold, or extending a gas distribution system, having the right BSP 1/2" brass pipe fitting on hand makes the difference between a clean install and a costly callback.

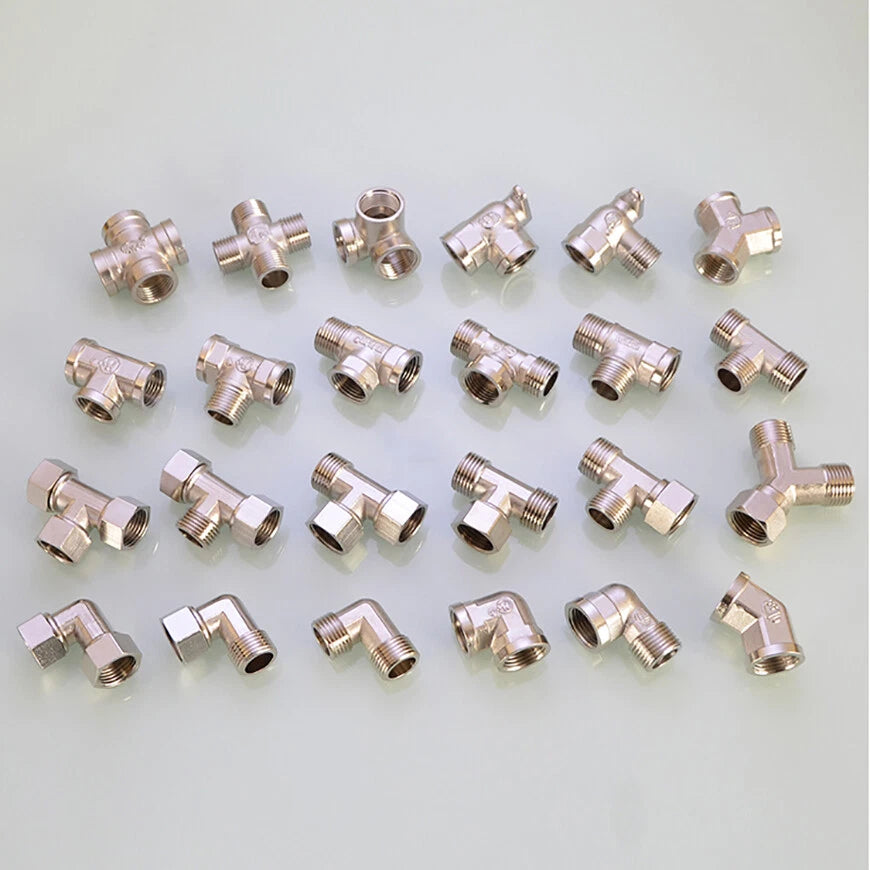

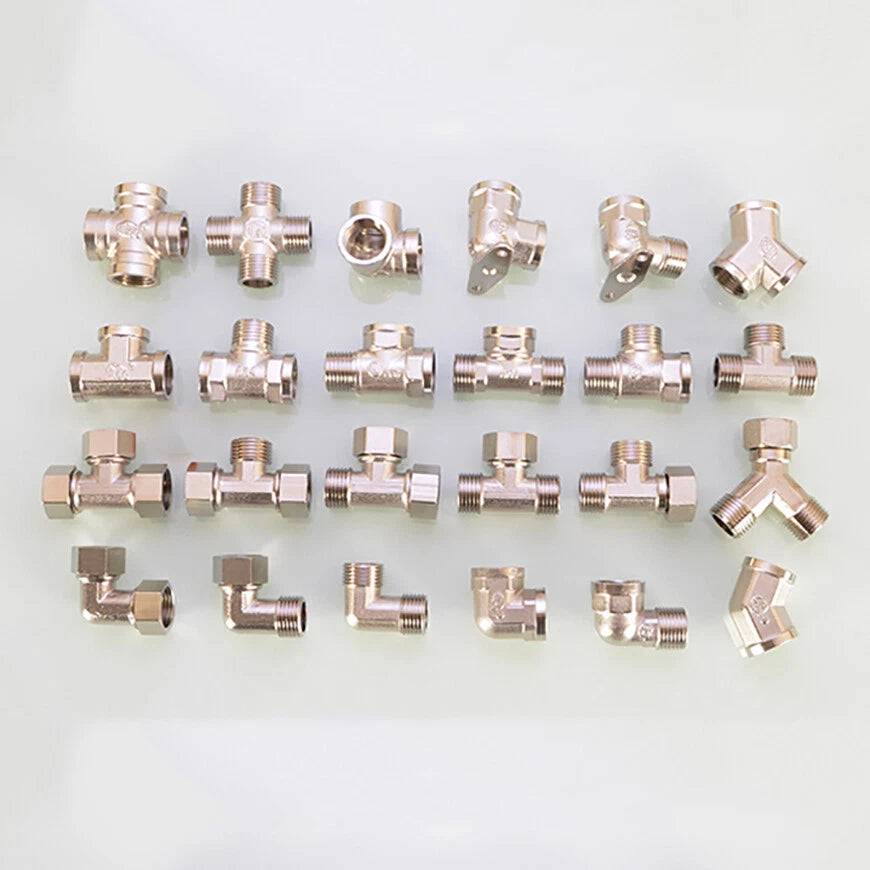

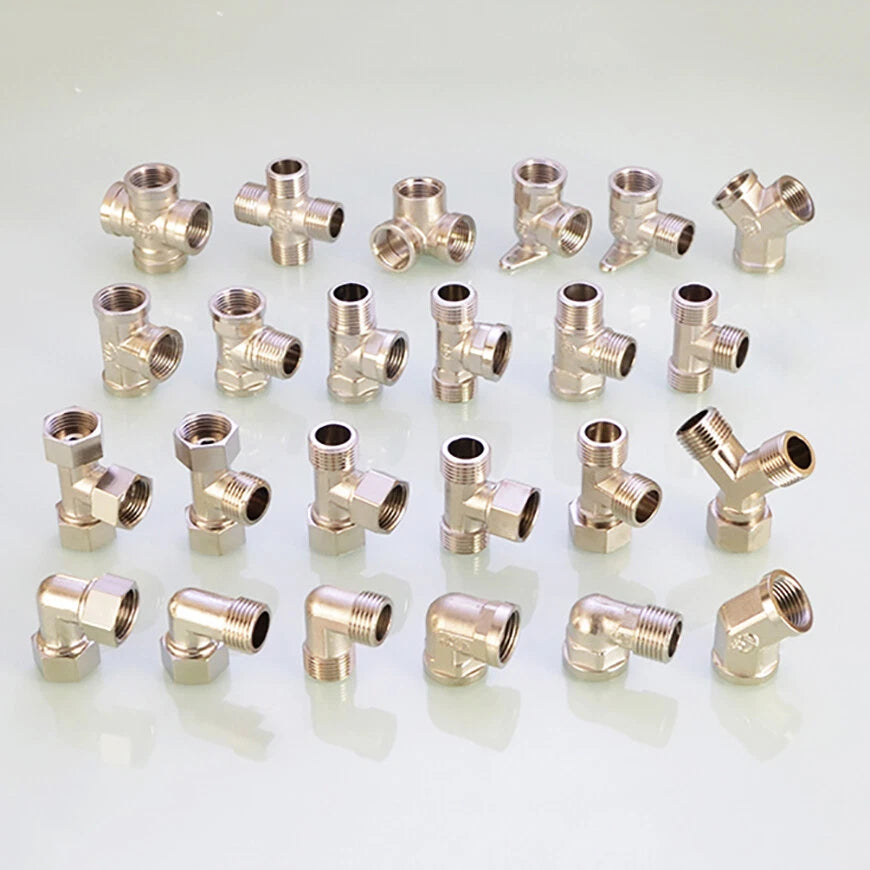

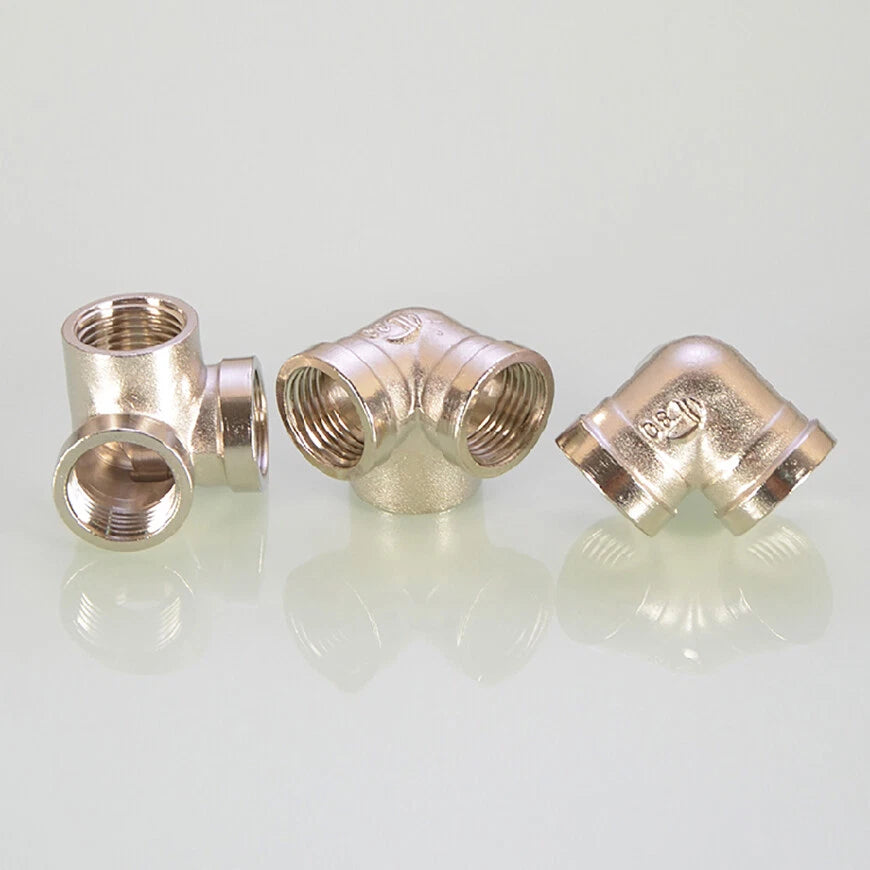

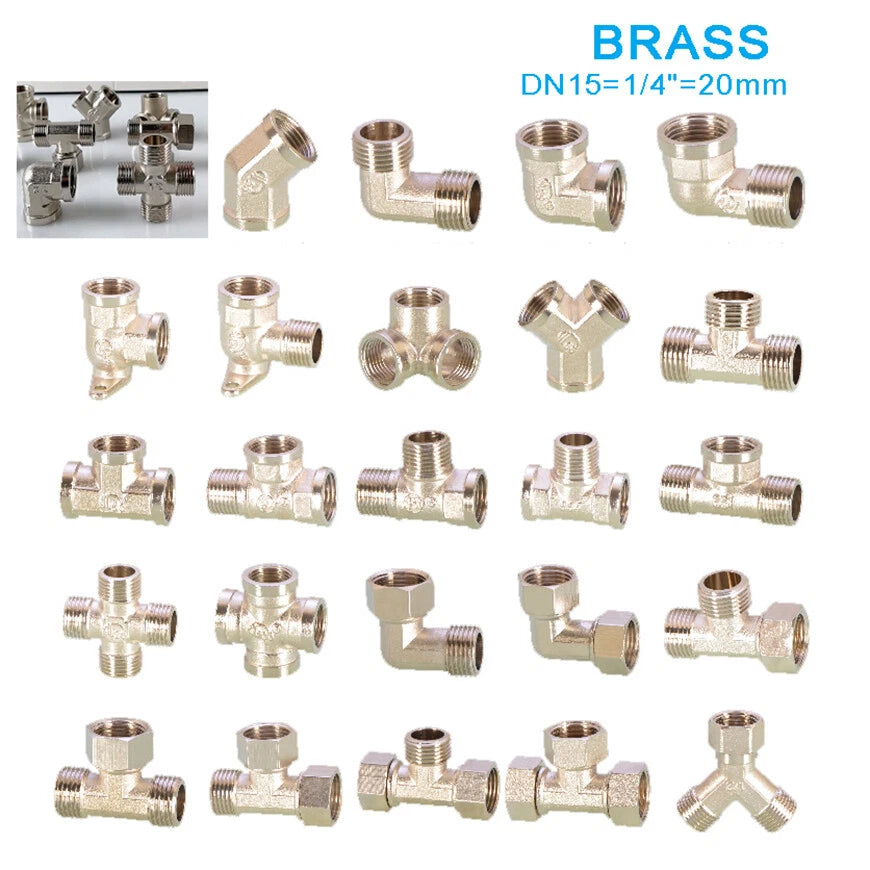

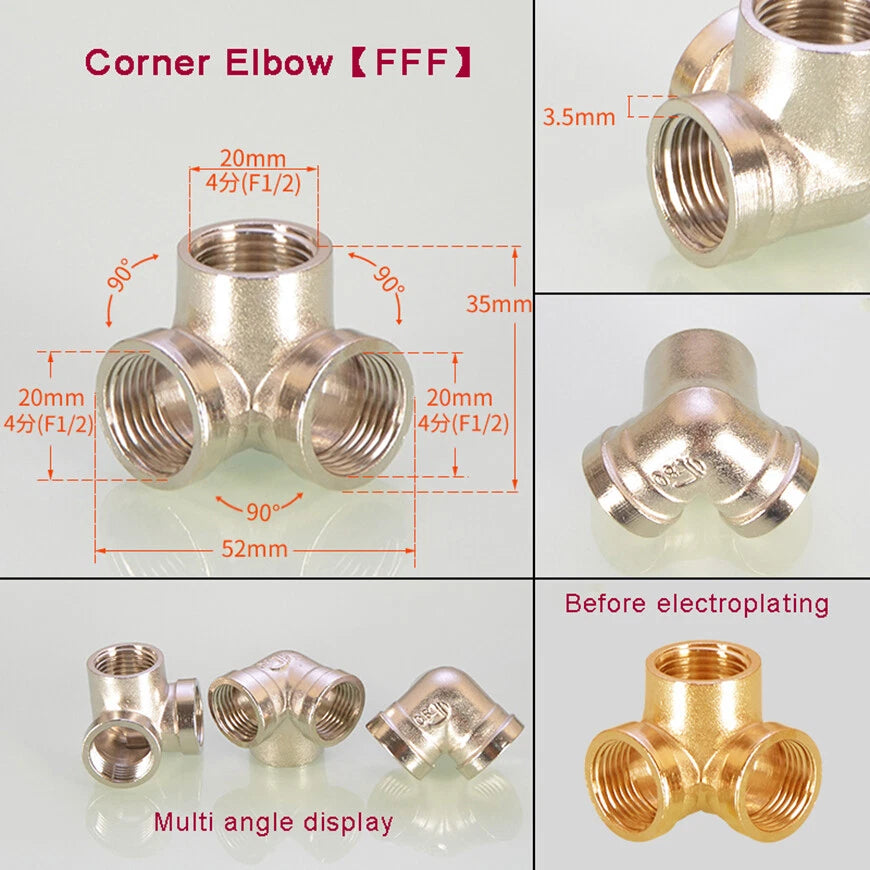

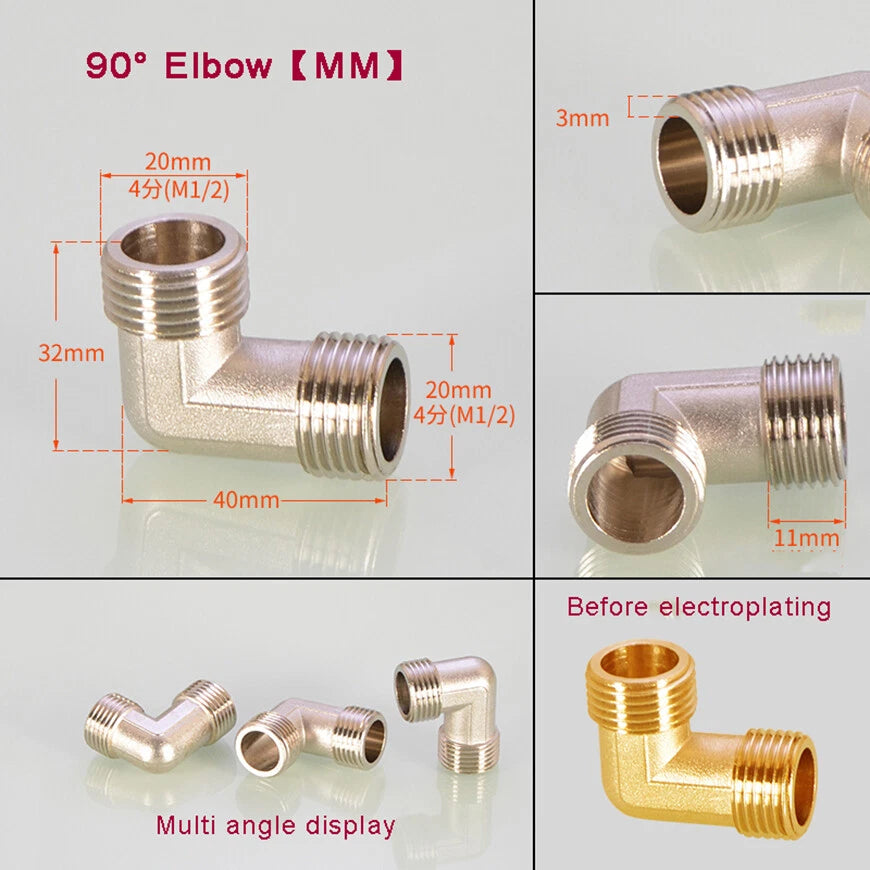

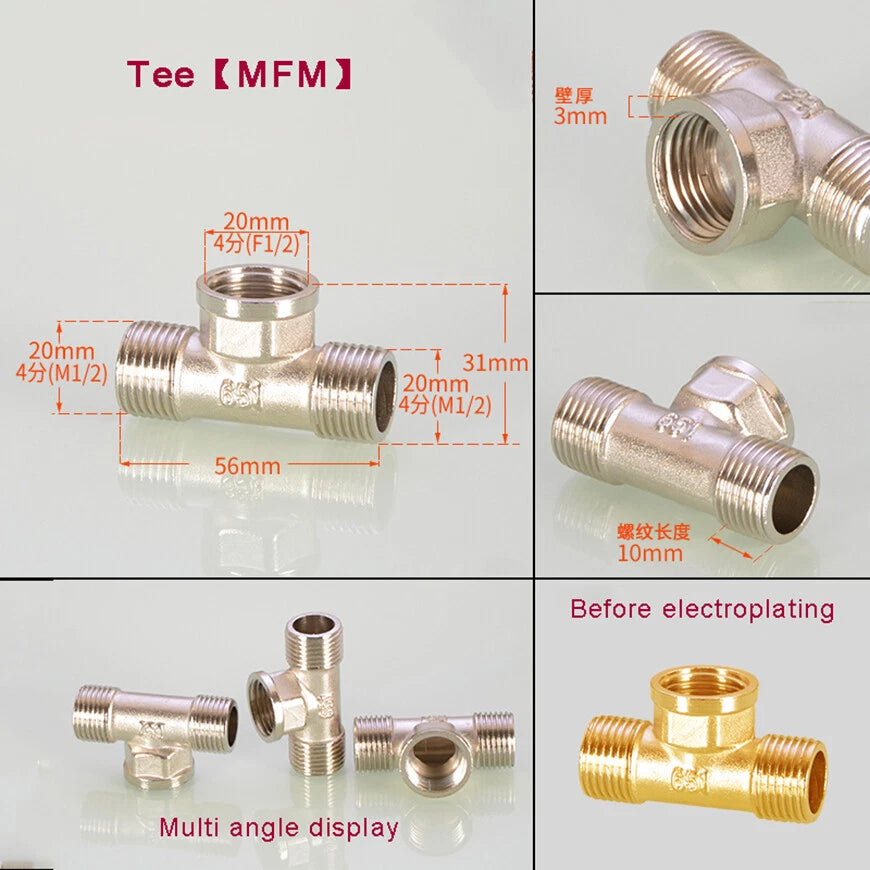

Each fitting is machined from solid brass and features 1/2" BSP (British Standard Pipe) threads. The range covers 45° elbows, 90° elbows, corner elbows, tees, crosses, Y-connectors, and elbow seats — available in Female-Female (FF), Female-Male (FM), Male-Male (MM), and multi-port combinations (FFF, FFM, FMF, FMM, MFM, MMM, FFFF, MMMM). Sold individually (1 pcs per order) so you can mix and match exactly what your project requires.

Typical use cases include residential and commercial plumbing branch lines, pneumatic tool air supply networks, irrigation system manifolds, and workshop compressed-air distribution — all applications where a leak-free BSP threaded brass fitting is the standard choice.

🔗 Thread Compatibility: All fittings use 1/2" BSP (G1/2) threads. BSP is not directly compatible with NPT threads — use a BSP-to-NPT adapter if your system uses NPT pipe.

✅ Key Features of These BSP 1/2" Brass Pipe Fittings

🔩Full BSP Thread Compliance — Machined to 1/2" BSP (G1/2) specification for consistent, leak-free engagement with standard BSP male and female pipe ends across plumbing, pneumatic, and gas systems.
🏗️Wide Shape Selection — Choose from 45° elbow, 90° elbow, corner elbow, tee, cross, Y-connector, and elbow seat to handle direction changes, flow splits, and multi-port manifold configurations in a single order.
⚙️Solid Brass Construction — Brass resists dezincification and handles the thermal cycling common in hot-water and steam-adjacent lines better than many plastic alternatives, making it a go-to material for durable pipe joint connectors.
🔄Flexible Port Configurations — Available in FF, FM, MM, and multi-port combos (FFF, FMF, FFFF, MFM, etc.), so you can adapt between female and male BSP threads without stocking separate reducers or couplers.
💧Suitable for Water, Air & Gas — Designed for use in cold and hot water supply lines, compressed air distribution, and low-pressure gas systems (verify local code compliance for gas applications).
📦Sold Individually — Mix & Match — Each listing is for 1 piece, letting you order exactly the shapes and port configurations your job requires without paying for a kit full of fittings you won't use.

📐 Technical Specifications — BSP 1/2" Brass Pipe Fittings

Thread Standard	BSP (British Standard Pipe) — 1/2" (G1/2)
Nominal Size	1/2" BSP (≈ 20.955 mm OD on male thread)
Material	Brass

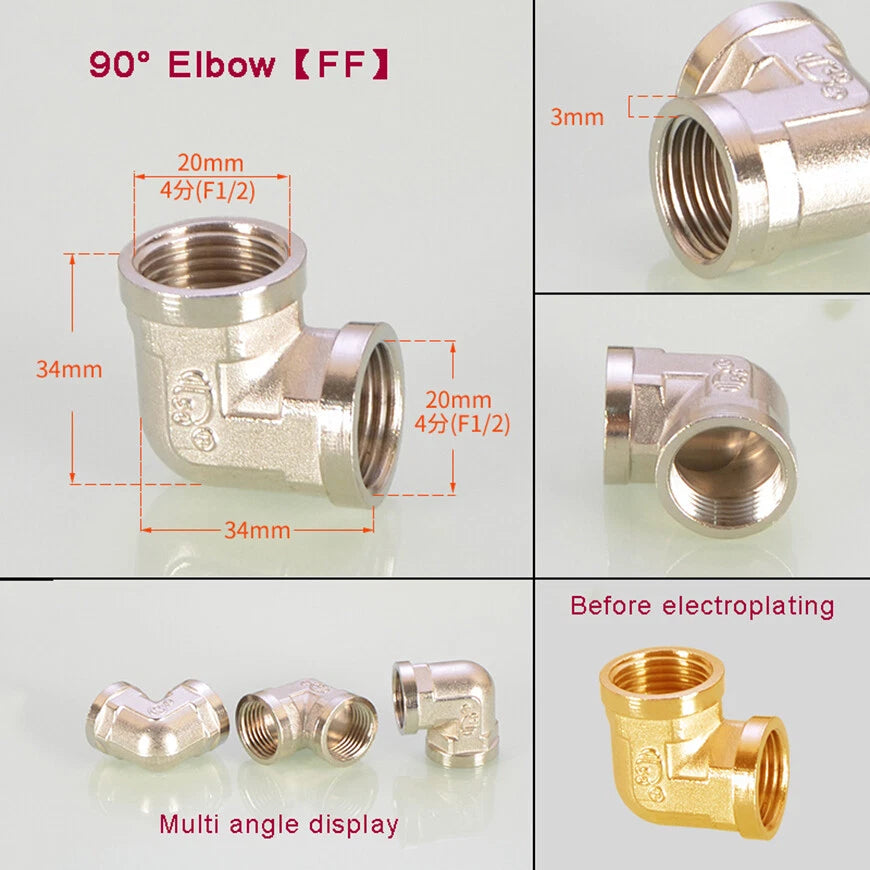

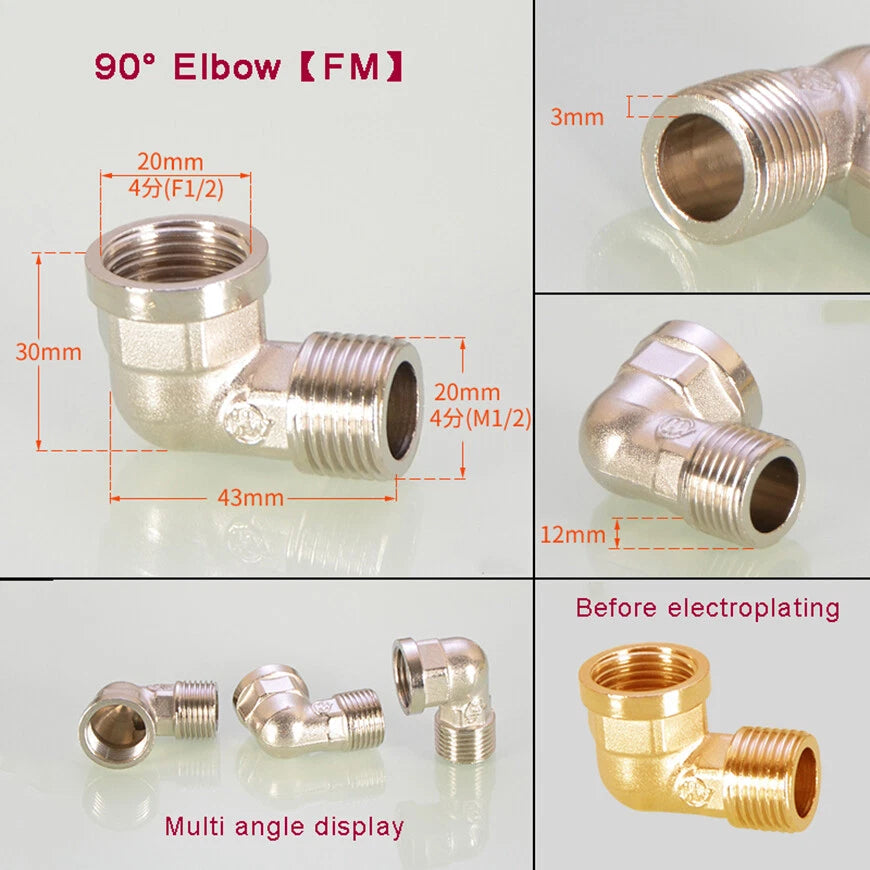

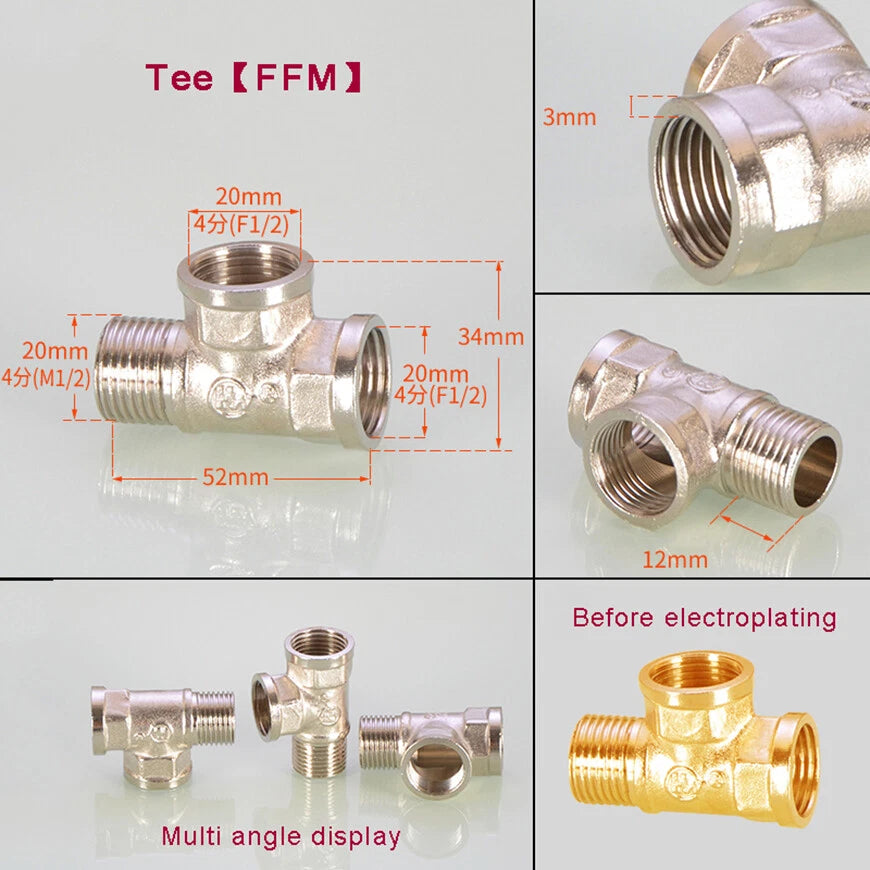

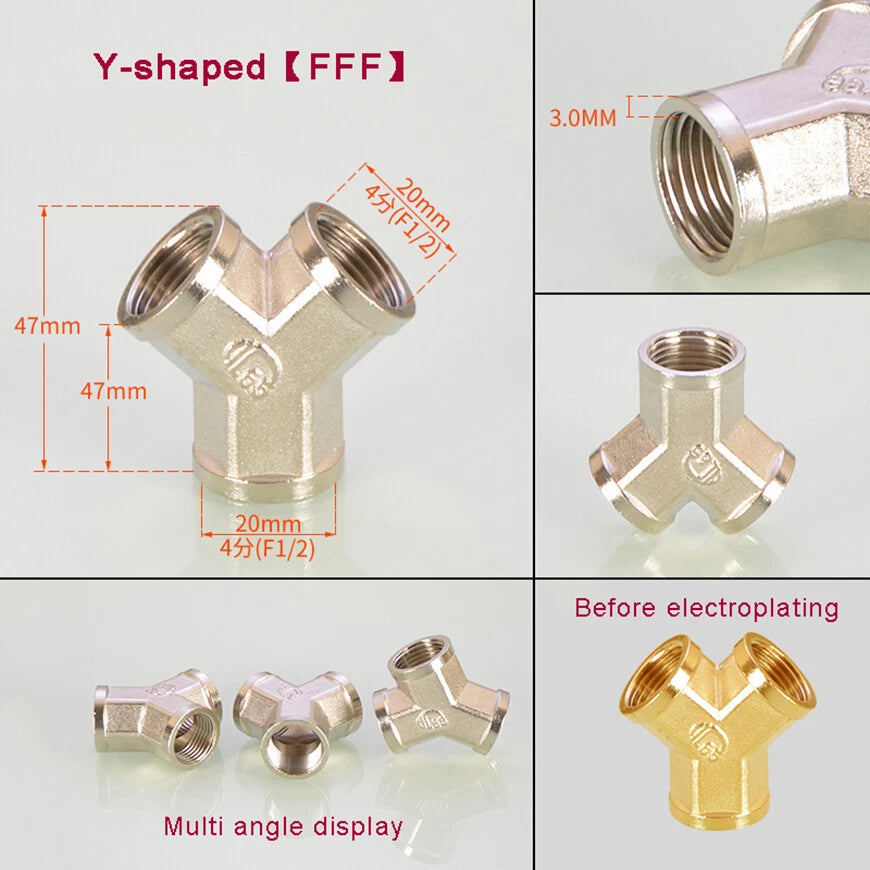

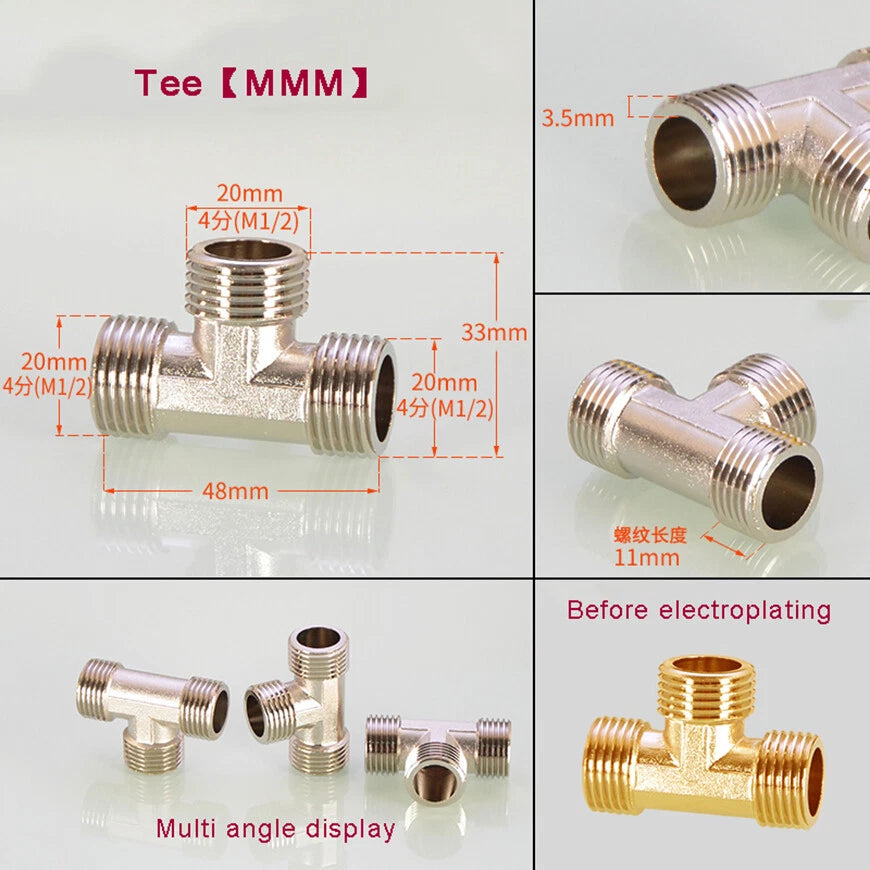

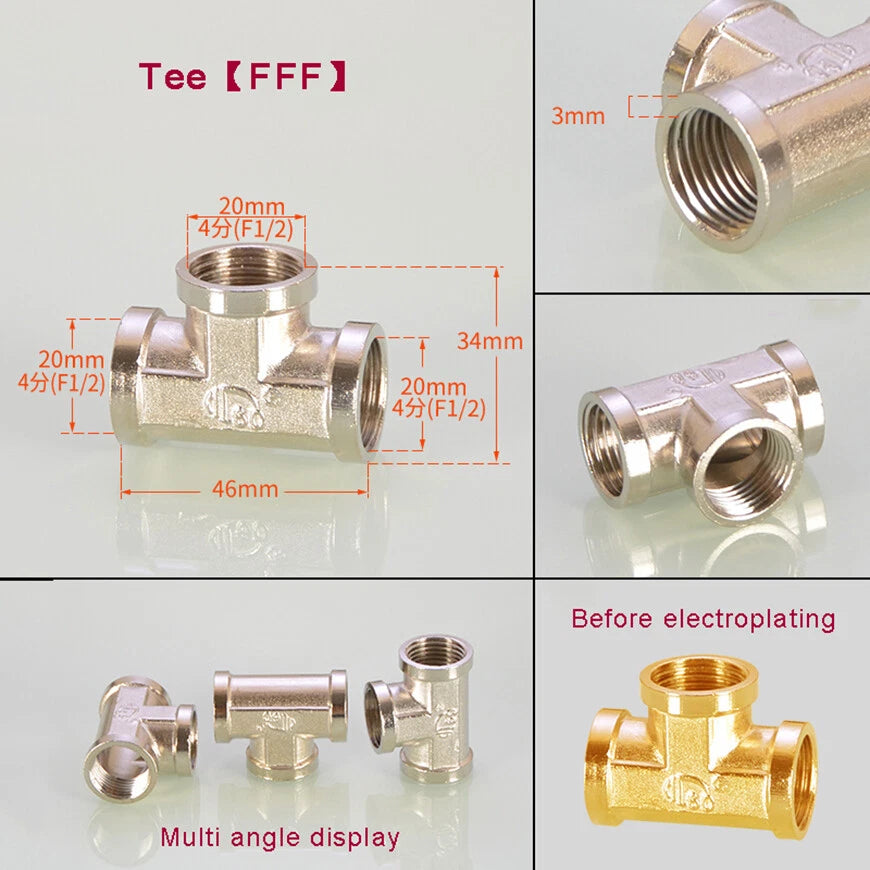

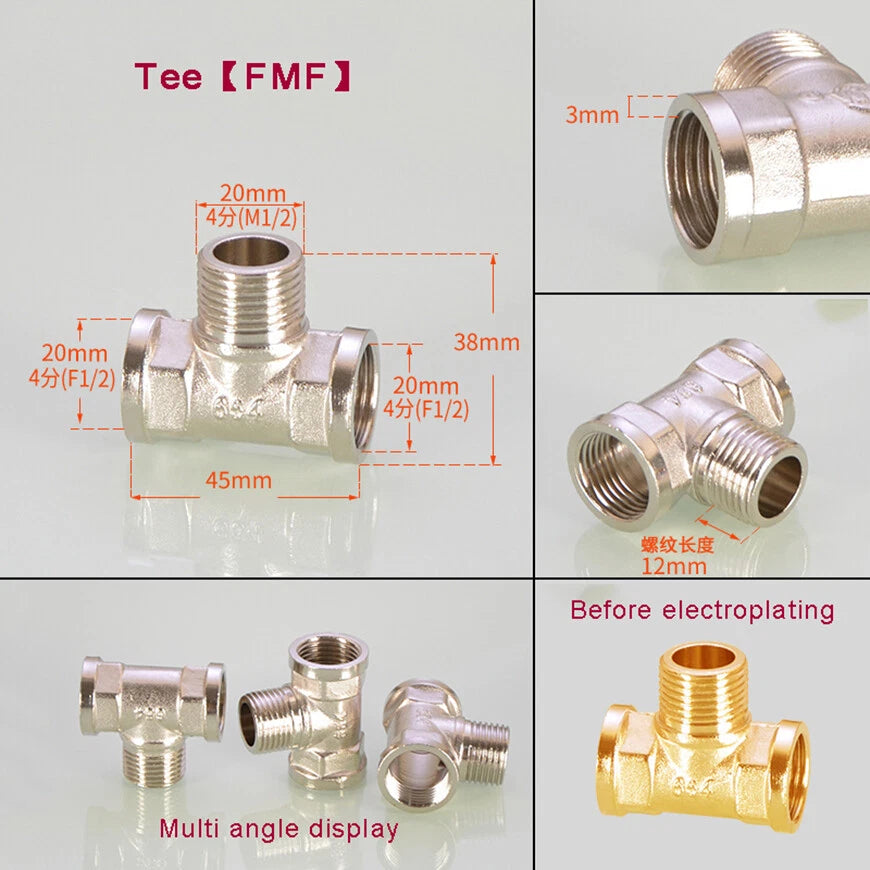

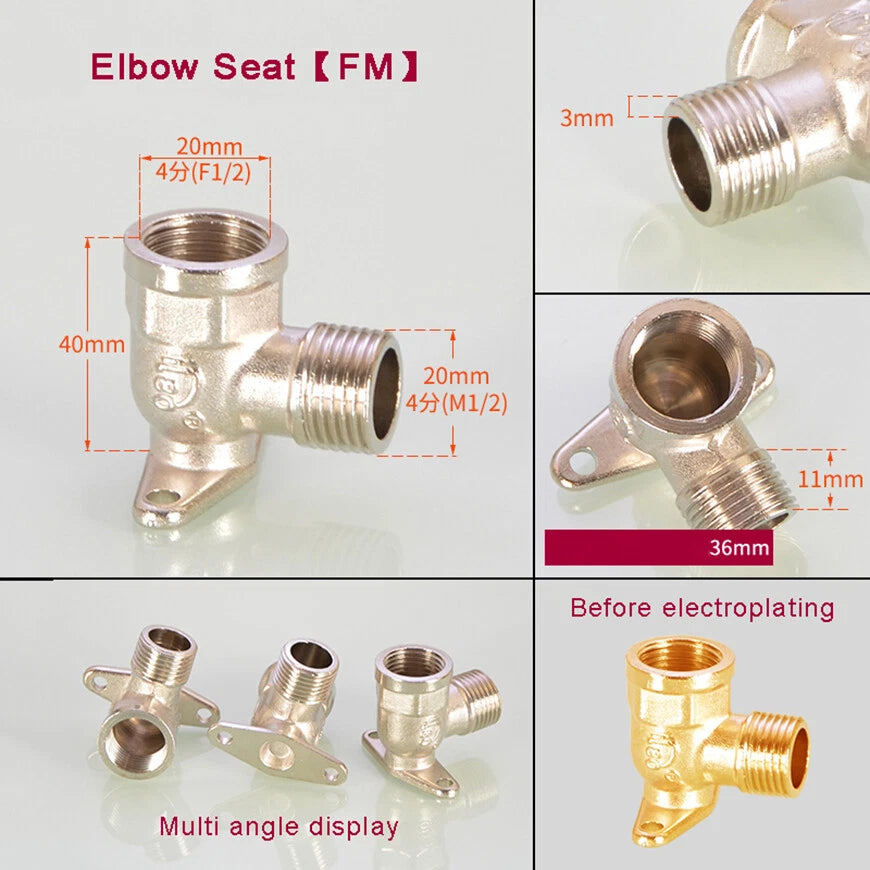

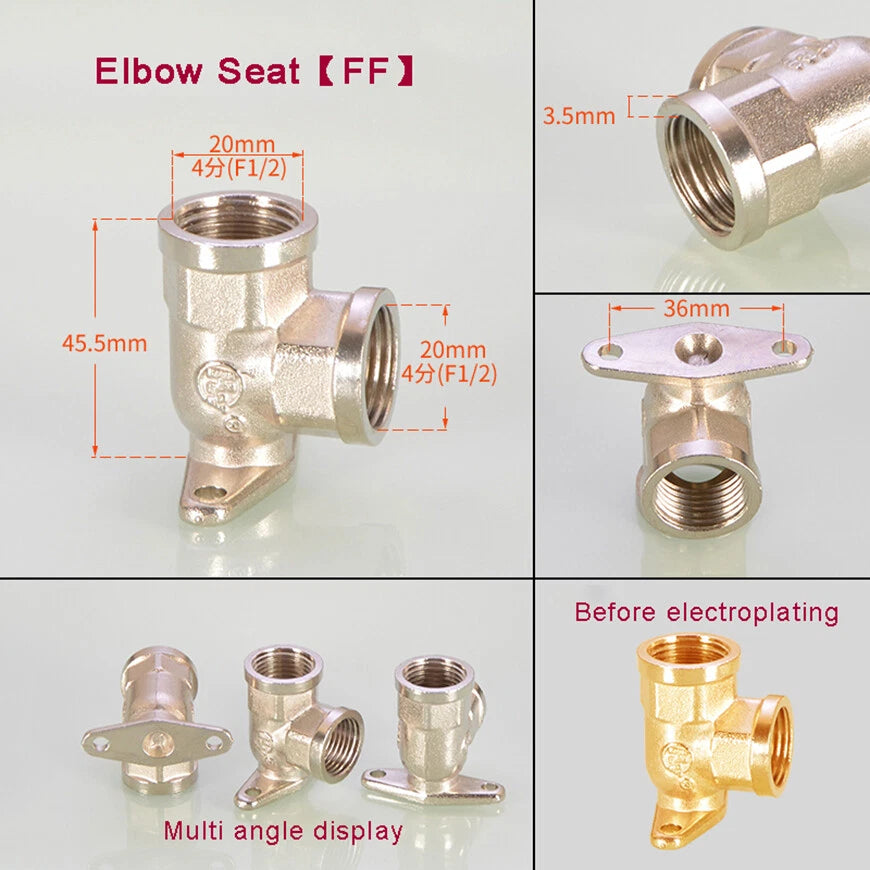

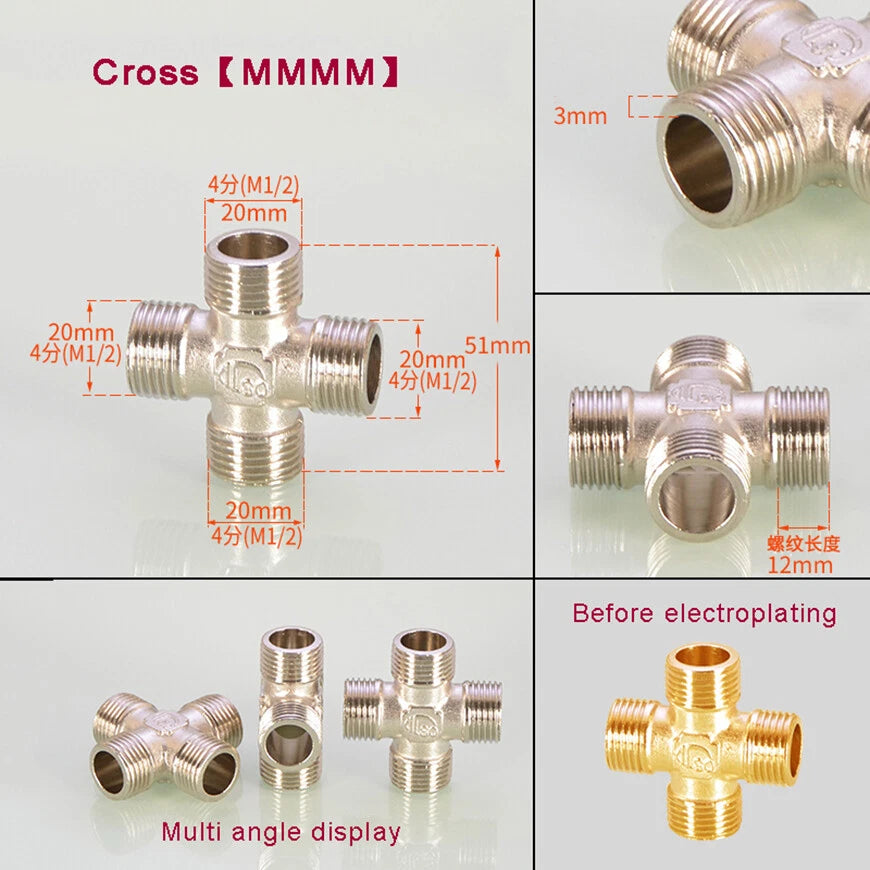

Available Shapes	45° Elbow, 90° Elbow, Corner Elbow, Tee, Cross, Y-shaped, Elbow Seat
Port Configurations	FF, FM, MM, FFF, FFM, FMF, FMM, MFM, MMM, FFFF, MMMM (see variant options)
Finish	Natural brass (unlacquered)
Typical Working Pressure	Up to 150 PSI (≈10 bar) — contact us to confirm for your application
Typical Temperature Range	Up to 250°F (≈120°C) for water/air service
Compatible Media	Water, compressed air, low-pressure gas (verify local code for gas use)
Quantity per Order	1 piece
Country of Origin	See variant options

⚠️ Installation Note: Always apply PTFE thread tape or pipe thread sealant to male BSP threads before assembly. Hand-tighten first, then use a wrench for 1–2 additional turns. Over-tightening brass fittings can crack the body.

❓ Frequently Asked Questions

How do I choose the right fitting shape and connection type?

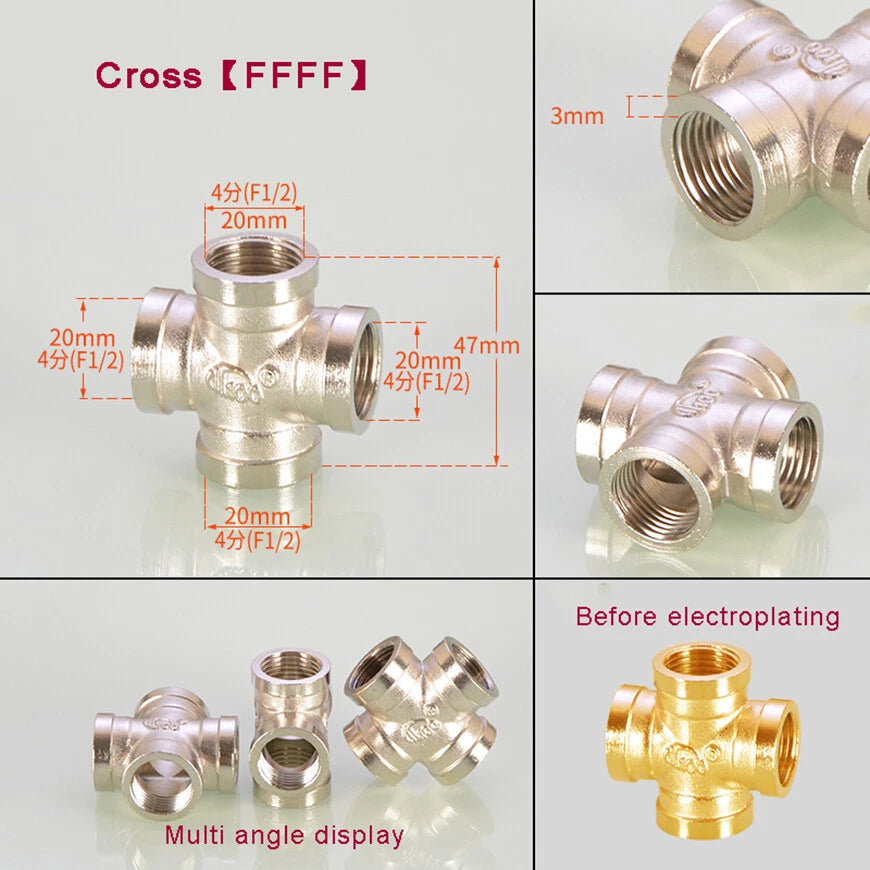

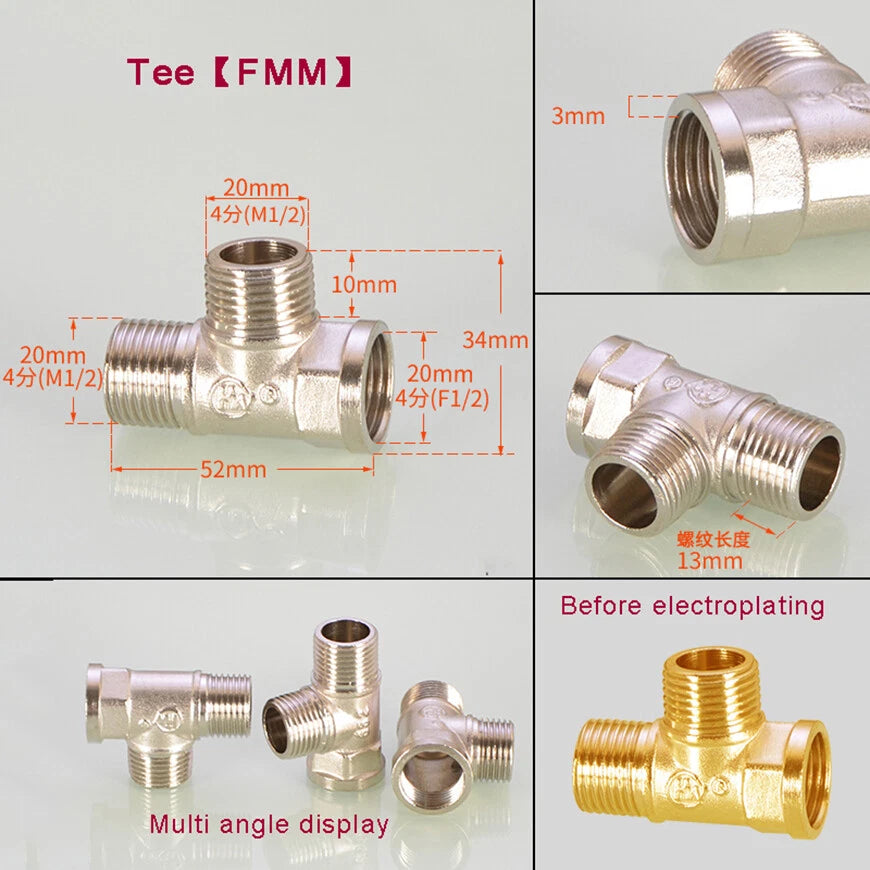

Select the shape based on your pipe layout: 90° or 45° elbows change direction, tees split or combine flow, crosses connect four lines, and Y-connectors offer angled branching. For connection type, F (Female) accepts a male-threaded pipe end, and M (Male) inserts into a female-threaded port. Match each port to your existing pipe ends — e.g., FF means both ports are female BSP threads.

What thread standard do these fittings use, and are they compatible with NPT?

These fittings use BSP (British Standard Pipe) threads — specifically 1/2" BSP (G1/2 or Rp1/2). BSP is widely used in plumbing, HVAC, and pneumatic systems across the US, UK, EU, and Australia. BSP and NPT threads are not directly interchangeable due to differences in thread angle (55° BSP vs. 60° NPT) and pitch. A BSP-to-NPT adapter is required if your system uses NPT pipe.

Can these brass fittings be used outdoors or in wet environments?

Brass generally offers good corrosion resistance and is suitable for outdoor and damp environments in most residential and light commercial applications. For prolonged outdoor exposure, applying PTFE thread tape and ensuring proper drainage will extend service life. These fittings are not recommended for seawater immersion or highly acidic/alkaline environments without additional protection.

What is the pressure and temperature rating?

Brass BSP fittings of this type typically handle working pressures up to 150 PSI (≈10 bar) and temperatures up to 250°F (≈120°C) for water and air service. Actual ratings depend on installation quality and the specific application. Contact us to confirm suitability for high-pressure or steam applications before ordering.

Are these fittings compatible with copper, PEX, or steel pipes?

Yes — as long as the pipe end carries a 1/2" BSP thread (or is fitted with a BSP adapter), these fittings connect to copper, steel, stainless steel, and certain PEX or CPVC systems. Always verify the thread standard on your existing pipe before ordering. In most cases, a threaded brass union or adapter is used to transition between pipe materials.

Do I need PTFE tape or thread sealant?

Yes. Applying PTFE (Teflon) thread tape or a suitable pipe thread sealant compound is strongly recommended for all threaded BSP connections to ensure a leak-free seal. Wrap the male thread 2–3 times in the direction of the thread before assembly. Do not over-tighten — brass threads can strip or crack if excessive torque is applied.

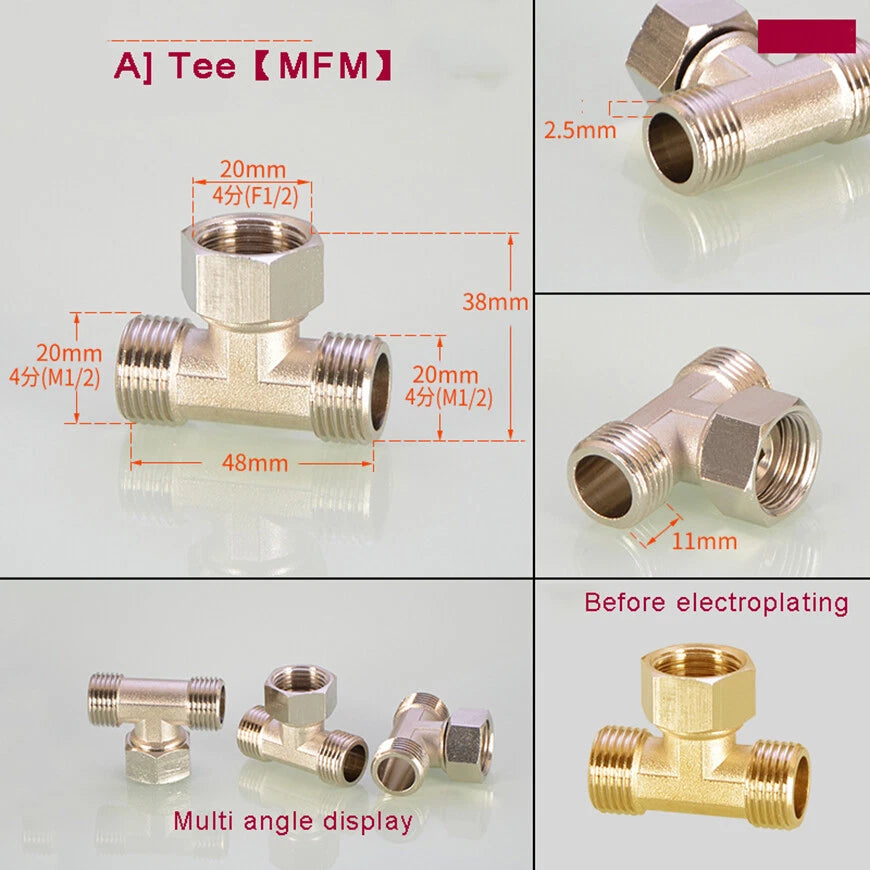

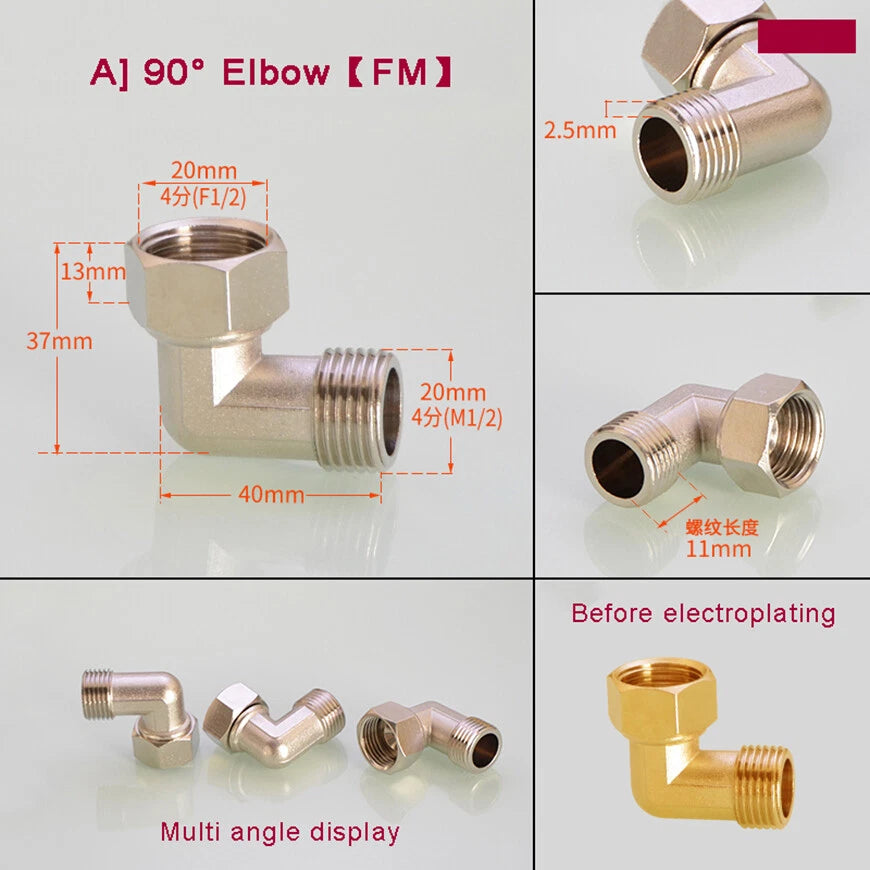

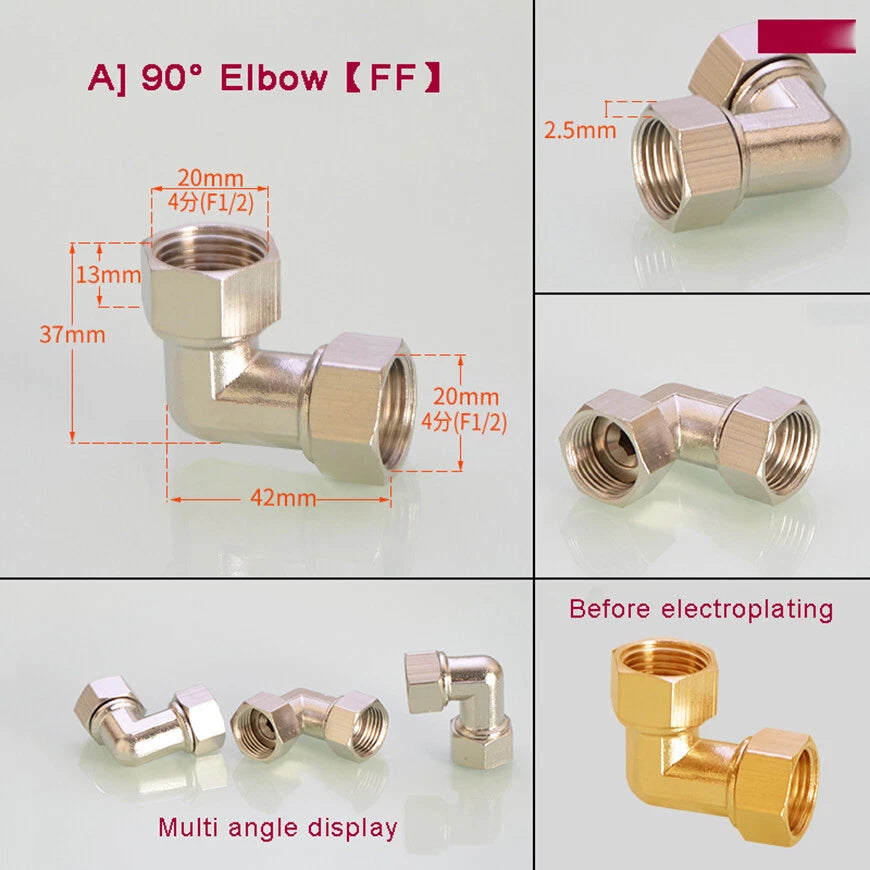

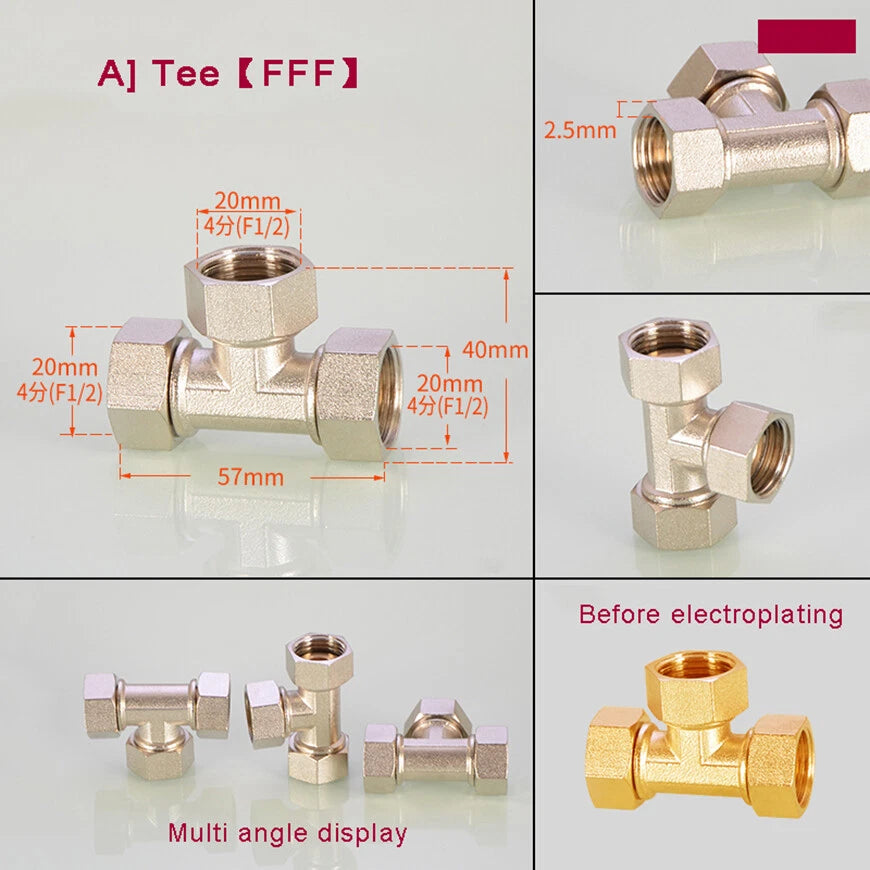

What does the "A]" prefix mean in some variant names?

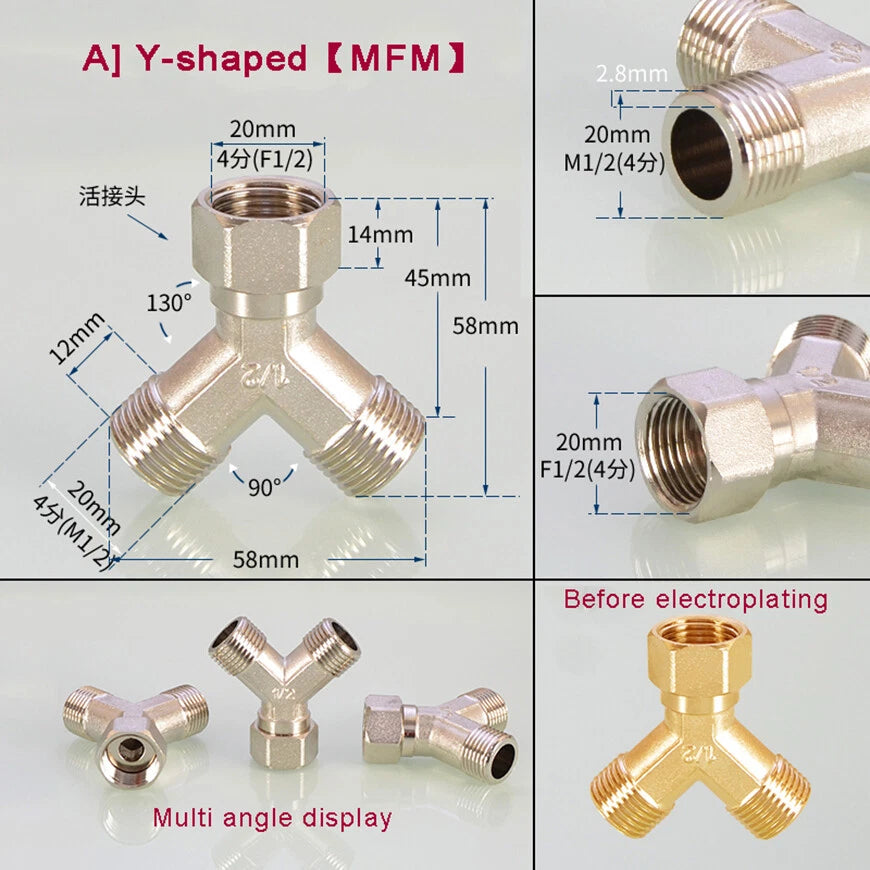

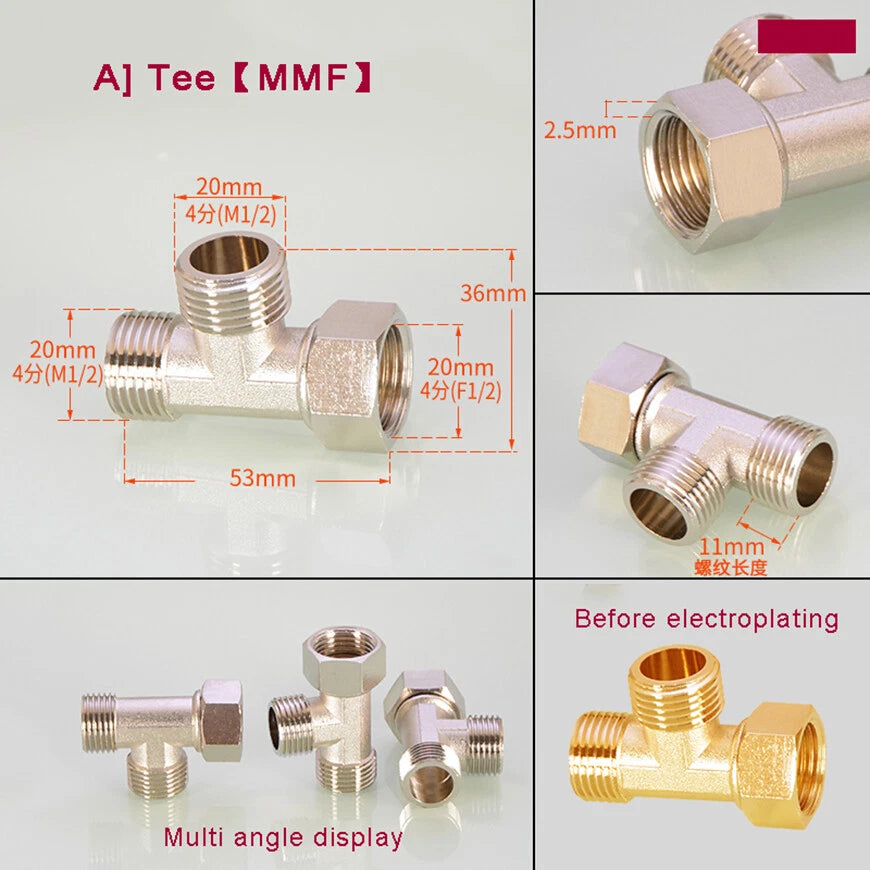

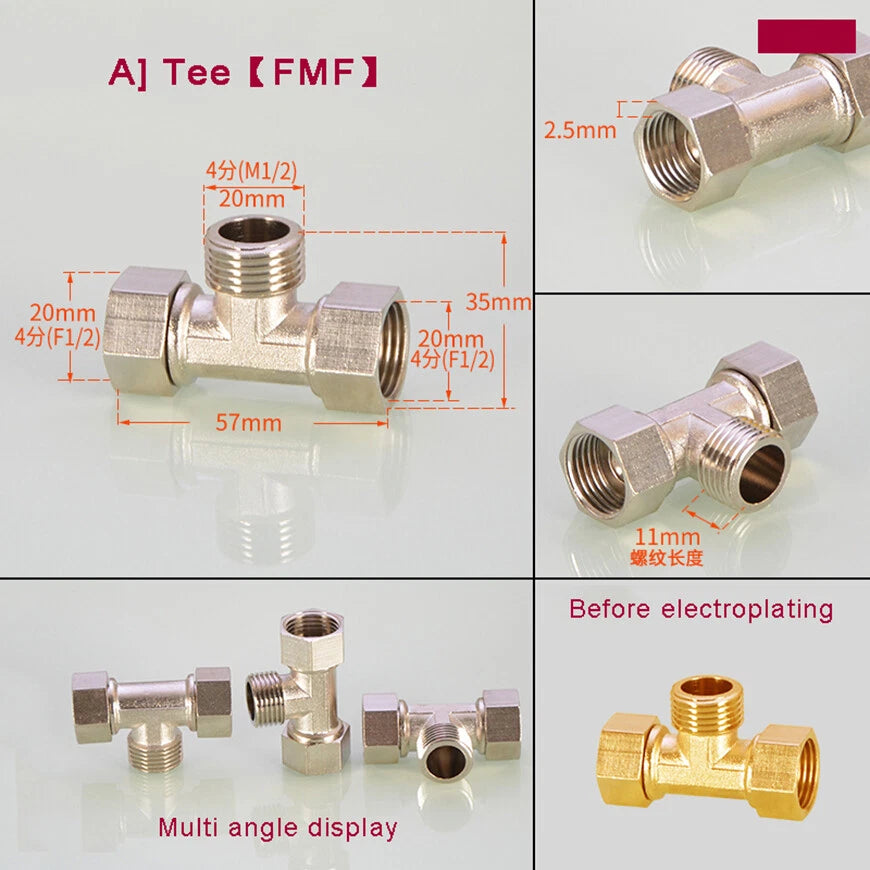

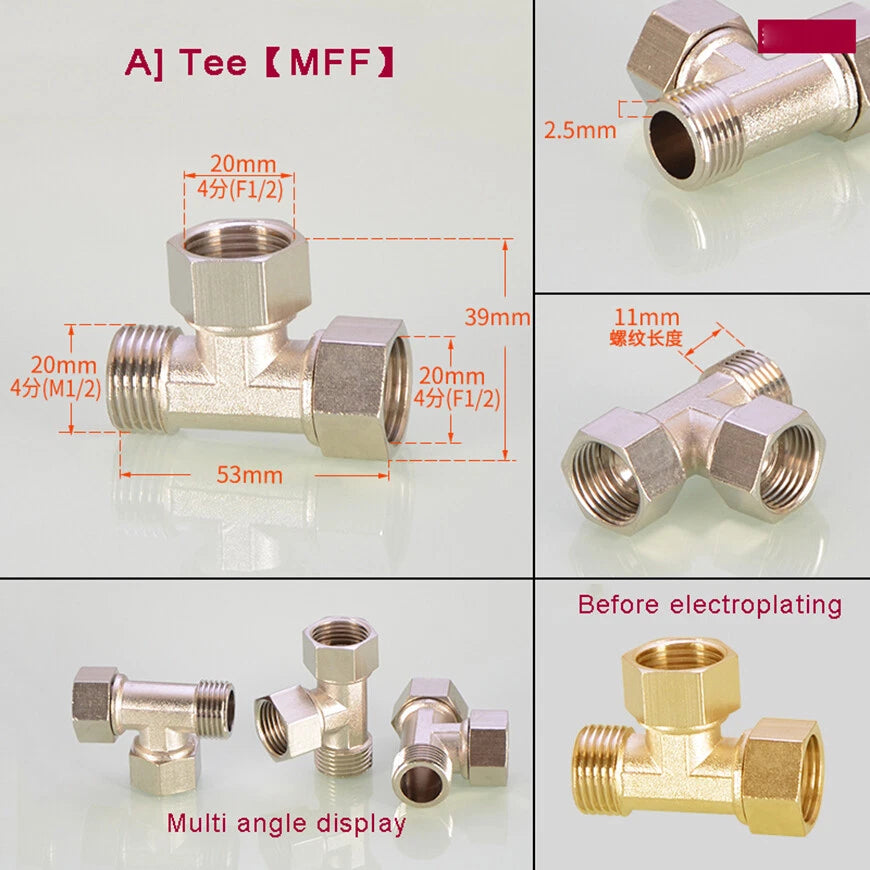

Variants labeled with "A]" indicate an angled or articulated version of the fitting — typically featuring an extended body or swivel design that provides additional flexibility during installation in tight or confined spaces. Check the product images for the specific geometry of each "A]" variant before selecting.

🛒 Select your fitting shape and connection type above, then add to cart — ships from our US warehouse.
