Clear 2:1 Heat Shrink Tubing — Reliable Wire Insulation for Every Connection

Whether you're repairing a frayed wire under the dashboard, tidying up a home automation panel, or protecting solder joints on a custom electronics build, exposed connections are a liability. Electricians, automotive enthusiasts, and DIYers who work with wiring know that a bare splice left unprotected will eventually fail — from moisture, abrasion, or vibration. This clear 2:1 heat shrink tubing gives you a clean, professional-grade insulation sleeve that locks onto your wire and stays put.

Each listing covers a single continuous length of clear polyolefin heat shrink tubing, available in diameters from 0.6mm (≈0.024") to 25mm (≈0.98") and lengths of 1m (≈3.3 ft), 5m (≈16.4 ft), 10m (≈32.8 ft), or 20m (≈65.6 ft). The 2:1 shrink ratio means the tubing shrinks to approximately half its listed inner diameter when heat is applied — select a size roughly 20–30% larger than your wire's outer diameter for a snug fit. The clear finish lets you visually confirm the connection underneath without cutting the sleeve open.

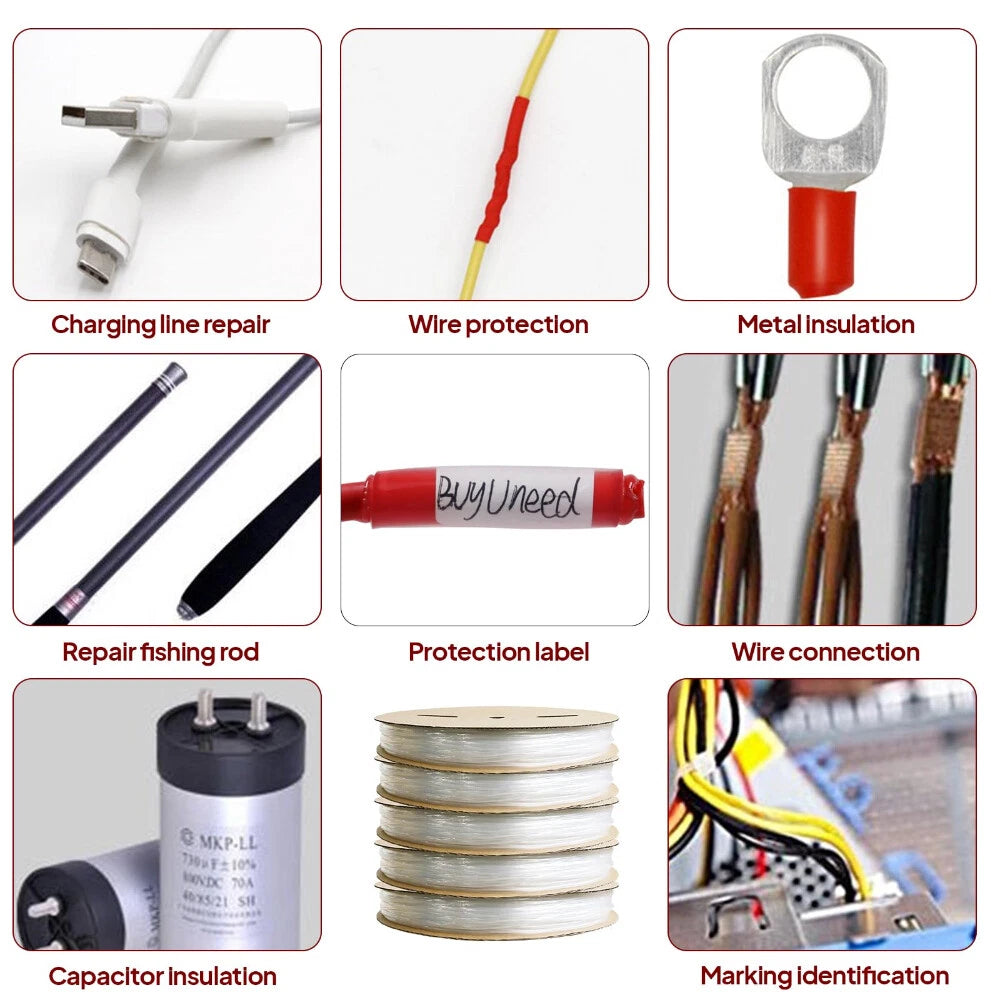

Typical use cases include automotive wiring harness repairs and trailer connector insulation, PCB lead protection and soldered wire joint sealing in electronics projects, and cable management in control panels, home theater installs, and low-voltage lighting runs where a clean, transparent sleeve is preferred over colored tubing.

ℹ️ Compatibility Note: This tubing uses a standard 2:1 shrink ratio and fits wire gauges from approximately AWG 30 (0.6mm) to AWG 2 (25mm). Verify your wire's outer diameter before ordering. Not an adhesive-lined tube — for waterproof sealing, see our dual-wall adhesive heat shrink range.

✅ Key Features of These Clear 2:1 Heat Shrink Tubes

🔍Crystal-Clear Transparency — The clear polyolefin construction lets you inspect solder joints and wire connections without removing the sleeve, ideal for quality-control checks on automotive and electronics wiring.
📐Wide Diameter Range — Available from 0.6mm to 25mm, covering fine signal wires, standard hookup wire, and heavy power cables in a single product line — no need to source multiple SKUs.
🔥Consistent 2:1 Shrink Ratio — Shrinks evenly to approximately half its listed diameter, providing a tight, wrinkle-free fit over wire insulation, butt connectors, ring terminals, and solder joints.
💧Moisture-Resistant Sleeve — Once shrunk, the tubing forms a snug barrier against moisture and dust, suitable for light outdoor wiring, under-hood automotive use, and damp-location electrical repairs.
✂️Cut-to-Length Flexibility — Supplied in continuous rolls of 1m, 5m, 10m, or 20m so you can cut exactly what you need for each connection — no waste, no pre-cut segments that are too short.
⚡Electrically Insulating Material — Polyolefin construction provides electrical insulation for low-voltage wire repair, cable bundling, and connector protection in 12V automotive, marine, and hobby electronics applications.

📐 Technical Specifications — Clear 2:1 Heat Shrink Tubing

Material	Polyolefin (clear)
Shrink Ratio	2:1
Available Diameters	0.6mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10mm, 12mm, 15mm, 16mm, 18mm, 20mm, 25mm
Available Lengths	1m (≈3.3 ft), 5m (≈16.4 ft), 10m (≈32.8 ft), 20m (≈65.6 ft)
Activation Temperature	Typically 70–120°C (158–248°F)
Color / Finish	Clear (transparent)
Recommended Tool	Heat gun (open flame not recommended)
Waterproof / Adhesive-Lined	No — standard single-wall tubing
Typical Wire Gauge Range	AWG 30 (0.6mm) to AWG 2 (25mm) — see variant options for exact diameter
Application	Wire insulation, connector protection, cable bundling, solder joint sealing

⚠️ Sizing Tip: Always measure your wire's outer diameter before selecting a size. Choose a tube diameter that is 20–30% larger than the wire OD for a proper 2:1 shrink fit. When in doubt, size up — you can always apply more heat, but you cannot un-shrink the tubing.

❓ Frequently Asked Questions

How do I choose the right diameter for my wire?

Measure the outer diameter of your wire or connector before shrinking. With a 2:1 shrink ratio, the tubing will shrink to approximately half its listed diameter. As a general rule, choose a size that is 20–30% larger than the wire's outer diameter before heat is applied. For example, if your wire measures 3mm, a 4.0mm tube typically provides a snug, secure fit after shrinking.

What is the shrink ratio and what does 2:1 mean?

A 2:1 shrink ratio means the tubing will shrink to approximately half its original inner diameter when heat is applied. For example, a 10mm tube will shrink down to roughly 5mm. This ratio is suitable for most standard wire insulation and connector bundling applications.

What temperature is needed to shrink this tubing?

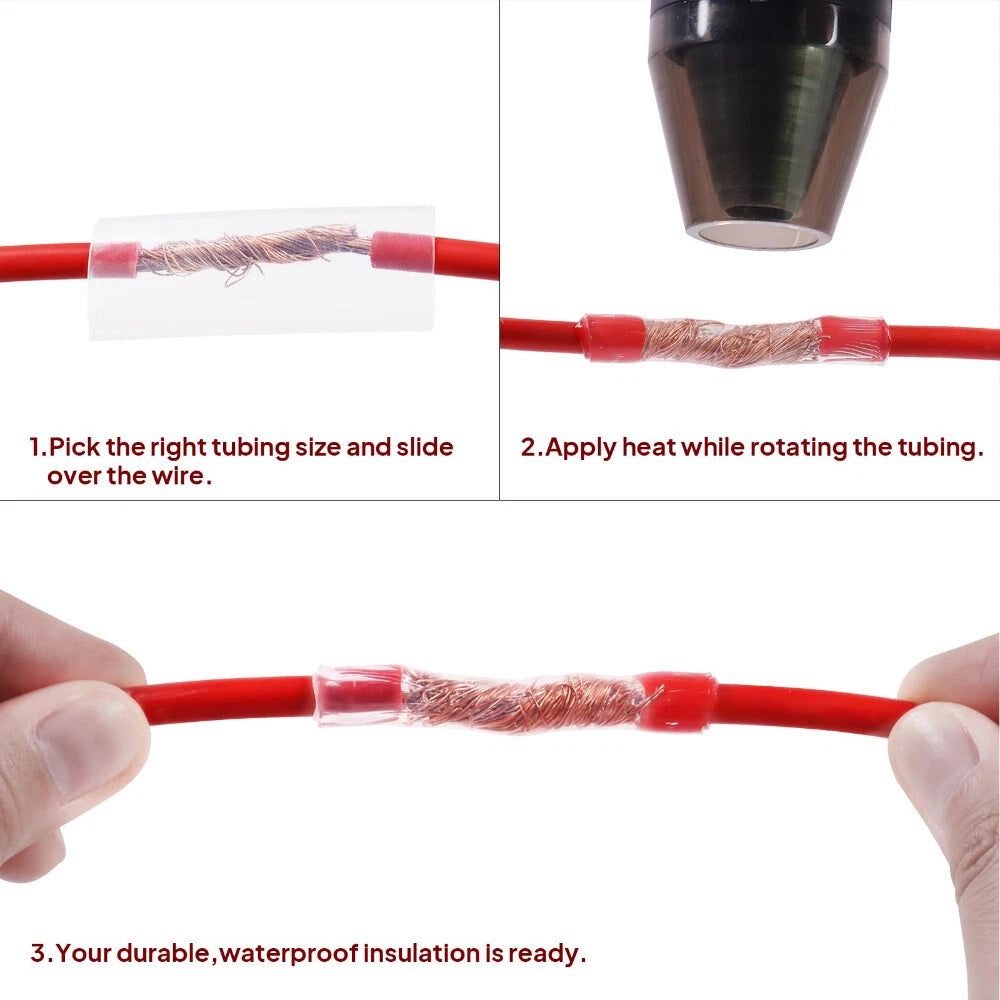

This tubing is generally activated at temperatures around 70–120°C (158–248°F). A heat gun is the recommended tool for even shrinkage. In most cases, a standard 300W heat gun on a low setting works well. Avoid open flames, as they can cause uneven shrinkage or scorching on the clear material.

Is this heat shrink tubing suitable for outdoor or wet environments?

This clear polyolefin heat shrink tubing is generally moisture-resistant once properly shrunk, making it suitable for light outdoor use and damp environments. However, it is not a waterproof adhesive-lined tube. For fully waterproof applications — such as marine wiring or underground connections — we recommend using a dual-wall adhesive-lined heat shrink tubing instead.

What wire gauges and connector types is this compatible with?

The available diameter range of 0.6mm to 25mm covers a wide range of wire gauges, from fine signal wires (typically AWG 30–32 at 0.6mm) up to heavy power cables (typically AWG 2–4 at 25mm). It is also compatible with butt connectors, ring terminals, solder joints, and cable bundles within the listed size range.

Can I use this tubing for automotive or marine wiring?

Yes, this clear heat shrink tubing is commonly used in automotive wiring harnesses, trailer wiring, and light marine applications. Its transparency allows you to visually inspect the connection underneath without removing the sleeve. For high-vibration or fully submerged marine environments, an adhesive-lined variant is generally recommended for a stronger seal.

How much length do I need for my project?

This product is available in 1m, 5m, 10m, and 20m lengths. For a single repair or a few connections, 1m is typically sufficient. For wiring harness builds, panel wiring, or ongoing shop use, the 5m or 10m rolls offer better value. The 20m roll is ideal for production runs or large DIY projects.

🛒 Select your diameter and length above, then add to cart — ships from our US warehouse.
