What is the wall thickness of each size?

Wall thickness varies by size. For example, the 10*16mm variant has a 3mm wall, and the 32*38mm variant has a 3mm wall. Larger sizes such as 45*51mm have approximately a 3mm wall. See variant options for exact OD measurements, or contact us to confirm wall thickness for your specific size.

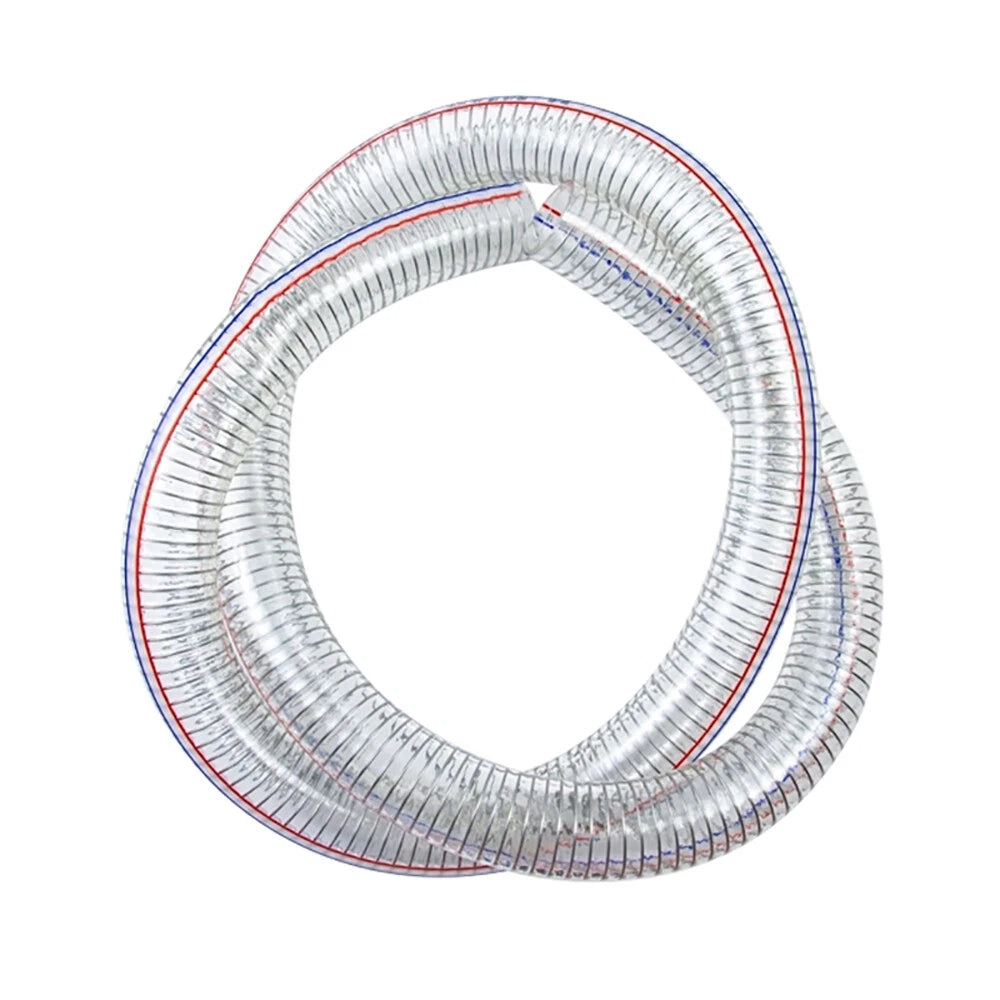

Clear Flexible PVC Hose Pipe with Braided Steel Wire Reinforcement — Fuel & Fluid Transfer

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

Clear Flexible PVC Hose Pipe with Braided Steel Wire Reinforcement — Fuel & Fluid Transfer

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Inner Diameter * Outer Diameter(mm): 10*16mm

Length: 1Meter

Preis:

$30.60 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Clear Braided Steel Wire PVC Hose Pipe — Reliable Fuel & Fluid Transfer in Any Run Length

When a leaking or kinked hose shuts down your fuel transfer line, irrigation setup, or hydraulic circuit, every minute of downtime costs you. Mechanics, farmers, workshop operators, and DIY builders who need a dependable, see-through hose that holds pressure without collapsing under suction or bending will find this braided steel wire PVC hose built for exactly those conditions.

Each piece is a single continuous length of clear flexible PVC hose reinforced with an internal steel wire braid. Available inner diameters range from 10mm (≈3/8") to 60mm (≈2-3/8"), with outer diameters sized approximately 5–8mm larger depending on wall thickness. Cut-to-length options include 1m (≈39"), 2m (≈79"), 3m (≈118"), and 5m (≈197"). Wall thickness is typically 3mm across most sizes; see variant options for exact OD dimensions.

Typical use cases include petroleum and diesel fuel transfer lines in workshops and agricultural equipment, low-pressure hydraulic return lines, water and coolant routing in machinery, and garden irrigation trunk lines where flow visibility helps with diagnostics. The clear body makes it easy to spot air locks, sediment buildup, or flow interruptions without disconnecting the line.

ℹ️ Compatibility Note: Select the inner diameter that matches your fitting or nozzle OD. Use standard barbed fittings + hose clamps for a secure, leak-free connection. Confirm chemical compatibility for aggressive solvents or high-temperature fuels before installation.

✅ Key Features of These Clear Braided Steel Wire PVC Hose Pipes

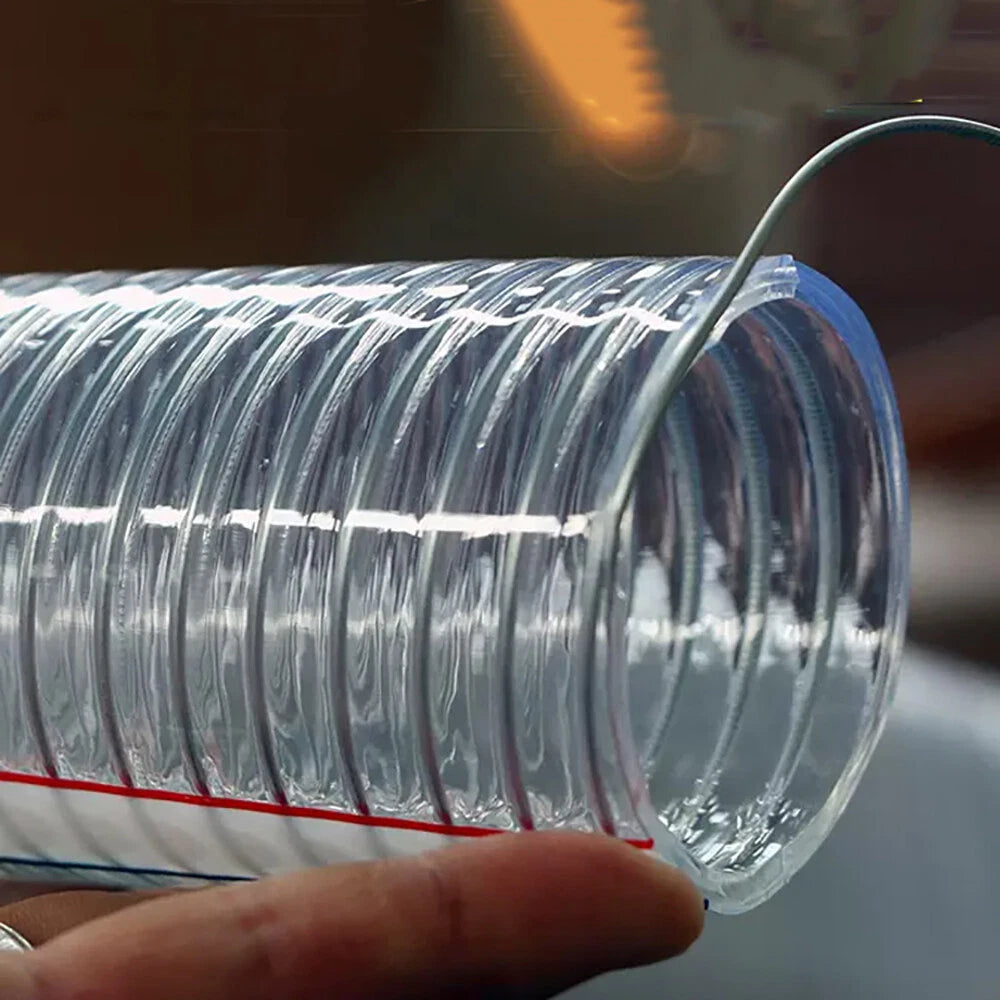

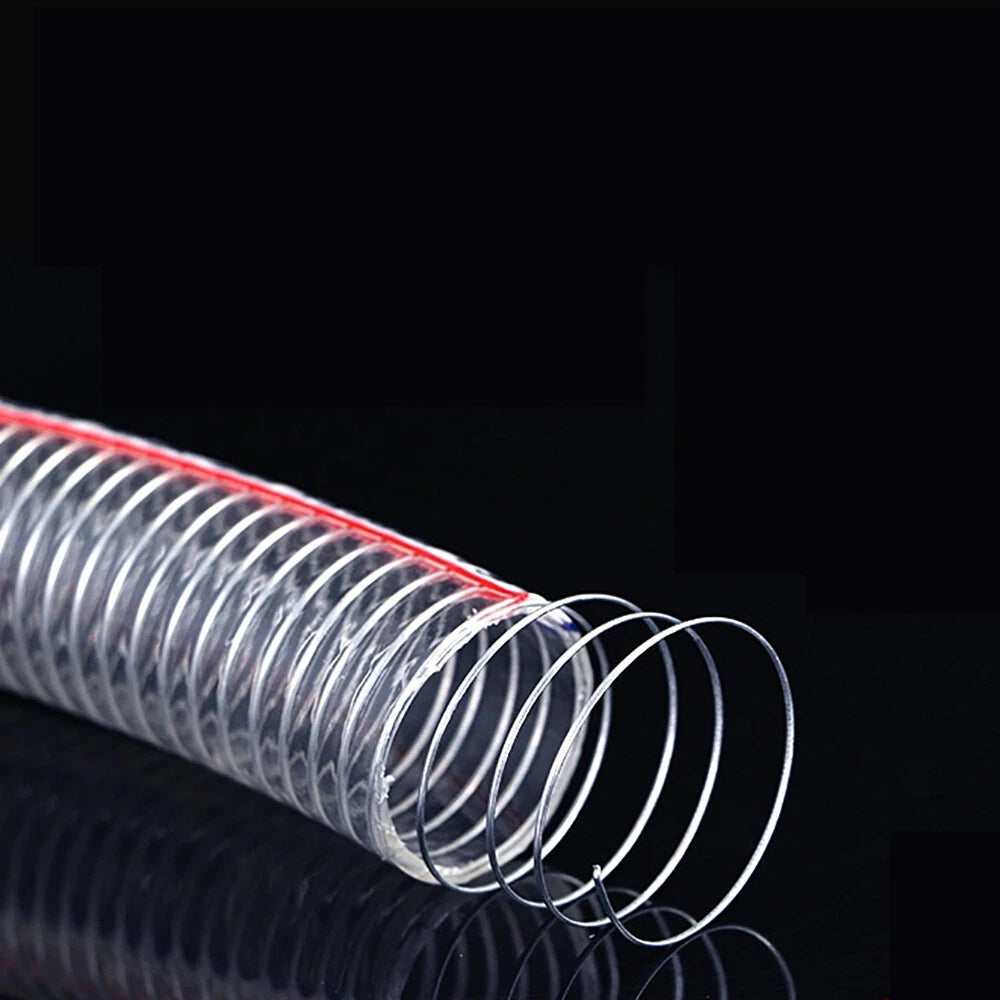

🔩Steel Wire Braid Reinforcement — An internal helical steel wire braid resists collapse under suction and maintains the bore shape even when the hose is bent, making it suitable for flexible petroleum pipeline and hydraulic return-line routing.
👁️Crystal-Clear PVC Body — The transparent wall lets you monitor fluid flow, detect air pockets, and spot contamination at a glance — no need to disconnect the line for a visual check.
📐Wide Size Range — Inner diameters from 10mm to 60mm cover everything from small fuel lines to large-bore industrial fluid transfer hose applications, with matching outer diameters for standard fitting compatibility.
✂️Cut-to-Length Flexibility — Sold in 1m, 2m, 3m, and 5m sections so you order exactly what your run requires, reducing waste on custom flexible PVC hose installations.
🌡️Flexible Across a Broad Temperature Range — PVC compound remains pliable in typical workshop and outdoor conditions, generally from around 0°C (32°F) to 60°C (140°F), without cracking or stiffening during normal fluid transfer operations.
🔧Standard Fitting Compatibility — Smooth inner bore accepts barbed hose fittings, compression connectors, and hose clamps sized to the ID, making installation straightforward for both professional plumbers and experienced DIYers.

📐 Technical Specifications — Clear Braided Steel Wire Flexible PVC Hose

Material	Clear flexible PVC with internal steel wire braid reinforcement
Inner Diameter (ID) Range	10mm (≈3/8") to 60mm (≈2-3/8") — see variant options
Outer Diameter (OD) Range	15mm to 68mm — varies by size; see variant options
Wall Thickness	Typically 3mm across most sizes; confirm via variant OD − ID ÷ 2
Available Lengths	1m (≈39"), 2m (≈79"), 3m (≈118"), 5m (≈197")
Working Pressure	Typically 6–20 bar depending on diameter; contact us to confirm for your size
Temperature Range	Generally 0°C to 60°C (32°F to 140°F) for standard fluid transfer use
Fluid Compatibility	Water, petroleum/diesel, light oils, air; confirm for aggressive chemicals
Reinforcement	Internal helical steel wire braid
Transparency	Clear — full visual flow monitoring
End Type	Plain cut ends — accepts barbed fittings and hose clamps
Sold As	Single continuous length per order

⚠️ Spec Confirmation: Exact working pressure and temperature ratings vary by diameter. If your application is safety-critical, contact us to confirm the specification for your chosen size before ordering.

❓ Frequently Asked Questions

How do I choose the right inner diameter and length for my application?

Match the inner diameter (ID) to your fitting or nozzle size. For example, a 10mm (≈3/8") ID suits small fuel lines, while a 25mm (≈1") ID handles higher-volume fluid transfer. For length, measure the full run and add a few extra inches for routing curves. Available lengths are 1m (≈39"), 2m (≈79"), 3m (≈118"), and 5m (≈197").

What pressure can this braided PVC hose handle?

The steel wire braid reinforcement generally allows working pressures typically in the range of 6–20 bar, depending on diameter and wall thickness. Larger diameters typically carry lower pressure ratings. Always verify the specific variant's rating before use in high-pressure systems — contact us to confirm if needed.

Can this hose be used outdoors or in wet environments?

Clear PVC is generally moisture-resistant and suitable for occasional outdoor use. However, prolonged UV exposure can cause the PVC to yellow and become brittle over time. For permanent outdoor installations, consider routing the hose through UV-protective conduit or sleeving.

Is this hose compatible with petroleum and fuel fluids?

This hose is designed for petroleum pipeline applications. It is generally compatible with diesel, light oils, and similar petroleum-based fluids. For aggressive solvents, concentrated acids, or high-temperature fuels above 60°C, confirm chemical compatibility before installation.

What fittings and connectors work with this hose?

Standard barbed hose fittings, compression fittings, and hose clamps sized to match the inner diameter will generally work. For example, a 16mm ID hose typically accepts a 16mm barbed fitting. Always secure connections with a hose clamp when the line is under pressure.

How do I cut this hose to a custom length?

Use a sharp utility knife or a hose cutter designed for reinforced flexible hose. Score around the full circumference and cut cleanly in one pass to avoid fraying the steel braid. Deburr the cut end before attaching fittings to ensure a leak-free seal.

What is the wall thickness for each size?

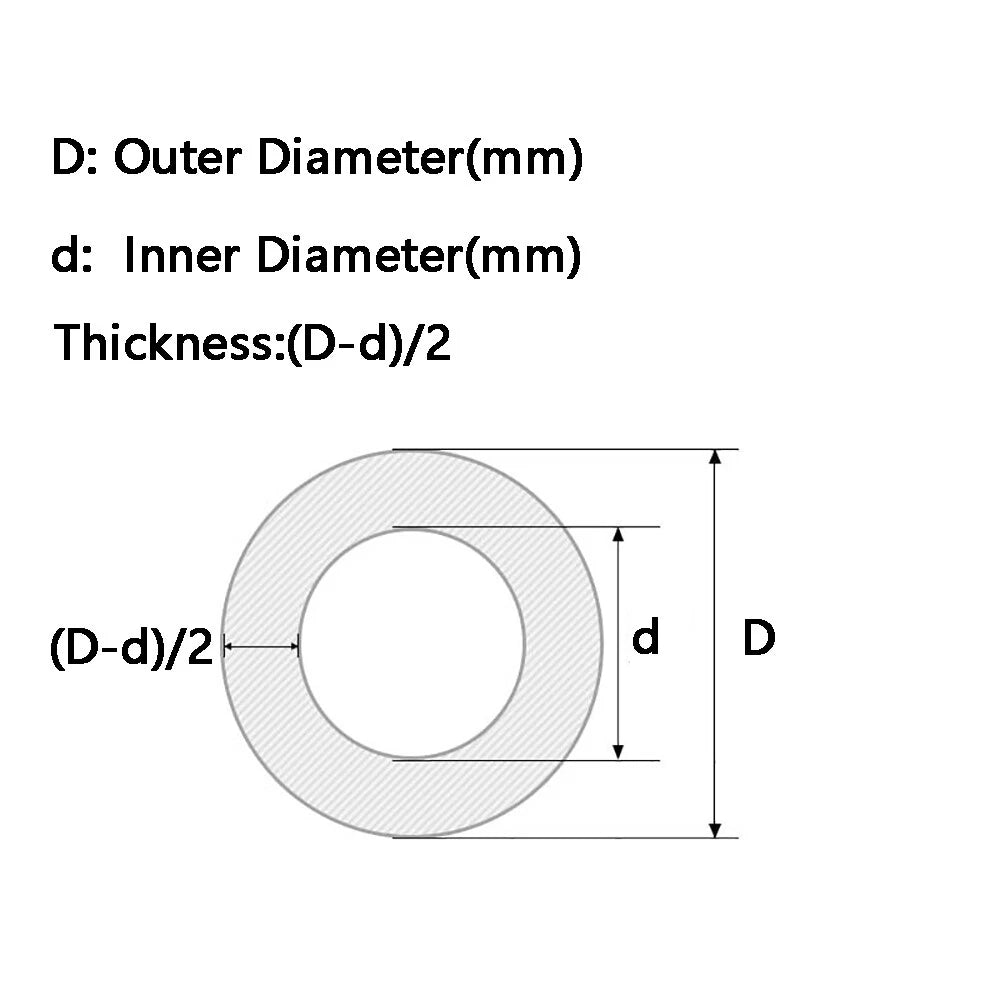

Wall thickness is typically around 3mm for most sizes in this range. You can calculate it from the variant listing: wall thickness = (OD − ID) ÷ 2. For example, the 10*16mm variant has a 3mm wall; the 45*51mm variant also has a 3mm wall. See variant options for exact OD values, or contact us to confirm for your specific size.

Can I use this hose for air lines or pneumatic applications?

In most cases, braided PVC hose is used for low-to-medium pressure air lines in workshop settings. However, compressed air applications carry additional safety considerations — always confirm the working pressure rating for your chosen diameter and ensure the hose is rated for pneumatic use before connecting to an air compressor.

🛒 Select your inner diameter and length above, then add to cart — ships from our US warehouse.
