DPDT Toggle Switch On-Off-On — Reliable 3-Position Control for Car, Boat & Panel Wiring

When a single-pole switch just won't cut it — whether you're wiring a custom car dash, building a boat accessory panel, or setting up a reversible DC motor circuit — you need a switch that handles two circuits at once without skipping a beat. The DPDT toggle switch On-Off-On (E-TEN 1322) is a go-to choice for hobbyists, auto electricians, and marine builders who need a dependable 3-position 6-pin switch that installs cleanly and holds up under real-world conditions.

Each switch features a 6-pin DPDT configuration with an On-Off-On (3-position) action, rated at 15A / 250VAC. The metal bushing thread diameter is typically M12 (≈15/32"), and the overall lever height is generally in the range of 30–40mm (≈1.2"–1.6"). Available in packs of 1, 2, 4, 6, or 10 to suit single repairs or full panel builds. Terminal connections are solder-lug style, compatible with standard wire gauges used in automotive and marine applications.

Typical use cases include polarity-reversing circuits for DC motors, dual-source power switching on boat consoles, and custom automotive control panels where two independent circuits need to be switched simultaneously. The E-TEN 1322 is also widely used in DIY electronics projects requiring a center-off 6-pin toggle switch for safe circuit isolation.

🔌 Compatibility: Fits standard 12mm (15/32") panel cutouts. Compatible with 12VDC automotive systems, 12–24V marine panels, and AC control circuits up to 250VAC. Solder-lug terminals accept typical 16–18 AWG wire.

✅ Key Features of These DPDT Toggle Switches

  • ⚡15A / 250VAC Rating — Handles demanding loads in both AC control circuits and DC automotive or marine applications, giving you headroom for accessories like lights, pumps, and fans.
  • 🔄On-Off-On 3-Position Action — The center-off position safely isolates both circuits, while the two outer positions independently route power — ideal for polarity reversal or dual-source switching.
  • 🔩6-Pin DPDT Configuration — Controls two separate circuits simultaneously with a single lever throw, reducing the number of switches needed in complex wiring layouts like car dash or boat console panels.
  • 🛠️Metal Bushing & Mounting Nut Included — The threaded metal bushing provides a secure, rattle-free fit in panel cutouts, and the included nut locks the switch firmly in place without requiring adhesive.
  • 🔗Solder-Lug Terminals for Secure Connections — Solder-lug style pins allow for clean, low-resistance connections — preferred over push-on connectors in vibration-prone environments like vehicles and boats.

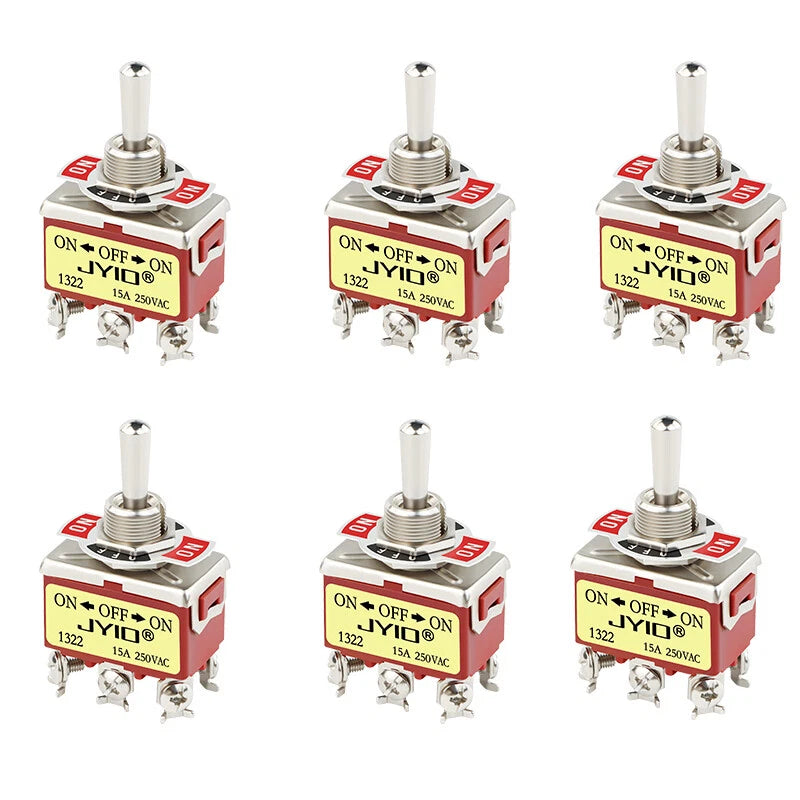

  • 📦Multi-Pack Options for Panel Builds — Available in quantities of 1, 2, 4, 6, or 10 so you can stock up for a full accessory panel build or grab a single replacement without overpaying.

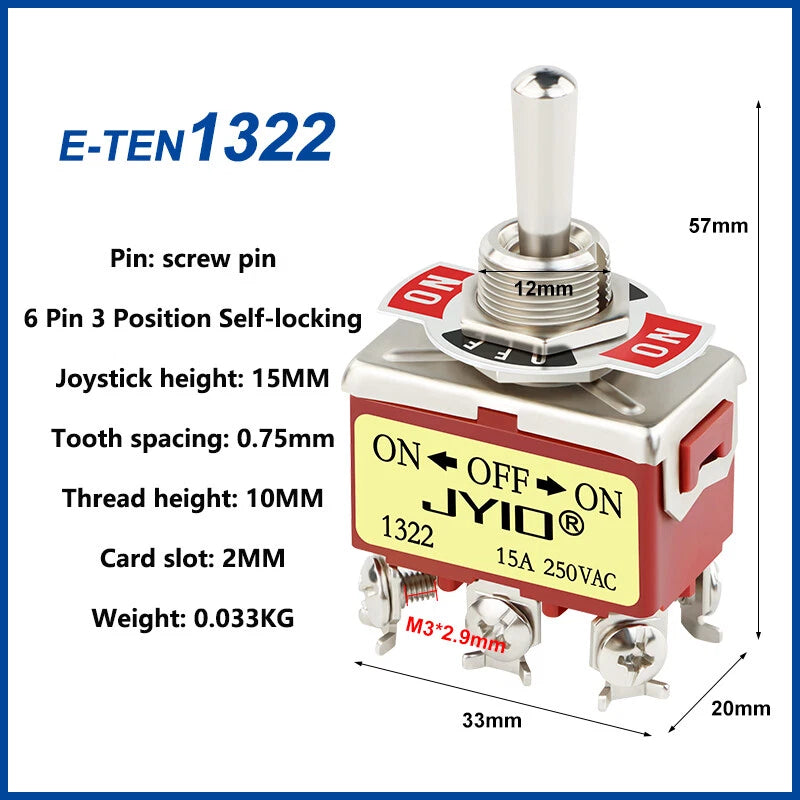

📐 Technical Specifications — DPDT Toggle Switch E-TEN 1322

Switch Type DPDT (Double Pole Double Throw)
Positions 3 — On / Off / On
Number of Pins 6
Current Rating 15A
Voltage Rating (AC) 250VAC
Voltage Rating (DC) Typically 10–15A at 12VDC (see variant options)
Mounting Hole Diameter Typically 12mm (≈15/32")
Bushing Thread See variant options
Lever Height Typically 30–40mm (≈1.2"–1.6")
Terminal Type Solder lug
Body Material Thermoplastic housing, metal bushing
Model / Part Number E-TEN 1322
Available Quantities 1 / 2 / 4 / 6 / 10 pcs per order
Waterproof Rating Not rated — boot cover recommended for outdoor/marine use
⚠️ Spec Confirmation: Bushing thread diameter and exact lever dimensions may vary slightly by production batch. If your application has tight tolerances, contact us to confirm before ordering.

❓ Frequently Asked Questions

How do I choose the right toggle switch size for my panel?

Measure the mounting hole diameter on your panel — the E-TEN 1322 typically requires a hole of approximately 12mm (15/32"). Confirm the bushing thread diameter before ordering. For panel thickness, generally up to 6mm (1/4") is supported, but check your specific panel specs.

What is the current and voltage rating of this toggle switch?

This switch is rated at 15A at 250VAC. For DC applications, the rating is generally lower — typically around 10–15A at 12VDC. Always verify the load requirements of your circuit before wiring.

Can this toggle switch be used outdoors or in marine environments?

The E-TEN 1322 is not rated as fully waterproof in its standard form. For marine or outdoor use, it is generally recommended to add a protective boot cover (sold separately) to shield the switch from moisture and spray.

What does DPDT mean and how does the On-Off-On function work?

DPDT stands for Double Pole Double Throw. This switch controls two separate circuits simultaneously. In the On-Off-On configuration, the center position disconnects both circuits, while the two outer positions each connect to a different set of terminals — useful for reversing polarity or switching between two power sources.

Is this switch compatible with standard automotive and marine wiring?

Yes. The 6-pin solder lug terminals are compatible with standard automotive and marine wiring practices. The E-TEN 1322 is commonly used in car dash panels, boat consoles, and custom control boxes. It is generally compatible with 12VDC and 24VDC systems.

How many switches do I need for a typical project?

For a single circuit reversal or source selection, one switch is sufficient. For multi-circuit control panels — such as boat accessory panels or custom automotive builds — purchasing a pack of 4, 6, or 10 is generally more economical per unit.

What tools do I need to install this toggle switch?

Typically you need a step drill bit or hole saw sized to the bushing diameter, a wrench or nut driver to secure the mounting nut, and a soldering iron or crimp tool for the terminal connections. No special tools are required beyond standard electrical work equipment.

🛒 Select your quantity above, then add to cart — ships from our US warehouse.
