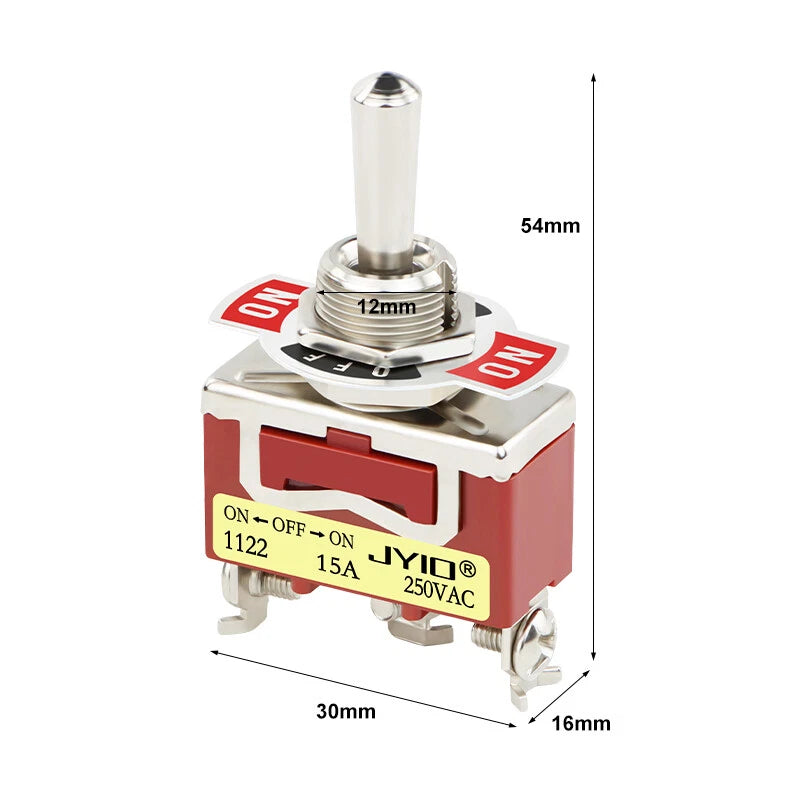

E-TEN Miniature Toggle Switch 240V – ON/OFF/ON SPDT 3-Position for Boat, Car & Model

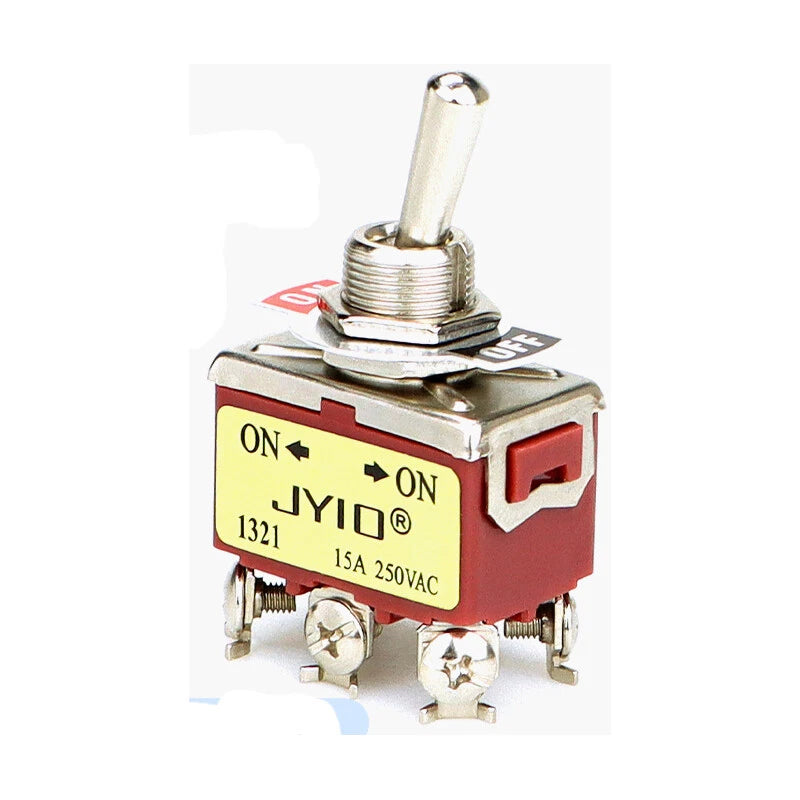

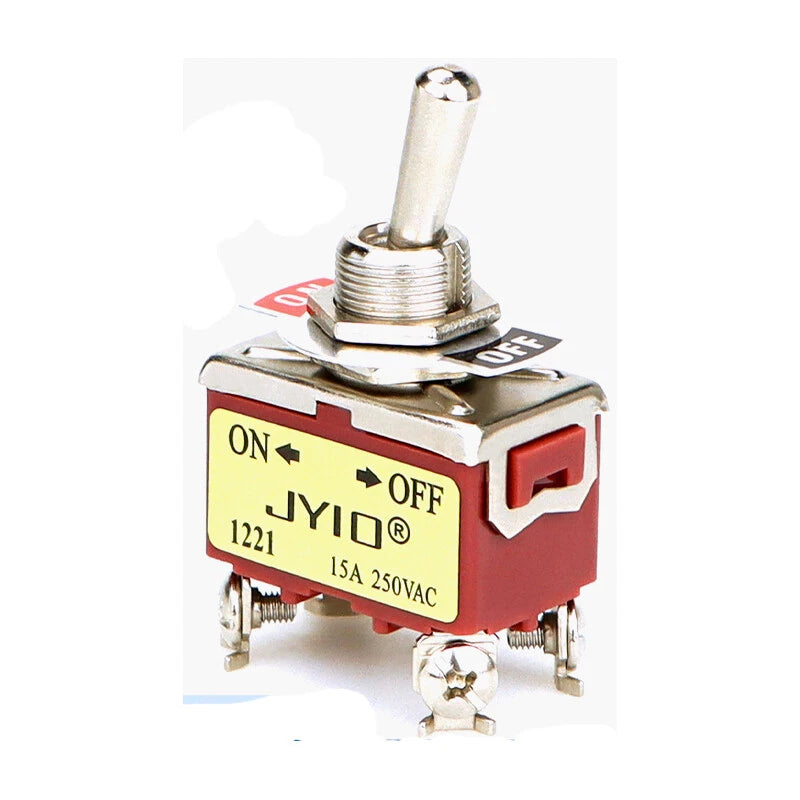

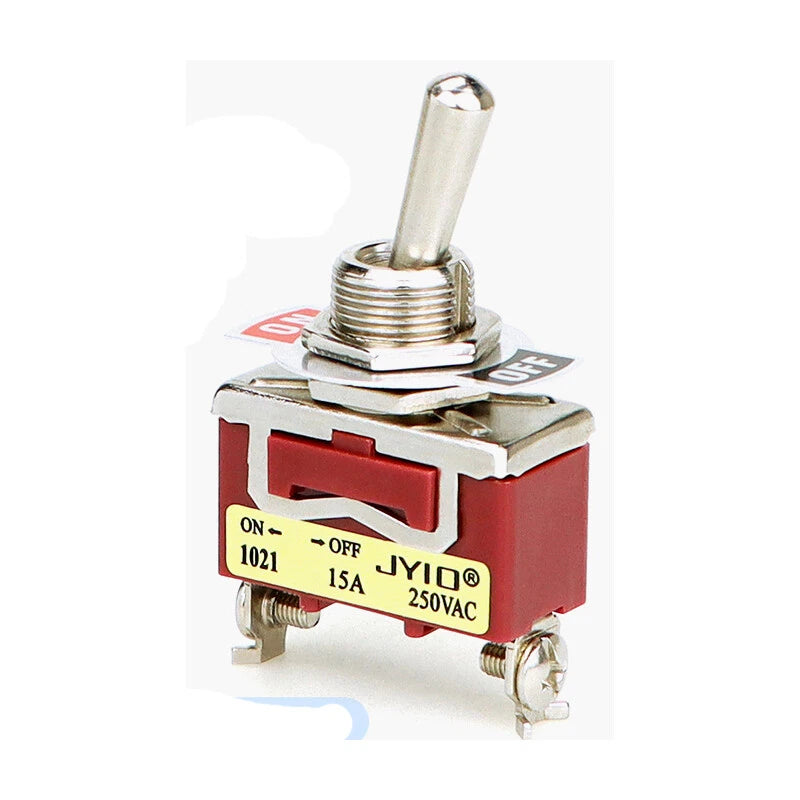

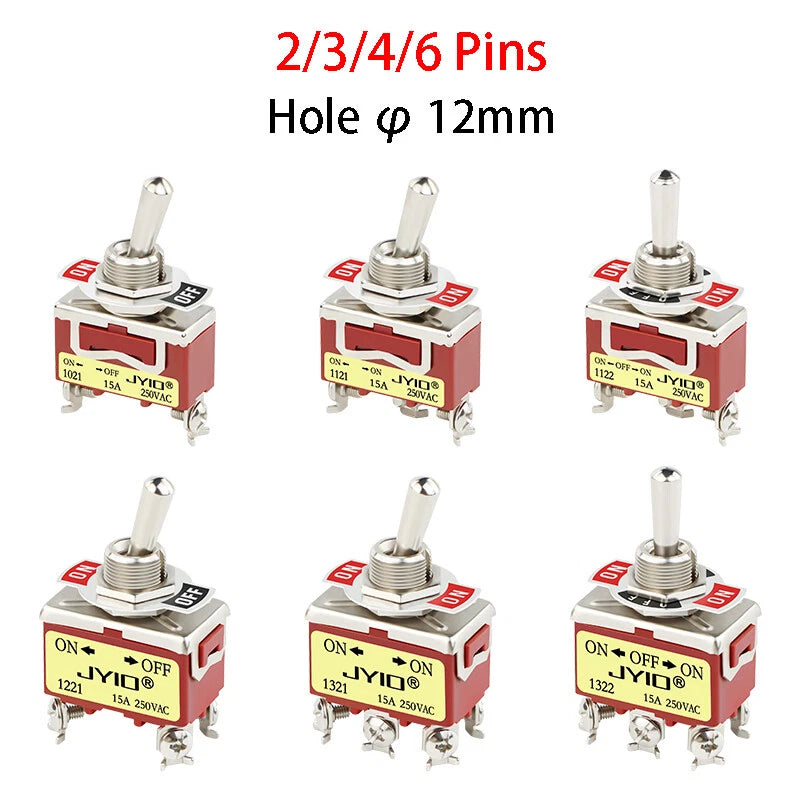

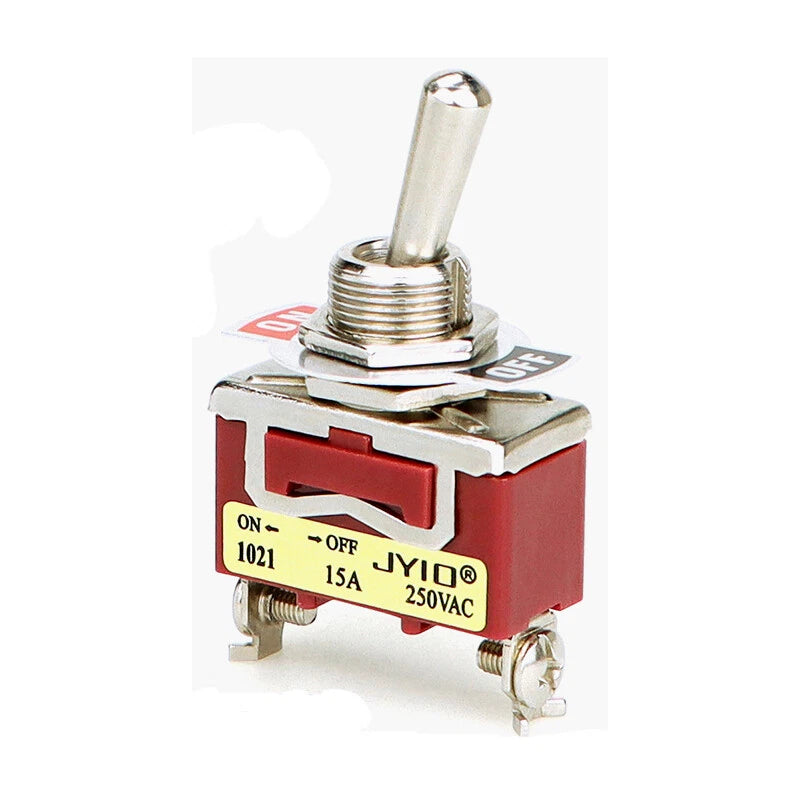

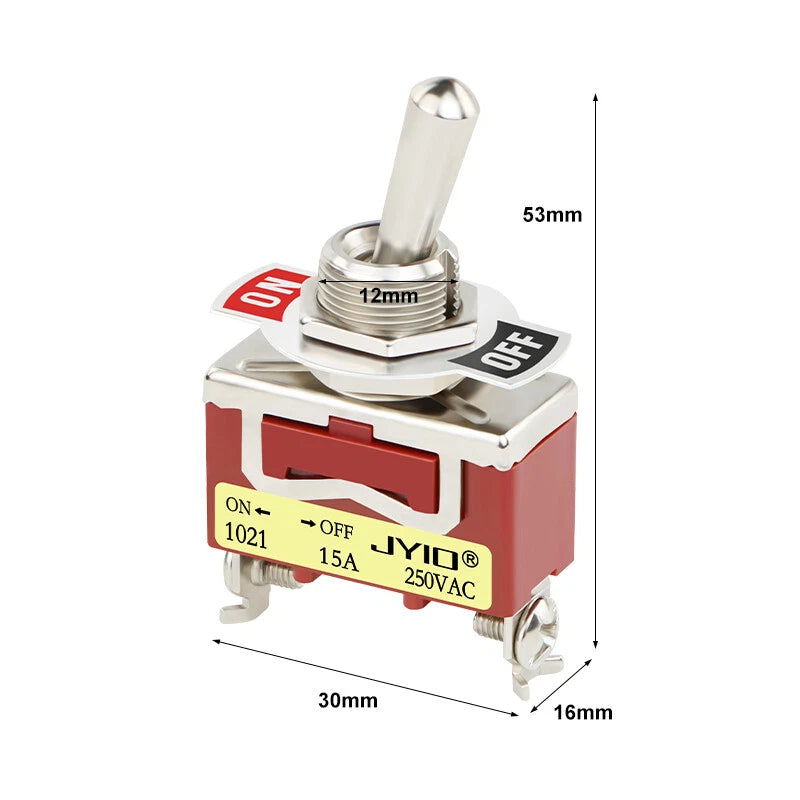

For a basic ON/OFF/ON circuit, a 3-pin SPDT switch is typically sufficient — one common terminal and two output terminals. If you need to control two independent circuits at the same time (for example, reversing a DC motor), choose a 6-pin DPDT variant. The "positions" option (2 or 3) refers to the number of stable switching positions — select 3 for ON/OFF/ON operation, or 2 for a simple ON/OFF toggle.

This switch is rated at 240V AC. Current capacity is generally in the range of 3A–6A depending on the specific variant. Please check the variant label or contact us to confirm the exact amperage rating for your application before wiring into a high-draw circuit.

This is a standard miniature toggle switch without a factory-fitted waterproof boot. For marine dash panels or outdoor enclosures, we recommend pairing it with a rubber toggle boot cover (sold separately) to protect the mechanism against moisture, spray, and salt air. In most cases, the switch body itself is not IP-rated.

Yes. A switch rated at 240V AC is generally safe to operate at lower DC voltages such as 12V or 24V. However, the DC current rating typically differs from the AC rating — in most cases it is lower. Contact us with your load specifications to confirm the right variant for your vehicle or vessel wiring.

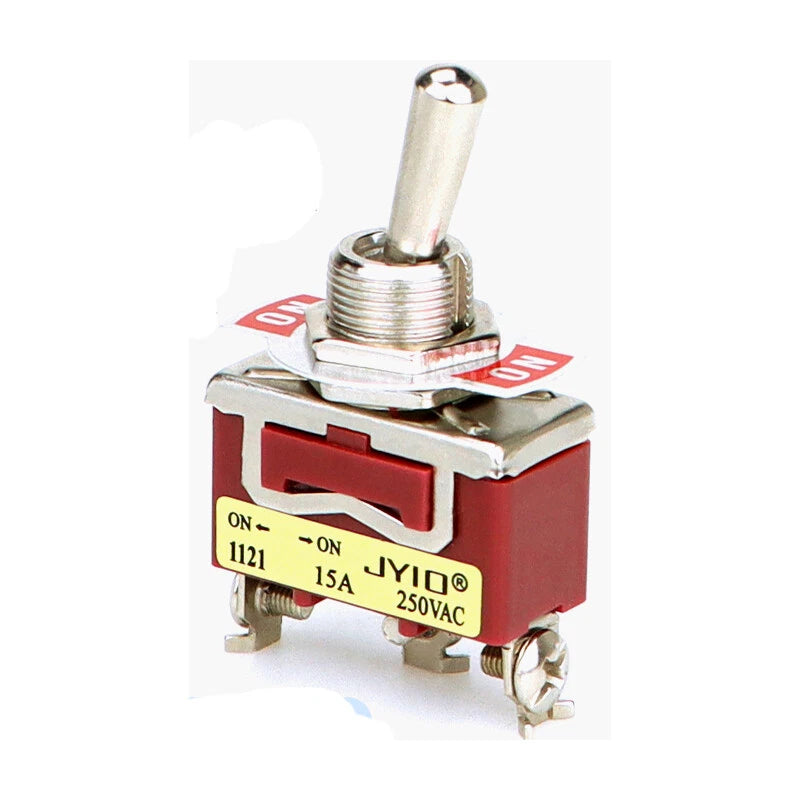

SPDT stands for Single Pole Double Throw. The switch has one common (COM) terminal and two output terminals. In an ON/OFF/ON configuration, flipping the toggle to one side connects COM to Output 1; the center position disconnects the circuit entirely (OFF); flipping to the other side connects COM to Output 2. This is commonly used for reversing motor direction, switching between two power sources, or controlling two separate loads from one switch.

Miniature toggle switches in this class typically require a panel hole of approximately 6mm (approx. 1/4") in diameter. The threaded bushing passes through the hole and is secured with the included nut on the back of the panel. Always measure your panel thickness and verify clearance before drilling, as bushing thread length varies by model.

Yes. The compact form factor and short toggle lever make this switch well-suited for RC cars, model trains, dioramas, and other hobby electronics where board or chassis space is limited. In most hobby applications, the low operating voltage and current draw are well within the switch's rated capacity.
