E-TEN SPDT Toggle Switch ON-ON — Reliable Control for AC & DC Circuits

When a flimsy toggle switch fails mid-project — or worse, mid-operation — the consequences range from frustrating to dangerous. Electricians, hobbyists, panel builders, and automotive enthusiasts who need a dependable SPDT toggle switch that holds its position and handles real loads without overheating will find the E-TEN series a straightforward, no-nonsense solution.

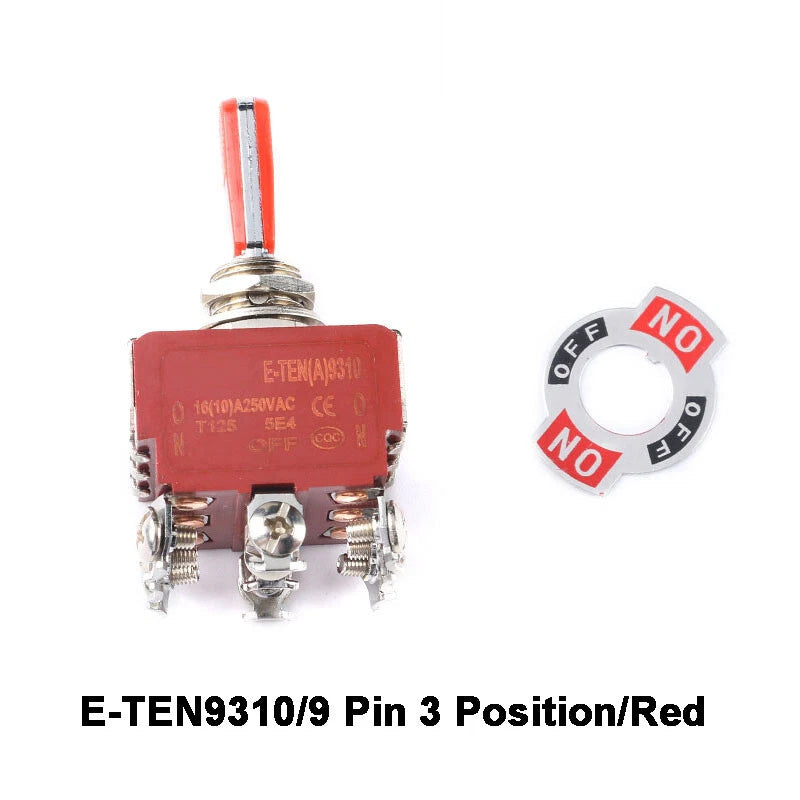

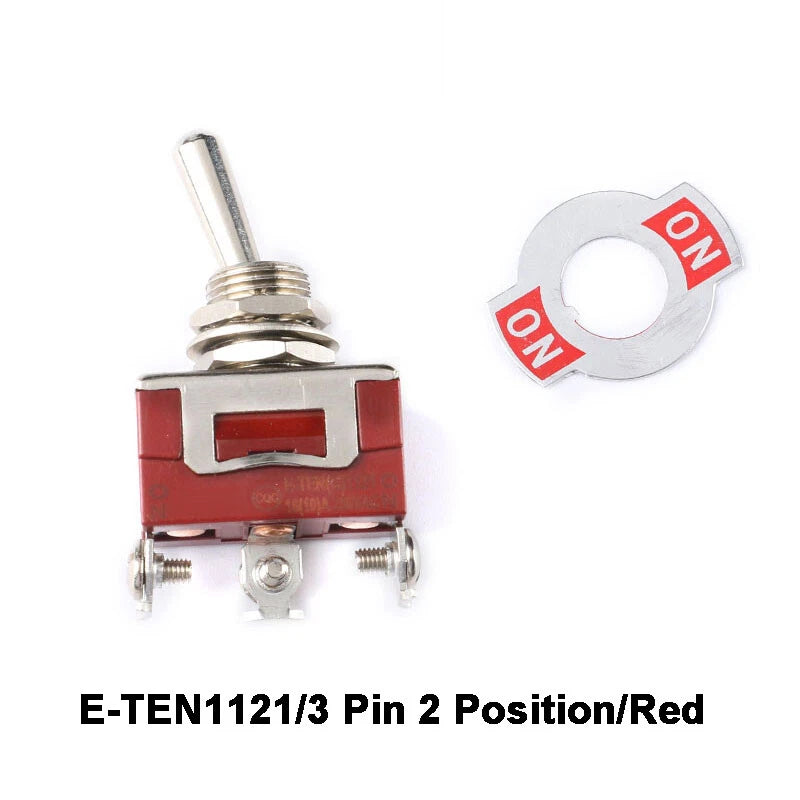

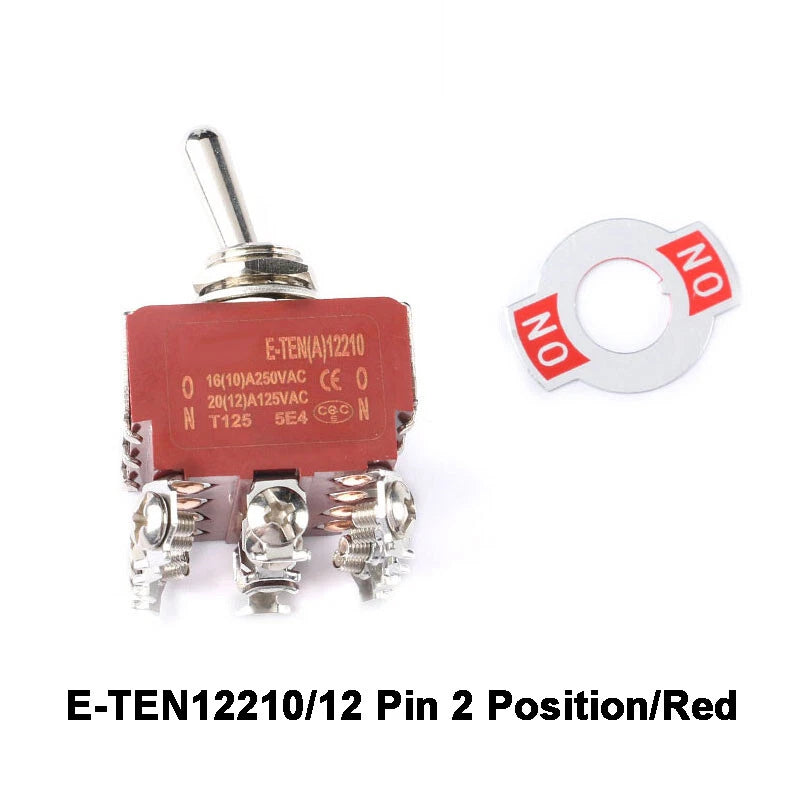

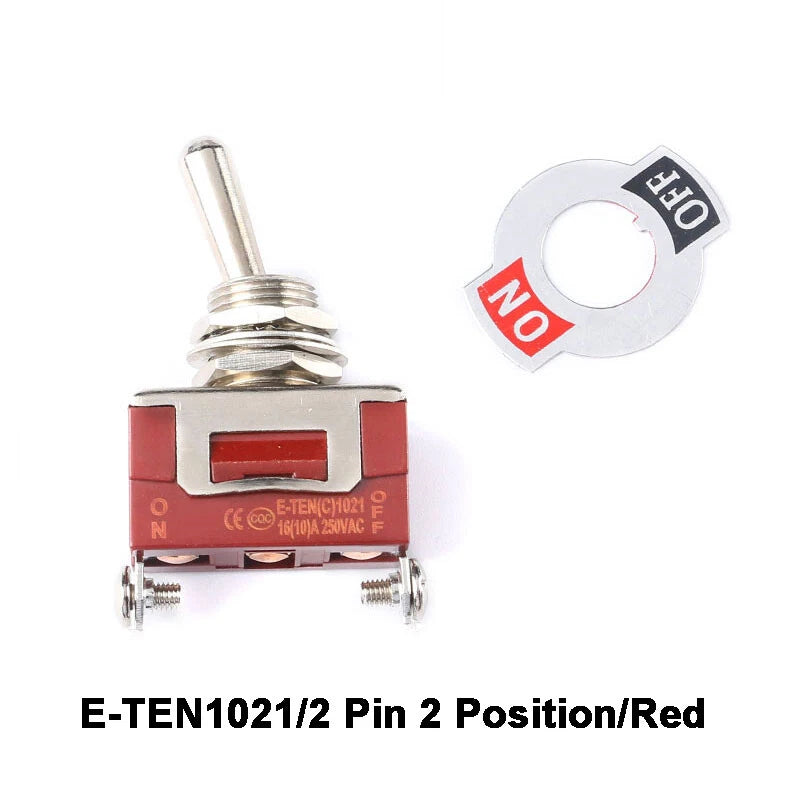

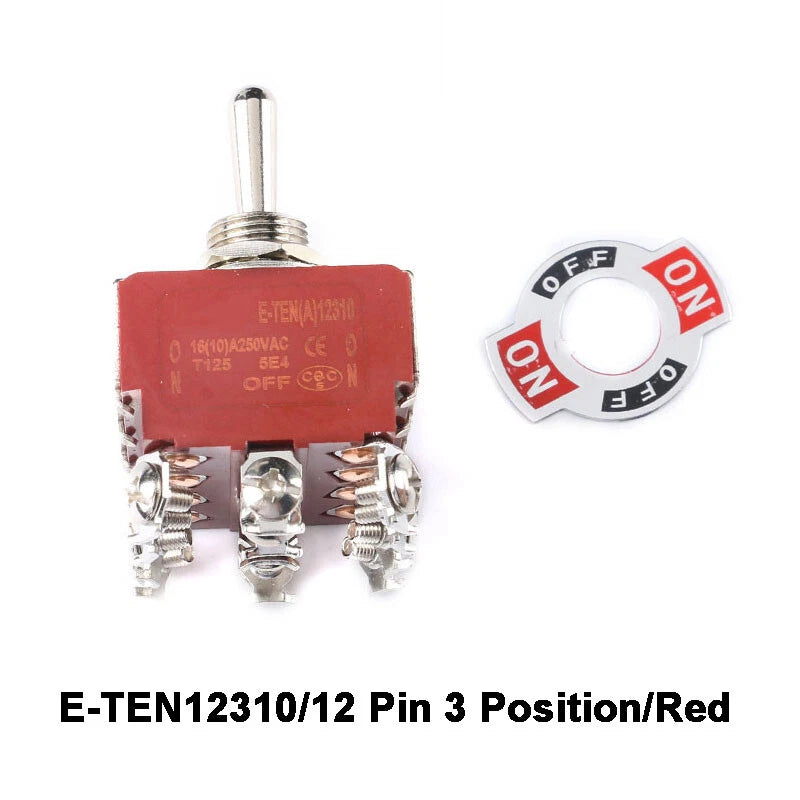

Each switch in this listing is an E-TEN brand SPDT (single-pole double-throw) or multi-pole toggle switch rated at 15A / 250V AC. The lineup covers 2, 3, 4, 6, 9, and 12 pin configurations in 2-position (ON-ON) and 3-position (ON-OFF-ON) switching actions, with your choice of Orange or Red colored actuator. The 12mm panel-mount bushing fits a standard 12mm (≈15/32") panel cutout. A matching 12MM Waterproof Cap is available as a separate variant for moisture-sensitive installations. Quantities are available from 1 to 10 pieces per order.

These switches are well-suited for DIY electrical control panels, automotive and marine dashboard wiring, workshop equipment on/off circuits, and prototype electronics where a robust panel-mount toggle switch for AC circuits is needed. The multi-pin options — particularly the 6-pin DPDT and 12-pin configurations — are popular for motor reversing circuits and multi-circuit selector panels.

🔌 Compatibility: Standard 12mm (≈15/32") panel cutout • Solder-lug terminals • Rated 15A 250V AC • Suitable for 12V–250V AC/DC control circuits (verify DC rating for your load) • Fits E-TEN 12MM Waterproof Cap (sold as separate variant)

✅ Key Features of These E-TEN SPDT Toggle Switches

  • ⚡15A / 250V AC Rating — Handles demanding AC loads found in workshop equipment, lighting circuits, and control panels without thermal stress at rated current.
  • 🔀Wide Pin & Position Selection — Available in 2, 3, 4, 6, 9, and 12 pin counts with 2-position (ON-ON) or 3-position (ON-OFF-ON) action, covering single-pole to multi-pole switching needs in one product family.
  • 🎨Color-Coded Actuators — Orange and Red lever options let you visually differentiate circuit functions on a panel — a practical detail for multi-switch control boards and automotive dashboards.
  • 🔩Standard 12mm Panel Mount — The 12mm bushing and locking nut fit the most common toggle switch cutout size, making these a direct drop-in replacement for most panel-mount toggle switch for AC circuits applications.
  • 💧Optional Waterproof Cap Included in Lineup — The 12MM Waterproof Cap variant adds a moisture barrier over the actuator, extending usability to marine, outdoor enclosure, and dusty workshop environments.
  • 📦Flexible Quantity Options — Order 1 to 10 pieces per SKU, so you can grab a single switch for a repair or stock up for a panel build — with per-unit cost decreasing at higher quantities.

📐 Technical Specifications — E-TEN Panel-Mount Toggle Switch

Brand E-TEN
Switch Type SPDT / Multi-pole Toggle Switch
Switching Action ON-ON (2 position) / ON-OFF-ON (3 position) — see variant options
Pin Count 2, 3, 4, 6, 9, or 12 pins — see variant options
AC Voltage Rating 250V AC
AC Current Rating 15A
DC Rating Contact us to confirm — typically lower than AC rating
Panel Cutout Diameter 12mm (≈15/32")
Actuator Color Orange or Red — see variant options
Terminal Type Solder lug
Mounting Panel mount with locking nut
Waterproof Cap Available as separate variant (12MM Waterproof Cap)
Body Material See variant options
Operating Temperature See variant options
Quantity per Order 1, 2, 3, 4, 5, 8, or 10 pcs — see variant options
Condition New
⚠️ Note: DC current ratings are generally lower than AC ratings for toggle switches. If using in a DC circuit, verify the specific DC rating for your load before installation. When in doubt, contact us to confirm.

❓ Frequently Asked Questions

How do I choose the right pin count and position for my application?

The pin count determines how many circuit connections the switch makes. A 2-pin switch controls a single circuit, while higher pin counts (3, 4, 6, 9, 12) allow control of multiple circuits simultaneously. The position refers to switching states: 2-position (ON-ON) toggles between two active states; 3-position (ON-OFF-ON) adds a center-off state. For example, a 6-pin 2-position switch is typically a DPDT configuration used for motor reversing. Match the pin/position to your circuit diagram — if unsure, a continuity tester on the terminals will confirm the switching logic.

What is the current and voltage rating, and does it apply to DC circuits too?

These switches are rated at 15A at 250V AC. For DC circuits, the rating is generally lower — typically around 10A at 125V DC, though this varies by specific model. AC and DC arcing behave differently, so always verify the DC rating for your load. Contact us if you need confirmation for a specific DC application.

Can these switches be used outdoors or in wet/dusty environments?

The standard toggle switches are not independently rated for outdoor or wet environments. However, the 12MM Waterproof Cap variant (available in this listing) fits over the actuator to provide a basic moisture and dust barrier. For fully weatherproof installations, use the cap and mount the switch inside a sealed enclosure rated for your environment.

What size panel hole do I need, and what thread does the mounting nut use?

These switches require a 12mm (≈15/32") panel cutout. The bushing generally uses a metric thread for the locking nut. Panel thickness compatibility is typically up to about 10mm — if your panel is thicker, contact us to confirm before ordering. The 12mm size is one of the most common toggle switch panel cutout standards in the US and internationally.

Are these compatible with automotive, marine, or RV wiring?

Yes. E-TEN SPDT toggle switches are widely used in automotive dashboards, marine control panels, and RV electrical systems. The solder-lug terminals accept standard wire gauges used in 12V and 24V DC systems. They are a common choice as a panel-mount toggle switch for DC control circuits in vehicles and boats — just verify the DC current rating matches your load.

What is the difference between the Orange and Red actuator versions?

The Orange and Red variants differ only in the color of the toggle lever (actuator). Electrically and mechanically, they are identical. The color is useful for visual circuit identification on multi-switch panels — for example, using red for main power circuits and orange for auxiliary or secondary circuits.

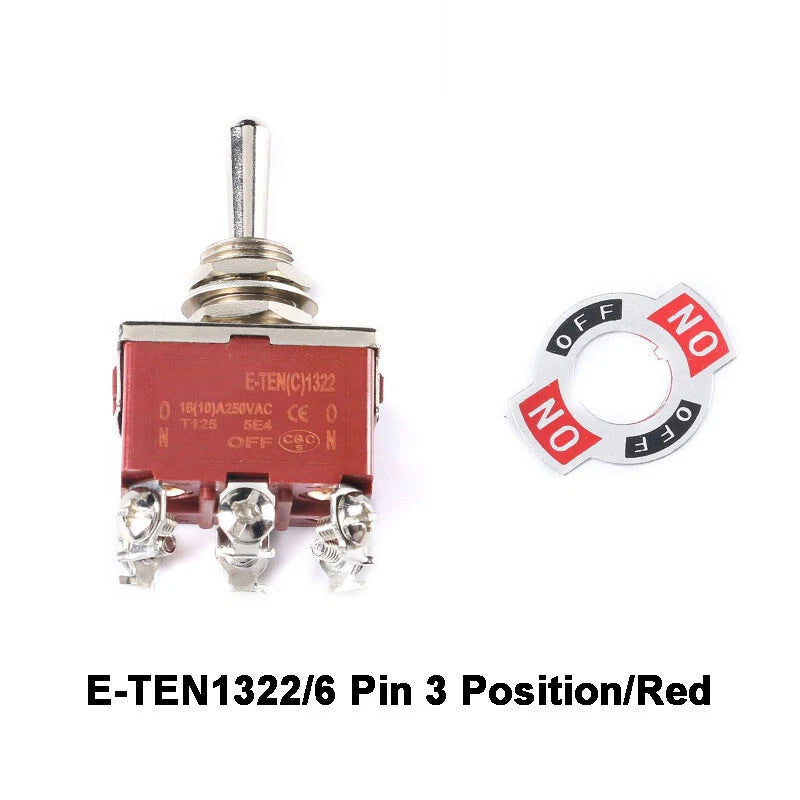

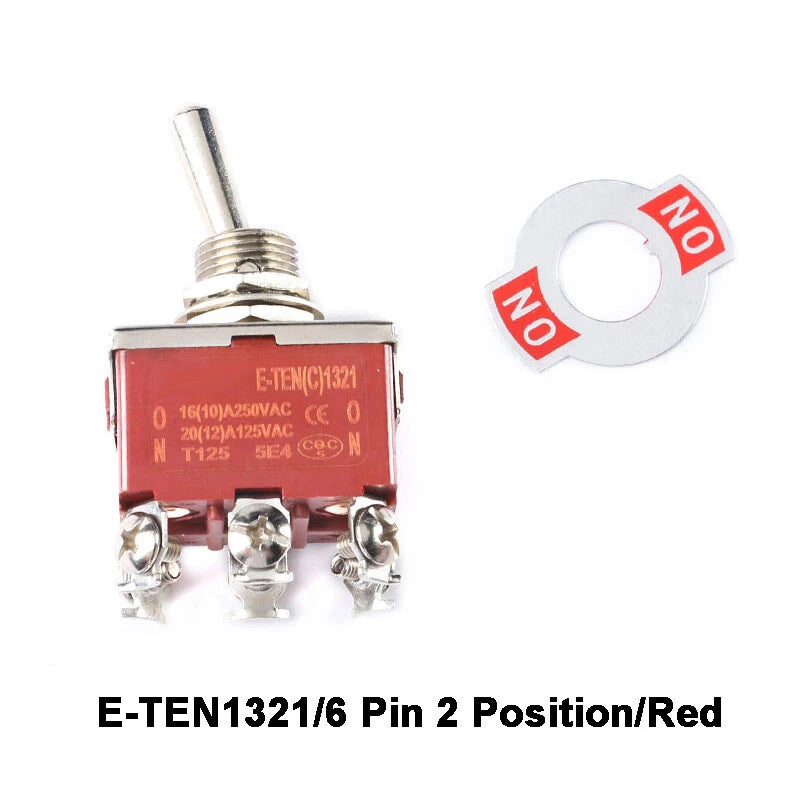

How do I wire a 6-pin DPDT toggle switch for a motor reversing circuit?

A 6-pin DPDT switch has two independent poles. In a typical motor reversing circuit, the two commons connect to the motor leads, and the throws connect to the positive and negative supply lines — flipping the toggle reverses polarity to the motor. Generally, pins are arranged as two rows of three: common in the center of each row, with the two throws on either side. Always continuity-test your specific switch to confirm pin layout before wiring.

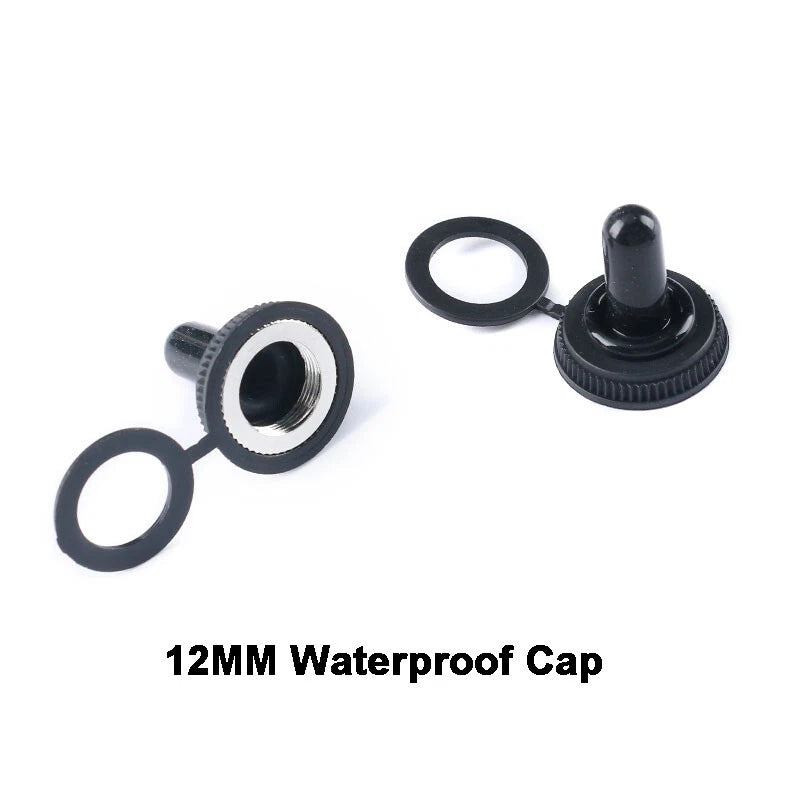

Can I order just the waterproof cap without a switch?

Yes. The 12MM Waterproof Cap is available as a standalone variant in this listing. Select "12MM Waterproof Cap" from the Item model dropdown, choose your quantity, and add to cart. It is designed to fit standard 12mm toggle switch actuators.
