Glue-Lined Heat Shrink End Caps — Waterproof Wire Termination for 8mm–110mm Cables

Exposed wire ends corrode, arc, and fail — especially in automotive engine bays, marine bilges, outdoor junction boxes, and industrial control panels where moisture and vibration are constant threats. These glue-lined heat shrink end caps give electricians, DIYers, and marine technicians a clean, code-friendly way to permanently seal bare conductors, unused wire leads, and cable bundle terminations without tape, silicone, or bulky connectors.

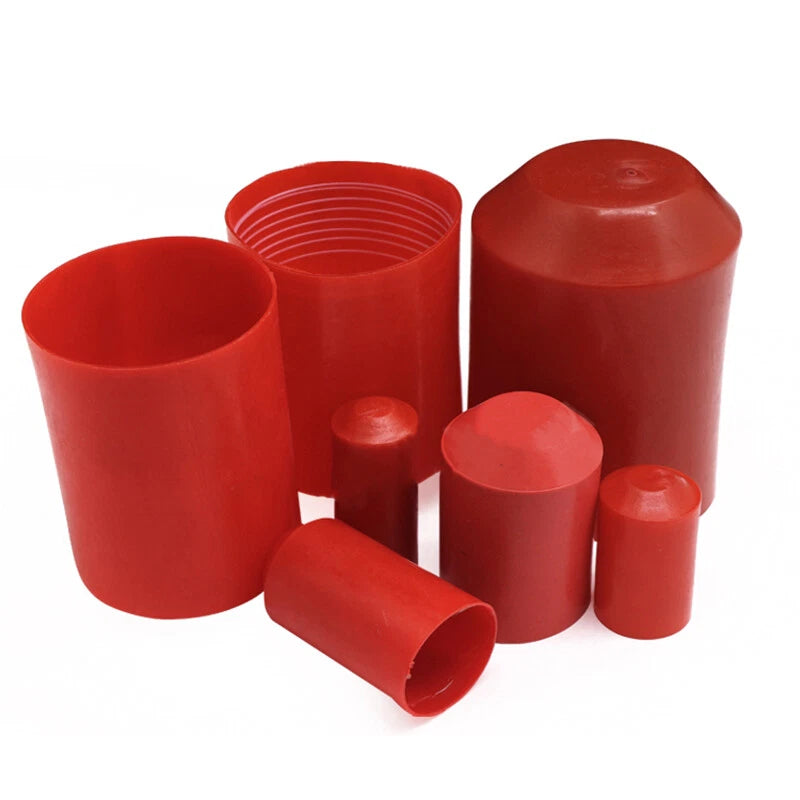

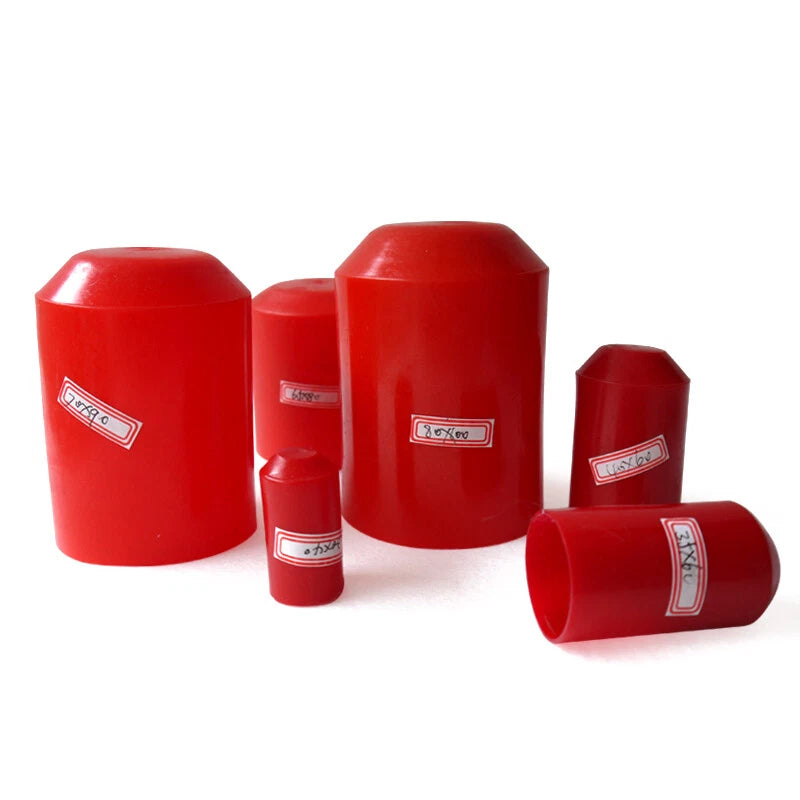

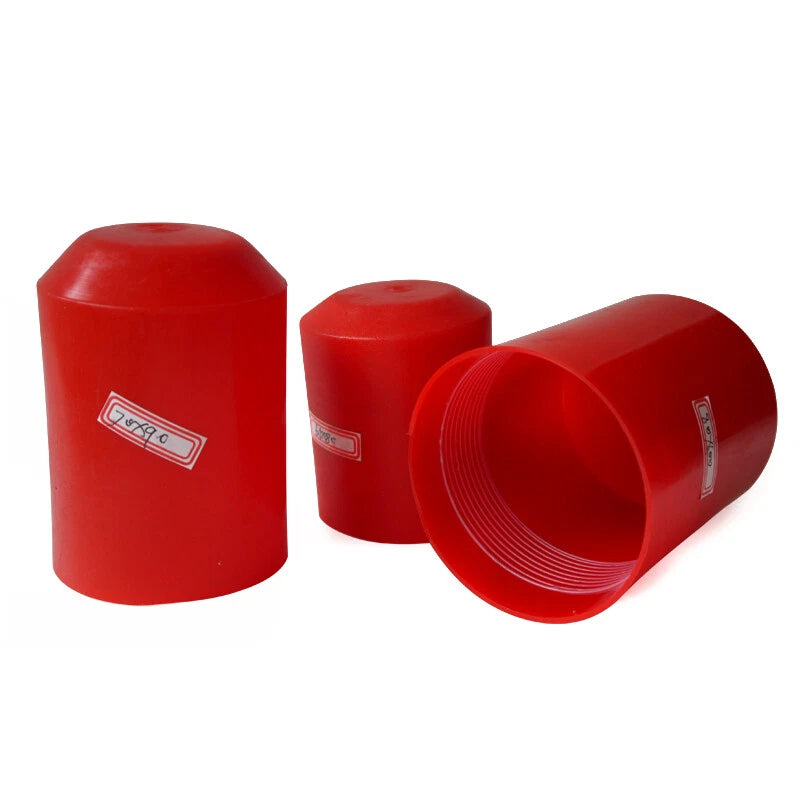

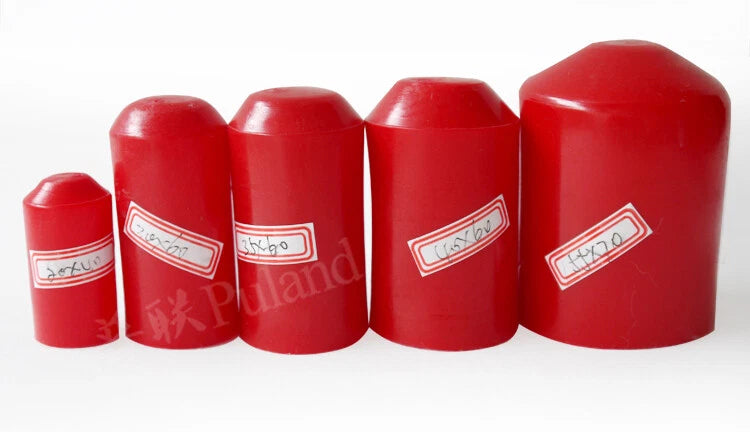

Each cap is a closed-end polyolefin tube with a 2:1 shrink ratio and a hot-melt adhesive inner lining. Available in diameters from 8mm (≈5/16") to 110mm (≈4-5/16") and lengths from 25mm (≈1") to 130mm (≈5-1/8"), sold individually or in multi-packs of 3, 5, 10, 20, 30, 40, or 50 pieces. The red color provides quick visual identification on wiring harnesses and panel builds.

Typical use cases include sealing unused wire leads in automotive wiring harnesses, capping battery cable ends during storage, waterproofing outdoor landscape lighting terminations, and protecting bare conductor ends in marine electrical systems — all scenarios where a reliable moisture barrier and strain relief are critical.

🔌 Compatibility: Fits stranded wire, solid conductors, and multi-cable bundles. Pre-shrink inner diameter 8mm–110mm; post-shrink approximately 4mm–55mm. Verify your cable OD before ordering — see FAQ below for sizing guidance.

✅ Key Features of These Glue-Lined Heat Shrink End Caps

  • 💧Adhesive Inner Lining — Hot-melt glue flows into cable gaps during shrinking, creating a moisture-resistant seal that standard non-adhesive heat shrink end caps cannot match.
  • 🔥2:1 Shrink Ratio — Reliable, predictable shrinkage to half the listed diameter; compatible with most standard heat guns set to low-to-medium heat, typically 70–120 °C (158–248 °F).

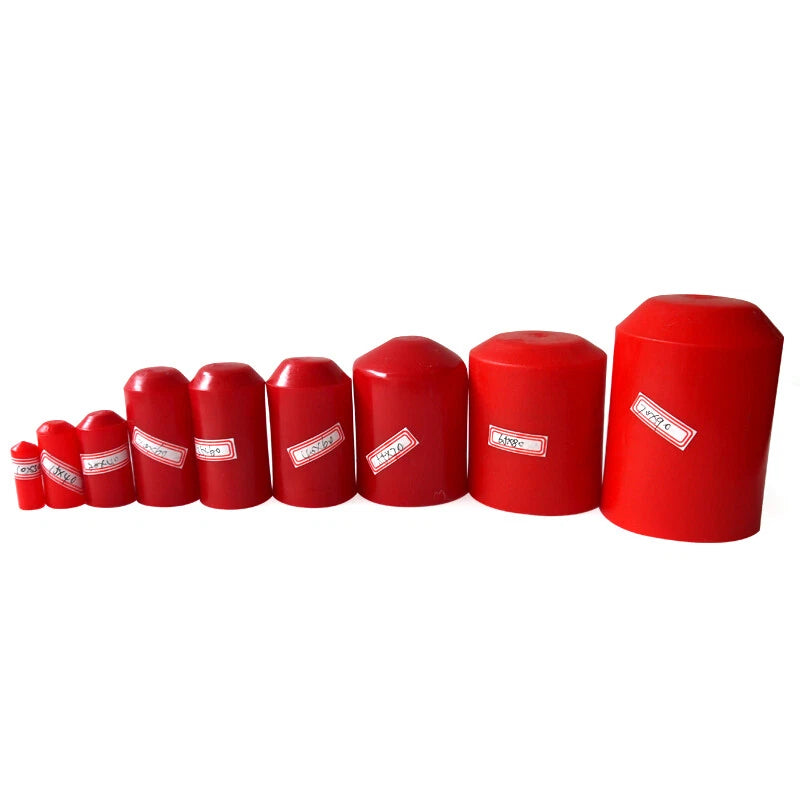

  • 📏Wide Size Range — Diameters from 8mm (≈5/16") to 110mm (≈4-5/16") cover everything from small-gauge hookup wire to large battery cables and conduit bundles.
  • 🎨Red Color Coding — Consistent red finish aids circuit identification in automotive wiring harnesses, panel builds, and multi-conductor installations.
  • 📦Flexible Pack Quantities — Order 1 to 50 pieces per size so you can stock exactly what a job requires without overpaying for a bulk bag you won't use.
  • 🛡️Closed-End Design — The sealed tip fully encapsulates the wire end, blocking moisture, dust, and contaminants — ideal for outdoor wire termination and marine cable sealing applications.

📐 Technical Specifications — Glue-Lined Heat Shrink End Caps

Product Type Glue-Lined Heat Shrink End Cap (Closed-End Tube)
Shrink Ratio 2:1
Pre-Shrink Inner Diameter Range 8mm (≈5/16") — 110mm (≈4-5/16")
Length Range 25mm (≈1") — 130mm (≈5-1/8")
Color Red
Inner Lining Hot-melt adhesive (polyamide-type); activates during shrinking
Outer Shell Material Polyolefin (cross-linked)
Activation Temperature Typically 70–120 °C (158–248 °F); confirm with heat gun settings
Application Wire end sealing, cable termination, moisture protection, strain relief
Pack Quantities Available 1, 3, 5, 10, 20, 30, 40, 50 pcs
Suitable Environments Automotive, marine, outdoor, industrial (generally; confirm for specific ratings)

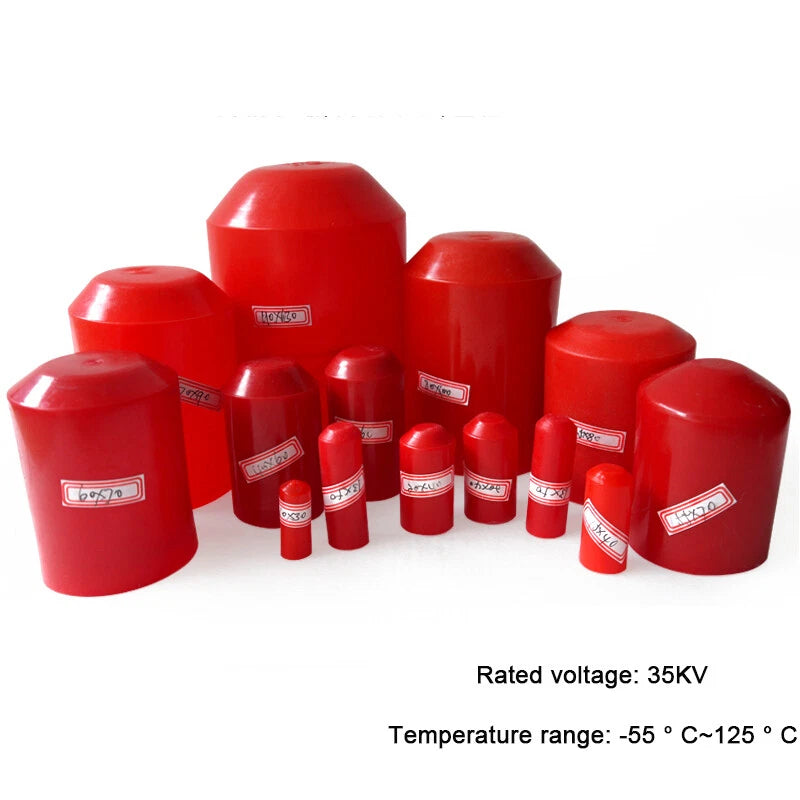

Voltage Rating See variant options / Contact us to confirm
Operating Temperature Range See variant options / Contact us to confirm
⚠️ Sizing tip: The listed diameter is the pre-shrink inner diameter. After heating, it shrinks to approximately half that value. Always measure your cable's outer diameter and choose a cap at least 1.5× larger than that measurement for a proper fit.

❓ Frequently Asked Questions

How do I choose the right diameter for my wire or cable?

Measure the outer diameter of the cable or bundle you need to seal. Choose a cap whose pre-shrink inner diameter is at least 1.5× your cable's OD. For example, a 10mm cable typically fits well in a 15mm or 18mm cap. The 2:1 shrink ratio means the cap will shrink down to roughly half its listed diameter after heating.

What shrink temperature is required, and can I use a lighter instead of a heat gun?

These caps generally activate at around 70–120 °C (158–248 °F). A heat gun on a low-to-medium setting is strongly recommended for even, controlled shrinkage. Open flames (lighters, torches) can scorch the outer shell or cause uneven shrinkage, which may compromise the adhesive seal.

Are these end caps waterproof and suitable for outdoor or marine use?

Yes. The inner glue lining melts during shrinking and flows around the cable jacket, creating a moisture-resistant barrier. They are generally suitable for outdoor, marine, and automotive environments. For submersion or high-pressure wash-down applications, contact us to confirm the specific ingress protection level.

What is the glue lining, and how is it different from standard heat shrink tubing?

The inner adhesive is typically a hot-melt polyamide glue. When heated, it liquefies, flows into gaps between strands and the cap wall, then re-solidifies as it cools — bonding mechanically and creating a watertight seal. Standard (non-adhesive) heat shrink tubing simply constricts around the cable without bonding, leaving potential moisture pathways.

Can I use these on stranded wire, solid wire, and bundled cables?

Yes. The adhesive lining fills irregular gaps, making these caps effective on stranded conductors, solid wire, and multi-cable bundles. They are in most cases a better choice than open-end tubing for termination points where the end of the conductor must be fully enclosed.

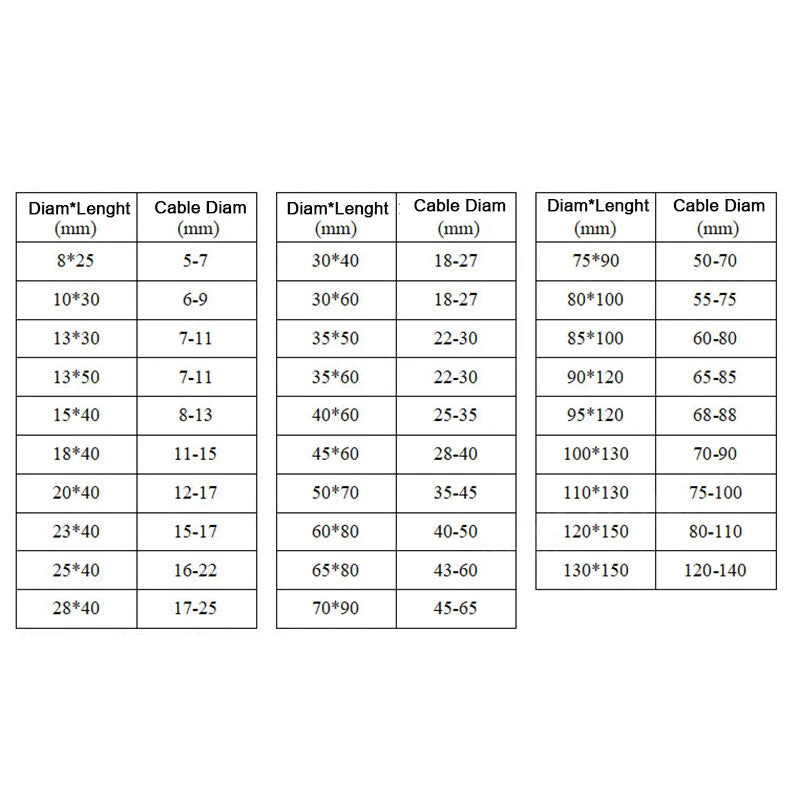

What does the size label mean — for example, what is "20*40mm"?

The first number is the pre-shrink inner diameter (20mm ≈ 25/32"), and the second is the total length of the cap (40mm ≈ 1-9/16"). After applying heat, the inner diameter shrinks to approximately 10mm (≈3/8"). Always verify your cable OD against the pre-shrink diameter before ordering.

What is the difference between a 2:1 and a 3:1 shrink ratio, and which do I need?

A 2:1 ratio means the cap shrinks to half its original inner diameter; a 3:1 ratio shrinks to one-third. For most standard wire termination tasks where you know your cable size, 2:1 is sufficient and generally provides a tighter, more uniform fit. If you need one cap size to accommodate a wider range of cable diameters, a 3:1 product may offer more flexibility.

🛒 Select your diameter and quantity above, then add to cart — ships from our US warehouse.
