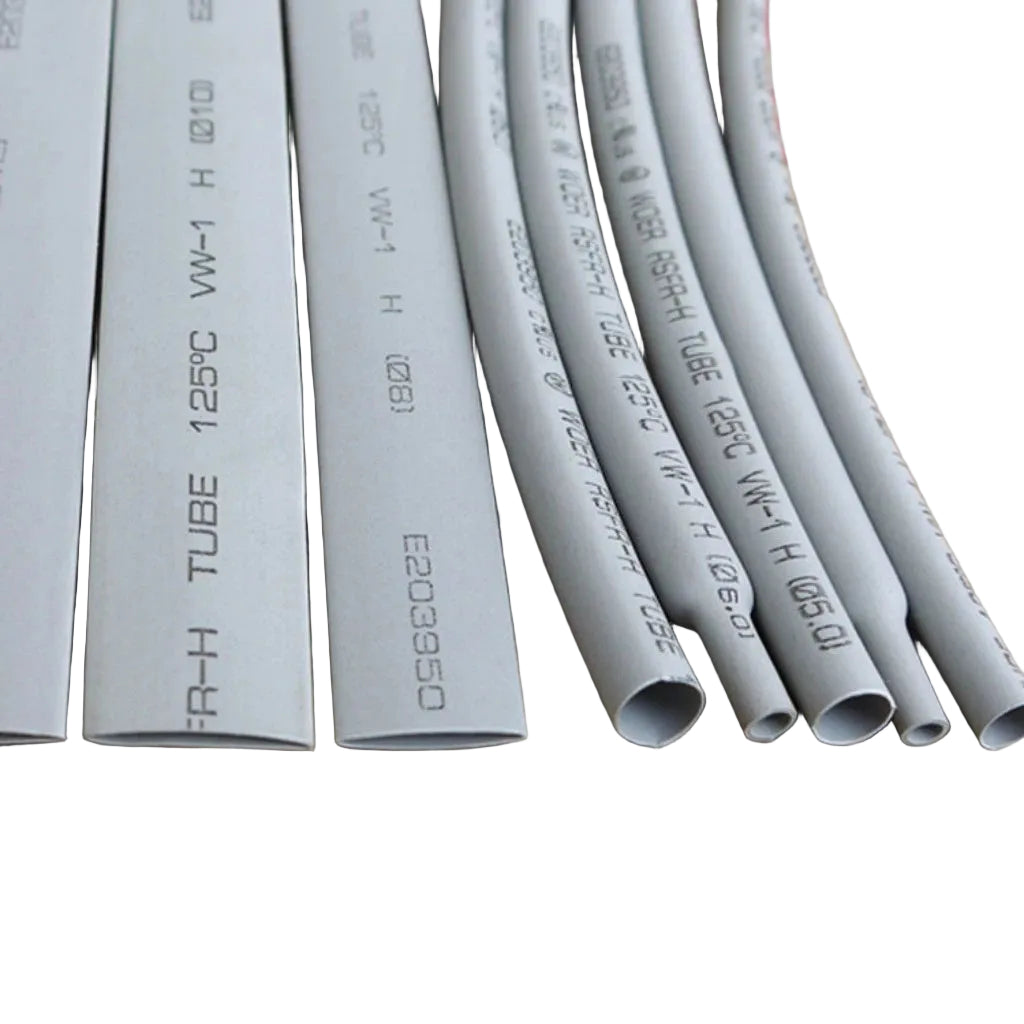

Gray 2:1 Heat Shrink Tubing — Reliable Wire Insulation from Φ1mm to Φ50mm
Exposed wire splices, loose connector terminals, and unprotected cable bundles are a frustration for electricians, automotive technicians, hobbyists, and DIYers alike. A frayed connection in the wrong place can mean a short circuit, a failed repair, or a safety hazard. This gray 2:1 heat shrink tubing gives you a clean, professional-grade solution that seals and protects in seconds.
Each order covers a single diameter and length combination — available in diameters from Φ1mm (≈0.04") to Φ50mm (≈1.97") and in lengths of 1 meter (≈39"), 5 meters (≈196"), or 10 meters (≈394"). The tubing is made from flame-retardant polyolefin and shrinks to approximately half its original inner diameter (2:1 ratio) when heat is applied, forming a snug, insulating sleeve around your wire or cable.
Typical applications include automotive wiring harness repair, marine cable protection, home electrical projects, RC hobby builds, and workshop tool cord management — anywhere a durable, heat shrink wire sleeve is needed to insulate, bundle, or identify cables.
🔌 Compatibility: Fits standard round wires, cables, and connector terminals. Select the diameter closest to — but larger than — your cable's outer diameter before shrinking. Works with heat guns, soldering station hot-air tools, and similar heat sources.
✅ Key Features of These Gray 2:1 Heat Shrink Tubes
-
🔥2:1 Shrink Ratio — Recovers to approximately half its original inner diameter, creating a tight, form-fitting sleeve around wires, terminals, and cable bundles of varying sizes.
-
🛡️Flame-Retardant Polyolefin Material — Made from polyolefin, a material widely used in electrical insulation for its resistance to flame spread, helping reduce risk in wiring applications.
-
📏Wide Diameter Range (Φ1mm–Φ50mm) — Covers everything from thin signal wires to large cable harnesses, so you can source the right heat shrink wire sleeve size without ordering from multiple suppliers.
-
✂️Cut-to-Length Flexibility — Available in 1m, 5m, and 10m rolls, allowing you to cut exactly what you need for each repair or project without waste.
-
🚗Versatile Application — Suitable for automotive wiring repair, marine cable protection, hobby electronics, and general DIY electrical work where a reliable cable insulation sleeve is required.
-
🎨Neutral Gray Finish — The gray color blends with most wiring environments and is commonly used for cable identification in multi-wire harnesses and control panels.
📐 Technical Specifications — Gray 2:1 Heat Shrink Tubing
| Material |
Flame-retardant polyolefin |
| Color |
Gray |
| Shrink Ratio |
2:1 |
| Available Diameters (Before Shrink) |
Φ1mm (≈0.04") — Φ50mm (≈1.97") |
| Available Lengths |
1m (≈39"), 5m (≈196"), 10m (≈394") |
| Activation Temperature |
Typically ~90°C (194°F) |
| Full Recovery Temperature |
Typically ~120°C (248°F) |
| Operating Temperature Range |
Generally -55°C to +125°C (-67°F to +257°F) |
| Flame Retardancy |
Yes (polyolefin standard) |
| Waterproofing |
Basic moisture resistance (not adhesive-lined; not fully waterproof) |
| Recommended Heat Source |
Heat gun or hot-air tool (open flame not recommended) |
| Packaging |
Single diameter + length per order; see variant options above |
⚠️ Size tip: Always measure your cable's outer diameter before ordering. Choose a tubing diameter that is larger than your cable OD before shrinking, and verify the recovered diameter will be smaller than your cable OD for a secure fit. If you need a fully waterproof seal, contact us to confirm adhesive-lined options.
❓ Frequently Asked Questions
How do I choose the right diameter for my wire or cable?
Measure the outer diameter of your wire or cable bundle before shrinking. Because this tubing has a 2:1 shrink ratio, choose a size whose recovered (shrunk) diameter is slightly smaller than your cable OD. For example, Φ6mm tubing typically recovers to around Φ3mm. When in doubt, size up one step — you can always apply more heat, but you cannot un-shrink the tubing.
What is the shrink ratio and what does 2:1 mean?
A 2:1 shrink ratio means the tubing will shrink to approximately half its original inner diameter when heat is applied. For example, Φ10mm tubing generally recovers to around Φ5mm. This ratio is suitable for most standard wire insulation, connector sealing, and cable bundling tasks.
What temperature is needed to shrink this tubing?
Polyolefin heat shrink tubing typically activates at around 90°C (194°F) and fully recovers at approximately 120°C (248°F). A heat gun set to low or medium is generally sufficient. Avoid open flames, as uneven heat can cause bubbling or uneven shrinkage.
Is this tubing flame-retardant and safe for electrical use?
Yes. Polyolefin heat shrink tubing is generally flame-retardant and meets common electrical insulation requirements. It is widely used for wire splicing, terminal insulation, and connector protection in automotive, marine, and household wiring applications.
Can I use this tubing outdoors or in wet environments?
Standard 2:1 polyolefin tubing provides basic moisture resistance and is suitable for light outdoor use. However, it does not form a waterproof seal on its own. For fully waterproof connections, consider adhesive-lined (3:1 or 4:1) heat shrink tubing instead.
How do I cut the tubing to the length I need?
Use sharp scissors or a utility knife to cut the tubing before shrinking. Cut slightly longer than needed — typically add 5–10mm on each end — to account for any end pull-back during the shrinking process.
What wire gauges does each diameter size fit?
As a general guide: Φ1–Φ2mm fits thin signal wires (typically 28–24 AWG); Φ3–Φ6mm suits standard hookup wire (22–16 AWG); Φ8–Φ12mm covers heavier power cables (14–10 AWG); Φ16–Φ25mm fits multi-conductor bundles or larger cables; Φ30–Φ50mm is suited for large cable harnesses or conduit ends. Always measure your cable OD to confirm.
🛒 Select your diameter and length above, then add to cart — ships from our US warehouse.
