GT2 Closed Loop Timing Belt — Precise, Slip-Free Motion for CNC & 3D Printers
When your 3D printer starts skipping layers or your CNC router loses position mid-cut, a worn or incorrectly sized GT2 closed loop timing belt is often the culprit. Makers, hobbyists, and small-shop machinists who rely on precise motion control need a belt that fits exactly, seats cleanly on GT2 pulleys, and holds tension without stretching out of spec. This GT2 closed loop timing belt is designed for exactly those applications.

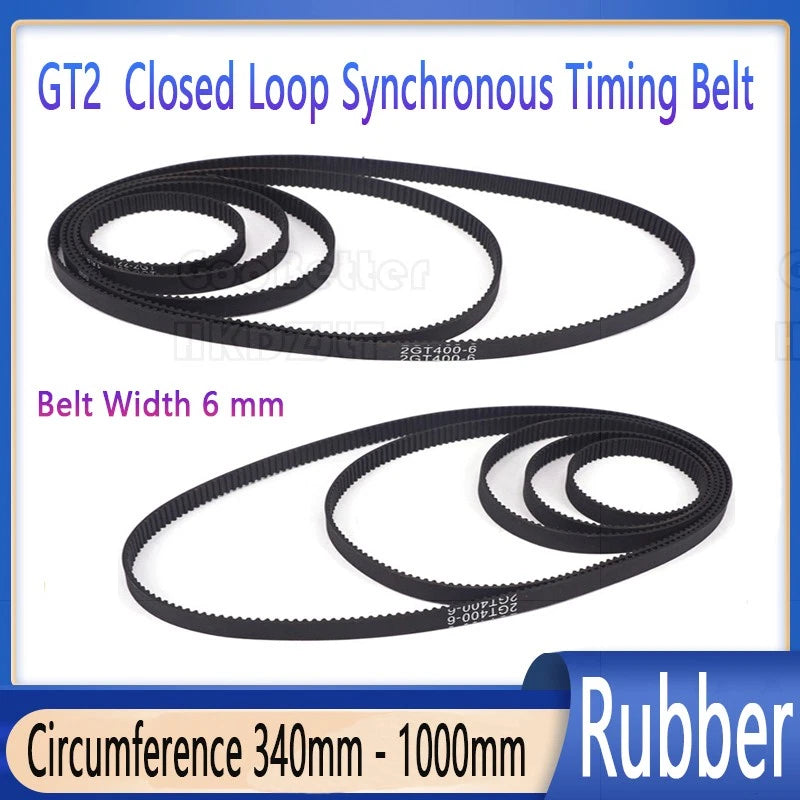

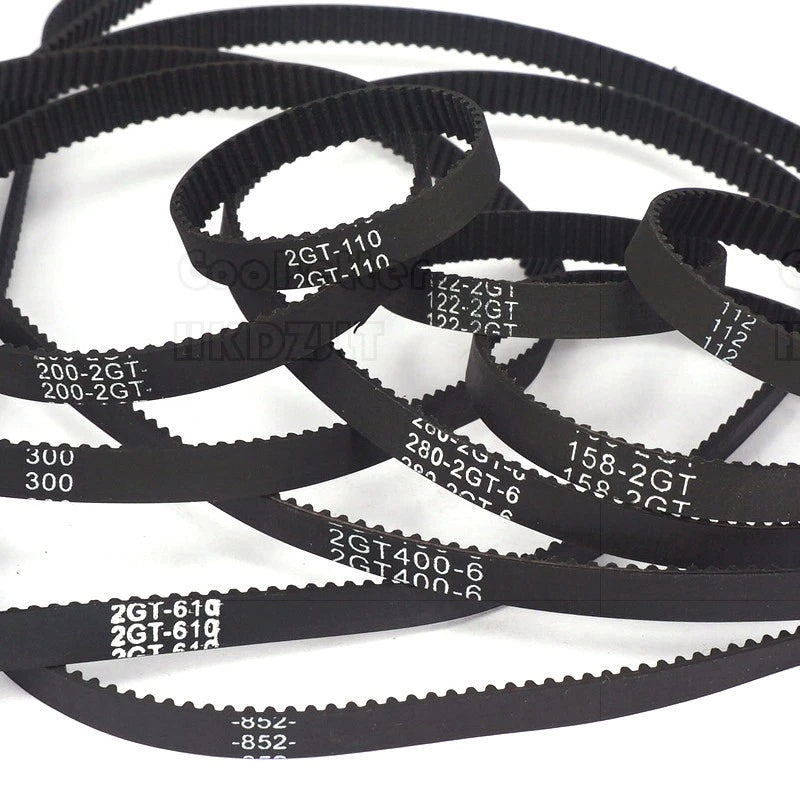

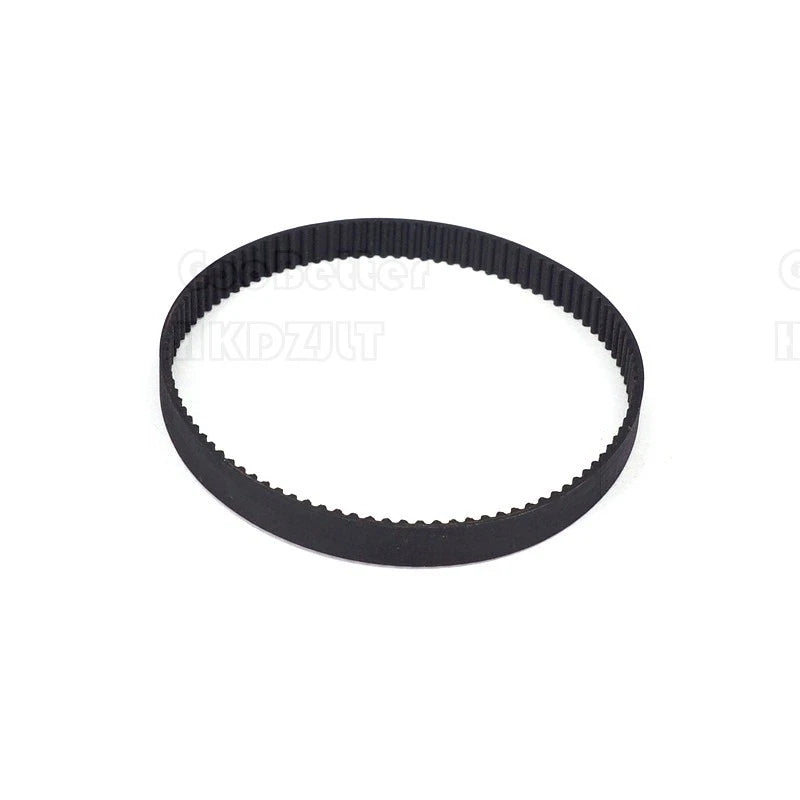

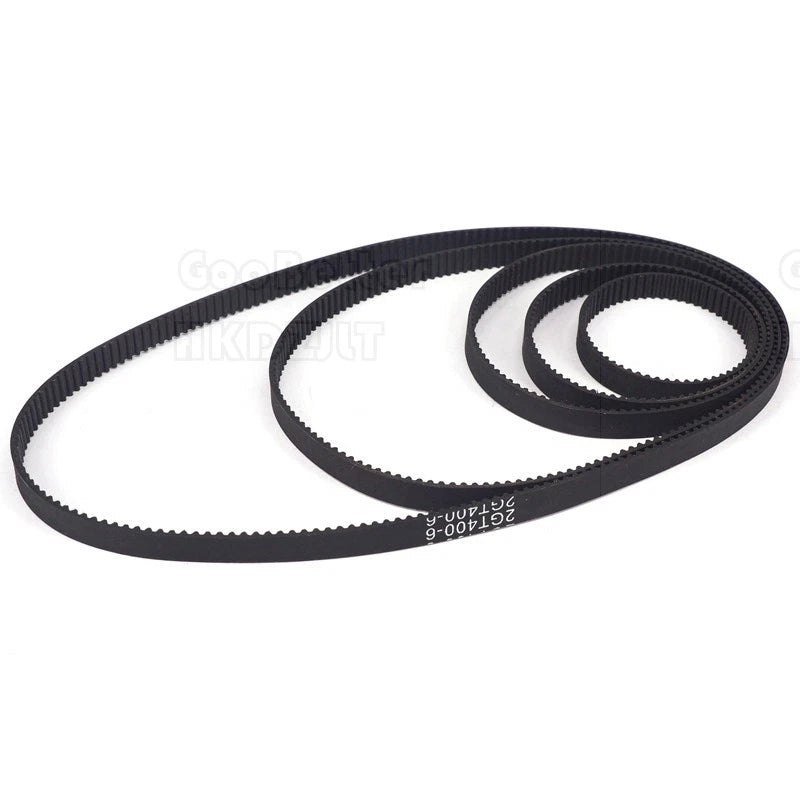

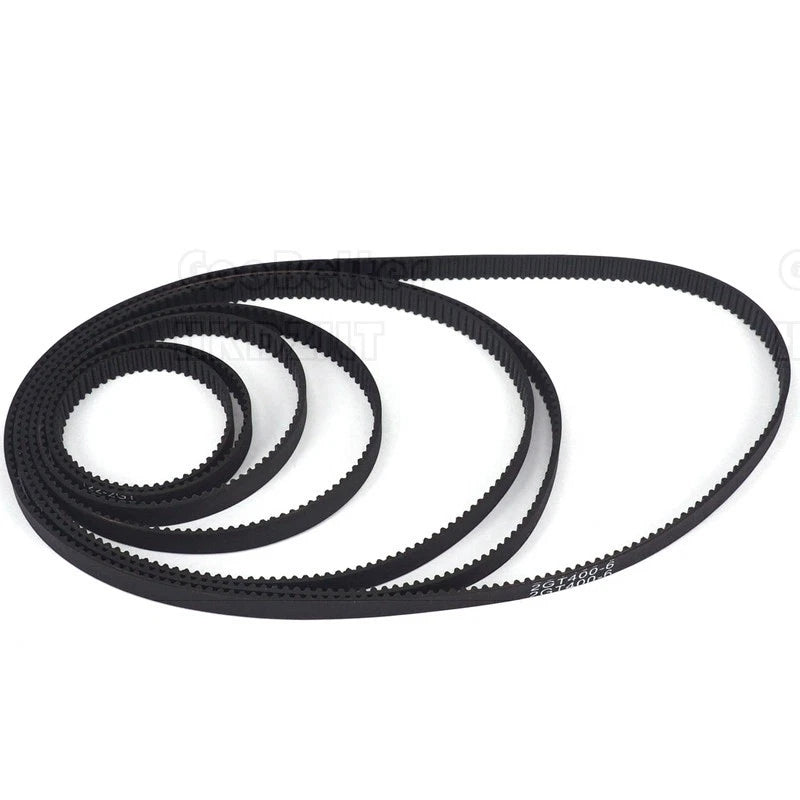

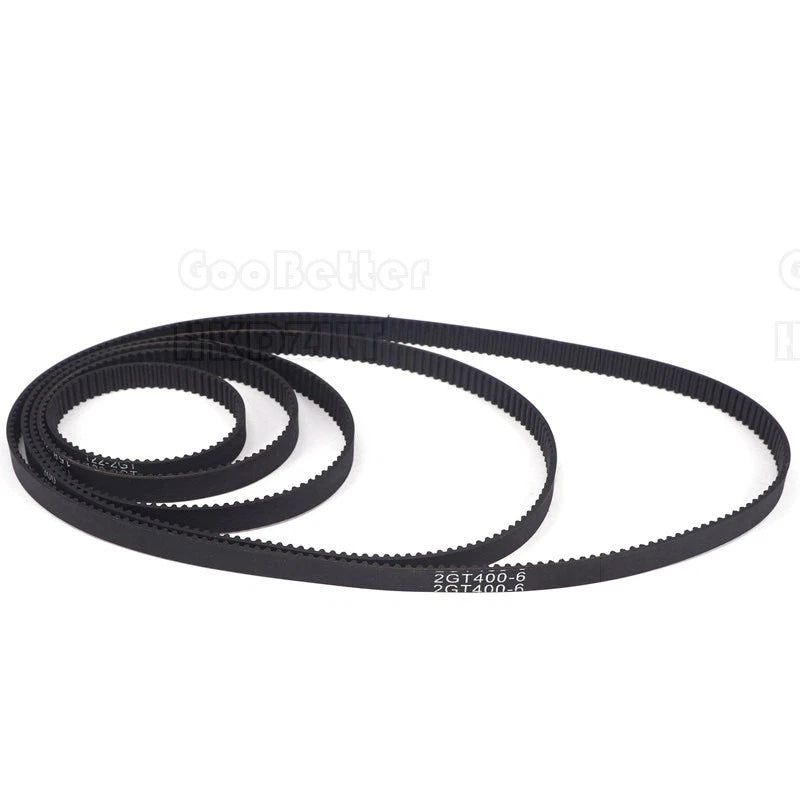

Each belt is a continuous closed loop — no ends, no clamps, no splicing required. Made from rubber with internal fiber reinforcement, the belt features a 2 mm pitch GT2 tooth profile and a 6 mm (≈1/4") width. Loop circumferences range from 340 mm (≈13.4") to 1000 mm (≈39.4"), covering the most common sizes used in desktop CNC machines, FDM 3D printers, and laser engravers. Available in quantities of 1, 5, or 10 pieces per order.
Typical applications include X/Y axis drives on Creality Ender 3, CR-10, and similar 3D printers; gantry and carriage drives on desktop CNC routers; and feed mechanisms on laser cutters and engravers where a GT2 closed loop synchronous belt replacement is needed.
✅ Compatible with standard GT2 pulleys (2 mm pitch, 6 mm width) — fits Creality Ender 3, CR-10, Prusa, Voron, and most desktop CNC & laser cutter motion systems.
⚠️ Verify your required loop length before ordering. Measure your existing belt or calculate from pulley center distance. Loop sizes range from 340 mm to 1000 mm — see variant selector above.
✅ Key Features of These GT2 Closed Loop Timing Belts
-
🔁True Closed Loop Design — Continuous ring construction eliminates end connectors and clamps, giving you a cleaner, more reliable drive path for 3D printer and CNC router belt replacement.
-
📐2 mm GT2 Tooth Profile — Matches the GT2 standard exactly, ensuring positive engagement with 16T, 20T, and other common GT2 pulleys used in FDM printers and desktop CNC machines.
-
📏Wide Size Range — Available in 61 loop lengths from 340 mm (≈13.4") to 1000 mm (≈39.4"), covering the most common closed loop synchronous belt sizes for motion control applications.
-
🧵Fiber-Reinforced Rubber Construction — Internal cord reinforcement resists elongation under load, helping maintain consistent belt tension and positional accuracy over extended use.
-
🎯6 mm Consistent Width — Uniform 6 mm width seats correctly in standard GT2 pulley flanges, reducing the risk of belt walk or derailment during high-speed axis movement.
-
📦Flexible Quantity Options — Order 1, 5, or 10 pieces per size. Multi-pack options are useful for dual-axis machines or workshops maintaining several CNC or 3D printing systems.
📐 Technical Specifications — GT2 Closed Loop Timing Belt
| Belt Type |
GT2 Closed Loop Synchronous Timing Belt |
| Tooth Pitch |
2 mm |
| Belt Width |
6 mm (≈1/4") |
| Loop Circumference |
340 mm (≈13.4") – 1000 mm (≈39.4") — See variant options |
| Material |
Rubber with fiber cord reinforcement (typically neoprene or EPDM compound) |
| Tooth Profile |
GT2 (2 mm pitch, curvilinear) |
| Compatible Pulleys |
GT2 pulleys, 6 mm belt width (16T, 20T, and other tooth counts) |
| Quantity per Order |
1 PCS / 5 PCS / 10 PCS — See variant options |
| Color |
Black |
| Typical Applications |
3D printer X/Y axis, CNC router gantry, laser cutter feed drive |
❓ Frequently Asked Questions
How do I choose the right loop length for my machine?
Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the formula: Belt Length = 2 × Center Distance + (π × Pulley Diameter). For quick reference, 340 mm ≈ 13.4" and 1000 mm ≈ 39.4". Always verify against your machine's spec sheet or existing belt label before ordering.
What tension load can a 6 mm GT2 closed loop belt handle?
A 6 mm wide GT2 rubber timing belt can typically handle working tensions in the range of 15–40 N depending on speed and pulley diameter. For light-duty CNC and 3D printer motion systems, this is generally more than sufficient. Avoid sustained shock loads that exceed the belt's rated capacity.
Can I use this belt outdoors or in humid environments?
The rubber compound used in GT2 timing belts generally offers moderate resistance to moisture and mild temperature variation. However, prolonged UV exposure or immersion in water or chemicals can degrade the belt over time. For outdoor or harsh-environment applications, inspect the belt regularly and replace as needed.
Is this belt compatible with standard GT2 pulleys?
Yes. This belt uses the GT2 tooth profile with a 2 mm pitch, which is compatible with any standard GT2 pulley designed for 6 mm wide belts — including 16T, 20T, and other common tooth counts used in 3D printers and CNC machines.
What is the difference between a closed loop belt and an open-end belt?
A closed loop belt is a continuous ring with no ends — it loops around pulleys without any joining hardware. An open-end belt is sold by the meter and must be cut and clamped. Closed loop belts are generally preferred for 3D printers and compact CNC systems where a fixed drive path is required.
How do I know if my 3D printer uses a GT2 belt?
Most popular FDM 3D printers — including Creality Ender, CR-10, Prusa, and Voron models — use GT2 belts with 2 mm pitch and 6 mm width. Check your printer's documentation or look at the existing belt's tooth profile and width to confirm compatibility.
Should I buy 1, 5, or 10 pieces?
If you're replacing a single worn belt, 1 PCS is sufficient. For a dual-axis machine (X and Y), 2 belts are typically needed — the 5 PCS pack offers a cost-effective option with spares. Workshops or repair shops maintaining multiple machines will find the 10 PCS pack the most economical choice.
