Hard Drive Screwdriver Repair Kit — The Right Bits for Every HDD Screw
Anyone who has tried to crack open a mechanical hard drive with a standard screwdriver knows the frustration: the wrong bit slips, the screw rounds out, and the drive is suddenly much harder to open than it needs to be. Whether you are a data recovery technician, a PC builder salvaging old drives, or a DIYer upgrading laptop storage, having the correct Torx, Phillips, and Pentagon bits on hand makes the difference between a clean teardown and a damaged drive.

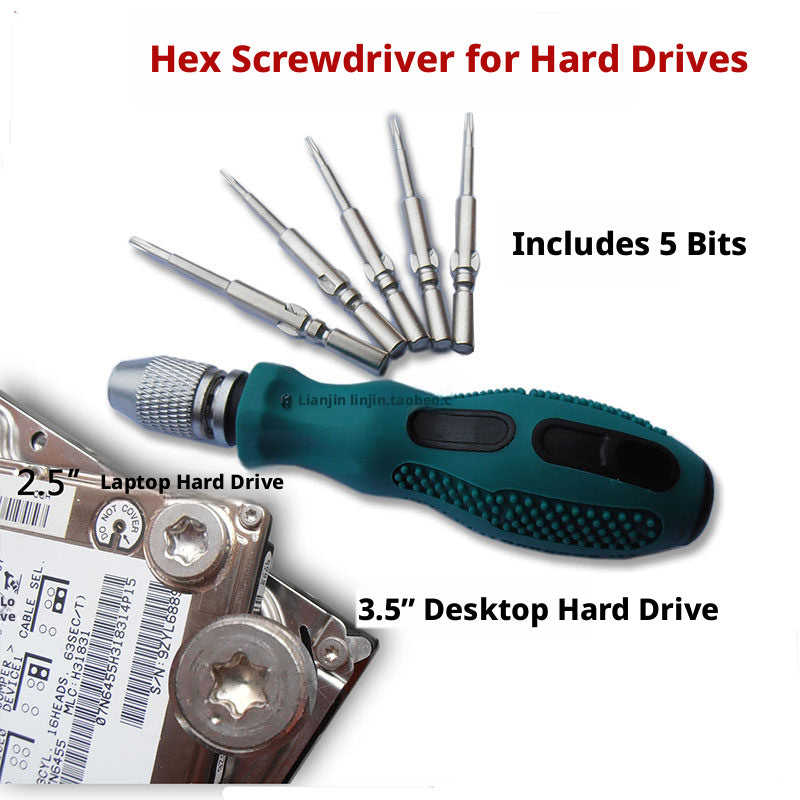

This hard drive screwdriver repair kit pairs one ergonomic handle (approximately 105mm / ≈4.1" grip length, 140mm / ≈5.5" with bit installed) with a set of interchangeable S2 alloy steel bits. Depending on the variant you choose, the set includes 2, 4, 5, or 6 bits covering Torx sizes typically ranging from T5 to T9, Phillips (cross) drive, and the Seagate-style Pentagon (5-point) bit. The handle features a dual-material grip for comfort and a quick-release magnetic chuck for fast bit swaps.

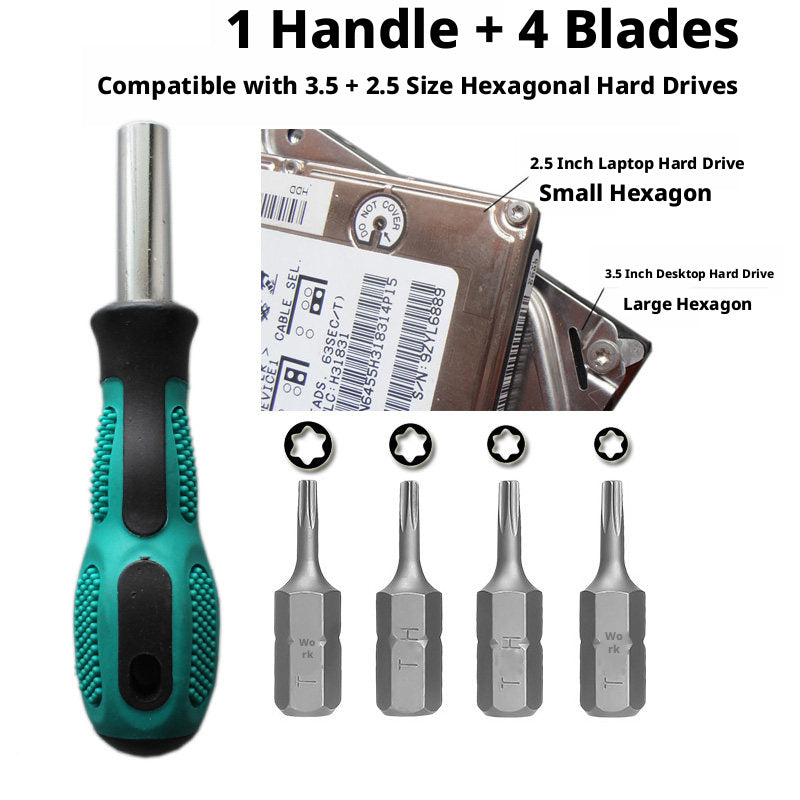

Typical use cases include disassembling 3.5" desktop hard drives for data recovery or secure erasure, opening 2.5" laptop HDDs to replace platters or circuit boards, and servicing NAS drives where both case screws (typically T8/T9) and platter screws (typically T5/T6) must be accessed. This kit is also well-suited for electronics repair shops that service multiple HDD brands including Seagate, Western Digital, Hitachi, and Toshiba.
🔧 Compatible with 2.5" laptop HDDs and 3.5" desktop HDDs — covers Torx T5, T6, T8, T9, Phillips cross drive, and Seagate Pentagon (5-point) screws across major brands.
✅ Key Features of These Hard Drive Screwdriver Repair Bits
-
🔩Multi-Drive Bit Coverage — Each set covers the specific Torx and specialty screw types found on both 2.5" laptop and 3.5" desktop mechanical hard drives, eliminating the need to hunt for individual bits mid-repair.
-
⚙️S2 Alloy Steel Construction — Bits are machined from hardened S2 tool steel, a grade known for its toughness and resistance to cam-out on tight, small-diameter HDD screws where softer bits typically fail.
-
🔄Quick-Release Interchangeable Chuck — The magnetic quick-release chuck lets you swap between Torx, Phillips, and Pentagon bits in seconds without setting down the handle, keeping your workflow moving during teardowns.
-
✋Dual-Material Ergonomic Handle — The handle combines a rigid core with a soft-grip outer layer, providing the torque control needed for small HDD screws without hand fatigue during extended repair sessions.
-
📐Precision-Ground Bit Tips — Bit tips are ground to close tolerances to seat fully in HDD screw recesses, reducing the lateral play that causes rounding — a common problem when using generic bits on Torx T5 and T6 platter screws.
-

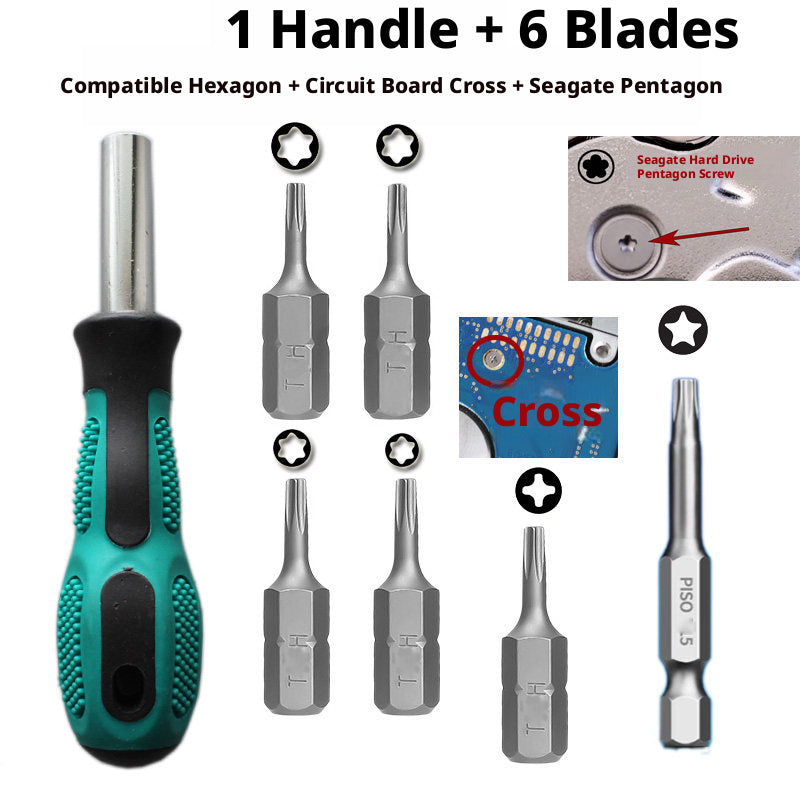

🗂️Variant Options for Every Repair Scope — Choose from a focused 2-bit set for basic case disassembly, a 4-bit or 5-bit set for full HDD teardown, or the 6-bit set that adds the Seagate Pentagon bit for circuit board screw access — so you only pay for what your repair actually requires.
📐 Technical Specifications — Hard Drive Repair Screwdriver Bit Set
| Product Type |
Interchangeable Screwdriver Bit Set with Handle |
| Bit Material |
S2 Alloy Steel (hardened tool steel) |
| Handle Material |
Dual-material (rigid core + soft-grip outer layer) |
| Handle Length |
105mm (≈4.1") grip; 140mm (≈5.5") with bit installed |
| Bit Drive Types |
Torx (T5, T6, T8, T9), Phillips (cross), Pentagon / 5-point (Seagate-style) — availability varies by variant |
| Number of Bits |
2, 4, 5, or 6 — see variant options |
| HDD Compatibility |
2.5" laptop HDDs and 3.5" desktop HDDs; compatible with Seagate, WD, Hitachi, Toshiba, Samsung |
| Chuck Type |
Quick-release magnetic chuck |
| Intended Use |
HDD disassembly, data recovery, electronics repair |
| Color |
Teal / Black handle; silver bits |
| Quantity per Order |
1 handle + bits as specified in selected variant |
⚠️ Bit size note: HDD screw sizes vary by manufacturer and drive generation. If you are unsure which Torx size your drive uses, we recommend selecting the 5-bit or 6-bit set for full coverage. Contact us if you need help identifying the correct bit for your specific drive model.
❓ Frequently Asked Questions
Which bit size do I need for my hard drive?

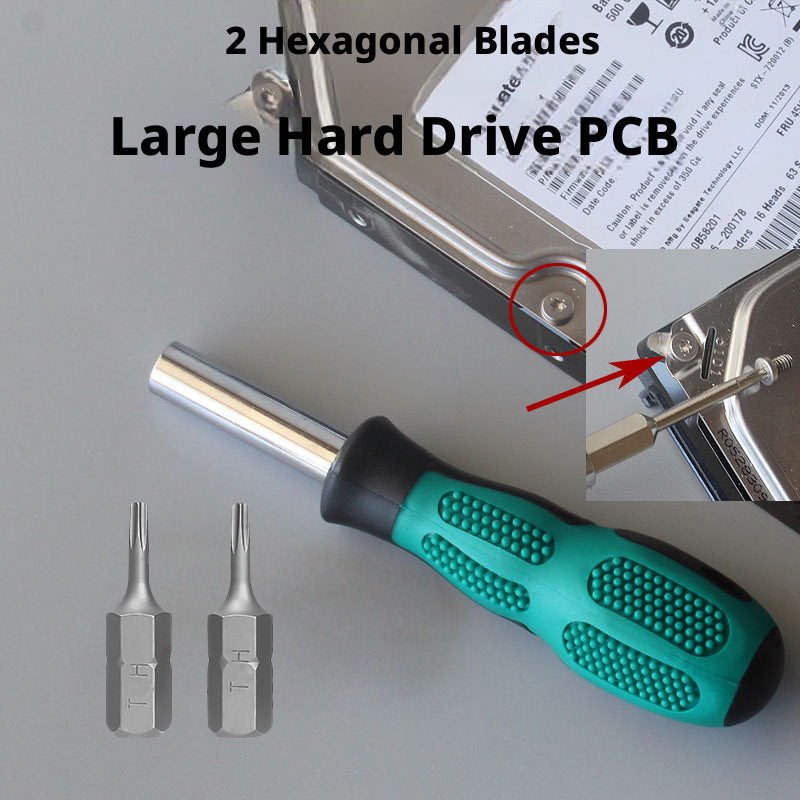

For 3.5" desktop HDDs, the outer case and mainboard screws typically use T8 or T9 Torx bits, while the disk platter screws generally require T5 or T6. For 2.5" laptop HDDs, the case screws are typically T6 or T8, and the mainboard uses Phillips (cross) bits. When in doubt, select the 5-bit or 6-bit set for full coverage across both drive sizes.
What material are the bits made from, and does it matter?
The bits are made from S2 alloy steel — a hardened tool steel grade commonly used in professional screwdriver bits. S2 is generally harder than standard CR-V steel, which helps prevent cam-out and tip deformation on the small, tight screws found in HDDs. This matters especially for T5 and T6 platter screws, which are notoriously easy to strip with softer bits.
Can I use this kit outdoors or in humid environments?
This kit is designed for precision electronics repair in dry indoor environments. S2 alloy steel bits are not specifically treated for corrosion resistance. For occasional use in mildly humid conditions, wiping the bits dry after use will generally help maintain their condition. We do not recommend leaving the bits exposed to moisture for extended periods.
Is this kit compatible with Seagate, Western Digital, and Hitachi drives?
Yes. The bit set is designed to cover the screw types used across major HDD brands including Seagate, Western Digital (WD), Hitachi, Toshiba, and Samsung. The 6-bit set specifically includes the Seagate Pentagon (5-point) bit alongside standard Torx and Phillips bits, making it the most comprehensive option for multi-brand repair environments.
How do I swap the bits on the handle?
The handle features a quick-release magnetic chuck. Simply pull or twist the installed bit out and press the replacement bit in until it seats securely. No additional tools are required to change bits. The magnetic retention holds the bit firmly during use while still allowing fast swaps between tasks.
Which variant should I choose for a 2.5" laptop hard drive?
For 2.5" laptop HDDs, the "4 Bits Set for All Sizes Mechanical Hard Drive" or the "Hardened Labor-saving 5 Bits Universal HDD Repair Kit" are generally the best choices. These sets cover both the Torx case screws and the Phillips mainboard screws typical of 2.5" drives. If you also work on Seagate drives, the 6-bit set adds the Pentagon bit for circuit board access.
Will the bits strip or damage my HDD screws?
S2 alloy steel bits are hardened to resist deformation under torque, which significantly reduces the risk of cam-out compared to softer bit materials. The most important factor in preventing stripped screws is using the correct bit size for your specific screw head. If you are unsure, refer to the bit size guide above or contact us with your drive model for a recommendation.
🛒 Select your kit type above, then add to cart — get the right bits for your HDD repair the first time.
