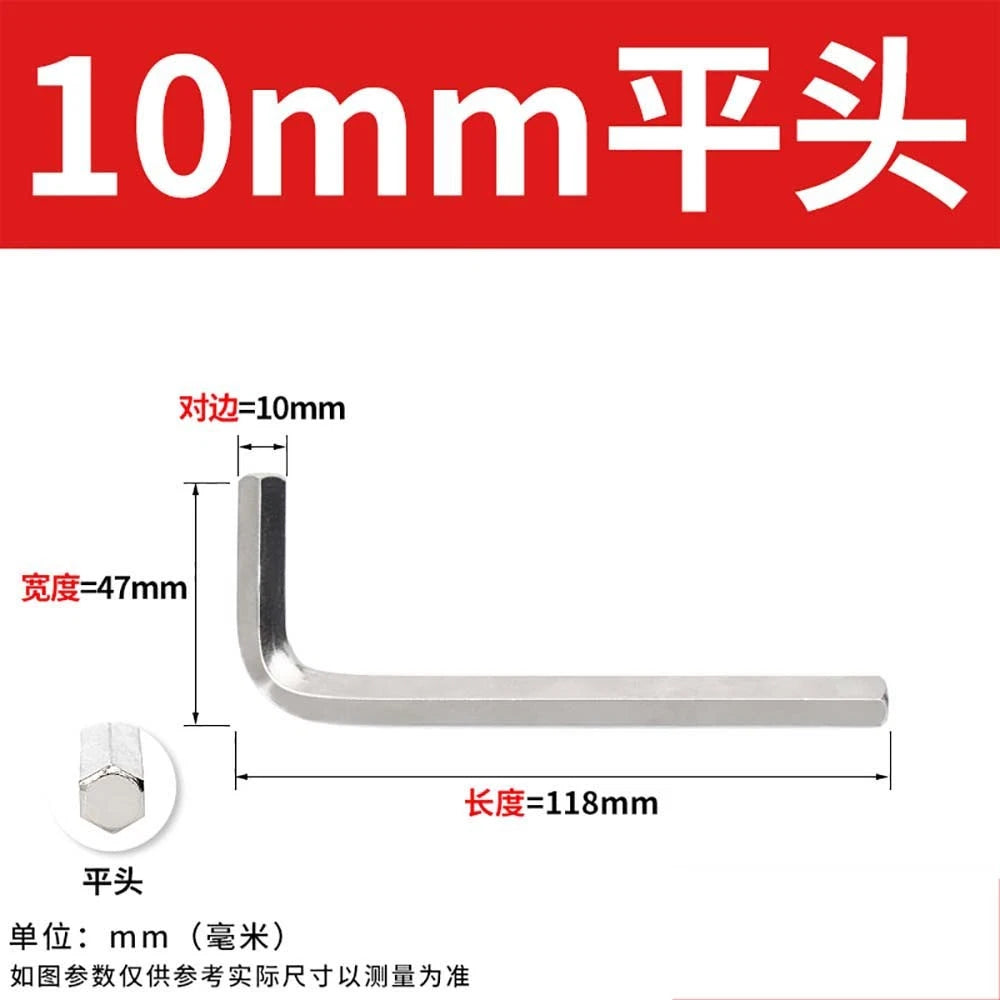

Hex Keys 1.5-2.2mm Allen Keys Ball/Flat End Hex Key Hex Wrenches Alloy Steel

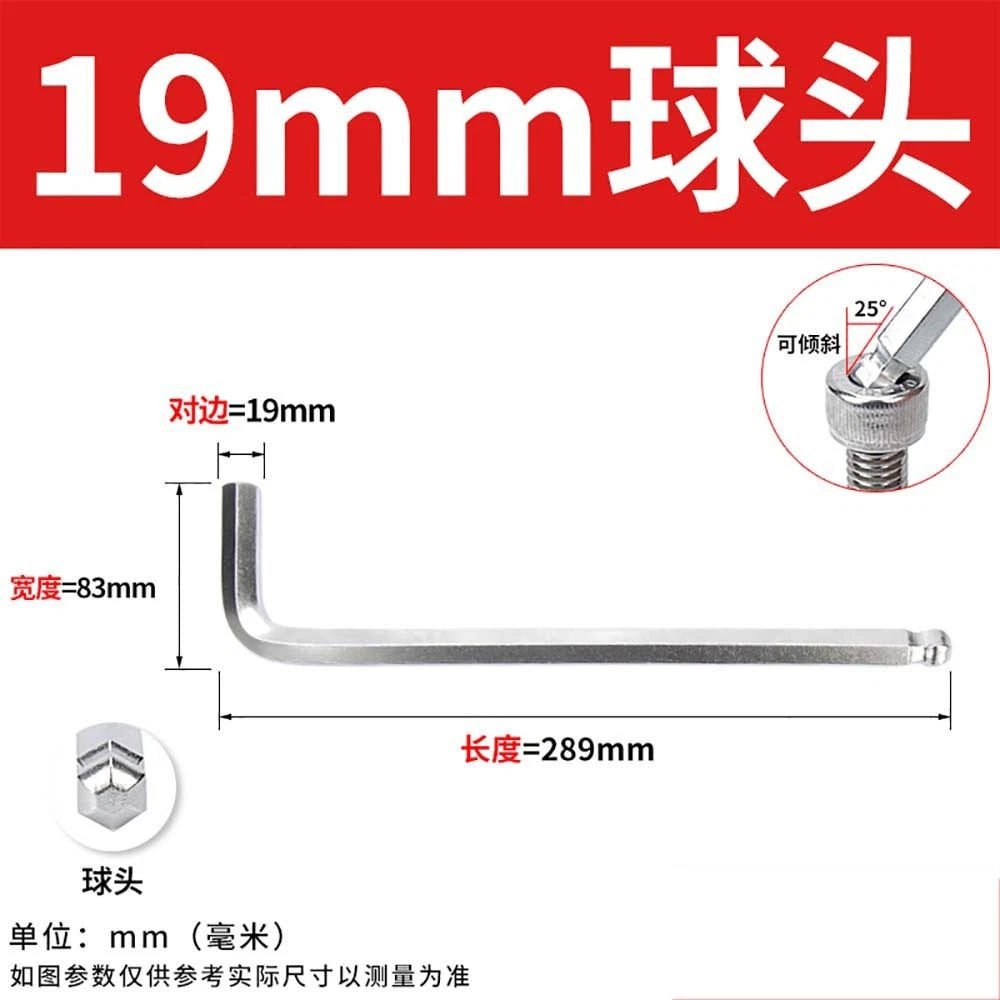

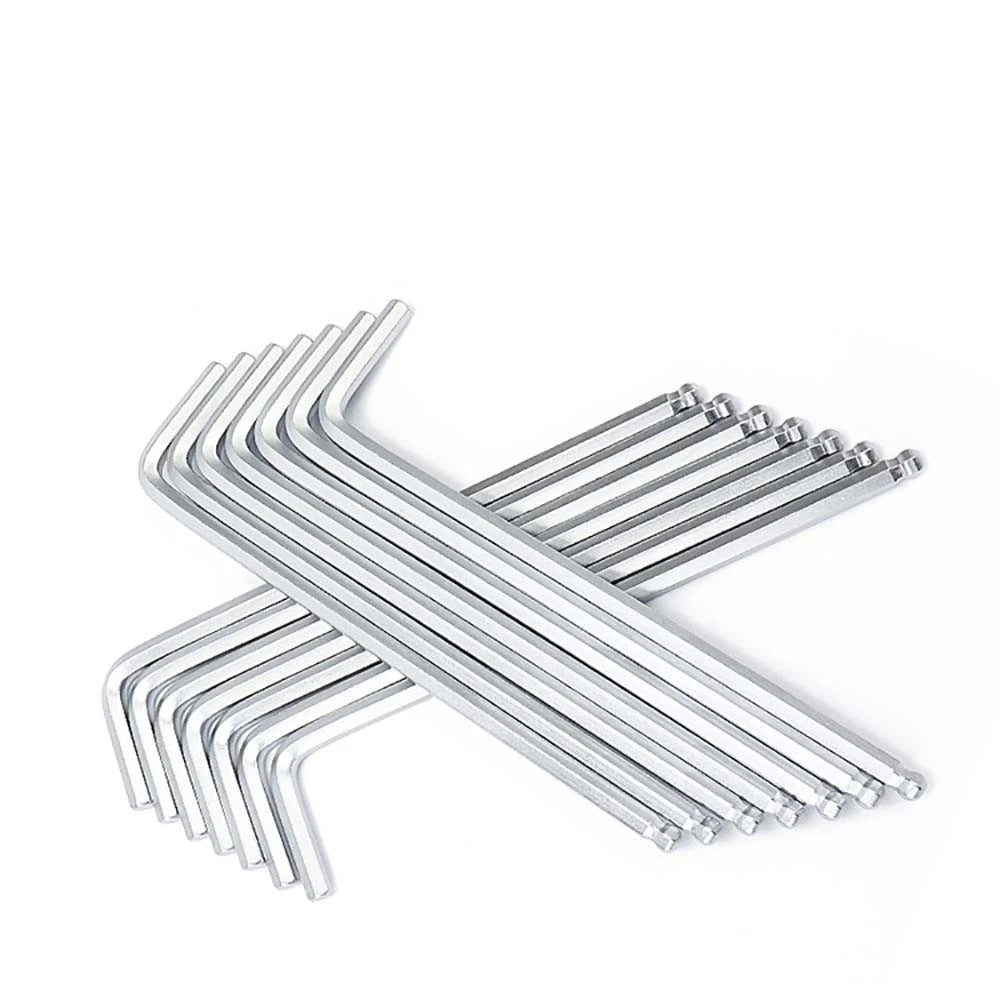

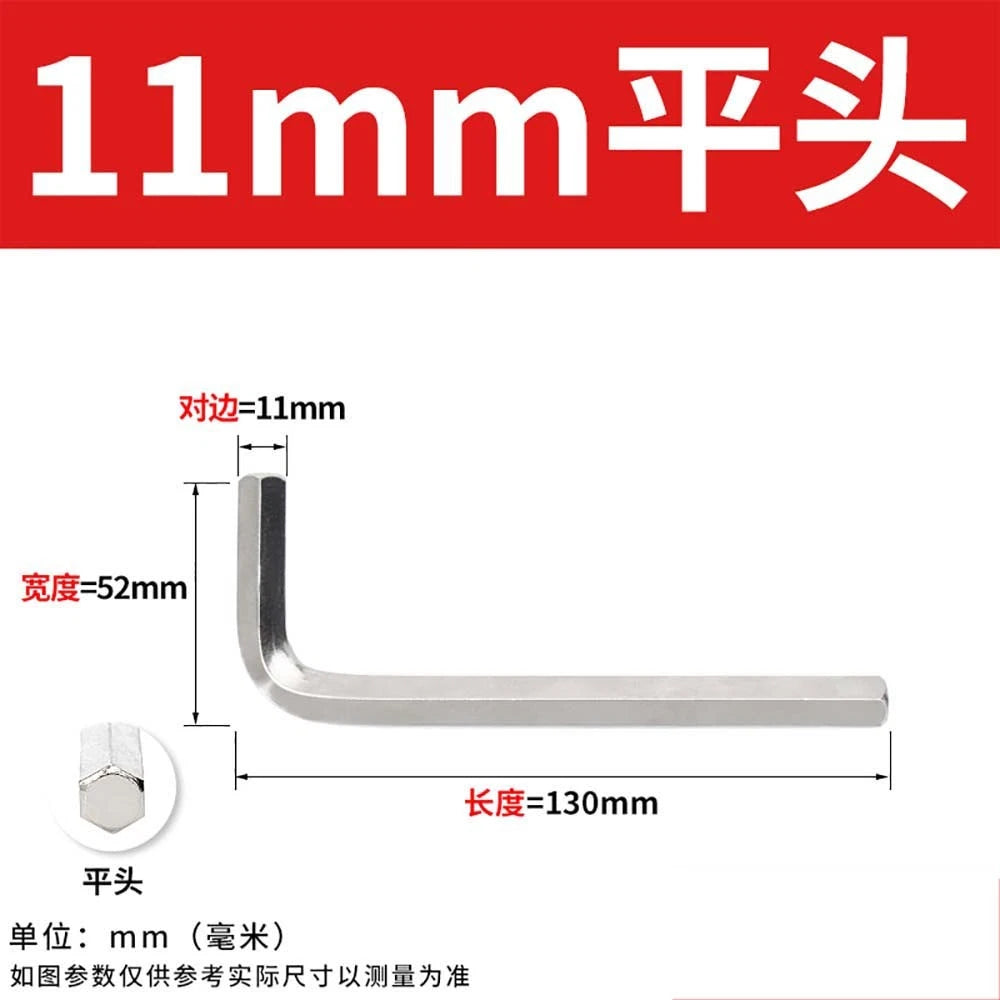

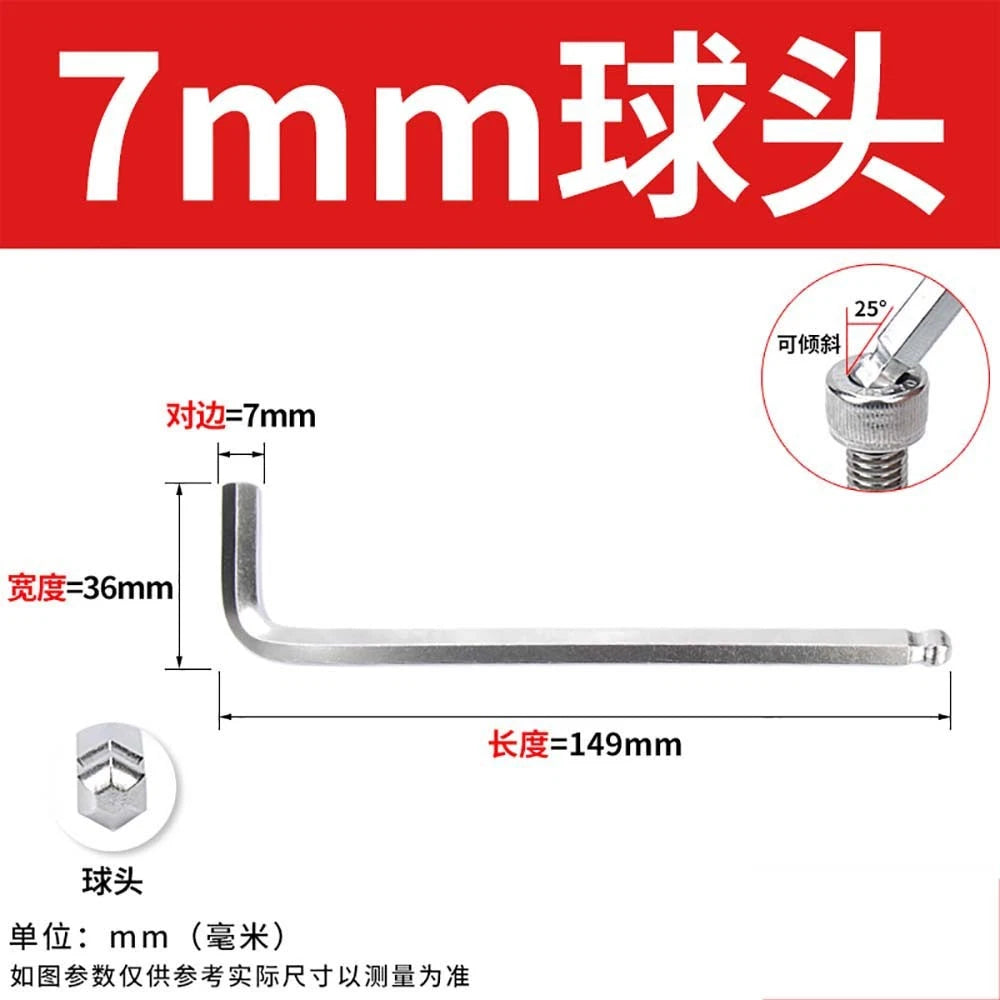

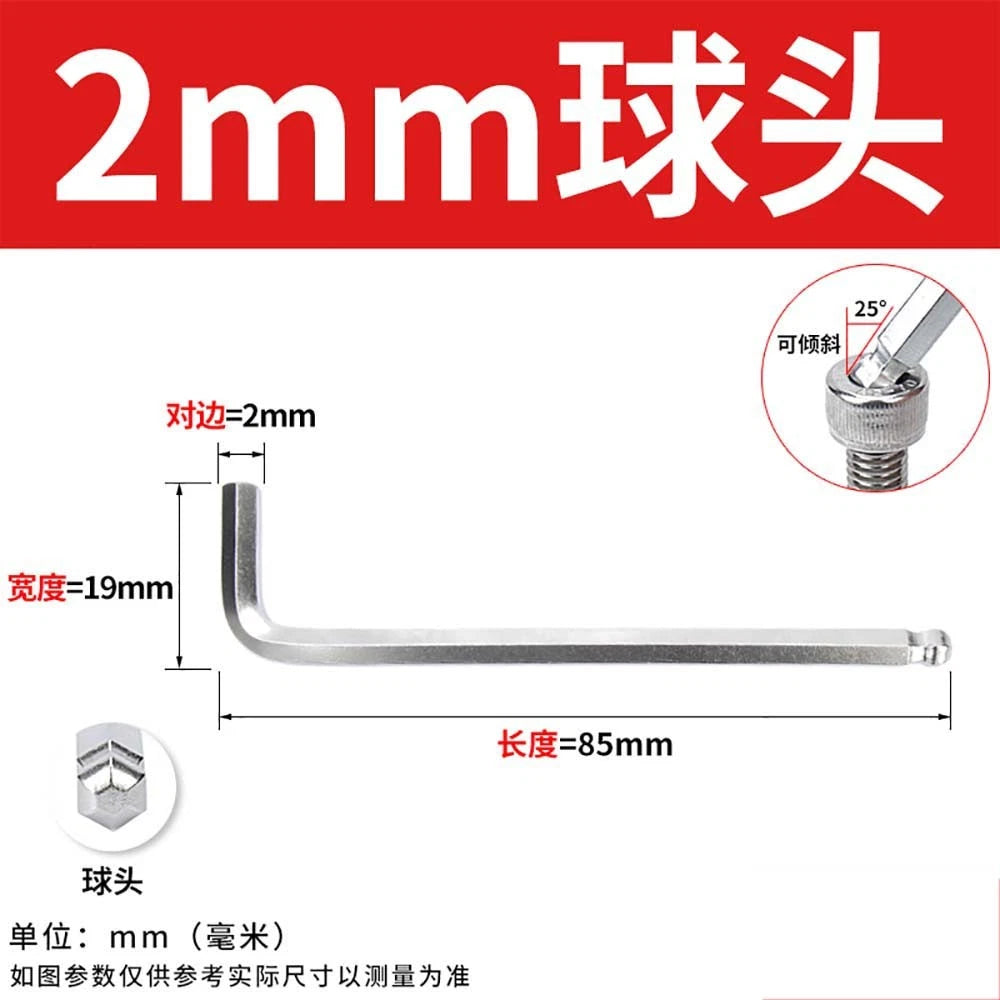

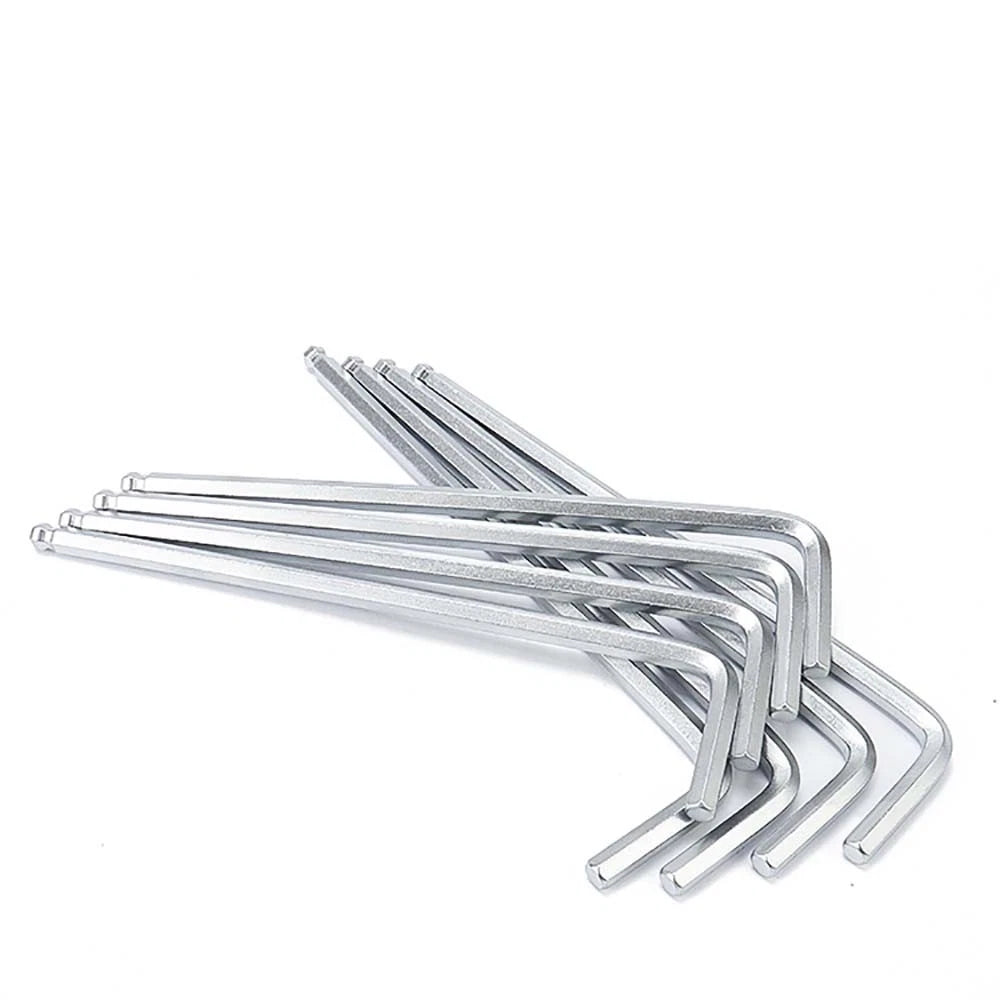

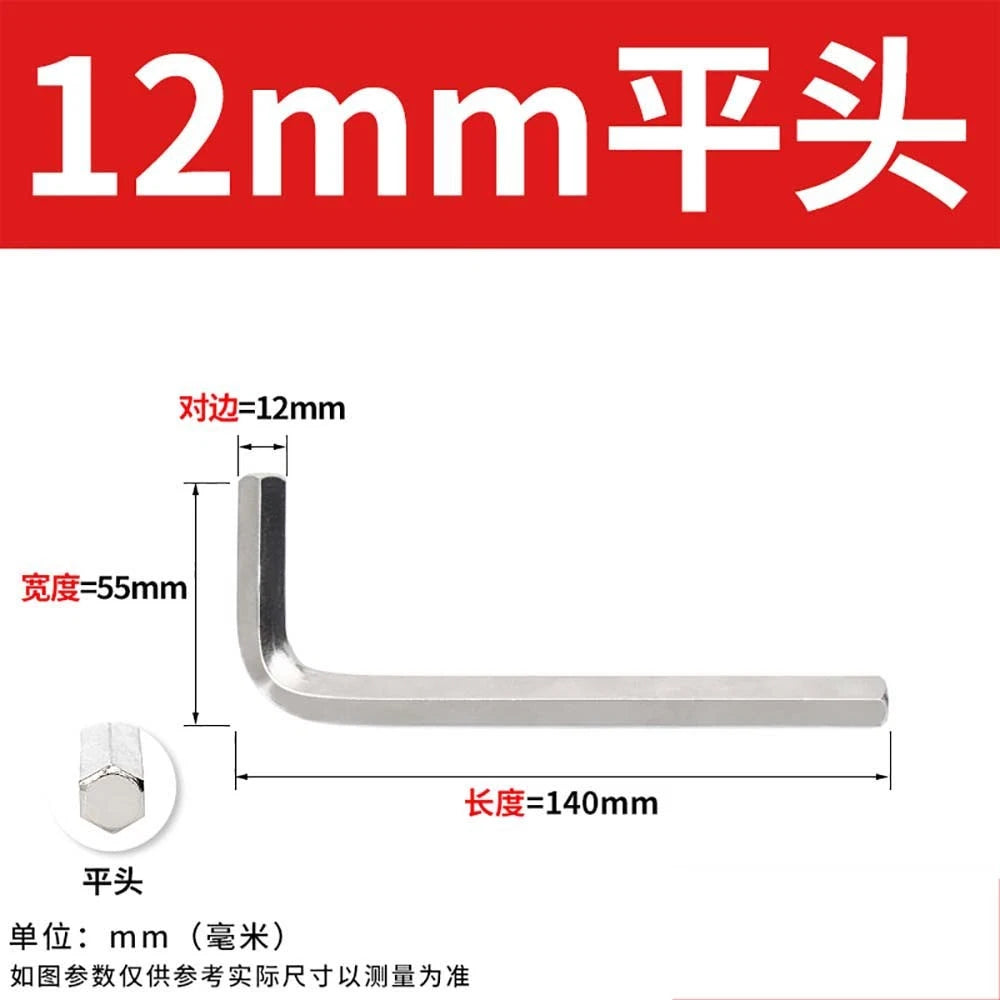

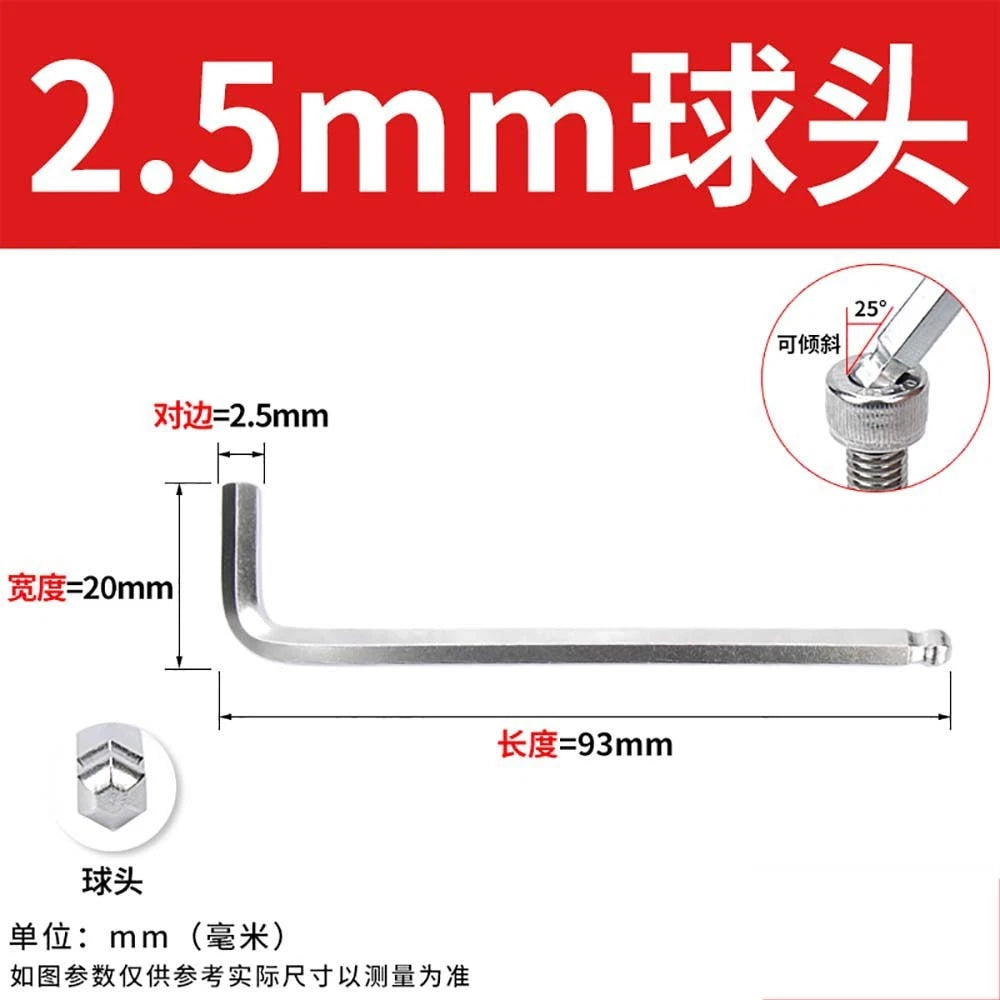

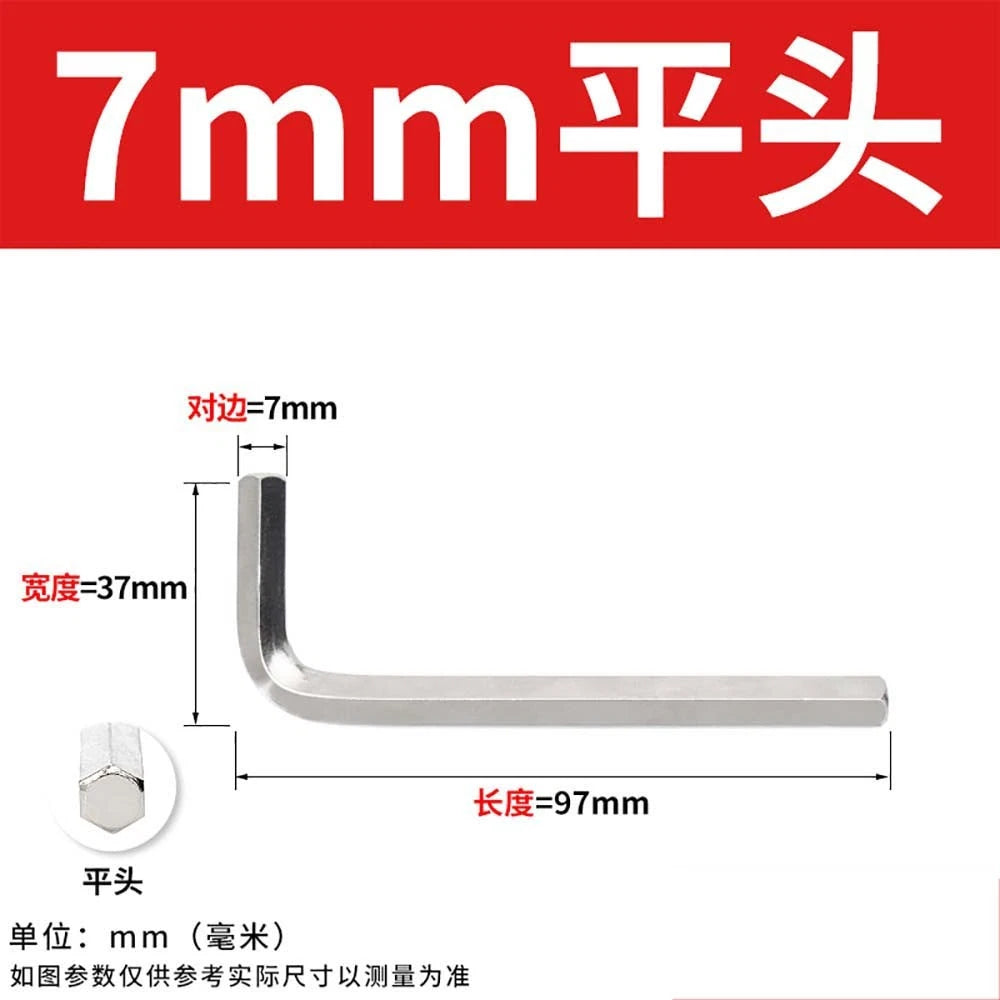

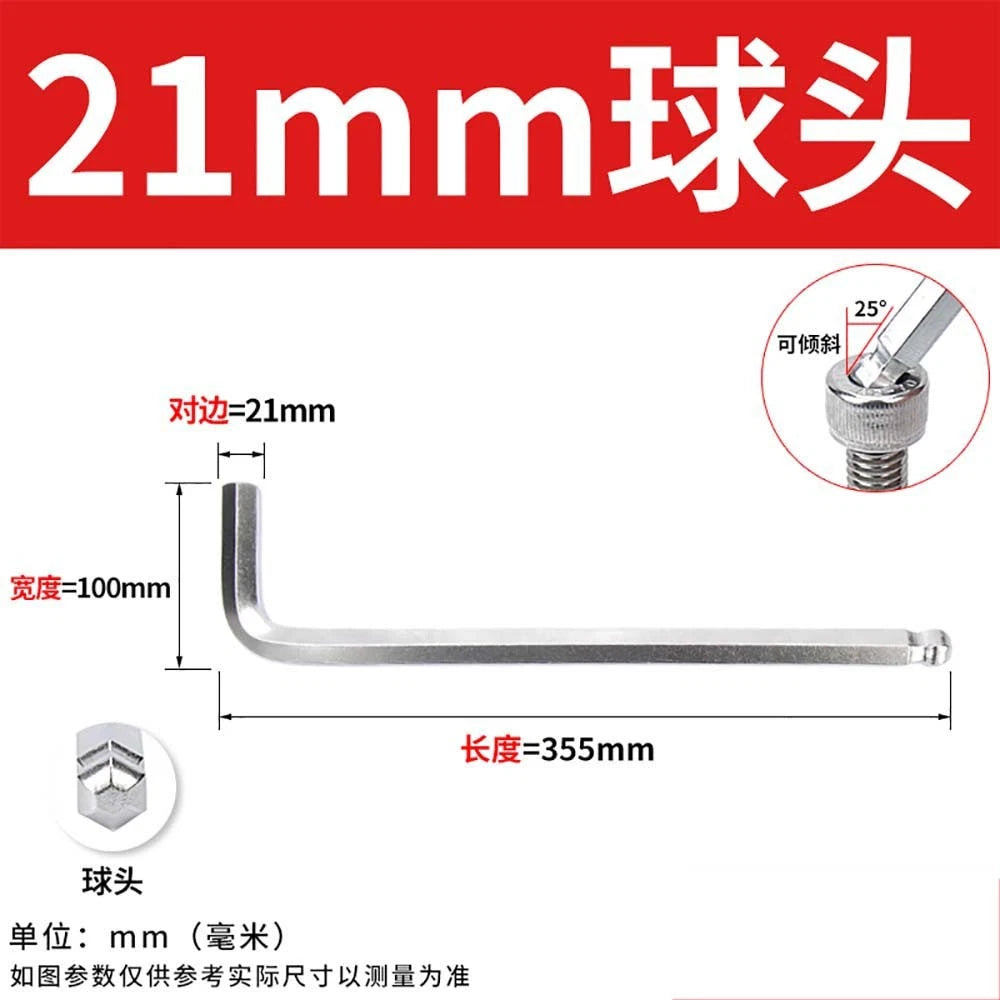

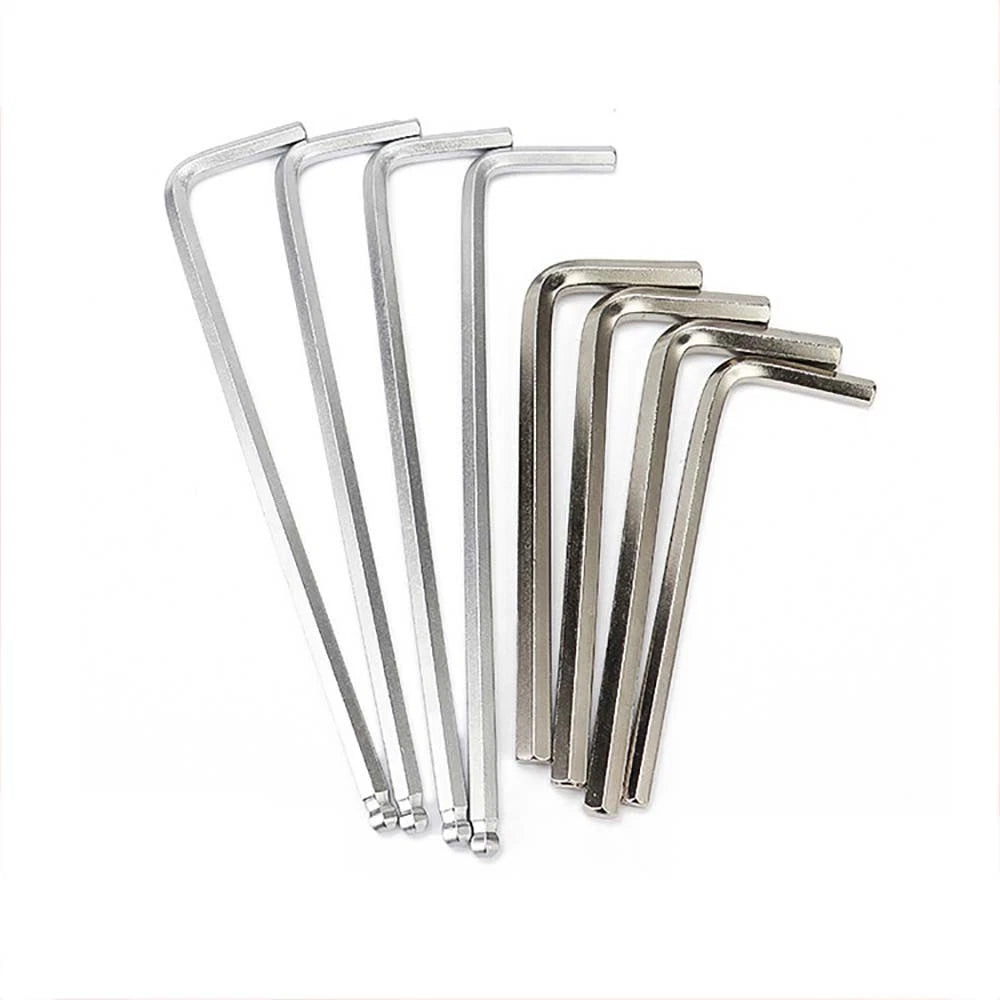

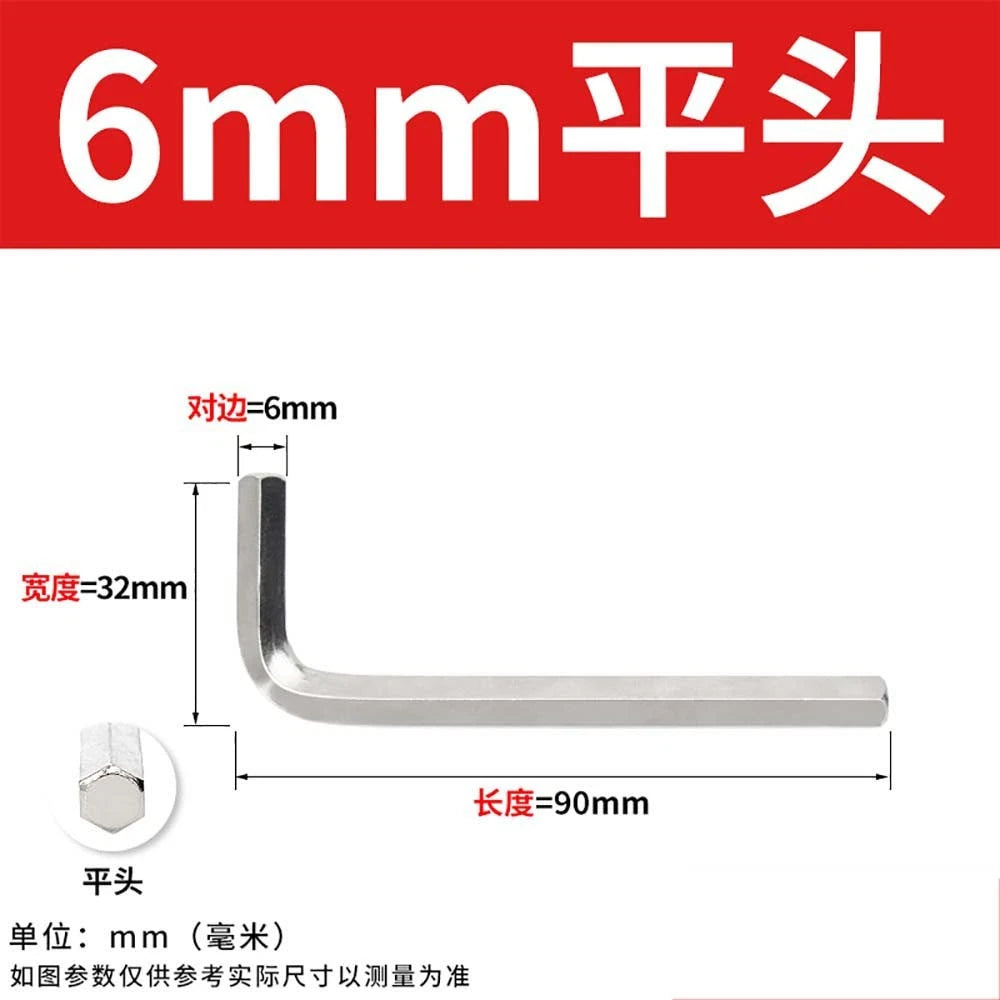

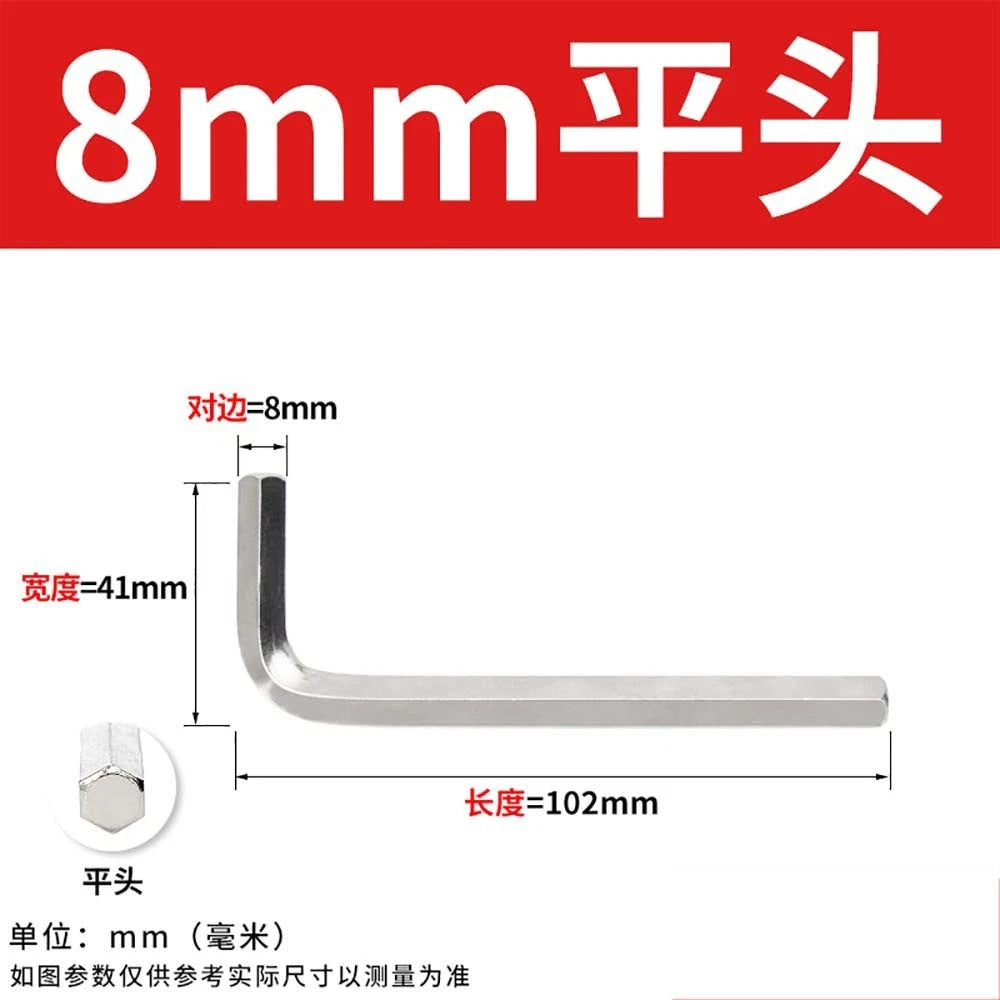

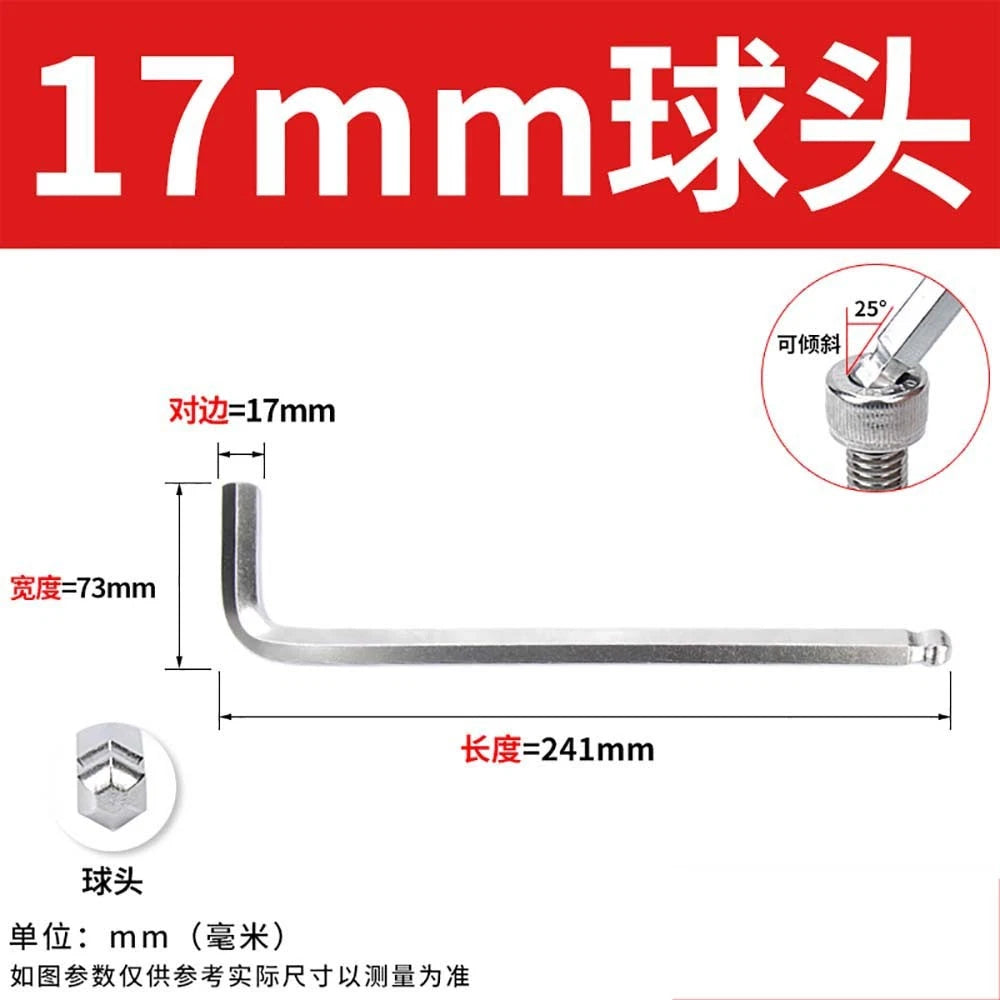

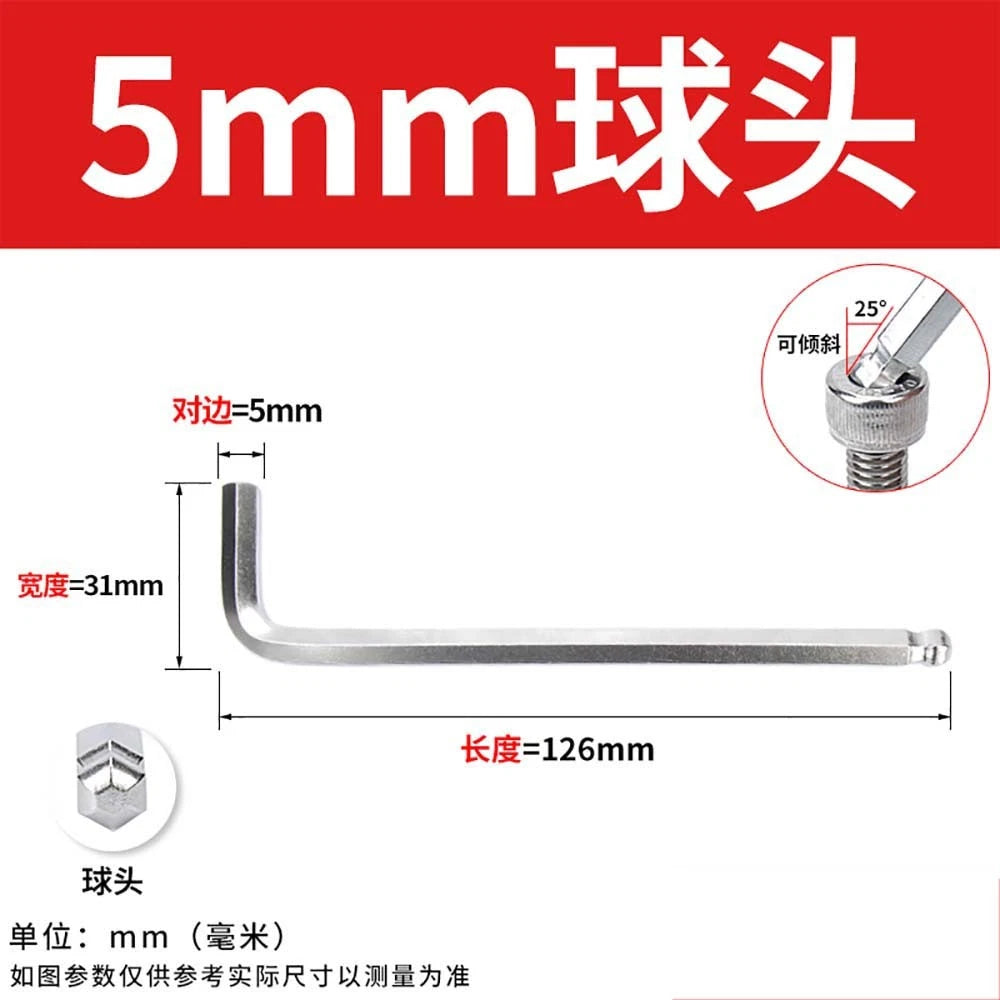

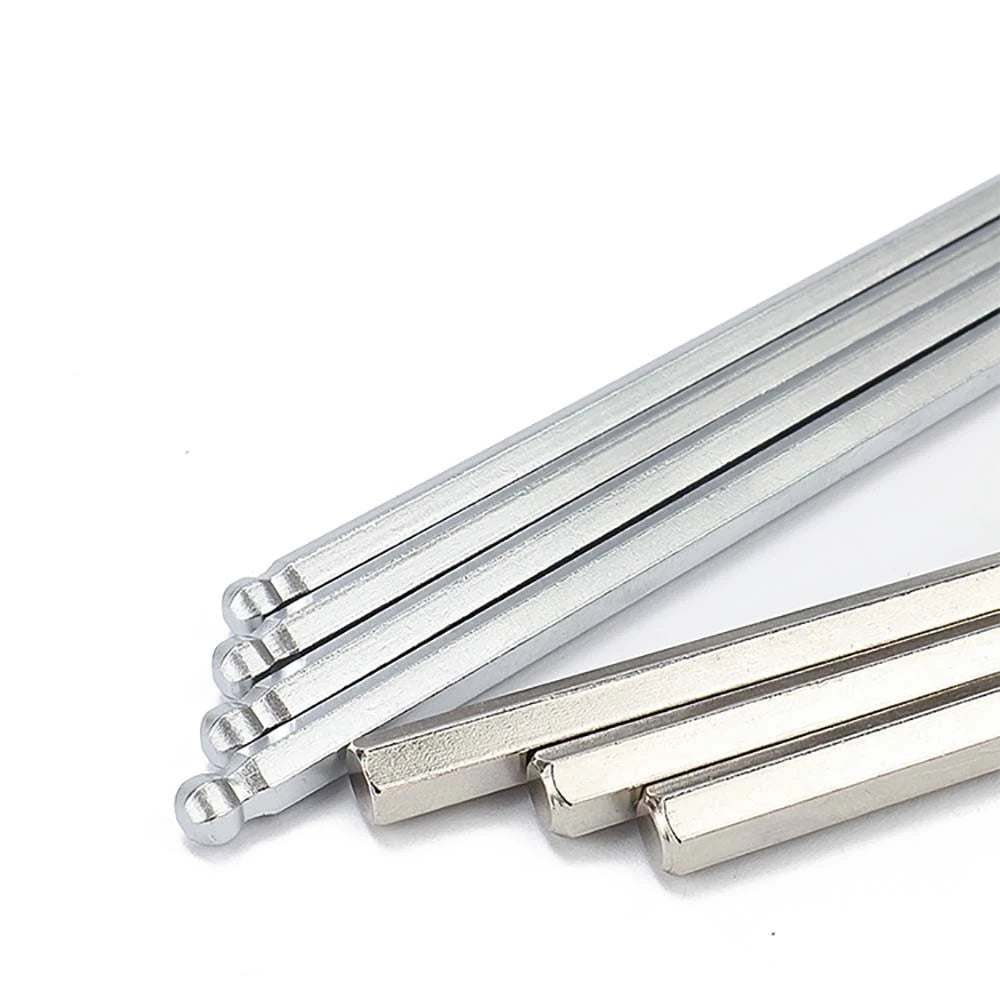

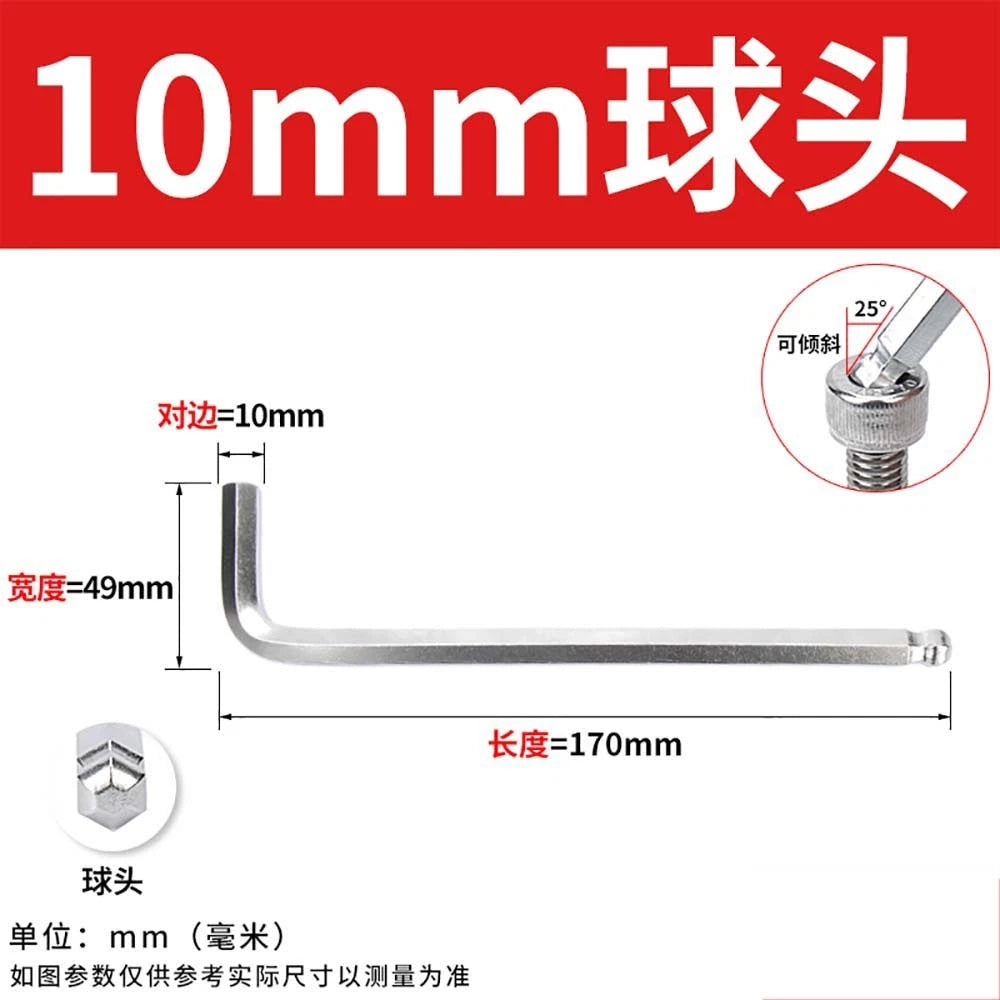

A ball-end hex key has a rounded, ball-shaped tip that allows you to engage a fastener at an angle — typically up to about 25–30° off-axis. This is useful when you cannot approach a bolt straight-on due to surrounding components or tight clearances. A flat-end (standard) hex key has a straight, fully-faceted tip that must be inserted straight into the socket. It cannot work at an angle, but it transfers torque more efficiently and is less likely to slip under high load. For most assembly tasks, flat-end keys are used for final tightening while ball-end keys are used for initial threading and adjustment in confined spaces.

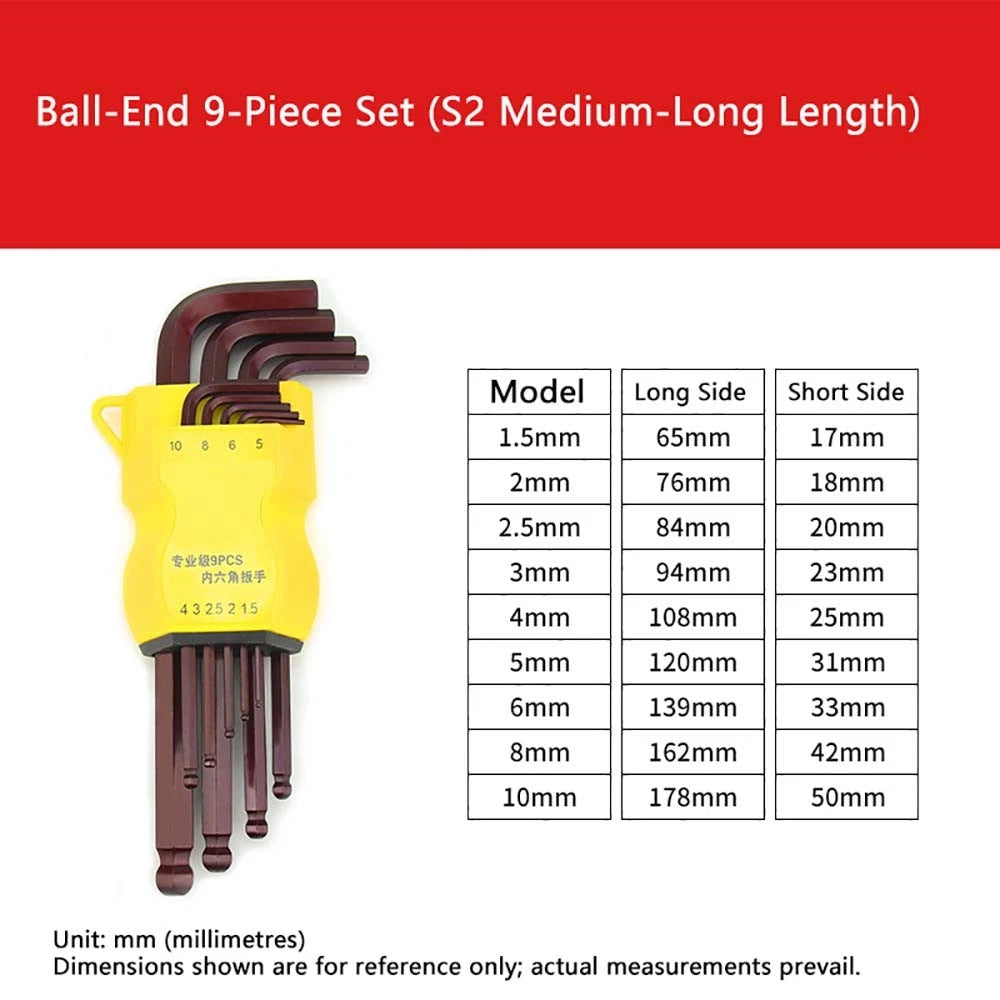

Chrome vanadium (Cr-V) steel is a widely used alloy steel that offers a good balance of hardness, toughness, and fatigue resistance. It is well-suited for hand-tool applications where the key is turned manually. S2 steel is a shock-resistant tool steel with higher hardness and better impact resistance than standard Cr-V. S2 hex keys are commonly used with power screwdrivers or impact drivers, or in applications requiring repeated high-torque cycling. If you are using these keys by hand for general assembly, chrome vanadium is sufficient. If you are using them with power tools or in demanding industrial settings, S2 steel is the more durable choice.

The hex key size must match the across-flats (A/F) dimension of the socket in your fastener — not the bolt's thread diameter. For example, an M5 socket-head cap screw typically requires a 4 mm hex key, while an M8 bolt typically requires a 6 mm key. If you are unsure, check the fastener manufacturer's specification sheet or measure the socket opening with a caliper. Using an undersized key risks rounding the socket; using an oversized key will not fit. When in doubt, start with the next size down and work up until you find a snug fit with no play.

The S2 steel variants are designed to withstand the impact and torque loads associated with power tools. Chrome vanadium variants are intended for hand use and may be more susceptible to fracture under repeated impact loading. If you plan to use hex keys with a power tool, select the S2 steel option and ensure the key is properly seated in the fastener before applying power to avoid cam-out or tip breakage.

No. These hex keys are sized in metric millimeters and are designed for metric socket-head fasteners (ISO 4762 / DIN 912 and related standards). While some metric sizes are close in dimension to certain SAE sizes — for example, 5 mm is close to 3/16 in — using a metric key on an SAE fastener (or vice versa) risks rounding the socket due to the slight dimensional mismatch. For SAE fasteners, use a dedicated SAE hex key set measured in fractional inches.

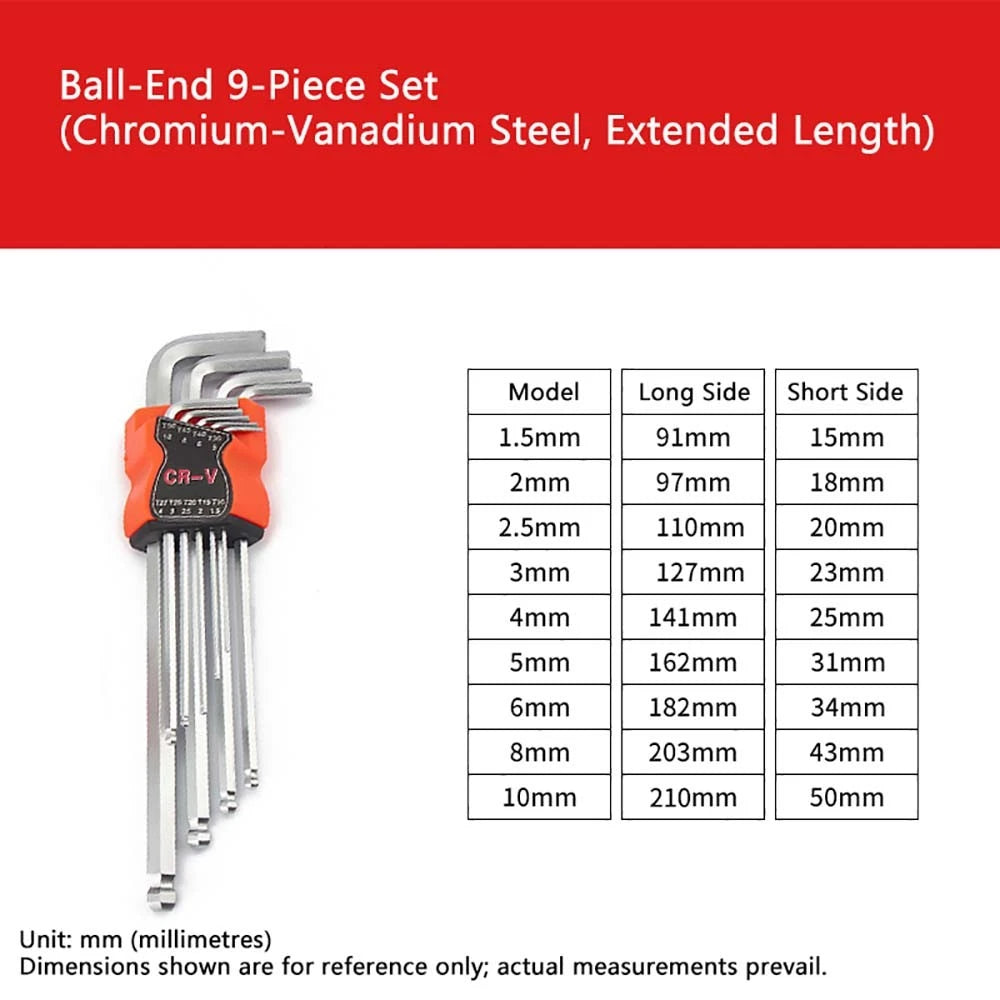

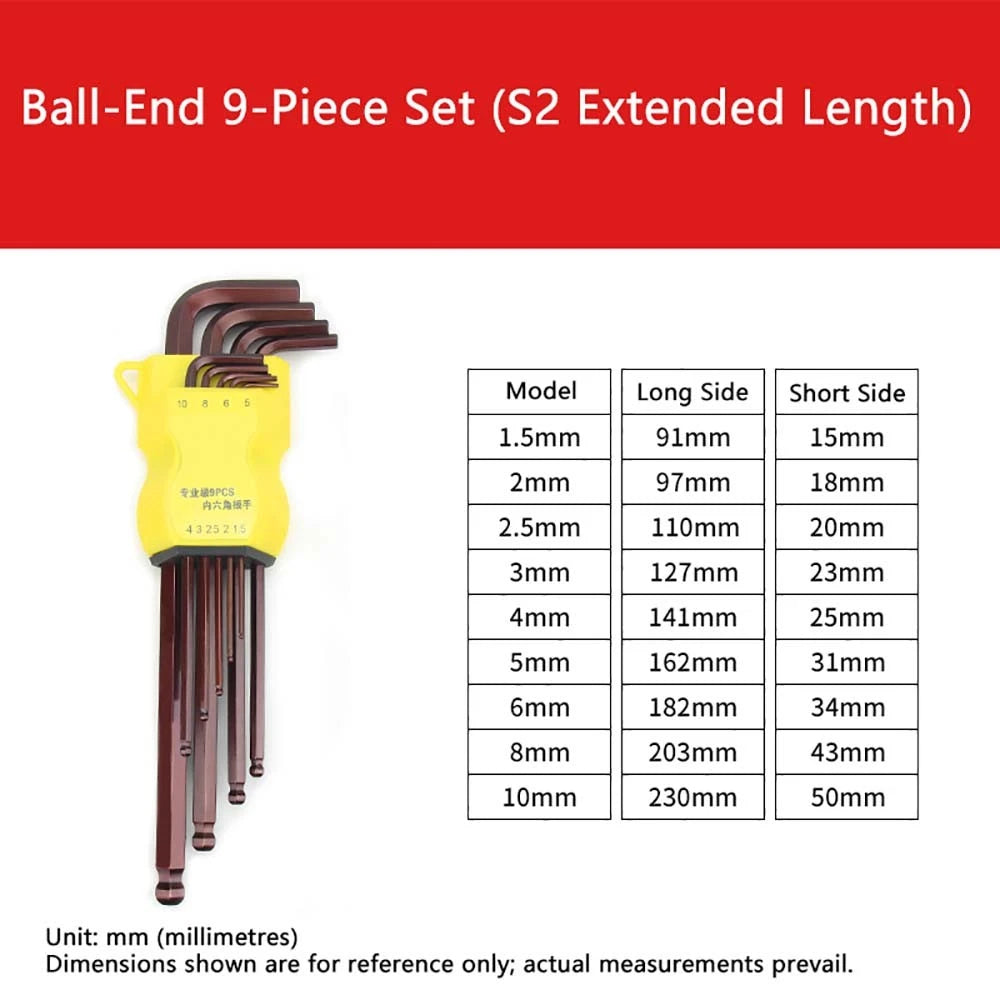

Extended-length (long-arm) hex keys provide greater reach into deep recesses, such as countersunk bolt holes in thick plates, engine components, or machinery housings where a standard-length key cannot reach the fastener. The longer arm also provides more leverage for loosening stubborn fasteners. The trade-off is that extended-length keys are more susceptible to flex under very high torque, so for final high-torque tightening in accessible locations, a medium-length key used on the short arm is often preferable.

Ball-end keys should be used for initial threading and light adjustment only — not for final tightening. Because the ball tip contacts only a portion of the socket's faces, it concentrates stress on fewer contact points, which can round the socket if excessive torque is applied. For final tightening, switch to the flat-end (straight) tip, which engages all six faces of the socket fully. Also ensure the key is fully seated before applying torque, and avoid using a ball-end key at extreme angles (beyond ~25°) as this further reduces contact area.
