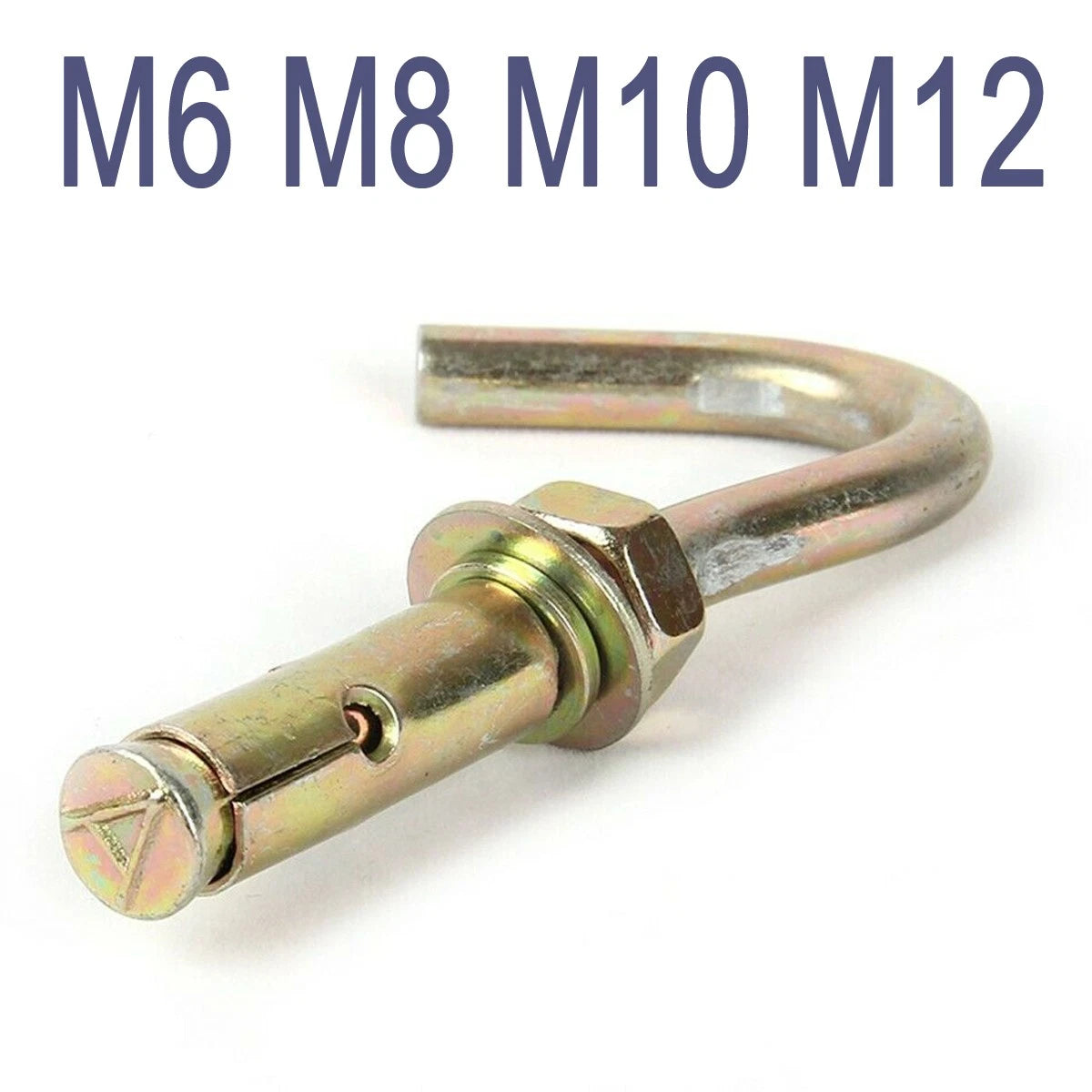

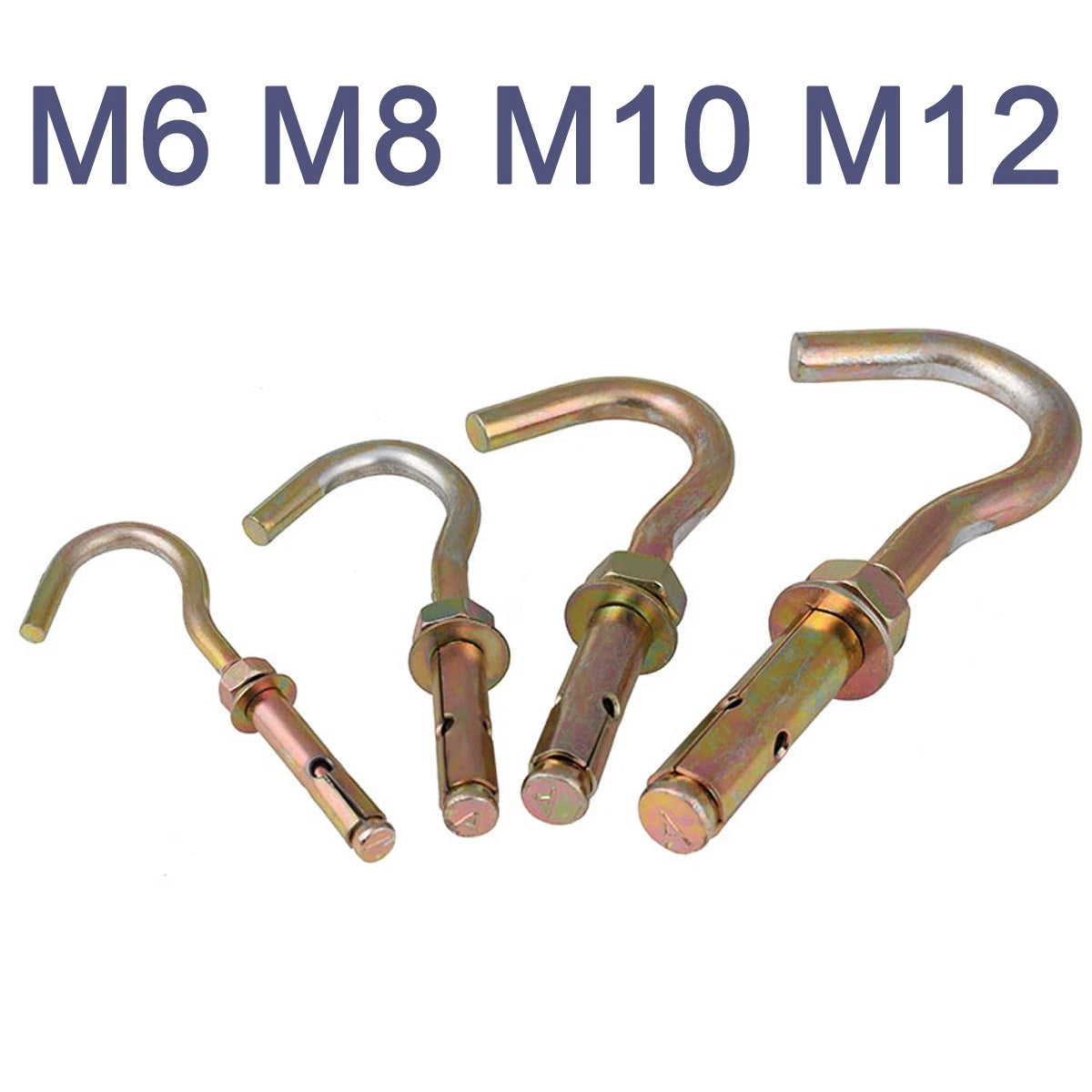

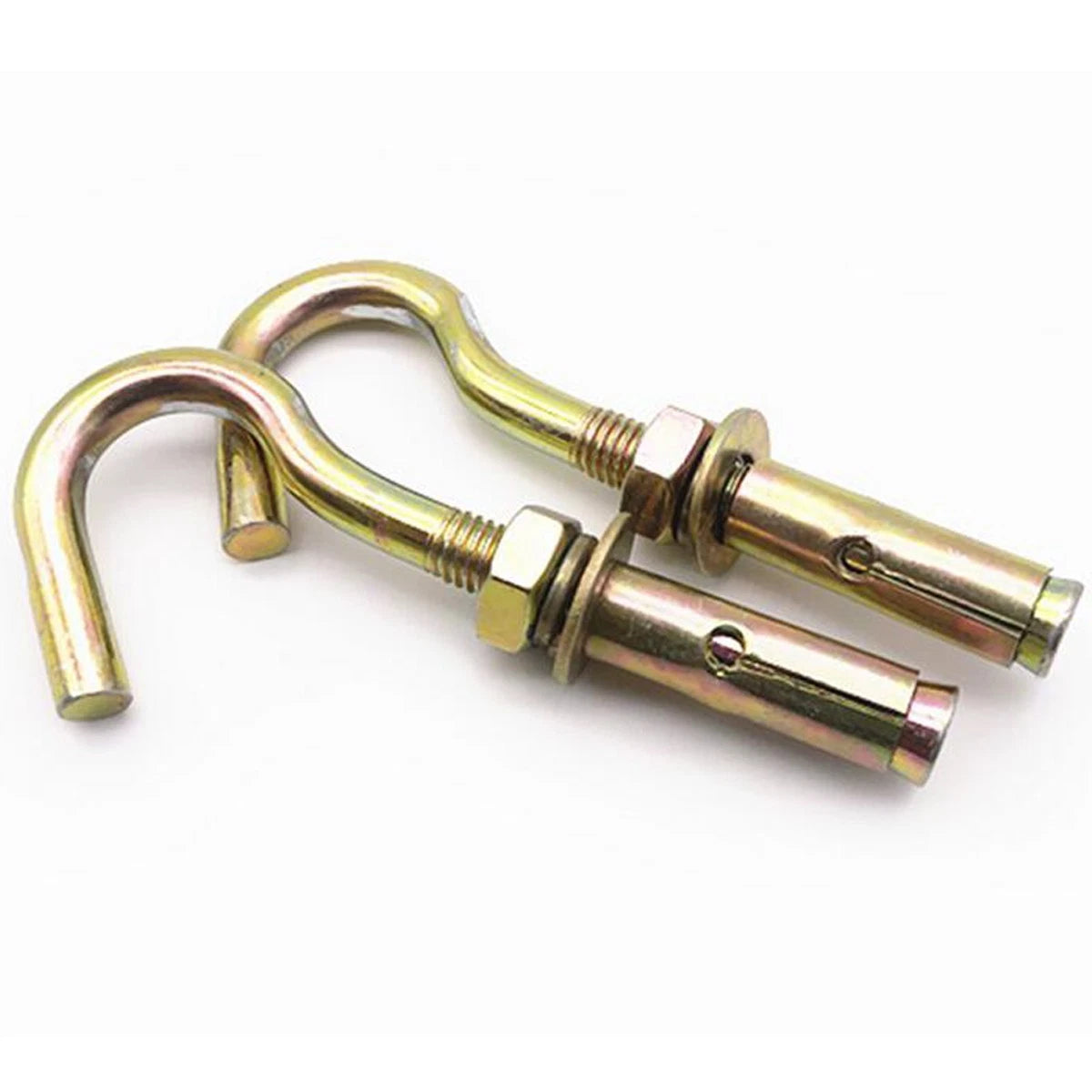

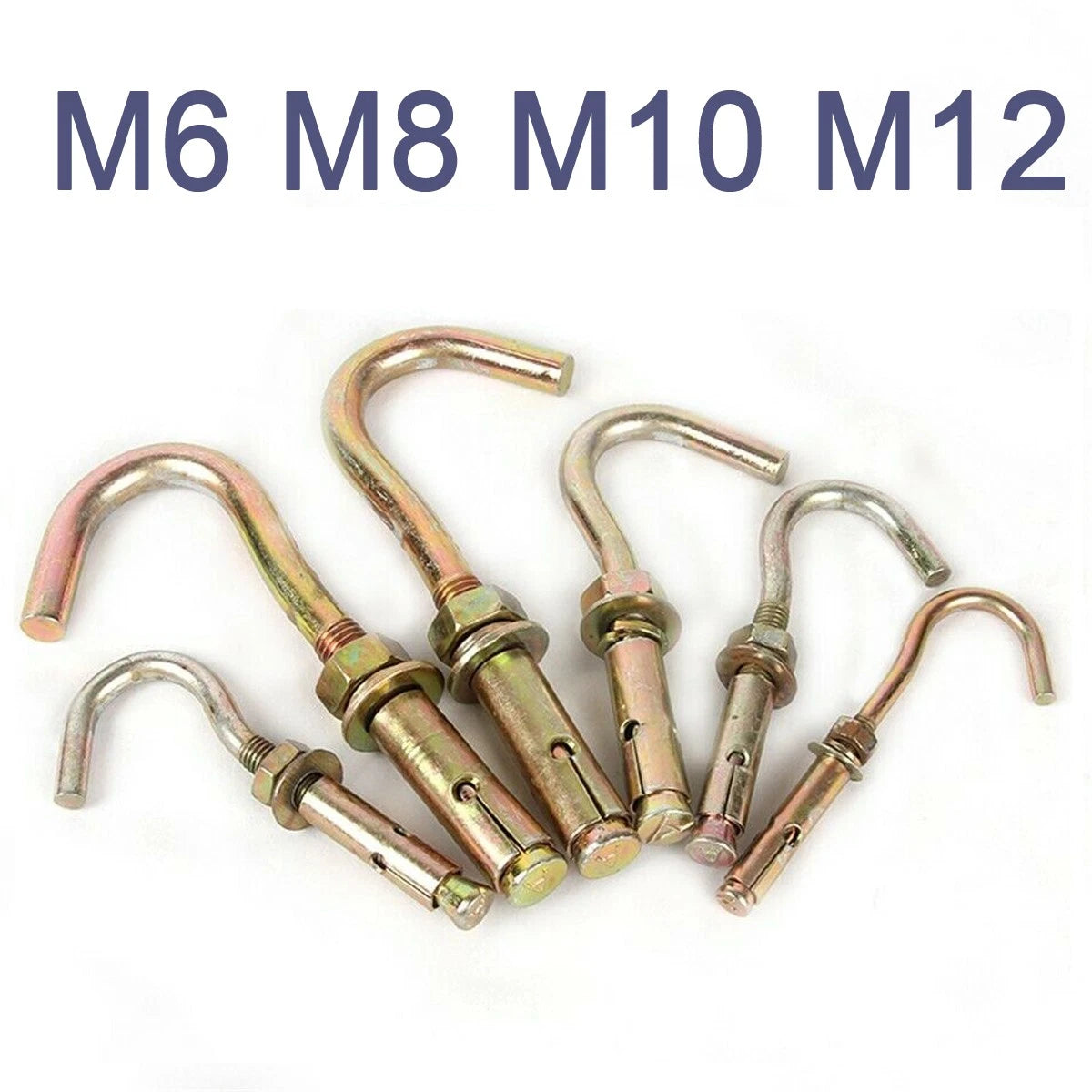

M6–M12 Hook Eye Bolt Wall Anchor Expansion Bolts – Color Zinc Plated

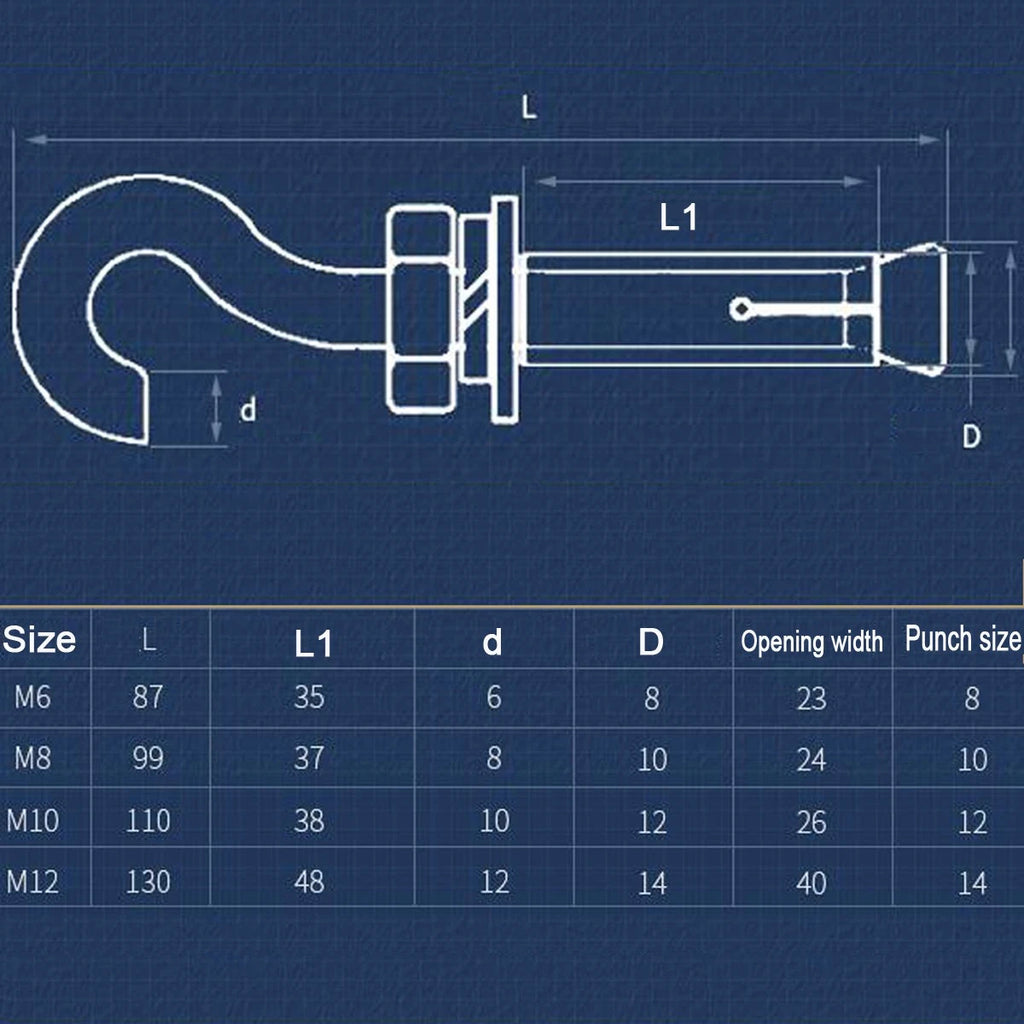

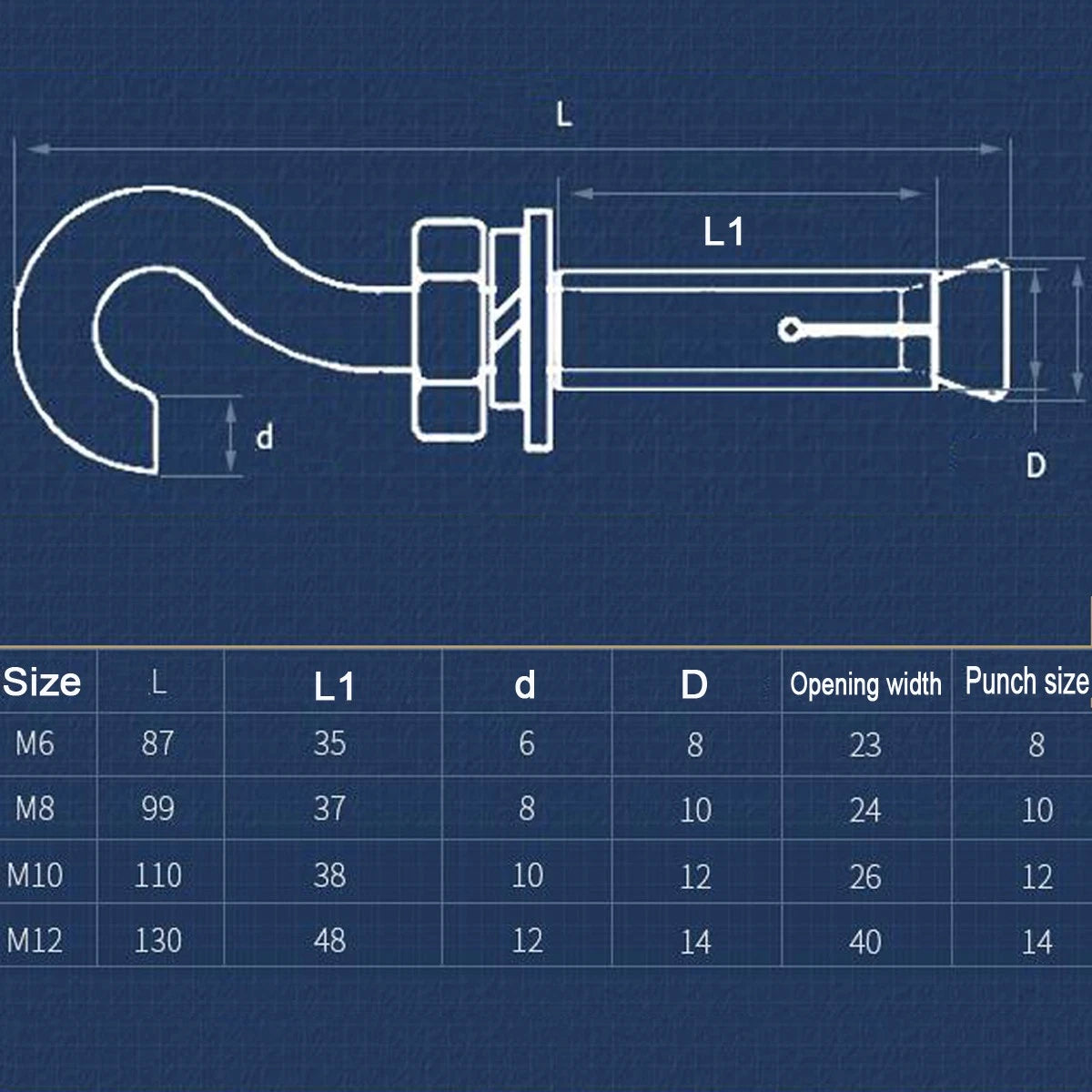

Match the bolt diameter to your drill bit size — M6 requires a 6 mm masonry bit, M8 requires 8 mm, M10 requires 10 mm, and M12 requires 12 mm. As a general rule, the anchor embedment depth should be at least 1.5× the bolt diameter for solid concrete (e.g., M10 → typically 15 mm minimum embedment). For heavier loads, use a larger diameter and deeper embedment. When in doubt, size up.

Quick inch reference: M6 ≈ 1/4", M8 ≈ 5/16", M10 ≈ 3/8", M12 ≈ 1/2".

Load capacity depends on bolt size, concrete strength, embedment depth, and direction of force (shear vs. tension). Generally, M6 anchors are suited for lighter decorative or utility loads, while M10–M12 anchors are used for heavier structural hanging applications such as gym equipment or overhead storage. For safety-critical or overhead load applications, always consult a licensed structural engineer and verify with a pull-out test.

The color zinc plating provides moderate corrosion resistance, making these anchors suitable for covered outdoor areas, garages, and sheltered patios where direct rain exposure is limited. For fully exposed outdoor environments, coastal areas, or applications with continuous moisture contact, stainless steel expansion anchors are generally recommended for long-term durability.

These anchors use ISO Metric Coarse threads (M6, M8, M10, M12), which are the international standard used worldwide. They are not interchangeable with UNC or UNF inch-standard bolts. However, metric hardware is widely available at US home improvement stores, and metric-to-inch adapters exist if needed. Standard metric nuts, washers, and carabiners will thread directly onto these bolts.

These hook eye bolt expansion anchors are designed for solid concrete, poured concrete ceilings, solid brick, and dense masonry. They are generally not suitable for hollow concrete block (CMU), drywall, plaster, or soft stone without additional reinforcement. If you are unsure of your wall composition, probe with a small pilot hole before committing to a full installation.

Each variant is a specific combination of size (M6 / M8 / M10 / M12) and quantity (1–100 pcs). Sizes cannot be mixed within a single variant. To order multiple sizes, simply select each size variant separately and add each to your cart individually — they will ship together from our US warehouse.

You will typically need: a hammer drill with a matching metric masonry/carbide-tipped bit (6, 8, 10, or 12 mm), a vacuum or blow pump to clear dust from the hole, a hammer to seat the anchor sleeve, and a wrench or pliers to tighten the hook bolt until the sleeve expands and locks. Always wear safety glasses when drilling into concrete or masonry.

The anchor is generally considered set when the hook bolt can no longer be turned freely and you feel firm resistance — the expansion sleeve has spread against the hole walls. Do not overtighten, as this can crack the surrounding masonry. For critical applications, a torque wrench set to the manufacturer's recommended torque value is advisable. If in doubt, perform a manual pull test before applying full load.
