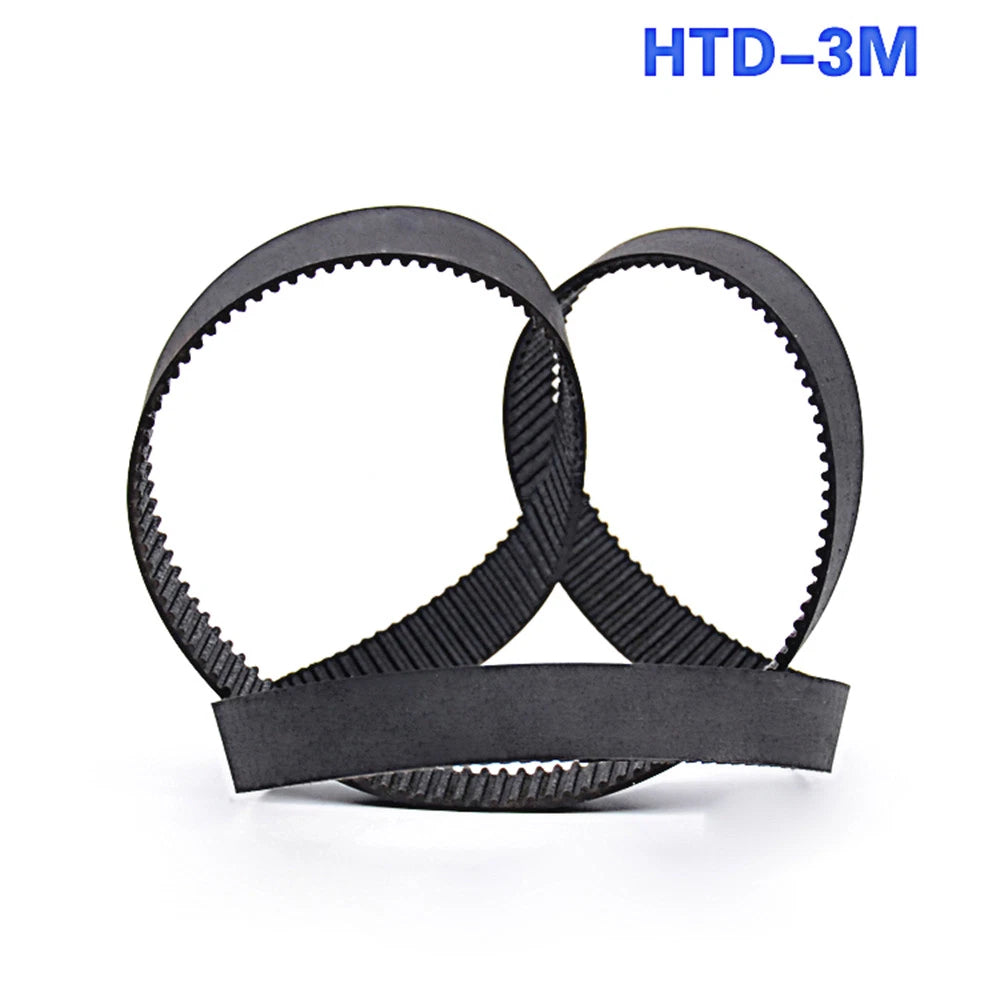

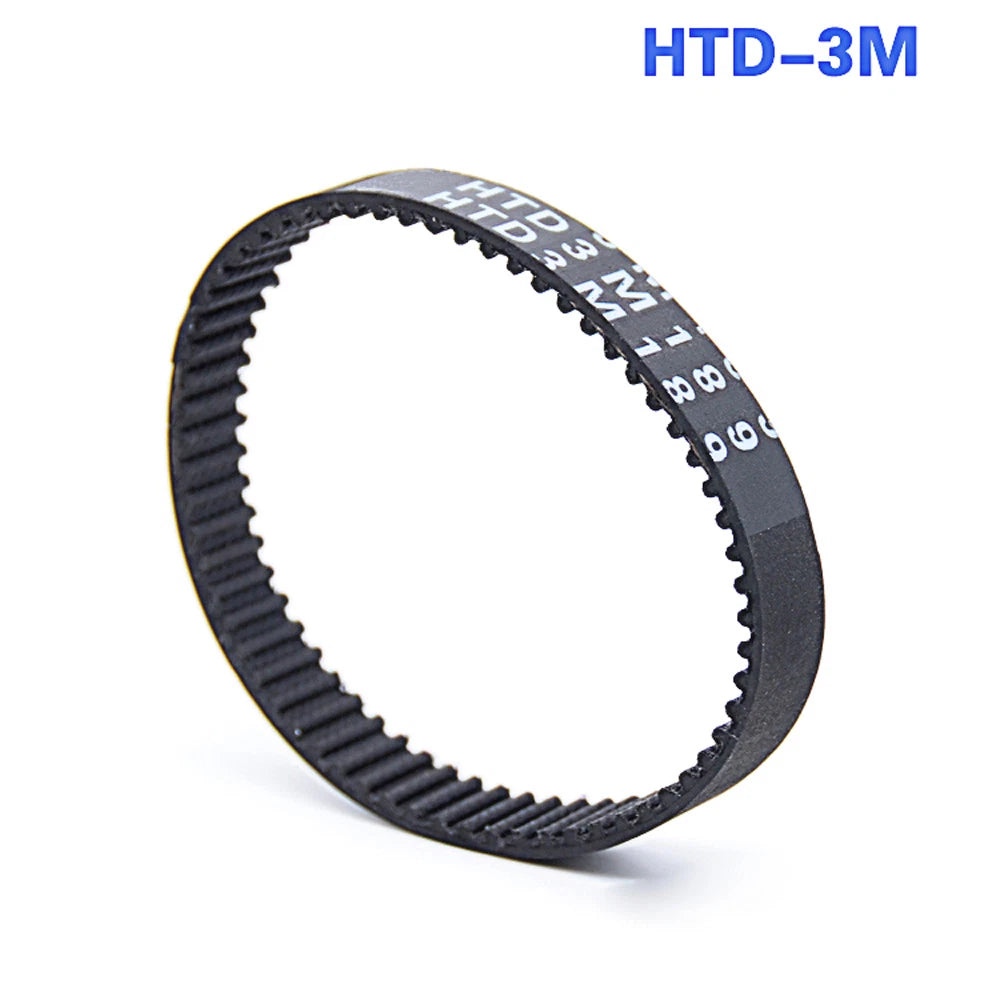

HTD 3M Closed Loop Rubber Timing Belt — Reliable Torque Transfer for 3D Printers, CNC & Robotics

A stretched, cracked, or wrong-length timing belt in your 3D printer, CNC router, or robotic drive system leads to missed steps, positioning errors, and failed prints. These HTD 3M closed loop rubber timing belts are available in ten circumference sizes from 189mm to 390mm and two widths — 10mm and 15mm — giving you a direct replacement or upgrade option for a wide range of small precision drives that use the HTD 3M tooth profile.

Each belt is a seamless closed loop constructed from rubber with internal cord reinforcement for dimensional stability under tension. The HTD 3M tooth pitch is 3mm (≈0.118"), with a rounded HTD tooth form engineered for smooth, high-torque engagement. Belt widths are available in 10mm (≈3/8") and 15mm (≈19/32"). Available circumference sizes: 189mm (≈7.4"), 210mm (≈8.3"), 216mm (≈8.5"), 219mm (≈8.6"), 222mm (≈8.7"), 225mm (≈8.9"), 228mm (≈9.0"), 231mm (≈9.1"), 234mm (≈9.2"), and 390mm (≈15.4"). Sold individually (1 piece per order).

These HTD 3M synchronous belts are well-suited for delta-style 3D printer arm drives, small CNC router axis systems, servo-driven robotic joints, and compact automation equipment requiring a fixed-center-distance closed-loop drive. The seamless loop construction eliminates splice-point failure and simplifies installation on fixed-axle pulley systems.

🔵 Compatibility: Fits standard HTD 3M pulleys (3mm pitch, rounded tooth profile). Match belt width (10mm or 15mm) to your pulley groove width. Verify circumference size before ordering — see sizing guide in FAQ below.
⚠️ Size confirmation recommended: Many HTD 3M sizes differ by only 3mm in circumference. Count the teeth on your existing belt (teeth × 3mm = circumference) or measure carefully before selecting a variant.

✅ Key Features of These HTD 3M Closed Loop Timing Belts

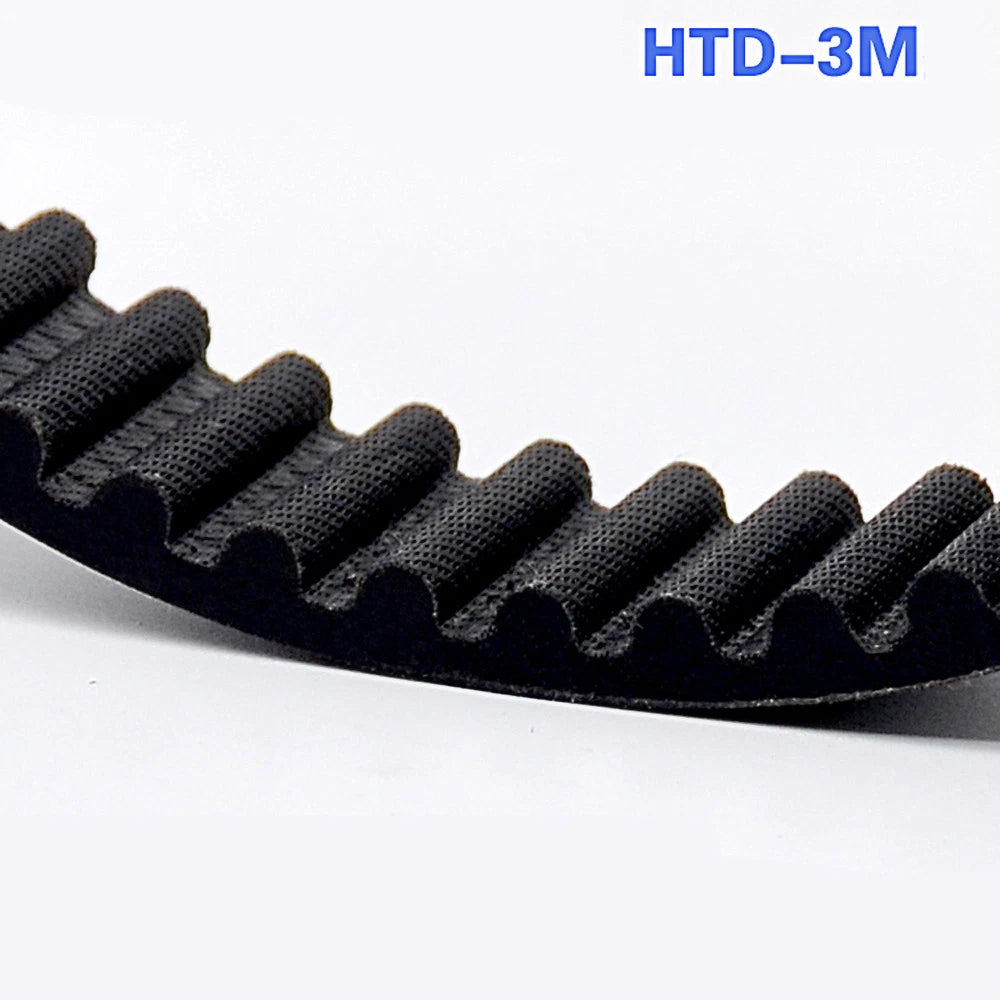

  • ⚙️HTD Rounded Tooth Profile — The 3mm-pitch HTD tooth form provides deeper pulley engagement than trapezoidal profiles, reducing tooth jump risk in higher-torque 3D printer and CNC drive applications.
  • 🔄Seamless Closed-Loop Construction — No splice points means consistent tension distribution around the full belt circumference, reducing the chance of localized wear or failure in continuous-duty drives.
  • 🧵Internal Cord Reinforcement — Tensile cords embedded in the rubber body resist elongation under load, helping maintain accurate positioning in closed-loop motion control systems.
  • 📐Two Width Options — The 10mm width suits compact, lightweight drives; the 15mm width handles higher torque loads. Both share the same HTD 3M tooth profile for straightforward width upgrades without changing pulleys.
  • 📏Ten Circumference Sizes in One Listing — From 189mm to 390mm, covering the most common HTD 3M replacement sizes for delta 3D printers, robotic arms, and small automation equipment — no need to source from multiple suppliers.
  • 🔇Low-Vibration Rubber Body — The rubber compound dampens drive vibration and operates quietly, making these synchronous belts a practical choice for desktop CNC routers and enclosed 3D printer builds where noise is a concern.

📐 Technical Specifications — HTD 3M Closed Loop Timing Belts

Belt Type HTD 3M Closed Loop Synchronous Belt

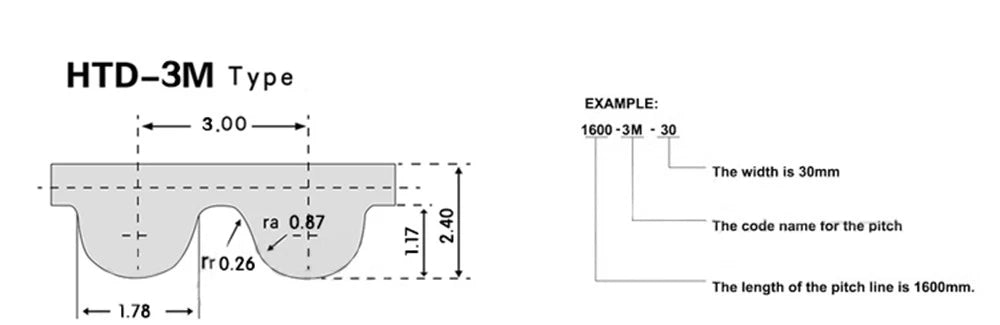

Tooth Pitch 3mm (≈0.118")
Tooth Profile HTD (High Torque Drive) — rounded tooth form
Available Circumferences 189mm (≈7.4") / 210mm (≈8.3") / 216mm (≈8.5") / 219mm (≈8.6") / 222mm (≈8.7") / 225mm (≈8.9") / 228mm (≈9.0") / 231mm (≈9.1") / 234mm (≈9.2") / 390mm (≈15.4")
Belt Width Options 10mm (≈3/8") / 15mm (≈19/32")
Material Rubber with internal cord reinforcement
Loop Style Closed loop (seamless, no splice)
Pack Quantity 1 piece per order
Tooth Count See variant options (circumference ÷ 3mm)
Compatible Pulleys Standard HTD 3M pulleys (verify groove width matches belt width)
Typical Applications 3D printers (delta, CoreXY), CNC routers, robotics, servo drives, automation equipment
Not Compatible With MXL, XL, L, GT2, or other non-HTD-3M tooth profiles

❓ Frequently Asked Questions

How do I choose the right HTD 3M belt length?

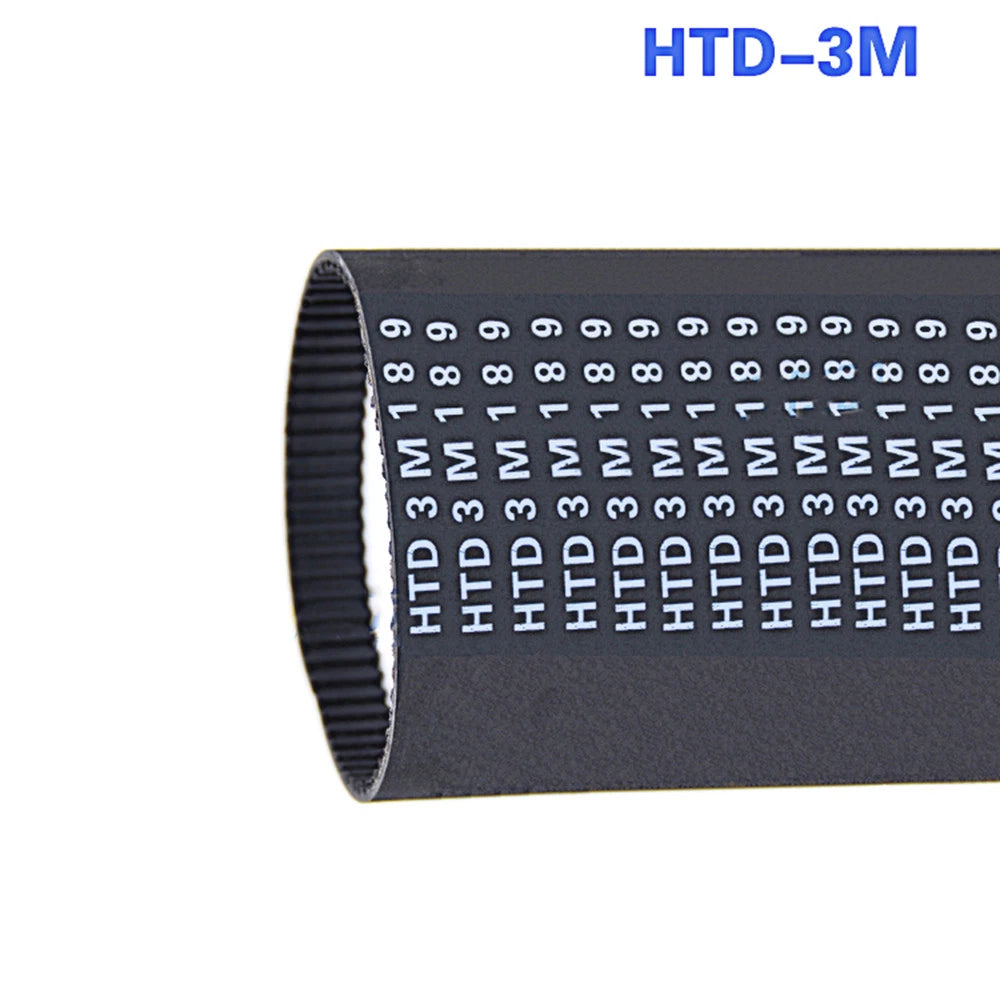

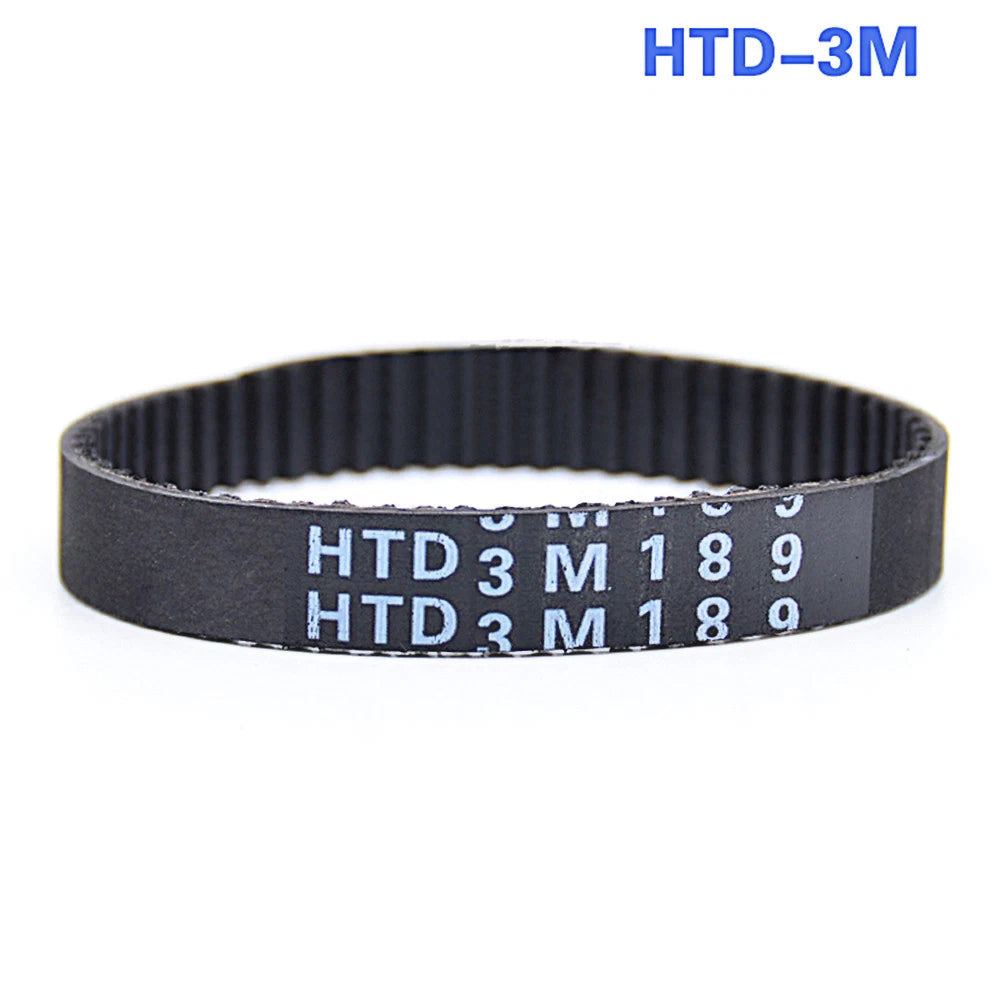

The number after "3M-" is the belt's outer circumference in millimeters. For example, 3M-216 = 216mm (≈8.5") circumference. To find your size, count the teeth on your existing belt and multiply by 3mm, or measure the belt's outer circumference directly. If measuring a flat open belt, double the length to get the loop circumference. Available sizes in this listing range from 189mm (≈7.4") to 390mm (≈15.4").

What is the tooth pitch of an HTD 3M timing belt?

HTD 3M belts have a standardized tooth pitch of 3mm (≈0.118") with a rounded HTD tooth profile. This profile is designed for higher torque transmission compared to trapezoidal profiles such as MXL or XL, and is not interchangeable with those standards. Always confirm your pulley is rated for HTD 3M before ordering.

Which belt width should I choose — 10mm or 15mm?

The 10mm width is typically used in lighter-duty applications such as 3D printer axis drives and small robotic joints. The 15mm width generally provides higher torque capacity and suits applications with greater load demands or wider pulley grooves. Always match the belt width to your pulley groove width for proper belt tracking and engagement.

How much torque can these HTD 3M timing belts handle?

HTD 3M belts are designed for light-to-medium duty precision drives. Exact torque ratings depend on belt width, pulley tooth count, wrap angle, and operating speed. Generally, the 15mm width can handle higher loads than the 10mm width at the same speed. For heavy industrial applications, a larger pitch HTD belt (5M or 8M) is typically recommended.

Are these timing belts suitable for outdoor or wet environments?

These belts are made from rubber with internal cord reinforcement, which provides good resistance to incidental moisture in typical indoor conditions. For prolonged outdoor exposure, UV radiation, or chemical environments, belt performance may degrade over time. In most cases, they are best suited for enclosed or semi-protected applications such as desktop machines and indoor automation equipment.

Are these belts compatible with standard HTD 3M pulleys?

Yes. These belts follow the standard HTD 3M tooth profile (3mm pitch, rounded tooth form) and are generally compatible with any standard HTD 3M pulley. Always verify that the pulley groove width matches your chosen belt width (10mm or 15mm) before ordering to ensure proper belt tracking and tooth engagement.

Can I use these belts in a 3D printer or CoreXY build?

In many cases, yes. HTD 3M closed-loop belts are commonly used in delta-style 3D printers and some CoreXY builds that use fixed-center-distance pulley arrangements. Verify the required belt circumference against your printer's specification before ordering — even a 3mm difference in circumference will affect fit and tension. If your printer uses an open-ended belt on a tensioner system, an open HTD 3M belt roll may be more appropriate.

🛒 Select your type and belt width above, then add to cart — ships from our US warehouse.
